OTS ET4111Pp Series User manual

ET4111Pp Series
Unmanaged Industrial 4-port 10/100Base-TX + 1-port 100Base-FX SFP Ethernet Switch with
PoE+
1V1
This quick start guide describes how to install and use the Industrial PoE Unmanaged Ethernet Switch. This is the
Switch of choice for harsh environments.
Overview
The ET4111Pp-S product is an industrial unmanaged switch which provides 4 port 10/100Base-TX + 1x100Base-FX
SFP port. The 10/100Base-TX ports supports PoE (Power Sourcing Equipment) and compliant with IEEE 802.3at.
Compliant with IEEE 802.3 10Base-T, IEEE802.3u 100Base-Tx, IEEE 802.3x, and IEEE802.3at. The product will
provide PoE power to any IEEE802.3at compliant network device. With its reliable design and ease of use, the
product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless
access points between remote locations.
Physical Description
Front Panel
General
To ensure trouble free transportation and storage, all OT Systems products must be thoroughly inspected, tested
and well packed before delivery. Check the product upon receipt for any visible damage which may have been
caused during shipping.
The product can be mounted on walls or rest on table tops and operates with an external 48V power adapter.
Optical SPD LINK/ACT Ethernet Indicator Power Input
ET4111Pp Series
Unmanaged Industrial 4-port 10/100Base-TX + 1-port 100Base-FX SFP Ethernet Switch with
PoE+
2V1
Installation
1. Connect one end of the Ethernet cables to their corresponding ports on the product. Connect the other end to
the network equipment such as IP cameras, Switches or PCs. Insert the SFP and connect the optical fiber
cables to its connectors.
2. Connect the product with the power adapter and switch on the product, the PWR indicator should then be ON.
If it is not, please check whether the power cable is connected properly and the power supply functions
normally.
3. After all cables are connected, corresponding indicators will be on. Please refer to the Operational
Instructions for detail descriptions.
Cable Connections
Signal Type
Cable Type
Connector
Ethernet
Cat. 5 or above
RJ45
Optical
SM/MM Optical fiber cable (depends on SFP)
LC
Power supply
Power cable
2-pin Terminal Block
Interface
Ethernet Port:
RJ45 Pin Assignment:
Pin
Assignment
1
Output Transmit Data +
2
Output Transmit Data -
3
Input Receive Data +
4
Positive (VCC+)
5
Positive (VCC+)
6
Input Receive Data -
7
Negative (VCC-)
8
Negative (VCC-)
Power Connector:
Pin
Description
-
+
Power Input
GND
+48V
(DC)
ET4111Pp Series
Unmanaged Industrial 4-port 10/100Base-TX + 1-port 100Base-FX SFP Ethernet Switch with
PoE+
3V1
Operational Instructions
Indicators
Indicator
Color
Status
Description
PWR
Green
ON
Powered on
SFP LINK
Green
ON
Fiber link up
Blinking
The fiber link is receiving or transmitting data
OFF
Fiber is not connected or fiber link down
PoE (1-4)
Green
ON
PoE is activated.
Blinking
A Power Device (PD) is being detected.
OFF
No device is connected or the connected device is not
a PD.
RJ45
Port
(P1-P4)
LINK/ACT
Green
ON
A network device is connected
Blinking
The connected device is transmitting or receiving data.
OFF
No network device is connected
SPD
Orang
e
ON
100Base-TX
OFF
10Base-TX mode
Ports
P1-P4
Ethernet ports
SFP
Fiber port
Power Input
DC 48V input
Functional Description
Supports IEEE802.3at Power over Ethernet (POE+)
1 SFP (mini-GBIC) supports 10/100Base-FX speed
Support Auto-Negotiation and Auto-MDI/MDI-X
Support Store-and-Forward Transmission
Support Wall-mount installation
-10℃to 60℃(14℉to 140℉) operating temperature
Assembly, Startup, and Dismantling
Wall Mounting Installation
Assembly: Mount the standalone unit onto a fixture, e.g. a plank, (either on the wall or on a flat surface) with
at least 2 screws piercing through the holes on the mounting frame to secure it in position.
Startup: Connect the supply voltage to start up the Switch via the terminal block.
Dismantling: Locate and remove the securing screws. Usually, but not limited to, at least 2 screws.
Manual Earth Green manual is available on our website www.ot-systems.com

This manual suits for next models

2

Other OTS Switch manuals

OTS ET2212PpH-S-DR User manual

OTS

OTS ET2212PpH-S-DR User manual

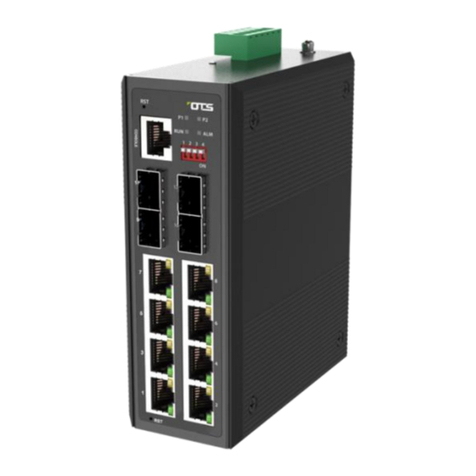

OTS IES8242MPp9H-S-DR User manual

OTS

OTS IES8242MPp9H-S-DR User manual

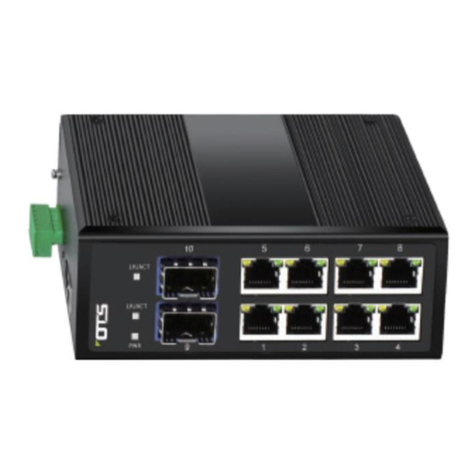

OTS ET8222PpH-S-DR User manual

OTS

OTS ET8222PpH-S-DR User manual

OTS IES24242MPpH-S User manual

OTS

OTS IES24242MPpH-S User manual

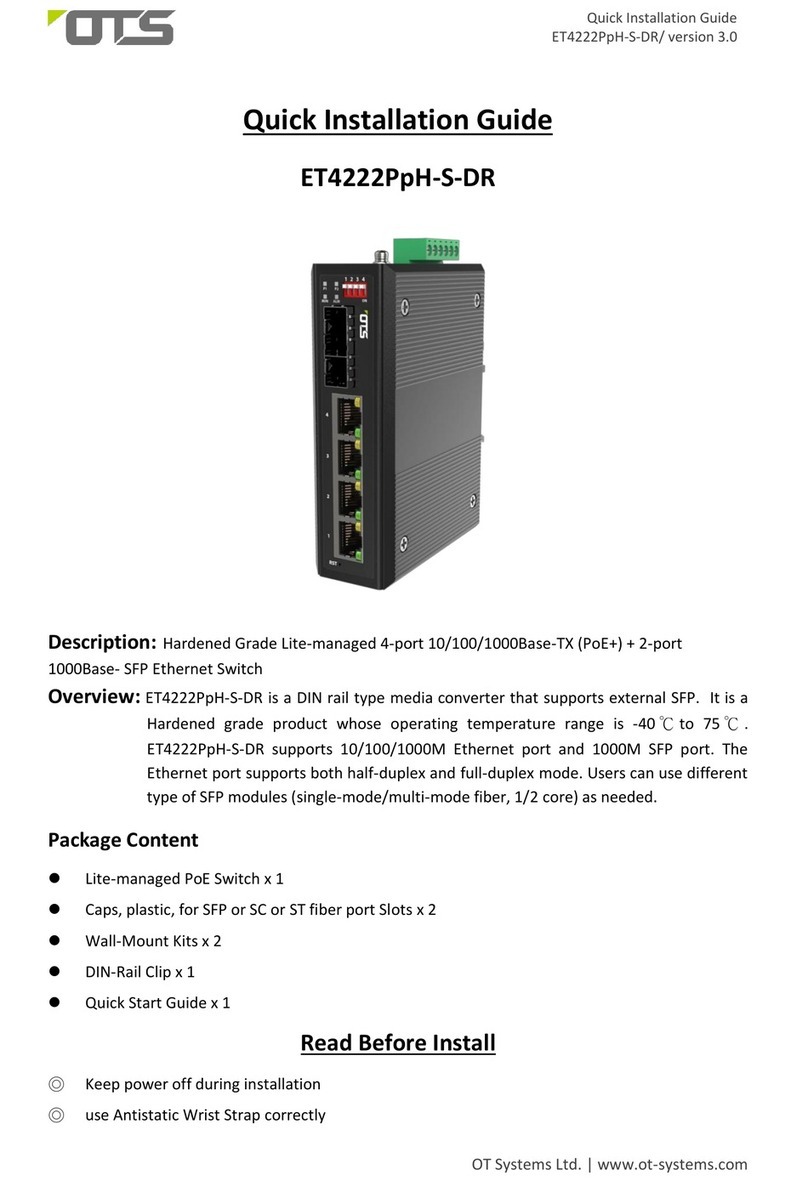

OTS ET4222PpH-S-DR User manual

OTS

OTS ET4222PpH-S-DR User manual

OTS ET2212Pp-S-DR User manual

OTS

OTS ET2212Pp-S-DR User manual

OTS IES8242MPpH-S-DR User manual

OTS

OTS IES8242MPpH-S-DR User manual

OTS IES8222MPpH-S-DR User manual

OTS

OTS IES8222MPpH-S-DR User manual

OTS ET4222Pp-S-DR User manual

OTS

OTS ET4222Pp-S-DR User manual

OTS ET4222PpH-S-DR User manual

OTS

OTS ET4222PpH-S-DR User manual

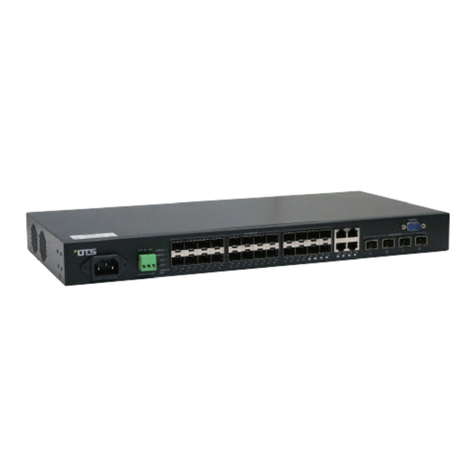

OTS ET42202XM-S-PD User manual

OTS

OTS ET42202XM-S-PD User manual

OTS IES16242MPpH-S-DR User manual

OTS

OTS IES16242MPpH-S-DR User manual

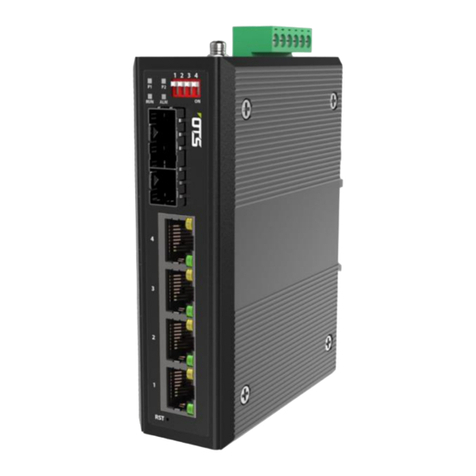

OTS ET4222Pp9H-S-DR User manual

OTS

OTS ET4222Pp9H-S-DR User manual

OTS ET8222PpH-S-DR User manual

OTS

OTS ET8222PpH-S-DR User manual

OTS ET4222Pp9H-S-DR User manual

OTS

OTS ET4222Pp9H-S-DR User manual

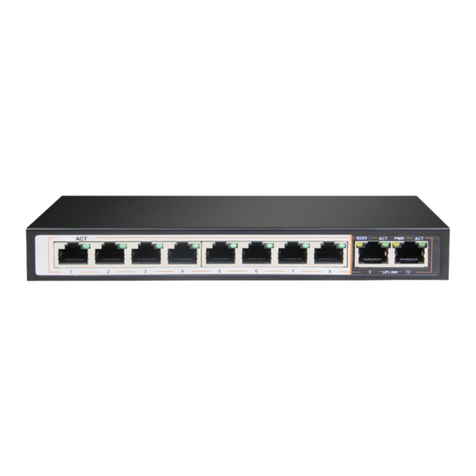

OTS EC10200Pp User manual

OTS

OTS EC10200Pp User manual

OTS IES16242MPp-S User manual

OTS

OTS IES16242MPp-S User manual

OTS IES82162XMH-S-RP User manual

OTS

OTS IES82162XMH-S-RP User manual

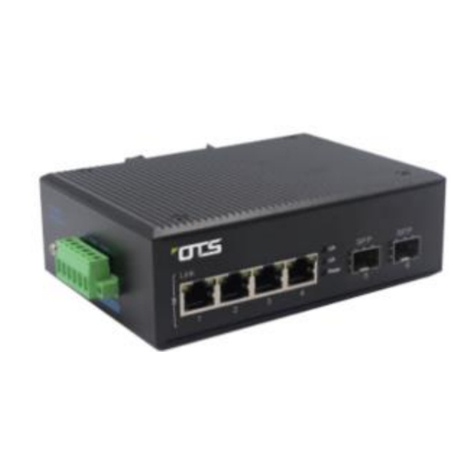

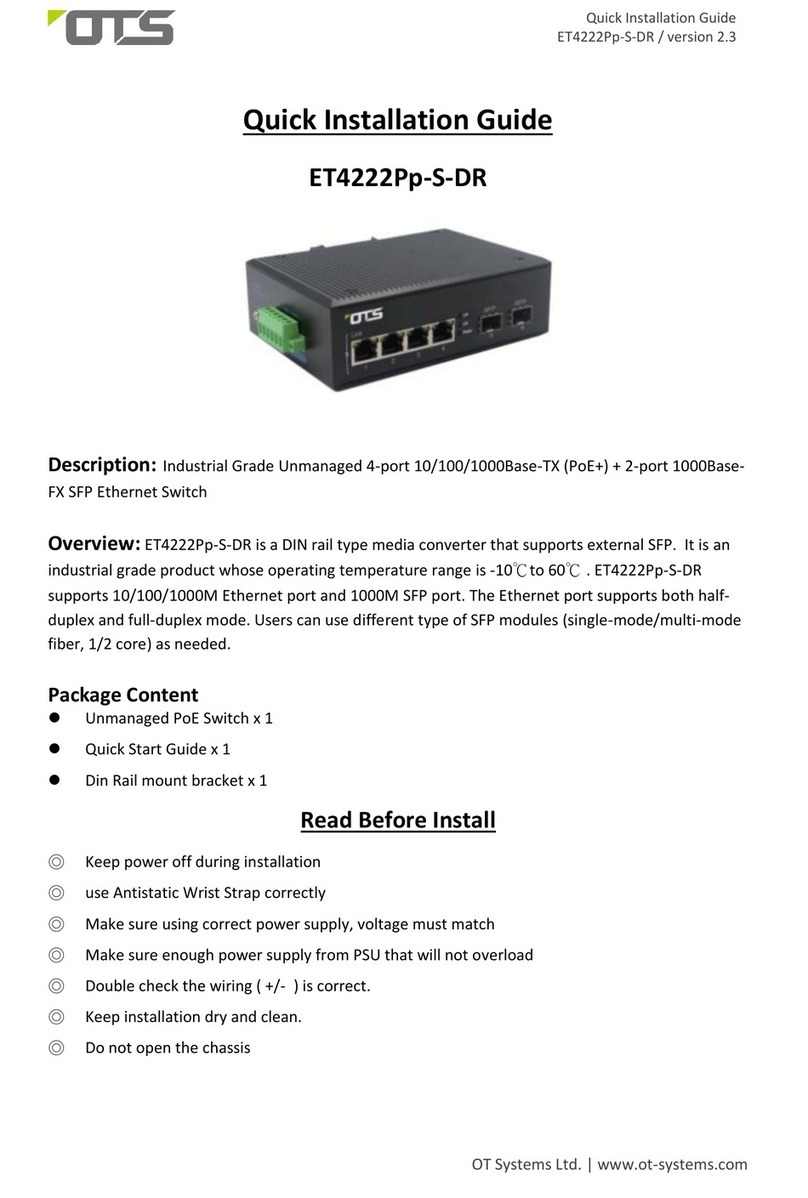

OTS ET4222Pp-S-DR User manual

OTS

OTS ET4222Pp-S-DR User manual

OTS IES24242MPp-S User manual

OTS

OTS IES24242MPp-S User manual

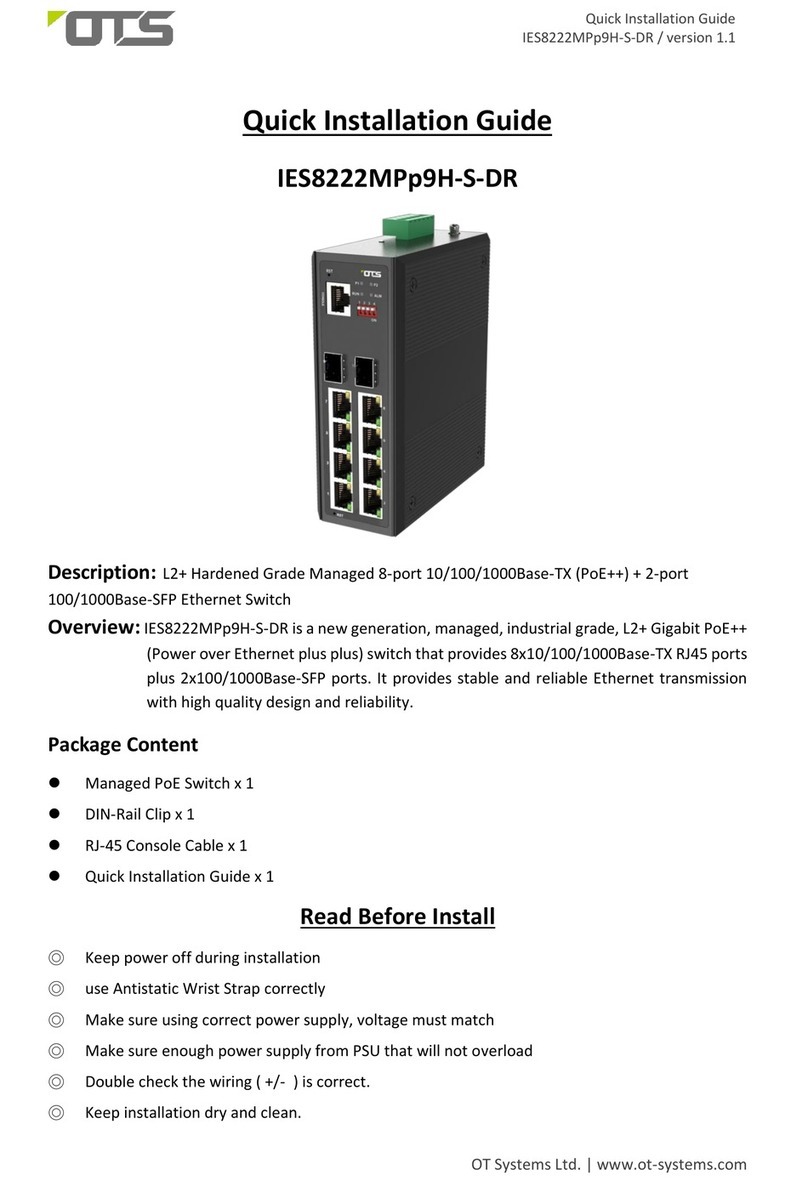

OTS IES8222MPp9H-S-DR User manual

OTS

OTS IES8222MPp9H-S-DR User manual

OTS IES8242MPpH-S-DR User manual

OTS

OTS IES8242MPpH-S-DR User manual

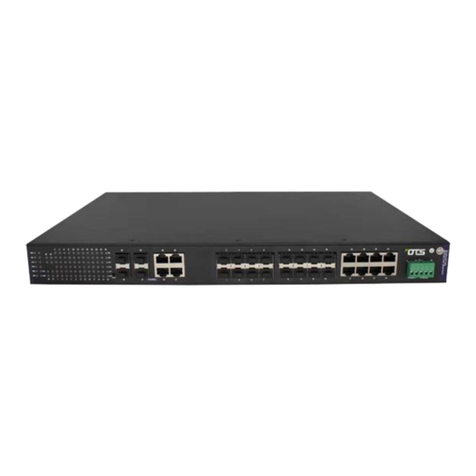

OTS IES82162MH-S-RP User manual
