Otto HORSEN OTHOR2DROA User manual

HORSEN 2 DRAWER CUBE INSERT
ASSEMBLY INSTRUCTIONS
1
This design and instruction booklet is subject to copyright.
1 Carton
www.officeworks.com.au
For spare parts or hardware call [phone] or email [email protected]
OTHOR2DROA / OTHOR2DRWE /
OTHOR2DRWN

2/15
NOTE
Please check you have all hardware before assembling.
If you are missing any hardware, please contact Kyvas on [phone]
or email [email protected]
Please ensure you have the item, required hardware part and quantity.
Please retain your receipt as proof of purchase to validate your warranty.
CAUTION
Do not tighten screws before all screws are in the right place.
Do not use this product unless all bolts, screws and knobs are firmly secured.
Check that all bolts, screws and knobs are securely tightened at least
every 4 months.
WARNING
If parts are missing, broken, damaged or worn stop using the product until
all repairs are made using manufacturer authorised parts.
Keep children and animals away from the assembly area.
This furniture contains small parts that could cause choking if swallowed.
Keep all plastic wrapping materials away from babies and children to
avoid danger of suffocation.
This item is not for outdoor use – unless stated otherwise.
Failure to follow these warnings could result in serious injury.
DANGER
CHILDREN MUST BE SUPERVISED.
Officeworks Ltd. | 236-262 East Boundary Road | Bentleigh East VIC 3165 | AUSTRALIA
Tools Required
CAUTION:Do not use tools other than those required, as this can damage
your new item.
To view an assembly video, go to https://www.officeworks.com.au/
Search the product by item code or name:
Click on the icon to watch the video.
Spare Parts & Hardware
[phone]
Estimated Assemble Time: 30min
Customer Service
Contact Details
People Required General Advice
Assemble On A Clear Flat
Surface
One Person Is Required To
Safely Assemble The Item

Part Overview
3/15
Part List
1
Parts located in Carton - OTHOR2DROA / OTHOR2DRWE / OTHOR2DRWN
X 1 pc X 2 pcs X 2 pcs
X 2 pcsX 2 pcs X 2 pcs
2 3
45 6
1
2
2
3
3
4
4
5
5
6
6

Hardware List
Hardware Pack located in Carton - OTHOR2DROA / OTHOR2DRWE / OTHOR2DRWN
A
( 4 x 16 mm)
X 4pcs
X 12pcs X 8pcs
X 8pcs X 8pcs X 8pcs
X 8pcs
B C
E G H
I J
( 4 x 14 mm)
X 2pcs
( 4 x 30 mm)
4/15
( 3.5 x 30 mm)
( 8 x 10 mm)
( 6 x 28 mm) ( 4 x 8 mm)
(M4 Size)

Hardware List
Other hardware located in Carton - OTHOR2DROA / OTHOR2DRWE / OTHOR2DRWN
D
Handle
X 2pcs
X 2pcs
Runner
Runner Runner Runner
X 2pcs X 2pcs X 2pcs
F
5/15
CL
CR DL DR
X 1pc
16mm
16mm
For missing hardware, please contact Kyvas on [phone] or
email [email protected]

6/15
Assembly
Step 1
1 pc
F
16mm
F
16mm
F

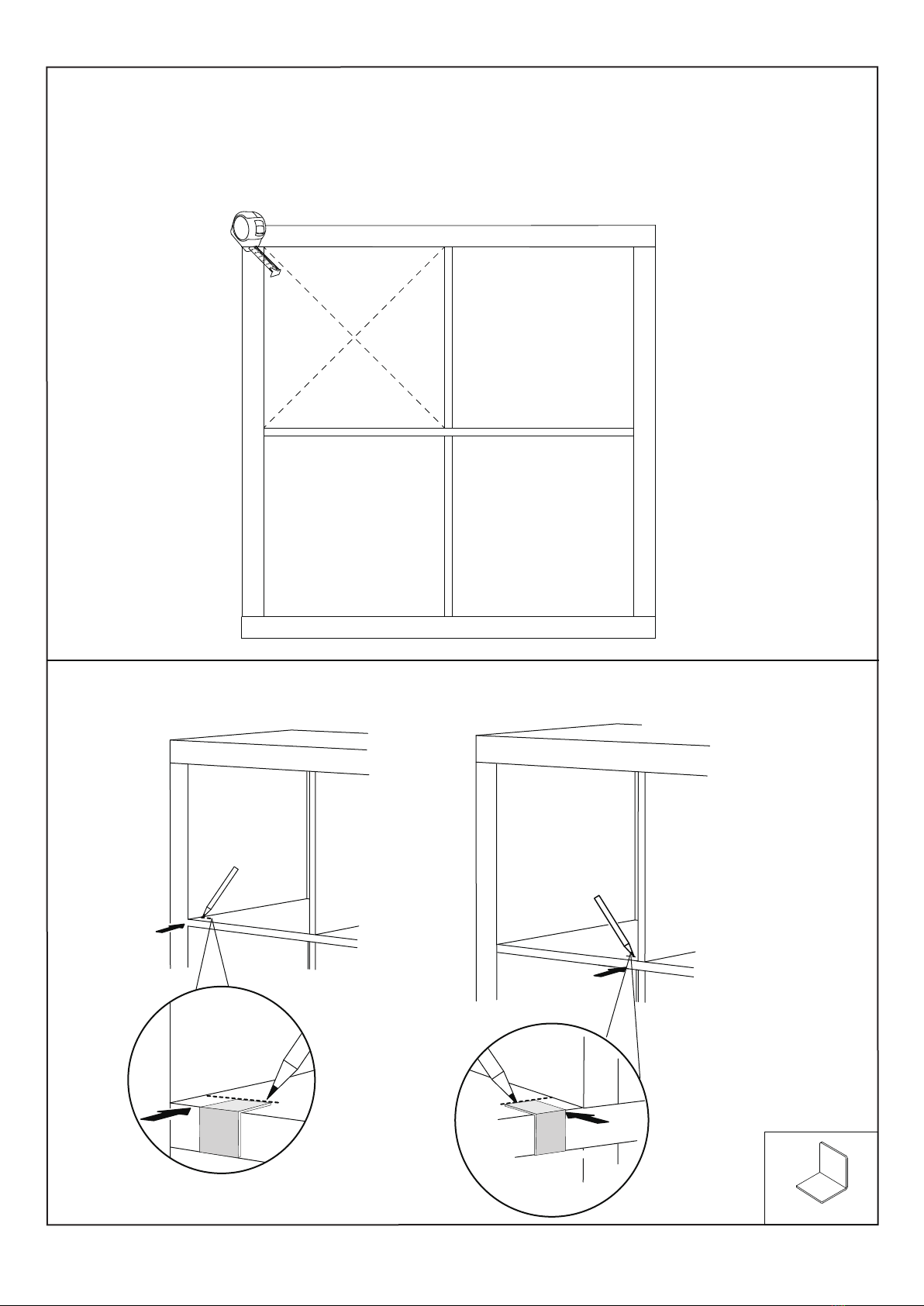

Note: Before installing this item, please ensure the main cube unit is square.
To check this measure the opening as indicated and the A & B measurements
should be the same. If there is a difference greater than 2mm, please fix the
main cube unit before proceeding.
AB

7/15
Step 2
CL
HI
8 pcs 2 pcs
8 pcs
CR
2 pcs
CL
CL
CR
CR
1
H
H
H
H
H
H
H
H
I
I
I
I
I
I
I
I
H
I

8/15
Step 3
1
1
1

9/15

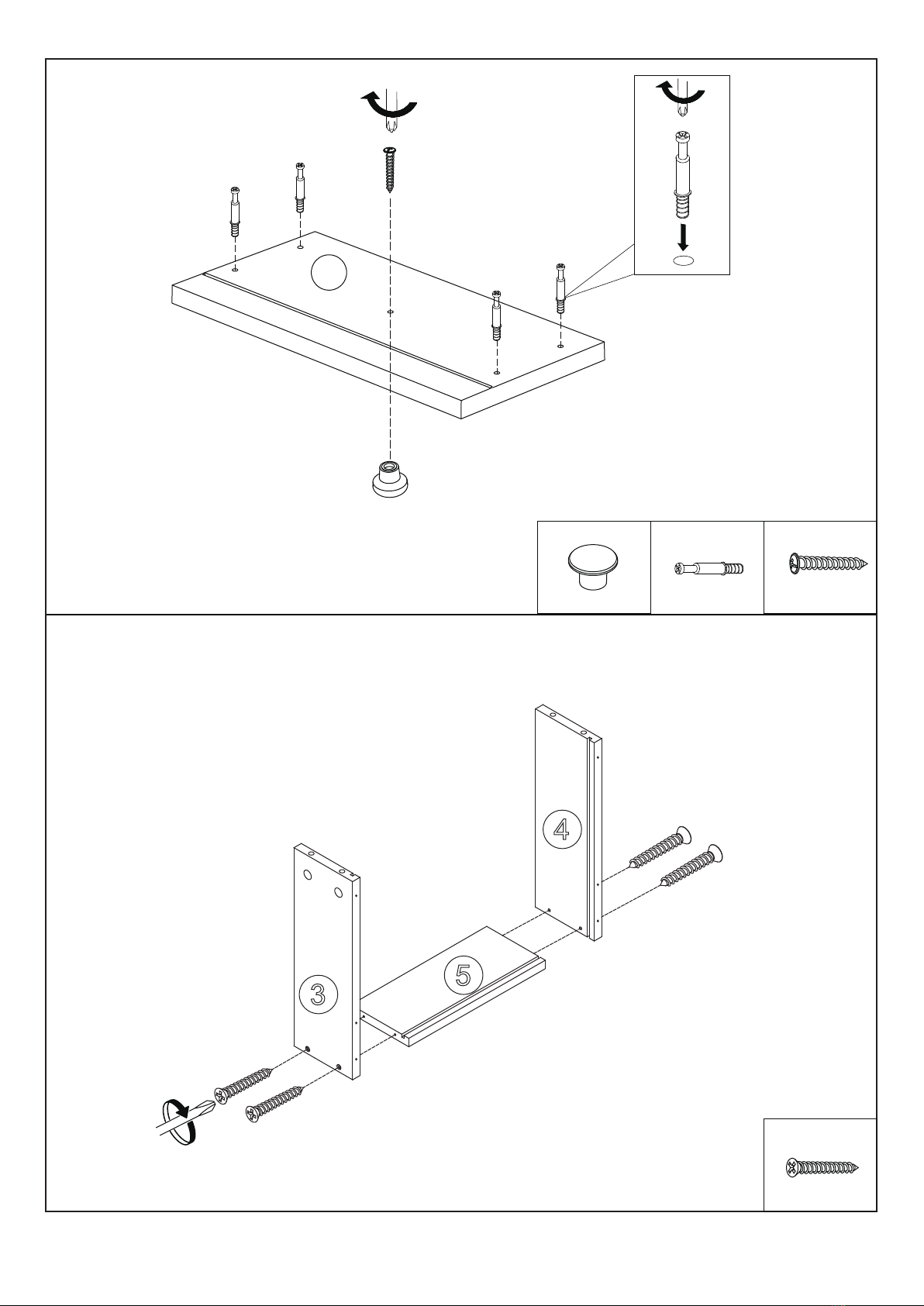

A

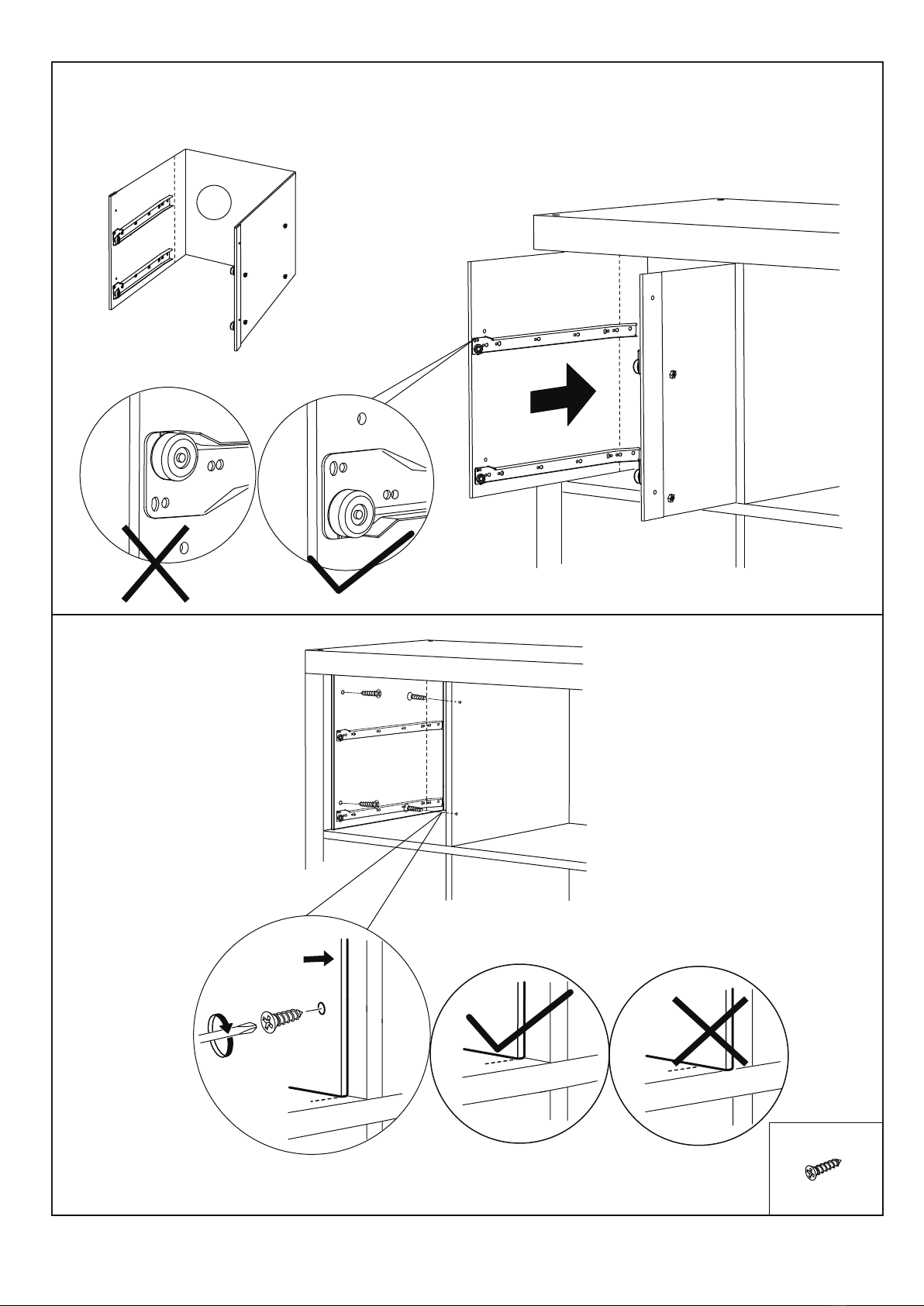

Step 5
A
4 pcs
AA
AA
Step 4
1

Step 6
10/15
D J
2 pcs
2 pcs
D
Step 7
2
E
J
E
8 pcs
x 2
C
C
C
C
3
4
5
C
8 pcs
x 2
E
E
E
E

11/15
Step 9
6
Step 8
8 pcs
x 2
3
5
2G
G
G
G
x 2 G
3
6
Tighten cam locks once panel is in place.
2
4
G

12/15
12 pcs 2 pcs 2 pcs
Step 10
x 2
B
DL DR
B
6
DR
DL
B
B
B
B
B
B
B
B
BB
B

13/15

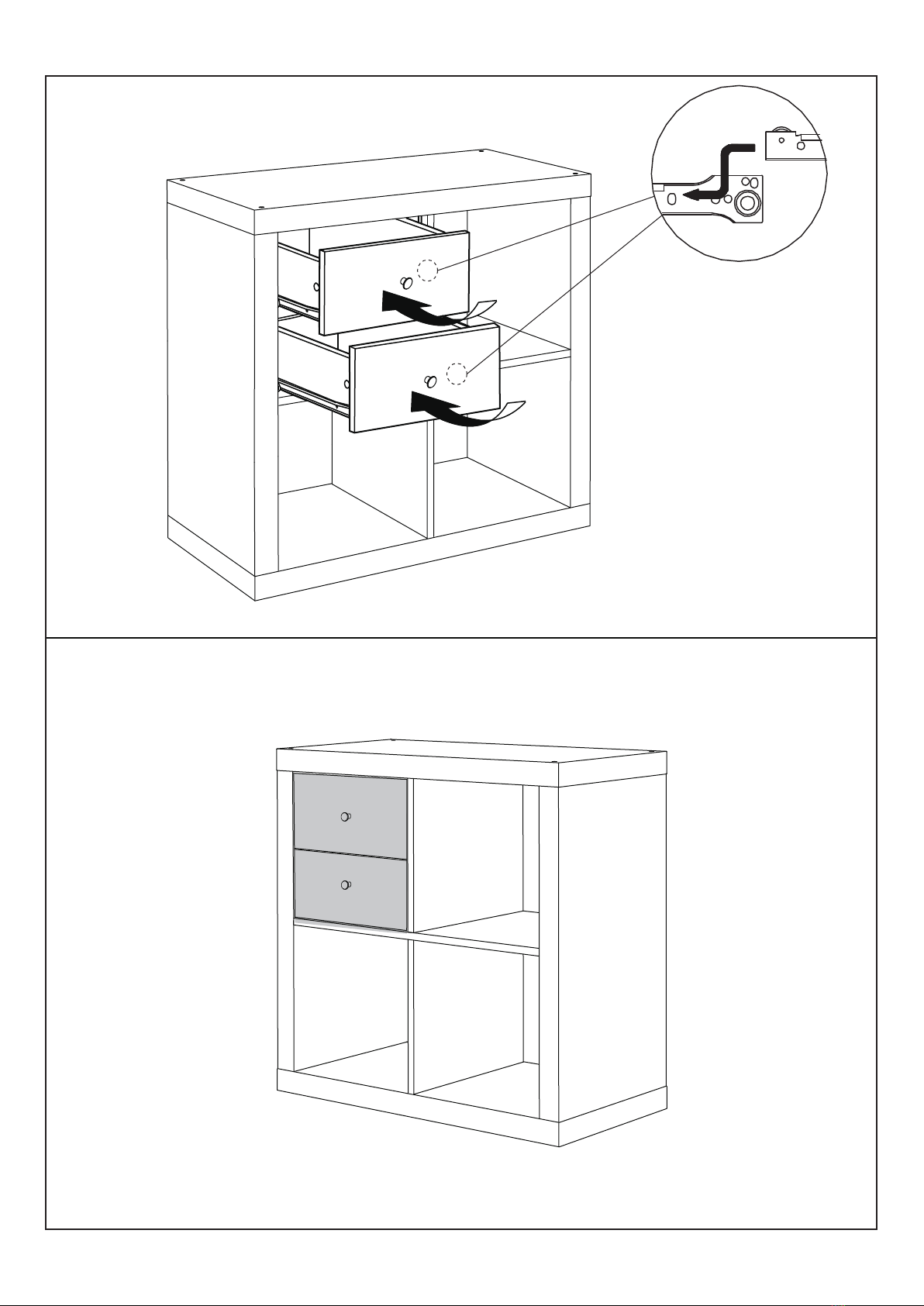

Your HORSEN 2 DRAWER CUBE INSERT is now complete and ready for use.
Step 11
Maximum Load Capacity:
Each Drawer - 5 KG

14/15
Care Advice
Care Instructions - PVC/ Melamine Finish Cube Insert
Keep away and protect from direct sunlight and heat.
Do not place sharp materials(knife, fork, etc) directly onto your furniture as sharp
material may scrape and damage the finish.
Clean up spills quickly. Water left over a prolonged period of time may cause
damage. Alcohol, perfume, nail polishes, aftershave and some medication may
cause severe finish damage if not cleaned immediately.
Use a clean, soft, dry, lint free absorbant cloth to clean your furniture. Do not use
any detergent as they may contain ingredients that may react and damage the finish.
Clean, check and tighten all parts regularly.
Safety Warning
WARNING – Put locking devices on all drawers to prevent children opening them
and using them as steps.
WARNING – This product is intended to hold the maximum weight indicated.
Exceeding the maximum weight will result in instability and may cause injury.

15/15
Thank you for your purchase. Please retain your receipt to validate warranty.
If you would like to know more about our furniture products, please visit www.officeworks.com.au
