INSTRUCTIONS “OAC” Series
MAINTENANCE
INSTRUCTIONS
1- Once a year, remove the front panel and use a vacuum
cleaner to remove the dust accumulation inside the heater
and through openings of the front panel.
2- Cleaning should be done while the heater is disconnected
from the main service panel. Wait until the housing
and heating element cool before performing maintenance.
3- Replace the front panel before energizing.
4-Anyotherservicingshouldbeperformedbyaqualied
technician.
INS01-200301-06
Read carefully these instructions before installation, operation
of the heater. Failure to adhere to the instructions could result in
re,electricshock,seriouspersonalinjury,anddeathorproperty
damage. Review frequently for continuing safe operation and
instruction of future users, if necessary.
IMPORTANT
INSTRUCTIONS
1- Read all instructions before installing or using this heater.
2- This heater is hot when in use. To avoid burns, do not let
 bareskintouchhotsurfaces.Keepcombustiblematerials,
 likefurniture,pillows,bedding,papers,clothes,and
curtains at least 36 in. (915 mm) from the front of the heater.
3- Extreme caution is necessary when any heater is used by
or near children or invalids and whenever the heater is left
operating and unattended.
4- Do not operate any heater after it malfunctions. Disconnect
power at service panel and have heater inspected by a
reputable electrician before reusing.
5- Do not use outdoors.
6- Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause an electric
 shockorre,ordamagetheheater.
7- Donotblockairintakesorexhaustinanywaywhatsoever.
8- Thisheaterhashotandarcingorsparkingpartsinside.
 Donotuseitinareaswheregasoline,paint,orammable
liquids are used or stored.
9- Use this heater only as described in this manual. Any other
 usenotrecommendedbythemanufacturermaycausere,
 electricshock,orinjury.
10- AMERICAN VERSION ONLY: Some models
(up to 6000W maximum and 240V maximum)
include a visual alarm to warn that parts of the heater are
getting excessively hot. If the light turns on, immediately
turn the heater off and inspect for any objects on or
 adjacenttotheheaterthatmayhaveblockedtheairow
or otherwise caused high temperatures to have occured.
 Ifnoobstructionisvisible,theheatermustbechecked
 byaqualiedperson.DO NOT OPERATE THE
HEATER WHEN THE ALARM LIGHT IS ON.
11- The thermostat should not be considered an infallible
device in cases where maintaining a temperature is considered
critical. Examples: Hazardous material storage, computer
server room, etc. In these particular cases, it is imperative to
add a monitoring system to avoid the consequences of a
thermostat failure.
OPERATING
INSTRUCTIONS
1- The heater must be properly installed before it is used.
2- Turnthepoweronatthecircuitbreakerpanel.
3- Electronic thermostat: be sure to set it on the fan mode.
4- Built-in thermostat: to set thermostat at the desired
temperature, follow these steps:
 - Setthermostatatmaximumtemperature(turnclockwise).
- When the desired temperature is reached, turn the
  thermostatcounter-clockwiseslowlyuntilyouhear
  aclick.
 - Thethermostatwillkeepthisroomtemperature.
5- Built-inthermostatwithcontrolknob,thesettingcanbe
 adjustedwiththeknobsupplied,locatedonthefrontcover.
6- Built-in tamperproof thermostat: the setting can be adjusted
through the hole in the front cover with a small slotted
screwdriver.
7- AMERICAN VERSION ONLY:
Some models (up to 6000W maximum and 240V maximum)
include a visual alarm to warn that parts of the heater are
getting excessively hot. If the light turns on, immediately
turn the heater off and inspect for any objects on or adjacent
 totheheaterthatmayhaveblockedtheairoworotherwise
caused high temperatures to have occured.
DO NOT OPERATE THE HEATER WHEN THE
ALARM LIGHT IS ON.
OPTIONS:
Fan switch:
This option allows the use of the fan in continuous or automatic
mode.
The switch can be switched through the upper grille with a
screwdriver.
Position ON: The fan runs continuously, with or without heating
demand.
Position AUTO: The fan operates in automatic mode, only during a
heating demand.
Heating switch:
This option allows the standby of the heating function of the heater.
The switch can be switched through the upper grille with a
screwdriver.
Position ON: The heater is operating normally, depending of the
heating demand from the thermostat.
Position STBY: The heater does not allow to heat the room, even
with a heating demand from the thermostat.
However, the fan can be used for air circulation with the fan switch
option, if applicable.
WARNING
When using electrical appliances, basic precautions should
always be taken to reduce the risk of re, electrical shock and
injury, including the following.
SAVE THESE INSTRUCTIONS
WARRANTY
Please refer to the product sheet at www.ouellet.com.
KOE Ø22 mm
KOE Ø7/8"
109 mm
4 5/16"
410 mm
16 1/8"
810 mm
31 7/8"
767 mm
30 3/16"
1227 mm
48 5/16"
1185 mm
46 5/8"
561 mm
22 1/16"
368 mm
14 7/16"
51 mm
2"
212 mm
8 5/16"
74 mm
2 7/8"
55 mm
2 3/16"
34 mm
1 5/16"
506 mm
19 7/8"
34 mm
1 5/16"
51 mm
2"
51 mm
2"
109 mm
4 5/16"
561 mm
22 1/16"

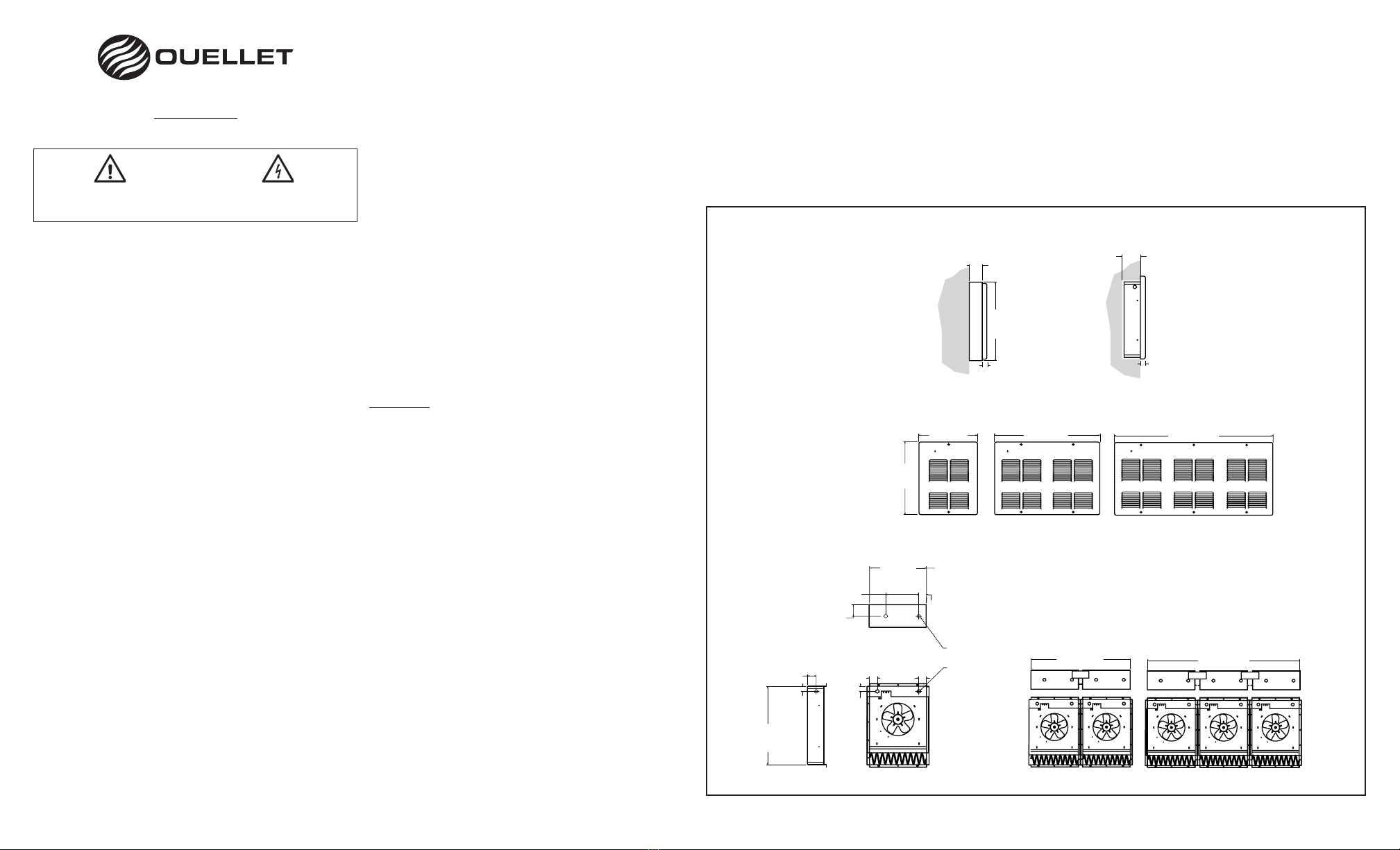

Side View
All models
Front View
Required Wall
Opening
Double UnitSingle Unit Triple Unit
33 mm
1 5/16"
33 mm
1 5/16"
Double Unit
Single Unit Triple Unit

Semi-recessed mounting
Single unit
Model 1 in. (25 mm)
INSTALLATION
INSTRUCTIONS
RECESS MOUNTING:
1- Heater must be used with recess box.
2- Never install warm air outlet of heater less than 10 in. (250 mm)
 fromoororadjacentwall.
3- Provide a wall opening as:
Depth : 4 5/16 in. (109 mm)
Height : 19 7/8 in. (506 mm)
Length : - Single unit : 14 7/16 in. (368 mm)
- Double unit : 30 3/16 in. (767 mm)
- Triple unit : 46 5/8 in. (1185 mm)
4- Removetheappropriateknock-outfromtherecessboxforthe
electrical supply.
5- Attachrmlytherecessboxusingprovidedscrews.
 Makesurethattheedgeoneachsideoftherecessboxleanon
the gypsum panel and not on the structural parts of the wall.
 Seemarkingonthesidesoftherecessbox.
6- Install the heater to the recess box and be sure that the heater
 isattachrmlywithfour(4)providedscrews.
7- Connect the heater leads to the supply leads according to national
and local codes. See wiring diagram in the front cover of the heater.
8- Makesurethefanrotatesfreelyandthatthereisnoforeign
object in the heater.
9- Install the front cover using the provided screws.
IMPORTANT: To insure that the front cover is not upside down,
 checkifthelogoisinthecorrectorientation.
10- To test the heater temporarily, set thermostat at maximum temperature.
SURFACE MOUNTING:
Model 4 in. (102 mm)
1- The surface box must be used with recess box.
2- Never install warm air outlet of heater less than 10 in. (250 mm)
 fromoororadjacentwall.
3- Locate the power supply leads behind the planned location of the
heater (surface box).
4- Mount the surface box securely to the wall with provided screws.
 IMPORTANT:Forasinglesurfacebox,therearetwobracktets
 xedatthetopandbottom.Unfoldthemetalhookstoremovethe
 brackets.Insertbracketsinthesurfaceboxbeforecontinuingthe
installation. See illustration to install properly.
5- Follow instructions 4 to 10 as above for recess mounting.
SEMI-RECESSED MOUNTING:
Model 1 in. (25 mm) and Model 2 in. (51 mm)
1- The surface box must be used with recess box.
2- Never install warm air outlet of heater less than 10 in. (250 mm)
 fromoororadjacentwall.
3- Provide a wall opening as:
Depth for 1 in. model : 3 5/16 in. (84 mm)
Depth for 2 in. model : 2 5/16 in. (59 mm)
Height : 19 7/8 in. (506 mm)
Length : - Single unit : 14 7/16 in. (368 mm)
- Double unit : 30 3/16 in. (767 mm)
- Triple unit : 46 5/8 in. (1185 mm)
4- Locate the power supply leads behind the planned location of the
heater (surface box).
5- Mount the surface box securely to the wall with provided screws.
IMPORTANT: For a single surface box, model 2 in. (51 mm) there are
 twobracktetsxedatthetopandbottom.Unfoldthemetalhooksto
 removethebrackets.Insertbracketsinthesurfaceboxbeforecontinuing
the installation. See illustration to install properly.
6- Follow instructions 4 to 10 as above for recess mounting.
IMPORTANT
1- Do not obstruct front of heater for at least 48 in. (1220 mm).
2- Any remote thermostat or relay must be connected to the heater control terminal
 block.
3- Do not interrupt power supply to control this heater.
CAUTION:
Hightemperature,riskofre,keepelectricalcords,drapery,furnishings,andother
combustiblesatleast36in.(915mm)fromthefrontoftheheater.Toreducetheriskof
re,donotstoreorusegasolineorotherammablevaporsandliquidsinthevicinityof
the heater.
Surface mounting and Semi-recessed mounting
Single unit
Model 4 in. (102 mm)
Model 2 in. (51 mm)
Surface mounting and Semi-recessed mounting
Double unit
All models
Surface mounting and Semi-recessed mounting
Triple unit
All models
