CURVE
PATIO HEATER
Owner’s Manual
Questions, problems, missing / replacement parts? Before returning to your retailer,
call our customer service department at 1-866-814-0585, 8 a.m.-8 p.m., EST,
Monday-Friday.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
An LP-cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance.
DANGER
WARNING
WARNING:For Outdoor Use Only
CAUTION:
Installer: Leave the manual instructions
to the user for future use.
Consumer: Please keep this manual
for future reference.
Model#: MTC-CURVE-GM-LP
Read the instructions before use.
This appliance must be installed in
accordance with such regulations as
are in force.

2
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent or home.
DANGER CARBON MONOXIDE HAZARD
WARNING: Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the installation, operating
and maintenance instructions thoroughly before installing or servicing this equipment.
WARNINGS AND CAUTIONS
SPECIFICATION
Certification C
74” x 31.5” x 93.7” (1880x800x2380mm)
SA
Product size
Rated heat input 32,000 BTU/hr
Fuel LP
Gas Supply 20 lb (9 kg) LP gas cylinder
Manifold pressure 3PSI
Diameter of injector 0.039" (0.99 mm)
Safety features Flame failure device, anti-tilt switch
G
Battery Size D 2pcs
as supply pressure Max. 250 PSI, Min. 5 PSI

WARNINGS AND CAUTIONS
The installation must conform with local codes
or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
NFPA58 Natural Gas and Propane Installation
Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2
The heater, when installed, must be electrically
grounded in accordance with local codes or, in
the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1.
Children and adults should be alerted to
the hazards of high surface temperatures
and should stay away to avoid burns or
clothing ignition.
Young children should be carefully
supervised when they are in the area of
the heater.
Clothing or other flammable materials
should not be hung from the heater, or
placed on or near the heater.
Prior to use, check for damaged parts such as
hoses, regulators, pilot or burner.
All leak tests should be done with a soapy solu-
tion. NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKAGE.
The propane hose with regulator assembly shall
be located out of pathways where people may
trip over it or in areas where the hose will not be
subject to accidental damage.
Any guard or other protective device
removed for servicing the heater must be
replaced prior to operating the heater.
Installation and repair should be done by
a qualified service person. The heater
should be inspected before use and at
least annually by a qualified service
person.
More frequent cleaning may be required
as necessary. It is imperative that control
compartment, burners and circulating air
passageways of the heater be kept clean.
Keeping the appliance area clear and free from
combustible materials, gasoline and other flam-
mable vapors and liquids.
Not obstructing the flow of combustion and venti-
lation air.
Keeping the ventilation opening(s) of the cylin-
der enclosure free and clear from debris.
This appliance shall be used only in a well-
ventilated space and shall not be used in a build-
ing, garage or any other enclosed area.
An appliance may be installed with shelter no
more inclusive than:
With walls on all sides, but with no overhead
cover.
Within a partial enclosure which includes an
overhead cover and no more than two side
walls. These side walls may be parallel, as in a
breezeway, or at right angles to each other.
NOTE:PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
3

WARNINGS AND CAUTIONS
The pressure regulator and hose assembly sup-
plied with the appliance must be used, replace-
ment pressure regulators and hose assemblies
must be those specified by the appliance manu-
facturer.
Do not store a spare LP-gas cylinder under or
near this appliance;
Never fill the cylinder beyond 80 percent full;
Do not clean the heater with cleaners that are
combustible or corrosive.
NOTE:PLEASE READ THE FOLLOWING SAFETY RULES
Place the dust cap on the cylinder valve outlet
whenever the cylinder is not in use. Only install
the type of dust cap on the cylinder valve that is
provided with the cylinder valve. Other types of
caps or plugs may result in leakage of propane.
Within a partial enclosure which includes an
overhead cover and three side walls, as long as
30 percent or more of the horizontal periphery of
the enclosure is permanently open.
This appliance requires 9kg(20lb) LP-gas supply
cylinder.
The LP-gas supply cylinder to be used must be:
Constructed and marked in accordance with the
Specifications for LP-gas cylinders of the U.S.
Department of Transportation (DOT); or the
Standard for Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods and Com-
mission, CAN/CSA-B339, as applicable;
Provided with a listed overfilling prevention
device; and provided with a cylinder connection
device compatible with the connection for the
appliance.
The cylinder be disconnected when the appli-
ance is not in use.
Storage of an appliance indoors is permissible
only if the cylinder is disconnected and removed
from the appliance.
A cylinder must be stored outdoors in a well-
ventilated area out of the reach of children. A
disconnected cylinder must have dust caps
tightly installed and must not be stored in a build-
ing, garage or any other enclosed area.
WARNING:
Certain materials or items, when stored under
the heater, will be subjected to radiant heat and
could be seriously damaged.
Inspect the visible portion of the hose before
each use of the appliance and inspect the entire
hose assembly at lease annually.
The cylinder used must include a collar to protect
the cylinder valve.
4

Adjustable open end wrench
Non-adjustable wrench
35(&$87,21635(&$87,216
WARNINGS AND CAUTIONS
This heater is designed to operate with a standard 20 Ib propane cylinder with Approved Cylinder
Connection.
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES:
TOOLS NEEDED:
Estimated time for assembly: 30 minutes.
Philips screwdriver
PREPARATION
Before beginning assembly of product, make sure all parts are present. If any part is missing or
damaged, do not attempt to assemble the product. Contact customer service for replacement parts.
Perform a leak test with a soapy solution:
1. To check gas connections.
2. After connecting a new cylinder.
3. Upon re-assembly after disassembly.
5

EXPLODED VIEW
1
2
3
4
6

PARTS LIST
Description PicturePart #
1 Transom assembly 1
1
1
Pole & base assembly
Cylinder fixing hook
2
4
Qty
7
3 Decorative cover 1

BEFORE ASSEMBLY
STEP 1
STEP 2
Unscrew 6pcs M5 x 12 bolts to remove the heater from the pallet, and then screw these 6pcs M5 x 12 bolts back to
the base of the heater.
NOTE: PLEASE FOLLOW THE FOLLOWING STEPS TO REMOVE THE PALLET
Unscrew 8pcs M5 x 20 bolts from fixing bar.
M5 x 12 bolts
M5 x 12 bolts
Fixing bar
M5 x 20 bolts
M5 x 20 bolts
8

ASSEMBLY INSTRUCTIONS
STEP 1
Put the decorative cover (3) through the pole (2) and place it on the tabletop.
2
Shoulder screw on pole
Pole fixing sleeve
Table of base assembly
9
3
STEP 2
Unscrew M8 x 85 bolt and M8 cap nut on Transom assembly (1).
M8 x 85 bolt
M8 cap nut
1

ASSEMBLY INSTRUCTIONS
STEP 3
Half-loosen other 3pcs M8 cap nuts on Transom assembly (1).
M8 cap nut
M8 x 85 bolt
M8 cap nut
10
1
1
2
STEP 4
Make sure the reflector is at the same side as wheels.
Insert the hose and regulator through the pole (2) and place the transom assembly (1) on the pole (2). Insert
M8 x 85 bolt through the hole of transom assembly (1) and pole (2) and secure them with M8 cap nut. Finally
tighten other 3pcs M8 cap nuts.
Note: It is recommended that two people perform this step with extra caution.
Note: Do not take out!

Tighten
ASSEMBLY INSTRUCTIONS

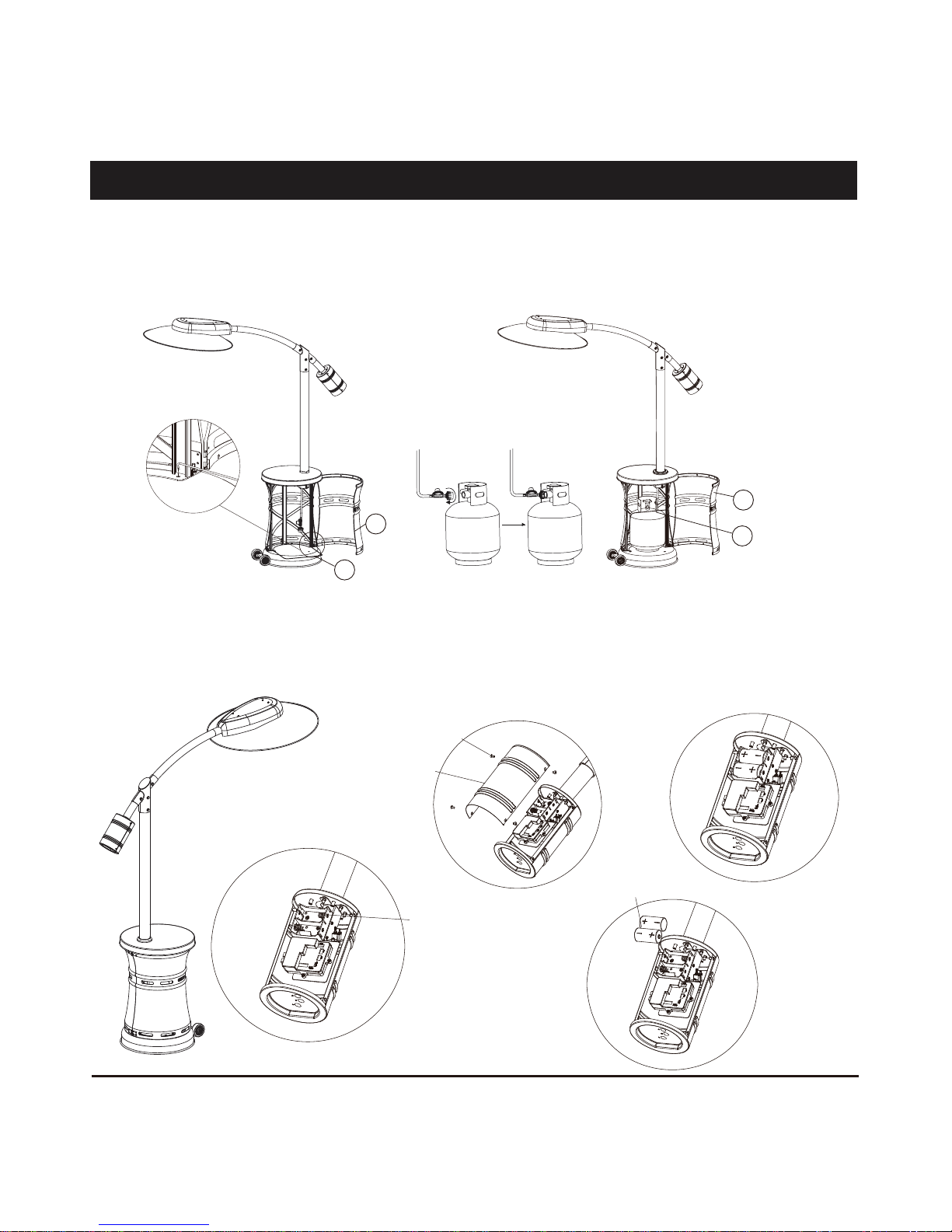

STEP 6
Unscrew 4pcs M4 x 10 bolts to take off battery compartment cover, place 2pcs 1.5V D size batteries (not included) into
battery compartment. Then secure the battery compartment cover back to position with 4pcs M4 x 10 bolts.
Note: Please take out batteries from battery compartment during periods of extended inactivity.
Battery compartment cover
Battery compartment
D size batteries 2pcs (not included)
M4 x 10 bolts 4pcs
11
STEP 5
Insert cylinder fixing hook (4) into holes on base assembly (2).
Place the gas cylinder (not included) into the base assembly (2) and fix it with cylinder fixing hook (4).
Attach the regulator to the cylinder and turn clockwise to securely tighten the valve. Close and latch the door.
Note: Make sure to check for leaks after attaching the cylinder. (For instructions, refer to the “check for leaks" section of
this manual.)
2
4
2
4

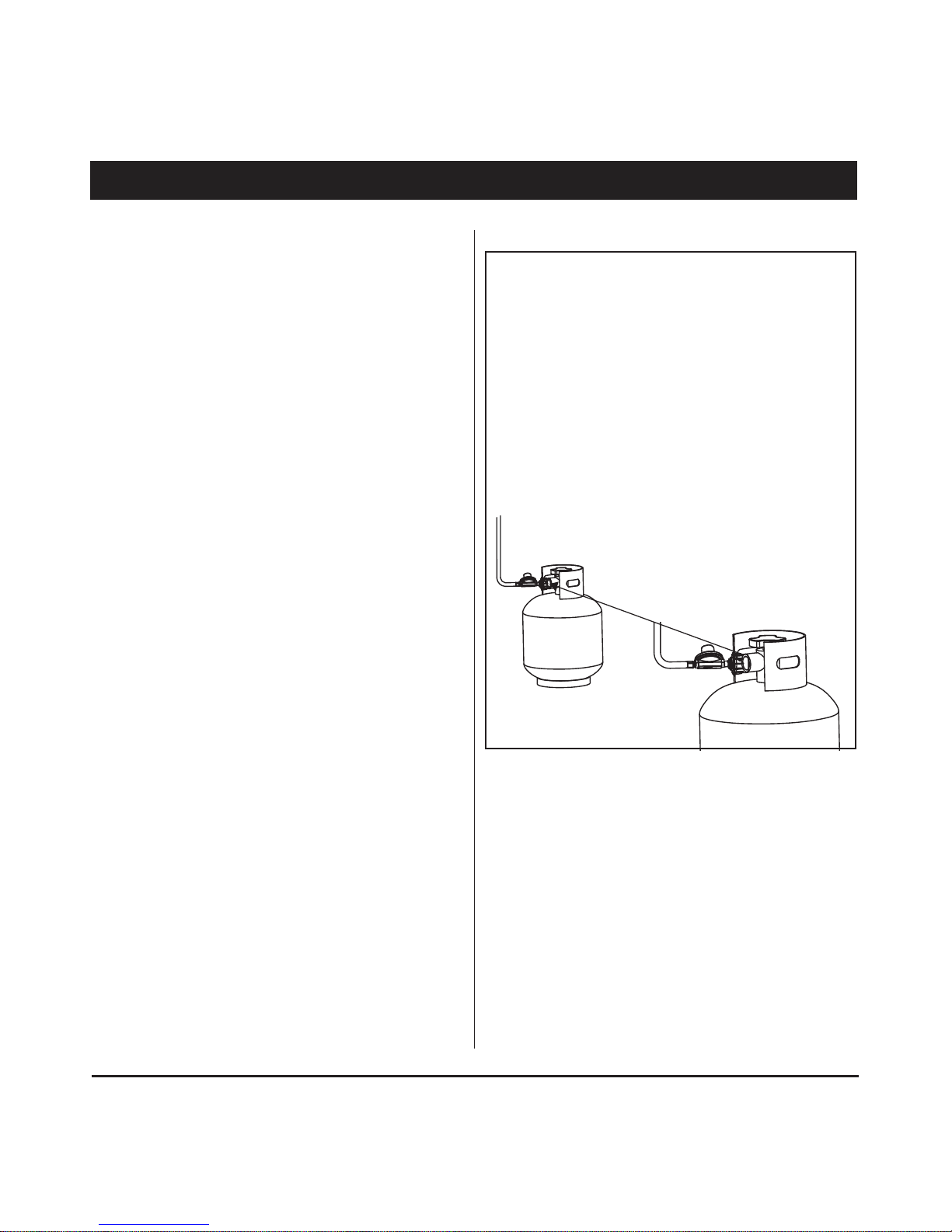

SAFETY CHECK
Check for leaks
All connections on the patio heater have been
checked for leakage at the factory. In
transportation and handling some connections
may have loosened. Follow these steps to check
the gas hose/regulator/cylinder connections:
1) Make leakage solution by mixing 1 part liquid
dish soap and 3 parts water.
2) Spoon or brush several drops (or use squirt
bottle) of the solution onto hose connection,
regulator & cylinder connection.
3) Turn on gas cylinder valve. Inspect the
connections and look for bubbles.
4) If no bubbles appear, the connection is safe.
5) If bubbles appear, there is leakage. Loosen
and re-tighten this connection. If connection
still leaks, please call customer service:
1-866-814-0585.
Note:
1) The cylinder supply system must be arranged
for vapor withdrawal;
2) The cylinder used must include a collar to
protect the cylinder valve.
regulator & cylinder
connection
WARNING : ONLY AN AUTHORIZED GAS TECHNICIAN SHOULD INSTALL THIS PRODUCT.
12
The hose assembly must be replaced prior to the
appliance being put into operation if there is
evidence of excessive abrasion or wear, or if the
hose is damaged.
At least once a year, a complete inspection of the
entire gas path components should be performed.
If there is need to replace parts, proceed to leak
test after reassembly (These procedures should
be performed by a professional technician).

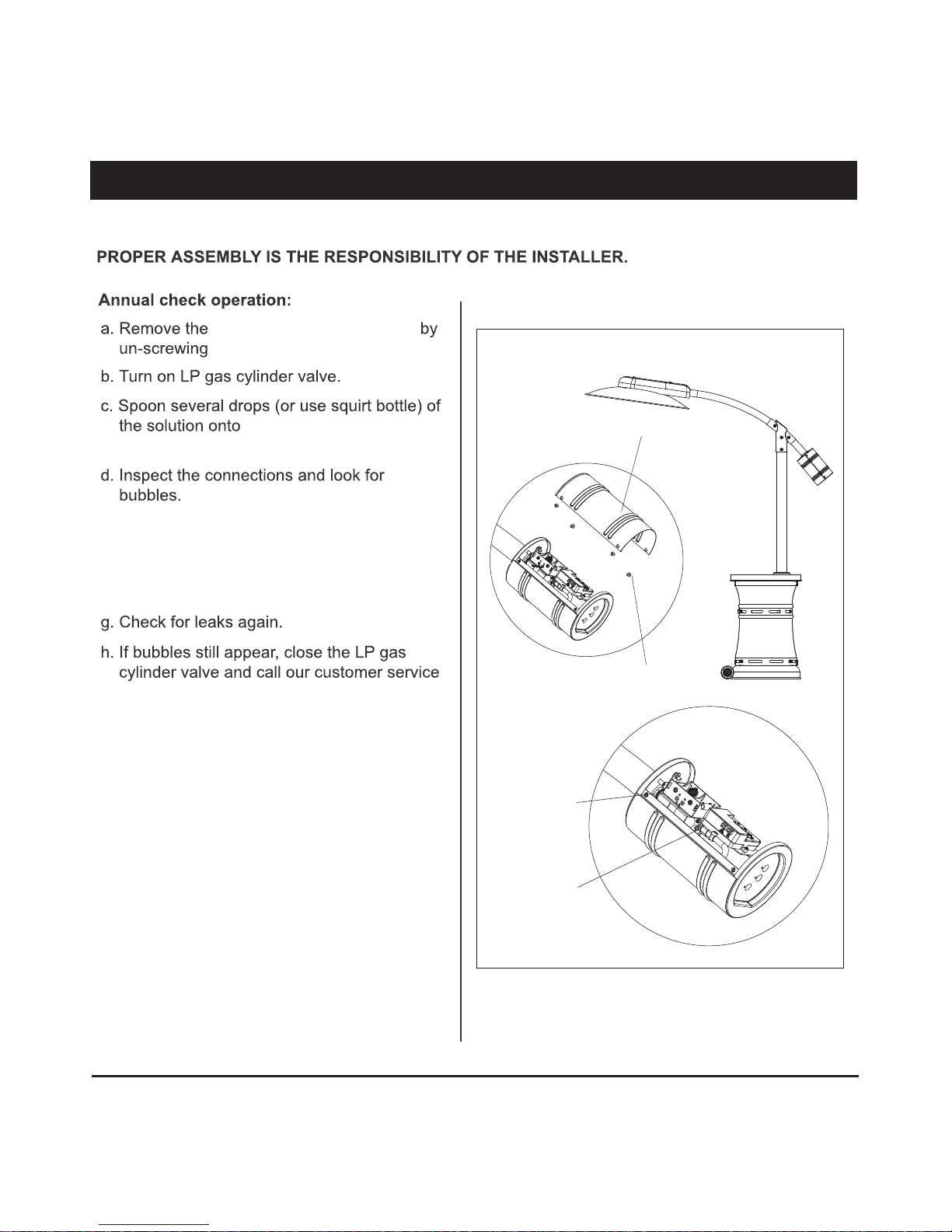

SAFETY CHECK
i. Hose checking step:
(1) Unscrew 2pcs M8 x 55 bolts , 2pcs
M8 x 85 bolts , and 4pcs M8 cap nuts
from transom control assembly and
transom mounting plate .
(2) Pull out the transom control assembly,
.elopehtmorfrotaluger&esoh
(3) Check if there are cracks or worn
sections on the hose. If yes, replace the
hose & regulator immediately.
(4) Check for leaks according to the above
step by step after replacing the
hose & regulator.
WARNING: ONLY AN AUTHORIZED GAS TECHNICIAN SHOULD INSTALL THIS PRODUCT.
e. If no bubbles appear, the connection is safe.
battery compartment cover
4pcs M4 x 10 bolts.
inlet pipe fitting and metal
hose fitting.
f. If bubbles appear, there is a leak. Shut off
the LP gas cylinder valve, loosen and then
re-tighten this connection.
line. Do not attempt to use the heater.
Inlet pipe fitting
Metal hose fitting
Battery compartment cover
M4 x 10 bolts 4pcs
13

1) Turn LP Cylinder gas valve to fully open position and
press “ ” button on the control panel. If the sparks
stop and burner does not stay lit, press the button “ ” again
to ignite after 10 seconds.
2) When the burner is lit, press “ ” or “ ” to desired
heat output between High and Low.
3) To shut off heater, press “ ”again, then turn LP cylinder
gas valve to closed position. If you want to relight the heater,
wait 5 minutes, and then repeat the Steps 1 to 2.
14

The flames pattern at sintered metal wire, normally, the burner
flame is red, but little flame is accpectable.
If the burner flame is not red, or there is big yellow flame flys
out from the burner cover, the heater should be turned off
immediately. The heater should not be operated again until the
unit is serviced and or repaired.
A little flame
A lot of yellow flames
waft from the burner cover
SRPH72 WIRING DIAGRAM
CONTROL PANEL
-POWER+
HIGH
LOW
- SAMPLE
+ SAMPLE
HV OUT
HIGH VALVE
LOW VALVE
DC3.0V
SPARK PIN
TILT SWITCH
THERMOCOUPLE
RED WIRE
BLACK WIRE
BATTERY
D#1.5X2
RED WIREBLACK WIRE
+
-
GAS IN
GAS OUT
15

press the control knob to the “ ”
press
15
16

LOCATING HEATER FOR USE
CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT, ABOVE, BESIDE OR UNDER
THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE
SERIOUSLY DAMAGED.
This heater is primarily used for the heating of
outdoor patios, decks, spas, pools and open
working areas.
Always make sure that adequate fresh air
ventilation is provided. Follow the spacing
tolerances shown in the following figure right at
all times.
This heater must be placed on level, firm
ground.
Never operate in an explosive atmosphere.
Keep away from areas where gasoline or other
flammable liquids or vapors are stored or used.
17

18
MAINTENANCE/STORAGE
DO NOT touch or move heater for
at least 45 minutes after use. Allow
all burner elements to cool before
touching.
FOR YOUR SAFETY ;
WARNING:
NOTE:
In a salt-air environment (such as
near an ocean). corrosion occurs
more quickly than normal.
Frequently check for corroded
areas and repair them promptly.
NOTE:
wait until heater is cool before
covering.
CLEANING AND MAINTENANCE :
To enjoy years of outstanding performance from your
heater make sure you perform the following maintenance
activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use
flammable of corrosive cleaning agents.
While washing your unit, be sure to keep the area
around the burner and pilot assembly dry at all times. If
the gas control is exposed to water in any way, do NOT
try to use it. It must be replaced.
Keep the appliance area free and clean from combustible
materials, gasoline and other flammable vapors and
liquids; not obstructing the flow of combustion and
ventilation air; keeping the ventilation opening(s) of the
cylinder enclosure free and clear from debris.
Gas odor with extreme yellow tipping of flame.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Visually check burner flames.
Unscrew the screws and nuts on transom control
assembly and transom mounting plate, take out the
burner head assembly.
Unscrew gas hose and regulator with adjustable open
end wrench.
Check if there are cracks or worn sections on hose. If
yes, please call our customer service to replace hose.
At least once a year, the unit should be inspected for
the presence of spiders, spider webs or other insects.
Air flow must be unobstructed. Keep controls, burner,
and circulating air passageways clean. Signs of possible
blockage include:

19
MAINTENANCE/STORAGE
NOTE:
wait until heater is cool before
covering.
Turn LP cylinder to "OFF" position.
Store heater upright in an area sheltered from direct
contact with inclement weather (such as rain, sleet, hail,
snow, dust and debris).
If desired, cover heater to protect exterior surfaces and
to help prevent build up in air passages.
Spiders and insects can nest in burner or orifices. This
dangerous condition can damage heater and render it
unsafe for use. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away
smaller particles.
Carbon deposits may create a fire hazard. Clean dome
with warm soapy water if any carbon deposits develop.
STORAGE:
Between uses:
During periods of extended inactivity or when
transporting;
Take out the batteries from the battery compartment.
Disconnect the regulator from the LP Cylinder by turning
counter-clockwise and move to a secure, well-ventilated
location outdoors. DO NOT store in a location that will
exceed 125 degrees F.
Store heater upright in an area sheltered from direct
contact with inclement weather (such as rain, sleet, hail,
snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to
help prevent build up in air passages.
