Ovation High Fidelity User Manual
Engineered for Art™

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 2 | 15
Welcome to Ovation High Fidelity.
Thank you for purchasing this Ovation High Fidelity product. We have taken
every care in the design, engineering and manufacture to ensure the highest
levels of craftsmanship and quality so that you will have many years of trouble
free operation and musical enjoyment.
Proof of Purchase
Should the item be returned under warranty, proof of purchase will be
required. Therefore, you must keep the original purchase invoice and receipt.
We suggest you staple this into the rear inside cover of this user manual and
retain it in a safe place after reading it. We always include a hardcopy of the
purchase invoice with every shipment.
Product Usage Declaration
This product is designed for use in a domestic hi-fi system driving
loudspeakers with a rated impedance of 8 Ω
Warranty: -
This product is warranted free of manufacturing defects for a period of five
years from date of purchase.
This warranty excludes cases where the product is abused, or used for
purposes other than which it was intended, or modified in anyway
whatsoever
The warranty is not transferable
Remote controls are warranted for a period of one year from date of
purchase. The warranty does not cover damage due to battery leakage
The costs of sending the product back to the company under warranty,
and its subsequent return, are for the account of the purchaser

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 3 | 15
Returns Policy/30 Day Money Back Guarantee
Should you not be 100% satisfied with your product for any reason, you
may return it within 30 days from date of purchase for a full refund
provided
The product is returned packed in the original packaging
The product is not damaged in anyway whatsoever either
electrically or cosmetically
The company reserves the right to deduct from the refund any costs
required to make good any damage to products returned by
customers.
The costs of returning the product back to the company under the
30-day money back guarantee are for the account of the purchaser.
The Ovation High Fidelity Company reserves the right to modify and/or
make technical and/or design changes to the design of its products without
obligation to prior purchasers

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 4 | 15
Unpacking Your New Product
Do not damage the carton or the associated packaging materials.
Retain the packaging material until after your 30 day money-back
guarantee has expired.
Retain all packaging (outer box, internal foam buffers, polythene anti-
scratch bags, documentation) in a safe, dry place.
Check that you have the following items in the carton: -
Model 1701 Power Amplifier Unit
IEC mains lead with appropriate mains plug for your region
User manual (this document)
Registration warranty card
Where to Locate Your New Model 1701 Stereo Power Amplifier
Locate your Model 1701 Stereo Power Amplifier in a well-ventilated area
away from sources of heat, dust and humidity and direct sunlight. You
should position the product alongside your preamplifier. We do not
recommend that you stack high fidelity components on top of one another
as this could interfere with ventilation.
You may not place any Ovation High Fidelity product directly on a carpet
as this will obstruct airflow and will lead to overheating.
Make sure when locating the product, that no liquids or any other foreign
objects can enter the unit through the ventilation holes.
Keep this equipment out of the reach of children.

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 5 | 15
Warning!
Ovation High Fidelity products contain no user serviceable parts.
There are lethal mains voltages present inside the unit.
DO NOT open the product under any circumstances - If faulty, refer it
back to Ovation High Fidelity if still within the warranty period or to a
qualified, authorized service engineer if not.
This product must be Earthed when in use. Use the supplied mains
cable to ensure this.
Never use an ‘Earth Lifter’ or any similar device that interferes with
the electrical safety of this product
If you are not going to be using your equipment for any length of time –
e.g. going away on vacation - it is advisable to unplug it from the mains.
Cleaning your Ovation High Fidelity Product
1. Unplug the unit from the mains supply
2. Use a soft, slightly damp cloth or chamois leather wipe to clean the
unit.
3. Use a dry, lint free cloth to wipe the unit down after step 2 is
completed
4. Never use any abrasive cleaning agent to clean the unit –e.g. Cif,
Vim, CLR or Softscrub
5. Never use furniture polish or similar oil based agents to clean your
unit
6. Never use any solvent based cleaner like petroleum (i.e. gasoline),
turpentine, benzene, methylated spirits or similar

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 7 | 15

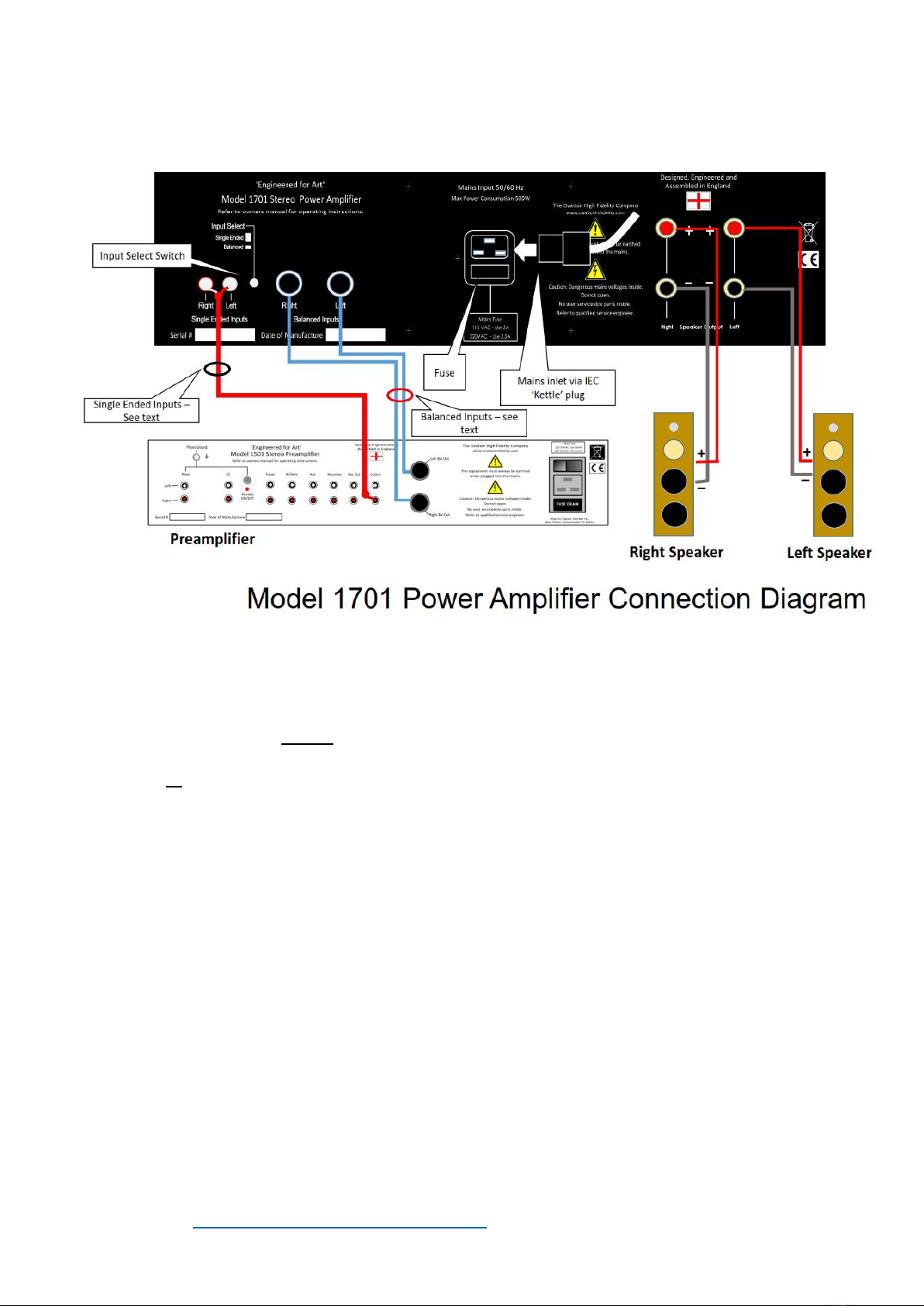

Connecting a Preamplifier Your Model 1701 Stereo Power Amplifier
The figure above shows how to connect your model 1701 power amplifier
to your preamplifier.
Note that you do not need to connect both the single ended and the
balanced interconnects –you only need to connect the single ended inputs
or the balanced inputs.
We recommend where possible, you use balanced interconnects for best
performance.
Always make sure that you have the ‘Input Select’ switch on the rear panel
in the correct position –depressed for balanced inputs and out for single
ended inputs.
We recommend the Ovation High Fidelity Model 1501 High Resolution
Stereo Preamplifier for use with the model 1701 Power Amplifier.
Connecting Loudspeakers to Your Model 1701 Stereo Power
Amplifier
Your model 1701 Power Amplifier is designed for operation with 8 Ωrated
loudspeakers. You should only connect 1 pair of speakers to your
amplifier for best performance.

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 8 | 15
Powering ON and OFF
To power up the amplifier, depress the black pushbutton located in the
center of the front panel. The green indicator LED beneath the pushbutton
switch will illuminate. You will hear a click after 3 seconds or so - this is
the in-rush power limiting relay energizing. After a further second or two,
the amplifier output will engage, allowing sound to come from the
loudspeakers.
To power down, simply press and release the push button again. After
about 3 seconds, the power in-rush relay will click as it de-energizes; the
amplifier will disengage the loudspeakers and the green indicator LED will
extinguish.
The Model 1701 amplifier is equipped with sophisticated protection
functions that include DC offset detection to protect your speakers, short
circuit protection and power-up and power-down muting. If any of these
protection features are activated, the unit will automatically disconnect the
loudspeakers.
Loudspeaker Short Circuit Protection - Important
If the load impedance of the speakers drops below about 2 Ohms when
the amplifier is delivering full output power
or
the connection from the amplifier to a loudspeaker experiences a short
circuit
the Model 1701 output stage protection circuit will activate. This will
instantly disconnect the loudspeakers from the amplifier to protect it and
the speakers from damage. The GREEN power LED on the front panel will
remain illuminated
To re-engage the loudspeakers, switch the amplifier OFF, wait for 10
seconds and switch the power back ON again.
Note that if the cause of the problem is a short circuit in your loudspeaker
connection, the amplifier will shut down again when re-applying power.
You should therefore always check to ensure you do not have a short
circuit in your loudspeaker connection after a shutdown.
Attention: Playing music at excessive volume levels can damage
your hearing.

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 9 | 15
Replacing the Fuses on your Model 1701 Power Amplifier
In the unlikely event that the mains fuse on your unit should blow, you
should check the following carefully before replacing it: -
1. You are using the correct mains voltage. The mains voltage for
your product is set at the factory at the time of shipping and shown
on the rear panel bottom left hand side of the unit.
2. On power amplifier products, make sure the speaker outputs are not
shorted in any way.
3. Make sure the mains power at the wall socket is not inadvertently
switched OFF.
4. If your unit still does not operate, you need to replace the fuse as
detailed below
Important! Always unplug the unit from the mains
before attempting to replace the fuse!
Use a flat bladed screw driver and gently lever open the fuse drawer
Replace the Model 1701 fuse with the ratings as indicated below
Mains Voltage
Fuse Rating
Remarks
100 VAC to 130
VAC
6.3 A T
slow acting ‘T’ fuse
200 VAC to 240
VAC
3.15 A T
slow acting ‘T’ fuse
Firmly push the drawer closed, after which you can reconnect the unit to
the mains and then apply power.
Do not use fuses marked FF, F or M as these are fast/medium acting and
will likely blow when you power the amplifier up. Only use ‘T’ fuses.
If the fuse immediately blows again, refer your unit to a qualified repair
technician, or if still under warranty, contact the factory via the ‘Contact’
page at www.ovationhifidelity.com
Never use fuses rated higher than shown in the table above on your
Model 1701. Equipment fuses are designed and rated to prevent fire
hazard and are a legal requirement in all countries.

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 10 | 15
Trouble Shooting –Model 1701 Preamplifier
Problem
Likely Cause
Action
Unit will not power up with
the front panel POWER
switch in the depressed
position. The front panel
Power LED is not
illuminating
No AC mains power is
coming to the unit
Check that the wall socket is
switched ON and is providing
power. You could for example plug
another appliance like a lampshade
into the same socket to verify this
If still not working, check that the
mains cable plug (UK only) fuse is
intact
If the wall socket is ON and the
power cable fuse is intact, check the
model 1701 mains fuse –see
Page 9
There is no sound coming
from the system but the
power LED is illuminated on
the front panel
Speakers are not
connected to the amplifier
or not connected correctly
Check the speaker connections and
make sure they are connected at
both the amplifier and the speaker
side. Always observe the correct
polarity of the connections
If above is ok but there is
still no input signal from
the preamplifier
Make sure the interconnect cable
from the preamplifier is in place and
an active source signal is selected
on the preamplifier
All the above checked,
there is still no sound from
the amplifier
The amplifier protection
scheme has triggered
Check that the loudspeaker wires
are not accidently shorted together
The sound coming from the
loudspeaker lacks bass and
the stereo sound
stage/image seems to
wander
Speaker phasing is
incorrect and/or
interconnect plugs are not
seated properly
Ensure that the speaker wire
connection polarity is correct –see
Page 7 for details on how to
connect the speakers
Make sure all interconnect plugs are
fully seated into their respective
sockets
There is a hum coming from
the loudspeakers
Interconnect cable is faulty
or is not properly seated in
its associated receptacle
Check all interconnects - they must
to be fully seated in their associated
receptacles to prevent hum
If the problem is not due to the
above, check that the interconnect
cable is not faulty. On the amplifier
input, swap the left and right
channels. If the problem moves to
the other channel, the fault is with
the interconnect cable, or the
source i.e. the problem is not with
the Model 1701 Power Amplifier
If your unit is still not working correctly, kindly contact Ovation
High Fidelity via the ‘Contact’ page at www.ovationhifidelity.com

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 11 | 15
Specifications
Model 1701 Stereo Power Amplifier
General Description
100 Watt RMS, wide bandwidth, low distortion Current Mode Topology (CMT) power amplifier equipped with non-invasive
over-current and DC Offset protection. Power up/Power down muting utilizing solid state loudspeaker relay and in-rush
current limiting during mains power-up. Balanced or single ended input selected via a push button on the amplifier’s rear
panel.
Inputs 1 pair single ended via RCA phono receptacles (Zin = 10k Ω) and 1 pair XLR balanced input
(Zin = 10 k Ω); Input selection is via pushbutton located on amplifier rear panel
Input sensitivity For rated output power: 1V for single ended inputs; 0.5V for balanced inputs
Output Power 100 W RMS into 8 Ω20 Hz to 20 kHz; 180 W RMS into 4 Ω20 Hz to 20 kHz; Peak I2R
Power 400 W single channel driven (t ≤ 50ms)
Rise time Large signal: 700 ns rise and fall time 10% to 90% into 8 Ω; small signal rise time ≤ 50 ns 2
V peak into 8 Ω
Slew Rate ~140 V/µs positive and negative
Frequency Response 20 Hz to 20 kHz +0 dB -0.1 dB 1 W into 8 Ω
2 Hz to 250 kHz +0 dB -3dB into 1 W 8 Ω
Intrinsic response (front end low pass filter disabled) 2 Hz to 700 kHz -3dB 1W into 8 Ω
Distortion ≤0.005% at all frequencies and power levels up to rated output into 8 Ω
≤0.001% 20 Hz to 20 kHz 1 V into 8 Ω
Damping Factor approx. 200 at 1kHz into 8 Ω
Operating voltages 110-130 VAC or 220 to 260 VAC; factory set at time of order
Max Power consumption 500VA
Weight 13 Kgs
Operating Temperature -10 ºC to +45 ºC non-condensing
The Ovation High Fidelity Company Limited
Norfolk, England
www.ovationhifidelity.com
™

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 12 | 15
Glossary –Some General Terms
AC
Alternating Current –the type of electricity supply used in normal house wiring and to power consumer appliances like
TV’s, washing machines and high fidelity systems
A-D or A/D
Analog to Digital –an electronic technique whereby an analog signal is sampled at short, regular intervals and the
sampled value converted into a representative numeric value that is stored in computer memory, CD or some other mass
storage media
Analog Signal
A voltage or current signal that varies continuously with time. Examples are the pickup signal from a turntable, or the
output signal from a microphone. All natural world signals are analog.
Balanced Audio Signals
A method whereby audio is transferred between equipment using two connections without reference to ground, making it
highly immune to ground loop induced hum and extraneous noise pickup. Uses XLR connectors. See Unbalanced or
single-ended audio signals
Bipolar Transistor
A three-terminal semiconductor amplifying device
CMT
Current Mode Topology –a type of audio amplifier wherein the peak current into the main amplifier stage is determined
directly by the output voltage and the gain setting resistor. Also known as CFA (Current Feedback Amplifier)
D-A or D/A
Digital to Analog –the technique of converting digitally stored samples into a continuous analog signal
Damping factor
A measure of an amplifiers load impedance divided by its output impedance. The higher the figure the better. In a
modern amplifier, any figure above 50 should be considered adequate and above 100 excellent
DC
Direct Current. Examples would be the type of electric current supplied by a battery
Decibel or dB
A logarithmic measure of an analog signal with respect to a reference, or expressed as the difference between two
signals. 20 dB = 10x and 40 dB = 100x while 100 dB = 100 000x. By way of an example, if the S/N of a preamplifier is -
100 dBV, it means that the noise is 100 000 times lower than 1V –i.e. 10 millionths of a Volt. The ‘V’ in dBV refers to the
reference which is 1V and is a standard measure used in audio
Digital Audio Signal
An audio analog signal is sampled at discrete time intervals by an A-D and the resultant samples converted to a
numerically representative value. An example is a CD, where the original analog signal (e.g. the voice of a singer) is
sampled 44100 times a second and each sample converted to a 16 bit digital representation. See also A-D
Digital signal
A binary coded numerical value represented by 0’s and 1’s where the ‘0’ value corresponds to 0V and the ‘1’ corresponds
to 3.3V, 5V or some other non-zero voltage. Digital signals are either parallel or serial format. Examples of digital signals
would be the co-ax output from a CD drive (serial digital signal), or the data on an Ethernet cable used in communications
(also a serial digital signal)
Distortion and Noise
The presence in any electrical audio signal of unintended harmonics and/or noise. Reducing distortion and noise are key
goals in any equipment that reproduces audio signals
EMI or Electro-Magnetic
Interference
Noise and/or extraneous signal introduced into a system through magnetic or capacitive coupling mechanisms. Filtering,
bandwidth limiting and careful design and equipment layout can reduce the effects orders of magnitude below human
hearing threshold, and/or render it of no consequence to the correct operation of the equipment.
EQ or Equalization
A technique whereby an electrical signal which is intentionally or unintentionally altered from the original, is corrected.
Examples would be RIAA (intentionally altered during the disc cutting process) or room EQ whereby acoustic
imperfections of the environment are corrected
Frequency Response or
Bandwidth
The extent of frequencies an amplifier or transducer (e.g. a microphone or a loudspeaker) can reproduce to within a
specified range. Human hearing covers 20Hz to 20 kHz. Audio amplifiers typically cover at least 5 Hz to 100 kHz (-3 dB)
to ensure a flat response to within 0.2dB across the human hearing range of 20 Hz to 20 kHz
Input Sensitivity
The level of input signal required to produce a given output from a preamplifier or a power amplifier.
IR Remote
Infra-red Remote control
JFET
Junction Field Effect Transistor –a three terminal semiconductor amplifying device that somewhat emulates vacuum tube
triodes in its performance characteristics.
Ω
Ohm is the unit of electrical resistance. Most loudspeakers are rated at 8 Ω
Output Power
Measured in Watts, the amount of electrical power that can be delivered into a loudspeaker load by an amplifier. Always
quoted into a known resistive load –usually 4 or 8 Ω
Phono socket
The small round sockets –usually grouped in Left (WHITE) and Right (RED) pairs on the rear side of audio equipment.
Also referred to as ‘RCA Phono’ sockets
RC5 IR
The protocol by which commands from the remote are encoded and transmitted via infra-red to the receiving equipment
which then executes them. Invented by Philips in the 1970’s and now one amongst 4 or 5 industry standards
RIAA
Recording Industry Association of America –The association that standardized the LP/vinyl playback equalization curve
in the early 1960’s that is still the standard for LP/vinyl today
Signal to noise ratio (SNR)
A measure of the amount of noise in a system against the nominal output signal of that system. In modern equipment,
any figure lower than -90 dBV should be considered excellent
Slew Rate or S/R
The fastest rate of output voltage change that an amplifier can sustain. A typical design goal for an audio amplifier is
1V/us per volt of output swing. For a 100 Watt amplifier, this corresponds to a figure of about 80V/us
Small signal rise time
A measure of the speed (i.e. rate of change) of an amplifier or preamplifier when dealing with low level signals in the 1-2
Volt range. Small signal rise time and slew rate (S/R) are not equivalent
Unbalanced or single-ended
audio signals
With this type of interconnection, audio is transferred between equipment using a ground connection and a signal
connection. It is more common than balanced audio signals due to its lower implementation cost, but much more
susceptible to noise pick-up
VMT or VFA
Voltage Mode Topology –a type of amplifier wherein the peak current into the main gain stage is limited to that of the
input stage ‘Long Tail Pair’ (LTP) current source. Also known as VFA (Voltage Feedback Amplifier)
XLR
The standard interconnect format for balanced audio signals

Model 1701 Stereo Power Amplifier Owner’s Manual
w w w . o v a t i o n h i f i d e l i t y . c o m P a g e 13 | 15
Owners Information
Date Purchased: ____________________________________
Dealer (if Applicable): ________________________________
Warranty Registration Date: ___________________________
Serial Number: _____________________________________
Table of contents
Other Ovation Amplifier manuals

Ovation
Ovation OP-24Plus User manual

Ovation
Ovation Engineered for Art 1707 User manual

Ovation
Ovation OP-PRO STUDIO User manual

Ovation
Ovation OP-24Plus User manual

Ovation
Ovation 1721 User manual

Ovation
Ovation I.C. 100 User manual

Ovation
Ovation The Cat III User manual

Ovation
Ovation OP-24Plus User manual

Ovation
Ovation Optima User manual

Ovation
Ovation 1501 User manual
