Oypla GARDEN 3120 User manual

Page 1
Manual Version: V1.0
Model Code: 3120
Oypla.com LLP / www.oypla.com
User Manual
Model Code: 3120
Gas Patio Heater
Contents
1 Front Cover
2 Safety
Instructions
3 Assembly
Instructions
6 Operating
Instructions
7 Cleaning
Instructions
8 Technical
Information
9 Trouble
Shooting
9 Back Cover

Page 2
Manual Version: V1.0
Model Code: 3120
Oypla.com LLP / www.oypla.com
Safety Instructions
Notice: Ensure you read and fully understand instructions before use
While every attempt is made to ensure the highest degree of protection in all equipment, we cannot
guarantee freedom from injury. The user assumes all risk of injury due to use. All merchandise is sold
on this condition, which no representative of the company can waive or change.
-Make sure all bolts are secured before using. The user takes all responsibility for the
construction and placement of the product.
-Never leave the heater unattended.
-Once you are finished with the patio heater be sure to turn it off, leaving it on can be
dangerous. Allow to cool before moving/storing.
-Leaving the product outside exposed to weather, especially direct sun, rain and salt air,
will speed the weathering process. This can be slowed by removing the product from
these conditions, or covering it with a suitable cover.
-This product is not a toy, and is only to be used for its designated purpose.
-Do not carry out alterations or modifications to this product.
-This product is intended for outdoor use only.
-Clean only with a damp cloth. Do not use strong industrial cleaning substances. Never
clean while hot or in use.
-Turn off the gas valve immediately if the smell of gas is detected.
-This gas cylinder used must be in accordance with the regulations in force.
-Never obstruct the ventilation holes of the cylinder housing.
-Never move the appliance whilst it is in operation.
-Turn off the valve at the gas cylinder or the regulator before moving the appliance.
-Do not use the heater until all connections have been leak tested.
-Both Adults and children should stay away from high temperature surface to avoid
burns or clothing ignition.
-Children should be carefully supervised when they are in the area of the heater.
-Clothing or other flammable materials should not be hung on the heater or placed on
or near the heater.
-Never operate heater in an explosive atmosphere like in areas where gasoline or other
flammable liquids or vapours are stored.
-To protect heater from strong wind, anchor the base securely to the ground with
screws.
-Only use propane or butane gas.
-A dented, rusted or damaged propane tank may be hazardous and should be checked
by your tank supplier. Never use a propane tank with a damaged valve connection.
-Never connect an unregulated propane tank to the heater.
-Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from
moving parts and hot surfaces.
Contents
1 Front Cover
2 Safety
Instructions
3 Assembly
Instructions
6 Operating
Instructions
7 Cleaning
Instructions
8 Technical
Information
9 Trouble
Shooting
9 Back Cover

Page 3
Manual Version: V1.0
Model Code: 3120
Oypla.com LLP / www.oypla.com
Contents
1 Front Cover
2 Safety
Instructions
3 Assembly
Instructions
6 Operating
Instructions
7 Cleaning
Instructions
8 Technical
Information
9 Trouble
Shooting
9 Back Cover

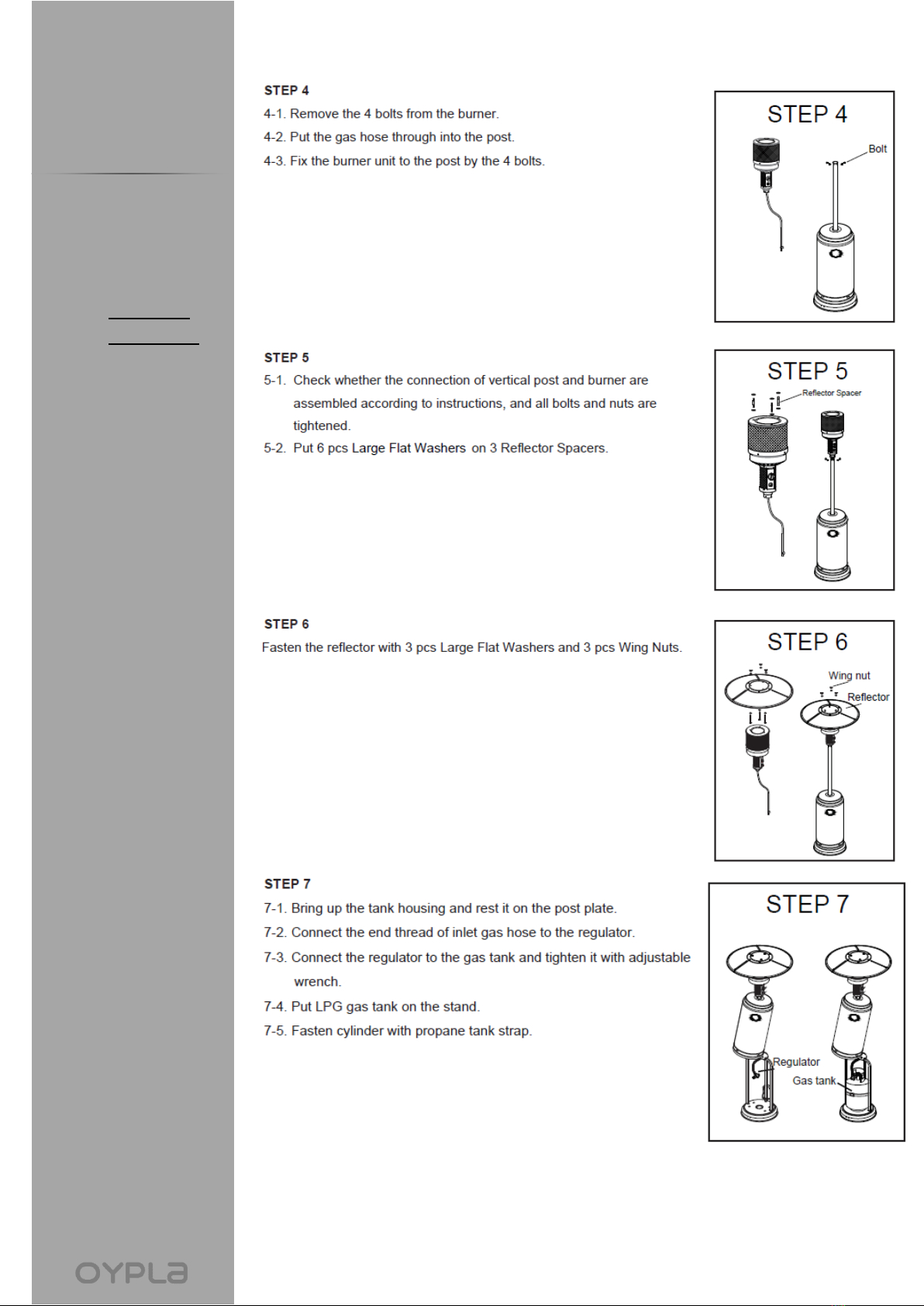

Assembly Instructions

Page 4
Manual Version: V1.0
Model Code: 3120
Oypla.com LLP / www.oypla.com
Contents
1 Front Cover
2 Safety
Instructions
3 Assembly
Instructions
6 Operating
Instructions
7 Cleaning
Instructions
8 Technical
Information
9 Trouble
Shooting
9 Back Cover

Page 5
Manual Version: V1.0
Model Code: 3120
Oypla.com LLP / www.oypla.com
Contents
1 Front Cover
2 Safety
Instructions
3 Assembly
Instructions
6 Operating
Instructions
7 Cleaning
Instructions
8 Technical
Information
9 Trouble
Shooting
9 Back Cover

Page 6
Manual Version: V1.0
Model Code: 3120
Oypla.com LLP / www.oypla.com
Operating Instructions
Contents
1 Front Cover
2 Safety
Instructions
3 Assembly
Instructions
6 Operating
Instructions
7 Cleaning
Instructions
8 Technical
Information
9 Trouble
Shooting
9 Back Cover

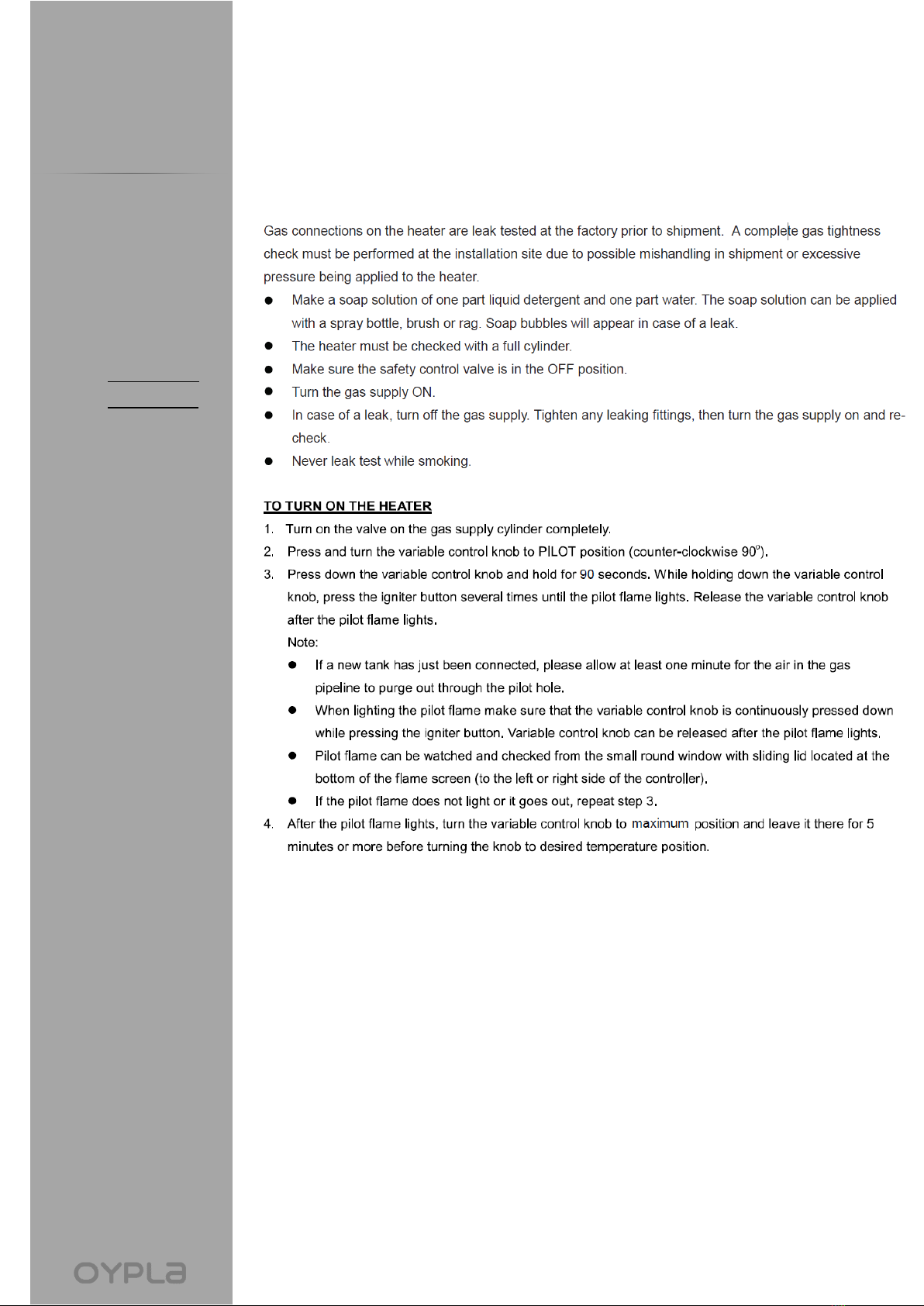

NOTE: Before first use, a gas leakage test should be conducted. To do this,
follow the below instructions:

Page 7
Manual Version: V1.0
Model Code: 3120
Oypla.com LLP / www.oypla.com

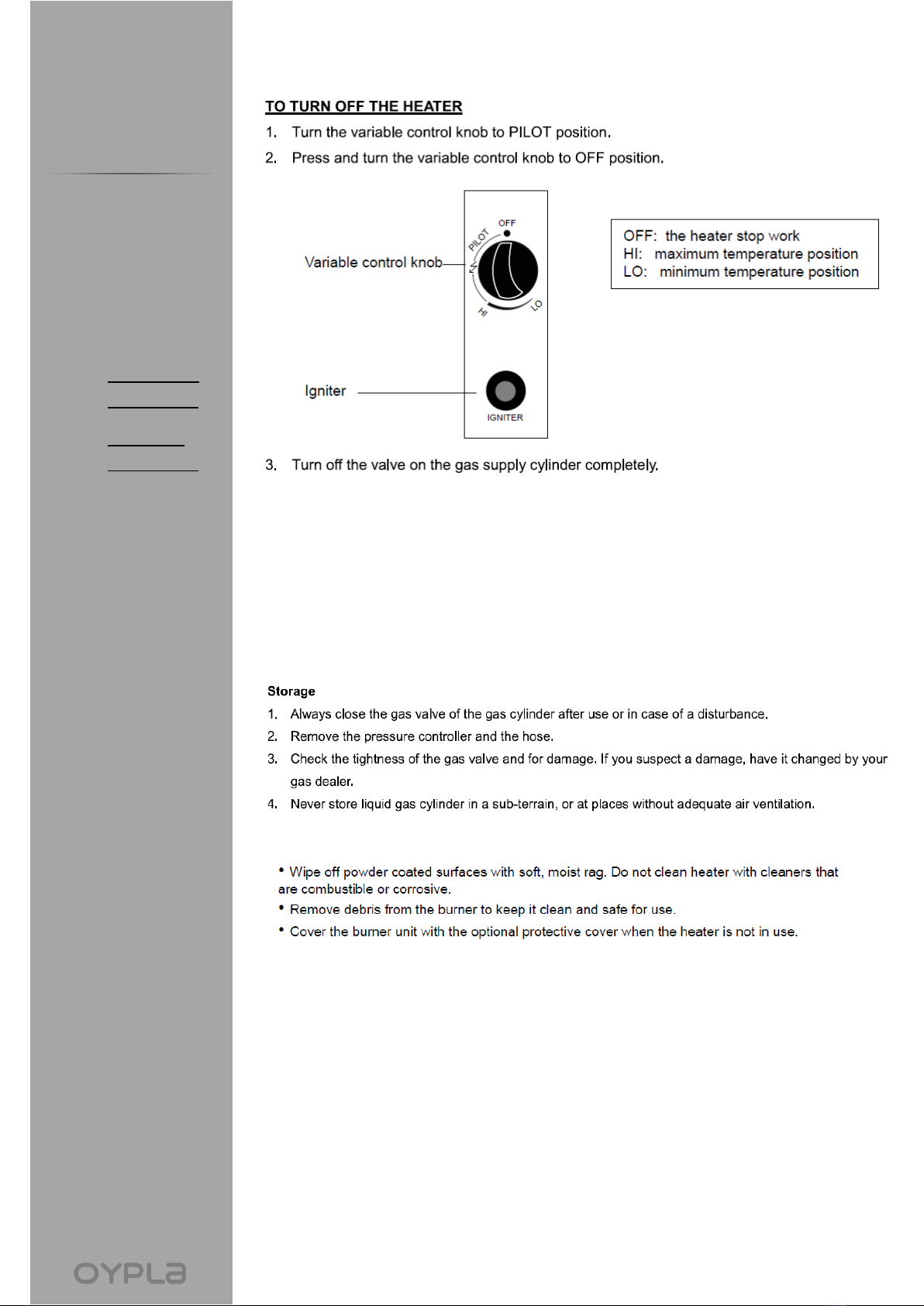

Cleaning &
Maintenance
Contents
1 Front Cover
2 Safety
Instructions
3 Assembly
Instructions
6 Operating
Instructions
7 Cleaning
Instructions
8 Technical
Information
9 Trouble
Shooting
9 Back Cover
Cleaning

Page 8
Manual Version: V1.0
Model Code: 3120
Oypla.com LLP / www.oypla.com
Contents
1 Front Cover
2 Safety
Instructions
3 Assembly
Instructions
6 Operating
Instructions
7 Cleaning
Instructions
8 Technical
Information
9 Trouble
Shooting
9 Back Cover
Technical Information

Page 9
Manual Version: V1.0
Model Code: 3120
Oypla.com LLP / www.oypla.com
PROBLEM
PROBABLE CAUSE
SOLUTION
Pilot will not light
Gas valve may be off
Turn gas valve on
Tank fuel may be empty
Refill LPG tank
Opening blocked
Clean or replace opening
Air in supply system
Purge air from lines
Loose connections
Check all fittings
Pilot will not stay on
Debris around pilot
Clean dirty area
Loose connections
Tighten connections
Thermocouple bad
Replace thermocouple
Gas leak in line
Check connections
Lack of fuel pressure
Tank near empty. Refill LPG
Burner will not light
Pressure is low
Tank near empty. Refill LPG
Opening blocked
Remove and clean opening
Control not on
Turn valve to “on”
Thermocouple bad
Replace thermocouple
Pilot light assembly bent
Place pilot properly
Not in correct location
Position properly and retry
Environmental Protection
Products bearing the symbol shown below means that used electrical and electronic equipment (WEEE)
should not be mixed with general household waste. For proper treatment, recovery and recycling, please take
this product(s) to designated collection points where it will be accepted free of charge. Disposing of this
product correctly will help save valuable resources and prevent any potential negative effects on human
health and the environment, which could otherwise arise from inappropriate waste handling. Please contact
your local authority for further details of your nearest designated collection point. Penalties may be applicable
for incorrect disposal of this waste, in accordance with your national legislation.
Imported by Oypla.com LLP, Uxbridge, UB8 2FX
