Ozito MFR-2200 User manual

STANDARD EQUIPMENT
MULTI
FUNCTION
TOOL
300W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: 300W
Input: 230-240V ~ 50Hz
No Load Speed: 15,000-21,000 opm
Orbit Angle: 3.2°
Sanding Pad Size: 90 x 90 x 90mm
Weight: 1.43kg
MFR-2200
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 25 Fox Drive, Dandenong South, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
0621
Multi Function Tool
Sanding Pad & Paper x 15
Scraper
Triangular Rasp
Straight Blade x 2
Semi Circular Blade
Grout Removal Disc
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase and is intended for DIY (Do It
Yourself) use only. If a product is defective it will be replaced in
accordance with the terms of this warranty. Warranty excludes
consumable parts, for example: carbon brushes, blades, sanding
paper, etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
KNOW YOUR PRODUCT SETUP & PREPARATION
1. Accessory Drive Spindle
2. Side Handle
3. On/O󰀨Switch
4. Rear Handle
5. Variable Speed Dial
MULTI FUNCTION TOOL
6. Semi Circular Blade
(Wood, Plastic & Metal)
7. Straight Blade x 2
(Wood & Plastic)
8. Scraper
9. Triangular Rasp
10.Grout Removal Disc
11. Sanding Pad
12.Sanding Paper
P60 Grit x 5
P120 Grit x 5
P240 Grit x 5
13.Hex Key
14.Locking Bolt
15.Washer
16. Spring Washer
ACCESSORIES
1. ASSEMBLY
Accessory Fitment
1. Place accessory
over the drive
spindle and
position to suit
angle needed
for application.
Note:Ensuretheaccessoryissittingatonspindleandlocking
pins.
2. Placeatsideof
accessorytting
washer on the
accessory, then the
spring washer and
insert the locking bolt.
3. Tighten locking
bolt with hex key.
1. Loosen locking bolt with
hex key.
2. Remove bolt and
accessory.
Accessory Removal
Side Handle
Thesidehandlecanbettedoneithersideofthetool.The
correct position will be determined by your preferred hand and the
operation being performed.
Removing
2. Remove the side handle.
Attaching
1. Firmly attach the side
handle in the desired
position.
1
6 7 8 9 10
11 12 13 14 1615
2 3 4 5
MFR-2200

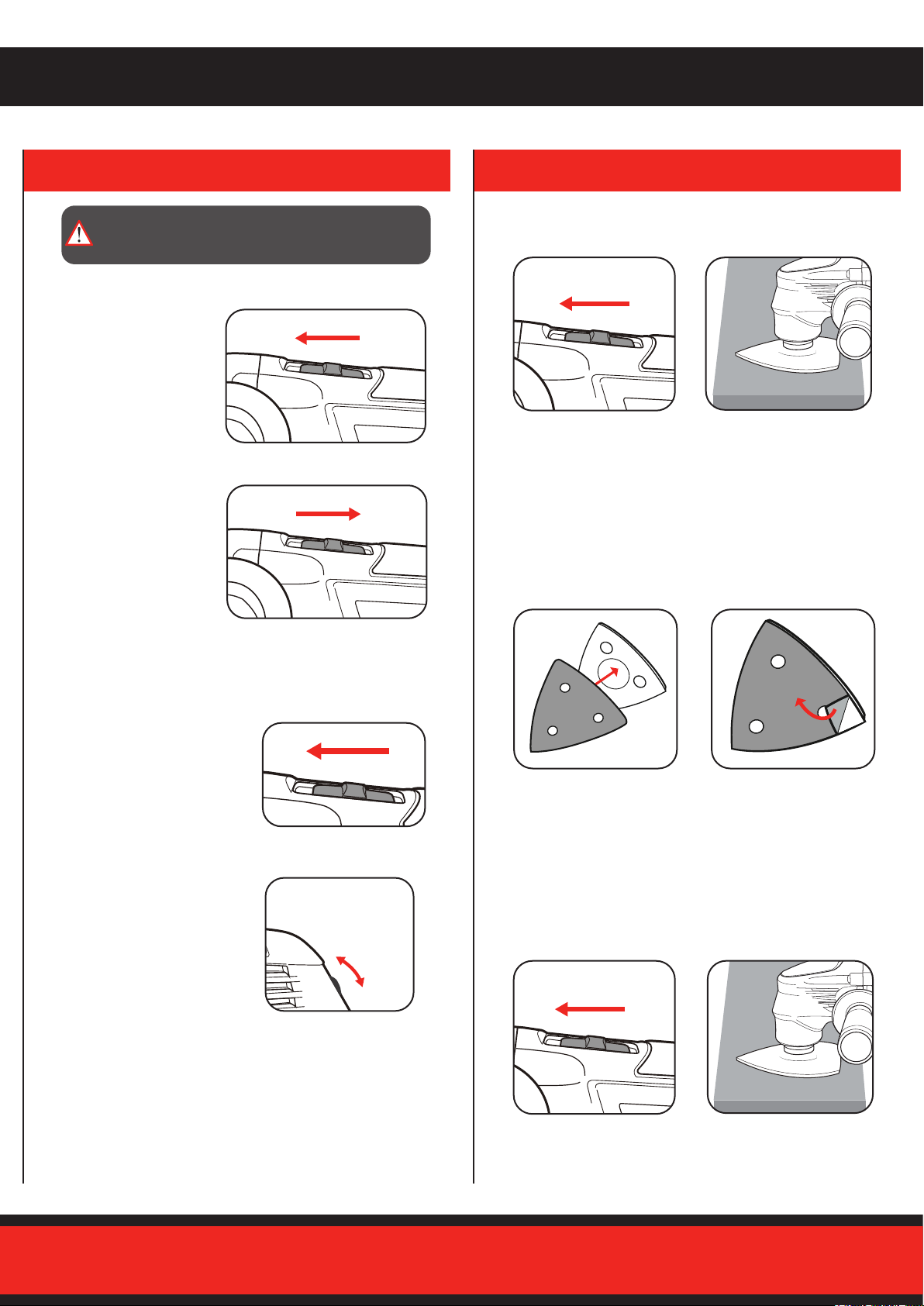

OPERATION
2. CONTROLS 3. SANDING
2. Toturno󰀨,slidethe
switch backwards.
1. To turn on, slide the
on/o󰀨switchforward.
On / O󰀨 Switch
Variable Speed
For various applications, you will need to select the appropriate
speed for the task.
1. Turn multi function tool on.
2. Scroll through variable
speed dial to desired speed
setting.
Note: The higher the number on the variable speed dial the
faster the oscillation frequency of the multi function tool.
1. Turn multi function tool
on and select appropriate
speed.
2. Place the multi function tool
atontheworkpiece.
Note: Do not apply heavy pressure to the tool or tilt the sanding
base as this will wear out the sanding paper and may damage the
sanding pad.
Changing Sanding Paper
2. Peelpapero󰀨padfromone
of the corners.
1. Align paper to pad and
pressrmlytoattach.
Triangular Rasp
1. Turn multi function tool
on and select appropriate
speed.
2. Place the multi function tool
atontheworkpiece.
This accessory is suitable when sanding materials which require
a large amount of material removal, for example: rough wood,
mortar or adhesive cement / concrete.
Note: Periodicallyturntheunito󰀨andremoveanybuilt-up
dust and debris.
CAUTION: THE POWER SUPPLY FOR THIS PRODUCT
SHOULD BE PROTECTED BY A RESIDUAL CURRENT
DEVICE (RATED AT 30mA OR LESS).

MFR-2200
4. SAWING 5. SCRAPING
Semi Circular & Straight Blade
2. Turn multi function tool on
and select speed.
1. Ensure the workpiece
is securely held down.
3. Use slight pendulum
motion when plunge
cutting.
Note: Ensure blades are not blunt or damaged in any way
before commencing application.
1. Turn multi function
tool on and select
appropriate speed.
2. Place multi function tool on the workpiece at an angle of
approximately10-15°.
3. Allow the scraper to do the work; do not apply heavy pressure
to the multi function tool. This may cause the multi function
tool to overload or cut into the surface of the workpiece.
10 - 15º
Grout Removal Disc
1. Turn the multi function tool
on and select speed.
2. Use slight pendulum
motion when cutting.
Note: Periodically turn the
unito󰀨andremoveany
built-updustanddebris.

MAINTENANCE TROUBLESHOOTING
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed
of with household waste but in an environmentally friendly way.
Please recycle where facilities exist. Check with your local council
authority for recycling advice.
Recyclingpackagingreducestheneedforlandllandraw
materials. Reuse of recycled material decreases pollution in the
environment. Please recycle packaging where facilities exist.
Check with your local council authority for recycling advice.
• Keep the ventilation vents of the multi function tool clean at all times,
if possible, prevent foreign matter from entering the vents.
• After each use, blow air through the multi function tool housing to ensure it is
free from all dust particles which may build up. Build up of dust particles may
cause the tool to overheat and fail.
• If the enclosure of the multi function tool requires cleaning, do not use
solvents but a moist soft cloth only. Never let any liquid get inside the multi
function tool; never immerse any part of the multi function tool into a liquid.
Carbon Brushes
When the carbon brushes wear out, the multi function tool will spark and/
or stop. Discontinue use as soon as this happens. They should be replaced
prior to recommencing use of the multi function tool.
Carbon brushes are a wearing component of the
tool and therefore are not covered under warranty.
Continuing to use the multi function tool when carbon
brushes need to be replaced may cause permanent
damage. Carbon brushes will wear out after many
uses but when the carbon brushes need to be
replaced, take the multi function tool to an electrician
or a power tool repairer for a quick and low cost replacement. Always replace
both carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the multi function tool by an unauthorised person
or by mishandling of the multi function tool.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
Excessive sparking visible through the housing air vents
and/or the multi function tool failing to operate
May indicate the carbon brushes have worn out and need to be
replaced.Carbonbrushesshouldonlybereplacedbyaqualied
electrician or power tool repairer.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
WARNING:BEFORECARRYINGOUTANYMAINTENANCE
PROCEDURES, ENSURE THE TOOL IS SWITCHED OFF
AND DISCONNECTED FROM THE POWER SUPPLY.
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Regulator compliance mark
no No load speed
Warning Read instruction manual

ELECTRICAL SAFETY
MULTI FUNCTION TOOL SAFETY INSTRUCTIONS
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician
or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool.
The insulation system is for added protection against injury resulting from a possible electrical insulation
failure within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead
notsuitableforthepowerinputofthetoolorwhichisdamagedordefectivemayresultinariskofre
and electric shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask,non-skidsafetyshoes,hardhat,orhearingprotectionusedforappropriateconditionswillreduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
ngerontheswitchorenergisingpowertoolsthathavetheswitchoninvitesaccidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used.Useofdustcollectioncanreducedust-relatedhazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operationsdi󰀨erentfromthoseintendedcouldresultinahazardoussituation.
5. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions, illustrations and specications
provided with this power tool. Failure to follow all instructions listed below may result in electric
shock, re and/or serious injury.
This appliance is not intended for use by young or inrm persons unless supervised by a responsible
person to ensure that they can use the appliance safely. Young children should be supervision to
ensure that they do not play with play with the appliance.
Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting
accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and shock the operator.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
The tool is recommended for use with a residual current device with a rated residual current of 30mA
or less.
WARNING! Some dust created by power sanding, sawing, grinding, drilling and other construction
activities contain chemicals known to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated timber
Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such
as dust masks that are specially designed to filter out microscopic particles.
