OZTENT EYRE E-1 User manual

EYRE
E-1
OWNERS
MANUAL
FOR MODELS
E-2

2 3
Oztent EYRE Owner’s Manual Oztent EYRE Owner’s Manual
Never use any fuel-burning products (stoves, lanterns, heaters,
etc.) inside or within proximity of this tent. Use of fuel-burning
products inside or within proximity of this tent can result in the
accumulation of dangerous concentrations of carbon monoxide – a
colourless, odourless gas. Breathing carbon monoxide will cause
serious injury or death. Avoid spraying your tent with deodorant as
it will destroy the waterproofing.
Keep all flame and heat sources away from this tent. This tent
is made with flame resistant fabric but it is not fireproof. The tent
fabric will burn if le in continuous contact with an open flame or
other heat source. Failure to keep all flame and heat sources away
from this tent can result in a fire that can burn.
Before using this product, read and fully understand:
(1) attached warnings; (2) the instruction manual and all
accompanying documentation. Failure to follow these directions
can cause an unsafe situation leading to injury.
WARNING
USING AND CARING
CONDITIONING YOUR CANVAS
It is vitaly important that you season your canvas when it’s new and
also after long periods of storage so it gives its best performance.
Simply pitch your tent and wet it down with a garden hose. This
enables the stitching holes to shrink around the tread of the stitch
lines and the cotton in the canvas to swell. Let the canvas dry com-
pletely before repeating this two times.
TIP AND TRADITIONAL FIRST AID FOR CANVAS
Due to the natureof canvas any seam even after seasoning can still
have a drip. The tried and tested remedy if this happens is to carry
a clear wax candle with you when you go camping. If you do notice
a seam has not been seasoned properly, simply rub the candle on
the exterior of the stitch line. This will create a waterproof barrier
quickly and easily.
If cared for correctly, your Oztent canvas will still be around for the
next generation of campers to enjoy.
VENTILATION
Maintain adequate ventilation inside your tent at all times.
CAMPSITE CHOICE
When choosing a campsite, carefully consider the possibility of fall-
ing rocks or tree limbs, lightning, ash oods, avalanches, strong
winds, and other potential hazards to reduce the risk of loss or in-
jury to the tent or occupants.
Select a site that’s level, will drain well if it rains, and is protected
from wind and other elements. Clear the area of sharp stones, sticks,
and other debris, both for comfort and to protect your oor. If possi-
ble, avoid setting the tent on ground that is already wet. If you can’t,
minimize the resulting humidity and potential of condensation by
keeping your tent well ventilated.
PEGS AND ROPES
Peg down your tent properly at all times to reduce the risk of loss or
injury to the tent or occupants.
All tents require pegging to prevent them from ying away in a
gust of wind. Always anchor your Oztent. Enough pegs and ropes
are supplied to safely setup your tent in most situations. It may be
necessary to purchase additional and/or specialised pegs and ropes
for use in extreme or varied soil conditions. For optional sand pegs
Oztent recomends use of a Bluescrew Oztent Edition.
Tightly tensioning your tent with our attached ropes greatly
increases the tent’s strength and stability. This will also reduce
fabric droop and wrinkles, and prevent rainwater from pooling. To
pull out a peg never use the edge of the tent as a handle. If hard to
remove, use of another peg as a hook is recommended.
USING A FLOOR SAVER
A Floor Saver keeps your tent oor clean and dry and it minimises
oor wear and tear by protecting it from excessive abrasion.
CONDENSATION
Condensation is an unavoidable fact of physics. When warm, moist
air comes in contact with the cool tent fabric, it forms condensation.
In most conditions condensation can be controlled by allowing air
inside the tent to vent outside. During periods of high humidity, such
as rain, it can be too dicult to remove or reduce condensation. In
these conditions, a high degree of ventilation can actually increase
the condensation by drawing in more humid air.
To reduce condensation use Oztent Fly. Your Oztent Fly is designed
to collect humid air that pass through your tent. It is normal to
nd the underside of the y covered in water droplets in humid
conditions.
Condensation can also collect on parts of the oor inside the tent.
This is also normal and does not indicate leaking fabric.
ZIPPERS
Be careful with your zippers. Go slow when zipping. Make sure to
align the tracks before sliding the zipper—and don’t exert excessive
force. If fabric gets caught in the slider, stop and slowly reverse
the slider to remove. A silicone based lubricant may be used to
enhance zipping.
When dirt gets in the zipper teeth, they can cause abrasion and
damage to the zipper sliders. You can clean the zipper teeth by rins-
ing them out with water. The pressure from a regular garden hose
will push out small sand particles.
CLEANING
If your tent should require cleaning, set it up and use a sponge with
warm water. If further cleaning is needed, a garden hose should be
able to wash o any remaining dirt. Do not use detergent, soap,
bleach, as these may remove the waterproong and/or damage
the fabric. Allow the tent to air-dry completely before packing or
storing.
STORAGE
Packing away and storing your tent while it’s wet or damp leads
to premature breakdown of the canvas and coatings. Prolonged
exposure to moisture causes the waterproof layer to break down,
becoming soft, sticky and no longer waterproof. Storing a wet tent
can also start the process of mildew forming on the fabric. Mildew
will cause your tent to stain, smell, and will lead to the premature
breakdown of the waterproof coating. Dry your tent thoroughly af-
ter every trip.
ANIMALS
To prevent damage from animals chewing holes in the fabric, never
store food or cooking equipment in your tent.
Please ensure when packing away that there are no insects inside
as these little pests will eat there way out causing holes to appear
in the material.
IMPORTANT NOTES
If you have an Oztent Floor Saver, place it where you want to set up your tent prior to setting up
your tent.
Assemble your Oztent Fly before Step 6 of “Setting Up Your Tent” in the following instructions.
Pack your tent away in the reverse order of set up. Roll up your rear window and front awning
and leave the front door open. Remove your awning poles and take all pegs out. Lower the tent
to the ground and first swing in arm “A” followed by arm “B”. Always swing the arms low to the
ground.
If you have an Oztent Eyre E-2 ensure your back extension is neatly tucked inside the tent prior
to pack down.
Although the Oztent Eyre and its accessories are designed for one person operation, a second
person will make your set-up significantly easier and faster.
The following illustrations are artistic representations of the Oztent Eyre and may dier from the
production model you have. However, the overall operation will be the same.
1.
2.
3.
4.
5.
6.

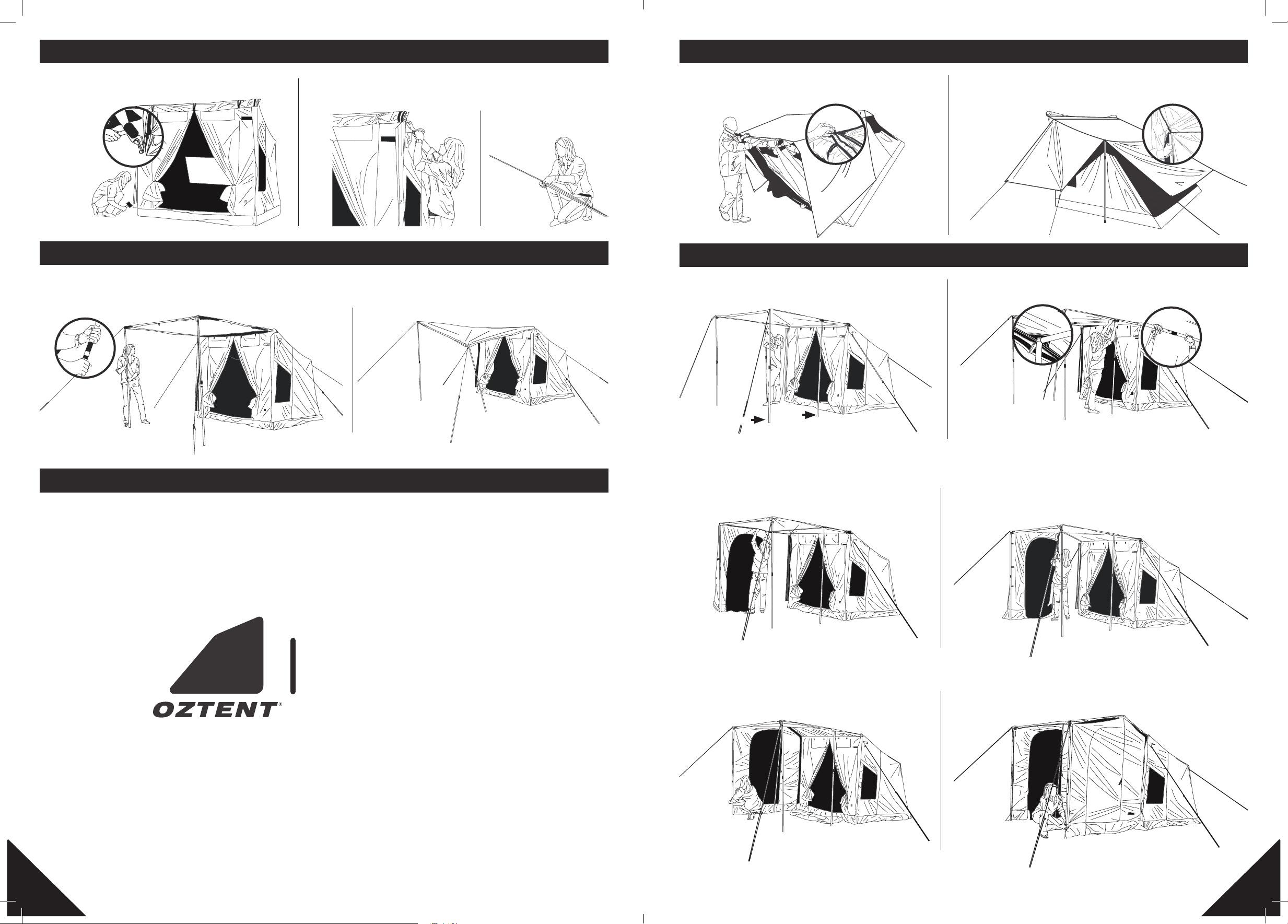

SETTING UP YOUR OZTENT EYRE
1. Take your Oztent out of the bag. Place
your poles, pegs and fly somewhere clear
from your tent space.
2. Swing out both Arms. Each one at a time.
5. Adjust your tent so it sits
properly.
4. Reach inside the tent and velcro the
internal frames to lock in place.
3. Swing your tent up from the swing
tab found near the top frame.
Before After

4 5
Oztent EYRE Owner’s Manual Oztent EYRE Owner’s Manual
SETTING UP YOUR OZTENT
SETTING UP YOUR AWNING
6. Hammer in all bottom Pegs. 7. Pull out the guy ropes and peg them down at a rough 45
Degree angle to secure your tent.
8. OPTIONAL
Extend the awning. Twist to unlock awning poles and twist
again to lock at desired height. Pop up the awning and secure
with guy ropes as shown. LOWER ONE POLE DURING HEAVY RAIN. 1. 2.
Install your 2.3m Awning Poles. Lock them at the
height of your tent roof at first.
Assemble your ridge pole. Twist to lock at desired
location.

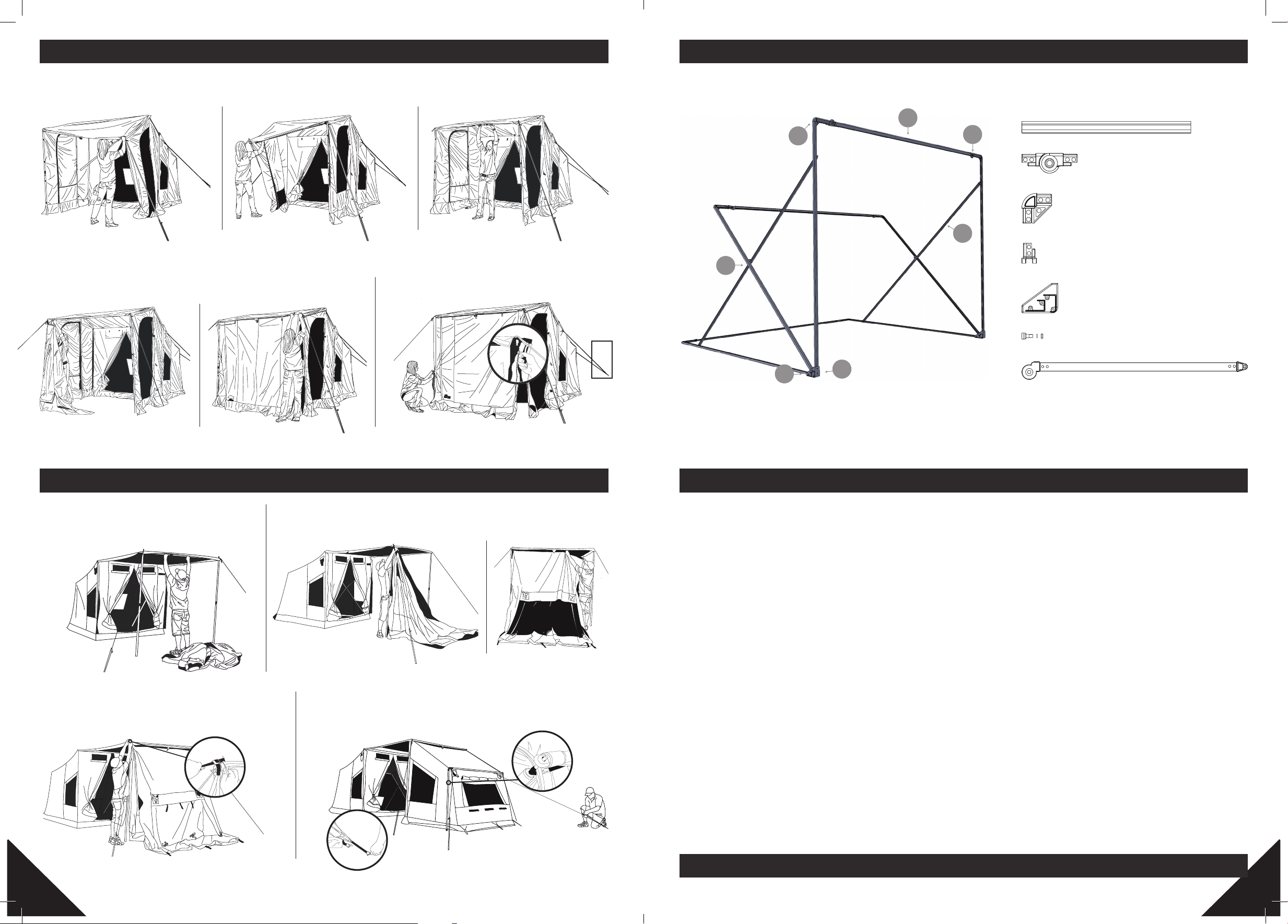

SETTING UP YOUR OZTENT FLY
1. Throw your Oztent Fly over the erected tent. Tilt it
forward and zip the Oztent Fly on the top of the tent. 2. Place the 1.7m poles on each side to create spacing and secure with guy ropes as shown.
SETTING UP YOUR PEAK SIDE PANELS
1.9m 2.3m
3. 4.
Zip on the Peak Side Panels. Panels are marked A
and B. Match against the A,B markings on the tent.
Fully extend the 2.3m Awning Poles when the Peaked
Side Panel if fully zipped on.
5. 6.
Zip on the rest of the Peaked Side Panel. Secure
the velcro tabs to the poles.
Repeat for the second panel and then extend the
2.3m poles. Secure the poles with the guy ropes.
Note: For easy set-up, lower down the 1.9m poles
before zip on the panels.
OPTIONAL
ACCESSORIES

6 7
Oztent EYRE Owner’s Manual Oztent EYRE Owner’s Manual
2. Zip the Front Panel on from Right to Le. 3. Zip the sides of the Front Panel to the sides of
the Side Panels and secure velcro tabs.
SETTING UP YOUR FRONT PANEL (OPTIONAL) COMPLETE OZTENT EYRE PARTS LIST
1. Assemble your ridge pole. twist to lock at desired location.
Additional poles, pegs and ropes available for
purchase to allow the Front Panel to be set up as
another awning.
*
Unpack your Oztent Tagalong Tent. Insert the
Ridge Pole in your Oztent Awning. Twist and
lock Ridge Pole when in place.
1. 2. Attach your Tagalong Tent,
right hand side first.
Zip from right to le.
SETTING UP YOUR TAGALONG TENT (OPTIONAL) OZTENT WARRANTY INFORMATION
Important notice: Details of the product in this owner’s manual may vary from the actual product. Images are for illustrative purposes only.
4. Peg at all base peg points and set up support
poles. Extend all guy ropes, peg and secure.
3. Attach top corner straps to your Oztent Awning
Poles. Tighten straps. Attach velcro straps of
Tagalong Tent on Oztent Awning Poles.
Note: Rear corners need two pegs.
6
5
7
2
3
3
1
4
4. Foot fitting
5. Foot
7. Brace Extrusion with Fittings
6. M8 Nut, Washer and Slider
3. Corner
2. Hinge
1. Main Extrusion (May Require Cutting)
IMPORTANT – REGISTRATION REQUIRED
This manufacturer’s warranty will only be valid if your product
purchase is registered with Oztent. To register, visit our website
and visit our “Register your product” page.
Oztent will confirm receipt within 14 days and issue a Customer
Registration Number. If you have not received your Customer
Registration Number within 14 days please phone us to confirm
we have received your registration. This manufacturer’s
warranty will not be valid if your product is not registered.
Oztent will repair or replace any registered Oztent product
if that product requires repair due to a manufacturing
or materials defect (such as water leaks, faulty stitching,
delamination, faulty zips, faulty fittings or faulty material)
appearing and notified to Oztent within the following warranty
periods:
Furniture - 5 years from date of purchase
Tents & Awnings - 2 years from date of purchase
Any other product - 1 year from date of purchase
EXCLUSIONS. This manufacturer’s warranty is limited to
manufacturing or materials defects. This does not include
damage caused by wear and tear, condensation, dragging,
abuse or misuse, accidents, falling objects, improper set up,
burn holes, extreme weather or damage caused by insects,
animals or children.
HOW TO MAKE A CLAIM
To make a claim on this manufacturer’s warranty please return
your product to Oztent at the address below. You must provide
your Customer Registration Number with the product. If you
purchased the product less than 14 days ago, or you have lost
you Customer Reference Number, please telephone Oztent
between Monday to Friday 9:00am to 5:00pm (Sydney time). All
transport costs related to returning the product for assessment
or repair under this manufacturer’s warranty is payable by the
customer.
OTHER RIGHTS
The benefits given by this manufacturer’s warranty are
additional to other rights and remedies that you may have
under law. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.

8 9
Oztent EYRE Owner’s Manual Oztent EYRE Owner’s Manual
Short Guy Ropes 5
Specifications:
Material
Tent Body 300D Rip-Stop Polyester
Tent Floor 210D Tape-Sealed Polyester
Frame Patented Oztent Aluminum Frame
Fly Screens Superfine No-See-Um Insect Mesh
What’s Included
Tent, Awning, Fly, Telescopic Awning Poles, Ropes,
Pegs / Stakes, Carry Bag, Owner’s Manual (see
www.oztent.com for more details)
Dimensions
Packed Size 200cm (l) x 40cm (w) x 18cm (h)
6.6’ (l) x 1.3’ (w) x 7” (h)
Set Up Size
E-1: 200cm (l) x 240m (w) x 200cm (h)
6.6’ (l) x 7.9’ (w) x 6.6’ (h)
E-2: 260cm (l) x 240m (w) x 200cm (h)
8.5’ (l) x 7.9’ (w) x 6.6’ (h)
Awning Size 200cm (l) x 240cm (w) / 6.6’ (l) x 7.9’ (w)
Weight E-1: 18kg/40lbs
E-2: 20kg/44lbs
Warranty
Warranty Period 2 years (conditions apply)
Warranty Type Manufacturers
Package Contents Quantity
Tent 1
Attached Awning 1
Fly 1
1.9m/6’2” Telescopic Poles 2
Attached Guy Ropes 2
Pegs/Stakes 16
Long Guy Ropes 16
Owners Manual 1
Carry Bag 1

FOR MORE INFORMATION
Visit: www.oztent.com
E-mail: [email protected]om
