LXG HVLP SPRAY GUN
INSTRUCTION MANUAL
INSTRUCTION MANUAL LXG 2-27-2017

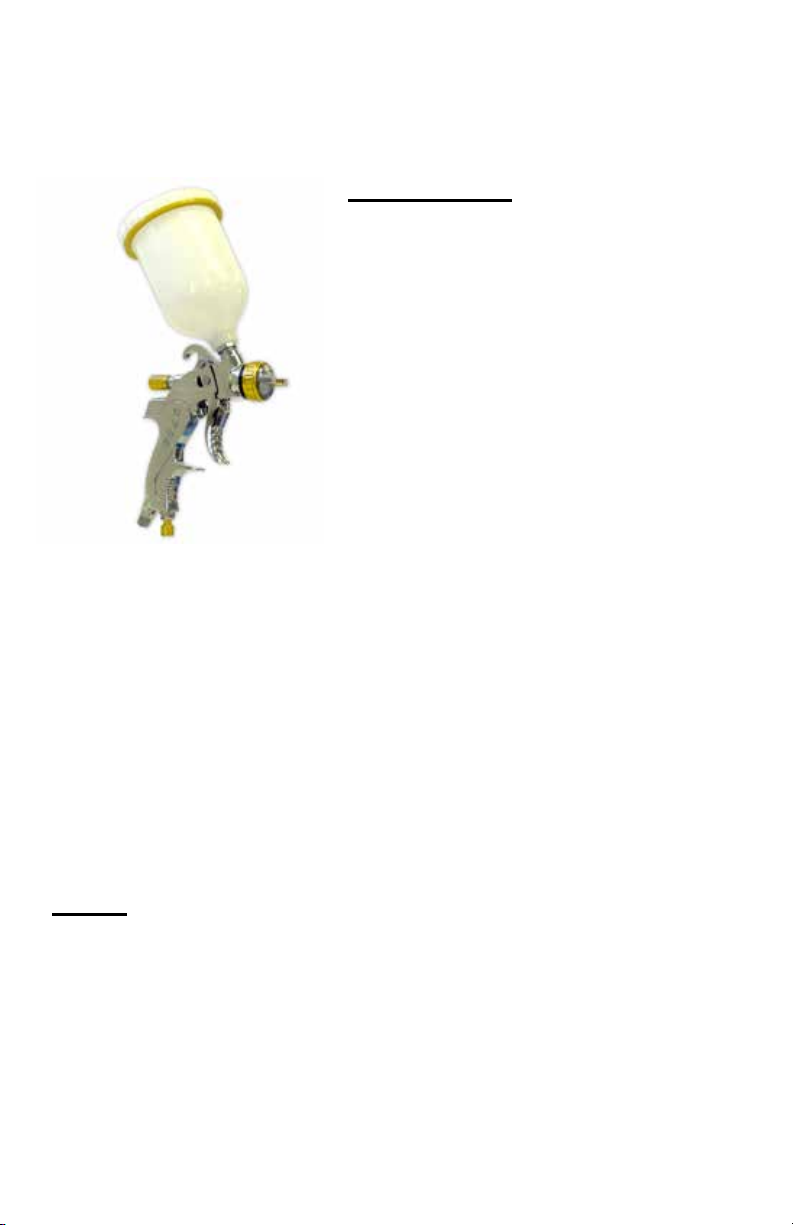

Description:
LXG- Manual Spray Guns are for use
from Low to Medium Pressure with
Light to Heavy Fluids. They will cover
a range of materials to include Enam-
els, Latex, and Lacquers etc. These
Models require 6 to 10 C.F.M. at 30
to 50 lbs. Air Pressure depending on
Spray Head selected and Material
being sprayed. Tip and needle are
made of Stainless Steel and can han-
dle water or solvent based materials.
Specication:
Part Number: LXG-14
Type: HVLP Gravity Feed
Head Size: 1.4mm (Optional sizes 1.7mm & 2.0mm)
Air Volume: 6 CFM
Air Pressure: 30-43 PSI
Air Inlet: ¼” NPT thread
Cup size: 20 Ounce (600ml)
Spray Pattern: 1” to 12”
Weight: 1.562 Lbs
Finish: Bright Chrome with Gold Anodized trim
Setup:
1. Blow out all airline hoses before connecting to the spray gun
to remove foreign particles.
2. Connect air hose to air inlet tting.
3. Connect uid cup or uid hose to uid inlet.
4. Tighten all hose connections securely.
5. Adjust air pressure to required amount at the regulator.
6. Adjust uid volume by turning the uid control knob.
7. The Fan pattern is controlled by turning the fan control Knob
8. Test spray on some cardboard or news paper for nal
adjustment before spraying your project.

2
WARNING: Spray materials may be harmful if inhaled or allowed to
come into contact with the skin or eyes. Consult the product label
and Material Safety Data Sheet supplied for the spray material.
Follow all safety precautions.
CAUTION: Well ventilated area required to remove fumes, dust or
overspray. Secure airhose and uid hose wrench tight for safety and
to prevent leaks.
Cleaning:
After each use spray your paint solvent through the spray gun and
wipe off the outside with clean solvent. Never leave the entire spray
gun immersed in solvent. Dirty aircaps and tips
should be cleaned by soaking in solvent and then blown clean with
air. Personal safety equipment should be used at all times.
1. LXG-600 20 ounce gravity cup assembly
2. LXG-3-14 Head assembly (Installed tip, needle & Aircap)
LXG-3-17 Head assembly (Optional Head)
LXG-3-2 Head Assembly (Optional Head)
A. Needle adjusting knob
B. Fan pattern adjustment knob
C. Air hose attachment inlet (1/4” NPT)
D. Air inlet adjustment knob
Diagram and spare parts:
