PACIFIC CYCLE KID TRAX KT1244 User manual

KT1244 AND 04KT1244
OWNER’S MANUAL
Age: 3 - 7 yrs
Weight: Maximum 27 Kgs (60 lbs)
Max Speed: 2.5 MPH
 6V7AH


POLICE TRIKE

2
PARENTAL AND ADULT RESPONSIBILITIES
WARNING!
• Use of this product without parental and/or adult
supervision could result in serious injury or death. Parents
and/or adults supervising a child’s use of this product
must read and understand the warnings and instrucons
included in this manual before allowing a child to use the
product.
• Use of this product by a child that does not have the
physical (i.e., strength, coordinaon) or intellectual
maturity (i.e., judgment, understanding) to use the
product could result in serious injury or death. Parents
and/or adults supervising a child’s use of this product must
determine if a child has both the physical and intellectual
maturity to use this product before a child uses the
product. Do not allow the use of this product by a child
who does not have the physical or intellectual maturity to
use the product.
• Use of this product by children unfamiliar with the safety
hazards, operaon, and handling of the product could
result in serious injury or death. Parents and/or adults
supervising a child’s use of the product must insure the
child does not allow the use of the product by another
child who is unfamiliar with the safety hazards, operaon,
and handling of the product.
Age 3 - 7 yrs
Max Weight 27 kgs (60 lbs)
USER REQUIREMENTS AND WARNINGS
Before using the vehicle the child should understand the vehicle
controls and safety issues. They must also demonstrate the capability
to handle the vehicle and operate its controls. It is the responsibility of
the adult to educate the child and supervise the vehicles use. Read the
following safety warnings to any child using the vehicle before riding.
• Never leave child unaended. Always supervise the child.
• Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts.
• Always wear shoes when using the vehicle.
• Only one rider is allowed on the vehicle at a me
• Children under 3 years of age cannot use the vehicle.
• Only drive on level ground.
• Do not go near swimming pools or other bodies of water,
drop-os or up and down steep inclines.
• Do not drive the vehicle into loose dirt, mud, sand or ne gravel.
• Do not drive the vehicle on streets or near cars.
WARNING!
1

3
• Using the vehicle near streets, motor vehicles, drop-os such as:
steps, water (swimming pools) or other bodies of water, sloped
surfaces, hills, wet areas, ammable vapors, in alleys, at night or
in the dark could result in an unexpected accident. Always use
the vehicle in a safe, secure environment with connuous
adult supervision.
• Using the vehicle in unsafe condions such as snow, rain, loose
dirt, mud, sand or ne gravel may result in unexpected acon
such as p over and skidding, and damage to the electrical system
and baery.
• Using the vehicle in an unsafe manner. Examples include but are
not limited to:
 Pulling the vehicle with another vehicle or similar device
 Allowing more than one rider
 Pushing the user from the back
 Traveling at an unsafe speed
Always use common sense and safe pracces when using the vehicle
The owner’s manual contains assembly, use and maintenance
instrucons. The vehicle must be assembled by an adult who has
read and understands the instrucons in this manual. Keep the
packaging away from children and dispose of all packaging
before use.
 For best performance use on at, hard surfaces.
The following safety hazards may result in serious injury or death to
the user of the vehicle:
• This product contains small parts that are for adult assembly only.
Keep small children away when assembling. Remove and dispose
of all protecve material and poly bags before assembly. Be sure
to remove all packaging materials and parts from underneath the
vehicle body.
• Body parts such as hands, legs, hair and clothing can get caught in
moving parts. Never place a body part near a moving part or wear
loose clothing while using the vehicle. Always wear shoes when
using the vehicle.
WARNING!

4
• Contact or exposure to baery leakage (lead acid) may
cause serious injury. If contact or exposure occurs
immediately call your physician. If the chemical is on
the skin or in the eyes, ush with cool water for 15
minutes. If the chemical was swallowed, immediately
give the person water or milk. Do not give water or
milk if the paent is voming or has a decreased level
of alertness. Do not induce voming.
• Tampering or modifying the electric circuit system may
cause a shock, re or explosion and permanently
damage the system. Exposed wiring, circuitry in the
charger may cause electric shock. Always keep the
charger housing closed.
• Plug wall charger directly into a wall outlet. Do not use
an extension cord when charging.
• Use of a baery or charger other than the supplied 6V
rechargeable baery and charger may cause a re or
explosion. Only use the supplied 6V rechargeable
baery and charger with the vehicle.
• Using the 6V rechargeable baery and charger for any
other product may result in overheang, re or
explosion. Never use the 6V rechargeable baery and
charger with another product.
• Explosive gases are created during charging. Charge
the baery in a well venlated area. Do not charge
the baery near heat or ammable materials.
• Contact between the posive and negave terminals
may result in re or explosion. Avoid direct contact
between the terminals. Picking up the baery by the
wires or charger can cause damage to the baery and
may result in a re. Always pick up the baery by it’s
case or handles.
• Liquids on the baery may cause re or electric
shock. Always keep all liquids away from the baery
and keep the baery dry.

WARNING!
BATTERY WARNINGS

5


• Damage to the baery may occur if it is allowed to drain
completely. Do not allow the baery to drain completely.
• Check the baery and charger (supply cord, connector) for wear
and damage before charging. Do not charge the baery if
damage has occurred.
• Only an adult who has read and understands the safety warnings
should handle, charge and recharge the baery.
• On average you will need to charge the baery between 10 and
12 hours. Do not charge the baery for more than 24 hours.
Failure to charge the baery as directed could cause permanent
damage to the baery and void the warranty.
• Park the vehicle indoors or cover it with a tarp to protect it
from wet weather.
• Do not leave the vehicle in the sun for long periods of me
or fading may occur. Store in shade or cover with tarp.
• Do not wash the vehicle with a hose.
• Do not wash the vehicle with soap and water.
PRODUCT CARE


6

2
x1
x4
x8
x2
x10

7
3
 
 





 

8



9
 

 

10







11




  


12






13




14
See also Page 3
• A baery contains hazardous material that may cause serious
injury or death if handled, connected, or charged improperly.
Only an adult who has read and understands the warnings and
instrucons in this manual should handle, connect, or charge the
baery. Always contact Pacic Cycle at 1-877-741-6154 if you
have any quesons or concerns regarding handling, connecng,
or charging the baery.
• Charging the baery more than 12 hours could cause the baery
to explode or ignite resulng in serious injury, death or property
damage. Do not charge the baery more than 12 hours. Always
disconnect the product from the charger aer the baery is
completely charged. Immediately disconnect the charger from
the wall aer the charger indicator light turns green.
• A damaged supply cord, connector, or charger could cause
burns to the skin, an electrical re or serious injury, death, and
property damage. Always inspect the supply cord, connector, and
charger for damage (e.g., frayed or kinked wires, exposed inner
wires, missing insulaon) before use. If damaged, do not use the
supply cord, connector, or charger for any purpose and properly
dispose.
• Connecng the baery and baery charger to an extension
cord(s) could result in overheang, explosion, re, serious
injury, death, or property damage. Never charge the baery
using an extension cord. Always plug the charger directly into
a wall outlet.
• The baery may become damaged if allowed to drain
completely. Always keep the baery charged.
• The average me to charge the baery is between 10 and 12
hours. Failure to follow the instrucons regarding charging the
baery may result in permanent damage to the baery and
void the warranty.
4
WARNING! 

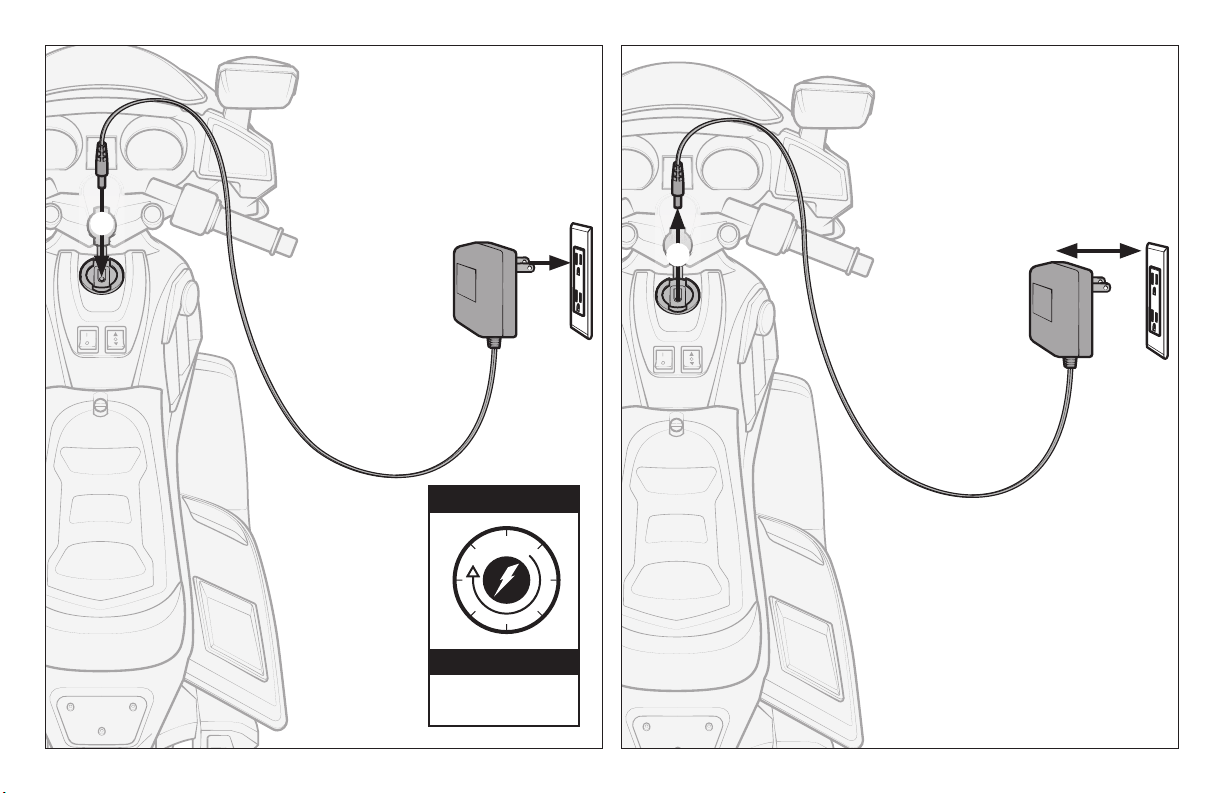

15




12



Red= Charging
Green= Charged

16
This is the horn buon. Press this buon to make a
horn sound.
This is the foot switch. Press the foot switch down to
move the vehicle. Release the foot switch by liing the
foot up to stop the trike. The electric motor will cause
the trike to stop.
This is the siren buon. Press the buon down to
acvate the siren lights.
This is the ON/OFF switch. Turn the vehicle ON to
acvate the vehicle. Turn the vehicle OFF to
deacvate the vehicle. Always leave switch in the OFF
posion when the vehicle is not being ridden.
This is the direcon switch. Press it to change the
direcon of travel.
5

17


• Check the ghtness of the fasteners before each use.
• Check the ghtness of the wheels.
• Ensure the baery is securely in place before use
• Occasionally use lightweight oil to lubricate moving parts such as
wheels and steering linkage. Do not use oil on plasc or nylon
parts. No lubricaon is required.
• Store the vehicle indoors or cover it with a tarp to protect it from
the wet weather. Keep it away from sources of heat, such as
stoves and heaters.
• Clean the vehicle with a so, dry cloth. To restore shine to plasc
parts, use a non-wax furniture polish. Do not use car wax,
abrasive cleaners or wash the vehicle with soap and water. Water
will damage the motor, electrical system and baery.
• Pacic-Cycle recommends that you take the vehicle to an
authorized service center for periodic maintenance and service.
Call Pacic-Cycle Consumer Relaons at 877-741-6154 for an
authorized service center.
• For a complete list of replacement parts, please contact Pacic-
Cycle Consumer Relaons. To order parts, please have the model
and serial number available, which can be found underneath the
seat on the baery cover.
6 
BATTERY REPLACEMENT AND DISPOSAL
The baery will eventually lose the ability to hold a charge.
Depending on the amount of use, and varying condions, the
baery should operate for one to three years. Follow these steps to
replace and dispose the baery.
 Recycle the dead baery responsibly. The baery
contains lead acid (electrolyte) and must be disposed of properly
and legally. It is illegal in most areas to incinerate lead acid baeries
or dispose of them in landlls. Take it to a federal or state-approved
lead acid baery recycler, such as an authorized service center or
your local automove baery retailer. Do not throw the baery
away with your regular household trash!

18






BATTERY REPLACEMENT

19
Do not return this product to the place of purchase. If your vehicle
needs service, repairs or replacement parts, call:

 8:00 am – 5:00 pm (CST) Monday - Friday
 877-741-6154
 customerservice@pacic-cycle.com
For a complete list of replacement parts, please contact
Pacic-Cycle Consumer Relaons. To order parts, please have the
model and serial number available, which can be found underneath
the seat on the baery cover.
7 

20
8 
  
Vehicle does not run Baery low on power Recharge baery (see Baery: Recharge Interval and Time)
Thermal fuse has tripped Let the vehicle rest for 5 to 10 minutes before connuing normal
operaon. (see Maintenance)
Baery connector or wires are
loose
Check that the baery connectors are rmly plugged into each
other. If wires are loose around the motor call Consumer Relaons
at  for an authorized service center
Baery is dead Replace baery (see Baery: Replacement and Disposal)
Electrical system is damaged Call Consumer Relaons at  for an authorized
service center
Motor is damaged Call Consumer Relaons at  for an authorized
service center
Vehicle does not run very long Baery is under charged Check that the baery connectors are rmly plugged into each
other when recharging (see Baery: Recharge Interval and Time)
Loud grinding or clicking
noises coming from motor
or gear box
Motor or gears are damaged Call customer Relaons at 877-741-6154 for an authorized
service center.
The following are examples of potenal problems. Completely read through this manual and the troubleshoong guide table before calling
Kid Trax Toys Consumer Relaons. If you sll need help resolving the problem please call . Kid Trax Toys recommends that
you take the vehicle to an authorized service center for periodic maintenance and service. Call the number listed above for the closest
center to you.
