Pacific Hoists PEH050NH User manual

Pacific Electric
Chain Hoist
U-MEGA Series
OPERATION MANUAL
&
PARTS LIST
Model
PEH050 PEH050NH
PEH100 PEH100NH
PEH200-2 PEH200-2NH
PEH200-1 PEH200-1NH
PEH300-2 PEH300-2NH
PEH500-2 PEH500-2NH
Copyright © 2018
by Pacific Hoists Pty Ltd. No portion of this manual is to be reproduced
without written consent from. Specifications subject to change without notice.

1
SAFETY-IMPORTANT
The use of any hoist and trolley presents some risk of
personal injury or property damage.
That risk is greatly increased if proper instructions
and warnings are not followed. Before using this ho
ist,
each user should become thoroughly familiar with all
warnings, instructions and recommendations herein.
THIS SYMBOL POINTS OUT IMPORTANT SAFETY
INSTRUCTIONS WHICH IF NOT FOLLOWED COULD
ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY
OF YOURSELF AND OTHERS.
READ AND FOLLOW ALL INSTRUCTIONS IN THIS
MANUAL AND ANY PROVIDED WITH THE
EQUIPMENT BEFORE ATTEMPTING TO OPERATE
YOUR “ Pacific ”ELECTRIC CHAIN HOIST.

2
CONTENTS
Safety-Important …………………………………………………………………………
……………
1
1. Foreword ……………………………………………………………………………………
…
3
2. Main Specification ………………………………………………………………………………
….
4
2.1 Specification ………………………………………………………………………………
…….
4
2.2 Mechanical Classification (Grade) and Life ……………………………………………
5
2.3 Safety Devices …………………………………………………………………………
………
6
2.4 Specifications and Dimensions ……………………………………
………………………
7
3. Safety Rules ……………………………………………………………………………………
……
9
4. Installation ………………………………………………………………………………………
……
11
4.1 Unpacking Information ……………………………………………………………
…………
11
4.2 Voltage …………………………………………………………………………………
……
11
4.3 Installation …………………………………………………………
…………………………
11
5. Operation ………………………………………………………………………………………
……
14
6. Maintenance and Inspection ………………………………………
………………………………
14
6.1 Maintenance …………………………………………………………………………………
…
14
6.2 Inspection ………………………………………………………………………………
………
15
6.3 Overload clutch adjustment instruction…………………………
…………………………
18
6.4 How to adjust the geared Limit Switch
………………………………………………………
19
6.5 Method of adjusting PEH motor brake gap………………………………………
………
22
7. Troubleshooting …………………………………………………………………………………
…
25
7.1 Wiring Diagrams …………………………………………………………………………
……
25
7.2 Troubleshooting and Remedial Action …………………………………………………
……
28
8. Drawings and Parts Lists …………………………………………………………………………
…
29
9. CE Declaration Of Conformity ……………………………………………………………………
…
53

3
1. FOREWORD
This manual contains important information to help you properly install, operate and
maintain the Pacific electric chain hoist and to maximize performance, economy and safety.
Please study its contents thoroughly before putting the electric chain hoist into operation.
By practicing correct operating procedures and by carrying out the preventative
maintenance recommendations, you will be assured of dependable service. In order to help
us to supply correct spare parts quickly, please always specify -
(1) Hoist model
(2) Serial number
(3) Part number, plus the description.
We trust that you will find the Pacific hoists will give you many years of satisfactory service.
Should you have any queries, please contact:
Pacific Hoists Australia
24 Foundry Road
Seven Hills NSW 2147
P | [phone]
E | [e-mail]
W | www.pacifichoists.com.au
Pacific Hoists New Zealand
11 Druces Road
Wiri Auckland NZ 2104
P | [phone]
E | [e-mail]
W | www.pacifichoists.com.au

4
2.MAIN SPECIFICATIONS
2.1 Specifications
The following specifications are common to all Pacific electric chain hoists.
Table 2-1 Specifications
NB. Reverse phase relay on all models except 250kg hoist
Remarks:
(1) Contact Pacific Hoist for information on using the hoist outside the working
temperature or humidity range.
(2) Intended use: This hoist has been designed for vertically lifting and lowering
loads under normal atmospheric conditions.
(3) Noise levels are measured at a distance of 1m horizontally from the hoists
during normal operation.
Item Detail
Working temperature range (℃) -5 to +40
Working humidity range (%) 85 or less
Protection
Hoist IP 55
Push button IP 65
Electric power supply Three Phase, 415V, 50 Hz
Noise Level (dB) Dual speed hoist 75

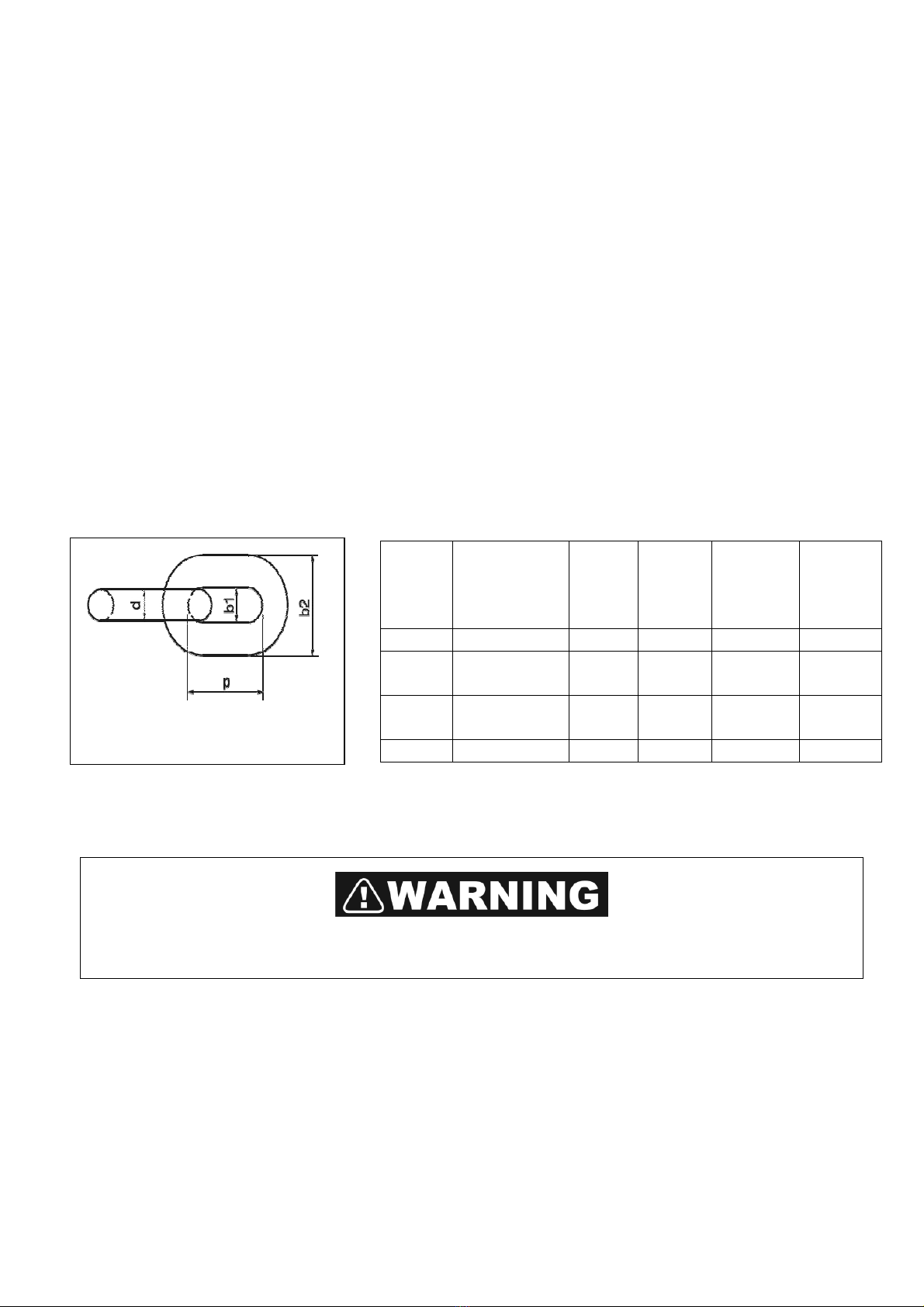

Chain Size
Type Nominal diameter
(mm) Pitch (mm)
PEH050
PEH050NH Ø6.3 19.1
PEH100
PEH100NH Ø7.1 20.2
PEH200-2
PEH200-2NH Ø7.1 20.2
PEH200-1
PEH200-1NH Ø10 30.2
PEH300-2
PEH300-2NH Ø10 30.2
PEH500-2
PEH500-2NH Ø11.2 34

5
2.2Mechanical Classification (Grade) and Life
Safety and life of electric chain hoists are guaranteed only when the equipment is
operated in accordance with the prescribed grade.
Pacific electric chain hoists have been designed for grade 2m in the FEM Regulations
(FEM 9.5.11). Details are provided in Table 2-2. Average daily operating time and total
operating time are determined by load distribution.

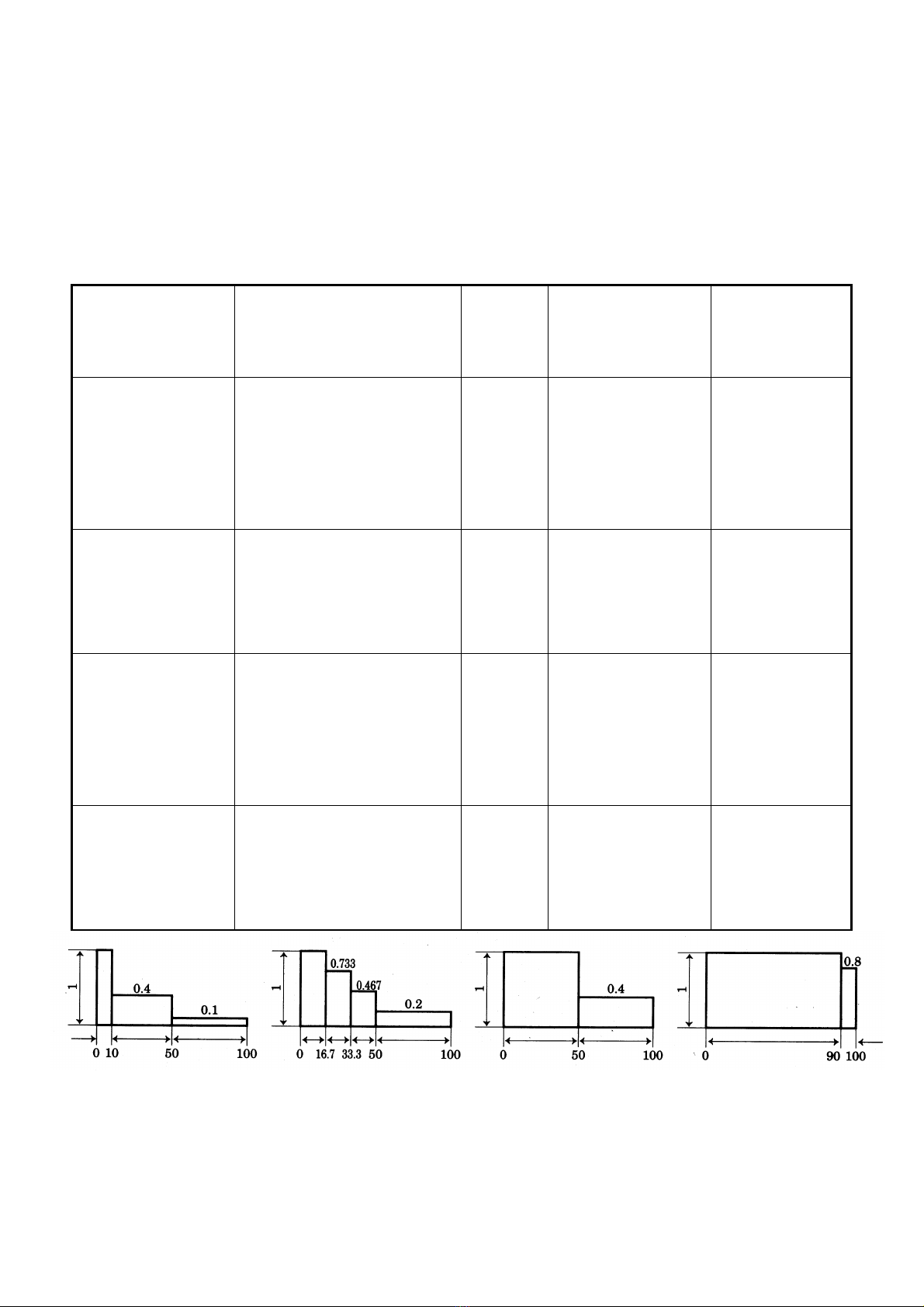

Table 2-2 Mechanical classification
Load Spectrum
(Load distribution) Definitions
Cubic
mean
value
Average daily
Operation time
(h)
Total operatin
g
time
(h)
1
(light)
Mechanisms or parts
thereof, usually subject to
very small loads and in
exceptional cases only to
maximum loads.
k≦0.50 4 - 8 12500
2
(medium)
Mechanisms or parts
thereof, usually subject to
small loads but rather
often to maximum loads.
0.50<k
≦0.63 2 - 4 6300
3
(heavy)
Mechanisms or parts
thereof, usually subject to
medium loads but
frequently to maximum
loads.
0.63<k
≦0.80 1 - 2 3200
4
(very heavy)
Mechanisms or parts
thereof, usually subject to
maximum or almost
maximum loads.
0.80<k
≦1.00 0.5 - 1 1600
% operating time
Load spectrum 1
% operating time
Load spectrum 2
% operating time
Load spectrum 3
% operating time
Load spectrum 4

6
2.3 Safety Devices
(1) Motor brake
The “Electro-Magnetic Brake”unique design, it features simultaneous motor braking upon
switching off power even under full load condition, quick action and high frequency use.
(2) Mechanical Brake w/Clutch & Overload protection device
The unique design includes mechanical brake & overload dual protection. Mechanical clutch
operates with motor brake, which can offer exactly, very limited slipping & quick braking. OL
device prevents over loading to damage goods, and ensure secure operation and product’s
life-span.
(3) Hook and hook latch
The hook is drop-forged from high tensile steel and heat treated for strength and toughness.
The bottom hook is capable of 360∘rotatable and fitted with a safety latch for added
security.
(4) Phase Error Relay
To test 3 phases if any wrong phases connection. It can stop power once any abnormal
situation to protect the hoist.
(5) Limit Switch
Upper and lower limit switches are fitted for switching off power automatically in case of
over lifting or over lowering.
(6) Emergency Stop Device
This button is used to quick stop the hoist in an emergency situation. It is a red, mushroom
shaped swivel button, located at the uppermost position of the pendant. When pressed,
power to the equipment is switched off and the button locked automatically. Turn it
clockwise can release the lock and enable re-start. (Illust.1)
(Illust.1)
4-way + E.S.(EMERGENCY STOP) 2-way + E.S.(EMERGENCY STOP)

7
2.4 Specifications and Dimensions
a. Specifications:
Model Capacity
(kg)
Lift
(m) %E.D.
Hoisting Traversing Load Chain
N.W.
(kg)
Speed
(m/min)
Motor
kw x
Pole
Speed
(m/min
Motor
kw x
Pole
Ø mm Fall No.
50Hz 50Hz
PEH050 500 3 40/20 10/2.5 1.1/0.28
x2/8P
20/5
0.12/0.03
x2/8P
Ø 6.3
x19.1 1 47
PEH050NH 40 10 1.1x2P 20 0.12 x2P
PEH100 1000 3 40/20 8/2 1.5/0.37
x2/8P
20/5
0.18/0.04
x2/8P
Ø 7.1
x20.2
1 62
PEH100NH 40 8 1.5x2P 20 0.18x2P
PEH200-2 2000 3 40/20 4/1 1.5/0.37
x2/8P
20/5
0.37/0.09
x2/8P
2 67
PEH200-2NH 40 4 1.5x2P 20 0.37x2P
PEH200-1 2000 3 40/20 9.6/2.4 3.7/0.9
x2/8P
20/5
0.37/0.09
x2/8P
Ø 10
x30.2
1 102
PEH200-1NH 40 9.6 3.7x2P 20 0.37x2P
PEH300-2 3000 3 40/20 6.4/1.6 3.7/0.9
x2/8P
20/5 0.6/0.15
x2/8P
2 120
PEH300-2NH 40 6.4 3.7x2P 20 0.6x2P
PEH500-2 5000 3 40/20 4/1 3.7/0.9
x2/8P
20/5 0.6/0.15
x2/8P
Ø 11
x34 2 145
PEH500-2NH 40 4 3.7x2P 20 0.6x2P
b. Hoisting Dimensions:
Model
Dimension(mm)
H
A
B
C
D
E
F
G
PEH050
(NH)
500
570
270
310
165
375
190
185
PEH100
(NH)
550
620
300
320
180
410
195
220
PEH200
-
2
(NH)
620
620
300
320
180
410
195
220
PEH200
-
1
(NH)
1020
715
340
375
220
530
270
260
PEH300
-
2
(NH)
1050
715
340
375
220
530
270
260
PEH500
-
2
(NH)
1100
715
340
375
220
530
270
260

8
c. Hoisting + Trolley Dimensions:
Model
Dimension(mm)
H
A
B
C
D
E
P
EH050+PET050(055)
500
385
126
325
180
75~125
PEH100+PET100(105)
535
385
126
325
180
75~125
PEH200
-
2+PET200(205)
610
395
159
360
185
100~150
PEH200
-
1+PET210(215)
970
395
159
360
185
100~150
PEH300
-
2+PET310(315)
1000
445
185
400
195
125~175
PEH500
-
2+PET
510(515)
1050
445
185
400
195
125~175

9
3.SAFETY RULES
This hoist is not designed for, and should not be used for, lifting, supporting, or transporting
personnel. Any modifications to upgrade, re-rate, or otherwise alter the hoist equipment must
be authorized by either the original manufacturer or a qualified professional engineer.
Only trained personnel are allowed to operate the hoist.
Prior to each lifting operation, it is essential to make sure that:
(a) the correct lifting sling is being used.

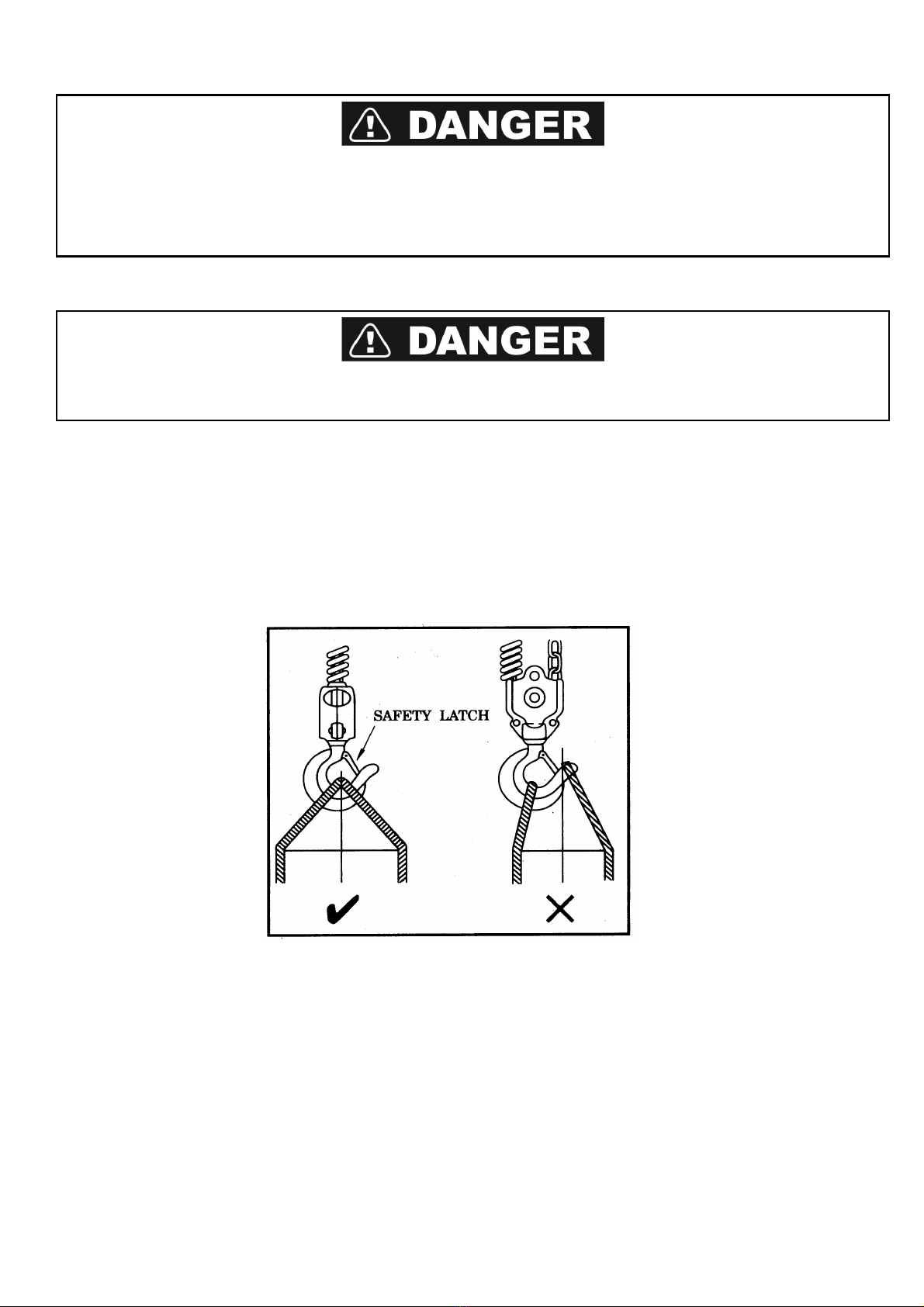

(b) the lifting sling is located in the hook as shown below (Illust. 2) and that a safety latch has
been fitted.
(Illust. 2)
Firm and steady button operation is required. Never push the button switch intermittently.
Always avoid excessive inching operation.
Always make sure the hoist motor completely stops before reversing.
Always leave the push button switch cable and bottom hook vertically static after completion
of operation, never leave them at any position which may cause swing or slip.
Slings must be applied to load evenly and centrally to ensure correct balance. Never lift any
Do not use the hoist in explosive atmosphere.

10
object which is insecure or out of balance.
Never use hoist to end or side pull a load. (Illust. 3)
Never wrap around and hook back the load chain as a sling to lift a load. (Illust. 4)
(Illust. 3) (Illust. 4)
(Illust. 5)
Lifting must always be personally attended. Never leave a raised load unattended.
Over-capacity-load lifting is hazardous and should not be undertaken.
Never lift a load when the load chain is twisted.
Regularly inspect and check the condition of load chain. Do not operate with damaged chain.
Do not use the hoist chain as a welding electrode.
Never stand under a raised load (Illust. 5)

11
4. INSTALLATION
4.1 Unpacking Information
After removing the hoist from its packing box, carefully inspect the external condition of
the electrical cables, contactor, gearbox and motor casing for damage.
Check and ensure that these items are present.
Each hoist is supplied as standard with the following accessories.
Table. 4-1
4.2 Voltage
4.3 Installation
If power supply deviates from standard by more than ± 10% abnormal
operation or damage to the motor may result. It is imperative to ensure
correct voltage supply before commencing operation.
Connection to power supply before installation procedures having been
completed is strictly prohibited.
1. Chain bucket 1 set
2. Power cable 0.5 meter
3. Push button control switch 1 piece

12
Prior to installation check and ensure that the top hook assembly is securely attached
to the hoist by means of the lock bolt.
When fitting the top hook ensure the direction of the hook is correct for the model of
the hoists, as indicated by the sticker adjacent to the hook attachment.
NOTE: If the hoist is to be suspended from an electric trolley, assembly may be eased
by firstly removing the top hook, attaching it to the trolley load plate, them refitting
the top hook to the hoist.
Assemble chain bucket –
BODY
HEX. RECESS BOLT
LOCK NUT
(Illust. 6)
Connect power supply to hoist and operate the push button switch. This operation
must be carried out by a trained person.
RST
RED
WHITE
1-1.5M CABLE HANGER
WIRE ROPE
CONTACTOR
ELECTRIC
CONTROL
BOX
GROUNDING
(GREEN) BLACK
(Illust. 7)

13
Operation Test
(a) Please reverse any two connections while the direction is incorrect.
(b) Firmly push switch button to lower load chain until the limit spring touches
the limit switch. Power should be cut off automatically.
(c) Firmly push switch button to check the collection of load chain into chain
bucket.
(d) Check the emergency stop device function :
While holding down either or button on the push button switch, push the
emergency stop button. Check that the hook stops when the emergency stop
button is pushed. Also, check the hoist does not move in response to the push
button switch.
Finally, check that the emergency stop device pops out when turned to the right
and that operation can be resumed thereafter. If the equipment fails to pass any of
the above checks, check the wiring and automatic locking function of the
emergency stop device.
(e) Check load chain lubrication (It has been lubricated at our works, but the lubricant
may dry out during transportation). It is also advisable to keep a small amount of
lubricant in the chain bucket to keep the chain in an oil bath.
(f) Check chain position. Weld joints on links must face the same direction (Illust. 8).
Correct chain operation can only be achieved when all joints are vertically in line.
Illust. 8 Illust. 9
The bottom hook on multi-fall hoist must never be rotated as shown below.
(Illust. 9)

14
5. OPERATION
After running test and checks have been completed, the hoist will be ready for normal
operation.
(1) The operator must have a clear and unobstructed view of the entire working area
before operating the hoist.
(2) The operator must check that the entire working area is safe and secure before
operating the hoist.
(3) When using the hoist with a motorized trolley, the operator must take care to
prevent excessive load swinging by sympathetic use of the trolley controls
6. MAINTENANCE AND INSPECTION
6.1 Maintenance
(1) Check the level of gearbox lubricant after the first 500 hours operation, thereafter
check every 3 months and lubricate accordingly.
NOTE: We recommend using lubricant oil equivalent to SHELL S4 WE460.
(2) Always keep the hoist unit dry and never misuse it in a manner likely to reduce its durability.
(3) When it is necessary to keep the unit outdoors, a protective covering should be fitted.
Since dealing with heavy loads may involve unexpected danger all of the
“SAFETY RULES”(Ref 3.) must be followed and the operator must be aware
of the following points while using the hoist.
Do not perform maintenance on the hoist while it is carrying a load except
monthly checking for the brake or limit switch.
Before performing maintenance do not forget to affix tags to the power
source and the push button switch reading : “DANGER”,“EQUIPMENT BEING
REPAIRED”.

15
6.2 Inspection
1. Daily inspection: Before starting daily operation, check the followings:
(a) Correct power supply.
(b) “Up”,“Down”and “Emergency Stop”test runs under no load.
(c) Correct motor performance.
(d) No abnormal or excessive noise.
(e) No malfunction of the bottom hook safety latch.
(f) Proper function of moving/turning parts and brake.
(g) Well-lubricated load chain.
2. Monthly inspection
(a) Load chain.
Distorted, elongated or worn chain link will not sit properly on the load sprocket
wheel and may cause chain breakage and/or damage to hoist unit. To ensure safe
and efficient operation, the chain links must be checked for their pitch (inside
length), inside width and outside width monthly according to following table.
Dia-
Meter
(m/m)
(d)
Model
Inside
Length
(m/m)
(p)
Inside
Width
(m/m)
(
b
1
)
Outside
Width
(m/m)
(b
2
)
Breaking
Load
(kn)
Ø
6.3
PEH050
(NH)
19.1
7.9
21.4
50
Ø7.1 PEH100(NH)
PEH200
-
2
(NH)
20.2 8.1 23.2 63.3
Ø10.0 PEH200-1(NH)
PEH300
-
2
(NH)
30.2 12.5 33.2 128
Ø
11.2
PEH500
-
2
(NH)
34
14
37.
5
160
Table 6-2-a
Measuring
(1) The chain gauge is useful and convenience for measuring.
(2) Please use a chain gauge to measure the chain pitch and diameter, per illustrations (1) and (2).
(3) Every chain ring must be measured, and the chain must be replaced when one of chain ring
is wear or stretch.
(4)It will be a cutting-out possibility if you use a chain fall either wear or stretch during
operation.
(5) Do not replace a chain fall by yourself and do please contact specific either service centers
or contractors to help you out.
(6) The chain fall must be replaced whole instead of in part.
Always use the hoist manufacture’s recommended parts when repairing a hoist.
CHAIN LINK

16
(7) The load sheave, regulator, and regulator plate wheel must be replaced the same time as
you do a chain replacement.
Note : Chain must be in perfect condition without any defects.
Illustration (1) Chain pitch measure Illustration (2) Diameter measure
(b) Check hook with care. If hook shows cracks, deformation or excessive wear, it should be replaced.
Top Hook Bottom Hook
Model
Capaci
ty
(kg)
Hook
Dimensions (mm) Allow Stress
H1 B1 B2 H2 B3 B4 C D g E ( kg/mm2)
PEH050
PEH050NH 500 T33 22 10 29 22 10 40 95.5 25.5 55 70
B28 18 8 23 18 8 35 - 26 50 70
PEH100
PEH100NH 1000 T38 28 12 33 28 12 46 120 31 65 100
B33 23 9 29 23 9 40 - 28 61 70
PEH200-2
PEH200-2NH 2000 T38 28 12 33 28 12 46 120 31 65 100
B45 31 10 41 31 10 46 - 36 75 70
PEH200-1
PEH200-1NH 2000 T55 34 19 48 34 19 52 - 40 90 70
B55 34 19 48 34 19 52 - 40 90 70
PEH300-2
PEH300-2NH 3000 T55 34 19 48 34 19 52 - 40 90 70
B55 34 19 48 34 19 52 - 40 90 70
PEH500-2
PEH500-2NH 5000 T66 44 23 60 44 23 62 - 45 100 70
B66 44 23 60 44 23 62 - 45 100 70
Top Hook=T Bottom Hook=B
OK
NO
OK
OK NO

17
Your dealer should be asked to perform this inspection.
3. Annual inspection
(a) Check gearing for any excessive wears or damage.
(b) Replace gearbox lubricant completely (PEH050(NH) / 800C.C., PEH100(NH) &
PEH200-2(NH) / 1400C., PEH200-1(NH) & PEH300-2(NH) & PEH500-2(NH) /4000C.C.) as
following table for your reference. NOTE: We recommend using lubricant oil
equivalent to SHELL S4 WE460.
※Table of recommended oils according to DIN 51354
ISO-VGDIN 51519
viscosity At
40°Csmm2(cST)
Approximate viscosity
of the VG Categories
50°Csmm2(cST)
ARAL BP ESSO MOBIL OIL
VG460 251 Aral Degol
BG 460-BMB 460
BP Energol
GR-XP 460
Spartan
EP-460
Mobilgear
634
ISO-VGDIN 51519
Viscosity at
40°Csmm2(cST)
Approximate viscosity
of the VG Categories
50°Csmm2(cST)
SHELL TEXACO I.P. AGIP TOTAL
VG460 251 Omala oil
S4 WE460
Meropa
460
Mellana
460
Blasia
460
Carter
EP 460
Table 6-2-b
The permissible tolerance for each VG category is ±10% of the tabulated values.
(a)Check brake lining for any wear or damage.
(b)On completion of above checks, lift a load several times to ensure good performance of the
hoist before starting duty operation.
Warranty Details
1. Warranty Period : One year for Mechanical Spare Parts after purchase the product.
2. Non-Warranty Scope:
(a) Electrical Spare Parts (ex. Contactor, Pendant, Phase Error Relay, etc.)
(b) Expense Spare Parts (ex. Chain Bucket, Brake Lining, etc.)
(c) Damage caused by unsuitable operation.
(ex. Galvanize plant, Chemical Plant, Dye-work, etc. )
(d) Damage caused by operating on the wrong electric voltage.
(e) Damage caused by user amend the product.
(f) Damage caused by natural disaster.
3. Warranty Scope shall be permitted by Cheng Day Machinery and Within One Year of
damaged Mechanical Spare Parts Repair and Replacement.
(circumstance stated in detail No. 2 are not included.)

18

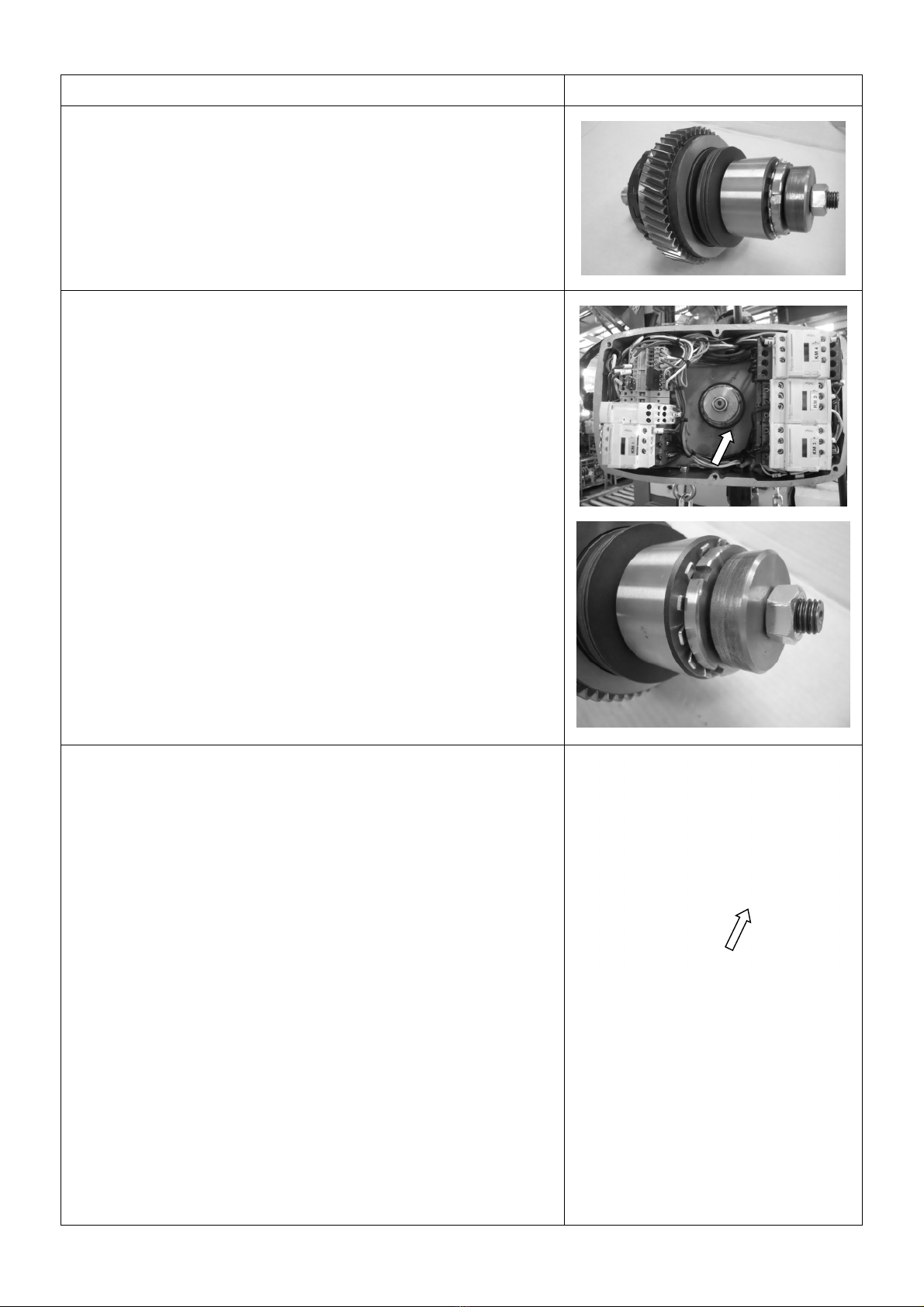

6.3 Overload clutch adjustment instructions
Description Picture
Mechanical Brake and Overload Protection
Setting is 125% rated load
1.Use rolling bearing nut fixture to tighten the clutch nut
fixture.
2.It can be able to lift in 100% rated load.
3.Adjust the load to 125% rated load
4.Clutch is slipping, cannot lift, setting complete.
5.Setting the clutch does not slip when lifting a load
6.Loosen the adjusting nut, and set the clutch slip, be
unable to lift the load.
7.Adjust load to 100% rated load, clutch does not slip and
can be able to lift the load.
8.Adjust the load to 125% rated load, clutch slip the
loading material. Setting complete.
9.Setting of overload is 100
% rated load can be able to lift
and 125% rated load have to slip.
After setting complete, level rolling bearing nut washer
at nut groove, tap washer to secure it, to prevent
loosening.
Adjust load to 100% rated load,It is able to lift in 100%
rated load,Setting complete.

19
6.4How to adjust the geared Limit Switch for PEH200-1(NH)/ PEH 300-2(NH)/ PEH500-2(NH)
Description Picture
1. Put in load chain from the side of chain bag and
goes through chain sprocket, press the pendant
(down) button, let the chain be at Lower Limit
Switch position.
2. Lower L/S flange set up to be close to the middle
(you can see there are 3 switch, the middle one).
Adjust Plastic screw by using #4 Hex wrench.
3. When the chain tail at lower LS is too longer.
