Pacific hydrostar 98439 User guide

4 HP PRESSURE WASHER
Model 98439
SET UP, OPERATING, AND SERVICING
INSTRUCTIONS
DANGER
Using an engine indoors CAN KILL YOU IN
MINUTES.
Engine exhaust contains carbon monoxide.
This is a poison you cannot see or smell.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
Only use OUTSIDE
and far away from
windows, doors, and
vents.
Diagrams within this manual may not be drawn proportionally.
Due to continuing improvements, actual product may differ slightly from the product described herein.
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.

Page 2SKU 98439 For technical questions, please call 1-800-444-3353.
CONTENTS
IMPORTANT SAFETY
INFORMATION ............................ 3
SET UP PRECAUTIONS ....................3
OPERATING PRECAUTIONS............4
VIBRATION HAZARD:..................6
SERVICE PRECAUTIONS............. 6
REFUELING:.................................7
BASIC SPECIFICATIONS ............. 8
UNPACKING .................................. 8
SET UP INSTRUCTIONS............... 8
ASSEMBLY.........................................8
IF USING DETERGENTS: ............8
OPERATING INSTRUCTIONS ...... 9
STARTING THE ENGINE ...................9
CHECKING ENGINE OIL LEVEL . 9
CHECKING FUEL LEVEL.............9
ENGINE DIAGRAM...................... 10
START PROCEDURE ................. 11
BREAK-IN PERIOD .................... 11
EQUIPMENT OPERATION............... 11
TECHNICAL SPECIFICATIONS.. 13
SERVICING.................................. 13
MAINTENANCE PROCEDURES .....13
ENGINE OIL CHANGE ...............13
AIR FILTER ELEMENT
MAINTENANCE .......................13
SPARK PLUG MAINTENANCE..14
FUEL FILTER REPLACEMENT
(IF EQUIPPED).........................14
CLEANING, MAINTENANCE, AND
LUBRICATION SCHEDULE ..........15
AFTER 20 OPERATION HOUR
BREAK-IN PERIOD: ................15
AFTER EVERY 25 OPERATION
HOURS:....................................15
AFTER EVERY 50 OPERATION
HOURS:....................................15
AFTER EVERY 100
OPERATION HOURS:..............15
AFTER EVERY 300
OPERATION HOURS:..............15
STORAGE ........................................15
TROUBLESHOOTING......................17
GENERAL PARTS LIST .............. 20
GENERAL ASSEMBLY
DIAGRAM .................................. 21
PUMP PARTS LIST ..................... 22
PUMP DIAGRAM ......................... 23
ENGINE PARTS LIST .................. 24
ENGINE DIAGRAM...................... 25
LIMITED 1 YEAR / 90 DAY
WARRANTY .............................. 26
EMISSION CONTROL SYSTEM
WARRANTY .............................. 26

Page 3SKU 98439 For technical questions, please call 1-800-444-3353.
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operat-
ing, inspection, maintenance and cleaning
procedures. Write the product’s serial
number in the back of the manual near the
assembly diagram (or month and year of
purchase if product has no number). Keep
this manual and the receipt in a safe and
dry place for future reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling,
and all other information
provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
WARNING! Read all instructions.
Failure to follow all instructions
listed below may result in re,
serious injury and/or DEATH.
The warnings and precautions
discussed in this manual cannot
cover all possible conditions and
situations that may occur. It must
be understood by the operator that
common sense and caution are
factors which cannot be built into
this product, but must be supplied
by the operator.
SAVE THESE INSTRUCTIONS
SET UP PRECAUTIONS
Gasoline fuel and fumes are amma-1.
ble, and potentially explosive. Use
proper fuel storage and handling pro-
cedures. Do not store fuel or other
ammable materials nearby.
Have multiple ABC class re extin-2.
guishers nearby.
This equipment has a spark arresting3.
mufer included. A spark arresting
mufer is required by law in Califor-
nia, on some US Forest Service land,
and possibly in other areas or situa-
tions.
Set up and use only on a at, level, 4.
well-ventilated surface.
DANGER
WARNING
CAUTION
Notice
CAUTION

Page 4SKU 98439 For technical questions, please call 1-800-444-3353.
The work area should have adequate5.
drainage to reduce the possibility of a
fall due to slippery surfaces.
Wear ANSI-approved safety goggles,6.
heavy-duty work gloves, and dust
mask/respirator during set up and
use.
Use only oil and fuel recommended7.
in the “Specications” section of this
manual.
Only use cold water or pressure8.
washer detergents in this tool. Do
not use caustic materials, solvents,
ammable materials, or chemicals
not designed for pressure washers.
Use of any such material can cause
injury, or damage this tool or personal
property.
Do not dry run this product. Dry run-9.
ning will cause serious damage to the
seals. Make sure the water supply
used for the Pressure Washer is not
dirty or sandy.
Prior to starting the Pressure Washer10.
in cold weather, check all of the parts
of the unit to make sure ice has not
formed. Do not store the unit any-
where that the temperature will fall
below 32° F (0° C).
OPERATING PRECAUTIONS

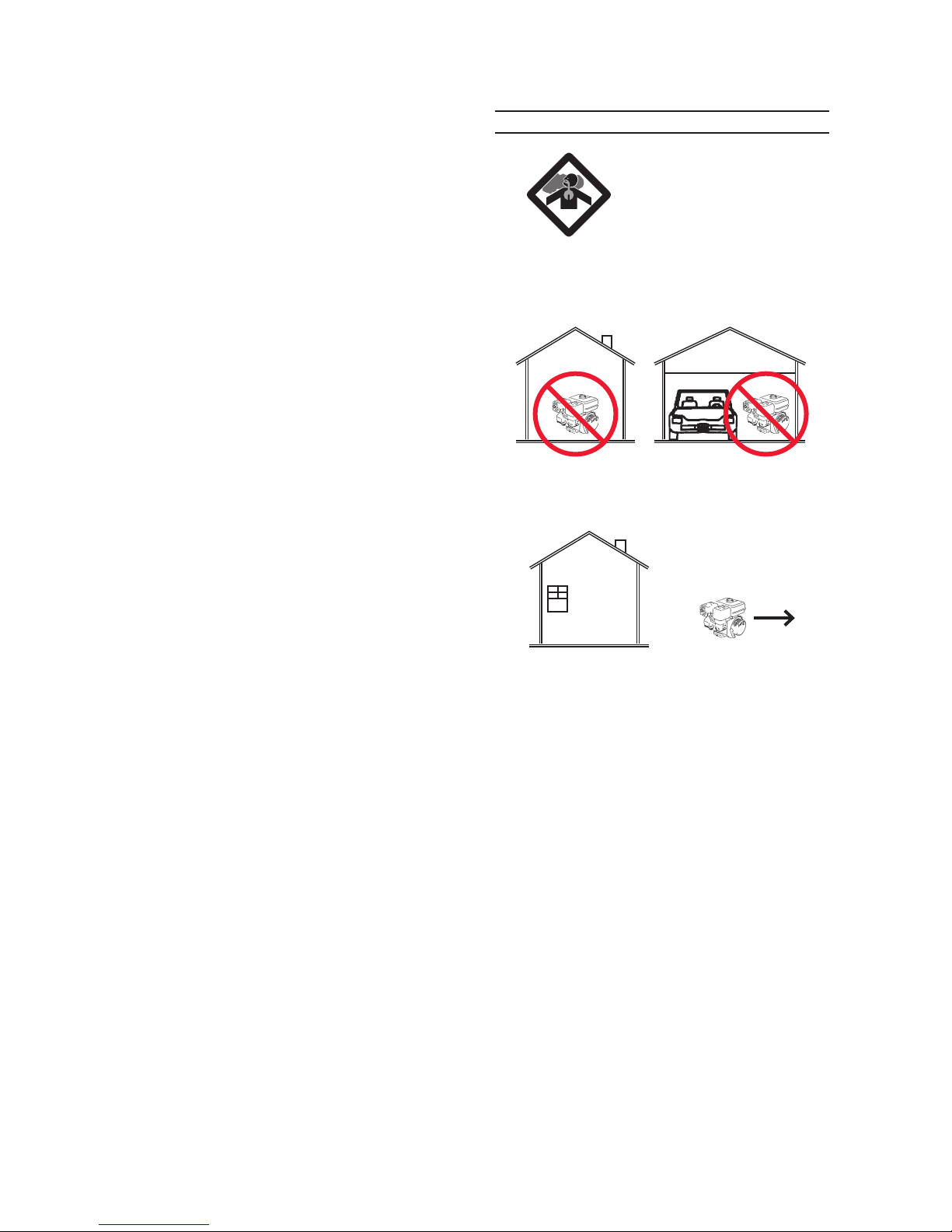

1. CARBON MONOXIDE
HAZARD
Using an engine indoors
CAN KILL YOU IN
MINUTES.
Engine exhaust contains carbon
monoxide. This is a poison you
cannot see or smell.
NEVER use inside a home or garage,
EVEN IF doors and windows are
open.
Only use OUTSIDE and far away
from windows, doors, and vents.
Keep children away from the equip-2.
ment, especially while it is operating.
Do not leave the equipment unat-3.
tended when it is running. Turn off
the equipment (and remove safety
keys, if available) before leaving the
work area.
Wear ANSI-approved safety goggles4.
and hearing protection during use.
People with pacemakers should5.
consult their physician(s) before
use. Electromagnetic elds in close
proximity to a heart pacemaker could
cause pacemaker interference or
pacemaker failure. Caution is neces-
sary when near the engine’s magneto
or recoil starter.

Page 5SKU 98439 For technical questions, please call 1-800-444-3353.
Use only accessories that are recom-6.
mended by Harbor Freight Tools for
your model. Accessories that may be
suitable for one piece of equipment
may become hazardous when used
on another piece of equipment.
Do not operate in explosive atmo-7.
spheres, such as in the presence of
ammable liquids, gases, or dust.
Gasoline-powered engines may ignite
the dust or fumes.
Stay alert, watch what you are doing8.
and use common sense when operat-
ing a piece of equipment. Do not use
a piece of equipment while tired or
under the inuence of drugs, alcohol
or medication.
Do not overreach. Keep proper foot-9.
ing and balance at all times. This en-
ables better control of the equipment
in unexpected situations.
Do not carry the spray handle with10.
your nger on the trigger, whether or
not engine is operating.
Use this equipment with both hands11.
only. Using equipment with only
one hand can easily result in loss of
control.
Dress properly. Do not wear loose12.
clothing or jewelry. Keep hair, cloth-
ing and gloves away from moving
parts. Loose clothes, jewelry or long
hair can be caught in moving parts.
Parts of the Pressure Washer, espe-13.
cially exhaust system components,
get very hot during use. Stay clear of
hot parts.
Do not cover the engine or equipment14.
during operation.
Keep the equipment, engine, and sur-15.
rounding area clean at all times.
Use the equipment, accessories, etc.,16.
in accordance with these instructions
and in the manner intended for the
particular type of equipment, taking
into account the working conditions
and the work to be performed. Use
of the equipment for operations differ-
ent from those intended could result
in a hazardous situation.
Do not operate the equipment with17.
known leaks in the engine’s fuel system.
This product contains or, when used,18.
produces a chemical known to the
State of California to cause cancer
and birth defects or other reproduc-
tive harm. (California Health & Safety
Code § 25249.5, et seq.)
WARNING: The brass components19.
of this product contain lead, a chemi-
cal known to the State of California
to cause birth defects (or other repro-
ductive harm). (California Health &
Safety code § 25249.5, et seq.)
When spills of fuel or oil occur, they20.
must be cleaned up immediately.
Dispose of uids and cleaning materi-
als as per any local, state, or federal
codes and regulations. Store oil rags
in a bottom-ventilated, covered, metal
container.
Keep hands and feet away from21.
moving parts. Do not reach over or
across equipment while operating.
Before use, check for misalignment22.
or binding of moving parts, breakage
of parts, and any other condition that
may affect the equipment’s operation.
If damaged, have the equipment
serviced before use. Many ac-

Page 6SKU 98439 For technical questions, please call 1-800-444-3353.
cidents are caused by poorly main-
tained equipment.
Use the correct equipment for the23.
application. Do not modify the equip-
ment and do not use the equipment
for a purpose for which it is not in-
tended.
The high pressure water ow can 24.
damage the work surface if not used
properly. Always test the spray in an
open area rst.
When dispensing detergents, apply25.
the detergent to the cleaning area at
low pressure only. Detergent dis-
pensing only works when the spray
gun is in the low-pressure position.
26. Injection Hazard. The high
pressure water jet pro-
duced by this tool can cut
skin or cause injury to
hands or eyes. Do not
allow spray to strike you and do not
spray toward people or animals. Do
not spray the tool itself or any electri-
cal source.
This Pressure Washer is intended for27.
outdoor residential use only.
In case of an emergency during28.
use, immediately release the trig-
ger on the spray handle, turn the
engine off and then shut off gas
supply to the engine. Do not set
the spray handle down without
turning off the engine.
Vibration Hazard:
This tool vibrates during use. Re-
peated or long-term exposure to
vibration may cause temporary or
permanent physical injury, particularly
to the hands, arms and shoulders. To
reduce the risk of vibration-related
injury:
Anyone using vibrating tools regu-1.
larly or for an extended period should
rst be examined by a doctor and
then have regular medical check-
ups to ensure medical problems are
not being caused or worsened from
use. Pregnant women or people
who have impaired blood circulation
to the hand, past hand injuries, ner-
vous system disorders, diabetes, or
Raynaud’s Disease should not use
this tool. If you feel any medical or
physical symptoms related to vibra-
tion (such as tingling, numbness, and
white or blue ngers), seek medical
advice as soon as possible.
Do not smoke during use. Nico-2.
tine reduces the blood supply to the
hands and ngers, increasing the risk
of vibration-related injury.
Wear suitable gloves to reduce the3.
vibration effects on the user.
Use tools with the lowest vibration4.
when there is a choice between dif-
ferent processes.
Include vibration-free periods each5.
day of work.
Grip tool as lightly as possible (while6.
still keeping safe control of it). Let
the tool do the work.
To reduce vibration, maintain the tool7.
as explained in this manual. If any
abnormal vibration occurs, stop use
immediately.
SERVICE PRECAUTIONS
Before service, maintenance, or1.
cleaning:

Page 7SKU 98439 For technical questions, please call 1-800-444-3353.
Turn the engine switch to itsa.
“OFF” position.
Allow the engine to completely cool.b.
Then, remove the spark plugc.
wire(s) from the spark plug(s).
Keep all safety guards in place and in2.
proper working order. Safety guards
include mufer, air cleaner, mechani-
cal guards, and heat shields, among
other guards.
Do not alter or adjust any part of3.
the equipment or its engine that is
sealed by the manufacturer or dis-
tributor. Only a qualied service
technician may adjust parts that
may increase or decrease gov-
erned engine speed.
Wear ANSI-approved safety goggles,4.
heavy-duty work gloves, and dust
mask/respirator during use and ser-
vice.
Keep the high pressure hose con-5.
nected to the pressure washer and
spray Gun while the system is pres-
surized. Disconnecting the pressure
hose while the unit is pressurized is
dangerous, and may cause injury.
Do not allow the high pressure hose6.
to come in contact with any hot part
of the unit. The hose might be dam-
aged, possibly causing it to burst or
leak under high pressure.
Maintain labels and nameplates on7.
the equipment. These carry impor-
tant information. If unreadable or
missing, contact Harbor Freight Tools
for a replacement.
If water is leaking out of the Pressure8.
Washer immediately turn off the unit.
Unplug the Pressure Washer, and
discharge all pressure before tighten-
ing ttings or having repair work done
by a qualied technician.
When the engine is running, do not9.
allow the Pressure Washer to remain
idle for more than two minutes. If
allowed to remain idle, the water in
the unit will heat up, possibly causing
damage to the Pressure Washer.
Have the equipment serviced by a10.
qualied repair person using only
identical replacement parts. This will
ensure that the safety of the equip-
ment is maintained. Do not attempt
any service or maintenance proce-
dures not explained in this manual
or any procedures that you are un-
certain about your ability to perform
safely or correctly.
Store equipment out of the reach of11.
children.
Follow scheduled engine and equip-12.
ment maintenance.
Refueling:
Do not smoke, or allow sparks,1.
ames, or other sources of ignition
around the equipment, especially
when refuelling.
Do not rell the fuel tank while the 2.
engine is running or hot.
Do not ll fuel tank to the top. Leave 3.
a little room for the fuel to expand as
needed.
Refuel in a well-ventilated area only.4.
SAVE THESE
INSTRUCTIONS.

Page 8SKU 98439 For technical questions, please call 1-800-444-3353.
BASIC SPECIFICATIONS
Fuel Type 86+ octane unleaded
gasoline
Capacity 0.55 Gallons
Engine Oil Type SAE 10W 30 above 32° F
5W30 at 32° F or below
Capacity 0.63 Quarts
Pump Oil SAE 75W-90 Non-
detergent
Engine Speed on
Pressure Washer 2,000 RPM @ idle
Water Flow 1.6 GPM
Maximum Pressure 2,000 PSI
Note: The pump arrives from the factory
with oil included (120ml pump oil).
Only qualied service technician
should repair and perform mainte-
nance on the pump.
Note: Additional specications found in
the TECHNICAL ENGINE SPECIFI-
CATIONS chart in this manual.
The emission control system for this
Pressure Washer’s Engine is warranted for
standards set by the U.S. Environmental
Protection Agency and by the California Air
Resources Board (also known as CARB).
For warranty information, refer to the last
pages of this manual.
At high altitudes, the engine’s carbu-
retor, governor (if so equipped), and any
other parts that control the fuel-air ratio will
need to be adjusted by a qualied me-
chanic to allow efcient high-altitude use
and to prevent damage to the engine and
any other devices used with this product.
UNPACKING
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown on the cover of this manual as soon
as possible.
SET UP INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Risk of accidental
starting; resulting
in serious personal injury.
Turn the Power Switch of the
equipment to its “OFF”
position, wait for the engine to
cool, and unplug the spark
plug wire(s)
before assembling
or making any
adjustments to the equipment.
TO PREVENT SERIOUS
INJURY:
Operate only with proper
spark arrestor installed.
Operation of this equipment
may create sparks that
can start res around dry
vegetation.
A spark arrestor may be
required.
The operator should contact
local re agencies for laws
or regulations relating to re
prevention requirements.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
WARNING
WARNING

Page 9SKU 98439 For technical questions, please call 1-800-444-3353.
Assembly
Attach the Hose Hook (31) onto the1.
right side of the Handle using Bolts
(19), Locknuts (20), and Washers
(21).
Attach the Gun Hook (30) onto the2.
left side of the Handle using Bolts
(19), Locknuts (20), and Washers
(21).
Attach the Hose (2) to the Hose Con-3.
nection on the unit. (See picture on
the next page.)
Screw the Gun (22) onto the hose.4.
Connect the water supply to the5.
Water Inlet Connection. The water
source must be able to provide a
minimum of four gallons of clean,
cold water per minute at 30 PSI.
Only use a hose that is rated to meet
this capacity and pressure level.
Direct the hose on the Bleeder Valve6.
away from anything that might be
harmed or damaged by a discharge
of hot water.
If using detergents:
Read the detergent’s directions.7.
Connect one end of the Detergent
Hose (17) to the Detergent Inlet Con-
nection, and place the other end into
the container holding the detergent.
Only use detergents specied for use
with Pressure Washers. Only use the
equipment in the low pressure setting
by pulling outwards the nozzle when
spraying detergents.

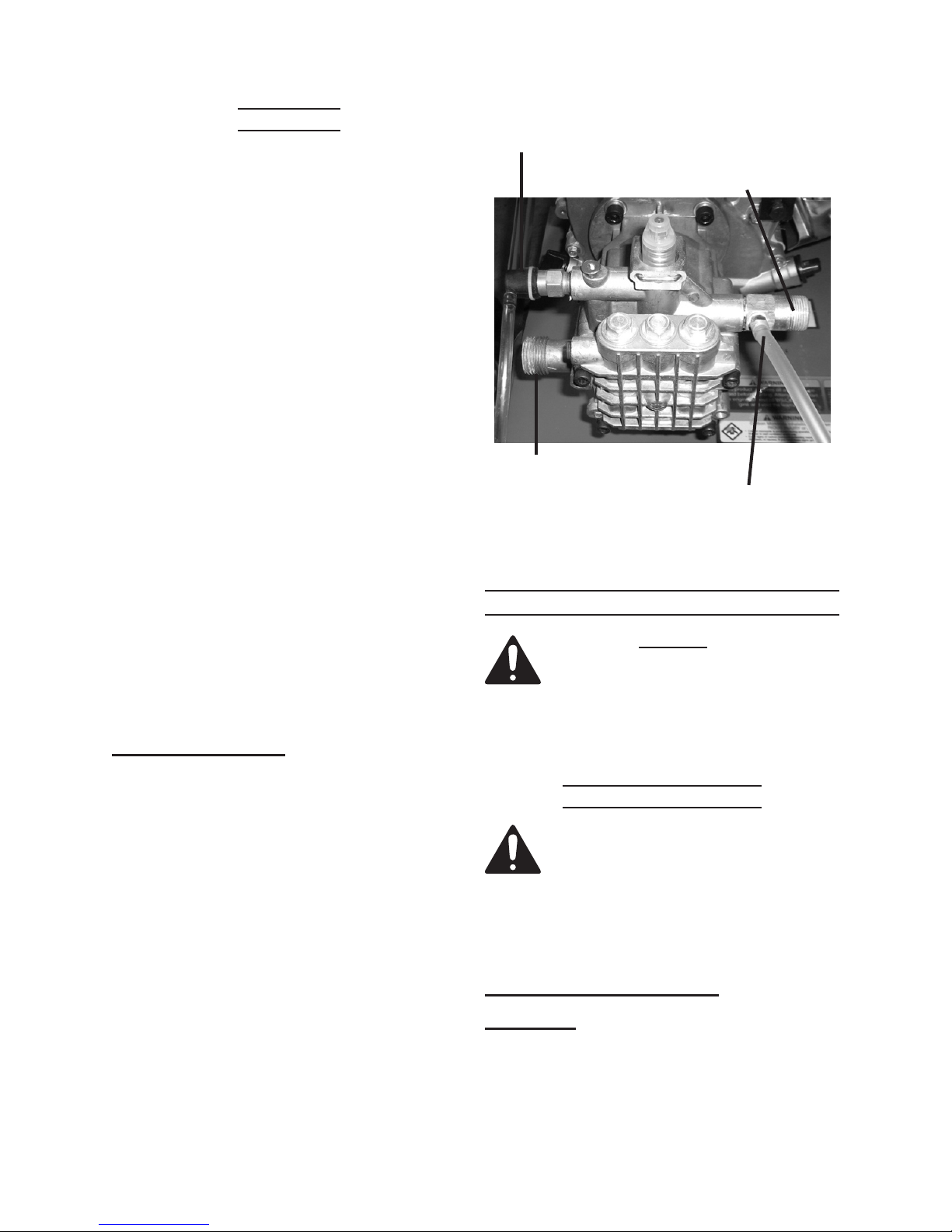

Hose
Connection
Water Inlet
Connection Detergent Inlet
Connection
Bleeder
Valve
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Starting the Engine
Inspect engine and equipment
looking for damaged, loose,
and missing parts before
set up and starting. If any
problems are found, do not use
equipment until xed properly.
Checking Engine Oil Level
CAUTION! Your Warranty is VOID if the
engine’s crankcase is not properly
lled with oil before each use. Before
each use, check the oil level. Do not
run the engine with low or no engine

Page 10SKU 98439 For technical questions, please call 1-800-444-3353.
ENGINE DIAGRAM

Page 11SKU 98439 For technical questions, please call 1-800-444-3353.
oil. Running the engine with no or
low engine oil WILL permanently
damage the engine.
Clean the Oil Filler Cap and the area1.
around it.
Remove the Oil Filler Cap2.
If the oil level is low, add the appropri-3.
ate type of oil until the oil level is at
the top lip.
Oil type:
32° F or above = SAE 10W-30
Below 32° F = SAE 5W-30.
Replace the Oil Filler Cap.4.
CAUTION! Do not run the engine with too
little or too much oil. The engine will
be permanently damaged.
Checking Fuel Level
WARNING! To prevent re,
shut the engine off and wait
for it to cool before adding
fuel. Do not smoke.
Clean the Fuel Filler Cap and the1.
area around it.
To Check the fuel level, unscrew and2.
remove the Fuel Filler Cap.
Mix fuel stabilizer (not included) with3.
86 octane (or better) unleaded gaso-
line according to fuel stabilizer direc-
tions.
Fill the Fuel Tank to about 1 inch4.
under the lip of the gasoline tank
with the stabilized unleaded gasoline
mixture.
Then replace the Fuel Filler Cap.5.
Before start the Engine, turn the water
supply on.
Start Procedure
Before starting the engine:
Follow the Set Up Instruc-a.
tions to prepare the equip-
ment.
Inspect the equipment andb.
engine.
Fill the engine with thec.
proper amount and type of
both fuel and oil. Turn water
on and allow to run through
hose.
Read the Equipment Opera-d.
tion section that follows.
Turn the fuel valve lever to its “ON” 1.
position.
Turn the ON/OFF switch to its ON or2.
RUN position.
Then, turn the engine choke lever to3.
its “CLOSE” position. Set the choke
lever in the “OPEN” position when
starting a warm engine.
Grasp the starter handle, and pull4.
slowly until resistance is felt. While
holding the handle, allow the starter
rope to rewind slowly. Then, pull the
starter handle with a rapid, full arm
stroke. Once again while holding
the handle, allow the rope to rewind
slowly. Repeat as necessary, until
the engine starts.
After the engine starts and warms5.
up, slowly move the choke lever to its
“OPEN” position.
Note: Carburetor (80B). Never adjust the
black screw in an attempt to adjust
the idle speed. Never adjust the cop-
per screw (Carburetor Exhaust), lo-

Page 12SKU 98439 For technical questions, please call 1-800-444-3353.
cated below and left of the Idle Speed
screw. Both these adjustments
should only be made by a qualied
service technician.
Break-in Period
Breaking-in the engine will help to1.
ensure proper equipment and engine
operation.
The operational break-in period will2.
last about 3 hours of use. During this
period:
Do not apply a heavy load to the•
equipment.
Do not operate the engine at its•
maximum speed.
The maintenance break-in period will3.
last about 20 hours of use. After this
period:
Change the engine oil.•
Under normal operating conditions
subsequent maintenance follows the
schedule explained in the MAINTE-
NANCE AND SERVICING section.
Equipment Operation
Never direct spray
from the pressure
washer at a person or an
animal. The water stream
could cause serious injury.
Only use the
pressure washer
on surfaces capable of
withstanding the force of the
spray.
Check to make sure the Engine has1.
the proper level of oil. Also, make
sure the Fuel Tank is lled with un-
leaded gasoline.
Turn the water supply on. To allow2.
air to escape from the High Pressure
Hose, squeeze the Trigger until there
is a steady stream of water coming
from the Nozzle.
Start the Engine by following the En-3.
gine Operating Section.
Hold down the Trigger to start the4.
stream. Be aware that when it is rst
started, the gun will kick.
Test spray the edge of the surface5.
to be cleaned rst to make sure that
the stream is not too strong for the
surface. Move further away from
the surface being cleaned will also
reduce the pressure being applied to
the surface.
Turn the nozzle at the end of the gun6.
to adjust the spray.
Hold the Gun at about a 45° angle7.
when cleaning; spraying the surface
directly could embed dirt into the
surface. Spray at a distance of about
three to ve feet.
Clean vertical and sloped surfaces•
from the top down.
When cleaning horizontal surfaces,•
occasionally use the stream to clear
the area of excess water to improve
safety.
Never allow the
Pressure Washer
to idle, without the Trigger
depressed, for more than two
minutes. The water will heat
up and may damage the
Pressure Washer.
When water in pump reaches
140°F, the thermal valve
will release hot water. Take
precautions to not get burned
from the hot water.
DANGER
CAUTION
CAUTION

Page 13SKU 98439 For technical questions, please call 1-800-444-3353.
Hold the Trigger down and move the8.
Gun back and forth slowly and steadi-
ly to pressure wash the surface. Take
special care when spraying surfaces
made of two different materials (brick
and mortar, for example), to not dam-
age the softer of the two materials
during pressure washing.
If the surface is streaked or uneven9.
at the end of a job, turn the Nozzle
so that it has a wider spray pattern to
blend the affected area.
When nished; release the Trigger on 10.
the spray handle, turn the engine’s
power switch “OFF”, shut off gas sup-
ply to the engine and then turn the
water supply off.
Squeeze the Trigger to release ex-11.
cess pressure.
If Pressure Washer detergents have12.
been used for the job, run clean
water through the system to eliminate
detergent residue.
To prevent accidents, turn off the13.
engine, wait for it to cool, and discon-
nect its spark plug wire after use.
Drain all water out of the unit, clean
external parts with clean cloth, then
store the equipment out of children’s
reach according to the storage in-
structions in this manual.

Page 14SKU 98439 For technical questions, please call 1-800-444-3353.
TECHNICAL
SPECIFICATIONS
Engine Type Single Cylinder 4 stroke
OHV
Bore x Stroke 2.4” x 1.7”
Displacement 118cc
Compression Ratio 8.5:1
Rotation viewed from PTO
(power takeoff - the output shaft) Counterclockwise
Fuel Type 86+ octane unleaded
gasoline
Capacity 0.55 Gallons
Engine Oil Type SAE
10W-30 above 32° F
5W-30 at 32° F or
below
Capacity 0.63 Quarts
Spark Plug Type (LD) F6TC
Gap 0.028 - 0.031”
Valve
Clearance
Intake 0.15 ± 0.02 mm
Exhaust 0.20 ± 0.02 mm
Speed Idle 1,400 ± 150 RPM
Maximum 3600 RPM
SERVICING
Risk of serious
personal injury
from accidental starting. Turn
the Power Switch of the
equipment to its “OFF”
position, wait for the engine to
cool, and unplug the spark
plug wire(s) before performing
any inspection, maintenance,
or cleaning procedures.
Damaged equipment can fail,
causing serious personal
injury. Do not use damaged
equipment. If abnormal noise,
vibration, or excess smoking
occurs, have the problem
corrected before further use.
Maintenance Procedures
Many maintenance procedures,
including any not detailed
in this manual, will need to
be performed by a qualied
technician for safety. If you
have any doubts about your
ability to safely service the
equipment or engine, have a
qualied technician service the
equipment instead.
Engine Oil Change
CAUTION! Oil is very hot during opera-
tion and can cause burns. Wait for
engine to cool before changing oil.
Place a drain pan (not included) un-1.
derneath the crankcase’s drain plug.
Remove the drain plug and, if pos-2.
sible, tilt the crankcase slightly to help
drain the oil out. Recycle used oil.
Replace the drain plug and tighten it.3.
Rell the oil to the proper level follow-4.
ing the instructions under the Starting
the Engine section.
Air Filter Element Maintenance
The air cleaner cover is held in place1.
by a wing nut or clamps. Remove it.
Remove the air lter element.2.
Cleaning:3.
For “paper” lter elements:a.
To prevent injury from dust and
debris, wear ANSI-approved safety
goggles, NIOSH-approved dust
mask/respirator, and heavy-duty
work gloves. In a well-ventilated
area away from bystanders, use
pressurized air to blow dust out of
the air lter.
WARNING

Page 15SKU 98439 For technical questions, please call 1-800-444-3353.
If this does not get the lter reason-
ably clean, replace it.
For foam lter elements:b.
Wash the element in warm water
and mild detergent several times.
Rinse. Squeeze out excess water
and allow it to dry completely. Soak
the lter in lightweight oil briey, then
squeeze out the excess oil.
Install the new lter or the cleaned 4.
lter. Secure the Air Cleaner Cover
before use.
Spark Plug Maintenance
Disconnect spark plug wire from1.
end of plug. Clean out debris from
around spark plug.
Using a spark plug wrench, remove2.
the spark plug.
Inspect the spark plug:3.
If the electrode is oily, clean it using a
clean, dry rag.
If the electrode has deposits on it,
polish it using emery paper.
If the white insulator is cracked or
chipped, the spark plug needs to be
replaced.
When installing a new spark plug, ad-4.
just the plug’s gap to the specication
on the Technical specication chart.
Do not pry against the electrode, the
spark plug can be damaged.
Install the new spark plug or the5.
cleaned spark plug into the engine.
Gasket-style: Finger-tighten until the
gasket contacts the cylinder head,
then about 1/2-2/3 turn more.
Non-gasket-style: Finger-tighten until
the plug contacts the head, then
about 1/16 turn more.
Apply dielectric spark plug boot6.
protector (not included) to the end of
the spark plug and reattach the wire
securely.
Fuel Filter Replacement (if equipped)
WARNING! RISK OF FIRE
OR EXPLOSION. Replace the
fuel lter in a well-ventilated
area away from ignition sourc-
es. Do not smoke.
Wait for engine to cool completely1.
before proceeding.
Wear protective gear including, ANSI-2.
approved safety goggles, NIOSH-
approved dust mask/respirator, and
nitrile gloves.
Close fuel valve leading from gas3.
tank completely.
Take note of the fuel lter’s orienta-4.
tion.
Place a suitable container under the5.
fuel lter.
Disconnect the fuel lines leading to6.
and from the fuel lter and allow fuel
to drain onto the container.
Install new fuel lter in the same 7.
orientation. Make sure to properly
secure both fuel lines.
Clean up and properly dispose of all8.
fuel.
Wait for at least one hour before use9.
to allow all residual fuel vapors to
dissipate. To prevent FIRE, do not
start the engine while the smell of
fuel hangs in the air. Remember to
open the fuel valve before restarting
the engine. It may take a little longer
than usual to start the engine be-

Page 16SKU 98439 For technical questions, please call 1-800-444-3353.
cause the fuel needs to rell the fuel
line and new lter.
Cleaning, Maintenance, and
Lubrication Schedule
Note: This maintenance schedule is
intended solely as a general guide.
If performance decreases or if equip-
ment operates unusually, check sys-
tems immediately. The maintenance
needs of each piece of equipment will
differ depending on factors such as
duty cycle, temperature, air quality,
fuel quality, and other factors.
Note: These procedures are in addition to
the regular checks and maintenance
explained as part of the regular op-
eration of the engine and equipment.
After 20 Operation Hour Break-in
Period:
Change engine oil.a.
After Every 25 Operation Hours:
Clean/replace air lter element.a.
Inspect/clean spark plug.b.
Blow out water lters.c.
After Every 50 Operation Hours:
Change engine oil.a.
Replace fuel lter (if equipped).b.
After Every 100 Operation Hours:
Replace spark plug.a.
Replace air lter element.b.
Note: All maintenance procedures sched-
uled for 25, 50, and 100 operation
hours should be performed at least
yearly.
After Every 300 Operation Hours:
Clean fuel tank and carburetor.a.
Clean carbon build-up from combus-b.
tion chamber.
Storage
Wait for engine to cool, then clean1.
engine with clean cloth.
When the equipment is to remain idle2.
for longer than 20 days, prepare the
engine for storage as follows:
Change engine oil and empty fuela.
tank.
Either leave fuel tank empty orb.
rell fuel tank with fresh unleaded
gasoline mixed with a fuel stabilizer
intended for long term engine stor-
age (not included). After lling, run
engine for about 5-10 minutes to cir-
culate the treated gasoline through
the carburetor. Wait for engine to
cool before proceeding.
Clean out area around spark plug.c.
Remove spark plug and pour one
tablespoon of engine oil into cylinder
through spark plug hole.
Replace spark plug, but leave sparkd.
plug wire disconnected.
Pull recoil starter to distribute oil ine.
cylinder. Stop after one or two revo-
lutions when you feel the piston start
the compression stroke (when you
start to feel resistance).
Disconnect battery cables (iff.
equipped).
Apply a thin coat of rust preventive oil3.
to all metal parts.
Cover and store in a dry, well-ventilat-4.
ed area out of reach of children.

Page 17SKU 98439 For technical questions, please call 1-800-444-3353.
Before starting the engine after stor-5.
age, keep in mind that untreated gas-
oline will deteriorate quickly. Drain
the fuel tank and change to fresh fuel
if untreated gasoline has been sitting
for a month, if treated gasoline has
been sitting beyond the fuel stabi-
lizer’s recommended time period, or if
the engine does not start properly.

Page 18SKU 98439 For technical questions, please call 1-800-444-3353.
Troubleshooting
Problem Possible Causes Probable Solutions
Engine will not start FUEL RELATED:
No fuel in tank or fuel valve closed.1.
Choke not in start position,2.
especially with cold engine.
Low quality or deteriorated, old3.
gasoline.
Carburetor not primed.4.
Dirty fuel passageways blocking5.
fuel ow.
Carburetor needle stuck. Fuel can6.
be smelled in the air.
Too much fuel in chamber. This can7.
be caused by the carburetor needle
sticking.
FUEL RELATED:
Fill fuel tank and open fuel valve.1.
Move choke to start position if2.
engine is cold.
Use only fresh 86+ octane3.
unleaded gasoline.
Prime carburetor by pressing4.
priming bulb (if equipped).
Clean out passageways using5.
fuel additive. Heavy deposits may
require further cleaning.
Gently6. tap side of carburetor oat
chamber with screwdriver handle.
Turn choke to run position.7.
Remove spark plug and pull the
start handle several times to air out
the chamber. Reinstall spark plug
and set choke to start position.
IGNITION (SPARK) RELATED:
Spark plug wire not connected1.
securely.
Spark plug electrode wet or dirty.2.
Incorrect spark plug gap.3.
Spark plug wire broken.4.
Incorrect spark timing or faulty5.
ignition system.
IGNITION (SPARK) RELATED:
Connect spark plug wire properly.1.
Clean spark plug.2.
Correct spark plug gap.3.
Replace spark plug wire.4.
Have qualied technician diagnose/5.
repair ignition system.
COMPRESSION RELATED:
Cylinder not lubricated. Problem1.
after long storage periods.
Loose or broken spark plug.2.
(Hissing noise will occur when
trying to start.)
Loose cylinder head or damaged3.
head gasket. (Hissing noise will
occur when trying to start.)
Engine valves or tappets4.
misadjusted or stuck.
COMPRESSION RELATED:
Pour tablespoon of oil into spark1.
plug hole. Crank engine a few
times and try to start again.
Tighten spark plug. If that does2.
not work, replace spark plug. If
problem persists, may have head
gasket problem, see #3.
Tighten head. If that does not3.
remedy problem, replace head
gasket.
Adjust valve clearance. If that does4.
not work, clean or replace valves/
tappets.
Follow all safety precautions whenever diagnosing or servicing the
equipment or engine.

Page 19SKU 98439 For technical questions, please call 1-800-444-3353.
Troubleshooting
Problem Possible Causes Probable Solutions
Engine misres Spark plug wire loose.1.
Incorrect spark plug gap or2.
damaged spark plug.
Defective spark plug wire.3.
Old or low quality gasoline.4.
Incorrect compression.5.
Check wire connections.1.
Re-gap or replace spark plug.2.
Replace spark plug wire.3.
Use only fresh 86+ octane4.
unleaded gasoline.
Diagnose and repair compression.5.
(Use Engine will not start:
COMPRESSION RELATED
section.)
Engine stops
suddenly
Low oil shutdown.1.
Fuel tank empty or full of impure or2.
low quality gasoline.
Defective fuel tank cap creating3.
vacuum, preventing proper fuel
ow.
Faulty magneto.4.
Fill engine oil to proper level.1.
Check engine oil before EVERY
use.
Fill fuel tank with fresh 86+ octane2.
unleaded gasoline.
Test/replace fuel tank cap.3.
Have qualied technician service 4.
magneto.
Engine knocks Old or low quality gasoline.1.
Engine overloaded.2.
Incorrect spark timing, deposit3.
buildup, worn engine, or other
mechanical problems.
Fill fuel tank with fresh 86+ octane1.
unleaded gasoline.
Do not exceed equipment’s load2.
rating.
Have qualied technician diagnose 3.
and service engine.
Engine backres Impure or low quality gasoline.1.
Engine too cold.2.
Intake valve stuck or overheated3.
engine.
Fill fuel tank with fresh 86+ octane1.
unleaded gasoline.
Use cold weather fuel and oil2.
additives to prevent backring.
Have qualied technician diagnose 3.
and service engine.
Does not produce
high pressure
Diameter of water supply hose too1.
small.
Water supply is restricted.2.
Not enough water supply.3.
Replace hose with a ¾ Inch hose.1.
Check water supply hose for kinks,2.
leaks, or blockage.
Open water faucet all the way.3.
Follow all safety precautions whenever diagnosing or servicing the
equipment or engine.

Page 20SKU 98439 For technical questions, please call 1-800-444-3353.
Troubleshooting
Problem Possible Causes Probable Solutions
Output pressure
varies
Not enough water supply.1.
Water inlet screen is clogged.2.
Nozzle is clogged.3.
Nozzle has mineral build up.4.
Check water supply hose for kinks,1.
leaks, or blockage. Open faucet all
the way.
Remove inlet screen and rinse out.2.
Remove Nozzle and clean.3.
Remove Nozzle and clean with4.
vinegar.
No intake of
detergents.
Detergent hose not properly1.
inserted into unit.
Tube cracked or split.2.
Injector turned off.3.
Injection tube strainer clogged.4.
Nozzle blocked.5.
Dried detergents in injector.6.
Push rmly into Detergent 1.
Connection.
Replace tube.2.
Turn collar counterclockwise.3.
Clean strainer.4.
Clean Nozzle.5.
Dissolve by running warm water6.
through the injection tube.
Follow all safety precautions whenever diagnosing or servicing the
equipment or engine.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/
OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE
BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.
