Pacific Laser Systems PLS1 User manual

operating
manual
PLS1
PACIFIC LASER
SYSTEMS
The Professional Standard
To ensure a reliable use, do not use zinc-carbon batteries.
Change batteries when battery symbol is flashing.
features
INSERT BATTERIES
The orientation of
the endpiece is
automatically detected
and the zero point is
accordingly adjusted.
MULTIFUNCTIONAL ENDPIECE
menu switch
KEY DESCRIPTION
Short Key press: Switch on / Laser on / Measure
1x press = add + / increase
1x press = subtract - /decrease
....
1x key press = area
2x key press = volume
.....
1x press = stake out only with 1 value
2x press = Pythagoras 1
3x press = Pythagoras 2
4x press = Pythagoras 3
default = measure from back of device
1x press = measure from front
2x press = measure from tripod screw => (tripod symbol)
Measure from endpiece is automatically detected
Press for 2sec to change unit
1x press = memory of 10 displays
press this key for 2sec = take main value for further
calculations
1x press = step back or clear last value
2x press = clear all
as usual - press for 2sec to turn off
DISTANCE UNIT
SETTING
ELECTROMAGNETIC COMPATIBILITY (EMC)
safety instructions
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
LASER CLASSIFICATION
!WARNING
Laser Class 2 products:
Do not stare into the laser beam or direct it towards other people
unnecessarily. Eye protection is normally afforded by aversion
responses including the blink reflex.
WARNING
Looking directly into the beam with optical aids (e.g. binoculars,
telescopes) can be hazardous.
CAUTION
Looking into the laser beam may be hazardous to the eyes.
!
!
The device produces visible laser beams
which are emitted from the instrument:
It is a Class 2 laser product in
accordance with:
• IEC60825-1 : 2007 Radiation safety of
laser products“
LABELLING
Laser R a d i a t io n
Do not stare into the
be
am
Laser c
l a
ss
2
acc. IEC
6082
5-
1
:
2007
Ma x
i
mum radiant power: < 1
mW
E m i tted wavelength: 620 -6 90 nm
Beam d
i v er e
n
c e : 0.16 x 0.6
m
r ad
Impulse duration: 0.2 x 10-9s - 0.8 x 10
-9
s
Subject to change (drawings, descriptions and technical
data) without prior notice.
safety instructions
The person responsible for the instrument must ensure that all users
understand these directions and adhere to them.
Areas of responsibility
Responsibilities of the manufacturer of the original equipment:
PLS • Pacific Laser Systems
2500 Kerner Blvd.
San Rafael, CA 949401
The company above is responsible for supplying the product,
including the User Manual in a completely safe condition.
The company above is not responsible for third party accessories.
Responsibilities of the person in charge of the
instrument:
• To understand the safety instructions on the product and the
instructions in the User Manual.
• To be familiar with local safety regulations relating to accident
prevention.
• Always prevent access to the product by unauthorized
personnel
Permitted use
• Measuring distances
• Tilt measurement
Prohibited use
• Using the product without instruction
• Using outside the stated limits
• Deactivation of safety systems and removal of explanatory
and hazard labels
• Opening of the equipment by using tools
(screwdrivers, etc.)
• Carrying out modification or conversion of the product
• Use of accessories from other manufacturers without
express approval
• Deliberate dazzling of third parties; also in the dark
• Inadequate safeguards at the surveying site
(e.g. when measuring on roads, construction sites, etc.)
• Deliberate or irresponsible behavior on scaffolding, when using
ladders, when measuring near machines which are running or
near parts of machines or installations which are unprotected
• Aiming directly in the sun
safety instructions
Hazards in use
WARNING
Watch out for erroneous measurements if the instrument is
defective or if it has been dropped or has been misused or
modified. Carry out periodic test measurements, particularly after
the instrument has been subject to abnormal use, and before,
during and after important measurements.
CAUTION
Never attempt to repair the product yourself. In case of damage,
contact a local dealer.
WARNING
Changes or modifications not expressly approved could void the
user’s authority to operate the equipment.
Limits of use
Refer to section "Technical data". The device is designed for use
in areas permanently habitable by humans. Do not use the
product in explosion hazardous areas or in aggressive
environments.
Disposal
CAUTION
Flat batteries must not be disposed of with household waste.
Care for the environment and take them to the collection points
provided in accordance with national or local regulations.
The product must not be disposed with household waste.
Dispose of the product appropriately in accordance with the
national regulations in force in your country.
Adhere to the national and country specific regulations.
Product specific treatment and waste management can be
downloaded from our homepage.
message codes
If the message Error does not disappear after switching on the
device repeatedly, contact the dealer. If the message InFo
appears with a number, press the Clear button and observe the
following instructions:
Cause Correction
204 Calculation error
252 Temperature too high
253 Temperature too low
255 Received signal too
weak, measuring
time too long
256 Received signal
too high
257 Too much back-
ground light
258 Measurement outside
of measuring range
260 Laser beam
interrupted
Perform measurement again.
Let device cool down.
Warm device up.
Change target surface
(e.g. white paper).
Change target surface
(e.g. white paper).
Shadow target area.
Correct range.
Repeat measurement.
• Clean the device with a damp, soft cloth.
• Never immerse the device in water.
• Never use aggressive cleaning agents or solvents.
technical data technical data warranty
This product is warranted by PLS · Pacific Laser Systems to
the original purchaser to be free from defects in material and
workmanship under normal use for a period of two year from
the date of purchase. During the warranty period, and upon
proof of purchase, the product will be repaired or replaced
(with the same or similar model at our option), without charge
for either parts or labor, through PLS. The purchaser shall bear
all shipping, packing and insurance costs. Upon completion of
the repair or replacement, the unit will be returned to the
customer, freight prepaid. The warranty will not apply to this
product if it has been misused, abused or altered. Without
limiting the foregoing, battery leakage, dents or gouges to the
plastic housing, broken optic windows, damage to the
switch/LED membrane are presumed to result from misuse or
abuse. Tampering with or removal of the caution or
certification labels voids this warranty.
Neither this warranty nor any other warranty, express or
implied, including implied warranties of merchantability,
shall extend beyond the warranty period. No responsibility
is assumed for any incidental or consequential damages.
This warranty gives you specific legal rights, and you may
have other rights which vary from state to state.
care
Distance meas ure m e n t
Typical Range* 0.05-80 m
/
2-265 ft
Range at
unfavourable
60 m
/
197 ft
condition
*
***
mm
/
1/ i n
Ge ne
ra
l
Laser class 2
Laser type 635 nm, < 1 mW
Protection
class IP54 (dust- and
splash water
Autom.
laser switch off after 90
Autom.
power switch-off after 180
Battery durability (2 x AAA) up to 3000 measu r
e-
me
n t
s
Dimension
(H x D x W) 120 x 58 x 29 mm
(4.7 x 2.3 x 1.2 in )
Weight (with
batteries)
146 g
/
4.98
oz
Temperature ran g
e:
-
S
t o
r
a g
e
-25 to 70 ° C
-13 to 158 °F
-
O p e
r a
t i o
n -10 to 50 °
C
14 to 122 °F
Functio
n s
Distance measuring yes
Min/Max measuring yes
Permanent measuring
yes
Stake-out yes
Addition/Subtraction
yes
Area yes
Volume yes
Pythagoras
3-point,
partial
height
Memory 10 displays
Beep yes
Illuminated display yes
Multifunctional endpiece yes
* applies for 100 % target reflectivity (white painted
wall), low background illumination, 25 ºC
** Tolerances apply from 0.05 m to 10 m with a
confidence level of 95%. The maximum tolerance may
deteriorate to 0.1 mm/m between 10 m to 30 m and to
0.20 mm/m for distances above 30 m
*** applies for 100 % target reflectivity, background
illumination of approximately 30'000 lux
For accurate indirect results, the use of a tripod is
recommended. For accurate tilt measurements a
transverse tilt should be avoided.
Target surfaces: Measuring errors can occur when
measuring to colorless liquids, glass, styrofoam or
semi-permeable surfaces or when aiming at high gloss
surfaces. Against dark surfaces the measuring time
increases.
DISPLAY
ON / MEASURE
AREA / VOLUME
MEMORY
CLEAR / OFF
STAKE-OUT /
PYTHAGORAS
SUBTRACT
MEASURE / UNITS
Measuring Accuracy +/-
16
seconds
seconds
1. 5
ADD
* *
2 sec 0.0000m
0.000m
0.00m
Switch between the
following units:
0.00 ft.
0.00 1/32
0.00 in.
0 1/32

permanent / minimum-
maximum measuring
Used to measure room diagonals (maximum values) or
horizontal distance (minimum values)
mi
n. max.
8.532
m
The minimum and maximum
distance measured is displayed
(min,max.). The last value
measured is displayed in the main
line.
Stops permanent / minimum- maximum measuring.
add / subtract
The result is
shown in the
main line and
the measured
value above.
Partial
Measurements:
Press + or -
after starting
the first
measurement.
Measure and
add or subtract
distances.
Finish with
DIST. Measure
2nd length.
area volume pythagoras
(3-point)
pythagoras
(partial Height)

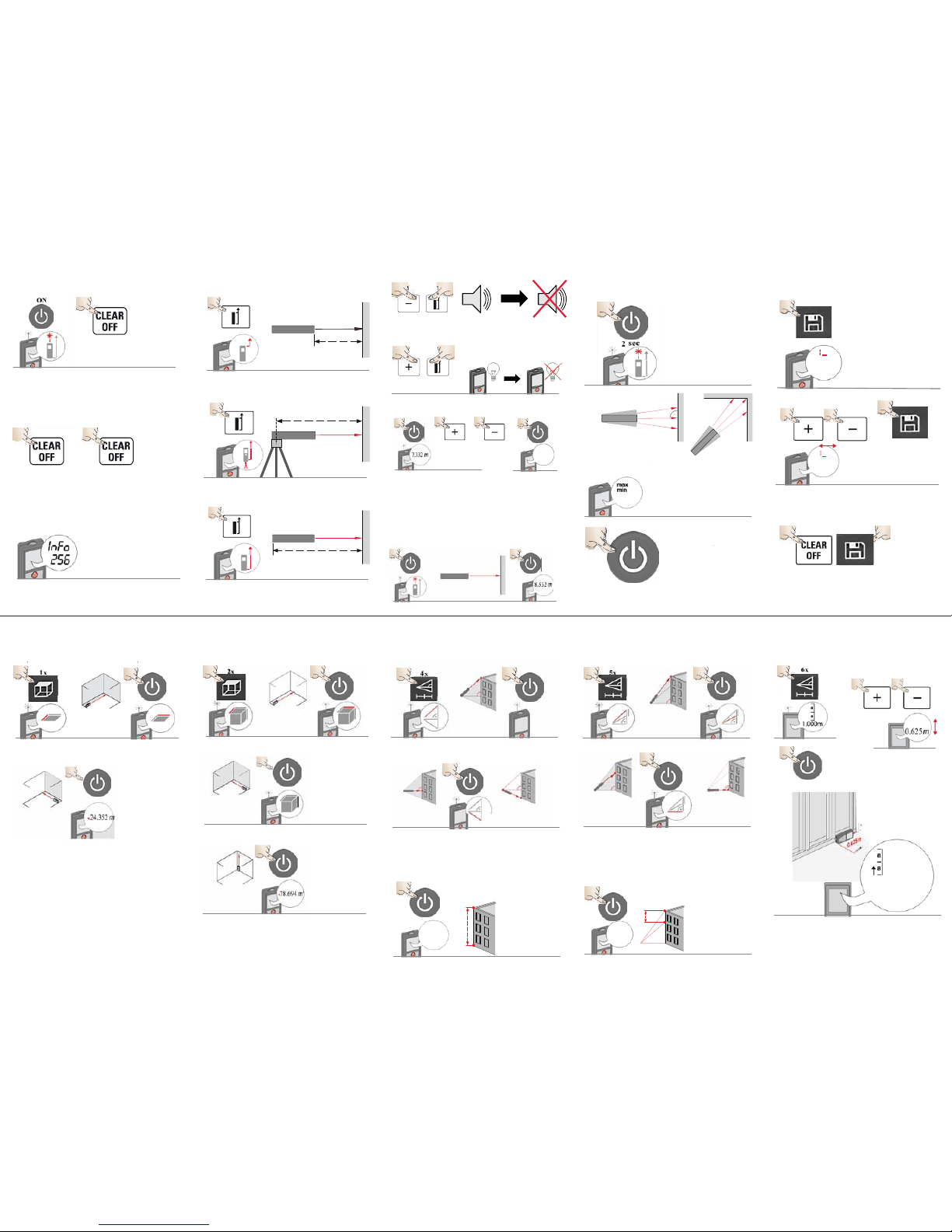

switching on/off
OFF
2
sec
Press ON
button 2
sec to start
continuous
laser mode.
1x 2x
Device is
turned OFF.
Undo last action. Leave actual function, go to
default operation mode
If the message :inFo” appears
with a number, observe the
instructions in section
“message Codes”.
Example at left.
adjusting measuring
reference / tripod
Distance is measured from the
front of the device.
Distance is
measured from
the tripod thread
permanently.
Distance is measured from
the rear of the device
(standard setting).
beep on/off
2 sec simultaneously
2 sec simultaneously
clear
message code
illumination on/off
1
2
3
The result is shown
in the main line and
the measured
value above.
8.294 m
The result is
shown in the main
line and the
measured
distance above.
Pressing the
measuring key for
2 sec in the
function activates
automatically
Minimum or
Maximum
measurement.
Aim Laser at
upper point.
123
456
2.602
m
7
The result is shown
in the main line
and the measured
distance above.
Pressing the
measuring key for
2 sec in the
function activates
automatically
Minimum or
Maximum
measurement.
1
2
3
Aim laser at
2nd point.
Aim laser at
rectangular
point.
123
7
456
Aim laser at
rectangular point
Aim laser at
upper point.
Aim laser at
lower point.
Aim laser at
first target point..
123
Aim laser at
second target
point..
45
67
Aim laser at
first target point.
123
4
5
Press 2 sec AREA / VOLUME key to get 2nd results.
Press 2 sec AREA / VOLUME key to get 2nd results.
7.332
m
1 2.847
m
The next
measurement
is added to the
previous one.
The next
measure-
ment is
subtracted
from the
previous
one.
The result is shown in the
main line and the measured
value above. This process
can be repeated as required. The same process can be
used for adding or subtracting areas or volumes.
123
Aim active
laser target.
measuring single
distance
123
stake out
memory
(10 last displays)
8.294
m
10
10 last displays
are displayed.
8.294
m
10
.
Navigates
through
10 last
displays.
2
sec
The value from
the main line
can be used for
further
calculations.
2
sec
Memory is completely deleted.
simultaneously
1
2
3
delete memory
Adjust Value
Approve value and
start measurement.
3
12
4Move device slowly
along the stake-
out line. The distance
to the next stake-out
point is displayed.
When approaching a stake out point to less
than 0.1 m the instrument starts to beep.
The function can be stopped by pressing
the CLEAR/OFF button.
