Treo™600
Portable Keyboard User Manual
Version 1.0

portable keyboard user manual v 1.0 Page 1
Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause undesired
operation.
FCC statement
Tested to Comply
This equipment has been tested and found to comply with the limits of a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Move the computer away from the receiver
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

portable keyboard user manual v 1.0 Page 2
Index
Introduction
Portable keyboard specification............................3
Charging function..................................................4
Open and Close the Keyboard
Open portable keyboard........................................5
Close portable keyboard .......................................6
Install and Remove the Keyboard Driver
Install the keyboard driver ....................................7
Customize Your Keyboard
Configure the keyboard ........................................11
Combination keys .................................................14
Assign hot keys.....................................................16
Frequently Asked Questions ...........................18
Technical Support.................................................19

portable keyboard user manual v 1.0 Page 3
Introduction
The portable keyboard for Treo 600 provides you with full-size
keyboard feel and function in a compact folding design. The
keyboard is perfect for typing e-mails or taking meeting notes.
We’re sure you will find it to be an indispensable productivity tool.
Portable keyboard Specifications
Extended: 250*177*73 mm
Closed: 148*96*16.6 mm
Weight: 198 grams
Temperature Endurance: 70。C
Power Consumption:
Working: 1 mA
Sleeping: 15 μA
You receive many benefits from the portable keyboard:
Connects easily with your Treo smartphone
Standard QWERTY or AZERTY keyboard layouts
Short-cut keys for faster operation
Ultra-portability
Pass-through charging capability (adapter plug included)

portable keyboard user manual v 1.0 Page 4
Charging Function
The Treo 600 smartphone will support charging through your
keyboard. A connector adapter plug (shown above) is included
with your keyboard.
On the top, left hand side of the keyboard base, you will find a
charging outlet. To use the charging function, plug the connector
adapter into the charging outlet on the keyboard. Insert the AC
power source into the connector adapter as shown above.

portable keyboard user manual v 1.0 Page 5
Open and Close the Portable Keyboard
To open the portable keyboard:
(1) Press front button to open Keyboard.
(2) Raise lid and extend stand to maximum open position.
(3) Flip up the keyboard connector to a fully upright position.
(4) Gently pull out the left and right sections of the keyboard until
the middle section pops up and you have an even typing
surface.
(5) Push the left and right sections of the keyboard together to
close any gaps.
(6) The keyboard is now ready for data input.

portable keyboard user manual v 1.0 Page 6

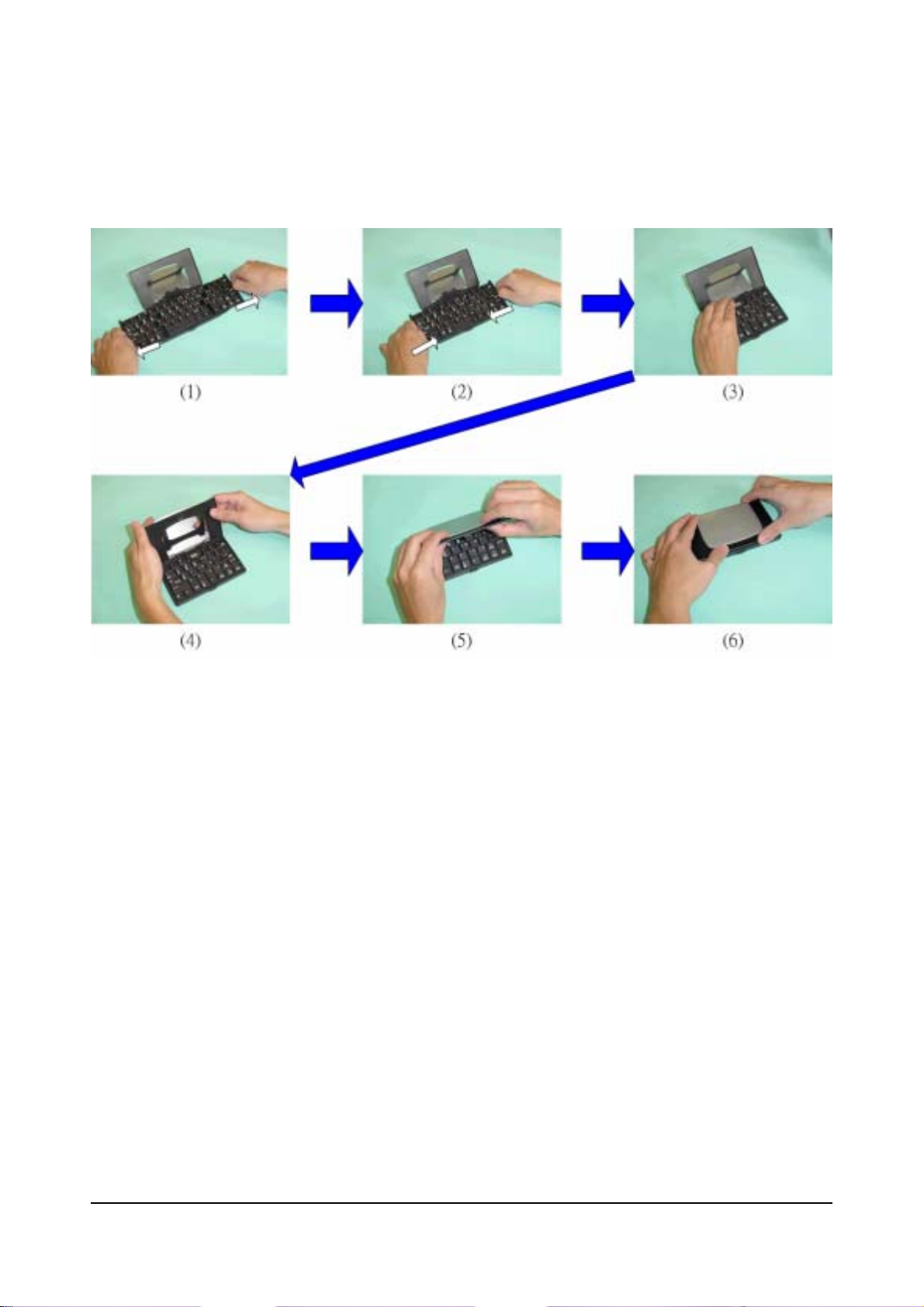

To close the portable keyboard:
(1) Gently pull the left and right sections of the keyboard apart to
create a gap between sections.
(2) Push the left and right sections of the keyboard toward the
center. The middle section will move down automatically to
allow the left and right sections to slide together over the top of
the middle section. DO NOT push down on the middle section.
(3) Flip down the keyboard connector until it is flat with the keys.
(4) Close the stand into the lid.
(5) Close the lid.
(6) Press down on the lid until it locks in the closed position.

portable keyboard user manual v 1.0 Page 7
Installation of the Keyboard Driver
Install the keyboard driver
Step 1. Before Installation
Disable any other keyboard applications you have installed in your
Treo 600 smartphone. It is important that you do this prior to
installing the portable keyboard driver application. Make sure you
have at least 100kb of free memory to install the driver. We
strongly suggest that you backup your smartphone before installing
the software.
Step 2. Install the Driver
1) Connect your Treo 600 smartphone to your computer using your
existing data cable or cradle.
2) Insert the portable keyboard installation CD into your CD-ROM
drive.
3) If the CD-ROM has been set to Auto-Run mode, the install
process will proceed automatically. Please follow on-screen
instructions to finish all steps. Otherwise, please follow steps 4-8
to install the driver manually.
4) Double-click the My Computer icon, and then choose your

portable keyboard user manual v 1.0 Page 8
CD-ROM drive .
5) Choose the directory that contains the preferred language driver
that you want to install.
6) Double-click on the PortableKB.prc file to launch the installer.
An Install Tool window will appear when the installer has
completed the setup process.
7) Click Done when the install is complete and this function will
close the “Install Tool” window.

portable keyboard user manual v 1.0 Page 9
(8) Select the HotSync icon to launch the HotSync program. The
Treo 600 smartphone will then ask you to “reset” the device.
Select “reset” and the installation is complete.
Step 3. Launch the software program
1) Turn on your Treo 600 smartphone.
2) Tap the “PortableKB” icon. The driver configuration screen will
appear.
