M4315-PRO & M4320-PRO
PROFESSIONAL HOME THEATER
FEATURES:
M4315-PRO
and
M4320-PRO
Power Management with Interactive Control
and Real Time Monitoring
BlueBOLT™ Provides Web Based Remote Power Management to Monitor
and Control Your System - From Anywhere, 24/7.
BLT
Blue
™
• Eight Fully Controllable/Programmable Outlets via BlueBOLT™ or RS-232C.
• Linear Filtration with Four Isolated Outlet Banks
• Two Front Panel Programmable Reboot Buttons
• IP Control with BlueBOLT-CV1 and RS-232C Cards
• Sleek New Design Including Volt/Amp Meter, Outlet Status and Warning LED’s
DEDICATED 15 AMP
OR 20 AMP
COMPONENTS
M4315-PRO
(15 Amp)
M4320-PRO
(20 Amp)
ENABLED

M4315/4320-PRO SPECIFICATIONS
20 Amp Plug
Two 20 Amp Outlets
M4320-PRO
1690 Corporate Circle, Petaluma, CA. 94954 • 800-472-5555 • 707-283-5900
Fax [phone] • www.panamax.com
L624 REV. C 5/10© 2009 Panamax Inc. Panamax and the Panamax logo are registered US trademarks of Panamax. BlueBOLT™ and the BlueBOLT logo are registered US trademarks of Panamax.
C US
WARRANTIES*
$5,000,000 Connected Equipment Limited Lifetime Warranty • Limited 3 Year Product Warranty
*Refer to actual warranty documentation for full details.
M4315-PRO
WEIGHTS & MEASUREMENTS, QUANTITIES, UPC’S FOR ORDERING & SHIPPING
PRODUCT DIMENSIONS Weight
L 12.25” x W 19” x H 1.75” 12 lbs.
SINGLE UNIT CARTON
Dimensions Qty. Weight
L 19.25” x W 21.25” x H 4.25” 1 17 lbs.
MODELS: M4315-PRO, M4320-PRO
Why roll a truck when you can
reboot from anywhere at anytime!
Reduce service calls and lock-ups
with BlueBOLT™ technology.
UPC’s SINGLE UNIT CARTON
M4315-PRO 050616008594
M4320-PRO 050616008600
MASTER CARTON
Dimensions Qty. Weight
L 20.25” x W 21.25” x H 10.75” 2 37 lbs.
UPC’s MASTER CARTON
M4315-PRO 50 050616008599
M4320-PRO 50 050616008605
Online Remote Power Management
for Home Theater Systems
PROVIDES: Secure, hosted IP system
control and monitoring for the
M4315-PRO & M4320-PRO.
Model: BlueBOLT-CV1
(Card Included)
Specifications subject to change due to product upgrades and improvements..
AC Power________________________________________________________
Line Voltage...........................................................................................120V, 60Hz
Isolated Banks........................................................................................................2
Voltage Regulation...............................................................................................No
Total Outlets................................................................................................9 outlets
High Current Outlets...................................................................................2 outlets
Total Current Capacity.....M4315-PRO 15 A (1800W) - M4320-PRO 20 A (2400W)
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A):...............................500V
Protection Modes...............................................................................L-N, L-G, N-G
Initial Clamping Level..........................................................200V Peak, 141V RMS
Energy Dissipation...............................................................................2700 Joules
Peak Impulse Current.......................................................................135,000 Amps
Catastrophic Surge Circuit.................................................................................Yes
Thermal Fusing:.................................................................................................Yes
Auto-resetting Over-voltage shutoff.............................................134 VAC ± 2 VAC
Auto-resetting Under-voltage shutoff...........................................100 VAC ± 2 VAC
LAN Protection____________________________________________________
Clamping Level............................................................................................60 ± 5V
Compatibility...........................................................................10/100/1000 BASE-T
Jacks..............................................................................................................RJ-45
Wires Protected:..........................................................................................8-Wires
Telco Protection___________________________________________________
Fuseless/Auto-resetting......................................................................................Yes
Clamping Level................................................................................................260V
Capacitance........................................................................................30pf (approx.)
Suppression Modes..............................................................Metallic & Longitudinal
Connectors......................................................................................................RJ-11
Lines Protected............................................................................2-Wire, Pins 4 & 5
Universal Coax Protection__________________________________________
HD 1080 i/p Ready.............................................................................................Yes
Bidirectional........................................................................................................Yes
Shielded.............................................................................................................Yes
Clamping Level..................................................................................................75V
Frequency Range...........................................................................0MHz - 2.2 GHz
Insertion Loss..............................................................................................< 0.5 dB
Connectors.........................................................................Female “F”, Gold Plated

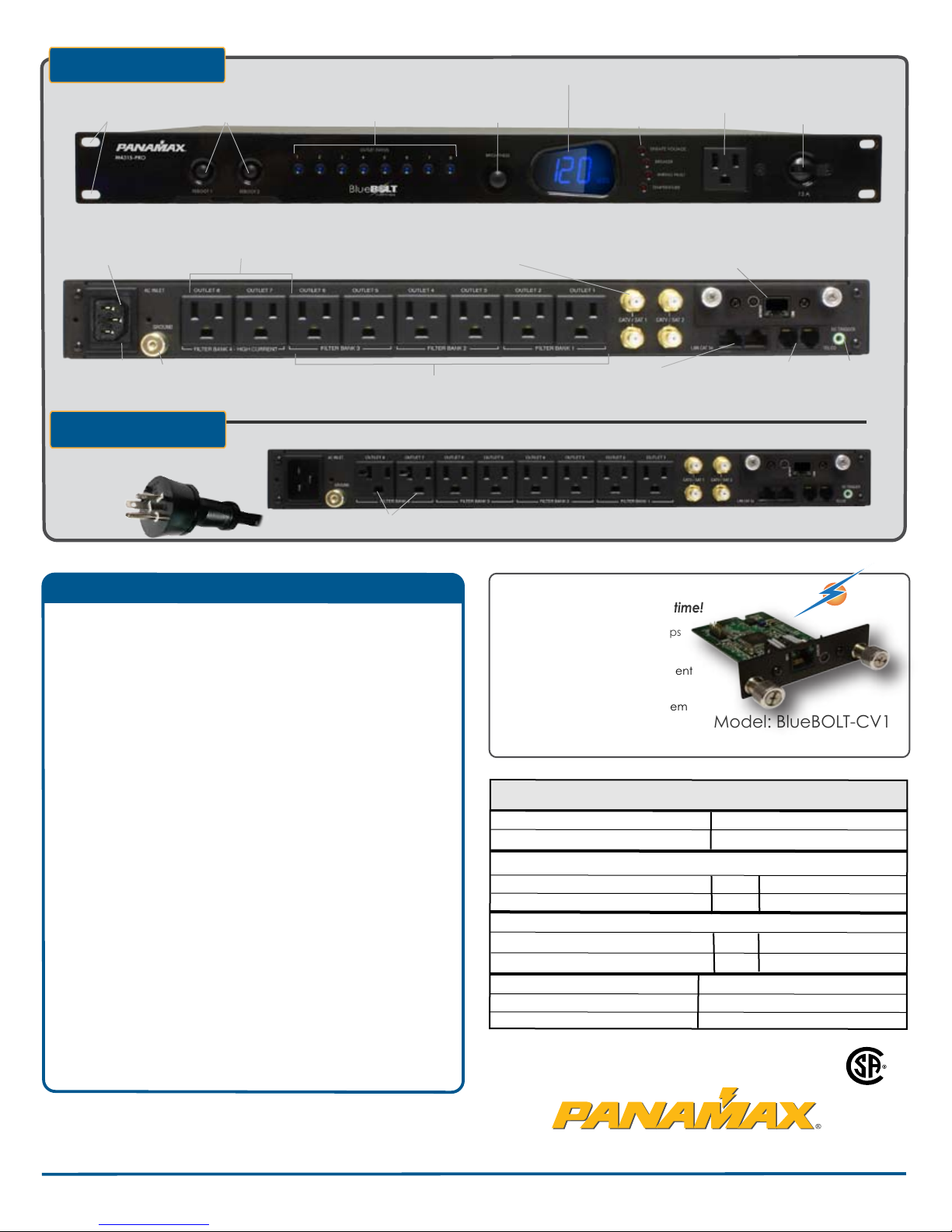

LED Indicators for
Unsafe Voltage,
Breaker, Wiring Fault,
and Temperature
Front Panel 15A
Over Load Breaker
Combination Switch /
15A Circuit breaker
10 Ft. AC Power Cord
Removable with cord
retention bracket.
RS-232 Serial Communication Port or Optional IP Control - BlueBOLT™
The serial port allows communication between the M4315-PRO
& an automation, control, or web browser.
Ground
Lug
M4320-PRO - Two 20 Amp Outlets and Six 15 Amp
Outlets. 20 Amp detachable AC power cord (10 ft.).
IEC 320 C20
Universal TV Coaxial Jacks
2 pairs of bidirectional protection circuits optimized
for satellite, cable, and antenna TV signal lines.
Phone Jack
Protection circuit for one
standard telephone or
pay-per-view lines.
LAN Jack
Protection circuit for one
10/100 baseT Ethernet line.
Voltage
Sense
Trigger
Input
2 Dedicated Outlet
Reboot Buttons
Meter Dimmer Plus
Volt and Amp Selector
Rear Panel Outlet
Status LED’s
Digital Voltmeter/Ammeter Front Panel
Always On
Outlet
Outlets 1-6 (Banks 3, 2, 1) Isolated Linear Filtration
Outlets 7 - 8 (Bank 4)
High Current
Integrated
Rack Ears
All other features are common with the M4315-PRO
Front Panel 20A Over Load Breaker
