MAX®5100-PM
LOOKING FOR CRYSTAL CLEAR PICTURE AND SOUND?
MAX®5100-PM
www.panamax.com
Level 3 Power Cleaning and Linear Filtration
eliminates common symptoms of contaminated power
(including loss of detail, pops, hisses, hums and visual
artifacts) and allows yourA/V equipment to perform up
to its full capability..
1
2
Panamax’s patent pendingAVM™ circuitry continuously
monitors the incoming power as displayed on the digital
voltmeter. In case of an undervoltage or an overvoltage,
a flashing lightning bolt will be displayed in red in the
voltmeter, and power to the connected equipment is
automatically turned off if either of these conditions is
detected. When voltage returns to a safe level, power to
the equipment is automatically reconnected.
3The M5100-PM is designed to provide noise isolation
between 3 isolated outlet banks including 2 high current
outlets so that any noise created by anA/V component
can not contaminate the power going to equipment
plugged into another outlet bank.
Improves Picture and Sound Quality
Monitors Incoming Line Voltage and Provides a
Visual Indication of Power Level
Reduces Cross-Contamination Between Components
•11 Outlets
5Always On, 4 Switched, 2 Switched High
Current.
•High Current Outlets
2 outlets for equipment with high power
demands (Amps/Subwoofers).
• 3 Isolated Outlet Banks
Isolating outlet banks from one another
prevents noise contamination between
components.
•Gaming LAN Port
Easy access to LAN port on front panel.
Perfect for online gaming.
•Digital Volt Meter
Monitor the voltage supplying your home
theater equipment.
•Power Sequencing
Guards against blown fuses and potentially
damaging speaker thump by automatically
powering outlets on and off in sequence.
•12 Volt Trigger
Allows source equipment to activate or
deactivate the outlets on the M5100-PM.
•Clean Power Level 3
Improves picture and sound quality by elimi-
nating noise across the entireAC bandwidth.
60% more efficient at eliminating noise than
single stage linear filtration (Level 2).
•USB Charger
Convenience charger for mp3 players, cell
phones, and other small electronics.
•AVM (Automatic Voltage Monitoring)
Protects equipment against prolonged over/
under voltages by disconnecting the power
and reconnecting it when safe power returns.
HOME THEATER POWER MANAGEMENT

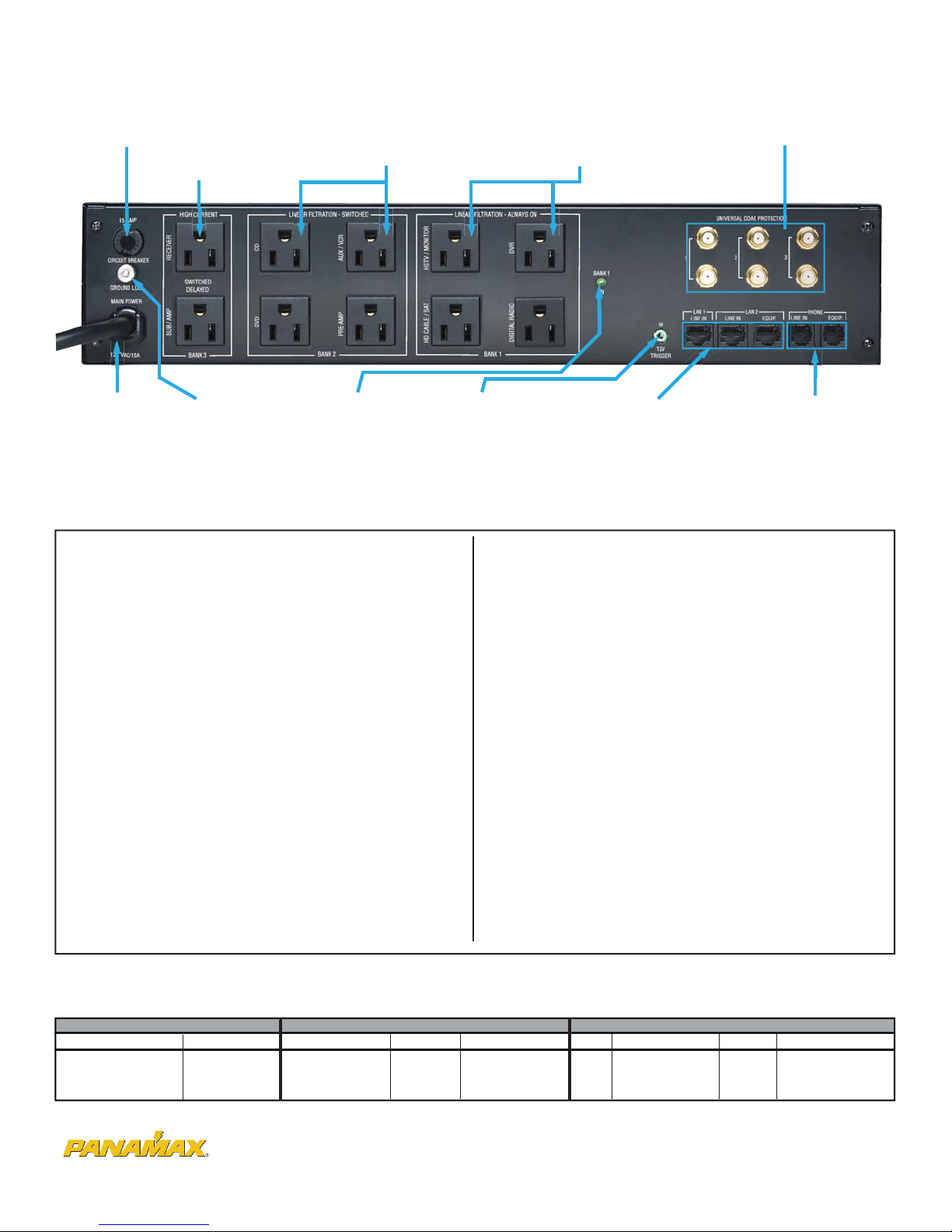

MAX® 5100-PM BACK PANEL FEATURES
1. Circuit Breaker:
Automatically opens
when the current load
is greater than 15
Amps. Push to reset.
4. Outlet Bank 1
Four always-on outlets with linear filtration
technology (LiFT). Power will only be turned
off under a fault condition. (See specifications
for over-voltage and under-voltage thresholds)
Power is cleaned by a two-stage balanced Pi
filter which also provides noise isolation from
Outlet Banks 2 and 3.
Universal TV Coaxial Jacks
3 pairs of bidirectional
protection circuits optimized for
satellite, cable, and antenna
TV signal lines.
3. Outlet Bank 2
Four isolated, switched outlets with linear filtration
technology (LiFT) controlled by the front panel
Power Button or the DC Trigger input. Bank 2 will
turn on immediately and turn off after 10 seconds.
LiFT EMI/RFI noise filtration is provided by a two-
stage balanced Pi filter which also provides noise
isolation from Outlet Banks 1 and 3.
2. Outlet Bank 3
Two switched, high-current outlets controlled by
the front panel Power Button or the DC Trigger
input. Bank 3 has a 5 second turn on delay and
turns off immediately. The High Current outlet
provides power from a low impedance noise
filtration circuit that does not limit the current to
your equipment. Its output is noise isolated from all
other outlet banks.
9. Main Power
Must be plugged into a
properly wired & grounded
3-wire outlet.
11. Bank 1 Indicator Light
Normally ON, is lit when
there is power present on the
Bank 1 receptacles.
13. LAN Jacks
Protection circuits for 10/100 baseT
Ethernet lines. Incoming LAN line MUST
be plugged into the LINE jack. Patch cord
to the equipment MUST be plugged into
the EQUIP jacks. 1 LAN jack goes to the
front panel output jack. 8 wire protection,
50V clamping.
12. Voltage Sense Trigger
Input
3.5mm (1/8”) mono mini-plug.
Connect to a remote trigger
device that uses a DC output
to trigger a startup/shutdown
sequence.
10. Ground Lug:
Provides a common
grounding point for
equipment with separate
ground leads
14. Phone Jacks
Protection circuits for standard telephone
or pay-per-view lines. Phone circuit is
autoresetting. Incoming phone cord MUST
be plugged into the LINE jack. Patch cords
to the equipment (satellite receiver, digital
video recorder, telephone, etc.) MUST be
plugged into the EQUIP jacks.
MAX® 5100-PM SPECIFICATIONS
UPC’S, QUANTITIES, WEIGHTS & MEASUREMENTS FOR ORDERING & SHIPPING
General________________________________________________________________
Dimensions......................................17 in. W x 12.75 in. D x 3.5 in H, (4.1 in. Including feet)
Weight........................................................................................................................13.5 lbs.
AC Power_______________________________________________________________
Line Voltage.........................................................................................................120V, 60Hz
Total Current Capacity.....................................................................................................15 A
UL1449 Suppression Rating...........................................................................................330V
Protection Modes.............................................................................................L-N, L-G, N-G
Initial Clamping Level....................................................................................................200V
Energy Dissipation..............................................................................................2310 Joules
Peak Impulse Current........................................................................................90,000Amps
Catastrophic Surge Circuit................................................................................................Yes
Thermal Fusing:...............................................................................................................Yes
Over-voltage shutoff....................................................................................142 VAC ± 5 VAC
Under-voltage shutoff....................................................................................90 VAC ± 2 VAC
EMI/RFI Noise Filtration___________________________________________________
Banks 1 & 2....................................................................................80 db, 100 KHz – 2 MHz
Bank 3, High Current Outlets..........................................................60 db, 100 KHz – 2 MHz
DC Trigger Input__________________________________________________________
Jacks............................................................................................... 3.5mm mono mini-plug
Voltage and Polarity........................................................................3 - 24V DC, bidirectional
Current Requirement....................................................................4.6 mA@3V, 58 mA@24V
LAN Circuits_____________________________________________________________
Clamping Level.............................................................................................................50V
Jacks..........................................................................................................................RJ-45
Wires Protected:.....................................................................................................8-Wires
USB Circuit_____________________________________________________________
Jacks.........................................................................................................................USB-A
Power Delivery.............................................................................................500 mA @5VDC
Telephone Circuit________________________________________________________
Fuseless/Auto-resetting..................................................................................................Yes
Clamping Level.............................................................................................................260V
Capacitance....................................................................................................30pf (approx.)
Suppression Modes..........................................................................Metallic & Longitudinal
Connections................................................................................................................RJ-11
Lines Protected.......................................................................................2-Wire, Pins 4 & 5
Cable and Satellite TV Circuits______________________________________________
HD 1080 i/p Ready...........................................................................................................Yes
Bidirectional......................................................................................................................Yes
Shielded...........................................................................................................................Yes
Clamping Level................................................................................................................75V
Frequency Range.........................................................................................0MHz - 2.2 GHz
Insertion Loss............................................................................................................< 0.5 dB
Connections......................................................................................Female “F”, Gold Plated
MODEL M5100-PM MASTER CARTON
UNIT CARTON
Dimensions Weight Dimensions Weight UPC Qty Dimensions Weight UPC
17” x 12.75” x 3.5” 13.5 lbs 23.75” x 19.25” x 9.25” 18 Lbs 0 50616 00817 4 1 23.75” x 19.75” x 9.75” 19 Lbs 5 00 50616 00817 9
4.1” H with feet
1690 Corporate Circle, Petaluma, CA. 94954 800-472-5555 or 707-283-5900 Fax [phone] www.panamax.com
© 2007 Panamax, Inc. Panamax, MAX, and the Panamax logo are registered US trademarks of Panamax
Design and specifications subject to change without notice due to product improvement.
L587 REVA 5/07
