SP8-AV
LOOKING FOR CRYSTAL CLEAR PICTURE AND SOUND?
SP8-AV
www.panamax.com
The SP8-AV’s Power Cleaning and Filtration eliminate
common symptoms of contaminated power (including loss of detail,
pops, hisses, hums and visual artifacts) and allows your A/V
equipment to perform up to its full capability.
1
2
Panamax’s Exclusive Protect or Disconnect™ circuitry. In the event of
a catastophic surge such as lightning, it completely disconnects AC
power to connected equipment.
Improves Picture and Sound Quality
Surge Protection
•Telephone Line Protection
Protects equipment from electrical surges that
travel over Telephone lines.
•8 Outlets
8 ltered and surge protected outlets.
•Cable/Sat Protection
Protects equipment from electrical surges that
travel over Cable, Satellite, and Antenna lines.
•Hi Def Ready
Hi-Def Designed to work with your High
Denition system.
HOME THEATER POWER MANAGEMENT
•Surge Protection
Exclusive Protect or Disconnect™ circuitry.
In the event of a catastophic surge such as
lightning, it completely disconnects AC power
to connected equipment.
SP8-AV FEATURES
2. In/Out Telco Connectors
Telco Connectors RJ-11
1. CATV/Satellite Connectors
1 set of IN /OUT, universal coaxial
connectors
SP8-AV SPECIFICATIONS
UPC’S, QUANTITIES, WEIGHTS & MEASUREMENTS FOR ORDERING & SHIPPING
General________________________________________________________________
Dimensions:................................ 12 in. L x 5 in. W x 1.75 in H (12.5 in. L Including brackets)
Weight......................................................................................................................... 3.5 lbs.
AC Specications _________________________________________________________
Protect or Disconnect™ Circuitry:.................................................................................... Yes
Thermal Fusing:................................................................................................................ Yes
Line Voltage:.............................................................................................. 120VAC, 50/60Hz
Initial Clamping Level:....................................................................... 200V Peak, 141V RMS
Voltage Protection Rating (UL1449 3rd Edition, 3,000A):...............................................500V
Protection Modes:.............................................................................................L-N, L-G, N-G
Maximum Current Rating:..................................................................................15 A (1800W)
EMI/RFI Noise Filtration:................................................................... 45 dB(100 KHz - 1MHz)
Response Time:............................................................................................................. < 1ns
Single Pulse Energy Dissipation:......................................................................... 1125 Joules
Peak Impulse Current:.............................................................................................. 60,000 A
Telco Protection ________________________________________________________
Fuseless/Auto-Resettable:...............................................................................................Yes
Clamping Level:.............................................................................................................260V
Capacitance:....................................................................................................30pf (approx.)
Suppression Modes:......................................................................... Metallic & Longitudinal
Wires Protected:................................................................................................. 1 Line (3,4)
Connectors:................................................................................................................. RJ-11
Universal Cable / Satellite Protection _________________________________________
HD Ready:....................................................................................................................... Yes
Bi-Directional.....................................................................................................................Yes
Shielded:...........................................................................................................................Yes
Clamping Level:............................................................................................................... 75V
Frequency Range:........................................................................................ 0MHz - 2.2 GHz
Insertion Loss................................................................................................................< 1 dB
Connections......................................................................................Female “F”, Gold Plated
MODEL SP8-AV MASTER CARTON
UNIT CARTON
Dimensions Weight Dimensions Weight UPC Qty Dimensions Weight UPC
12” x 5” x 1.75” 3.5 lbs 13.25” x 9.5” x 2.5” 4 Lbs 0 50616 00814 3 6 17.25” x 8.5” x 14” 20 Lbs 5 0050616 00814 8
w/brackets 12.5” x 5” x 1.9”
1690 Corporate Circle, Petaluma, CA. 94954 800-472-5555 or 707-283-5900 Fax 707-283-5901 www.panamax.com
© 2007 Panamax, Inc. Panamax, MAX, and the Panamax logo are registered US trademarks of Panamax
Design and specications subject to change without notice due to product improvement.
L579 REV C 02/10

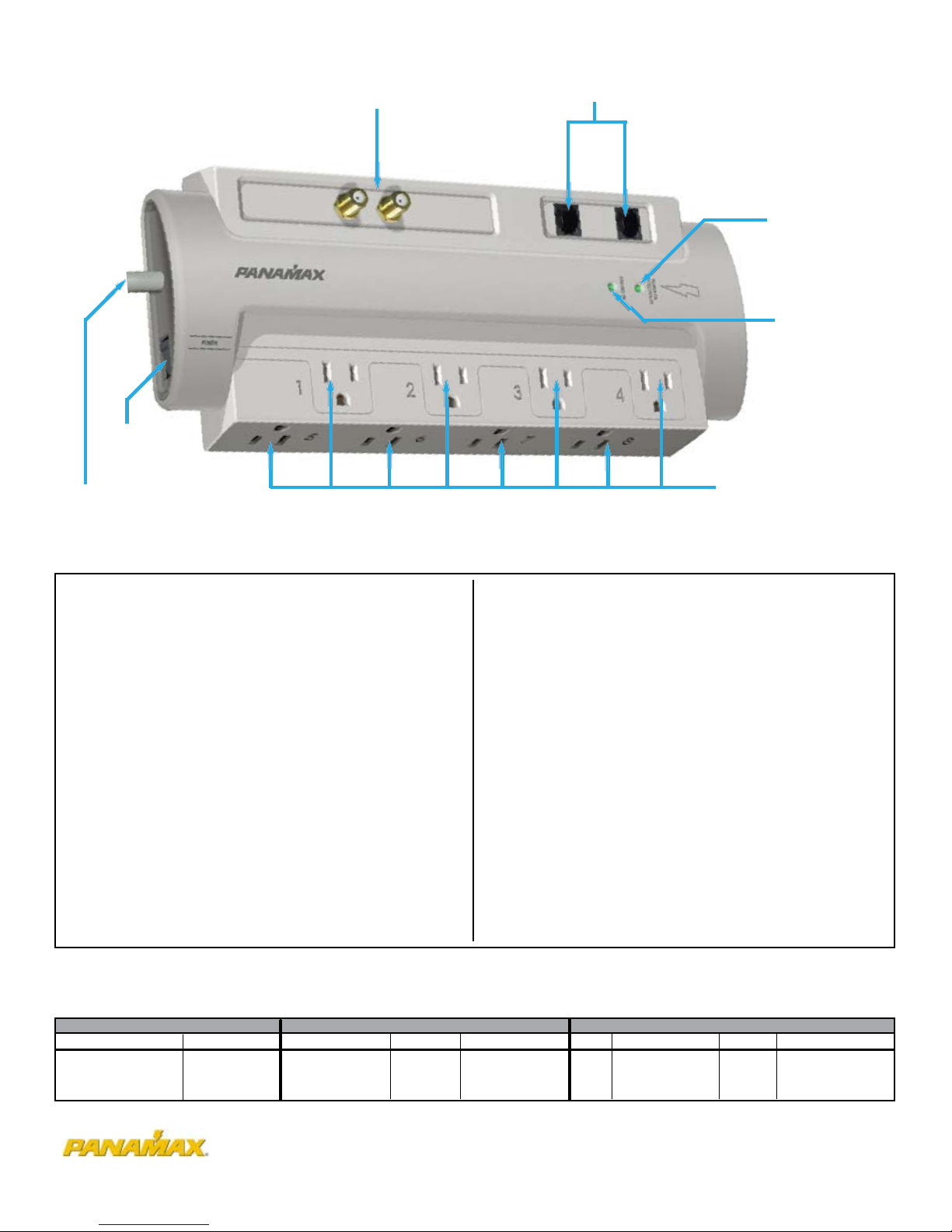

7. ON/OFF Switch
Power Switch and
Circuit Breaker Combo
6. AC Power Cord (6 ft. )
Right Angle with
45 Degree Offset Plug
3. Power ON/Protection OK LED
(green) Normally ON; indicates
that the surge protector is
functioning properly and that all
connected equipment is protected.
4. Ground OK LED
(green) Normally ON; indicates
that the wall outlet is properly
wired and grounded.
5. 8 AC Outlets
8 Outlets with transformer spacing
between outlets.
