Panamax MFP-400 User manual

•Surge Protection
Exclusive Protect or Disconnect™ circuitry.
In the event of a catastrophic surge such as
lightning, it completely disconnects AC power
to connected equipment.
•HD Ready
Designed to work with your High
Denition system.
•AVM (Automatic Voltage Monitoring)
Protects equipment against prolonged over/
under voltages by disconnecting the power
and reconnecting it when safe power returns.
•2 Outlets
Both outlets feature always-on ltration.
•Coax/Sat Protection
Protects equipment from electrical surges that
travel over Cable, Satellite, and Antenna lines.
•Premium Filtration
Improves Picture and Sound. Provides clean
power by ltering out noise common to
household power.
MFP-400
LOOKING FOR CRYSTAL CLEAR PICTURE AND SOUND?
MFP-400
www.panamax.com
The MFP-400’s Power Cleaning and Premium
Filtration eliminate common symptoms of
contaminated power (including loss of detail, pops,
hisses, hums and visual artifacts) and allows your A/V
equipment to perform up to its full capability.
1
2
Panamax’s patent pending AVM™ circuitry continuously
monitors the incoming line voltage and disconnects
your equipment in the event of an over voltage or under
voltage (brownout). Power is automatically reconnected
when voltage returns to a safe level, eliminating service
calls or system downtime.
Improves Picture and Sound Quality
Monitors Incoming Line Voltage
HOME THEATER POWER MANAGEMENT
2007 Award
Winner

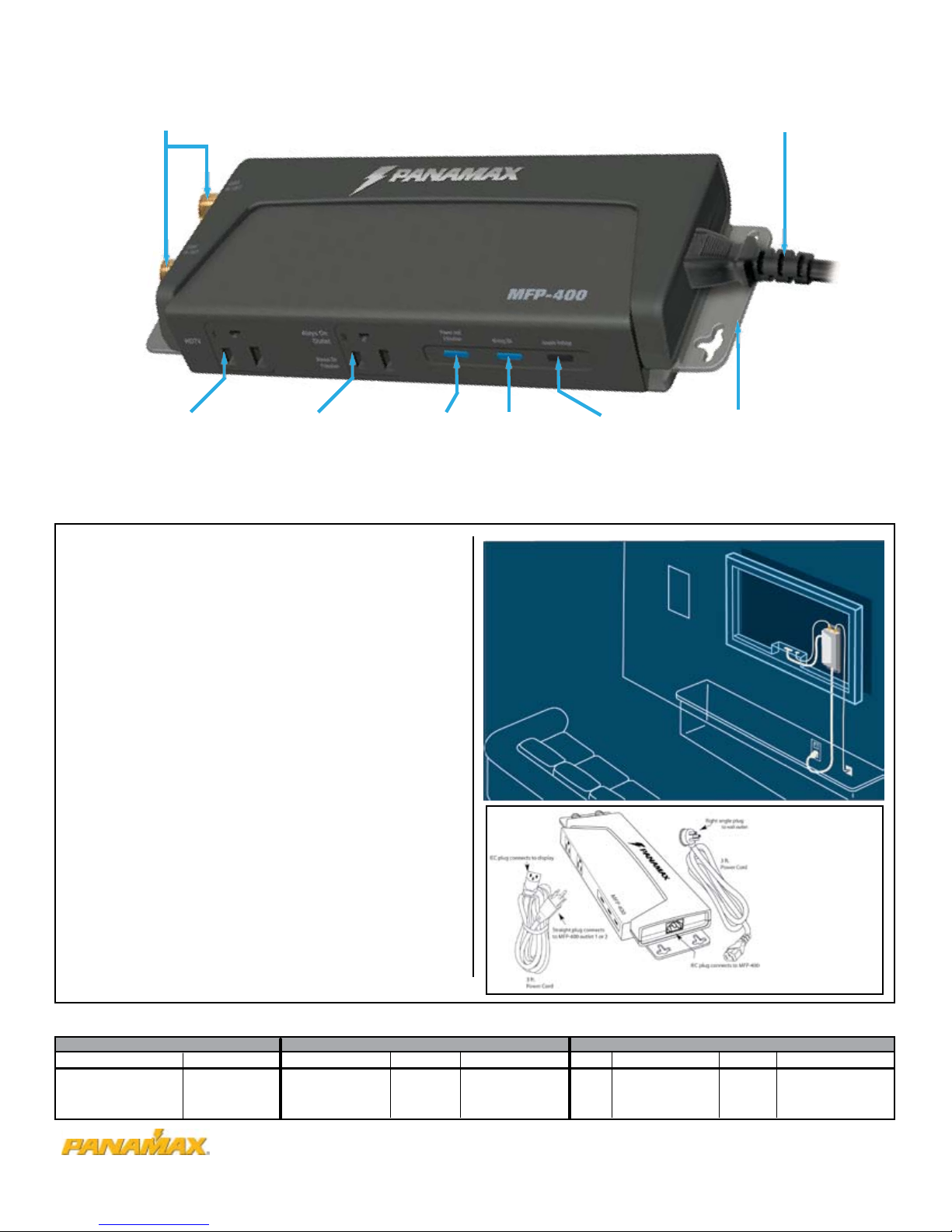

MFP-400 FEATURES
1. Universal Coaxial Connectors
1 pair of bidirectional protection
circuits optimized for satellite, cable,
and antenna TV signal lines.
2. Detachable 3 ft. AC Power
Cord
Includes right angle plug for
connecting to wall outlet.
3. Outlet 1
Always-on ltration for HDTV.
5. Power and Filtration
Indicator
(blue) Normally ON, indicates that
the surge protector is functioning
properly and that all connected
equipment is protected.
7. Unsafe Voltage
(red) Normally OFF, indicates
that incoming line voltages are
unsafe and the surge protector
has disconnected the power to
your to your connected equip-
ment when lit.
6. Wiring OK
(blue) When the unit is plugged
into a properly wired outlet,
the Wiring OK LED is ON. If it
is plugged into an outlet with
reversed L-N wiring or open
ground, the LED is OFF.
4. Outlet 2
Always-on ltration for HDTV or
other accessories.
8. Top and Bottom Mounting
Brackets
Used to mount the MFP-400 to
the wall or to the back of the video
display (universal mounting bracket
included).
MFP-400 SPECIFICATIONS
UPC’S, QUANTITIES, WEIGHTS & MEASUREMENTS FOR ORDERING & SHIPPING
General________________________________________________________________
Dimensions:......................................................................... 8.75 in. L x 3.75 in. W x 1.6 in H
Weight:........................................................................................................................... 2 lbs.
AC Power_______________________________________________________________
Protect or Disconnect™ Circuitry:.....................................................................................Yes
AVM (Automatic Voltage Monitoring) Circuitry: ................................................................Yes
Auto-resetting Overvoltage shutoff:.....................................................................142 V ± 8 V
Auto-resetting Undervoltage shutoff:.....................................................................90 V ± 6 V
Thermal Fusing:................................................................................................................Yes
Line Voltage:....................................................................................................120V, 50/60Hz
Initial Clamping Level:.....................................................................................................200V
Voltage Protection Rating (UL1449 3rd Edition, 3,000A):...............................................500V
UL991 Electronic Safety Circuit:.......................................................................................Yes
Protection Modes:.............................................................................................L-N, L-G, N-G
Maximum Current Rating:..................................................................................15 A (1800W)
Single Pulse Energy Dissipation:.........................................................................1675 Joules
Peak Impulse Current:........................................................................................48,000 Amps
EMI/RFI Noise Filtration:.....................................................................53 dB (100kHz - 1MHz)
Response Time:.............................................................................................................< 1 ns
MODEL MFP-400 MASTER CARTON
UNIT CARTON
Dimensions Weight Dimensions Weight UPC Qty Dimensions Weight UPC
8.5” x 3.75” x 1.6” 2 lbs 11.5” x 9.25” x 2.25” 2.5 Lbs 0 50616 00823 5 6 13.5” x 10” x 11.25” 16 Lbs 50050616-008230
w/brackets 10” x 3.75” x 1.75”
1690 Corporate Circle, Petaluma, CA. 94954 800-472-5555 or 707-283-5900 Fax [phone] www.panamax.com
© 2007 Panamax, Inc. Panamax, MAX, and the Panamax logo are registered US trademarks of Panamax
Design and specications subject to change without notice due to product improvement.
L592 REV D 2/10
Cable and Satellite TV Circuits______________________________________________
HD Ready:.......................................................................................................................Yes
Shielded:..........................................................................................................................Yes
Clamping Level:...............................................................................................................75V
Frequency Range:........................................................................................ 0MHz - 2.2 GHz
Insertion Loss:........................................................................................................... < 0.5 dB
Connections:.....................................................................................Female “F”, Gold Plated
Bidirectional:......................................................................................................................Yes
Attaches behind any
Video Display Panel
Comes with Universal
Mounting Bracket and
3 ft. Accessory Power
Cord.
Includes 2 power
cords -
• Detachable 3 ft. AC
Power Cord with right
angle plug for
connecting to wall
outlet.
• Detachable IEC
plug connects to
display.
