Meet the Auto Cleaning Robot.
It automatically cleans the filter to
keep the performance just like new.
Introducing Panasonic's original filter-cleaning AC Robot (Auto Cleaning Robot).
This powerful, built-in cleaning mechanism automatically cleans
the filter to minimise filter clogging.
This maintains the air conditioner's original performance,
while eliminating the unpleasant job of cleaning the filter manually.

03
It automatically vacuums the dust from the filter
and exhausts it outdoors each time you use it.
Always
CLEAN
Always
POWERFUL
Always
EFFICIENT
*For a filter cleaning and dust exhaust mechanism in a room air conditioner. (As of November, 2005)

Model Line-Up
Line-up of inverter models with R410A.
Choose
the
Best
Inverter
— Panasonic —
04
ION
Supersonic Air
Purifying System
Super alleru-buster filter
(Super alleru-buster + Catechin + Bio)Ion Freshener
DEO Deodorising Filter
Auto Cleaning
Robot
AC
Robot
Reverse cycle models
Single Inverter SplitSingle Inverter Split
Wall-Mounted
Air Quality
Features
Capacity
(kW)
2.5
3.5
4.5
5.0
6.0
6.5
8.0
Indoor Deluxe
p.14
CS-E9FKR ( CU-E9FKR )
CS-E12FKR (CU-E12FKR)
CS-E15FKR (CU-E15FKR)
Deluxe-Wide
p.14
DEO DEO
CS-E18FKR (CU-E18FKR)
CS-E21FKR (CU-E21FKR)
CS-E24FKR (CU-E24FKR)
CS-E28FKR (CU-E28FKR)
Super-Deluxe
p.14
CS-XE9EKE (CU-XE9EKE)
CS-XE12EKE (CU-XE12EKE)
AC
Robot
Deluxe Deluxe-Wide
Indoor
Single Split
Wall-Mounted
Air Quality
Features
Capacity
(kW)
2.0
2.5
3.5
5.0
6.5
p.15 p.15
ION ION
CS-W7DKR (CU-W7DKR)
CS-W9DKR (CU-W9DKR)
CS-W12EKR (CU-W12EKR) Different Design
CS-W18DKR (CU-W18DKR)
CS-W24EKR (CU-W24EKR) Different Design
Except CS-W12EKR Except CS-W24EKR

05

Without filter cleaning With auto filter cleaning
Energy-saving comparison (After 3 years' use)
Maintains energy-
saving operation.
The powerful airflow reaches
throughout the room.
The air stream doesn't reach
the corners of the room.
With auto
filter cleaning
Because it maintains the same performance
as when it was new, the level of power
remains constant even after long periods of
use. You enjoy comfortable air conditioning
that reaches every corner of the room.
Always
POWERFUL
Always
EFFICIENT
It prevents dust from accumulating and
keeps the filter like new. It prevents the
breeding of mould and bacteria that cause
unpleasant odours. Fresh and comfortable!
Always
CLEAN
12
Without filter cleaning With auto filter cleaning
Dust on filter after one year
<Test conditions> •Starting temperature and humidity: 7˚C, 6˚C •Set
temperature: 23˚C •Fan speed/airflow direction: set to auto mode •After
air conditioning stabilizes •Area of simulated-house testing facility: 16.5m2
*Actual dust accumulation will vary depending on
usage and environmental conditions.
06
Cleans its own filter — all by itself!
The air conditioner stays in the same clean
condition, with the same high-performance,
as when it was first purchased.
It prevents the reduced efficiency that is
caused by filter clogging, so its top-class
energy-saving performance is maintained
longer. It also saves on the electric bill by
suppressing the wasteful use of electricity.
For heating
Without
filter cleaning
Inefficient operation
wastes electricity.
Saves
23%

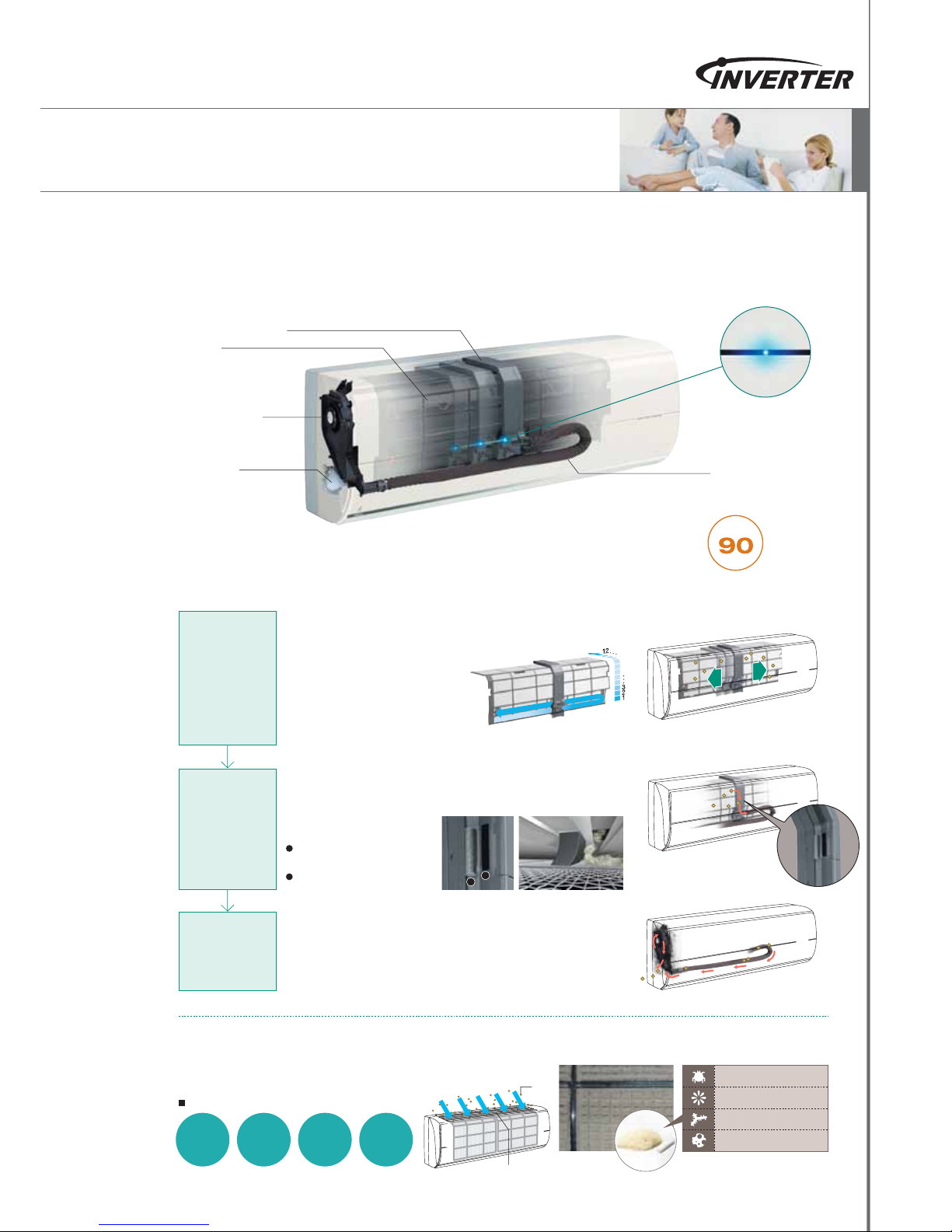

Automatically Traps, Vacuums and Exhausts Dust
— For Clean Operation without the Cleaning Hassle
Cleaning Mechanism
Why does the filter have to be cleaned?
Filter cleaning
indication light
The vacuum nozzle moves to trap the dust
The nozzle automatically starts cleaning the filter after each
use. The cumulative operating time is used to
determine how much of the filter
needs to be cleaned. The entire
filter is cleaned when the
operating time reaches 36 hours.
*The timer can also be set to start cleaning
at a certain time.
Problems Caused by Filter Clogging
The filter works to trap airbone dust. When the filter is not
cleaned regularly, dust can accumulate and clog it.
Lower
Air
Volume
Lower
Efficiency More Noise
Unpleasant
Odours
Pad: The brush rubs dust from the
filter. A durable, wear-resistant silicon
foam material is used.
Suction port: The rubbed off dust is
vacuumed.
12
1
1
2
2
Approx. 8 g* of
house dust per year
*Panasonic survey
The blue LED lights to
show the operating status.
Vacuum duct
The vacuum duct carries
the trapped dust to the outside.
Air filter
Original vacuum device
Traps the dust from
the intake air.
Dust exhaust and
air ventilation fan
Exhaust duct
Trapped dust is
automatically
exhausted outside.
Actual dust accumulation will vary depending
on usage and environmental conditions.
The exhaust duct discards
the dust outdoors automatically
The dust goes through the vacuum duct to be exhausted. This
is done automatically, so you don't have to do a thing. And only
a small amount of dust is exhausted each time.
The vacuum duct vacuums the dust
The pad on the nozzle rubs the dust from the filter mesh,
and the trapped dust is then vacuumed and exhausted
through the vacuum duct.
1
2
3
Air inlet
Dust
Dead dust mites
Pollen
Mould spores
Viruses/bacteria
The filter surface is divided into 12 blocks
to ensure thorough cleaning.
Vacuums
Traps
Exhausts
Super Deluxe
CS-XE9EKE/XE12EKE
07
Applied for
more than
patents
Panasonic has applied
for more than 90 patents
relate to auto filter
cleaning technology.
(As of November, 2005)
•For best performance, it is recommended to install the air conditioner in a room away from oily area e.g. kitchen.

08
A detailed cleaning programme built into the AC Robot ensures that the entire filter
surface stays clean with a highly efficient cleaning process.
Panasonic's high-efficiency technologies clear stringent
energy-saving standards, and the AC Robot maintains this
high level of performance.

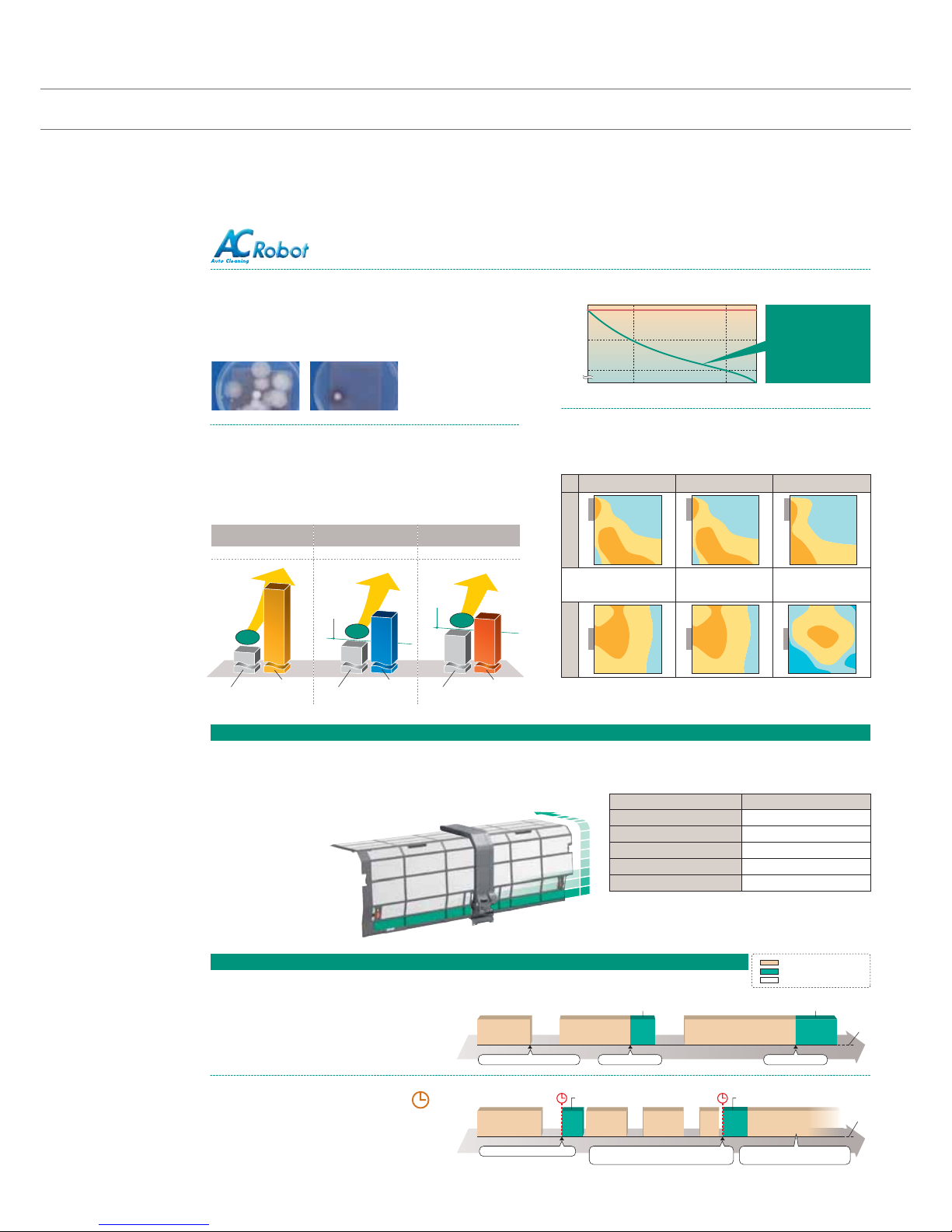

How It Works
Class A energy saving achieved
by inverter technology
Auto Filter Cleaning Operation Patterns
Comparison of Mould Growth
A dirty filter is a natural breeding ground for mould and
house mites. Their growth can be greatly reduced by
keeping the filter clean.
In the normal setting mode (non-timer)
Cleaning automatically starts after each operation.
The number of round-trip is determined based on
the cumulative operating time.
In the timer setting mode
Cleaning starts at the set time everyday.
* If the air conditioner has not been used for more than 30 minutes since it
was cleaned, the cleaning operation will not be done at the preset time.
With the AC Robot, heating performance is maintained even after long
use. On the other hand, the power is reduced without filter cleaning.
Observation of mould on filters
(used for 3 months)after cultivation
on agar media for 3 days.
Testing organization: Japan Food
Research Laboratories Test No.:
204090946-001
Temperature Distribution Comparison
Airflow Comparison
Without filter cleaning With auto filter cleaning
100
50
75
031
Air flow (%)
Time (year)
No cleaning
With auto filter
cleaning
50% in 3 years
25% in 1 year
Without filter cleaning
(After 3 years)
With auto filter cleaning
(After 3 years)
New (Just installed)
The powerful airflow reaches
throughout the room. Even
the area around your feet
stays nice and warm.
The airflow drops and the
air stream doesn't reach
the corners of the room.
Side viewFloor area
A Clean Filter Greatly Boosts Performance, Giving
No filter maintenance will
cause air volume to drop
Less than
2 h 2 to 3 h 4 hours or more Time
1 h 30
min
Operation time:
4 h
2 round-trip operations
2 round-trip operations2 round-trip operations
Cleaning starts at set time
Cleaning startsNo cleaning if less than 2 h Cleaning starts
Air conditioner stops operation temporarily
at the set time, and cleaning starts
2 round-trip operations or more
Time
Two operations are available. In addition to the normal setting, the timer setting can also be used.
1
12
2
3
.
.
.
...
Cumulative operation hours (hour)
Less than 2
2 - <6
6 - <9
9 - <12
<12
No. of cleaning operations
No cleaning
2 round-trip
3 round-trip
4 round-trip
5 round-trip
Air Conditioner Operating
Auto Filter Cleaning
Stop
Timer set timeTimer set time
In the High fan speed in the normal setting mode
1 h
•The filter surface is divided into 12 blocks, and the vacuum nozzle
cleans each block with a round-trip cleaning operation.
•The number of blocks (amount of surface area)
to be cleaned is determined
according to the air
conditioner's cumulative
operating time.
•Cleaning of the entire
surface is completed
after 36 operating hours
are accumulated.
Comparison of
Heating Capacity Comparison of COP
at heating operation
Comparison of EER
at cooling operationat maximum operation
Non-Inverter
(CS-W9DKR)
Non-Inverter
(CS-W9DKR)
Non-Inverter
(CS-W9DKR)
Inverter
Super Deluxe
(CS-XE9EKE)
6.10kW
3.05 kW
3.61
3.22
Inverter
Super Deluxe
(CS-XE9EKE)
4.44
Inverter
Super Deluxe
(CS-XE9EKE)
4.56
Energy
Efficiency
Class
A>3.60
Energy
Efficiency
Class
A>3.20
After cleaning, air conditioner
automatically resumes operation.
<Test conditions>
•Starting temperature and humidity: 7˚C, 6˚C •Set temperature: 23˚C •Fan speed/airflow direction:
set to auto mode •After air conditioning stabilizes •Area of simulated-house testing facility: 16.5m2
22 ˜24˚C
24 ˜26˚C
26 ˜
28˚C
Above
26˚C
22 ˜26 ˚C
23 ˜
26˚C
20 ˜
22˚C
22 ˜24˚C
24 ˜26˚C
26 ˜
28˚C
Above
26˚C
22 ˜26 ˚C
23 ˜
26˚C
20 ˜
22˚C
Above
26˚C 24 ˜26˚C
Below 24˚C
Below
20˚C
20 ˜
22˚C
22 ˜26˚C
Above
26˚C

09
Air cleaning features
Versatile Features for Super Deluxe Models
Anti-allergen protection
SUPER alleru-buster
Inactivates more than 99%of
all filter-captured allergens!
How allergens are inactivated
The allergen is caught
by the filter.
Phenolic hydroxyl ions
cling to the allergen.
The allergen is coated
and inactivated.
Allergens:
Pollen, dead dust mites and their
waste products, cat dander, mould
Target substances
Allergen
Phenolic hydroxyl
polymer
H
H
H
H
H
O
R
C
C
C
C
C
C
Anti-bacteria/Anti-mould protection
Bio (Bio-Elimination)
Enzymatic action eliminates more than 99%
of all filter-captured bacteria!
How bacteria are bio-eliminated
The enzyme attacks
the bacterial cell wall.
The enzyme eliminates
the bacteria.
The enzymatic action hydrolyzes the cell wall
and dissolves the bacteria. The spikes are covered by catechin.
Even if it enters the body,
it is no longer treated as an allergen.
Bacteria: Staphylococcus aureus
Mould: Black mould (aspergillus),
green fungus
Target substances
Cell wall Cell
Enzyme
Anti-virus protection
Catechin
Inactivates more than 99%of
all filter-captured viruses!
Viruses: Influenza, Coxsackie virus, etc.
Target substances
Penetrates
Filter
Spike Virus
Catechin
How viruses are inactivated
The virus is caught
by the filter.
Catechin surrounds
the virus.
The virus is inactivated.
Ventilation
Control
Powerful
Mode
Quiet Mode
SUPER alleru-buster filter — Long-life type (10 years)
The SUPER alleru-buster filter combines three effects in one:
anti-allergen, anti-virus, and anti-bacteria protection, to keep the room air clean and healthful.
Plus, the effect is maintained for 10 years.
You Greater Comfort and Saving Energy.
What’s “Allergen”?
When allergens enter the body,
they cause allergy symptoms due to an antigen-antibody reaction
that occurs as the body tries to combat them.
Pressing the Powerful button cools or heats the room quickly. It provides
fast comfort, with full power and a strong airflow. This is perfect for use
immediately after coming home, or when unexpected guests arrive.
Simply press a button to reduce the indoor unit operating sound by about 3 dB.
This function is especially convenient for operation near a sleeping baby.
You can ventilate the room by simply pressing the remote control button.
Dirty air is carried outside to keep the room fresh and clean.
Operation Indicator
The indicators become visible
when the grille is opened.
Super Deluxe
CS-XE9EKE/XE12EKE

Powerfully collects allergens
from the room's air
A Supersonic Air Purifying System accelerates the air
cleaning effect of the SUPER alleru-buster filter. It keeps
room air cleaner, to protect the family's health.
supersonic
10

3.53
3.14
11
100
75
50
25
00 30 60 90
Dust concentration (%)
Time (min)
With normal filter
With Supersonic Air
Purifying System
The Supersonic Air Purifying System incorporated in
the indoor unit generates supersonic waves.
The system works in combination with the filter to
collects dust and dirt in the air for faster, more
efficient air purification.
Supersonic Air Purifying System
with SUPER alleru-buster
Supersonic Air Purifying System
• SUPER alleru-buster filter
• Supersonic wave generator
Faster dust collection
Supersonic Air Purifying System
Inactivates harmful elements
SUPER alleru-buster filter
The SUPER alleru-buster filter combines three
effects in one—anti-allergen, anti-virus,
anti-bacteria protection —to keep room air clean
and healthy.
The indoor unit operates at a whisper-quiet 23 dB in
quiet mode. We've reduced the noise of the outdoor
unit, too. You can run the air conditioner at night and
enjoy a deeper, more comfortable sleep, and without
bothering your neighbours.
Our Deluxe models offer both capacity and
a class-leading energy-saving performance that
exceeds requirements of the highest Energy-Efficiency
Classification.
Super quiet
Powerful heating &
top-class energy efficiency
Faster dust
collection
23dB
Indoor
*1 46dB
Outdoor
*2
Anti-allergen
protection
Inactivates more than 99%
of all filter-captured allergens
Here, inactivate means to suppress normal activity. This inactivation of mite allergens
has been verified by the University of Edinburgh in the UK.
Anti-virus protection
Inactivates more than 99%
of all filter-captured viruses
Anti-bacteria/Anti-mould
protection
Enzymatic action eliminates more than 99%
of all filter-captured bacteria
Changes in dust concentration
Deodorising Filter
Cleaner air with supersonic waves
and SUPER alleru-buster
air cleaning
air cleaning
Deluxe
Comparison of
Heating Capacity Comparison of COP
at heating operation
Comparison of EER
at cooling operationat maximum operation
Non-Inverter
(CS-W9DKR)
Non-Inverter
(CS-W9DKR)
Non-Inverter
(CS-W9DKR)
Inverter
Deluxe
(CS-E9FKR)
5.00kW
4.26
4.33
Inverter
Deluxe
(CS-E9FKR)
Inverter
Deluxe
(CS-E9FKR)
*1 CS-E9FKR: In Quiet mode during cooling operation with low fan speed
*2 CU-E9FKR: In cooling mode
3.05 kW
The photocatalytic filter absorbs
odour particles from cigarette smoke and pet and
household smells. The deodorisation effect is
regenerated when the filter is exposed to sunlight.

12

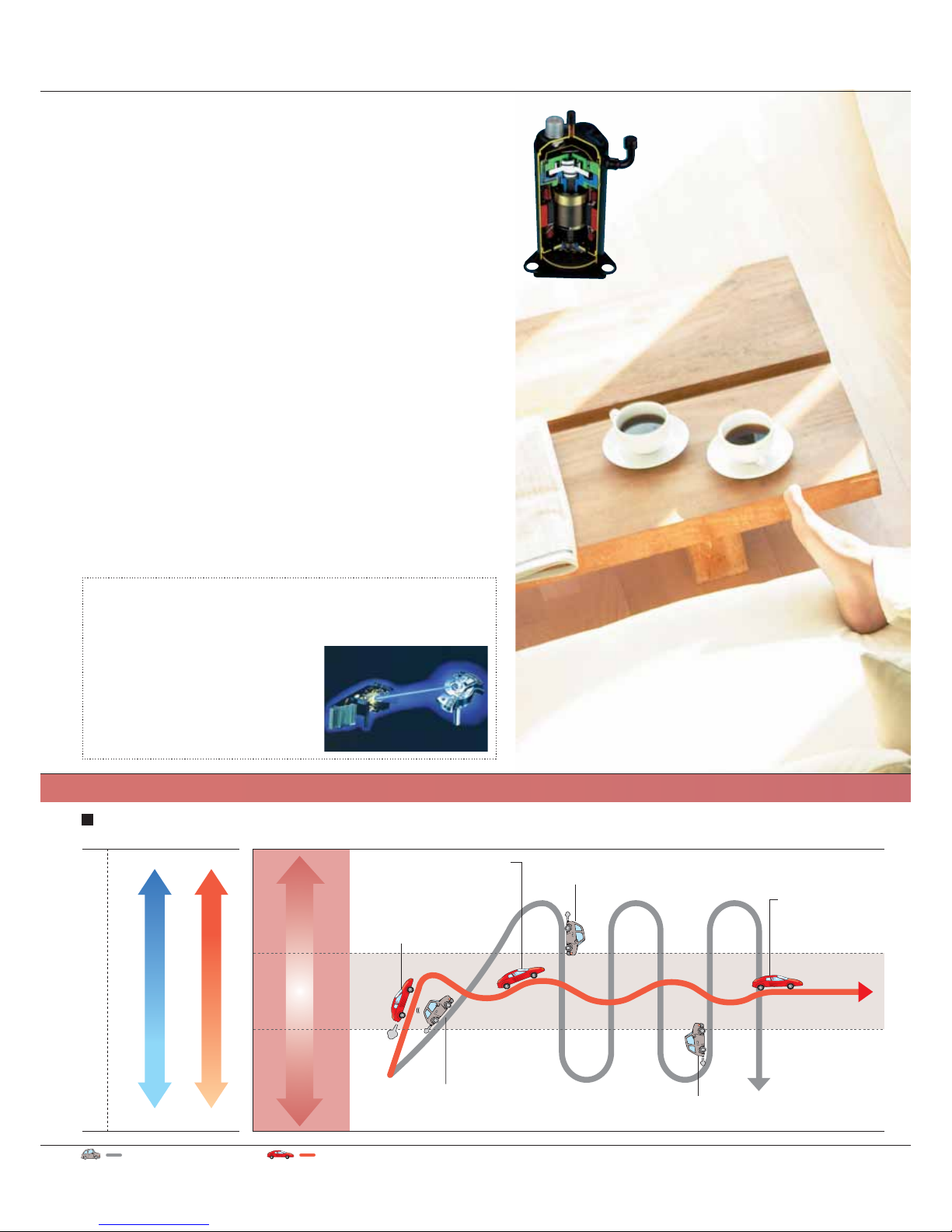

The advantages of an inverter air conditioner
Comparing inverter and non-inverter air conditioners to cars...
The accelerator can't be adjusted, so you spend a long
time to get comfortable, then soon become uncomfortable.
Keeps the
temperature
comfortable
all the time.
Adjusts the accelerator
and thus runs
more economically.
Reaches the comfort
zone quickly.
Advanced
Inverter Performance –
The Difference
in Power and Comfort
WHAT'S AN INVERTER?
An inverter is a type of power conversion circuit that electronically regulates
the voltage, current, and frequency of a device. In an inverter air conditioner,
this circuit controls the revolutions of the
compressor — and hence the air
conditioner’s output. Raising the frequency
increases the output, lowering the
frequency reduces it. In this way, inverter
air conditioners provide much finer
temperature control than non-inverter
models.
Panasonic is harnessing its industry-leading technologies to make life more comfortable.
With the slogan "Technologies that deliver new levels of comfort,"
the company is working to develop new, high-performance inverter air conditioners.
Models with PFC (power-factor corrector) circuitry reduce electrical loss from the power source,
thus increasing maximum power input.
This naturally increases the maximum air conditioner output,
so you enjoy more comfort.
START Runs at a fixed speed,
so it takes longer to reach
the comfort zone.
The room gets too cold,
then too warm.
WarmerCooler
Less Cool Less Warm
When Heating
When Cooling
Room temperature
Uncomfortable
Comfortable
Uncomfortable
Non-inverter air conditioner Inverter air conditioner

13
As soon as the an inverter air conditioner is
switched on, it provides the exact amount of
power needed to rapidly cool or heat of the
room. This enables it to reach the set
temperature in about half the time required
by non-inverter models. So you're
comfortable soon after you arrive home on
a hot summer day, or on a cold winter
morning.
For optimum use of limited energy resources, an
inverter air conditioner features an inverter
circuit providing extremely efficient operation.
Improved heat exchanger and compressor
performance, precise microcomputer control
and other
innovations further assure dramatically
boosted efficiency. So even though you get
speedy, flexible operation, you use less
electricity. What's more, low energy
consumption means operation that's more
environment-friendly than ever.
You're always comfortable with an inverter air
conditioner
. After quickly reaching the set
temperature, it finely adjusts output
power to
maintain a constant temperature.
So there are
no uncomfortable temperature swings, while
electricity is used more efficiently. Broad output
power capability also assures continued
comfort even if the number of people in a room
changes. And at maximum output,
an inverter
air conditioner
can deliver warm comfort even
in the coldest winters.
Quick comfort Flexible power controlEnergy-saving
* The graph is a representation of temperature
changes during heating.
Quick
Inverter Type
Quick comfort
Non-inverter
Type
1/2Time
About
Setting Temperature
Gentle cooling when
fewer people are in
the room.
Powerful
cooling when
there are more
people.
Cooling power
adjusts to meet changes
in room temperature.
Flexible power control & Energy saving
The graph shows the CS-XE12EKE's wide power
output range during heating.
Minimum power Medium power
Wide Power, Flexible Control
Maximum power
6.70kW
0.60kW 4.80kW

Feature Comparison p.18 p.19Specifications

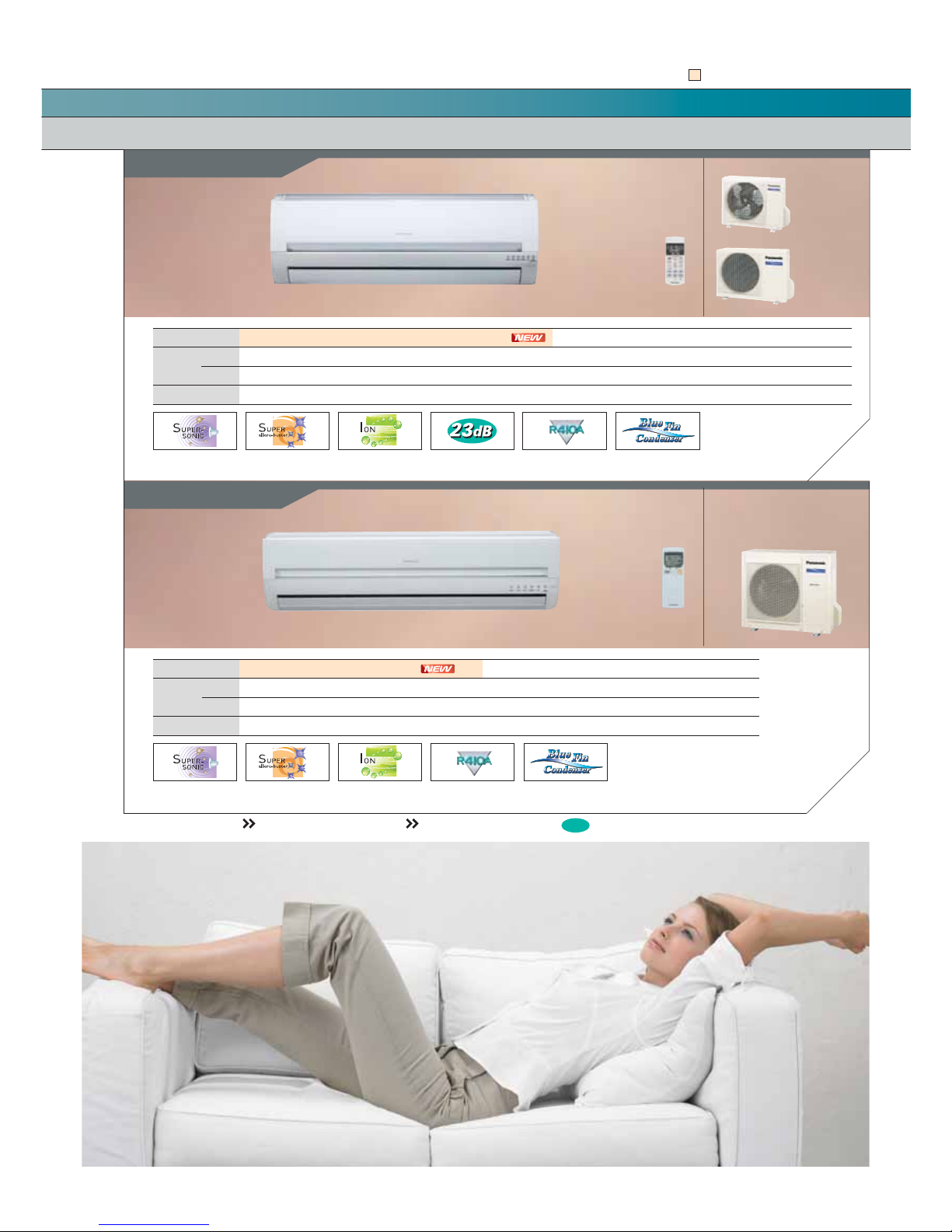

CU-XE9EKE/XE12EKE
Super-Deluxe
23 dB
23 dB
Reverse cycle Cooling /Heating
Single Inverter Split
Wall-Mounted
Model No
Capacity(kW)
(Btu/h)
EER/COP(W/W)
CS-XE9EKE CS-XE12EKE
3.50(0.60~4.00)/4.80(0.60~6.70)
11,900(2,050~13,600)/16,400(2,050~22,800)
3.98/3.93
2.60(0.60~3.00)/3.60(0.60~6.10)
8,870(2,050~10,200)/12,300(2,050~20,800)
4.56/4.44
CS-XE9EKE
Quiet Indoor Quiet Outdoor
CU-XE9EKE CU-XE12EKE
In Quiet mode during cooling operation with low fan speed
**
dB
**
dB
Sound pressure level of outdoor unit during cooling operation with high fan speed
14
Deluxe CU-E9FKR/
E12FKR
CU-E15FKR
Model No
Capacity(kW)
(Btu/h)
EER/COP(W/W)
CS-E9FKR CS-E12FKR
2.60(0.80~3.00)/3.60(0.80~5.00)
8,870(2,730~10,200)/12,300(2,730~17,100)
4.33/4.26
3.50(0.80~4.00)/4.90(0.80~6.70)
11,900(2,730~13,600)/16,700(2,730~22,800)
3.63/3.89
CS-E15FKR
4.40(0.90~5.00)/5.50(0.90~7.10)
15,000(3,070~17,100)/18,800(3,070~24,200)
3.21/3.50
CS-E9FKR
Quiet Indoor Quiet Outdoor
CU-E9FKR
CU-15FKR
CU-E12FKR
CU-E18FKR/
E21FKR
CU-E24FKR/
E28FKR
Model No
Capacity(kW)
(Btu/h)
EER/COP(W/W)
CS-E24FKR
7.20(0.90~8.10)/8.60(0.90~9.90)
24,600(3,070~27,600)/29,300(3,070~33,800)
3.13/3.43
8.10(0.90~8.60)/9.60(0.90~11.00)
27,600(3,070~29,300)/32,700(3,070~37,500)
2.98/2.95
CS-E28FKR
Model No
Capacity(kW)
(Btu/h)
EER/COP(W/W)
CS-E18FKR
6.30(0.90~7.10)/7.20(0.90~8.50)
21,500(3,070~24,200)/24,600(3,070~29,000)
3.06/3.60
5.30(0.90~6.00)/6.60(0.90~8.00)
18,100(3,070~20,500)/22,500(3,070~27,300)
3.21/3.69
CS-E21FKR
Quiet Outdoor
CU-E18FKR CU-E21FKR CU-E24FKR CU-E28FKR

Single Split
Wall-Mounted
Reverse cycle Cooling /Heating
Deluxe-Wide
Deluxe
Model No
Capacity(kW)
(Btu/h)
EER/COP(W/W)
CS-W7DKR CS-W9DKR CS-W12EKR
CU-W7DKR/
W9DKR
CU-W12EKR
Model No
Capacity(kW)
(Btu/h)
EER/COP(W/W)
CS-W18DKR
Feature Comparison p.18 p.19Specifications
CU-W18DKR/W24EKR
2.30/2.45
7,840/8,350
3.24/3.63
5.30/5.75
18,100/19,600
2.93/3.19
2.75/3.05
9,380/10,400
3.14/3.53
3.60/3.90
12,300/13,300
3.27/3.58
CS-W24EKR
7.03/7.80
24,000/26,600
2.97/3.17
CS-W7DKR/W9DKR/
V7DKR/V9DKR
23 dB
23 dB
In Quiet mode during cooling operation with low fan speed
*CS-W12EKR
Different design
Without Ion Freshener
*CS-W24EKR
Different design
Without Ion Freshener
15

Split Type Feature Explanations
SUPER alleru-buster filter
Inverter Control
Powerful Mode
Supersonic Air Purifying System
Deodorising Filter
3dB Down
Press a
QUIET
button
The photocatalytic filter absorbs odour
particles from cigarette smoke and pet
and household smells. The deodorization
effect is regenerated when the filter is
exposed to sunlight.
Ion Freshener
It is known that areas rich in negative
ions, like near waterfalls and forests,
generally make people feel refreshed.
With Panasonic split air conditioner, the
same refreshing feeling can be felt just
by pushing a single button.
Healthy Air Quality Comfortable
Convenient
The SUPER alleru-buster filter
combines three effects in one
—anti-allergen, anti-virus, and
anti-bacteria protection — to keep room
air clean and healthful.
An inverter air conditioner provides
optimum power control, which is
impossible for conventional units.
The secret lies in the inverter circuit.
By changing the frequency of power
supply, this circuit alters the rotation
speed of the compressor, which is the
heart of the air conditioner. The result is
comfortable, economical air conditioning.
The Supersonic Air Purifying System
incorporated in the indoor unit
generates supersonic waves.The system
works in combination with the filter to
collects dust and dirt in the air for faster,
more efficient air purification.
Quiet Mode
Simply press a button to reduce the indoor
unit operating sound by about 3 dB.
This function is especially convenient for
operation near a sleeping baby.
mode
Pressing the Powerful button cools or
heats the room quickly. It provides fast
comfort, with full power and a strong
airflow.
This is perfect
for use immediately
after coming home,
or when unexpected
guests arrive.
The start or stop operation time (hour
and minute) can be set at one time.
Or both of the times for start and stop
operation can be set.
LCD Wireless Remote Controller
Inactivates more than 99%
of all filter-captured allergens
Inactivates more than 99%
of all filter-captured viruses
Anti-allergen protection
Anti-virus protection
Enzymatic action eliminates more than 99%
of all filter-captured bacteria
Anti-bacteria/Anti-mould protection
Here, inactivate means to suppress normal activity. This
inactivation of mite allergens has been verified by the
University of Edinburgh in the UK.
24-Hour ON & OFF Real Setting Timer
Removable, Washable Panel
Odour-Removing Function
With this function, there's no unpleasant
odour when the unit starts up. That's
because the fan remains off momentarily,
while the source of the odour inside the
air conditioner is suppressed.
*The unit must be in cool or dry mode and the fan speed
must be set to automatic.
One-Touch Air Filter
The front panel is easy to keep clean. It
removes quickly with a simple one-step
operation and can be washed in water.
A clean front panel promotes smoother,
more efficient performance, which can
save energy.
AC Robot (Auto Cleaning Robot)
Automatically removes dust from the
filter and exhausts it outside the unit to
keep the inside clean.
*The size of the area to be cleaned is determined based on
cumulative operating hours and fan speed.
The vacuum nozzle slides over the filter
after each use*to vacuum the dust and
exhaust it outside automatically.
16

Max. 30m
Pipe
length
Max. 20m
Level
difference
Long Piping
Random Auto Restart
All models are now safe to operate
without a starter. With the exclusive
Random Auto Restart feature, the air
conditioners automatically restart after
power failure. Its 32 different
recovery-timing patterns ensure that air
conditioners in the same building
resume one after another instead of all
at the same time. This feature helps
prevent power surges after a blackout
and walls are nearer too.
The basic piping can be extended,
allowing the outdoor unit to be installed
farther away from the
indoor unit and
providing greater
installation flexibility.
*The graph refers to the CS-V18EKR. *Extendable length varies
by model. *If the piping is extended past the basic pipe length,
there's an extra charge for additional refrigerant.
Circulation Operation Mode
Personal Airflow Creation
Auto Changeover (Inverter)
Auto Changeover
Blue Fin Condenser
Soft Dry Operation Mode
Hot Start Control
Airflow Direction Control
(Up & Down)
Automatic Operation Mode
(Cooling)
Top-Panel Maintenance Access
Reliable
This mode circulates the air in the room,
to minimize differences in air
temperature.
Starts with cooling to dehumidify.
Then provides continuous breeze at low
frequency to keep room dry without
On the start of heating cycle and after
defrost cycle, the indoor fan will start up
once the indoor heat exchanger is warm.
Sensors measure the room and outside
temperatures periodically.
Based on these temperatures and the set
temperature, the microcomputer
determines the most suitable operating
mode as time passes.
Vertical and horizontal air flow patterns
can be combined as desired to gain the
greatest possible comfort, with
operation possible even from a distance
by remote control.
When the Automatic Operation button is
pressed, the optimum mode (cooling,
soft dry) is selected based on data from
the Intake Air Sensor. The desired
temperature setting can also be set
(Low, Normal or High).
Condensers can take a beating from
exposure to salty air, rain and other
corrosive factors. Panasonic has tripled
the life of our condensers with an
original anti-rust coating.
Maintenance of the outdoor unit used to
be quite a tedious chore, especially
when the unit was installed on a narrow
balcony or attached to the outer wall of a
high-rise building. Now, maintenance
can be performed by simply removing
the top panel, making these tasks much
quicker and easier.
Should a malfunction occur, the unit
diagnoses the problem and shows the
corresponding alphanumeric code. This
allows quicker servicing.
Every period
* at "AUTO" operation
Set
temperature Room temperature Outdoor temperature
Evaluates the three temperatures and
selects the operating mode accordingly.
Auto Changeover System
Heat Dry Cool
Checks three temperatures.
The flap swings up and down automatically,
distributing air throughout the room. You
can also adjust the airflow angle by
remote control.
Self-Diagnostic Function
• Up & Down Airflow — 5 Patterns + Auto
• Left & Right Airflow — 5 Patterns + Auto
When you don't want
airflow directed right
at you.
When you want direct
airflow.
When you want to
warm yourself
thoroughly from the
feet up.
To focus the airflow to
one side of the room. To focus the airflow to the centre. For uniform airflow throughout the room.
Not all features found on all models.
Blue Fins
Front View
Side View
Non-Blue Fins
Front View
Side View
This was tested by:
1. Matsushita Air Conditioning R&D Centre Sdn. Bhd.
2. A third party authorized research institute in Malaysia.
Special Coating Layer
(Fin Cross-section)
Cyclic Corrosion Test Results
Water Air Salt
content
Base material Corrosion-
resistant layer
17

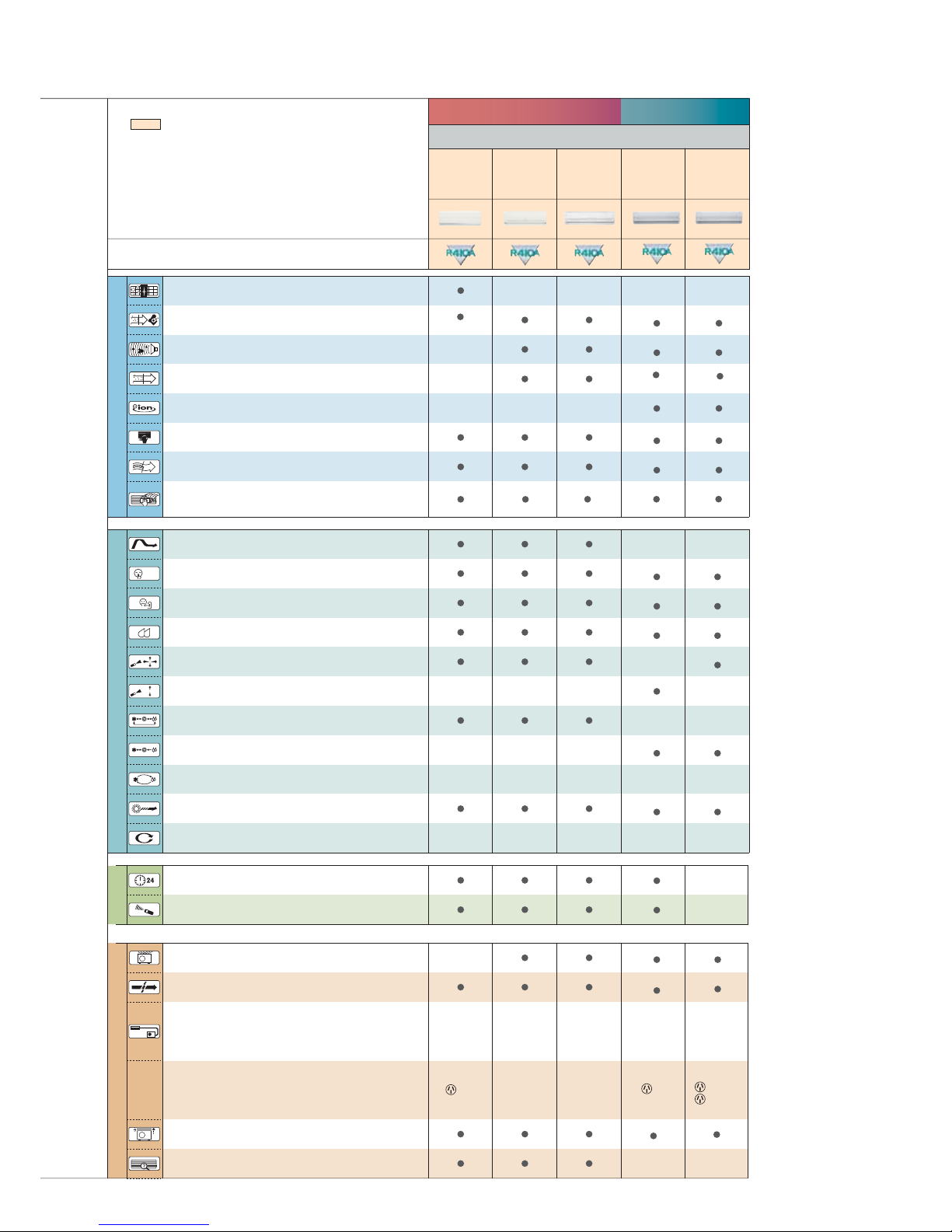

Auto Filter Cleaning Function
SUPER alleru-buster filter
Supersonic Air Purifying System
Deodorising Filter
Ion Freshener
One-Touch Air Filter
Odour-Removing Function
Removable,Washable Panel
Inverter Control
Quiet Mode
Powerful Mode
Soft Dry Operation Mode
Personal Airflow Creation
Airflow Direction Control (Up & Down)
Auto Changeover ( Inverter )
Auto Changeover
Automatic Operation Mode
( Cooling )
Hot Start Control
Circulation Operation Mode
24-Hour ON&OFF Real Setting Timer
LCD Wireless Remote Controller
Blue Fin Condenser
Random Auto Restart
Top-Panel Maintenance Access
Self-Diagnostic Function
Long Piping
Plug Type & Ampere Capacity
* The plug must be installed.
* Total room / One room
Healthy Air QualityComfortable
Convenient
Reliable
Split Type Feature Comparison
CS-XE9EKE
CS-XE12EKE
Single Inverter Split Single Split
Reverse cycle models
Wall-Mounted
mode
Refrigerants Type
15m
10A
(long-life)
CS-W7DKR
CS-W9DKR
CS-W12EKR
25m
10A (W18)
20A (W24)
CS-E9FKR
CS-E12FKR
CS-E15FKR
15m
Outdoor
Power Supply
CS-E18FKR
CS-E21FKR
CS-E24FKR
CS-E28FKR
Outdoor
Power Supply
20m (E18/E21)
30m (E24/E28)
CS-W18DKR
CS-W24EKR
(Except CS-W12EKR) (Except CS-W24EKR)
10m(W7/W9)
15m (W12)
10A
(Only CS-W12EKR) (Only CS-W24EKR)
18

Specifications
•
Power plugs are not supplied with the unit.
•
Electrical work must be installed by a licensed electricians. Be sure to use the correct rating
of the power plug and mains circuit for the model to be installed.
•
Please read the Installation Instructions carefully before installing the unit, and read the
Operating Instructions before using.
Power
Supply
27°C DB/19°C WB 20°C DB
35°C DB 7°C DB/6°C WB
Cooling
Inside air temperature
Outside air temperature
Heating
Rating Conditions
Single Inverter Split
Btu/hkW L/h OutsideA kW W/W kg mm Inside (Hi/Lo) Outside (Hi/Lo)
Cooling Capacity
Heating Capacity Air Flow Dehumid Running
Current
Power
Input
EER
COP
Sound Pressure
Level*1dB (A)
Sound Power
Level dB (A)
Net Weight
Maximum
Pipe
Length
*
2
m
Dimensions
Height x Width x Depth
Model No.
(240V)
L/s
*1Sound Pressure Level is measured according to JIS C 9612.
*2Additional Gas might be required for some models.
Star
Rating
Pa(mmAq)
External
Static
Pressure
CS-XE9EKE
(CU-XE9EKE)
2.60
(0.60~3.00)
3.60
(0.60~6.10)
8,870
(2,050~10,200)
12,300
(2,050~20,800)
13
(37)
305 x 870 x 229
(540 x 780 x 289)
1.6 15
4.56
4.44
39 / 26
40 / 27
46 / —
47 / —
2.7
3.7
0.57
(0.12~0.70)
0.81
(0.115~1.64)
59
60
177
195
6.0
6.0
—Indoor
CS-XE12EKE
(CU-XE12EKE)
3.50
(0.60~4.00)
4.80
(0.60~6.70)
11,900
(2,050~13,600)
16,400
(2,050~22,800)
13
(37)
305 x 870 x 229
(540 x 780 x 289)
2.0 15
3.98
3.93
42 / 29
42 / 33
48 / —
50 / —
61
63
4.0
5.4
0.88
(0.12~1.10)
1.22
(0.115~1.84)
198
212
6.0
6.0
—Indoor
Cooling
Heating
EER: Cooling Efficiency
COP: Heating Efficiency
( ): Outdoor Unit
Single Split
*1Sound Pressure Level is measured according to JIS C 9612.
*2Additional Gas might be required for some models.
Power
Supply
W/W
Maximum
Pipe
Length
*
2
Model No.
CS-W7DKR
(CU-W7DKR)
CS-W9DKR
(CU-W9DKR)
CS-W12EKR
(CU-W12EKR)
CS-W18DKR
(CU-W18DKR)
CS-W24EKR
(CU-W24EKR)
7,840
9,380
12,300
18,100
24,000
2.30
2.75
3.60
5.30
7.03
L/h
1.5
1.6
2.1
2.9
4.0
Outside kg
9
(26)
9
(29)
8
(35)
11.0
(56.0)
11.0
(63.0)
mm
280 x 799 x 183
(510 x 650 x 230)
280 x 799 x 183
(510 x 650 x 230)
280 x 799 x 183
(540 x 780 x 289)
275 x 998 x 230
(750 x 875 x 345)
275 x 998 x 230
(750 x 875 x 345)
8,350
10,400
13,300
19,600
26,600
2.45
3.05
3.90
5.75
7.80
Cooling Capacity
Heating Capacity
Air Flow Dehumid Running
Current
Power
Input
EER
COP
Sound Pressure
Level
*
1
dB (A)
Sound Power
Level dB (A)
Net Weight
Dimensions
Height x Width x Depth
L/s
143
162
A
3.2
3.0
3.8
3.8
5.0
4.9
7.8
7.8
11.1
11.7
kW
0.72
0.685
0.875
0.865
1.1
1.09
1.81
1.80
2.37
2.46
3.19
3.58
3.14
3.53
3.27
3.58
2.93
3.19
2.97
3.17
Inside (Hi/Lo)
34/26
36/26
36/26
39/26
41/29
42/29
43/38
42/38
47/41
46/41
Outside (Hi/Lo)
47/—
49/—
49/—
50/—
50/—
50/—
50/—
51/—
53/—
54/—
—
132
152
63
64
62
64
64
65
65
66
66
67
Star
Rating
(240V)
m
10
10
15
25
25
Indoor
Indoor
Indoor
Indoor
Indoor
Cooling
Heating
EER: Cooling Efficiency
COP: Heating Efficiency
( ): Outdoor Unit
178
182
255
267
290
303
5.0
6.0
4.5
5.5
4.5
4.5
4.0
3.5
3.5
3.0
Btu/hkW
2.60
(0.80~3.00)
3.60
(0.80~5.00)
8,870
(2,730~10,200)
12,300
(2,730~17,100)
9
(37)
280 x 799 x 183
(540 x 780 x 289)
1.6 15
4.33
4.26
39 / 26
40 / 27
46 / —
47 / —
2.8
3.8
0.60
(0.175~0.78)
0.845
(0.165~1.36)
59
60
160
175
6.0
6.0
—Outdoor
CS-E9FKR
(CU-E9FKR)
3.50
(0.80~4.00)
4.90
(0.80~6.70)
11,900
(2,730~13,600)
16,700
(2,730~22,800)
9
(37)
280 x 799 x 183
(540 x 780 x 289)
2.0 15
3.63
3.89
42 / 29
42 / 33
48 / —
50 / —
61
63
4.3
5.6
0.965
(0.185~1.20)
1.26
(0.175~1.89)
178
187
6.0
5.5
—Outdoor
CS-E12FKR
(CU-E12FKR)
4.40
(0.90~5.00)
5.50
(0.90~7.10)
15,000
(3,070~17,100)
18,800
(3,070~24,200)
9
(48)
280 x 799 x 183
(750 x 875 x 345)
2.4 15
3.21
3.50
43 / 32
43 / 35
46 / —
46 / —
59
59
6.2
7.0
4.5
4.5
1.37
(0.215~1.60)
1.57
(0.245~2.25)
183
197 —Outdoor
CS-E15FKR
(CU-E15FKR)
5.30
(0.90~6.00)
6.60
(0.90~8.00)
18,100
(3,070~20,500)
22,500
(3,070~27,300)
11
(49)
275 x 998 x 230
(750 x 875 x 345)
2.9 20
3.21
3.69
44 / 37
44 / 37
47 / —
47 / —
60
60
7.3
7.9
4.5
5.0
1.65
(0.215~2.05)
1.79
(0.245~2.65)
253
278 —Outdoor
CS-E18FKR
(CU-E18FKR)
6.30
(0.90~7.10)
7.20
(0.90~8.50)
21,500
(3,070~24,200)
24,600
(3,070~29,000)
11
(51)
275 x 998 x 230
(750 x 875 x 345)
3.5 20
3.06
3.60
45 / 37
45 / 37
48 / —
49 / —
61
62
9.0
8.8
4.0
4.5
2.06
(0.215~2.40)
2.00
(0.245~2.70)
270
288 —Outdoor
CS-E21FKR
(CU-E21FKR)
7.20
(0.90~8.10)
8.60
(0.90~9.90)
24,600
(3,070~27,600)
29,300
(3,070~33,800)
12
(72)
275 x 998 x 230
(795 x 900 x 320)
4.2 — 30 Outdoor
3.13
3.43
47 / 38
47 / 38
52 / —
52 / —
66
66
10.3
11.1
4.0
4.0
2.30
(0.35~2.70)
2.51
(0.36~3.20)
282
305
CS-E24FKR
(CU-E24FKR)
27,600
(3,070~29,300)
32,700
(3,070~37,500)
12
(72)
275 x 998 x 230
(795 x 900 x 320)
4.8 — 30 Outdoor
2.98
2.95
49 / 38
48 / 38
53 / —
53 / —
67
67
12.0
14.4
3.5
3.0
2.72
(0.35~2.95)
3.25
(0.36~3.79)
295
312
8.10
(0.90~8.60)
9.60
(0.90~11.00)
CS-E28FKR
(CU-E28FKR)
A
10
10
10
10
10
15
20
20
20
A
10
10
10
10
20
19

Standard Warranty
( )

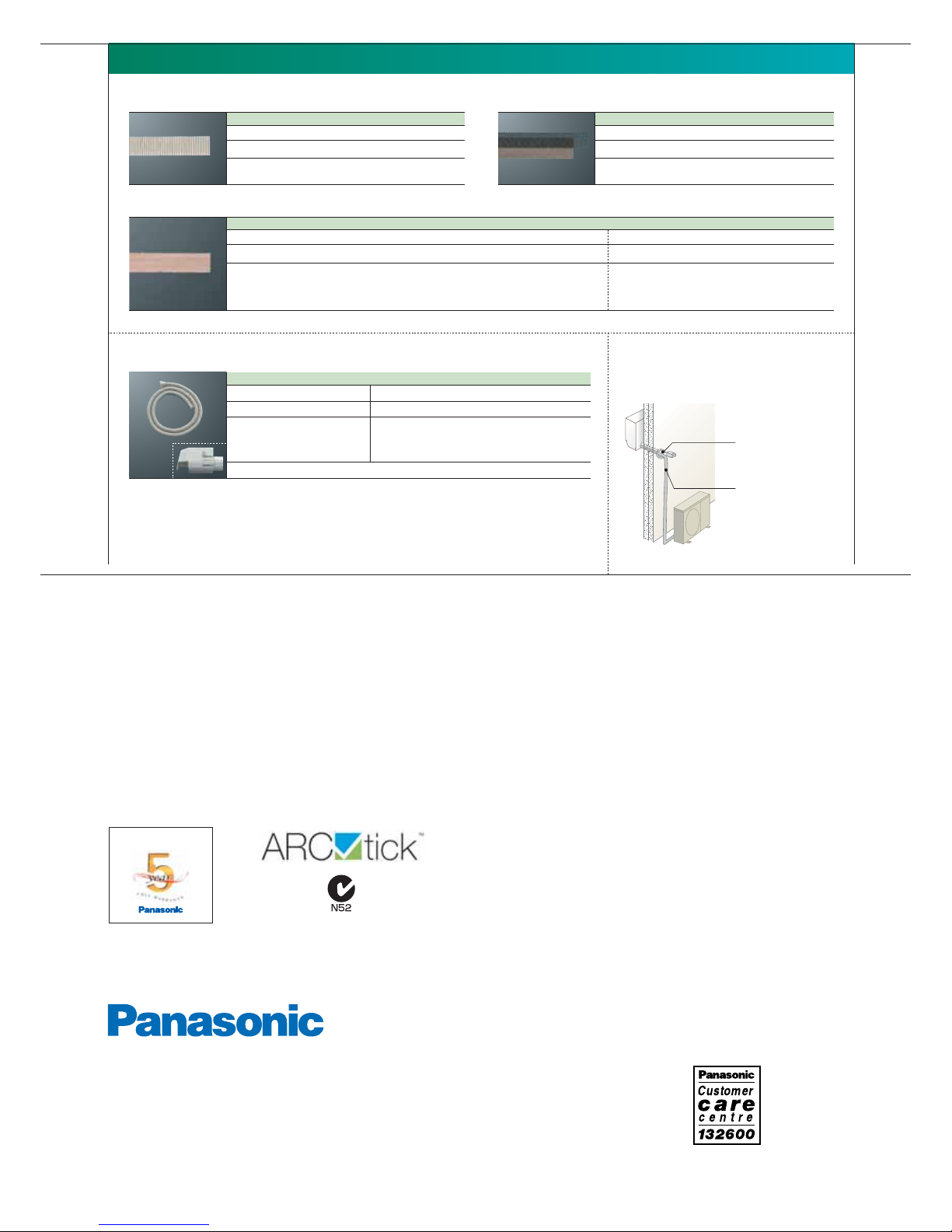

Optional Accessories
Filters
Hose Extension
(Maximum Length)
Replacement SUPER alleru-buster filter
Applicable Models
CZ-SA13P
Wall-Mounted (Deluxe,Deluxe-Wide),Cassette (4-way)
CZ-SA14P
Wall-Mounted (Super Deluxe Slim),Floor or Ceiling
CZ-SA13P,CZ-SA14P
CS-E9DKRW, CS-E12DKRW, CS-E15DKRW, CS-E18DKRW,
CS-ME7DKRG, CS-W7DKR, CS-W9DKR, CS-W12EKR,
CS-V7DKR, CS-V9EKR, CS-V12DKR, CS-W18DKR, CS-W24EKR, CS-A28DKR,
CS-V18DKR, CS-V24EKR, CS-V28EKR, CS-E15DB4EW, CS-E18DB4EW, CS-E21DB4ES
CS-TE9DKE, CS-TE12DKE, CS-E15DTEW,
CS-E18DTEW, CS-E21DTES, CS-ME10DTEG
Replacement: every 3 years
CZ-SA15P
Applicable Models
Wall-Mounted (Super Deluxe)
CS-XE9EKE, CS-XE12EKE
Replacement SUPER alleru-buster filter - Long-life type (10 years)
CZ-SA15P
Replacement: every 10 years
CZ-SAD13P
Applicable Models
Wall-Mounted (Deluxe, Deluxe-Wide)
CS-E9FKR, CS-E12FKR, CS-E15FKR, CS-E18FKR,
CS-E21FKR, CS-E24FKR, CS-E28FKR
Replacement SUPER alleru-buster filter & Deodorizing filter
CZ-SAD13P
Replacement: every 3 years
Installation Parts
Applicable Models
CZ-HV3P
CZ-HV5P
Dust Exhaust and Ventilation Hose (The indoor unit includes a 2-metre hose)
Can be added to the included
2-metre hose if necessary.
Extension Hose (3m)
CZ-HV3P
Use to replace the included 2-metre
hose for concealed piping use.
Use with the included 2-metre hose or the CZ-HV3P
is not permitted. (Maximum hose length is 5 m.)
CS-XE9EKE, CS-XE12EKE
Replacement Hose (5m) with Tip Cover
CZ-HV5P
Dust Exhaust and
Ventilation Hose
Max. Length: 5m
Refrigerant Pipe
Max. Length: 15m
CS-XE9EKE,
CS-XE12EKE
Panasonic Australia Pty. Limited.
ACN 001 592 187 ABN 83 001 592 187
HO/NSW Austlink Corporate Park, 1 Garigal Road,
Belrose NSW 2085
Ph: [phone] Fax: [phone]
VIC/TAS 1 Keith Campbell Court, Scoresby VIC 3179
Ph: [phone] Fax: [phone]
QLD 494 Nudgee Road, Hendra QLD 4011
Ph: [phone] Fax: [phone]
SA Unit 2, 54 Grange Road, Welland SA 5007
Phone: [phone] Fax: [phone]
WA 5/51-53 Kewdale Road, Welshpool WA 6105
Ph: [phone] Fax: [phone]
For further information
or location of your
nearest Panasonic
stockist please
telephone Panasonic’s
Customer Care Centre
on 132 600
Specifications are subject to change without notice. While every effort has been made to represent product colours accurately, slight variation may occur due to the printing process.
Visit our website at:www.panasonic.com.au or email our Customer Care Centre on [email protected]
www.panasonic.com.au
