Multi-Split Air Conditioner
CONTENTS
Page Page
Order No. MAC0201007C2

• High Efficiency
• Compact Design
• Comfort Improvement
− Longer hours of sleep mode operation
− Air filter with function to reduce dust and smoke
− Wider range of horizontal discharge air
• Auto Restart
− Random auto restart after power failure for safety restart
operation
• Removable and Washable Front Panel
• Remote Control Self-illuminating Button
• Catechin Air Purifying Filter
− Trap dust, tobacco smoke and tiny particles
− Prevent the growth of bacteria and viruses trapped
• Solar Refreshing Deodorizing Filter
− Remove unpleasant odour from the air
• Quality Improvement
− Gas leakage protection
− Prevent compressor reverse cycle
− Low voltage protection
• Operation Improvement
− Economy mode to reduce electrical power consumption
− Powerful mode to reach the desired room temperature
quickly
• Installation Work Improvement
− Long piping up to 15 meter
• 24-hour Timer Setting
• Service Improvement
− Easy fan motor replacement procedure
1 Features
2
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

2 Functions

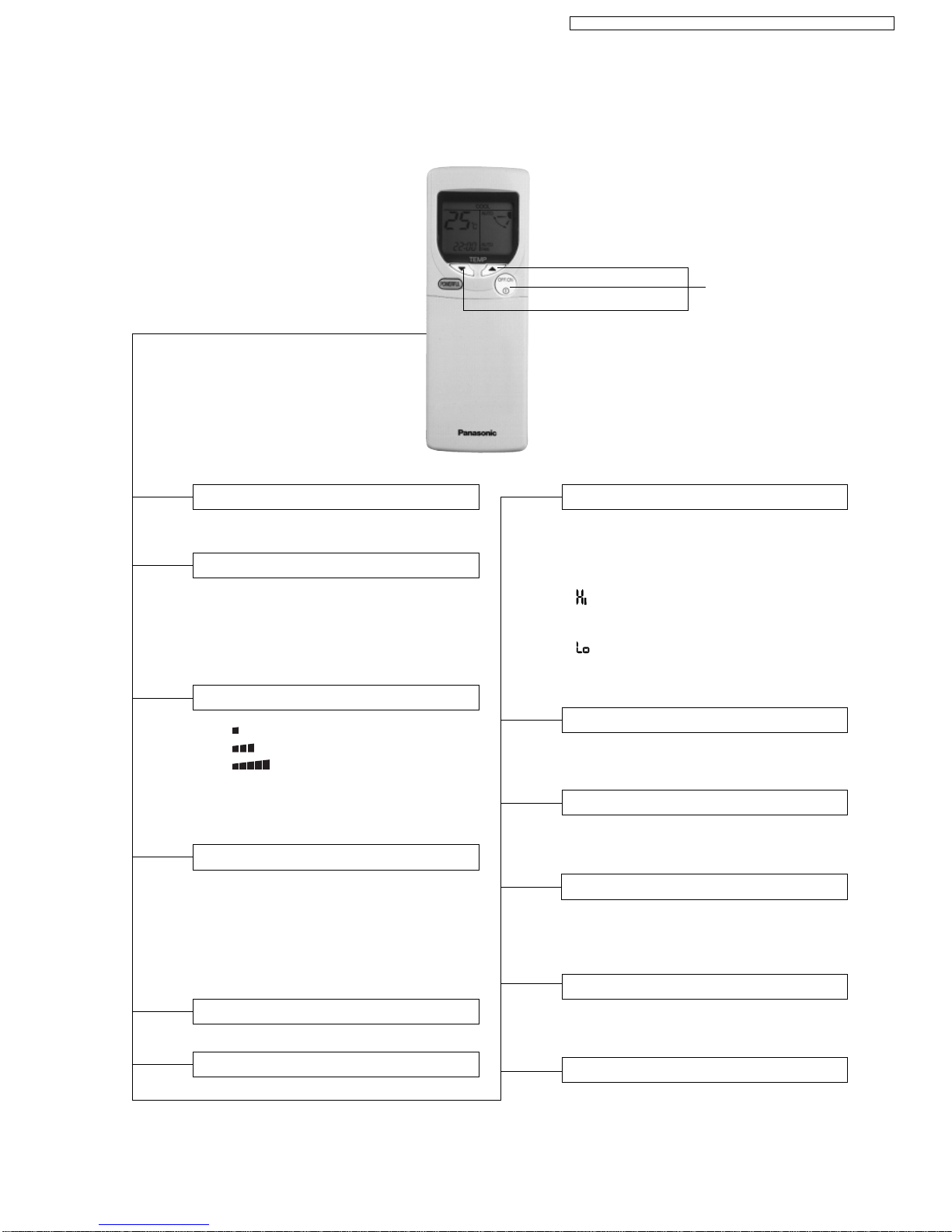

Remote Control
Operation OFF / ON
OFF / ON IRoom Temperature Setting
TEMP.
Operation Mode Selection
•AUTO Automatic Operation Mode
•COOL Cooling Operation Mode
•DRY Soft Dry Operation Mode
•FAN Air Circulation Mode
MODE
TIME Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Sleep Mode Operation OFF / ON
SLEEP
Indoor Fan Speed Selection
FAN SPEED
•FAN Low Fan Speed
•FAN Medium Fan Speed
•FAN High Fan Speed
•AUTO Automatic Fan Speed
FAN
• 24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER Timer Operation Selection
SET
CANCEL Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
CLOCK
AIR SWING
•AUTO Automatic Vertical Airflow
Direction Control
•MANUAL Vertical Airflow Direction
Manual Control (5 stages of
adjustment)
Powerful Mode Operation OFF/ON
POWERFUL
Economy Mode Operation OFF/ON
ECONOMY
Cooling, Soft Dry, Air Circulation Operation.
• Temperature Setting (16°C to 30°C)
Automatic Operation
•Operation with 2°C higher than
standard temperature.
• Operation with standard temperature.
•Operation with 2°C lower than
standard temperature.
Self illuminating
button
Vertical Airflow Direction Control
3
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Indoor Unit
Random Auto Restart Control
•Operation is restarted randomly after
power failure at previous setting mode.
Anti-Freezing Control
•Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
Sleep Mode Auto Control
•Indoor Fan operates at Low speed.
•Operation stops after 8 hours.
Indoor Fan Speed Control
•High, Medium and Low.
•Automatic Fan Speed Mode
–Cooling : Fan rotates at Hi, Me and
SLo speed. Deodorizing
control is available.
–Soft Dry: Fan rotates at SLo speed.
Deodorizing control
is available.
•Automatic air swing and manual adjusted
by remote control for vertical airflow.
•
Manually adjusted by hand for horizontal airflow.
Airflow Direction Control
Automatic Operation Button
•Press for < 5s to operate Automatic
operation mode.
(Used when the remote control cannot be used.)
•Press continuously for 5s or < 10s to
operate Test Run/Pump down. “Beep”
sound will be heard at the 5th second.
(Used when test running or servicing.)
•Press continuously for 10s and above to
omit or resume the remote control signal
receiving sound. “Beep, beep”sound will
be heard at the 10th second.
AUTO
OFF / ON
Operation Indication Lamps (LED)
• POWER (Green) ........Lights up in operation,
blinks in Automatic
Operation Mode
judging.
•
SLEEP (Orange)........Lights up in Sleep
Mode Operation.
• TIMER (Orange) .......Lights up in Timer
Setting.
•
POWERFUL (Orange)..Lights up in Powerful
Mode Operation.
• ECONOMY (Green) .....Lights up in Economy
Mode Operation.
Operation Mode
•Cooling, Soft Dry, Air Circulation and
Automatic Mode.
Powerful Operation
•Reaches the desired room temperature
quickly. Time Delay Safety Control
• Restarting is inhibited for appro. 3 minutes.
Starting Current Control
Economy Operation
•To reduce electrical power consumption. 7 Minutes Time Save Control
•Cooling Operation only.
Anti-Dew Formation Control
•Anti-Dew Formation Control for indoor
unit discharge area.
•Fan motor is delayed for 1.6 seconds
when compressor starts simultaneously.
4
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Outdoor Unit
•To protect compressor from reverse
rotation when there is a instantaneous
power failure.
60 Secs. Forced Operation Control
•Once the compressor is activated, it
does not stop within the first 60 secs.
However, it stops immediately with
remote control stop signal.
Overload Protector for Compressor
•Inner protector (For 2C24BK only).
•Overload Protector will trip when
–High temperature or high current flows
to compressor.
(Refer circuit diagram for OLP
characteristic)
Compressor Reverse Rotation
Protection Control
Overload Protector for Fan Motor
•Inner protector.
5
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

3 Product Specifications
Unit CS-C12BKPG CU-2C24BKP5G
Power Source Phase
V
Cycle
Single
230 - 220
50
Cooling Capacity kW
kcal/h (1 unit) 3.52 - 3.46 3,023 - 2,975.5 (2 units) 7.03 - 6.92 6,046 - 5,951
Moisture Removal l/h
Pint/h (1 unit) 2.0 4.2 (2 units) 4.0 8.4
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) 7.3 (260) - 7.3 (260) —
Indoor Air (Me) m3/min (cfm) 8.7 (310) - 8.7 (310) —
Indoor Air (Hi) m3/min (cfm) 10.2 (360) - 10.2 (360) —
Indoor Air (SHi) m3/min (cfm) 10.5 (370) - 10.5 (370) —
Noise Level dB (A) High 39 - 39, Low 29 - 29 High 55 - 54
Power level dB High 52 - 52 High 68 - 67
Electrical Data Input W(1 unit)
1,180 - 1,180 (2 units) 2,360 - 2,350
Running Current A(1 unit)
5.35 - 5.45 (2 units) 10.7 - 10.9
COP W/W (1 unit) 2.98 - 2.93 (2 units) 2.98 - 2.94
Starting Current A(1 unit) 27 (2 unit) 54
Piping Connection Port
(Flare piping) inch inch G ; Half Union 1/2” L ; Half Union 1/4”G ; 3-way valve 1/2” L ; 3-way valve 1/4”
Pipe Size
(Flare piping) inch inch G (gas side) ; 1/2” L (liquid side) ; 1/4”G (gas side) ; 1/2” L (liquid side) ; 1/4”
Drain
Hose Inner diameter mm 12 —
Length m0.7 —
Dimensions Height inch (mm) 10 - 13/16 (275) 26 - 31/32 (685)
Width inch (mm) 31 - 15/32 (799) 34 - 21/32 (880)
Depth inch (mm) 8 - 9/32 (210) 13 - 19/32 (345)
Net Weight lb (kg) 20 (9.0) 159 (72)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W—A: 950 B: 950
6
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% AS + Glass Fiber 20%
Motor Type Induction (4-poles) Induction (6-poles)
Input W29.3 - 26.3 87
Rated Output W15 50
Fan Speed Low rpm 900 - 900 —
Medium rpm 1,080 - 1,080 —
High rpm 1,260 - 1,260 870
SuperHigh rpm 1,300 - 1,300 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium Aluminium
Fin Type Slit Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2×15 2×26
FPI 21 16
Size (W × H × L) mm 610 × 315 × 25.4 826 × 663.9 × 44
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60
(410 × 2)
Refrigerant (R-22) g (oz) —930 × 2 (32.8 × 2)
Thermostat Electronic Control —
Protection Device —Internal Overload Protector
Capillary Tube Length mm —500
Flow Rate l/min —15.2
Inner Diameter mm —1.5
Air Filter Material
Style (c.c) P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —35 µF, 370 VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400 VAC 3.0 µF, 450 VAC
• Specifications are subject to change without notice for further improvement.
7
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Unit One Unit (A)
CS-C14BKPG One Unit (B) CS-C9BKPG CU-2C23BKP5G
Power Source Phase
V
Cycle
Single
230 - 220
50
Cooling Capacity kW
kcal/h (A) 4.11 - 4.06 3,533 - 3,491 (B) 2.64 - 2.61 2,272 -
2,245
(A+B) 6.75 - 6.67
5,805 - 5,736
Moisture Removal l/h
Pint/h (A) 2.3 4.9 (B) 1.6 3.4 (A+B) 3.8 8.0
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) 7.3 - 7.3 (260 - 260) 6.8 - 6.8 (240 - 240) —
Indoor Air (Me) m3/min (cfm) 8.7 - 8.7 (310 - 310) 8.0 - 8.0 (280 - 280) —
Indoor Air (Hi) m3/min (cfm) 10.2 - 10.2 (360 - 360) 9.9 - 9.9 (350 - 350) —
Indoor Air (SHi) m3/min (cfm) 10.5 - 10.5 (370 - 370) 10.9 - 10.9 (380 - 380) —
Noise Level dB (A) (A)
(A+B)
High 39 - 39
Low 29 - 29
High 39 - 39
Low 29 - 29
(B) High 36 -
36
Low 26 -
26
(A)
(B)
(A+B)
High 55 - 54
High 55 - 54
High 55 - 54
Power level
dB (A)
(A+B) High 52 - 52 High 50 - 50 (B) High 49 -
49 (A)
(B)
(A+B)
High 68 - 67
High 68 - 67
High 68 - 67
Electrical Data Input W(A) 1,410 - 1,380 (B) 900 - 890 (A+B) 2,310 - 2,270
Running Current A(A) 6.33 - 6.45 (B) 4.07 - 4.15 (A+B) 10.4 - 10.6
COP W/W (A) 2.91 - 2.94 (B) 2.93 - 2.93 (A+B) 2.92 - 2.94
Starting Current A(A) 31.1 (B) 18.8 (A+B) 49.9
Piping Connection Port
(Flare piping) inch inch G ; Half Union 1/2”,3/8” L ; Half Union 1/4”,1/4”G ; 3-way valve 1/2”,3/8” L ; 3-way valve 1/4”,1/4”
Pipe Size
(Flare piping) inch inch G (gas side) ; 1/2”, 3/8” L (liquid side) ; 1/4”,1/4”G (gas side) ; 1/2”,3/8” L (liquid side) ; 1/4”,1/4”
Drain
Hose Inner diameter mm 12 —
Length m0.7 —
Dimensions Height inch (mm) 10 - 13/16 (275) 26 - 31/32 (685)
Width inch (mm) 31 - 15/32 (799) 34 - 21/32 (880)
Depth inch (mm) 8 - 9/32 (210) 13 - 19/32 (345)
Net Weight lb (kg) 20 (9.0) 146 (66)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W(A) 1,200 (B) 700 (A+B) 1,900
8
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 20% AS + Glass Fiber 12%
Motor Type Induction (4-poles) Induction (6-poles)
Input W(A) 28.7 - 27.1 (B) 20.6 - 19.1 87
Rated Output W(A) 15 (B) 15 50
Fan Speed Low rpm (A) 900 - 900 (B) 780 - 780 —
Medium rpm (A) 1,080 - 1,080 (B) 920 - 920 —
High rpm (A) 1,260 - 1,260 (B) 1,140 - 1,140 870
SuperHigh rpm (A) 1,300 - 1,300 (B) 1,250 - 1,250 —
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium Aluminium
Fin Type Slit Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
(A) 2 ×15 (B) 2 ×15 2×26
FPI 21 19 16
Size (W ×H×L) mm 610 ×315 ×25.4 826 ×663.9 ×44
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS
M60 (A) 410, (B) 270
Refrigerant (R-22) g (oz) —(A) 1,060 (37.4)
(B) 640 (22.6)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —(A) 430 (B) 370
Flow Rate l/min —(A) 19.5 (B) 12.8
Inner Diameter mm —(A) 1.7 (B) 1.4
Air Filter Material
Style (c.c) P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —30 µF, 370 VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400 VAC 3.0 µF, 450 VAC
• Specifications are subject to change without notice for further improvement.
9
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

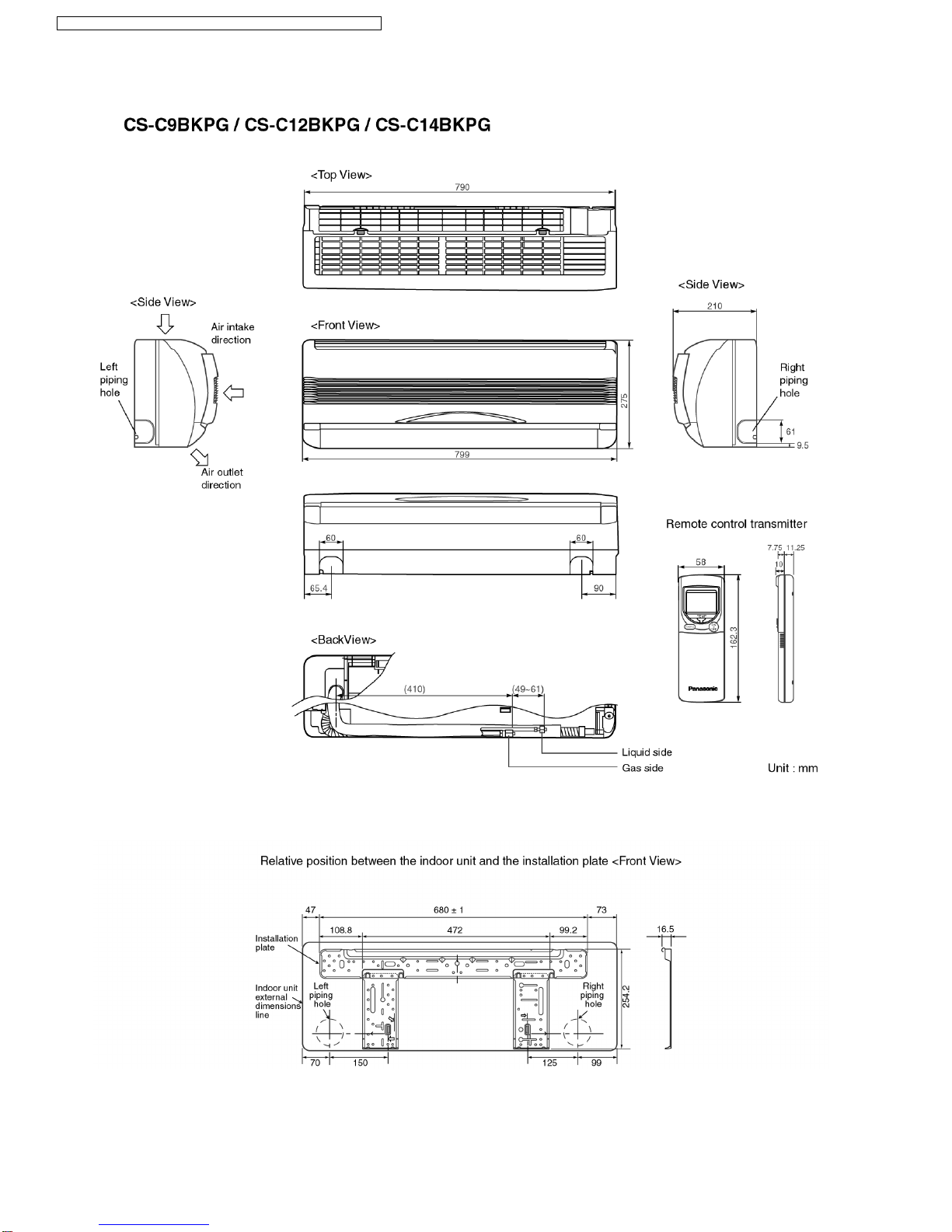

4 Dimensions
10
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

11
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

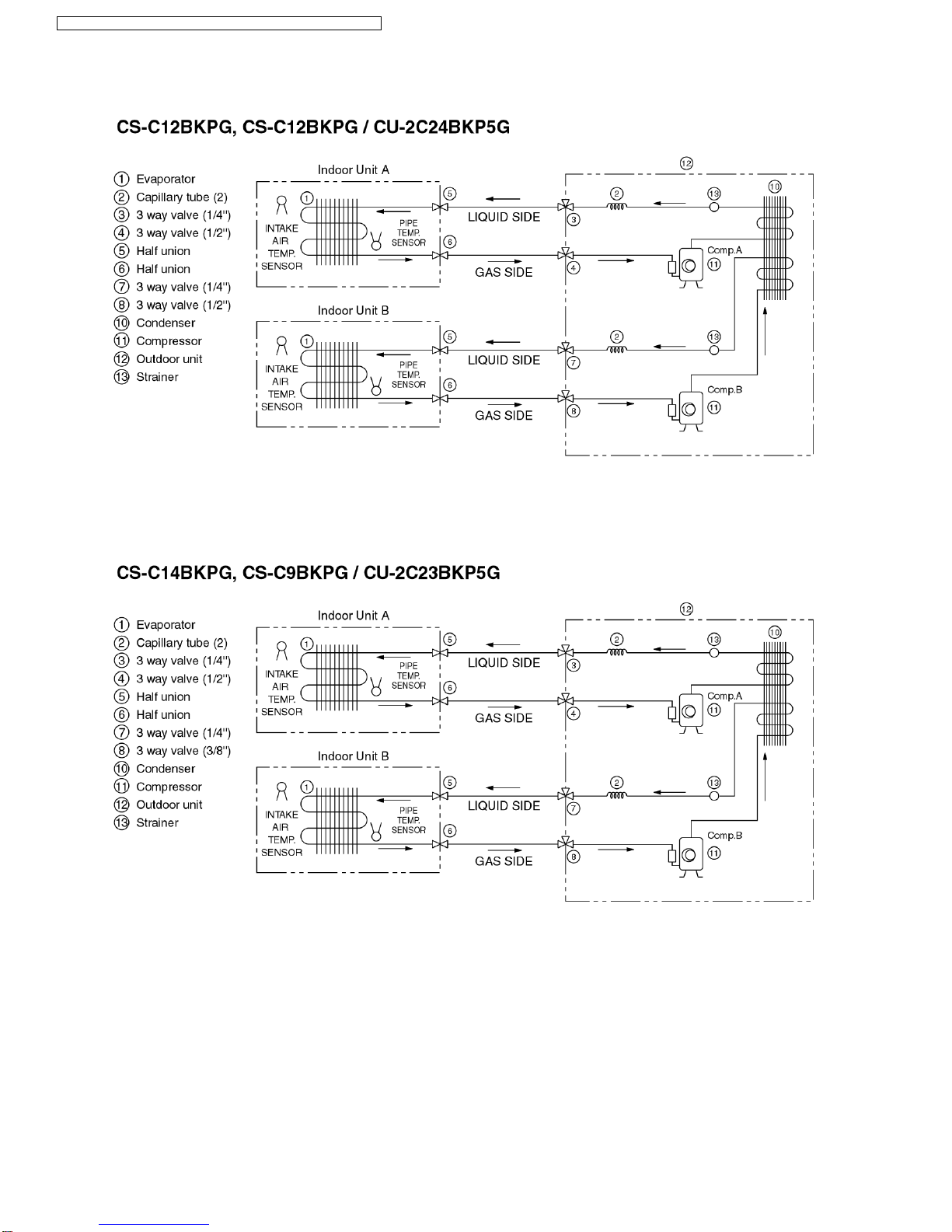

5 Refrigeration Cycle Diagram
12
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

6 Block Diagram
13
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

14
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

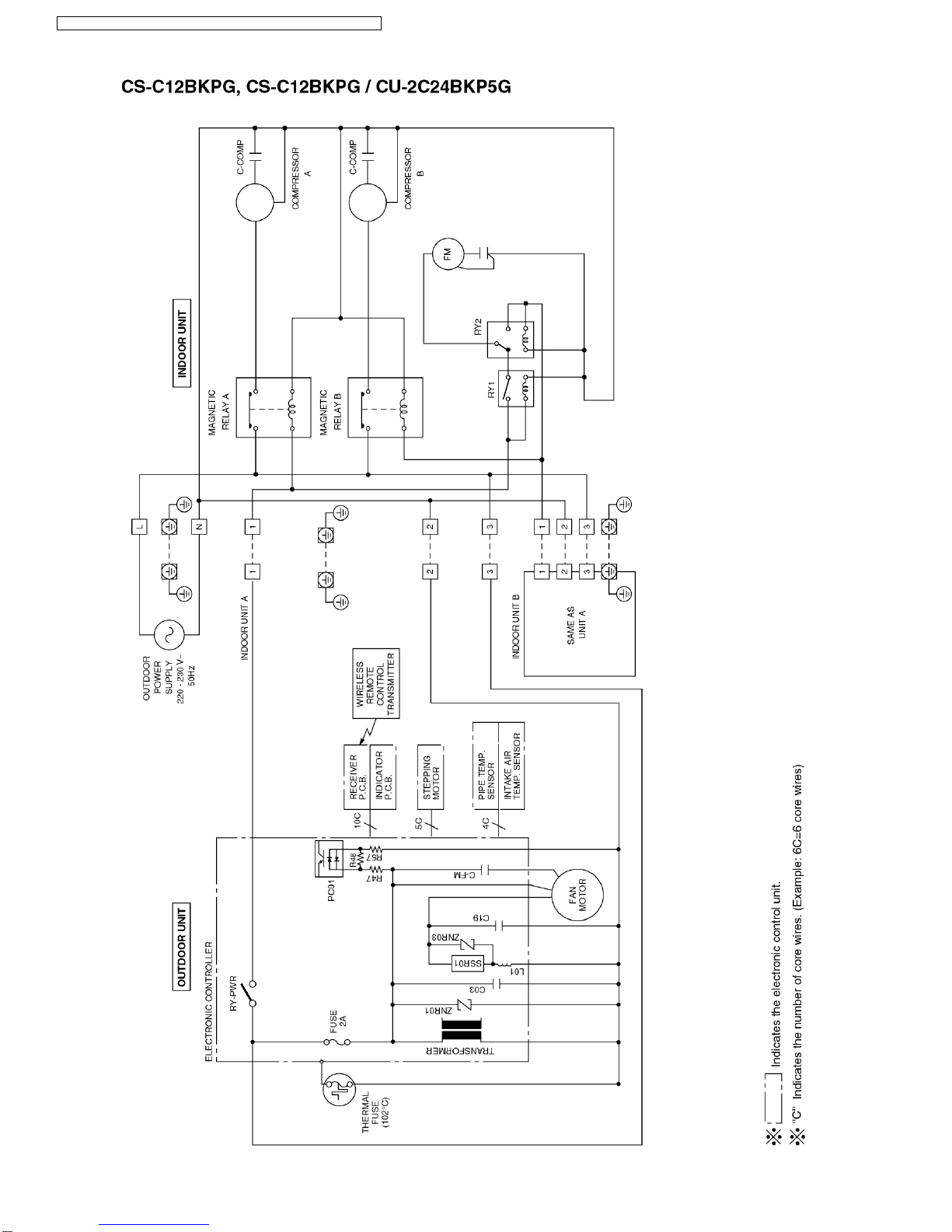

7 Wiring Diagram
15
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

16
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Cooling in operation according to Remote Control setting.
Time Delay Safety Control (3 minutes)
7 minutes Time Save Control
Starting Current Control
Anti-Freezing Control
• If the temperature of the indoor heat exchanger falls
continuously below 2°C for 4 minutes or more, the
compressor turns off to protect the indoor heat exchanger
from freezing. The fan speed setting remains the same.
• Compressor will restart again when the indoor heat
exchanger temperature rises to 10°C (Recovery).
3 minutes waiting of Time Delay Safety Control is valid for
Cooling Operation.
Compressor Reverse Rotation Protection Control
Anti-Dew Formation Control
8 Operation Details
8.1. Cooling Mode Operation
• When the compressor is stopped by Remote Control, it restarts after 3 minutes when the Remote Control is turned ON.
• When the setting temperature is reached during cooling operation, the compressor stops and it will not start for 3 minutes.
• The compressor will start automatically if it has stopped for 7 minutes even if the room temperature is between the compressor
ON temperature and OFF temperature.
• When the compressor outdoor fan motor and indoor fan motor are simultaneously started, the indoor fan motor will operate 1.6
second later.
• If the compressor is operating continuously for 5 minutes or longer and the temperature difference between intake air and
indoor heat exchanger is 2.5°C or less for 2 minutes, compressor will stop and restart automatically.
(Time Delay Safety Control is valid)
▲T = Intake air temperature - Indoor heat exchanger temperature
This is to protect reverse rotation of the compressor when there is a instantaneous power failure.
• Purpose is to prevent dew formation on indoor unit air discharge area.
• When the following conditions accur for 30 minutes continuously, anti-dew formation is controlled by indoor fan speed shift to
low (CLo to HLo):
− Indoor intake air temperature is more than 24°C and less than 30°C.
− Remote Control setting temperature is less than 25°C.
− Compressor is on.
− Cooling operation mode.
− Indoor Fan motor operate at Low fan speed.
• This control is cancelled immediately when above condition is changed.
17
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Automatic Fan Speed Mode
Cooling Operation Time Diagram
When Automatic Fan Speed is selected at Remote Control during cooling operation.
• Fan speed rotates in the range of Hi to Me.
• Deodorizing Control.
18
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Time Delay Safety Control
Starting Current Control
Anti-Freezing Control
Compressor Reverse Rotation Protection Control
Anti-Dew Formation Control
Automatic Fan Speed Mode
8.2. Soft Dry Mode Operation
• The unit starts cooling operation until the room temperature reaches the setting temperature set on the Remote Control, and
then Soft Dry operation will start.
• During Soft Dry operation, the Indoor Fan will operate at SLo speed.
• The operation will be switched on and off for up to 10 minutes “ON”and 6 minutes “OFF”. Once Soft Dry operation is turned
off, it stops for 6 minutes.
• Once the compressor stops, it will not start for 3 minutes during Cooling operation.
• Same as Starting Current Control for Cooling Mode operation.
• Same as Anti-Freezing Control for Cooling Mode operation. (For Soft Dry region, 6 minutes waiting is valid during compressor
stops.)
• Same as Compressor Reverse Rotation Protection Control for Cooling Mode Operation. (For Soft Dry region, 6 minutes waiting
is valid during compressor stops.)
• Same as Anti-Dew Formation Control for Cooling Mode operation.
When Automatic Fan Speed is selected at Remote Control during Soft Dry operation.
• Fan speed off and on at SLo speed.
• Deodorizing Control.
19
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG

Soft Dry Operation Time Diagram
20
CS-C12BKPG CU-2C24BKP5G / CS-C14BKPG CU-2C23BKP5G / CS-C9BKPG
