Panasonic CS-E24MKES User manual

F567920
Operating Instructions
Air Conditioner
Indoor Unit Outdoor Unit
CS-E24MKES
CU-E24MKE
CU-E24MKE
CS-E28MKES
CU-E28MKE
CU-E28MKE
ENGLISH
Before operating the unit, read these operating
instructions thoroughly and keep them for future
reference.
FRANÇAIS
Avant d’utiliser l’appareil, lisez ce mode d’emploi
dans son intégralité et conservez-le pour toute
référence ultérieure.
ESPAÑOL
Antes de utilizar la unidad, sírvase leer
atentamente estas instrucciones de
funcionamiento y conservarlas como futuro
elemento de consulta.
DEUTSCH
Bevor Sie das Gerät in Betrieb nehmen, lesen
Sie bitte diese Bedienungsanleitung aufmerksam
durch und bewahren Sie sie für die künftige
Verwendung auf.
ITALIANO
Prima di utilizzare l’unità si prega di leggere
attentamente le istruzioni e di conservare questo
opuscolo per potervi fare riferimento in futuro.
NEDERLANDS
Lees voor u het apparaat gebruikt deze
gebruiksinstructies grondig en bewaar ze voor
toekomstig gebruik.
© Panasonic HA Air-Conditioning (M) Sdn. Bhd. 2010.
Unauthorized copying and distribution is a violation
of law.

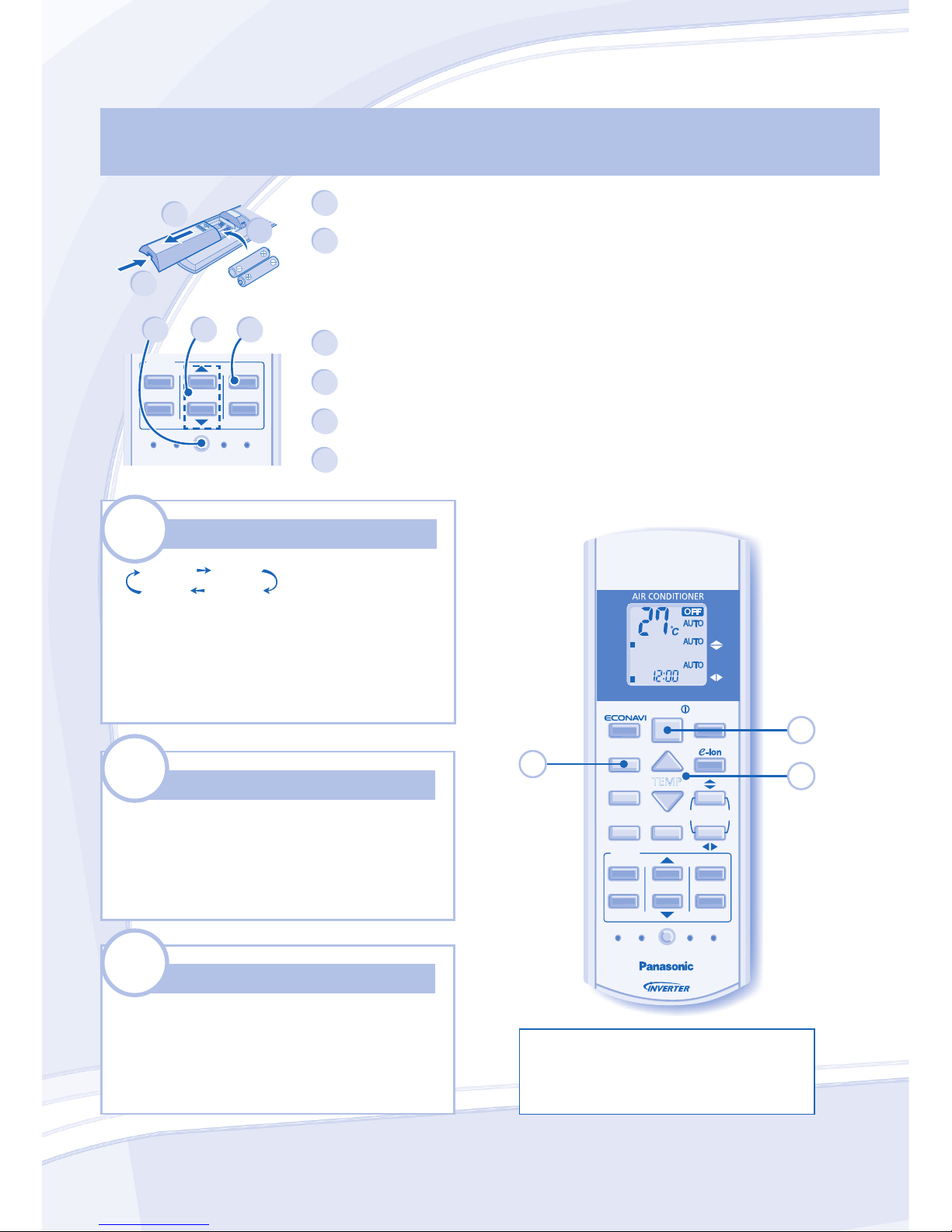

QUICK GUIDE
QUICK GUIDE
GUIDE RAPIDE
GUIDE RAPIDE
GUÍA RÁPIDA
GUÍA RÁPIDA
KURZANLEITUNG
KURZANLEITUNG
GUIDA RAPIDA
GUIDA RAPIDA
SNELLE GIDS
SNELLE GIDS

2
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
OPERATION CONDITION
OPERATION CONDITION
Use this air conditioner under the following temperature range
Temperature (°C) Indoor Outdoor
*DBT *WBT *DBT *WBT
COOLING Max. 32 23 43 26
Min. 16 11 16 11
HEATING Max. 30 - 24 18
Min. 16 - -5 -6
* DBT: Dry bulb temperature * WBT: Wet bulb temperature
SAFETY PRECAUTIONS
4~5
REMOTE CONTROL
6~8
INDOOR UNIT
9
TROUBLESHOOTING
10
INFORMATION
11
QUICK GUIDE
BACK COVER
NOTE : The illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected
to change without notice for future improvement.
FRANÇAIS
TABLE DES MATIÈRES
TABLE DES MATIÈRES
CONDITION D’UTILISATION
CONDITION D’UTILISATION
Utilisez ce climatiseur en respectant la plage de températures suivante
Température (°C) Unité intérieure Unité extérieure
*DBT *WBT *DBT *WBT
REFROIDIS-
SEMENT Max. 32 23 43 26
Min. 16 11 16 11
CHAUFFAGE Max. 30 - 24 18
Min. 16 - -5 -6
* DBT: Température sèche * WBT: Température humide
CONSIGNES DE SÉCURITÉ
12~13
TÉLÉCOMMANDE
14~16
UNITÉ INTÉRIEURE
17
DÉPANNAGE
18
INFORMATIONS
19
GUIDE RAPIDE
DOS DE COUVERTURE
REMARQUE : Les illustrations de ce mode d’emploi sont fournies à titre d’exemple uniquement et peuvent présenter des différences
par rapport à l’appareil proprement dit. Celui-ci peut être modifié sans préavis à des fins d’amélioration.
ESPAÑOL
CONTENIDO
CONTENIDO
CONDICIONES DE FUNCIONAMIENTO
CONDICIONES DE FUNCIONAMIENTO
Utilice este aparato de aire acondicionado dentro del siguiente intervalo
de temperaturas
Temperatura (°C) Interior Exterior
*DBT *WBT *DBT *WBT
ENFRIAMIENTO
Máx. 32 23 43 26
Mín. 16 11 16 11
CALENTAMIENTO
Máx. 30 - 24 18
Mín. 16 - -5 -6
* DBT: Temperatura en seco * WBT: Temperatura en húmedo
PRECAUCIONES DE
SEGURIDAD 20~21
MANDO A DISTANCIA
22~24
UNIDAD INTERIOR
25
LOCALIZACIÓN DE AVERÍAS
26
INFORMACIÓN
27
GUÍA RÁPIDA
CUBIERTA TRASERA
NOTA : Las ilustraciones de este manual sirven únicamente para describir las explicaciones y pueden no coincidir exactamente con las
del aparato suministrado. Están sujetas a cambios sin previo aviso con el fin de mejorar el producto.
NOTICE: This model is not suitable for 24 hours non-stopping operation
in heating mode below -5°C. When the outdoor temperature is below
-5°C and you use this model out of above conditions, the outdoor unit
might be frozen up and stop operation for protection control.
ATTENTION: Ce modèle ne convient pas à un fonctionnement en continu
24h/24 en mode de chauffage en cas de températures inférieures à -5°C.
Lorsque la température extérieure est inférieure à -5°C et que vous utilisez ce
modèle en dehors des conditions ci-dessus, l’unité extérieure pourrait être gelée
et ne plus fonctionner pour le contrôle de protection.
AVISO: Este modelo no está preparado para un funcionamiento continuo
durante 24 horas en modo de calefacción bajo -5°C. Cuando la temperatura
exterior sea inferior a -5°C y utilice este modelo fuera de las condiciones de
arriba, la unidad exterior se podría congelar y parar el funcionamiento para
control de protección.
Nous vous remercions d’avoir porté votre choix sur un climatiseur Panasonic
Thank you for purchasing Panasonic Air Conditioner
Muchas gracias por elegir una unidad de aire acondicionado Panasonic

3
DEUTSCH
INHALT
INHALT
BETRIEBSBEREICHE
BETRIEBSBEREICHE
Verwenden Sie dieses Klimagerät in folgenden Temperaturbereichen
Temperatur (°C) Innen Außen
*TK *FK *TK *FK
KÜHLEN Max. 32 23 43 26
Min. 16 11 16 11
HEIZEN Max. 30 - 24 18
Min. 16 - -5 -6
* TK: Trockenkugeltemperatur * FK: Feuchtkugeltemperatur
SICHERHEITSHINWEISE
28~29
FERNBEDIENUNG
30~32
INNENGERÄT
33
STÖRUNGSSUCHE
34
INFORMATIONEN
35
KURZANLEITUNG
RÜCKSEITE
HINWEIS : Die Abbildungen in diesem Handbuch dienen nur Erläuterungszwecken und können sich von dem tatsächlichen Gerät
unterscheiden. Sie können durch künftige Verbesserungen am Gerät ohne vorherige Ankündigung geändert werden.
ITALIANO
INDICE
INDICE
CONDIZIONI OPERATIVE
CONDIZIONI OPERATIVE
Questo condizionatore può essere utilizzato con temperature rientranti nel
seguente intervallo
Temperatura (°C) Interna Esterna
*DBT *WBT *DBT *WBT
RAFFREDDAMENTO
Max. 32 23 43 26
Min. 16 11 16 11
RISCALDAMENTO
Max. 30 - 24 18
Min. 16 - -5 -6
* DBT: Temperatura con bulbo secco * WBT: Temperatura con bulbo bagnato
PRECAUZIONI PER LA
SICUREZZA
36~37
TELECOMANDO
38~40
UNITÀ INTERNA
41
SOLUZIONE DEI PROBLEMI
42
INFORMAZIONI
43
GUIDA RAPIDA
COPERCHIO POSTERIORE
NOTA : le illustrazioni contenute in questo manuale sono riportate esclusivamente a scopo esplicativo e potrebbero differire
dall’apparecchio vero e proprio. I contenuti del presente manuale sono soggetti a modifica senza preavviso e verranno aggiornati
in base alle innovazioni future.
NEDERLANDS
INHOUDSOPGAVE
INHOUDSOPGAVE
GEBRUIKSOMSTANDIGHEDEN
GEBRUIKSOMSTANDIGHEDEN
Gebruik deze airconditioner binnen het volgende temperatuurbereik
Temperatuur (°C) Binnen Buiten
*DBT *WBT *DBT *WBT
KOELEN Max. 32 23 43 26
Min. 16 11 16 11
VERWARMEN Max. 30 - 24 18
Min. 16 - -5 -6
* DBT: Droge bolttemperatuur * WBT: Natte bolttemperatuur
VEILIGHEIDSMAATREGELEN
44~45
AFSTANDSBEDIENING
46~48
BINNENUNIT
49
PROBLEMEN OPLOSSEN
50
INFORMATIE
51
SNELLE GIDS
ACHTERKLEP
OPMERKING : De afbeeldingen in deze handleiding zijn alleen bedoeld als toelichting en kunnen afwijken van het daadwerkelijke
uiterlijk van het apparaat. Deze handleiding kan zonder voorafgaande kennisgeving worden gewijzigd ter verbetering.
CAVVISO: Questo modello non è adatto al funzionamento ininterrotto per 24
ore in modalità di riscaldamento in temperature inferiori a -5°C. Quando la
temperatura esterna è inferiore a -5°C e si utilizza questo modello al di fuori
delle condizioni di cui sopra, l’unità esterna potrebbe bloccarsi e arrestare il
funzionamento rispondendo ad un comando di sicurezza.
HINWEIS: Dieses Modell ist nicht dafür geeignet, bei Außentemperaturen unter
-5°C im Dauerbetrieb rund um die Uhr zu heizen. Bei einer Außentemperatur
unter -5°C kann das Außengerät unter Umständen einfrieren und aus
Schutzgründen abgeschaltet werden.
OPMERKING: Dit model is niet geschikt voor 24 uur non-stop bedrijf
in de verwarmingsmodus bij temperaturen beneden -5°C. Wanneer de
buitentemperatuur beneden -5°C is en u dit model buiten de bovengenoemde
omstandigheden gebruikt, kan het buitenapparaat bevriezen en ter beveiliging
uitschakelen.
Wir danken Ihnen für den Kauf Ihres Panasonic-Klimageräts
Grazie per aver acquistato un climatizzatore Panasonic
Hartelijk dank voor de aanschaf van de Panasonicairconditioner

4

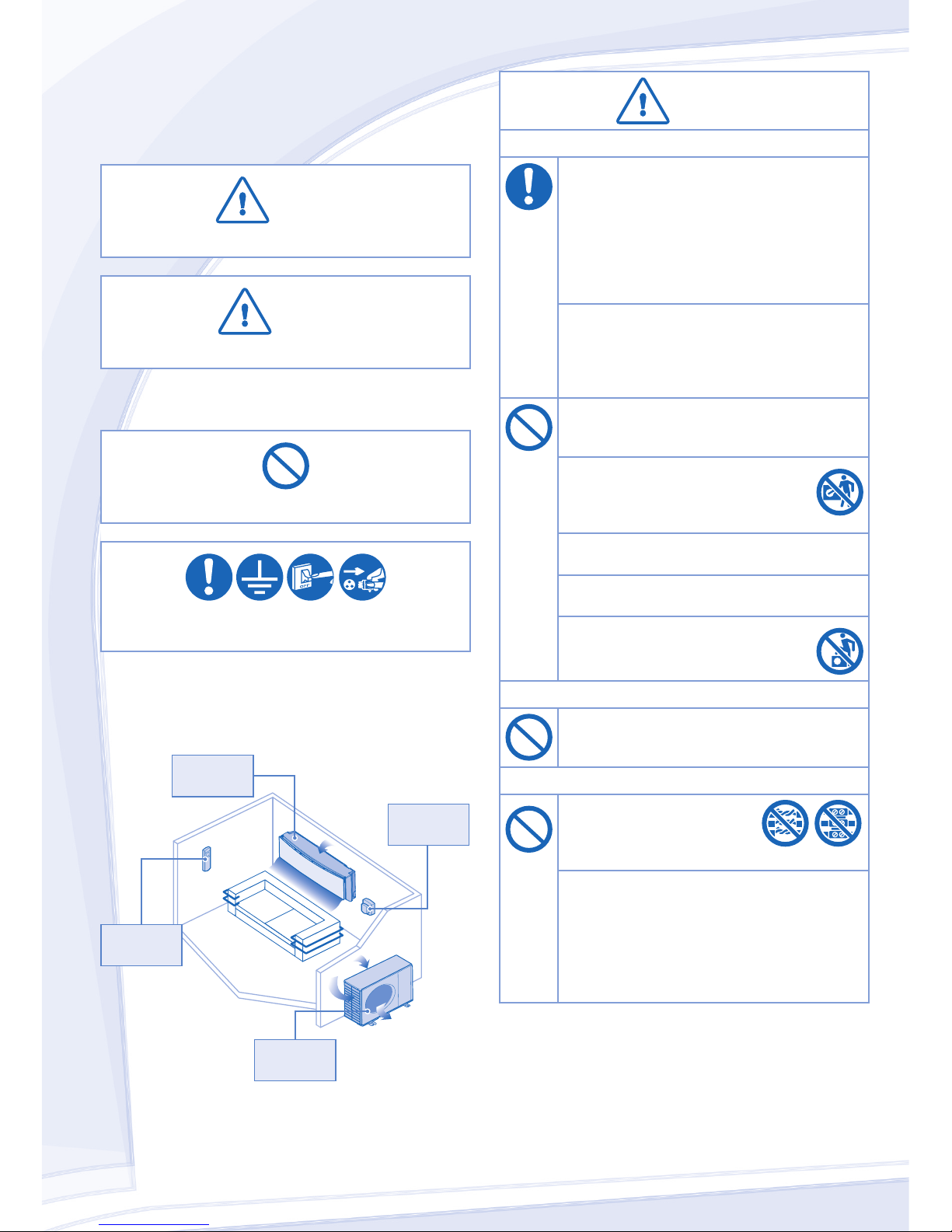

SAFETY PRECAUTIONS
To prevent personal injury, injury to others, or property
damage, please comply with the following.
Incorrect operation due to failure to follow instructions below
may cause harm or damage, the seriousness of which is
classified as below:
WARNING
WARNING
This sign warns of death or serious injury.
CAUTION
CAUTION
This sign warns of injury or damage to property.
The instructions to be followed are classified by the following
symbols:
This symbol denotes an action that is PROHIBITED.
These symbols denote an actions that is
COMPULSORY.
WARNING
WARNING
INDOOR UNIT AND OUTDOOR UNIT
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety. Children should be supervised to
ensure that they do not play with the appliance.
Please consult authorized dealer or specialist to
clean the internal parts, repair, install, remove
and reinstall the unit. Improper installation and
handling will cause leakage, electric shock or
fire.
Do not install the unit in a potentially explosive
or flammable atmosphere. Failure to do so could
result in fire.
Do not insert your fingers or other
objects into the air conditioner indoor
or outdoor unit, rotating parts may
cause injury.
Do not touch the outdoor unit during lightning, it
may cause electric shock.
Do not expose yourself directly to cold air for a
long period to avoid excess cooling.
Do not sit or step on the unit, you may
fall down accidentally.
REMOTE CONTROL
Do not allow infants and small children to play
with the remote control to prevent them from
accidentally swallowing the batteries.
POWER SUPPLY
Do not use modified cord,
joint cord, extension cord or
unspecified cord to prevent
overheating and fire.
To prevent overheating, fire or electric shock:
• Do not share the same power outlet with other
equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or
pulling out the power plug.
Air Inlet
Air Inlet
Air Outlet
Air Outlet
Air Outlet
Air Outlet
Air Inlet
Air Inlet
Remote
Control
Power
Supply
Indoor
Unit
Outdoor
Unit

ENGLISH
5
CAUTION
CAUTION
INDOOR UNIT AND OUTDOOR UNIT
Do not wash the indoor unit with water, benzene,
thinner or scouring powder to avoid damage or
corrosion at the unit.
Do not use for preservation of precise
equipment, food, animals, plants, artwork
or other objects. This may cause quality
deterioration, etc.
Do not use any combustible equipment in front of
the airflow outlet to avoid fire propagation.
Do not expose plants or pet directly to airflow to
avoid injury, etc.
Do not touch the sharp aluminium fin,
sharp parts may cause injury.
Do not switch ON the indoor unit when waxing
the floor. After waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and smoky areas to
prevent damage to the unit.
Do not dismantle the unit for cleaning purpose to
avoid injury.
Do not step onto unstable bench when cleaning
the unit to avoid injury.
Do not place vase or water container on the
unit. Water may enter the unit and degrade the
insulation. This may cause an electric shock.
Do not open window or door for long time during
COOL/DRY mode operation.
Ensure drainage pipe is connected properly and
keep drainage outlet clear of gutters, containers
or does not immersed in water to prevent water
leakage.
After long period of use or use with any
combustible equipment, aerate the room
regularly.
After long period of use, make sure the
installation rack does not deteriorate to prevent
the unit from falling down.
REMOTE CONTROL
Do not use rechargeable (Ni-Cd) batteries.
It may damage the remote control.
To prevent malfunction or damage of the remote
control:
• Remove the batteries if the unit is not going to
be used for a long period of time.
• New batteries of the same type must be
inserted following the polarity stated.
POWER SUPPLY
Do not pull the cord to disconnect the plug to
prevent electric shock.
WARNING
WARNING
POWER SUPPLY
If the supply cord is damage, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
It is strongly recommended to be installed
with Earth Leakage Circuit Breaker (ELCB)
or Residual Current Device (RCD) to prevent
electric shock or fire.
To prevent overheating, fire or electric shock:
• Insert the power plug properly.
• Dust on the power plug should be periodically
wiped with a dry cloth.
Stop using the product when any abnormality/
failure occurs and disconnect the power plug or
turn off the power switch and breaker.
(Risk of smoke/fire/electric shock)
Examples of abnormality/failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of the unit is
observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately even if it is
switched on for operation.
• The fan does not stop even if the operation is
stopped.
Contact immediately your local dealer for
maintenance/repair.
This equipment must be earthed to prevent
electrical shock or fire.
Prevent electric shock by switching off the power
supply and unplug when:
- Before cleaning or servicing.
- Extended non-use.
- Abnormally strong lightning activity.

6
REMOTE CONTROL
AUTO
COMFORT
MODE
POWERFUL/
QUIET
TEMP
OFF/ON
PATROL/
TIMER
SET
CANCEL
ON
OFF
123
AIR SWING
FAN SPEED
MILD DRY
COOLING
SET CHECK CLOCK RESET
AC RC
MILD
DRY
FAN
SPEED
AIR
SWING
AUTO
HEAT
COOL
DRY
310
6
2
5
1
Remote
Control display
9
4
8
INDICATOR
PATROL SENSOR (Blue)
POWER (Green)
TIMER (Orange)
(Green)
AUTO COMFORT (Green)
(Blue)
POWERFUL/QUIET (Orange)
Maximum
distances: 8m
Press the remote control’s button
1TO TURN ON OR OFF THE UNIT
• Please be aware of the OFF indication on the remote
control display to prevent the unit from starting/stopping
improperly.
2TO SET TEMPERATURE
• Selection range: 16°C ~ 30°C.
• Operating the unit within the recommended temperature
could induce energy saving.
HEAT mode : 20°C ~ 24°C.
COOL mode : 26°C ~ 28°C.
DRY mode : 1°C ~ 2°C lower than room temperature.
3TO SELECT OPERATION MODE
AUTO mode - For your convenience
• During operation mode selection the power indicator
blinks.
• Unit selects operation mode every 10 minutes according
to temperature setting and room temperature.
HEAT mode - To enjoy warm air
• Unit takes a while to warm up. The power indicator blinks
during this operation.
COOL mode - To enjoy cool air
• Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during cool mode.
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.
4TO SELECT FAN SPEED (5 OPTIONS)
FAN
S
PEED
• For AUTO, the indoor fan speed is automatically adjusted
according to the operation mode.
5TO ADJUST AIRFLOW DIRECTION (5 OPTIONS)
AIR SWING
• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swing
left/right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver fix at
predetermined position. The vertical louver swing left/right
after the temperature rises.
7
Human activity
sensor and
indicator

ENGLISH
7
NOTES
NOTES
PATR
O
L/
,
POWERFUL/
QUIET
,
AUT
O
COMFORT
,
POWERFUL/
QUIET
,
AUT
O
COMFORT
,
• Can be activated in all modes and can be cancelled by
pressing the respective button again. • Cannot be selected at the same time. • Cannot be activated during “MILD DRY COOLING”
operation is activated.
6TO ENJOY CLEAN & FRESH AIR
PATROL/ PATROL
NORMAL
PATROL - To monitor air quality
• Detects air quality; e-ion operation activates when air
quality is at dirty level.
• Can be activated even when the unit is turned off.
• Patrol starts automatically with the unit switched on with
OFF/ON
.
- To freshen and purify the air
• Generates negative ions to produce fresh air effect and
attract dust which will then be captured at the positively
charged e-ion filters.
• Can be activated even when the unit is turned off. In this
condition, fan speed and air swing can not be adjusted.
7TO IMPROVE HUMIDITY AND MOISTURE LEVEL
• This operation reduces air dryness and provides you with
a comfortable living environment during COOL mode only.
• When vertical airflow direction is set to AUTO, it stops at
lower position to avoid cold air contact. However, you can
adjust the louver direction manually.
8TO SWITCH BETWEEN
POWERFUL & QUIET
POWERFUL/QUIET
POWERFUL/
QUIET
QUIETPOWERFUL NORMAL
PO
WERFUL
TO REACH TEMPERATURE QUICKLY
• This operation stops automatically after 20
minutes.
Q
UIET
TO ENJOY QUIET OPERATION
• This operation reduces airflow noises.
• When this operation is activated, the
indicator brightness will be dimmed.
910
TO MONITOR HUMAN PRESENCE &
ACTIVITY FOR ENERGY SAVING & COMFORT
To optimize energy
saving
AUTO
COMFORT
To maximize comfort
AUTO COMFORT
• When either operation is activated, the unit will start to
initialize for approximately 1 minute. Human activity indicator
is blinking in sequence.
• After initialization, the human activity sensor will start to
detect the level of heat source & movement, the unit adjusts
the temperature and airflow to keep you comfort consistently.
Heat Source & Movement Normal
High
Low None
Set Fan Speed
≤Medium
Fan
+1 tap*
+2°C
-1°C
+1°C
+1 tap
Set Fan Speed -2°C
-2°C
Heat Mode
Set Temperature +0.3°C
Cool/Dry Mode
Set Temperature
* For first 15 minutes or until set temperature is reached.
• Human activity sensor will also scan for area of heat source
and movement in a room.
Human activity indicator Heat source & movement
At left area of the room
At right area of the room
At centre area or multiple areas
of the room.
•
The unit will determine the heat source & movement hotspot,
and automatically adjust horizontal airflow direction louver
either fix at predetermined position or swing left/right.
Detection area (top view)
7m
120º
• When manual AIR SWING is selected, the ECONAVI
and AUTO COMFORT operation will be cancel.
• Sensor may not detect moving objects further than 7m away
or beyond detection angle.
• Sensor sensitivity is influenced by indoor unit location,
movement speed, temperature range, etc.
• The sensor may mistakenly detects pets, sunlight, certain
lighting, fluttering curtains and light reflection as human being.

8
REMOTE CONTROL

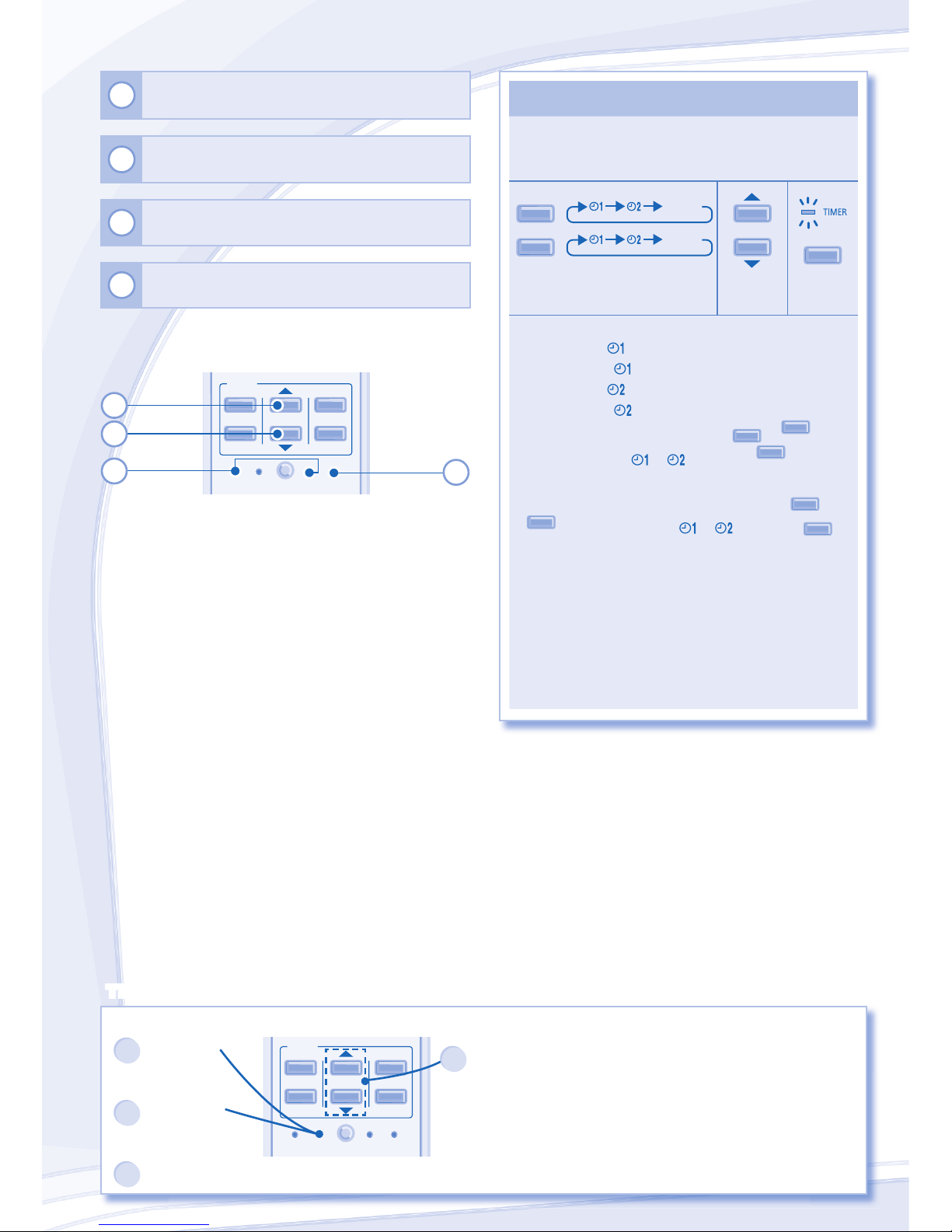

TO SET THE TIMER
TO SET THE TIMER
• 2 sets of ON and OFF timers are available to turn ON
or OFF the unit at different preset time.
• Complete below procedures to set each timer:
ON
OFF
1
Cancel
Cancel 2
S
ET
Select ON or OFF timer Set the
time Confirm
• Example of application at living room:
Morning: ON at 07:00 (Wake up)
OFF
at 08:00 (Out for work)
Evening: ON at 17:00 (Back home)
OFF at 22:00 (Sleep)
• To cancel ON or OFF timer, press
O
Nor OFF to
select respective or then press CANCEL.
• If timer is cancelled manually or due to power failure,
you can restore the timer again by pressing
O
Nor
OFF to select respective or then press SET .
• Upcoming timer will be displayed and will be activated
in sequence.
• When ON Timer is set, the unit may start earlier (up
to 35 minutes) before the actual set time in order to
achieve the desired temperature on time.
• Timer operation is based on the clock set in the
remote control and repeats daily once set. For clock
setting, please refer to Remote Control Preparation at
back cover.
11 Press and hold for 5 seconds to dim or restore the
unit’s indicator brightness.
12 Press and hold for approximately 10 seconds to
show temperature setting in °C or °F.
13 Press to restore the remote control’s default setting.
14 Not used in normal operations.
The unit stops and the timer indicator blinks.
Use remote control to retrieve error code.
TIMER
SET
CANCEL
ON
OFF
123
SET CHECK CLOCK RESET
AC RC
1Press for 5
seconds.
3Press for 5
seconds to
quit checking.
2Press until you hear
beep sound, then
write down the error
code.
Note:
• For certain errors, you
may restart the unit for
limited operation with 4
beeps during operation
starts.
4Turn the unit off and reveal the error code to authorized dealer.
TIMER
SET
CANCEL
ON
OFF
123
SET CHECK CLOCK RESET
AC RC
11
12
13
14

ENGLISH
9
INDOOR UNIT
CAUTION
•Switch off the power supply and unplug before cleaning.
•Do not touch the aluminium fin, sharp parts may cause injury.
CLEANING INSTRUCTIONS
CLEANING INSTRUCTIONS
HINT
HINT
• Do not use benzene, thinner or scouring powder.
• Use only soap ( pH7) or neutral household detergent.
• Do not use water hotter than 40°C.
• To ensure optimal performance of the unit, cleaning
maintenance has to be carried out at regular intervals.
Dirty unit may cause malfunction and you may see error
code “H99”. Please consult authorized dealer.
1INDOOR UNIT
• Wipe the unit gently with a soft, dry cloth.
2FRONT PANEL
Remove Front Panel
• Raise and pull to remove the front panel.
• Wash gently and dry.
Close Front Panel
• Press down both ends of the front panel to close it
securely.
3REMOTE CONTROL RECEIVER
4ALUMINIUM FIN
5HUMAN ACTIVITY SENSOR
6HORIZONTAL AIRFLOW DIRECTION LOUVER
• Do not adjust by hand.
7VERTICAL AIRFLOW DIRECTION LOUVER
• Do not adjust by hand.
8AUTO OFF/ON BUTTON
• Use when remote control is misplaced or a malfunction
occurs.
Action Mode
Press once. Auto
Press and hold until 1 beep is heard,
then release. Cooling
Press and hold until 1 beep is heard,
then release.
Press again until 2 beeps, then release. Heating
Press the button to turn off.
9e-ion CHARGING WIRE
10 e-ion FILTERS
• Clean the filters regularly.
• Wash/rinse the filters gently with water to avoid damage
to the filter surface.
• Dry the filters thoroughly under the shade, away from
fire or direct sunlight.
• Replace any damaged filters.
11 ACTIVE e-ion GENERATOR
Clean with dry cotton bud.
• Active e-ion generator cleaning is
recommended every 6 months.
2
3
7
8
1
4
9
10
11
9, 10 , 11 e-ion AIR PURIFYING
SYSTEM
• Do not touch during operation.
5HUMAN ACTIVITY SENSOR
• Do not hit or violently press the sensor or
poke it with a sharp object. This can lead to
damage and malfunction.
• Do not place large objects near the sensor
and keep away heating units or humidifiers
from the sensor’s detection area. This may
lead to sensor malfunction.
5
6

10
TROUBLESHOOTING
The following symptoms do not indicate malfunction.
The following symptoms do not indicate malfunction.
SYMPTOM
SYMPTOM
CAUSE
CAUSE
Mist emerges from indoor unit. ►• Condensation effect due to cooling process.
Water flowing sound during operation. ►• Refrigerant flow inside the unit.
The room has a peculiar odour. ►• This may be due to damp smell emitted by the wall,
carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed
setting.
►• This helps to remove the surrounding odours.
Airflow continues even after operation has stopped. ►• Extraction of remaining heat from the indoor unit
(maximum 30 seconds).
Operation is delayed a few minutes after restart. ►• The delay is a protection to the unit’s compressor.
Outdoor unit emits water/steam. ►• Condensation or evaporation occurs on pipes.
Timer indicator is always on. ►• The timer setting repeats daily once set.
Power indicator blinks during HEAT mode with no warm air
supply (and louver is closed).
►• The unit is in defrost mode (and AIR SWING is set to
AUTO).
Indoor fan stops occasionally during heating operation. ►• To avoid unintended cooling effect.
Power indicator blinks before the unit is switched on. ►• This is a preliminary step in preparation for the operation
when the ON timer has been set.
Cracking sound during operation. ►• Changes of temperature cause the expansion/contraction
of the unit.
2 or more human activity indicator turns on simultaneously. ►• Judgement of heat source and movement area in
progress.
Check the following before calling for servicing.
Check the following before calling for servicing.
SYMPTOM
SYMPTOM
CHECK
CHECK
Heating/Cooling operation is not working efficiently. ►• Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. ►• Check if the unit has been installed at an incline.
• Close the front panel properly.
Remote control does not work.
(Display is dim or transmission signal is weak.)
►• Insert the batteries correctly.
• Replace weak batteries.
The unit does not work. ►• Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from the remote
control.
►• Make sure the receiver not obstructed.
• Certain fluorescent lights may interfere with signal
transmitter. Please consult authorized dealer.
Patrol sensor or e-ion indicator on the indoor unit is
blinking.
►• Stop Patrol or e-ion operation then restart. If the patrol
sensor or e-ion indicator still blinking, please consult
authorized dealer.

ENGLISH
11
INFORMATION
FOR SEASONAL INSPECTION AFTER EXTENDED
NON-USE
• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select Cooling/Heating
operation. After 15 minutes of operation, it is normal to
have the following temperature difference between air
inlet and air outlet vents:
Cooling: ≥8°C Heating: ≥14°C
FOR EXTENDED NON-USE
• Activate Heat mode for 2~3 hours as an alternative to
remove moisture left in the internal parts thoroughly to
prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.
NON SERVICEABLE CRITERIAS
TURN OFF POWER SUPPLY AND UNPLUG then
please consult authorized dealer under the following
conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote
control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
Information for Users on Collection and Disposal of Old Equipment and Used Batteries
Pb
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic
products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection
points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local municipality,
your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities
or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the
Directive for the chemical involved.

Panasonic Corporation
Website: http://panasonic.net/
QUICK GUIDE/GUIDE RAPIDE/GUÍA RÁPIDA/
KURZANLEITUNG/GUIDA RAPIDA/SNELLE GIDS
Printed in Malaysia F567920
FS0910-0
AUTO
COMFORT
MODE
POWERFUL/
QUIET
TEMP
OFF/ON
PATROL/
TIMER
SET
CANCEL
ON
OFF
123
AIR SWING
FAN SPEED
MILD DRY
COOLING
SET CHECK CLOCK RESET
AC RC
MILD
DRY
FAN
SPEED
AIR
SWING
AUTO
HEAT
COOL
DRY
2
13
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Service Europe, a division of
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
Remote Control Preparation • Préparation De La Télécommande • Preparación Del Mando A Distancia •
Remote Control Preparation • Préparation De La Télécommande • Preparación Del Mando A Distancia •
Vorbereitung der Fernbedienung • Telecomando: Operazioni Preliminari • De Afstandsbediening Gereedmaken
Vorbereitung der Fernbedienung • Telecomando: Operazioni Preliminari • De Afstandsbediening Gereedmaken
12
3
TIMER
SET
CANCEL
ON
OFF
123
SET CHECK CLOCK RESET
AC RC
4 5 6
1Pull out • Retirez • Quite • Nach unten ziehen • Estrarre • Verwijderen
2Insert AAA or R03 batteries (can be used ~ 1 year) •
Placez des piles AAA ou R03 (valables environ 1 an) •
Inserte pilas AAA o R03 (puede ser usado ~ 1 año) •
Batterien einlegen (AAA oder R03) (Betriebsdauer etwa ein Jahr) •
Inserire batterie AAA o R03 (può essere utilizzato per circa 1 anno) •
Plaats AAA- of R03-batterijen (kan ~ 1 jaar gebruikt worden)
3Close the cover • Fermez le couvercle • Cierre la tapa • Batteriefach schließen •
Chiudere il coperchio • Sluit het deksel
4Press CLOCK • Appuyez sur CLOCK • Presione CLOCK • CLOCK drücken •
Premere CLOCK • Druk op CLOCK
5Set time • Réglez l’heure • Ajuste la hora • Uhrzeit einstellen • Impostare l’ora •
Tijd instellen
6Confirm • Confirmez • Confirmar • Bestätigen • Confermare • Bevestig
MODE
MODE
AUTO HEAT
DRY COOL
Select the desired mode.
Sélectionnez le mode de fonctionnement souhaité.
Seleccione el modo deseado.
Wählen Sie die gewünschte Betriebsart aus.
Selezionare la modalità desiderata.
Selecteer de gewenste stand.
1
OFF/ON
OFF/ON
Start/stop the operation.
Mettez l’appareil sous/hors tension.
Inicie/detenga el funcionamiento.
Schalten Sie das Gerät ein bzw. aus.
Avviare/arrestare l’apparecchio.
Start/stop het apparaat.
2
TEMP
TEMP
Select the desired temperature.
Sélectionnez la température souhaitée.
Seleccione la temperature deseada.
Stellen Sie die gewünschte Temperatur ein.
Selezionare la temperatura desiderata.
Stel de gewenste temperatuur in.
3
