• High Efficiency
• Compact Design
• Comfort Environment
− 8 hours of sleep mode operation
− Air filter with function to reduce dust and smoke
− Wider range of horizontal discharge air
• Auto Restart
− Random auto restart after power failure for safety restart
operation
• Removable and Washable Front Panel
• Remote Control Self-illuminating Button
• Catechin Air Purifying Filter
− Trap dust, tabacco smoke and tiny particles
− Prevent the growth of bacteria and viruses trapped
• Deodorizing Air Purifying Filter
− Remove unpleasant odors from the air
25 Replacement Parts List 113
26 Exploded View 114
27 Replacement Parts List 115
28 Exploded View 116
29 Replacement Parts List 117
30 Electronic Parts List 118
31 Electronic Circuit Diagram 119
• Quality Improvement
− Gas leakage protection
− Prevent compressor reverse cycle
− 2-stage OLP to protect compressor
− Noise prevention during soft dry operation.
• Service Improvement
− Easy fan motor replacement procedure
• Operation Improvement
− Economy mode to reduce electrical power consumption
− Powerful mode to reach the desired room temperature
quickly
• Long Installation Piping
− Long piping up to 15 meter
1 Features
2
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

2 Functions

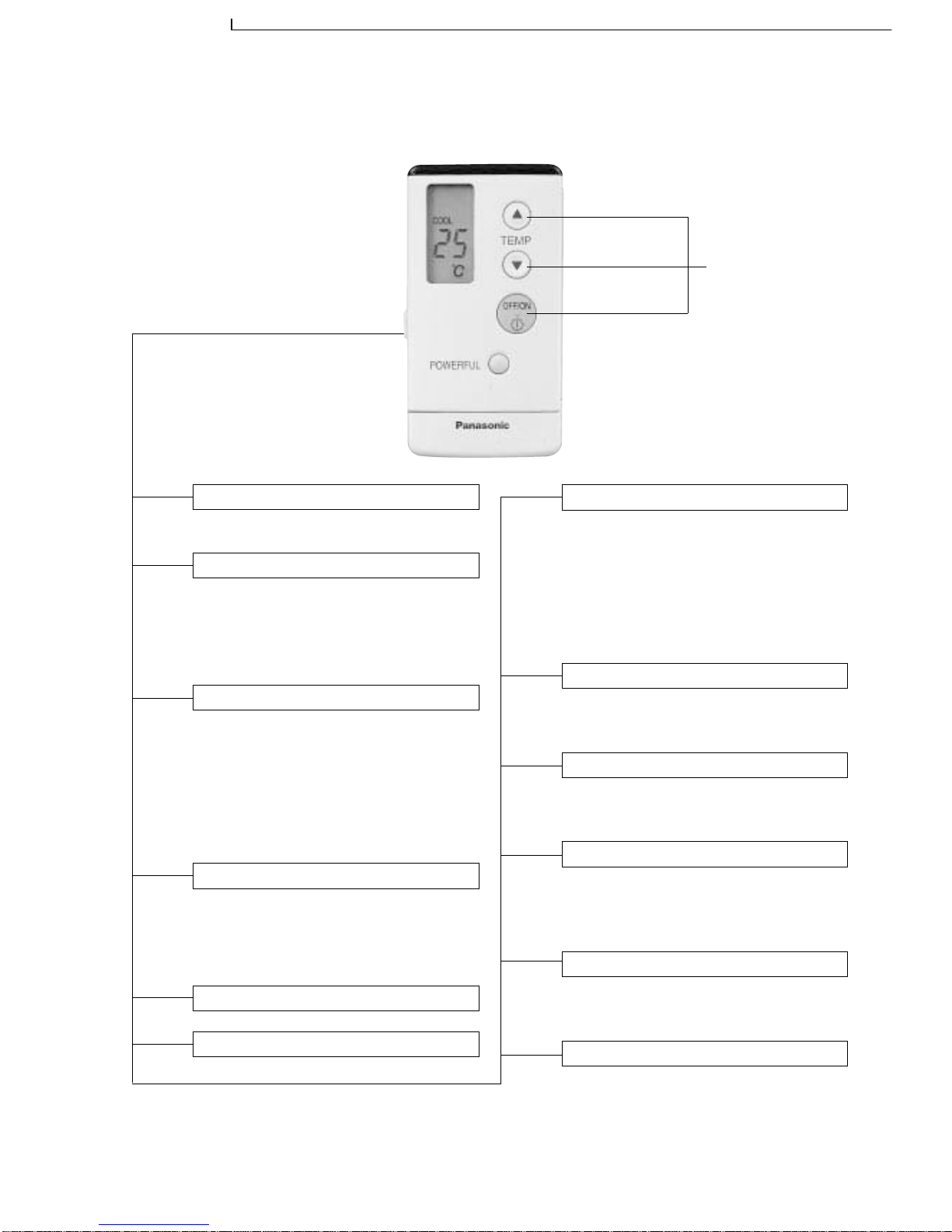

Remote Control
Operation OFF / ON
OFF / ON IRoom Temperature Setting
TEMP.
Operation Mode Selection
•AUTO Automatic Operation Mode
•COOL Cooling Operation Mode
•DRY Soft Dry Operation Mode
•FAN Air Circulation Mode
MODE
TIMER Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Sleep Mode Operation OFF / ON
SLEEP
Indoor Fan Speed Selection
FAN SPEED
•h j k Low Speed
l
•h j k Medium Speed
lll
•h j k High Speed
lllll
•AUTOFAN Automatic Fan Speed
Airflow Direction Control
• 24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER Timer Operation Selection
SET
CANCEL Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
CLOCK
AIR SWING
•AUTO Automatic Airflow Direction
Control
•MANUAL Airflow Direction Manual
Control
Powerful Mode Operation OFF/ON
POWERFUL
Economy Mode Operation OFF/ON
ECONOMY
• Temperature Setting (16°C to 30°C)
• Automatic Operation
2°C higher than standard
Standard
2°C lower than standard
8 HI
a
a
a
9 Lo
Self illuminating
button
3
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

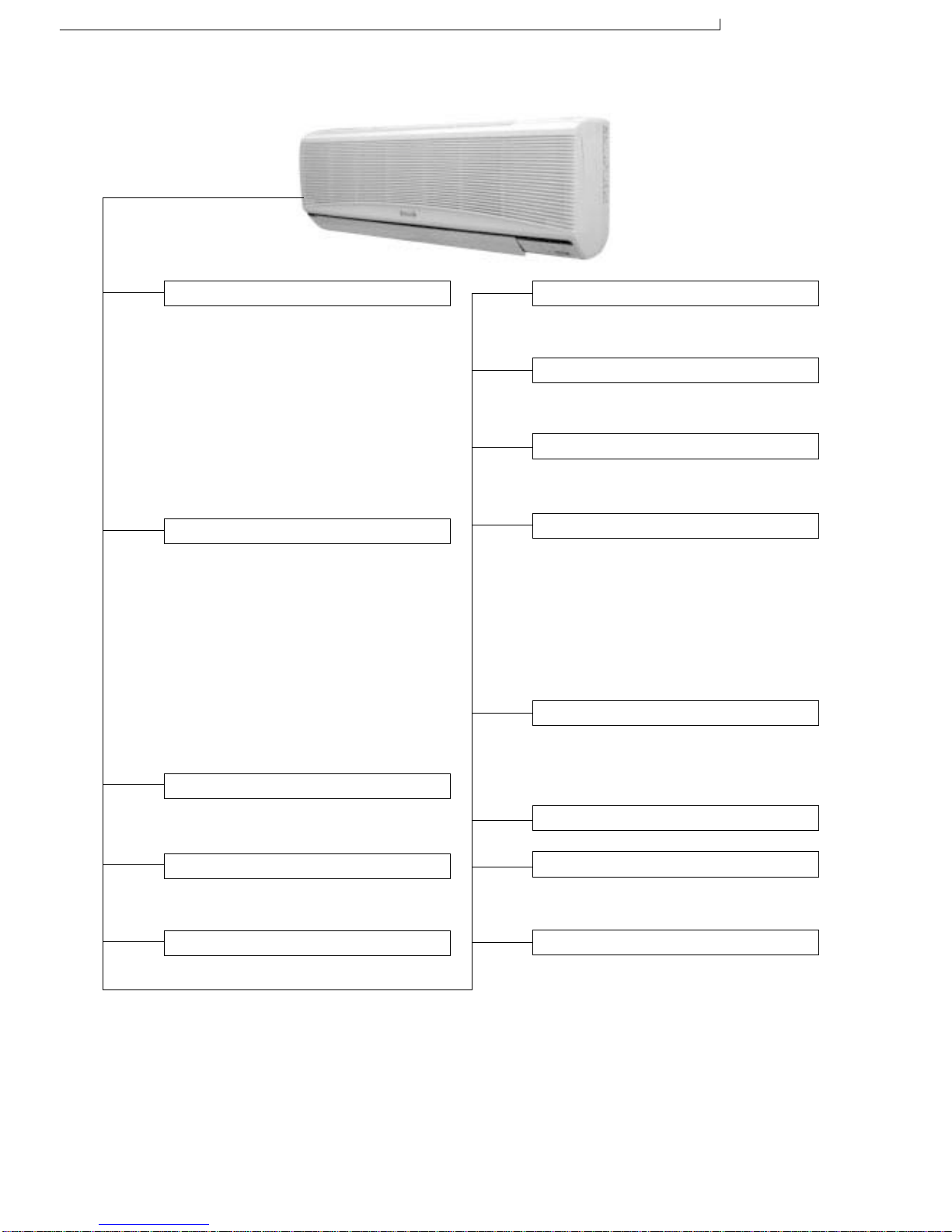

Indoor Unit
Random Auto Restart Control
•Operation is restarted randomly after
power failure at previous setting mode.
Anti-Freezing Control
•Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
Sleep Mode Auto Control
•Indoor Fan operates at Low speed.
•Operation stops after 8 hours.
Indoor Fan Speed Control
•High, Medium and Low.
•Automatic Fan Speed Mode
–Cooling : Fan rotates at Hi and Me
speed. Deodorizing control
is available.
–Soft Dry: Fan rotates at Lo speed.
Deodorizing control
is available.
•Automatic air swing and manual adjusted
by remote control for vertical airflow.
•
Manually adjusted by hand for horizontal airflow.
Airflow Direction Control
Automatic Operation Button
•Press for < 5s to operate Automatic
operation mode.
(Used when the remote control cannot be used.)
•Press continuously for 5s or < 10s to
operate Test Run/Pump down. “Beep”
sound will be heard at the 5th second.
(Used when test running or servicing.)
•Press continuously for 10s and above to
omit or resume the remote control signal
receiving sound. “Beep, beep”sound will
be heard at the 10th second.
AUTO
OFF / ON
Operation Indication Lamps (LED)
• POWER (Green) ........Lights up in operation,
blinks in Automatic
Operation Mode
judging.
•
SLEEP (Orange)........Lights up in Sleep
Mode Operation.
•
TIMER (Orange) .......Lights up in Timer
Setting.
• POWERFUL (Orange)..Lights up in Powerful
Mode Operation.
• ECONOMY (Green) .....Lights up in Economy
Mode Operation.
Operation Mode
•Cooling, Soft Dry, Air Circulation and
Automatic Mode.
Powerful Operation
•Reaches the desired room temperature
quickly.
Time Delay Safety Control
•Restarting is inhibited for appro. 3
minutes.
Starting Current Control
Economy Operation
•To reduce electrical power consumption.
7 Minutes Time Save Control
•Cooling Operation only.
4
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

Outdoor Unit
•To protect compressor from reverse
rotation when there is a instantaneous
power failure.
60 Secs. Forced Operation Control
•Once the compressor is activated, it
does not stop within the first 60 secs.
However, it stops immediately with
remote control stop signal.
Overload Protector
•2-Stage OLP to protect the compressor.
Overload Protector will trip when
–Temperature of compressor increases
to 120°C.
–High temperature or high current flows
to compressor.
(Refer circuit diagram for OLP
characteristic)
Compressor Reverse Rotation
Protection Control
Outdoor Fan Operation Control
•Inner protector.
CU-MC145KE / CU-MC185KE /
CU-MC196KE / CU-3MC205KE CU-MC245KE
5
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

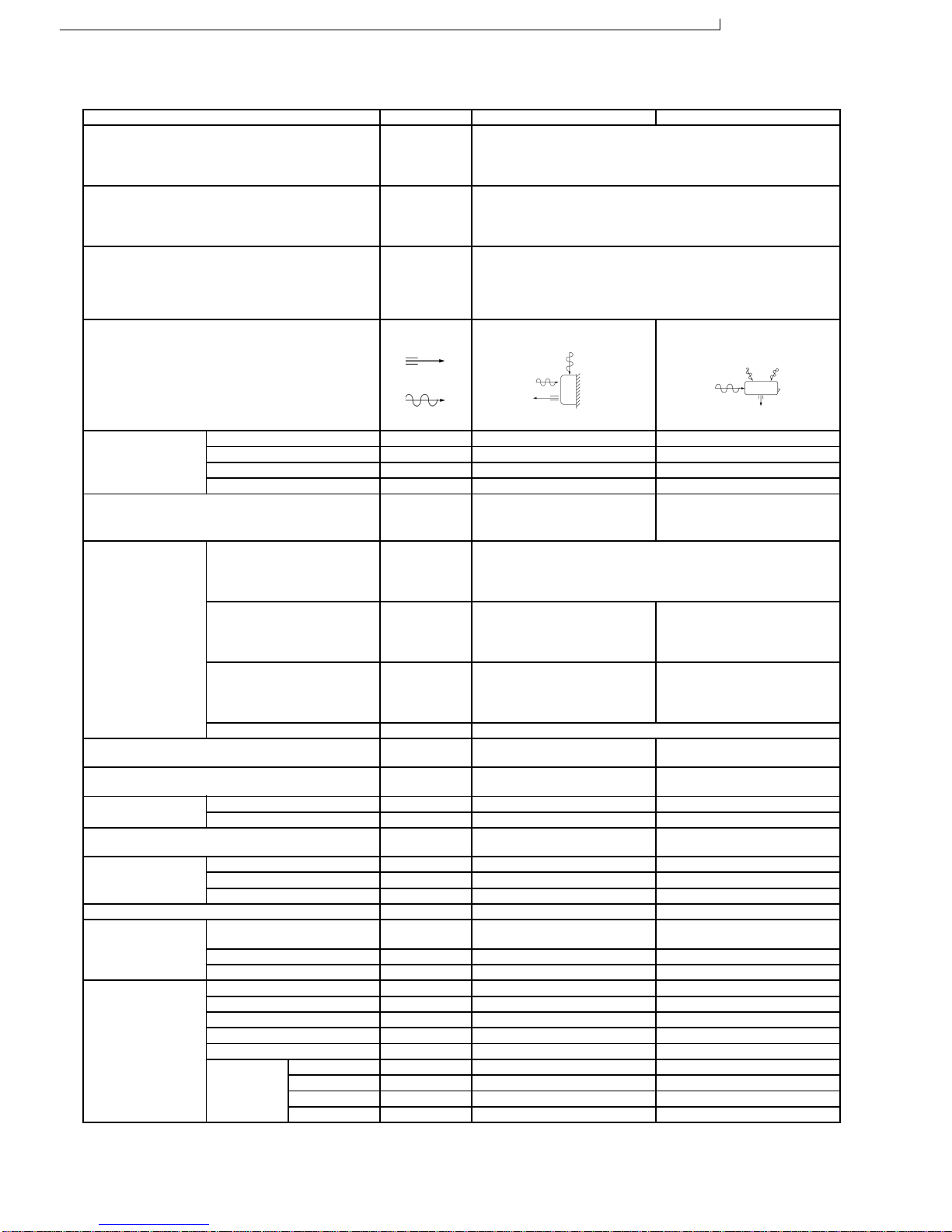

3 Product Specifications
Unit CS-MC95KE CU-MC145KE
Cooling Capacity kW
kcal/h (1 unit) 2.82 - 2.78 2,430 - 2,390 (2 units) 1.81 × 2 - 1.79 × 2 1,555 × 2 - 1,540 × 2
Moisture Removal l/h
Pint/h (1 unit) 1.6 3.4 (2 units) 1.05 × 2 2.2 × 2
Power Source Phase
V
Cycle
Single
230 - 220
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) 6.6 - 6.2 (230 - 220) —
Indoor Air (Me) m3/min (cfm) 7.2 - 6.8 (260 - 240) —
Indoor Air (Hi) m3/min (cfm) 8.7 - 8.4 (310 - 300) —
Indoor Air (SHi) m3/min (cfm) 10.1 - 10.0 (360 - 350) —
Noise Level dB (A) High 36 - 35, Low 26 - 26 High 47 - 46
Electrical Data Input W(1 unit) 30 - 25
30 × 2 - 25 × 2 (2 units) 1,120 - 1,075 1,160 - 1,110
Running Current A(1 unit)
(2 units) 0.14 - 0.13 0.14 × 2 - 0.13 × 2 (1 unit) (2 units) 4.96 - 4.97 5.12 - 5.14
EER W/W (kcal/hW) (1 unit)
(2 units) 2.45 - 2.53 (2.11 - 2.17) (1 unit) (2 units) 2.97 - 3.09 (2.55 - 2.66)
Starting Current A20.5 - 19.5
Piping Connection Port
(Flare piping) inch inch G ; Half Union 3/8” L ; Half Union 1/4” G ; 3-way valve 3/8” L ; 2-way valve 1/4”
Pipe Size
(Flare piping) inch inch G (gas side) ; 3/8” L (liquid side) ; 1/4” G (gas side) ; 3/8” L (liquid side) ; 1/4”
Drain
Hose Inner diameter mm 12 —
Length m0.7 —
Power Cord Length
Number of core-wire m2.0 3 (1.0 mm2)— —
Dimensions Height inch (mm) 10 - 31/32 (279) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 29 - 15/16 (760)
Depth inch (mm) 7 - 27/32 (199) 9 - 7/8 (250)
Net Weight lb (kg) 20 (9.0) 77 (35.0)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W — 900
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 30% AS + Glass Fiber 20%
Motor Type Induction (4-poles) Induction (6-poles)
Input W27.8 - 26.3 41.75 - 36.80
Rated Output W15 12
Fan Speed Low rpm 880 - 820 —
Medium rpm 960 - 900 —
High rpm 1,155 - 1,110 795 - 750
SuperHigh rpm 1,335 - 1,320 —
6
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium Aluminium
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×14 1×20
FPI 18 19
Size (W ×H×L) mm 624 ×294 ×25.4 687 ×508 ×22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60
(350)
Refrigerant (R-22) g (oz) —850 (30.0)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —505
Flow Rate l/min —17.8
Inner Diameter mm —1.6
Air Filter Material
Style (c.c) P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —30 µF, 440 VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400 VAC 1.0 µF, 430 VAC
• Specifications are subject to change without notice for further improvement.
7
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

Unit CS-MC95KE CU-MC185KE
Cooling Capacity kW
kcal/h (1 unit) 2.44 - 2.40 2,100 - 2,060 (2 units) 2.44 ×2 - 2.40 ×2 2,100 ×2 - 2,065 ×2
Moisture Removal l/h
Pint/h (1 unit) 1.5 3.2 (2 units) 1.3 ×2 2.75 ×2
Power Source Phase
V
Cycle
Single
230 - 220
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) 6.6 - 6.2 (230 - 220) —
Indoor Air (Me) m3/min (cfm) 7.2 - 6.8 (260 - 240) —
Indoor Air (Hi) m3/min (cfm) 8.7 - 8.4 (310 - 300) —
Indoor Air (SHi) m3/min (cfm) 10.1 - 10.0 (360 - 350) —
Noise Level dB (A) High 36 - 35, Low 26 - 26 High 55 - 53
Electrical Data Input W(1 unit)
770 - 730 (2 units) 770 ×2 - 730 ×2
Running Current A(1 unit)
3.3 - 3.4 (2 units) 3.3 ×2 - 3.4 ×2
EER W/W (kcal/hW) 3.17 - 3.29 (2.73 - 2.82)
Starting Current A(1 unit) 15.5 - 15 (2 units) 15.5 ×2-15×2
Piping Connection Port
(Flare piping) inch inch G ; Half Union 3/8” L ; Half Union 1/4”G ; 3-way valve 3/8” L ; 2-way valve 1/4”
Pipe Size
(Flare piping) inch inch G (gas side) ; 3/8” L (liquid side) ; 1/4”G (gas side) ; 3/8” L (liquid side) ; 1/4”
Drain
Hose Inner diameter mm 12 —
Length m0.7 —
Power Cord Length
Number of core-wire m2.0 3 (1.0 mm2)— —
Dimensions Height inch (mm) 10 - 31/32 (279) 25 - 21/32 (651)
Width inch (mm) 31 - 15/32 (799) 35 - 3/16 (893)
Depth inch (mm) 7 - 27/32 (199) 13 - 19/32 (345)
Net Weight lb (kg) 20 (9.0) 132 (60)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W—650
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 30% AS + Glass Fiber 20%
Motor Type Induction (4-poles) Induction (6-poles)
Input W27.8 - 26.3 117.1 - 103.3
Rated Output W15 43
Fan Speed Low rpm 880 - 820 —
Medium rpm 960 - 900 —
High rpm 1,155 - 1,110 760 - 720
SuperHigh rpm 1,335 - 1,320 —
8
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium Aluminium
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×14 2×24
FPI 18 16
Size (W ×H×L) mm 624 ×294 ×25.4 560 ×609.6 ×44
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60
(270)
Refrigerant (R-22) g (oz) —710 ×2 (25.0 ×2)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —680
Flow Rate l/min —11.5
Inner Diameter mm —1.5
Air Filter Material
Style (c.c) P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —25 µF, 370 VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400 VAC 3.0 µF, 450 VAC
• Specifications are subject to change without notice for further improvement.
9
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

CS-MC95KE CU-3MC205KE
Unit Single Operation
(A, B1, B2) Single Operation Double Operation Trible Operation
(A) (B1 or B2) (B1 + B2) (A + B1 or B2) (A + B1 + B2)
Cooling Capacity Per Unit kW
kcal/h —2.40-2.34
2,060-2,010 2.82-2.78 2,430-2,390 3.60-3.52 3,100-3,030 5.22-5.12 4,490-4,400 6.00-5.86 5,160-5,040
Moisture Removal l/h
Pint/h —1.5 3.2 1.6 3.4 2.1 4.4 2.8 5.9 3.2 6.8
Power Source Phase
V
Cycle
Single
230 - 220
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min
(cfm) 6.6 - 6.2
(230 - 220) —
Indoor Air (Me) m3/min
(cfm) 7.2 - 6.8 (260 - 240) —
Indoor Air (Hi) m3/min
(cfm) 8.7 - 8.4 (310 - 300) —
Indoor Air (SHi) m3/min
(cfm) 10.1 - 10.0
(360 - 350) —
Noise Level dB (A) High 36 - 35,
Low 26 - 26 High 56 - 54
Electrical
Data Input kW 0.030 - 0.025 0.79 - 0.75 1.09 - 1.05 1.15 - 1.10 1.79 - 1.70 1.83 - 1.77
Running Current A0.14 - 0.13 3.36 - 3.47 4.76 - 4.77 4.92 - 5.04 7.62 - 7.74 7.78 - 8.01
EER W/W
(kcal/hW) —2.93 - 3.04 (2.51 - 2.61) 2.52 - 2.60 (2.17 - 2.23) 2.98 - 3.06 (2.56 - 2.63) 2.82 - 2.93 (2.43 - 2.51) 3.13 - 3.18 (2.69 - 2.74)
Starting Current A(A unit) 15.5 - 15.0 (B unit) 21.5 - 21.0
Piping Connection Port
(Flare piping) inch inch G ; Half Union 3/8” L ; Half Union 1/4”G ; 3-way valve 3/8” L ; 2-way valve 1/4”
Pipe Size
(Flare piping) inch inch G (gas side) ; 3/8” L (liquid side) ; 1/4”G (gas side) ; 3/8” L (liquid side) ; 1/4”
Drain
Hose Inner diameter mm 12 —
Length m0.7 —
Power Cord Length
Number of core-wire m2.0 3 (1.0 mm2)— —
Dimensions Height inch (mm) 10 - 31/32 (279) 25 - 21/32 (651)
Width inch (mm) 31 - 15/32 (799) 35 - 3/16 (893)
Depth inch (mm) 7 - 27/32 (199) 13 - 19/32 (345)
Net Weight lb (kg) 20 (9.0) 141 (64)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W—650 + 900
Air
Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber
30% AS + Glass Fiber 20%
Motor Type Induction (4-poles) Induction (6-poles)
Input W27.8 - 26.3 121.82 - 107.91
Rated Output W15 37
Fan Speed Low rpm 880 - 820 —
Medium rpm 960 - 900 —
High rpm 1,155 - 1,110 765 - 725
SuperHigh rpm 1,335 - 1,320 —
10
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

Heat
Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium Aluminium
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×14 1×24
FPI 18 16
Size (W ×H×L) mm 624 ×294 ×25.4 756.0
719.5 ×609.6 ×44
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60 (320, 270)
Refrigerant (R-22) g (oz) —(A unit) 760 (26.8)
(B unit) 1,030 (36.3)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary
Tube Length mm —935, 920, 1,170
Flow Rate l/min —20.0, 15.5, 10.0
Inner Diameter mm —2.0, 1.8, 1.6
Air Filter Material
Style P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —25 µF, 440 VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400 VAC 3.0 µF, 450 VAC
• Specifications are subject to change without notice for further improvement.
11
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

Unit CS-MC125KE CU-MC245KE
Cooling Capacity kW
kcal/h (1 unit) 3.50 - 3.45 3,010 - 2,970 (2 units) 3.50 ×2 - 3.45 ×2 3,010 ×2 - 2,970 ×2
Moisture Removal l/h
Pint/h (1 unit) 2.1 4.4 (2 units) 2.1 ×2 4.4 ×2
Power Source Phase
V
Cycle
Single
230 - 220
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) 6.4 - 5.9 (230 - 210) —
Indoor Air (Me) m3/min (cfm) 8.0 - 7.7 (280 - 270) —
Indoor Air (Hi) m3/min (cfm) 9.0 - 8.8 (320 - 310) —
Intdoor Air (SHi) m3/min (cfm) 9.6 - 9.5 (340 - 340) —
Noise Level dB (A) High 39 - 39, Low 29 - 29 (1 unit)
(2 units) High 49 - 48 High 52 -51
Electrical Data Input W(1 unit) 1,260 - 1,210
(2 units) 1,260 ×2 - 1,210 ×2
Running Current A(1 unit) 5.7 - 5.7
(2 units) 5.7 ×2 - 5.7 ×2
EER W/W (kcal/hW) 2.78 - 2.85 (2.39 - 2.45)
Starting Current A(1 unit) 25 (2 units) 25
Piping Connection Port
(Flare piping) inch inch G ; Half Union 1/2” L ; Half Union 1/4”G ; 3-way valve 1/2” L ; 2-way valve 1/4”
Pipe Size
(Flare piping) inch inch G (gas side) ; 1/2” L (liquid side) ; 1/4”G (gas side) ; 1/2” L (liquid side) ; 1/4”
Drain
Hose Inner diameter mm 12 —
Length m0.7 —
Power Cord Length
Number of core-wire m2.0 3 (1.0 mm2)— —
Dimensions Height inch (mm) 10 - 31/32 (279) 41 - 5/32 (1,045)
Width inch (mm) 31 - 15/32 (799) 30 - 25/32 (782)
Depth inch (mm) 7 - 27/32 (199) 10 (254)
Net Weight lb (kg) 20 (9.0) 179 (81)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W—(1 unit)
(2 units) 1,100 1,100 ×2
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 30% AS + Glass Fiber 16%
Motor Type Induction (4-poles) Induction (6-poles)
Input W28.7 - 27.1 (1 unit)
(2 units) 60.7 - 56.7 60.7 ×2 - 56.7 ×2
Rated Output W(1 unit)
(2 units) 15 15 ×2(1 unit) (2 units) 20 20 ×2
Fan Speed Low rpm 890 - 835 —
Medium rpm 1,125 - 1,075 —
High rpm 1,260 - 1,235 755 - 705
SuperHigh rpm 1,340 - 1,330 —
12
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium Aluminium
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
2×14 1×19
FPI 21 21
Size (W ×H×L) mm 614 ×294 ×25.4 776.2 ×482.6 ×22
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60
(430 ×2)
Refrigerant (R-22) g (oz) —720 ×2 (25.4 ×2)
Thermostat Electronic Control —
Protection Device —2 Stage Overload Protector
Capillary Tube Length mm —560
Flow Rate l/min —16.7
Inner Diameter mm —1.7
Air Filter Material
Style (c.c) P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —30 µF, 370 VAC
Fan Motor Capacitor µF, VAC 1.5 µF, 400 VAC (Upper unit) 1.0 µF, 400 VAC
(Lower unit) 1.2 µF, 400 VAC
• Specifications are subject to change without notice for further improvement.
13
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

Unit (A)
CS-MC126KE (B) CS-MC76KE CS-MC196KE
Cooling Capacity kW
kcal/h (A) 3.55 - 3.52 (A) 3,050 - 3,030 (B) 2.08 - 2.06 (B) 1,790 - 1,770 (A+B) 5.63 - 5.58 (A+B) 4,840 - 4,800
Moisture Removal l/h
Pint/h (A) 2.1 4.4 (B) 1.4 3.0 (A+B) 3.1 6.6
Power Source Phase
V
Cycle
Single
230 - 220
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m3/min (cfm) 6.1 - 6.2 (220 - 220) 5.5 - 4.8 (190 -170) —
Indoor Air (Me) m3/min (cfm) 7.8 - 7.9 (280 - 280) 5.7 - 5.1 (200 - 180) —
Indoor Air (Hi) m3/min (cfm) 9.0 - 8.8 (320 - 310) 7.0 - 6.8 (250 -240) —
Indoor Air (SHi) m3/min (cfm) 9.7 - 9.4 (340 - 330) 7.9 - 6.8 (280 -240) —
Noise Level dB (A) (A) High 39 - 39
Low 29 - 29 (B) High 33 - 32 Low 26 - 26 High 55 - 53
Electrical Data Input W(A) 1,250 - 1,230 (B) 750 - 720 (A+B) 1,880 -1,840
Running Current A(A) 5.60 - 5.70 (B) 3.90 - 3.70 (A+B) 9.00 - 8.90
EER W/W
(kcal/hW) (A) 2.84 - 2.86 (2.44 - 2.46) (B) 2.77 - 2.86 (2.39 - 2.46) (A+B) 40 - 38 (2.57 - 2.61)
Starting Current A(A) 25 - 24 (B) 15 - 14 (A+B) 40 - 38
Piping Connection Port
(Flare piping) inch inch G ; Half Union 1/2”,3/8” L ; Half Union 1/4”, 1/4”G ; 3-way valve 1/2”,3/8” L ; 2-way valve 1/4”,1/4”
Pipe Size
(Flare piping) inch inch G (gas side) ; 1/2”,3/8” L (liquid side) ; 1/4”, 1/4”G (gas side) ; 1/2”,3/8” L (liquid side) ; 1/4”,1/4”
Drain
Hose Inner diameter mm 12 —
Length m0.7 —
Power Cord Length
Number of core-wire m2.0 3 (1.0 mm2)— —
Dimensions Height inch (mm) 10 - 31/32 (279) 25 - 21/32 (651)
Width inch (mm) 31 - 15/32 (799) 35 - 3/16 (893)
Depth inch (mm) 7 - 27/32 (199) 13 - 19/32 (345)
Net Weight lb (kg) 20 (9.0) 148 (67)
Compressor Type —Rotary (1 cylinder)
rolling piston type
Motor Type —Induction (2-poles)
Rated Output W(A) 1,100 (B) 600 (A+B) 1,700
Air Circulation Type Cross-flow Fan Propeller Fan
Material AS + Glass Fiber 30% AS + Glass Fiber 20%
Motor Type Induction (4-poles) Induction (6-poles)
Input W(A) 28.7 - 27.1 (B) 20.6 - 19.1 121.82 - 107.91
Rated Output W(A) 15 (B) 10 37
Fan Speed Low rpm (A) 835 - 890 (B) 810 - 835 —
Medium rpm (A) 1,075 - 1,125 (B) 840 - 875 —
High rpm (A) 1,235 - 1,260 (B) 1,030 - 1,175 740 - 725
SuperHigh rpm (A) 1,330 - 1,340 (B) 1,160 - 1,175 —
14
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium Aluminium
Fin Type Slit Fin Louver Fin
Row / Stage (Plate fin configuration, forced draft)
(A) 2 ×14 (B) 2 ×14 2×24
FPI 21 21 16
Size (W ×H×L) mm 614 ×294 ×25.4 756
719.5 ×609.6 ×44
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS
M60 (290, 410)
Refrigerant (R-22) g (oz) —(A) 800 (28.2)
(B) 780 (27.5)
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Tube Length mm —(A) 610 (B) 920
Flow Rate l/min —(A) 16.5 (B) 9.5
Inner Diameter mm —(A) 1.7 (B) 1.5
Air Filter Material
Style (c.c) P.P. Honeycomb —
Capacity Control Capillary Tube
Compressor Capacitor µF, VAC —(A) 30 µF, 370 VAC
(B) 15 µF, 440 VAC
Fan Motor Capacitor µF, VAC (A) 1.5 µF, 400 VAC
(B) 1.5 µF, 400 VAC 3.0 µF, 450 VAC
• Specifications are subject to change without notice for further improvement.
15
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

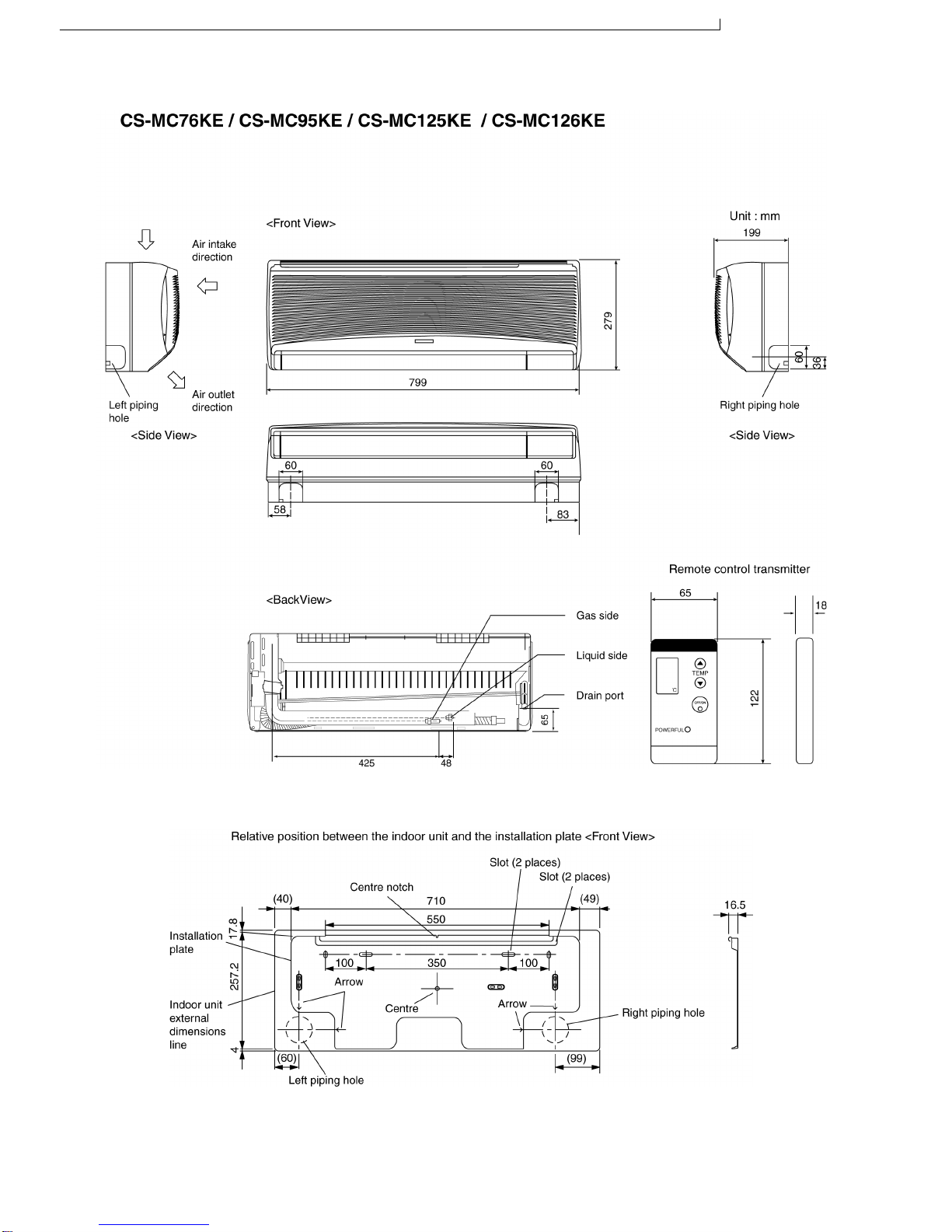

4 Dimensions
16

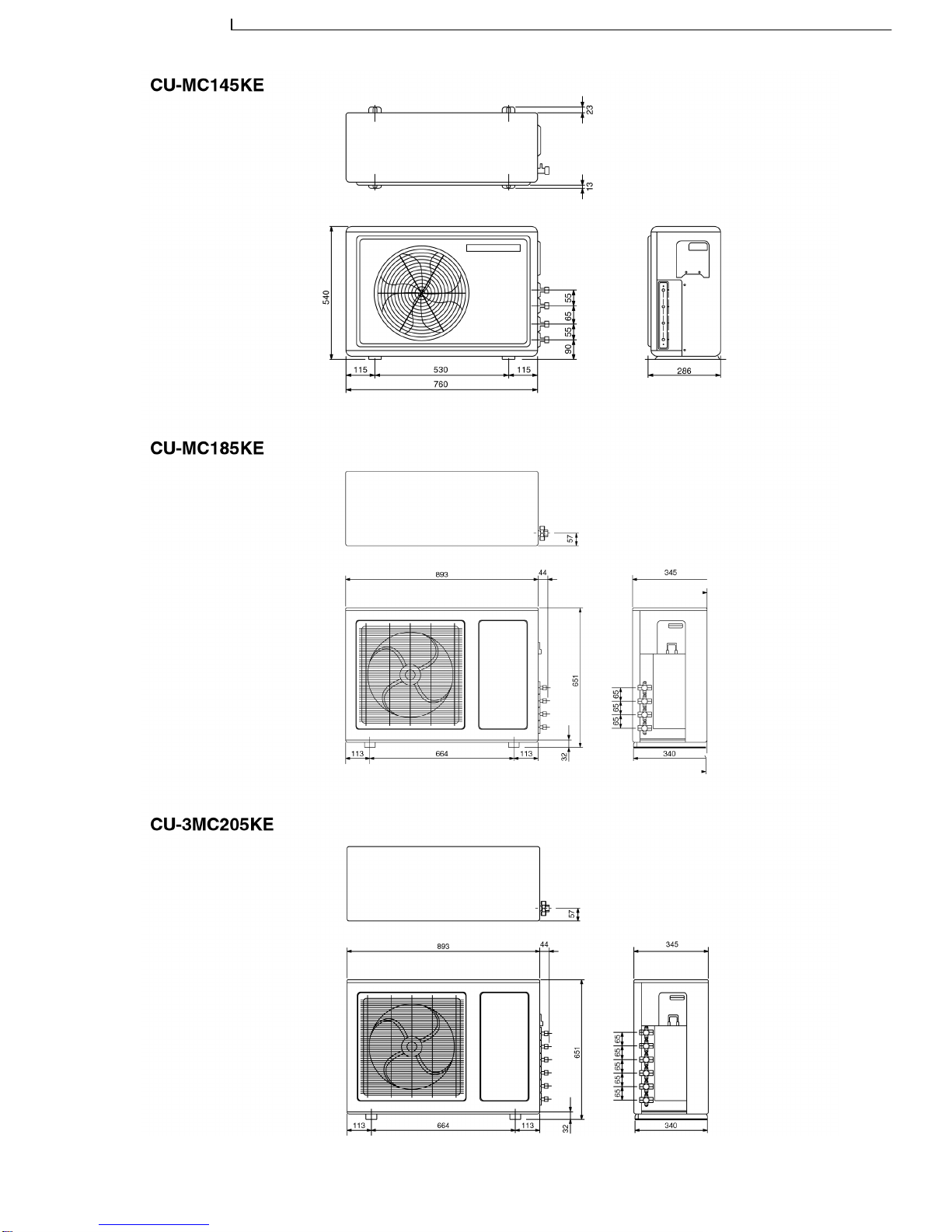

CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

17
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

18
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

19
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE

5 Refrigeration Cycle Diagram
20
CS-MC95KE CU-MC145KE / CS-MC95KE CU-MC185KE / CS-MC95KE CU-3MC205KE / CS-MC125KE CU-MC245KE / CS-MC76KE / CS-MC126KE CU-MC196KE
