Panasonic CS-RE18NKA User manual

F568396
Operating Instructions
Air Conditioner
Model No.
Indoor Unit Outdoor Unit
CS-RE18NKA CU-RE18NKA
CS-RE24NKA CU-RE24NKA
簡易指南
簡易指南
QUICK GUIDE
QUICK GUIDE
中文
在操作空調器前,請細讀此操作說明,並保
存此書以備日後參考。
ENGLISH
Before operating the unit, read these operating
instructions thoroughly and keep them for future
reference.
© Panasonic Appliances Air-Conditioning Malaysia
Sdn. Bhd. 2012. Unauthorized copying and distribution
is a violation of law.

2
中文 感謝您購買Panasonic 空調器
目錄
目錄
操作條件
安全措施 4~5
遙控器 6~7
信息 7
室內機 8
故障檢修 9
簡易指南 封底
注: 本操作說明書裡的圖解僅作為說明用途,並且可能與實際產品有所區别。若因為產品改進而發生
變更,恕不另行通知。
ENGLISH Thank you for purchasing Panasonic Air Conditioner
TABLE OF CONTENTS
TABLE OF CONTENTS
OPERATION CONDITION
SAFETY PRECAUTIONS 10~11
REMOTE CONTROL 12~13
INFORMATION 13
INDOOR UNIT 14
TROUBLESHOOTING 15
QUICK GUIDE BACK COVER
NOTE : The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are
subjected to change without notice for future improvement.

3
目錄 操作條件
操作條件
在以下溫度範圍內使用空調器
溫度 (°C)
室內 室外
* DBT:
乾球溫度
* WBT: 濕球溫度
*DBT *WBT *DBT *WBT
製冷 最高 32 23 43 26
最低 16 11 16 11
製暖 最高 30 - 24 18
最低 16 - -5 -6
TABLE OF CONTENTS OPERATION CONDITION
OPERATION CONDITION
Use this air conditioner under the following temperature range
Temperature (°C) Indoor Outdoor
* DBT: Dry bulb temperature
* WBT: Wet bulb temperature
*DBT *WBT *DBT *WBT
COOLING Max. 32 23 43 26
Min. 16 11 16 11
HEATING Max. 30 - 24 18
Min. 16 - -5 -6

4

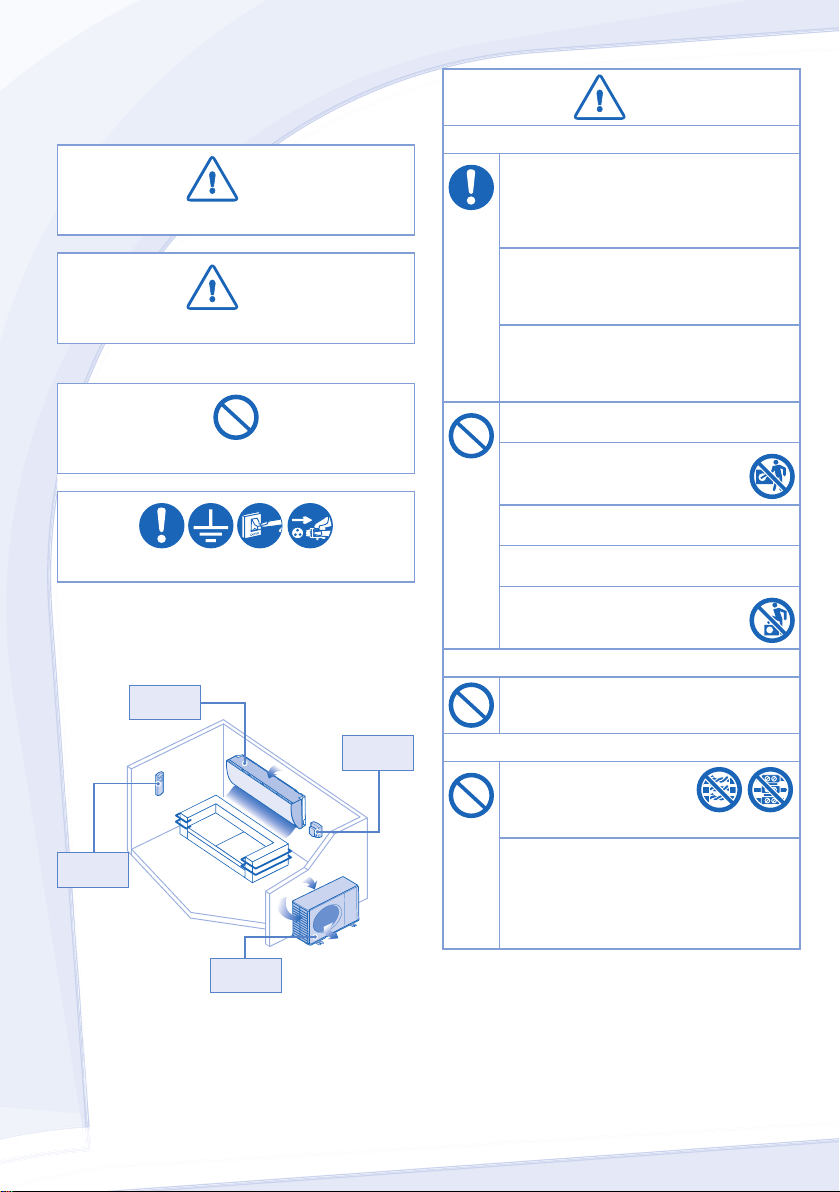

空氣
空氣
吸入口
吸入口
空氣吸入口
空氣吸入口
空氣吹出口
空氣吹出口
空氣
空氣
吹出口
吹出口
室內機
遙控器
室外機
電源
安全措施
為了防止個人傷害，危害其他人或財物的損失，
請遵守以下指示。
因不遵守以下指示導致的錯誤操作將引起傷害或損
壞，其嚴重程度分類如下：
警告
警告
此標識所示的行為有可能導致嚴重傷害或死亡。
注意
注意
此標識所示的行為有可能導致傷害或財產損失。
要遵守的指示按下列符號分類：
此符號表示被禁止的行為。
此符號表示務必執行的行為。
警告
警告
室内機及室外機
此裝置不適合殘疾、感應欠佳或智障，
經驗與知識不足的人士（包括兒童）使
用。除非負責其安全的監督人從旁監督
或指示如何正確使用此裝置。務必監督
兒童以確保他們不會玩弄本機。
請諮詢授權經銷商或專業人員清洗内部
零件，修理，安裝，拆卸和重新安裝本
機。安裝和處理不當將導致漏電，觸電
或火災。
請向授權經銷商或專業人員確認指定製
冷劑類型之運用。使用非指定製冷劑類
型會導致產品損壞，爆裂並導致傷害
等。
切勿將本機安裝在爆炸或可燃性的環境
中。否則會導致火災。
切勿把手指或其他物件插入空調
器的室内或室外機以免受到旋轉
部件傷害。
閃電時切勿觸摸室外機，否則會導致觸
電。
切勿長時間受冷氣流直接吹拂以免過
冷。
切勿坐或踩踏在主機上以免意外
摔跤。
遙控器
切勿讓嬰兒和小孩玩遙控器以免不小心
吞下電池。
電源
切勿採用改裝電線，接
合電線，延長電線或非
指定的電線,以免過熱及
火災。
為免過熱，火災或觸電：
• 切勿與其他設備共用一個電源插座。
• 切勿用潮濕的手操作。
• 切勿過度扭曲電線。
• 切勿以插入或拉出插頭的方式來操作或
停止本機。

5
中文
注意
注意
室内機及室外機
切勿用水、苯、稀釋劑或潔亮粉末清
洗室内機以免損壞或腐蝕本機。
切勿充作其他用途，如貯藏食物、動
物、植物、藝術品或其他物件。否則會
破壞品質等。
切勿在氣流出口使用任何易燃器具以免
引起火災。
切勿讓植物或寵物受冷氣流直接吹拂以
免損傷等。
切勿觸摸尖銳的鋁散熱片以免受
到尖銳部件傷害。
當在地面打蠟時切勿開啟室内機。打蠟
完畢之後，請先讓房間良好通風再操作
本機。
切勿將本機安裝在油煙重的場所以免損
壞本機。
切勿拆卸本機來進行清洗工作以免受
傷。
當清洗本機時切勿踩踏在不穩固的架子
上以免受傷。
切勿將花瓶或水容器放置在本機上。水
會進入本機而導致絕緣受到破壞。這會
引起觸電。
切勿在製冷或除濕模式下長時間打開門
窗。
確保排水軟管連接正確和不受通水道，
容器阻擋或浸在水裏以免漏水。
長時間使用或與其他易燃設備一起使用
後請定時讓房間通風換氣。
長期使用後，請注意安裝支架是否有損
壞以免主機墜落。
遙控器
切勿使用可充電電池 (Ni-Cd)。
它會損壞遙控器。
為免遙控器失靈或損壞：
• 如果準備長期不使用本機，務必將電池
取出。
• 務必採用同類型的新電池並對準電極插
入。
電源
切勿以抽拉電線的方式來拔除插頭以免
觸電。
警告
警告
電源
如果電線損壞，必須由製造商或其服務
代理商或具有同等資格的合格人員進行
更換，以免遭受危害。
強烈建議您安裝接地漏電電源斷路器
(ELCB) 或殘餘電流裝置 (RCD) 以免觸電
或火災。
為免過熱，火災或觸電：
• 妥當插入插頭。
• 務必定時用乾布擦掉插頭上的灰塵。
當出現任何異常/故障時，請停止使用
本機，拔出電插頭或關掉電源開關及斷
路器。
(煙霧/火災/觸電危險)
異常/故障舉例
• 接地漏電電源斷路器 (ELCB) 頻繁跳
閘。
• 出現燒焦味。
• 本機出現異常噪音或振動。
• 室内機漏水。
• 電線或插頭變得異常熱。
• 無法控制風量。
• 本機立即停止運轉，雖然已經打開準備
操作。
• 雖然已經停止操作, 風扇仍然不停止轉
動。
立即諮詢經銷商以進行保養/修理。
本設備必須接地以免觸電或火災。
為免觸電，請在下列情況時關閉電源並
拔出插頭：
- 清洗或維修之前。
- 長期不使用時。
- 異常強烈閃電時。

6

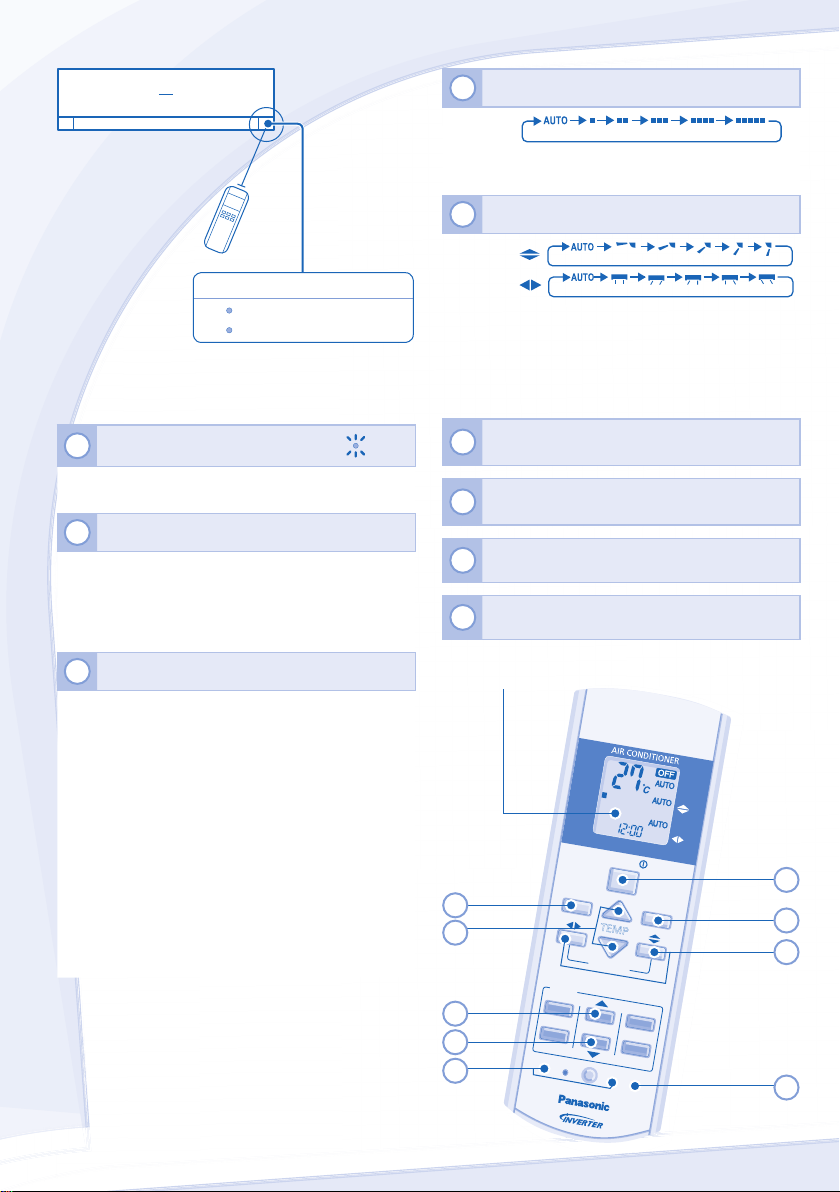

遙控器顯示屏
遙控器
最遠距離: 8米
指示燈
POWER
(綠色)
TIMER
(橙色)
4選擇風量(5 級選擇)
FAN
S
PEED
• 至於自動運轉，室内風扇風量將依據運轉模式自
動調節。
5調節垂直風向(5 級選擇)
AIR SWING
• 保持室內空氣循環。
• 在製冷/除濕模式下，如果設定為自動風向時，
導風板將自動向左/右及向上/下擺動。
• 在製暖模式下, 如果設定為自動風向時,水平風
向導風板將被固定在預先決定的位置。當溫度升
高時，垂直風向導風板將左/右擺動。
6持續按下 5 秒以調暗或恢復主機的指示燈
亮度。
7持續按下大約 10 秒以在 °C 或°F 格式中顯
示溫度。
8按下以恢復遙控器的出廠設定。
9在正常操作下不使用。
按下遙控器的按鈕
1啟動或關閉主機
POWER
• 請留意遙控顯示屏上的 OFF 顯示以防本機不正當
地啟動/停止。
2設定溫度
• 選擇範圍﹕16°C ~ 30°C。
• 在所建議的溫度內操作本機可為您節省能源。
HEAT﹕20°C ~ 24°C。
COOL﹕26°C ~ 28°C。
DRY﹕比室温低 1°C ~ 2°C。
3選擇運轉模式
AUTO - 給您方便
• 本機將按照温度設定，室外和室内温度選擇運轉
模式。
• 每30 分鐘，操作模式將重新選擇。在運轉模式
選擇時，電源指示燈將閃爍。
HEAT - 享受暖氣
• 在製暖模式中，主機需要一些時間暖化。在此運
轉中電源指示燈會閃爍。
COOL - 享受清涼
• 為了在製冷模式下降低耗電量，請拉上窗簾以避
免陽光直接照射和室外暖氣進入。
DRY - 為您創造乾爽的環境
• 空調以低速運轉，進行極為柔和的製冷運轉。
MODE
TEMP
OFF/ON
TIMER
SET
CANCEL
ON
OFF
123
AIR SWING
FAN
SPEED
AIR
SWING
AUTO
HEAT
COOL
DRY
FAN SPEED
SET CHECK CLOCK RESET
AC RC
3
4
5
6
7
1
8
2
9

7
中文
信息
設定預約時間
設定預約時間
• 要在預設時間内啟動或關閉主機時。
ON
OFF
12
TIMER
S
ET
選擇“ON(開
機)”或
“OFF(關
機)”模式
設定時間 確認
• 按
O
N或OFF , 然後按下 CANCEL 以取消開機
或關機定時預約時間。
• 當設定了定時開機時，為了在您設定的時間
內達到您所設定的溫度，空調器會在設定的
時間提前運轉(高達 30 分鐘)。
• 定時預約機能將依據遙控器所設定的時間操
作，並且一旦被設定後會每天重覆操作。至
於時鐘設定，請參閱封底的遙控器的凖備。
• 如果自行取消定時預約或因爲發生停電而被
取消，您可按下 SET 以恢復之前的設定(在
電流恢復後)。
至於長期不使用時的換季檢查
• 檢查遙控器的電池。
• 確保室內機或室外機的空氣吸入或吹出口順暢
無阻。
• 用自動關/開按鈕來選擇製冷/製暖運轉。運轉
15 分鐘後，在正常情況下，室內機空氣吸入及
吹出口的溫差為：
製冷: ≥8°C 製暖: ≥14°C
長期不使用時
• 啟動製暖模式 2 至3 小時是徹底排除留在内部機
件的濕氣，以防止微菌滋生。
• 關閉電源並拔出插頭。
• 取出遙控器的電池。
不可維修的情況
若出現以下情況，請關掉電源並拔出插頭，然
後諮詢授權經銷商：
• 運轉時發出異常噪音。
• 有水/異物進入遙控器。
• 室內機漏水。
• 電源斷路器經常跳閘。
• 電線異常發熱。
• 開關鈕或按鈕不能正常操作。
關於用戶回收與丟棄舊設備及電池的信息
[非歐共體國家的處理信息]
這些符號僅有效於歐洲共同體。如果您
要丟棄這些物件，請諮詢您的當地政府
或經銷商並詢問正確的丟棄方式。
電池符號的注意事項（底部兩個符號
舉例)：
此符號可與化學符號綜合使用。在此
情況下，它須符合制定給該化學的使
用條件。
Pb

8

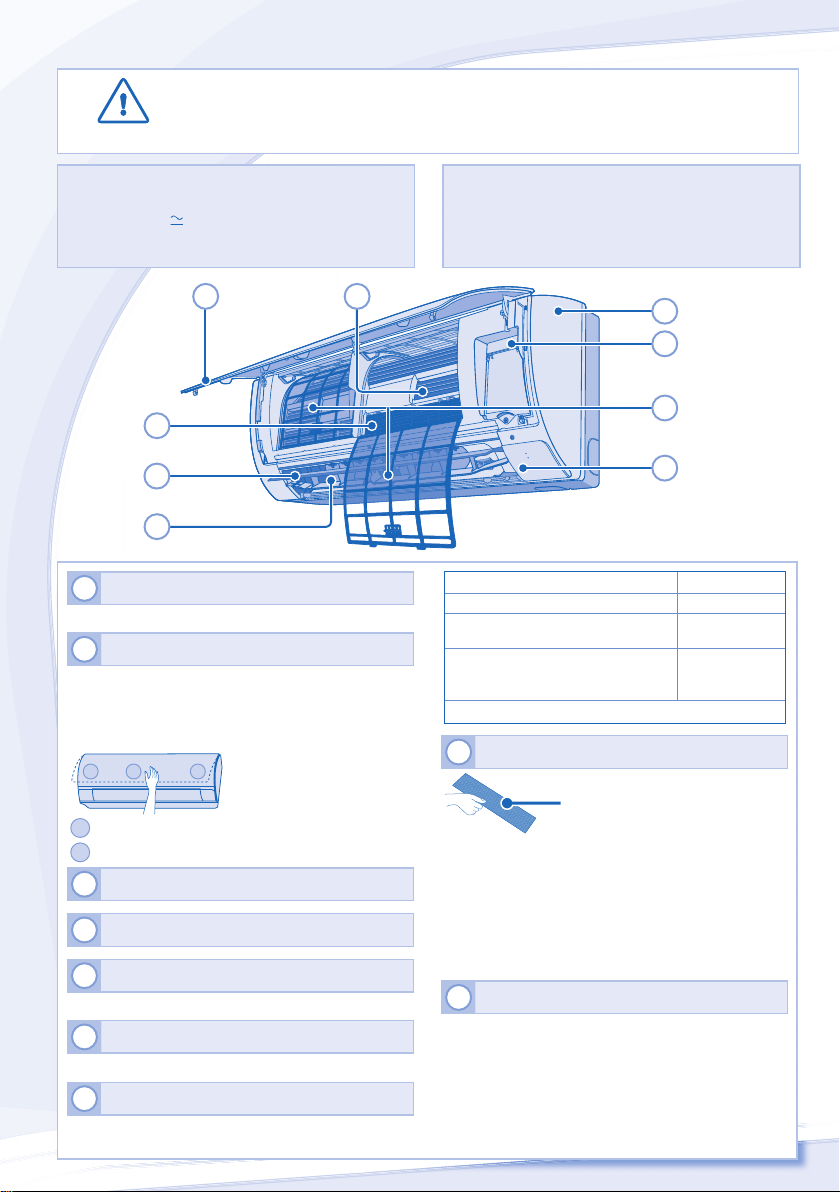

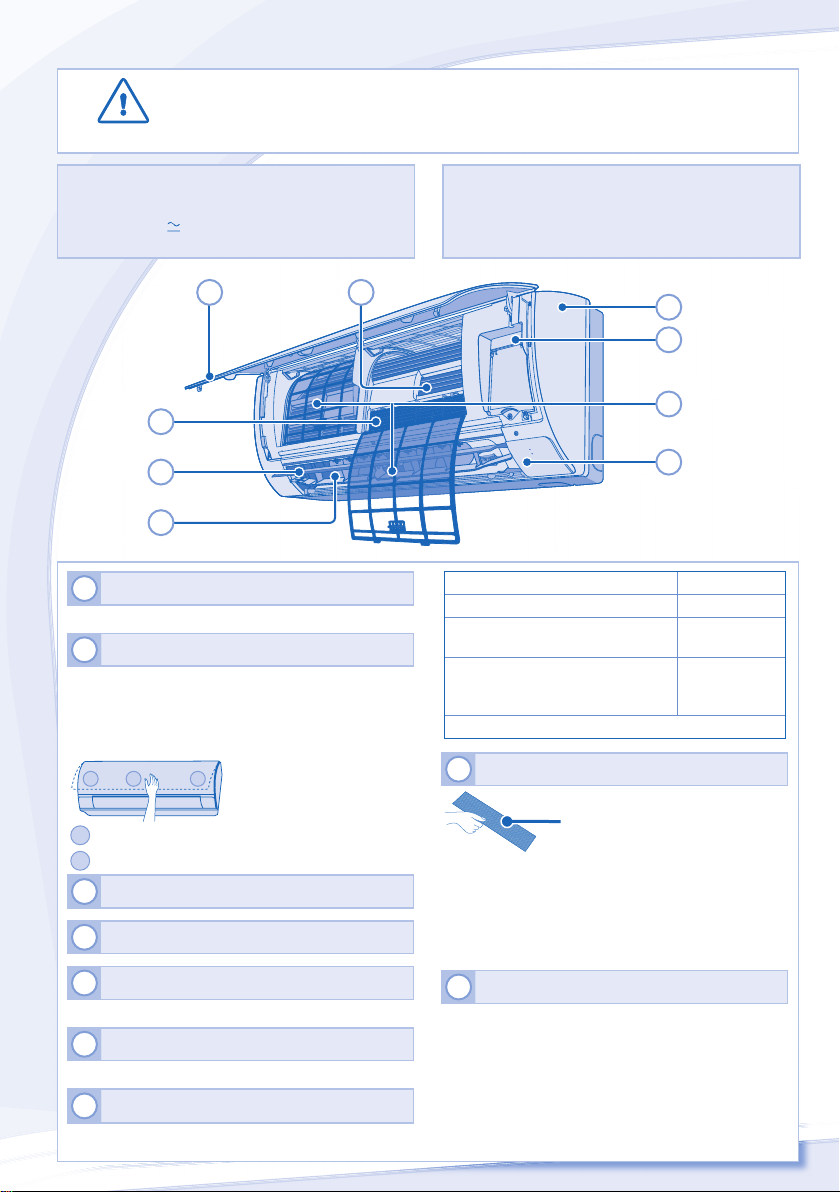

注意
•進行清洗前，關掉電源並拔出插頭。
•切勿觸摸鋁片，尖銳部分會造成傷害。
室內機
清洗說明
清洗說明
提示
提示
• 切勿使用稀釋劑、苯、潔亮粉。
• 僅使用肥皂 ( pH7) 或中性家用清潔劑。
• 切勿使用溫度高過 40°C 的水。
• 為了確保本機發揮最佳功能，您必須進行
定期維修清洗。本機變髒會導致故障並出
現“H99”錯誤代碼。請諮詢授權經銷商。
1室內機
• 使用乾、軟的布輕抹。
2正面板
打開正面板
• 向上提及拉開以取出正面板。
• 輕洗並弄乾。
關上正面板
21 1
1將正面板的兩端往下按以便關上。
2按正面板的中間將其確實關上。
3遙控接收器
4鋁片
5水平風向導風板
• 切勿用手調節。
6垂直風向導風板
• 切勿用手調節。
7自動關/開按鈕
• 當遙控器遺失或失靈時使用。
動作 模式
按一次。 自動
持續按下直到聽見一
聲“嗶”，然後鬆開。 製冷
持續按下直到聽見一
聲“嗶”，然後鬆開。再按下
直到兩聲“嗶”, 然後鬆開。
製暖
按下按鈕以關閉。
8抗菌過濾網
抗菌過濾網
• 如有需要,請清洗過濾網。
• 用水輕輕清洗/冲洗過濾網以免損壞過濾網。
• 在陰凉處徹底弄乾過濾網，遠離火源或直射陽
光。
• 每10 年或損壞，請購買及更換新的過濾網。
零件編號﹕CZ-SA22P
9空氣過濾網
• 每兩星期需要清洗空氣過濾網。
• 用水輕輕清洗/冲洗過濾網以免損壞過濾網的
表層。
• 在陰凉處徹底弄乾過濾網，遠離火源或直射陽
光。
• 請更換損壞的過濾網。
POWER
TIMER
2
6
5
7
1
4
3
9
8

9
中文

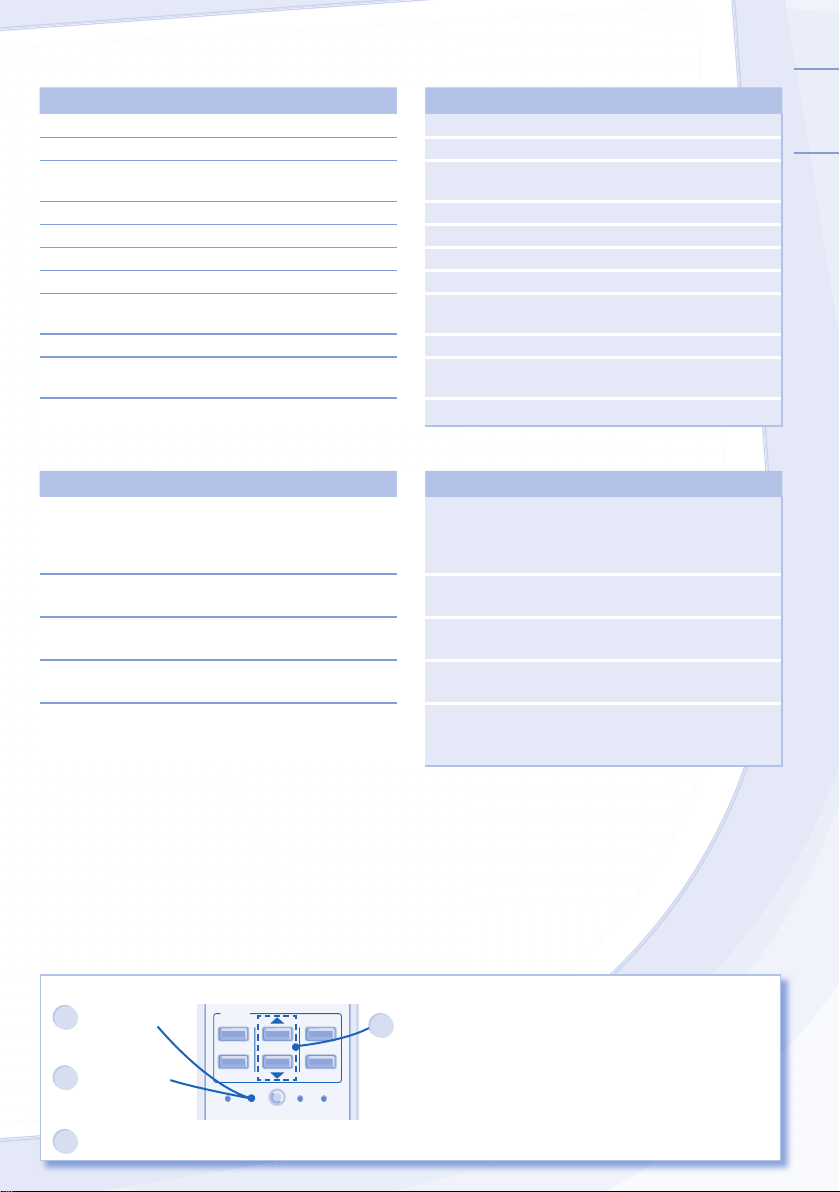

以下現象並非表示故障。
以下現象並非表示故障。
現象
現象
原因
原因
室內機散發出霧氣。 ►• 製冷導致冷凝現象。
運轉時，聽見類似流水聲。 ►• 機內製冷劑流動的聲音。
室內有異味。 ►• 這可能是牆壁、地毯、家具或衣物散發出來的
氣味。
在自動風量設定中，室內風扇時開時停。 ►• 這是為了排除周圍所發出的異味。
重新啟動後，運轉延遲幾分鐘。 ►• 此延遲用於保護本機壓縮機。
室外機滴水/蒸氣。 ►• 這是配管表面水蒸氣冷凝或蒸發的現象。
定時器的指示燈一直亮。 ►• 一旦設定後，定時預約設定會每天重覆操作。
在運轉中及室内風扇停止轉動時電源指示燈會閃
爍。
►• 主機處於除霜模式，而溶化的結霜將從室外機
排除。
在製暖運轉時室内風扇偶爾停止轉動。 ►• 以免產生不必要的製冷效果。
在打開主機以前電源指示燈會閃爍。 ►• 這是當開機定時預約時間被設定時凖備開始操
作的初步工作。
運轉時發出吱嗄噪聲。 ►• 温度變化造成主機膨脹或收縮。
在進行维修之前請先檢查以下各項。
在進行维修之前請先檢查以下各項。
現象
現象
檢查
檢查
製暖/製冷運轉無法有效地操作。 ►• 設定正確溫度。
• 關上所有房門及窗戶。
• 清洗或更換過濾網。
• 移除阻擋空氣吸入或吹出口的任何阻礙物。
運轉時產生噪音。 ►• 檢查是否装斜了主機。
• 妥善關閉正面板。
遙控器不操作。
(顯示屏變暗或傳輸信號微弱。)
►• 正確地安装電池。
• 更換微弱的電池。
本機不能啟動。 ►• 檢查是否是電流斷路器跳開了。
• 檢查是否已設定預約時間。
本機沒有從遙控器收到信號。 ►• 確認接收器不受阻礙。
• 某種類型的螢光燈可能會影響訊號接收。請諮
詢授權經銷商。
故障檢修
主機停止操作及定時預約指示燈閃爍。
用遙控器檢索錯誤代碼。
TIMER
SET
CANCEL
ON
OFF
123
SET CHECK CLOCK RESET
AC RC
1按下 5
秒
秒
。
。
3按下 5 秒即
可退出故障
診斷模式。
2按下直到您聼
見“嗶”聲，然後
抄下錯誤代碼。
注 ：
注 ：
• 至於某些錯誤代碼
在運轉啟動時您可聽
見4 聲嗶聲重新啟動
主機於某些限制運
轉。
4關閉空調並將故障代碼告知授權經銷商。

10

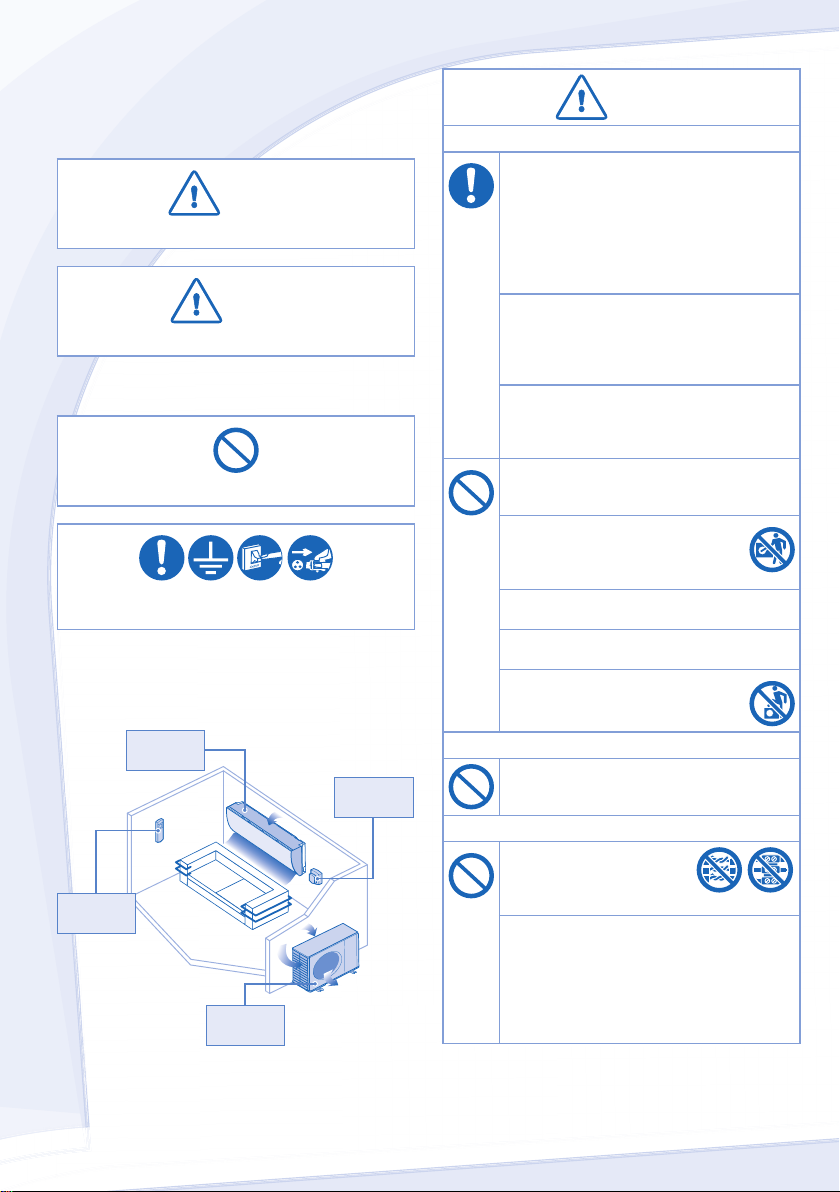

SAFETY PRECAUTIONS
To prevent personal injury, injury to others, or property
damage, please comply with the following.
Incorrect operation due to failure to follow instructions below
may cause harm or damage, the seriousness of which is
classified as below:
WARNING
WARNING
This sign warns of death or serious injury.
CAUTION
CAUTION
This sign warns of injury or damage to property.
The instructions to be followed are classified by the following
symbols:
This symbol denotes an action that is PROHIBITED.
These symbols denote an actions that is
COMPULSORY.
WARNING
WARNING
INDOOR UNIT AND OUTDOOR UNIT
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety. Children should be supervised to
ensure that they do not play with the appliance.
Please consult authorized dealer or specialist to
clean the internal parts, repair, install, remove
and reinstall the unit. Improper installation and
handling will cause leakage, electric shock or
fire.
Confirm to authorized dealer or specialist on
usage of specified refrigerant type. Using of
refrigerant other than the specified type may
cause product damage, burst and injury etc.
Do not install the unit in a potentially explosive
or flammable atmosphere. Failure to do so could
result in fire.
Do not insert your fingers or other
objects into the air conditioner indoor
or outdoor unit, rotating parts may
cause injury.
Do not touch the outdoor unit during lightning, it
may cause electric shock.
Do not expose yourself directly to cold air for a
long period to avoid excess cooling.
Do not sit or step on the unit, you may
fall down accidentally.
REMOTE CONTROL
Do not allow infants and small children to play
with the remote control to prevent them from
accidentally swallowing the batteries.
POWER SUPPLY
Do not use a modified cord,
joint cord, extension cord or
unspecified cord to prevent
overheating and fire.
To prevent overheating, fire or electric shock:
• Do not share the same power outlet with other
equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or
pulling out the power plug.
Air Inlet
Air Inlet
Air Outlet
Air Outlet
Air Outlet
Air Outlet
Air Inlet
Air Inlet
Remote
Control
Power
Supply
Indoor
Unit
Outdoor
Unit

11
ENGLISH
CAUTION
CAUTION
INDOOR UNIT AND OUTDOOR UNIT
Do not wash the indoor unit with water, benzene,
thinner or scouring powder to avoid damage or
corrosion at the unit.
Do not use for preservation of precise
equipment, food, animals, plants, artwork
or other objects. This may cause quality
deterioration, etc.
Do not use any combustible equipment in front of
the airflow outlet to avoid fire propagation.
Do not expose plants or pet directly to airflow to
avoid injury, etc.
Do not touch the sharp aluminium fin,
sharp parts may cause injury.
Do not switch ON the indoor unit when waxing
the floor. After waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and smoky areas to
prevent damage to the unit.
Do not dismantle the unit for cleaning purpose to
avoid injury.
Do not step onto an unstable bench when
cleaning the unit to avoid injury.
Do not place a vase or water container on the
unit. Water may enter the unit and degrade the
insulation. This may cause an electric shock.
Do not open window or door for long time during
COOL/DRY mode operation.
Ensure drainage pipe is connected properly and
keep drainage outlet clear of gutters, containers
or does not immersed in water to prevent water
leakage.
After a long period of use or use with any
combustible equipment, aerate the room
regularly.
After a long period of use, make sure the
installation rack does not deteriorate to prevent
the unit from falling down.
REMOTE CONTROL
Do not use rechargeable (Ni-Cd) batteries.
It may damage the remote control.
To prevent malfunction or damage of the remote
control:
• Remove the batteries if the unit is not going to
be used for a long period of time.
• New batteries of the same type must be
inserted following the polarity stated.
POWER SUPPLY
Do not pull the cord to disconnect the plug to
prevent electric shock.
WARNING
WARNING
POWER SUPPLY
If the supply cord is damage, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
It is strongly recommended to be installed
with Earth Leakage Circuit Breaker (ELCB)
or Residual Current Device (RCD) to prevent
electric shock or fire.
To prevent overheating, fire or electric shock:
• Insert the power plug properly.
• Dust on the power plug should be periodically
wiped with a dry cloth.
Stop using the product if any abnormality/failure
occurs and disconnect the power plug or turn off
the power switch and breaker.
(Risk of smoke/fire/electric shock)
Examples of abnormality/failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of the unit is
observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately even if it is
switched on for operation.
• The fan does not stop even if the operation is
stopped.
Contact your local dealer immediately for
maintenance/repair.
This equipment must be earthed to prevent
electrical shock or fire.
Prevent electric shock by switching off the power
supply and unplug when:
- Before cleaning or servicing.
- Extended non-use.
- Abnormally strong lightning activity.

12
MODE
TEMP
OFF/ON
TIMER
SET
CANCEL
ON
OFF
123
AIR SWING
FAN
SPEED
AIR
SWING
AUTO
HEAT
COOL
DRY
FAN SPEED
SET CHECK CLOCK RESET
AC RC
3
4
5
6
7
1
8
2
9
Remote
Control display
REMOTE CONTROL
Maximum distances: 8m
INDICATOR
POWER
(Green)
TIMER
(Orange)
4TO SELECT FAN SPEED (5 OPTIONS)
FAN
S
PEED
• For AUTO, the indoor fan speed is automatically adjusted
according to the operation mode.
5TO ADJUST VERTICAL AIRFLOW DIRECTION
(5 OPTIONS)
AIR SWING
• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swing
left/right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver fix at
predetermined position. The vertical louver swing left/right
after the temperature rises.
6Press and hold for 5 seconds to dim or restore the
unit’s indicator brightness.
7Press and hold for approximately 10 seconds to
show temperature setting in °C or °F.
8Press to restore the remote control’s default setting.
9Not used in normal operations.
Press the remote control’s button
1TO TURN ON OR OFF THE UNIT
POWER
• Please be aware of the OFF indication on the remote
control display to prevent the unit from starting/stopping
improperly.
2TO SET TEMPERATURE
• Selection range: 16˚C ~ 30˚C.
• Operating the unit within the recommended temperature
could induce energy saving.
HEAT mode : 20˚C ~ 24˚C.
COOL mode : 26˚C ~ 28˚C.
DRY mode : 1˚C ~ 2˚C lower than room temperature.
3TO SELECT OPERATION MODE
AUTO mode - For your convenience
• Unit selects the operation mode according to temperature
setting, outdoor and room temperature.
• Operation mode is reselected every 30 minutes. During
operation mode selection the power indicator blinks.
HEAT mode - To enjoy warm air
• In heat mode, it takes a while for the unit to warm up. The
power indicator blinks during this operation.
COOL mode - To enjoy cool air
• Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during cool mode.
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.

13
ENGLISH
INFORMATION
FOR SEASONAL INSPECTION AFTER EXTENDED
NON-USE
• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select Cooling/Heating
operation. After 15 minutes of operation, it is normal to
have the following temperature difference between air
inlet and air outlet vents:
Cooling: ≥8°C Heating: ≥14°C
FOR EXTENDED NON-USE
• Activate Heat mode for 2~3 hours as an alternative to
remove moisture left in the internal parts thoroughly to
prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.
NON SERVICEABLE CRITERIAS
TURN OFF POWER SUPPLY AND UNPLUG then
please consult authorized dealer under the following
conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote
control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
Information for Users on Collection and Disposal of Old Equipment and used Batteries
[Information on Disposal in other Countries
outside the European Union]
These symbols are only valid in the European
Union. If you wish to discard these items,
please contact your local authorities or dealer
and ask for the correct method of disposal.
Note for the battery symbol (bottom two
symbol examples):
This symbol might be used in combination with
a chemical symbol. In this case it complies with
the requirement set by the Directive for the
chemical involved.
Pb
TO SET THE TIMER
TO SET THE TIMER
• To turn ON or OFF the unit at a preset time.
ON
OFF
12
TIMER
S
ET
Select ON or
OFF timer Set the time Confirm
• To cancel ON or OFF timer, press
O
N
or OFF then
press CANCEL.
• When ON Timer is set, the unit may start earlier (up
to 30 minutes) before the actual set time in order to
achieve the desired temperature on time.
• Timer operation is based on the clock set in the
remote control and repeats daily once set. For clock
setting, please refer to Remote Control Preparation
on the back cover.
• If timer is cancelled manually or due to power failure,
you can restore the previous setting (once power is
resumed) by pressing
SET
.

14
CAUTION
•Switch off the power supply and unplug before cleaning.
•Do not touch the aluminium fin, sharp parts may cause injury.
INDOOR UNIT
CLEANING INSTRUCTIONS
CLEANING INSTRUCTIONS
HINT
HINT
• Do not use benzene, thinner or scouring powder.
• Use only soap ( pH7) or neutral household detergent.
• Do not use water hotter than 40°C.
• To ensure optimal performance of the unit, cleaning
maintenance has to be carried out at regular intervals.
Dirty unit may cause malfunction and you may see error
code “H99”. Please consult authorized dealer.
1INDOOR UNIT
• Wipe the unit gently with a soft, dry cloth.
2FRONT PANEL
Remove Front Panel
• Raise and pull to remove the front panel.
• Wash gently and dry.
Close Front Panel
21 1
1Press down both ends of the front panel to close it.
2Press at center of the front panel to close it securely.
3REMOTE CONTROL RECEIVER
4ALUMINIUM FIN
5HORIZONTAL AIRFLOW DIRECTION LOUVER
• Do not adjust by hand.
6VERTICAL AIRFLOW DIRECTION LOUVER
• Do not adjust by hand.
7AUTO OFF/ON BUTTON
• Use when remote control is misplaced or a
malfunction occurs.
Action Mode
Press once. Auto
Press and hold until 1 beep is heard,
then release. Cooling
Press and hold until 1 beep is heard,
then release.
Press again until 2 beeps, then release.
Heating
Press the button to turn off.
8ANTI-BACTERIAL FILTER
Anti-bacterial filter.
• Clean the filter whenever necessary.
• Wash/rinse the filter gently with water to avoid damage
to the filter.
• Dry the filter thoroughly under the shade, away from fire
or direct sunlight.
• Replace the filter every 10 years or replace any
damaged filter.
Part no.: CZ-SA22P
9AIR FILTERS
• Air filter cleaning is required every two weeks.
• Wash/rinse the filters gently with water to avoid damage
to the filter surface.
• Dry the filters thoroughly under shade, away from fire or
direct sunlight.
• Replace any damaged filters.
POWER
TIMER
2
6
5
7
1
4
9
8
3

15
ENGLISH
The following symptoms do not indicate malfunction.
The following symptoms do not indicate malfunction.
SYMPTOM
SYMPTOM
CAUSE
CAUSE
Mist emerges from indoor unit. ►• Condensation effect due to cooling process.
Water flowing sound during operation. ►• Refrigerant flow inside the unit.
The room has a peculiar odor. ►• This may be due to damp smell emitted by the wall,
carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed
setting.
►• This helps to remove the surrounding odours.
Operation is delayed a few minutes after restarting. ►• The delay is a protection to the unit’s compressor.
Outdoor unit emits water/steam. ►• Condensation or evaporation occurs on pipes.
TIMER indicator is always on. ►• The timer setting repeats daily once set.
POWER indicator blinks during operation and the indoor
fan is stopped.
►• The unit is in defrost mode, and the melted frost is
drained from the outdoor unit.
Indoor fan stops occasionally during heating operation. ►• To avoid unintended cooling effect.
POWER indicator blinks before the unit is switched on. ►• This is a preliminary step in preparation for the operation
when the ON timer has been set.
Cracking sound during operation. ►• Changes of temperature caused the expansion/
contraction of the unit.
Check the following before calling for servicing.
Check the following before calling for servicing.
SYMPTOM
SYMPTOM
CHECK
CHECK
Heating/Cooling operation is not working efficiently. ►• Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. ►• Check if the unit has been installed at an incline.
• Close the front panel properly.
Remote control does not work.
(Display is dim or transmission signal is weak.)
►• Insert the batteries correctly.
• Replace weak batteries.
The unit does not work. ►• Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from the remote
control.
►• Make sure the receiver is not obstructed.
• Certain fluorescent lights may interfere with signal
transmitter. Please consult authorized dealer.
TROUBLESHOOTING
The unit stops and the TIMER indicator blinks.
Use remote control to retrieve error code.
TIMER
SET
CANCEL
ON
OFF
123
SET CHECK CLOCK RESET
AC RC
1Press for 5
seconds.
3Press for 5
seconds to
quit checking.
2Press until you hear
beep sound, then
write down the error
code.
Note:
• For certain errors, you
may restart the unit for
limited operation with 4
beeps when operation
starts.
4Turn the unit off and reveal the error code to authorized dealer.

Panasonic Corporation
Website: http://panasonic.net/
MODE
TEMP
OFF/ON
TIMER
SET
CANCEL
ON
OFF
123
AIR SWING
FAN
SPEED
AIR
SWING
AUTO
HEAT
COOL
DRY
FAN SPEED
SET CHECK CLOCK RESET
AC RC
MODE
MODE
AUTO HEAT
DRY COOL
選擇所需要的模式。
Select the desired mode.
1
OFF/ON
OFF/ON
開始/停止操作。
Start/stop the operation.
2
TEMP
TEMP
選擇所需要的溫度。
Select the desired temperature.
3
簡易指南/QUICK GUIDE
2
13
Printed in Malaysia
F568396
YS1111-0
遙控器的準備
遙控器的準備
•
•
Remote Control Preparation
Remote Control Preparation
12
3
TIMER
SET
CANCEL
ON
OFF
123
SET CHECK CLOCK RESET
AC RC
4 5 6
1拉出 • Pull out
2裝入 AAA 或R03 電池(可用大約一年) •
Insert AAA or R03 batteries (can be used ~ 1 year)
3把蓋關上 • Close the cover
4按下時間(CLOCK) • Press CLOCK
5設定時間 • Set time
6確認 • Confirm
