1
ENGLISH
HOW TO USE
BEFORE USE
WHEN
NECESSARY
Contents
Features and Accessories........................................2
Safety Precautions..............................................3 – 5
• Installation precautions
• Operation precautions
Name of Each Part for Inverter Aided Air Conditioner ...... 6 – 7
Preparation (Indoor Unit • Remote Control) .....8 – 9
• Operating the remote control
• Inserting batteries
• Setting the clock
Automatic • Heating • Cooling • Soft Dry • Fan..... 10 – 11
Adjusting Airflow Direction and Fan Speed ..... 12 – 13
• To adjust fan speed
• To adjust the vertical airflow direction louvers
• To adjust the horizontal airflow direction louvers
Wide / Spot...............................................................13
Setting theTimers ...........................................14 – 15
Powerful • Sleep ......................................................16
• Powerful mode operation
• Sleep mode operation
Operation Hints .......................................................17
Care and Maintenance ....................................18 – 21
• Cleaning the indoor unit and remote control
• Cleaning the air filters (Once every 2 weeks)
• Cleaning the front panel (Must be remove before washing)
• Replacing the air purifying filters (Once every 3 months)
• Pre-season inspection
• When the air conditioner is not used for an extended
period of time
• Recommended inspection
Troubleshooting ..............................................22 – 23
IsThere a Problem? ................................................24
Helpful Information .................................................25
• Remote control fails to function
• When there is a power failure
• Thunder and lightning
• Voltage fluctuation

▲
2
POWERFUL
TEMP
OFF/ON
INVERTER
Features and Accessories
Cool, quiet, comfort from Panasonic Inverter Aided air conditioner.
Automatic Operation
Selects the optimum mode.
(page 10).
Front Panel
Can be removed for quick
and easy cleaning.
(page 19).
Auto Restart Control
Automatically restarts the unit after
a power failure.
(page 11).
Sleep Mode
Prevents the room from getting
too hot or too cold.
(page 16).
Voltage Fluctuation
Protection
Protects the unit when the power
supplying voltage is out of the
operational range.
(page 25).
Vertical/Horizontal Air Swing
Auto swing for vertical and horizontal
airflow direction.
(page 12).
Powerful Mode
Reaches the desired room
temperature quickly (page 16).
Catechin Air Purifying Filter
Filter that can trap dust, tobacco smoke
and tiny particles in the room. It can
also prevent the growth of bacteria
and viruses trapped in this filter.
(page 2,8 and 20).
Remote Control R03 Dry-cell
batteries (2 pcs) Air Purifying Filter
(Catechin Air Purifying Filter
and Deodorizing Filter)
Remote Control
Indication Label
Self-illuminating Button
For your convenience to
operate in the dark
(page 7).
Deodorizing Filter
Used to remove unpleasant odours and
deodorize the air in the room.
(page 2,8 and 20).
Accessories
Remote Control Holder

▲
3
ENGLISH
Safety Precautions
■This room air conditioner must be earthed.
Improper grounding could cause
electric shock.
■Do not install the unit in a place where there
may be explosive gas leaks.
Gas leaks near the unit could cause
fires.
■Ensure that drainage piping is connected
properly.
Otherwise, water will leak out.
Installation precautions
■Do not install, remove and reinstall the unit yourself.
Improper installation will cause leakage, electric shock or fire. Please consult an authorized dealer or
specialist for the installation work.
Warning : This sign warns of death or serious injury.
Caution : This sign warns of injury or damage to property.
!
!
■The instructions to be followed are classified by the following symbols:
This symbol (with a white background) denotes an action that is
PROHIBITED.
These symbols (with a black background) denotes an action that is
COMPULSORY.
OFF
Before operating, please read the following “Safety Precautions” carefully.
To prevent personal injury, injury to others and property damage, the following instructions must be followed.
■Incorrect operation due to ignoring of instructions will cause harm or damage, the seriousness of which is
classified as follows:
!Caution
! Warning

▲
4
Operation precautions

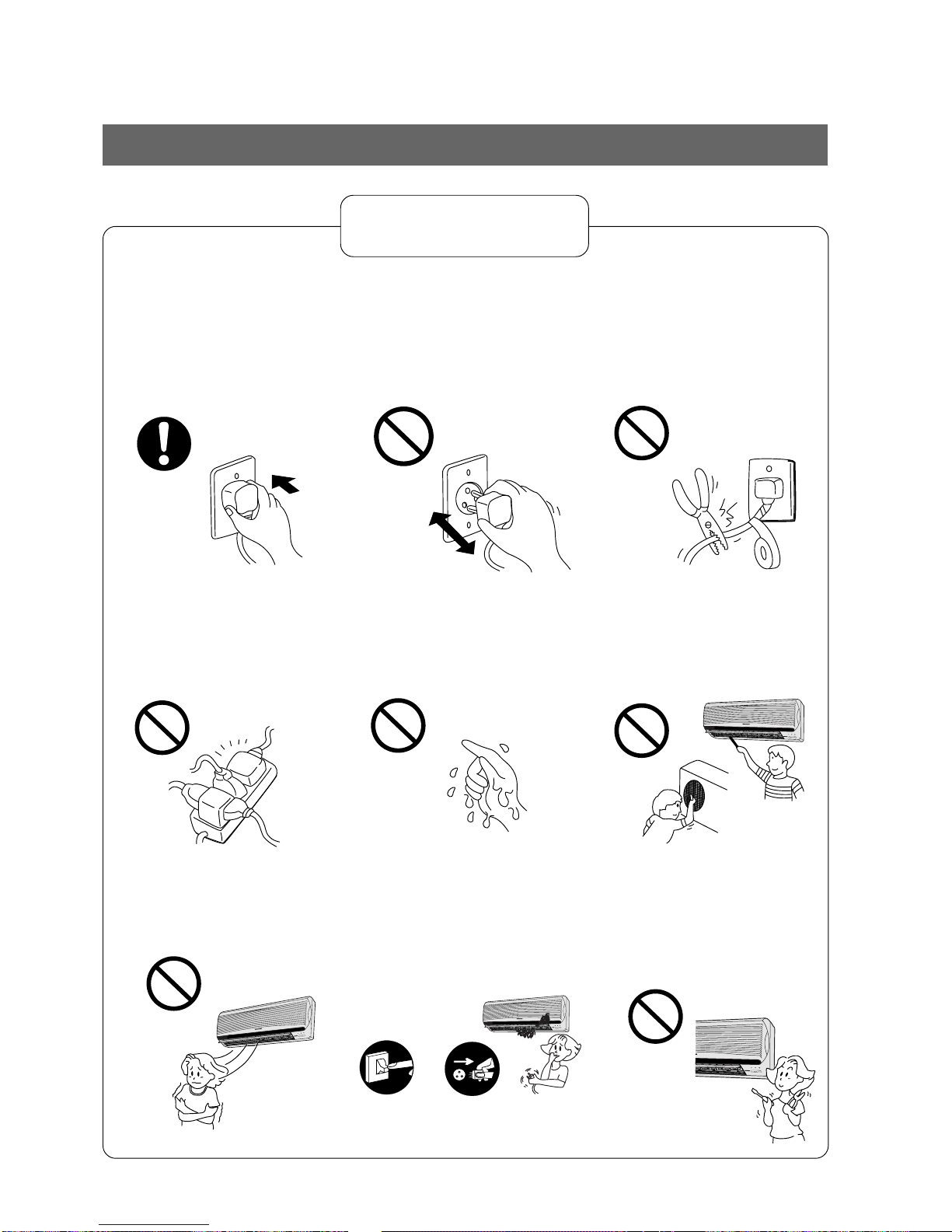

■Do not damage the power
cord or use an unspecified
power cord.
A damaged/unspecified power
cord could cause electric shock
or fire.
■Do not insert finger, sticks or
other objects into the units.
It could lead to physical injury
and cause damage to the units.
■Do not try to repair the unit
yourself.
It could lead to fire or cause an
electric shock. Please call an
authorized dealer or service
center.
■Insert the power plug
properly.
Heat generated by a loose
power plug could cause electric
shock or fire.
Electrical outlet and power plug
shall be easily accessible.
■Do not modify the length of
the power cord or use an
extension cord.
It could cause electric shock or
fire.
■Do not be directly exposed to
the cold airstream for too
long.
It could lead to health problems.
■Do not operate or stop the
unit by inserting or pulling
out the power plug.
It could cause electric shock or
fire.
■Do not operate the unit with
wet hands.
It could cause an electric shock.
■If there is a smell of burning,
stop the air conditioner and
disconnect the power supply.
Please consult an authorized
dealer or service center.
! Warning
Disconnect the
power plug.
Switch off
the breaker.
OFF
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWERMONITOR
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWERMONITOR

▲
5
ENGLISH
■Do not remove the power
plug by pulling the cord.
Hold the plug when
disconnecting the plug from the
wall outlet.
■Do not use for other
purposes.
Do not use for preservation
purposes. It will affect food
quality, animals or plants.
■Do not wash the unit with
water.
It could cause an electric shock.
! Caution
■When cleaning the unit, re-
move the plug.
This is to prevent injury due to
the rotating fan in the unit.
■Ventilate the room regularly.
Since windows are kept closed,
it does good to open them
periodically to ventilate the
room.
■Do not sit or place anything
on the outdoor unit.
You might fall off or the unit
might collapse.
■Switch off the power supply if
theunit is notgoing to be used
for a long period of time.
If dust accumulates on the plug,
it will generate heat and this
could cause a fire.
■Do not place combustor in
the path of the airflow from
the unit.
Incomplete combustion could
causetoxic gas (CO) poisoning.
■Inspect the unit for any
damage.
Ensure that the necessary
repairs are carried out.
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
OFF
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
OFF
Switch off
the breaker.
Disconnect the
power plug.

▲
6
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
Name of Each Part for Inverter Aided Air Conditioner
Indoor unit
Tab for Front Panel
Signal Receptor
Receives signal from the
remote control.
(signal-received sound:
one short beep or one
long beep.)
Front Panel
Air Intake Vent
Panel Opener
Operation Indication Lamps
• POWER - Green
• SLEEP - Orange
• TIMER - Orange
• POWERFUL - Orange
Air Outlet Vent Ground Terminal
(inside cover)
Piping
Connecting Cable
Drain hose
(Side)
(Rear)
Air Intake Vents
Outdoor unit
Power Monitor Lamps
• Lights up from LOW to HIGH to show
the compressor operating condition
• Light off when then compressor stops
Air Purifying Filter
Air Filters
Auto Operation Button
Vertical Airflow
Direction Louver
Horizontal Airflow
Direction Louver
Air Outlet Vent
Power Supply Cord

▲
7
ENGLISH
When back cover is open

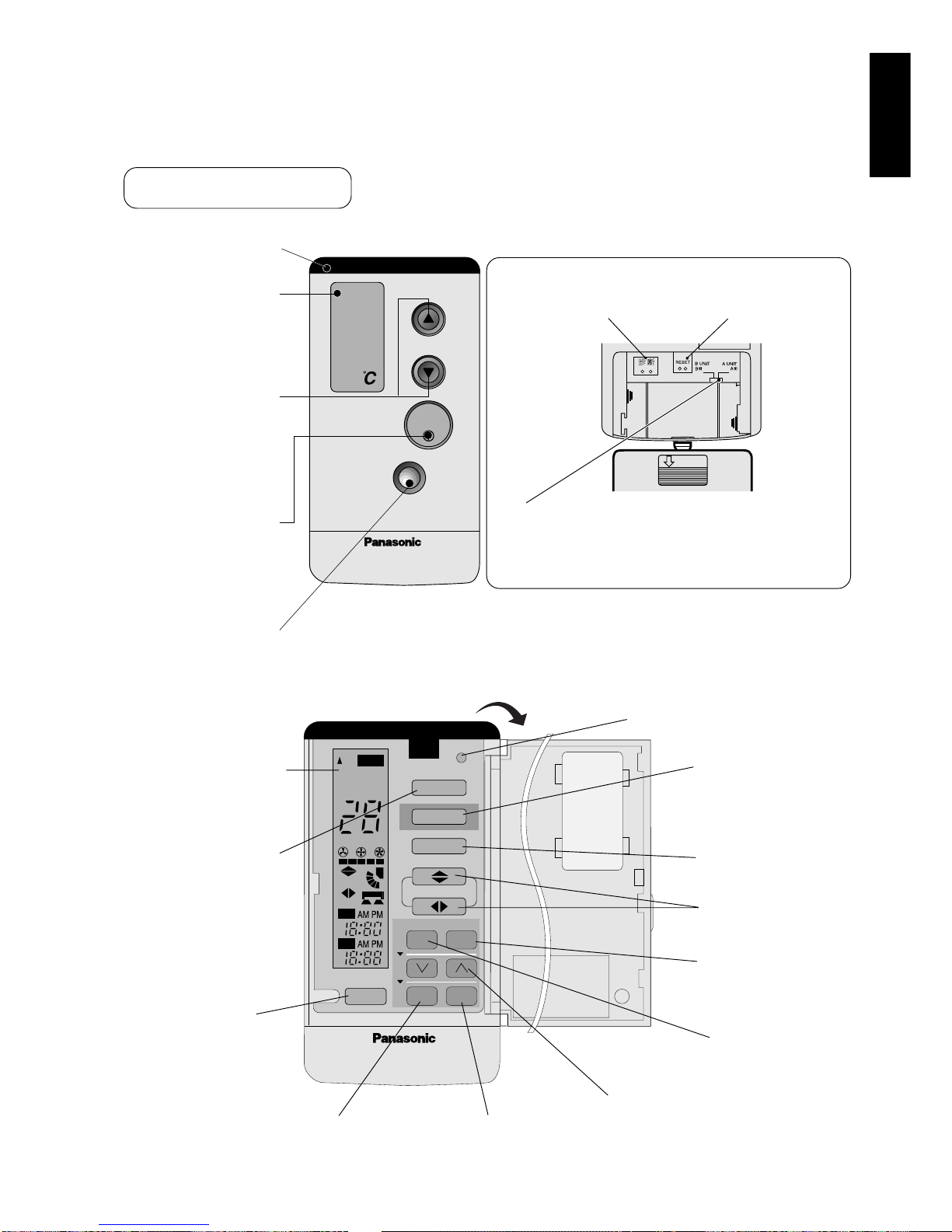

Remote control
HEAT COOL
AUTO
AUTO
AUTO FAN
AUTO
FAN SPEED
WIDE/SPOT
AIR SWING
TIMER
CLOCK
1
2
3
DRY FAN
WIDE SPOT
C
°
ON
OFF
ON OFF
SET
CANCEL
SLEEP
MODE
Operation Display
Sleep Mode
Operation Button ON-TIMER Button
OFF-TIMER Button
Airflow Direction
Selection Button
Set Button
Time-Setting Button
Cancellation Button
Fan Speed
Selection Button
Open the remote control door
Operation Mode
Selection Button
Clock Button
Wide/Spot
Operation Button
Reset points
Diagnostic Terminals
To be used by the service
technician only.
OPEN
POWERFUL
TEMP
OFF/ON
INVERTER
Signal Transmitter
Operation Display
Room Temperature
Setting Button
(Self-illuminating
Button)
OFF/ON Button
(Self-illuminating
Button)
POWERFUL Button
Signal [B ↔A] Switch
To be set to A.
When two units are installed in the same room.
Consult your dealer.

▲
8
Insert the power supply plug into an
electrical outlet and open the front
panel.
Preparation (Indoor Unit • Remote Control)
1
Indoor Unit
■Ensure that the power supply
plug is securely inserted.
A loose plug may cause a fire or an electric
shock.
!Warning
2
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
POWER SLEEP TIMER
POWER
MONITOR
LOW
HIGH
Hold the panel openers
and pull.
Notes
•If the unit is not going to be used for an extended period of time, turn off the
Power Supply. If it is left at the ON position, approximately 2.8 W of electricity
will be used even if the indoor unit has been turned off with the remote control.
When standby mode is activated, approximately 35 W of electric power will be
consumed on the heat of compressor to warm up the room quickly. This mode
can be switched off if you do not require it. Please consult your dealer.
•If operation is stopped, then restarted immediately, the unit will resume
operation only after 3 minutes.
3
Insert the air filters and close the front
panel.
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
Lift up slightly,
then pull down.
DBT
WBT
DBT
WBT
DBT
WBT
DBT
WBT
COOLING
32
23
43
26
30
–
24
18
Indoor
Outdoor
Indoor
Outdoor
HEATING
DBT: Dry Bulb Temperature
WBT: Wet Bulb Temperature Max. Temperature
Use under the following conditions:
16
11
16
11
2
–
–5
–6
Min. Temperature
Unit in °C
Air filters
Air purifying filters
Insert the new
air purifying
filters. (Be sure
the “FRONT”
mark is facing
you).
Remove the air filters and insert the
air purifying filters.
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWERMONITOR
3min.

▲
9
ENGLISH
Remote control
Operating the remote control
●The maximum distance at which signals can be
received is about 10 m.
●Aim the remote control at the signal receptor on
the room air conditioner when operating.
●Make sure that the signal path is not obstructed.
Batteries
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWERMONITOR
Inserting batteries
(2 pcs R03 dry-cell batteries)
The batteries can be used for approximately one
year.
Observe the following when
replacing the batteries
●Replace the batteries with 2 new batteries of
the same type.
●Do not use rechargeble batteries (Ni-Cd),
because they are different from standard
dry-cell batteries in shape, dimensions and
performance.
●If the unit is not going to be used for an
extended period of time, remove the batteries
from the remote control.
1Gently press the place
marked OPEN and
slide the cover towards
you.
2Be sure that the e
and rdirections are
correct.
●Confirm that the display is flashing 12:00 PM. If the
display does not appear when the batteries are
inserted, remove them and re-insert.
●To prevent battery exhaustion , set the current time
(CLOCK) immediately.
PM
Setting the clock
1
2
3
Press the Clock button.
PM flashes and 12:00 lights up.
Press or to set the current
time. Press continuously for fast
forwarding and for fast reversing.
Press the Clock button.
AM or PM lights up.
PM
PM
Notes
●Do not throw or drop the remote control. Do not
let it get wet.
●Certain types of fluorescent lamps may affect
signal reception. Consult your dealer.
PM

▲
10
Automatic •Heating •Cooling •Soft Dry •Fan
1
3
2
To set the temperature
•Increases or decreases by 1°C when pressed.
•The temperature can be set between 16°C and
30°C. (Not adjustable during Fan Operation.)
Press
OFF/ON
Button again to stop operation
(POWER LED lights off).
Press
OFF/ON
Button
The Power LED lights up. (LED blinks when the room
temperature is low at the start of heating or operation
mode is selected during Automatic Operation.)
The power monitor lamps light up to show the
compressor operating condition.
Press MODE to select the desired
operation
Display
When pressed, the display changes in this order.
▲
AUTO FAN
a
a
FAN
DRY
COOLHEAT
Recommended temperature:
Heating : 20 ~ 24°C
Cooling : 26 ~ 28°C
Soft Dry : Approx. room temperature
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
AUTO
AUTO FAN
AIR SWING
CLOCK
1
2
PM
AUTO
FAN SPEED
TIMER
ON OFF
MODE
WIDE/SPOT
POWERFUL
OFF/ON
INVERTER
AUTO
TEMP

11
▲
ENGLISH
13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
19
18
17
16
Outdoor Temp.˚C
Indoor Temp.˚C
C
O
O
L
I
N
G
Auto Restart Control
Automatic Operation
●If there is a power failure, operation will be automatically restarted under the previous operation mode
and airflow direction when power is resumed. (When the operation is not stopped by remote control).
●If you do not want the unit to restart automatically when power is resumed, switch off the power supply.
●If you do not require Auto Restart Control, consult your dealer.
●Auto Restart Control is not available when Timer or Sleep Mode is set.
●At the start of the Automatic operation, Heating, Cooling or Soft Dry is
automatically selected according to the outdoor temperature, indoor
temperature and setting temperature.
●The operation mode changes every half hour, when necessary.
S
O
F
T
D
R
Y
H
E
A
T
I
N
G
Heating Operation
●To warm up the room temperature upon your preference setting temperature.
●Heat is obtained from outdoor air to warm up the room. When the outdoor ambient air temperature falls,
the heating capacity of the unit might be reduced. We recommend that you use an additional heating
device when the outdoor ambient air temperature is low.
Cooling Operation
●To cool the room temperature upon your preference setting temperature.
Notes
Soft Dry Operation
●See page 12 on how to adjust the fan speed and airflow direction.
●The Powerful and Sleep modes can be set during Automatic Operation.
●Dehumidifies while maintaining the setting temperature. The Soft Dry Operation is recommended during
the rainy season.
●If the room temperature exceeds the setting temperature, operation switches to Cooling.
●The fan speed is rather slow during Soft Dry Operation.
●The humidity may not decrease when the indoor temperature is lower than the setting temperature on the
remote control.
Fan Operation
●Circulates air throughout the room.
●Purifies and deodorizes the air if the air purifying filter is used. Fan Operation is recommended during
seasons in which neither Heating nor Cooling is used.
(Ex) Setting Temperature to 25°C

▲
12
■Auto Vertical Airflow Direction Control
Heating
When the discharge air temperature is low such as at starts of heating
operation, the air blows at horizontal level.
As the temperature rises, the hot air blows in a downwards direction.
Cooling ●Soft Dry
The louver swings up and down automatically.
AUTO
AUTO FAN
FAN SPEED
WIDE/SPOT
AIR SWING
TIMER
CLOCK
1
2
3
ON OFF
SET
CANCEL
SLEEP
MODE
AUTO
Adjusting Airflow Direction and Fan Speed
Proper adjustment of airflow direction and fan speed increases
operation effectiveness.
SPOT WIDE
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWERMONITOR
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWERMONITOR
Press FAN SPEED Button
●There are five stages of fan speed in addi-
tion to Auto Fan Speed.
Press Button
●There are seven positions of the horizontal airflow direction louvers
in additional to Auto Airflow Direction.
The display changes when the button is pressed.
(The display does not show the exact directions of airflow or the
exact louver angles.)
To adjust the vertical airflow direction louvers
■Auto Fan Speed Control
Heating
When the temperature of the discharge air increases,
the fan speed increases.
Cooling ●Soft Dry
Changes the fan speed to generate a cool breeze. The air starts to blow out
approximately 40 seconds after the start of Cooling or Soft Dry.
■Auto Horizontal Airflow Direction Control
Heating
When air temperature is low, air is sent in WIDE. When temperature goes up,
air comes out in SPOT.
Cooling ●Fan
Louvers swing horizontally at a fixed speed.
Soft Dry
Louvers are fixed to WIDE.
To adjust fan speed
To adjust the horizontal airflow direction louvers
Auto Fan
Speed Medium Fan Speed
Display Example
COOL
AUTO FAN
COOL
h j k

Press Button
●There are five angles of vertical direction in addition to Auto Airflow
Direction.
The display changes when the button is pressed.
(The display indicates airflow direction.)

13
▲
ENGLISH
Louver adjustment range
WIDE / SPOT
Convenient control of horizontal airflow direction.
AUTO
AUTO FAN
FAN SPEED
WIDE/SPOT
AIR SWING
TIMER
CLOCK
1
2
3
WIDE
ON OFF
SET
CANCEL
SLEEP
MODE
AUTO
■Press WIDE/SPOT button to select WIDE or
SPOT airflow direction.
Display
When pressed, the display changes in this order.
▲
AUTO FAN
a
WIDE
Horizontal Manual
Airflow Direction
SPOTWIDE
■To cancel WIDE or SPOT, press .
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWERMONITOR
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWERMONITOR
●The adjustment range is different for each operation i.e.
Heating, Cooling and Soft Dry. (Fig. at left)
●The angle indicated on the remote control is different from
that on the indoor unit.
●The louver angle automatically changes to prevent
condensation during Cooling and Soft Dry.
●When operation stops, the louver automatically closes.
Notes
●Do not adjust the vertical airflow direction louver downward during Cooling and Soft Dry. Drops of water
may condense on the air outlet vent and drip down.
●Use the remote control to change the vertical airflow direction louver. Using your hands to adjust the
direction may cause the louver to malfunction. If this happens, stop operation immediately and restart.
SPOT
WIDE
*Five stages of adjustments can be
made in this range.
Heating
Soft
Dry
Cooling,
Fan
About 30°
About 30°
About 60°

▲
14
Setting theTimers
Set the ON to the time at which you want heating or cooling to
begin. Set the OFF to the desired stop time. Use both timers to-
gether for maximum comfort and efficiency.
1
2
3
Press ON Button
Display Ex: Set the ON timer for 7:00AM.
Press or to set the
time
●Increases or decreases by 10 minutes.
Press continuously to reach the desired
setting time quickly.
Press SET Button
■To set OFF-Timer
Press OFF and follow steps 2 and 3.
(TIMER LED on the indoor
unit lights up.)
■To cancel the timer
(Ex) Cancel ON timer.
ON
AM
ON
AM
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
COOL
AUTO
AUTO FAN
FAN SPEED
WIDE/SPOT
AIR SWING
TIMER
CLOCK
1
2
3
ON OFF
SET
CANCEL
SLEEP
MODE
ON
OFF AM PM
AM PM
ON
AM
1
2
(TIMER LED on the indoor unit
lights off.)
Press ON Button
Press CANCEL
Button
TIMER
1
2
3
ON OFF
SET
CANCEL

15
▲
ENGLISH
●When you sleep
Set the time at which you will go to sleep with the
OFF .
This prevent wasting of electricity.
●When you return
Set the time at which you will return with the ON .
Set the time at which you will go to sleep with the
OFF .
This will make the temperature pleasant when you
return, and it will prevent the air conditioner from
being left on.
●When you wake up
Set the time at which you will wake up with the
ON .
You can start the new day at a comfortable
temperature.
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWERMONITOR
●When going out
Set the time at which you will go out with the OFF .
Set the time at which you will come back with the
ON .
This will prevent the air conditioner from being left
on while you are out, and the temperature will be
pleasant when you return.
SettingOFFtimer
POWER
LOW HIGH
SLEEPTIMER
POWERFUL
POWERMONITOR
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWERMONITOR
I˙m back
Comfortable
temperature
POWER
LOWHIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
Timer
●When the ON-Timer is set, operation will start before the actual set time. This is to allow the room
temperature to reach the setting temperature by the setting time (maximum of 45 minutes in advance).
●Once the ON-Timer is set, operation will start at the setting time everyday.
●The current time is not displayed when the timers are set.
●When both timers are used together the TIMER LED on the indoor unit remains lit even if the operation is
stopped by the OFF-Timer.

▲
16
Powerful •Sleep
Powerful and Sleep modes are available for Automatic Operation,
Heating, Cooling and Soft Dry.
Powerful mode operation
•Used in winter to warm yourself quickly upon returninghome
(Heating + Powerful).
•Used in summer to cool yourself after a hot bath
(Cooling + Powerful).
Press POWERFUL during operation
■To cancel
Press POWERFUL again.
(The Powerful display on the remote
control disappears.)
▲
COOL
POWERFUL
Display
Note
●The setting temperature and the fan speed changes
automatically in order to heat, cool or dehumidify the room
quickly.
Automatic
Temperature
6°C higher
4°C lower
3°C lower
Fan Speed
Slightly stronger
Operation
3
SET
CANCEL
SLEEP
POWERFUL
TEMP
OFF/ON
Sleep mode operation
Prevents overheating and overcooling during sleep. Stops
automatically after 8 hours.
Press SLEEP during operation
(SLEEP LED on indoor unit lights
up.) Not displayed on remote control.
■To cancel
Press SLEEP again. (SLEEP LED on indoor unit lights off.)
Notes
●Air blows out gently during sleep.
●When used in conjunction with the Timer, the Timer has
priority.
Heating
Cooling
Soft Dry
COOLING & SOFT DRY OPERATION
Approx. 0.5°C increase
TEMP.
SETTING
TEMPERATURE
Sleep shift operation
starts
1 hour
Sleep Operation button is
pressed
TIME
TIME
SETTING
TEMPERATURE
Approx. 0.5°C increase
0 – 1 hour
Sleep shift operation starts
Approx. 2°C decrease
Approx. 3°C decrease
0 – 1 hour
1 hour
Approx. 8 hours
after sleep shift
operation starts,
stops automati-
cally
TEMP.
HEATING OPERATION
Approx. 8 hours after
sleep shift operation
starts, stops
automatically
Sleep Operation button is pressed
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR

▲
17
ENGLISH
Operation Hints
Here are some useful tips for optimum performance and
cost-effective operation.
POWER
LOWHIGH
SLEEPTIMER
POWERFUL
POWERMONITOR

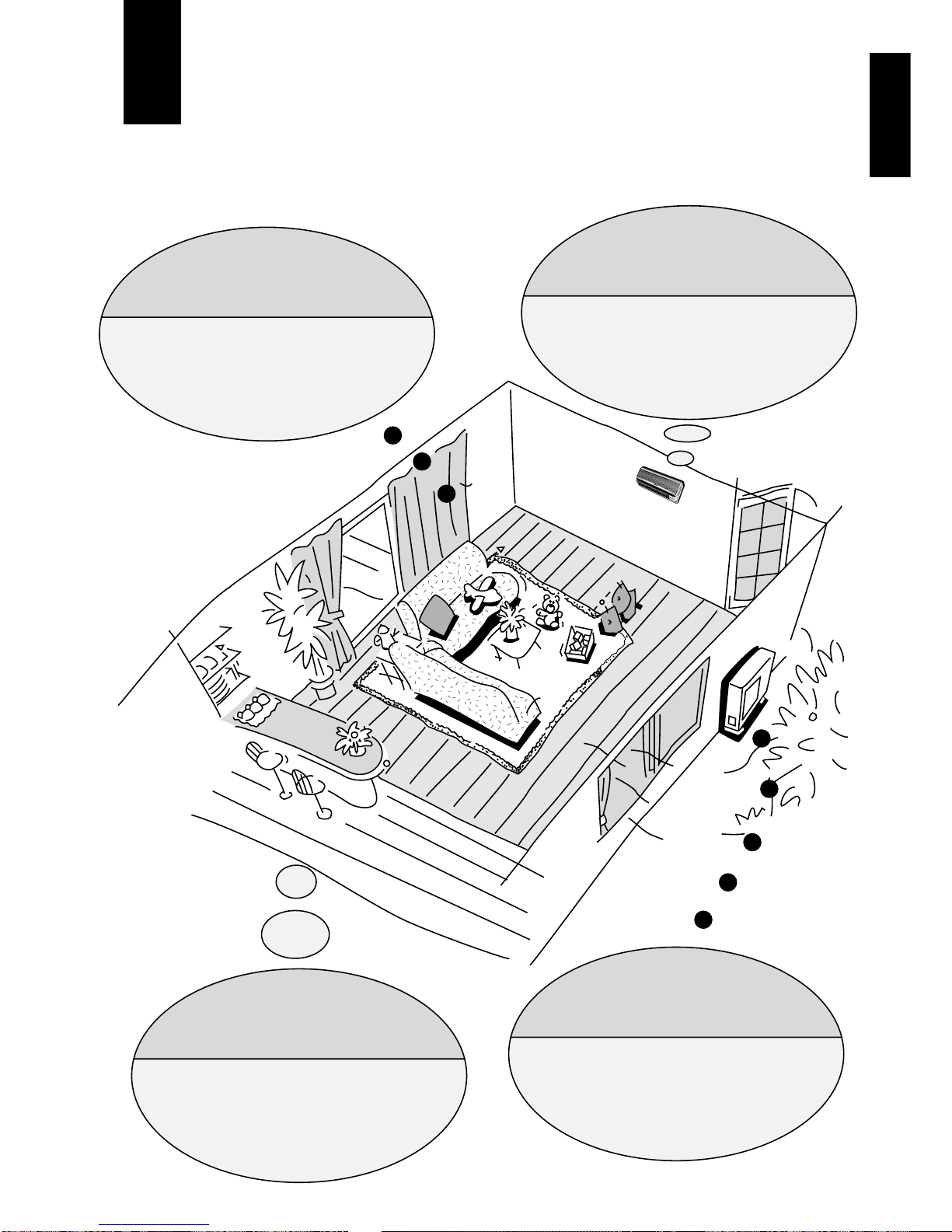

Do not overcool!
A difference of 6°C or less between the
outdoor and indoor temperatures
during cooling is ideal.
Anything cooler may harm
your health.
Adjust your curtains
and blinds
Adjust curtains and blinds to prevent
sunlight from entering the room
directly as this may reduce the
cooling efficiency.
Clean the filters!
Anything near the
outdoor unit?
A dirty air filter reduces heating and
cooling efficiency.
Clean the filters every 2 weeks.
Objects placed near the outdoor unit will
reduce heating and cooling efficiency.

▲
18
Care and Maintenance
Regular cleaning and servicing will prolong the life of your air
conditioner.
!Caution
■Before cleaning the air conditioner, set the Power supply to OFF.
The high fan speed may cause injury.
■Do not wash the unit with water.
Water may cause a short circuit or electric shock.
Cleaning the indoor unit and remote control
Cleaning the air filters (Once every 2 weeks)
●Wipe gently with a soft, dry cloth.
●Do not clean with water hotter than 40°C, volatile liquids such as paint thinner, or polishing fluids.
(When using chemically treated cloth, refer to the instructions and precautions.)
●The front panel can be removed and cleaned with water.
Replace the air filter.
Be sure the “FRONT” mark
is facing you.
Open the front panel and
remove the two air filters.
Hold the tab, lift up slightly,
then pull down.
Remove dirt using a
vacuum cleaner.
For heavy dirt, wash with
water and dry well
(away from direct sunlight)
before replacing.
12 3
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
Damaged air filter
Consult the nearest authorized dealer.
Part No. CWD00240
Recommendation
If the unit is operated in a dusty environment, clean the
filters every two weeks. Continued use with dirty
filters reduces cooling and heating efficiency.
POWER
LOW HIGH
SLEEP TIMER
POWERFUL
POWER MONITOR
Close the front panel.
4
