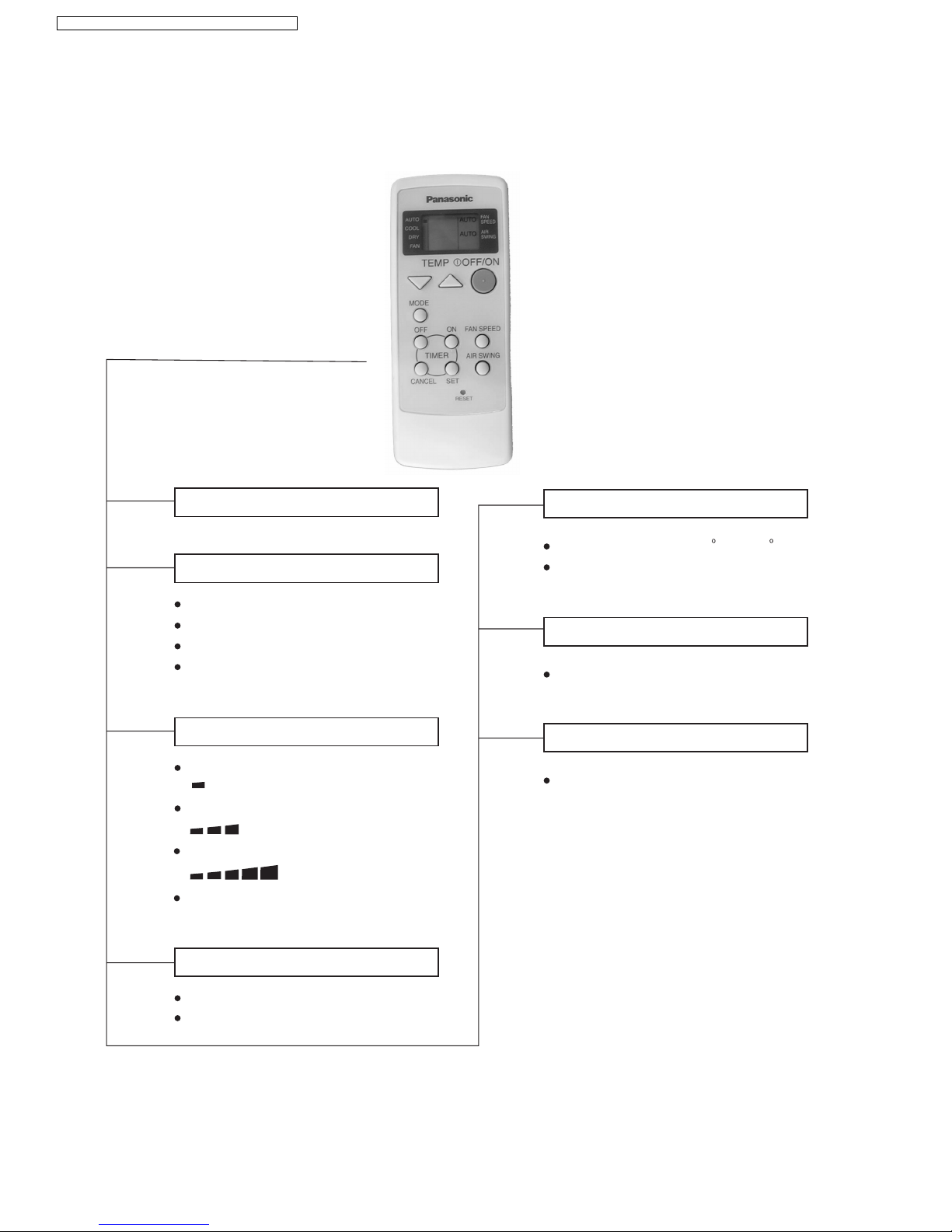

1 Functions
Operation START/ST OP
Operation Mode Selection
Automatic Operation
Heating Mode Operation
Cooling Mode Operation
Soft Dry Mode Operation
Mode
Indoor Fan Speed Selection
High Speed
Medium Speed
Low Speed
Automatic Speed
Airflow Direction Control
Auto Airflow Direction
Airflow Direction Manual Control
Room Temperature Setting
Temperature Setting(16 C to 30 C)
Auto Operation
Timer Operation Selection
Stop/Start Operation Control
(set the ON/OFF Timer hourly later)
Set /Cancel Timer Operation
Set timer/Cancel the set timer
2
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Indoor Unit
When the remote control cannot be used,
please use this button.
Keep pressing this button for 10sec to turn
on or turn off the signal receiving sound.
Used when testing or repairing
Operation (green)
Timer(orange)
Iights up in operation
Blinks during Test
Run operation and
determining Auto
Operation mode
Timer in operation
Heating/Cooling/Soft Dry/Auto Operation
The unit will restart operation after 3-4
minutes after each pause.
7-minutes automatic restarting at Cooling
Operation
Cooling or Soft Dry Operation
Indoor fan starts running when temperature
of evaporator reaches 30 Cor above.
When temperature of evaporator is between
30 Cand 40 C,indoor fan will run at Super Low
or Low speed.
When temperature of evaporator reaches 34 C,
Warm Booting Operation ends.
High,Med,Low,Auto
Auto Fan Speed
Automatic Airflow Direction Control
The louver automatically swings up and down
Airflow Direction Manual Control
Auto Mode Operation Selection Button
Power Switch ON/OFF
Signal Receiving Sound Control
Test Run
Operation Indication Lamps
Operation Mode

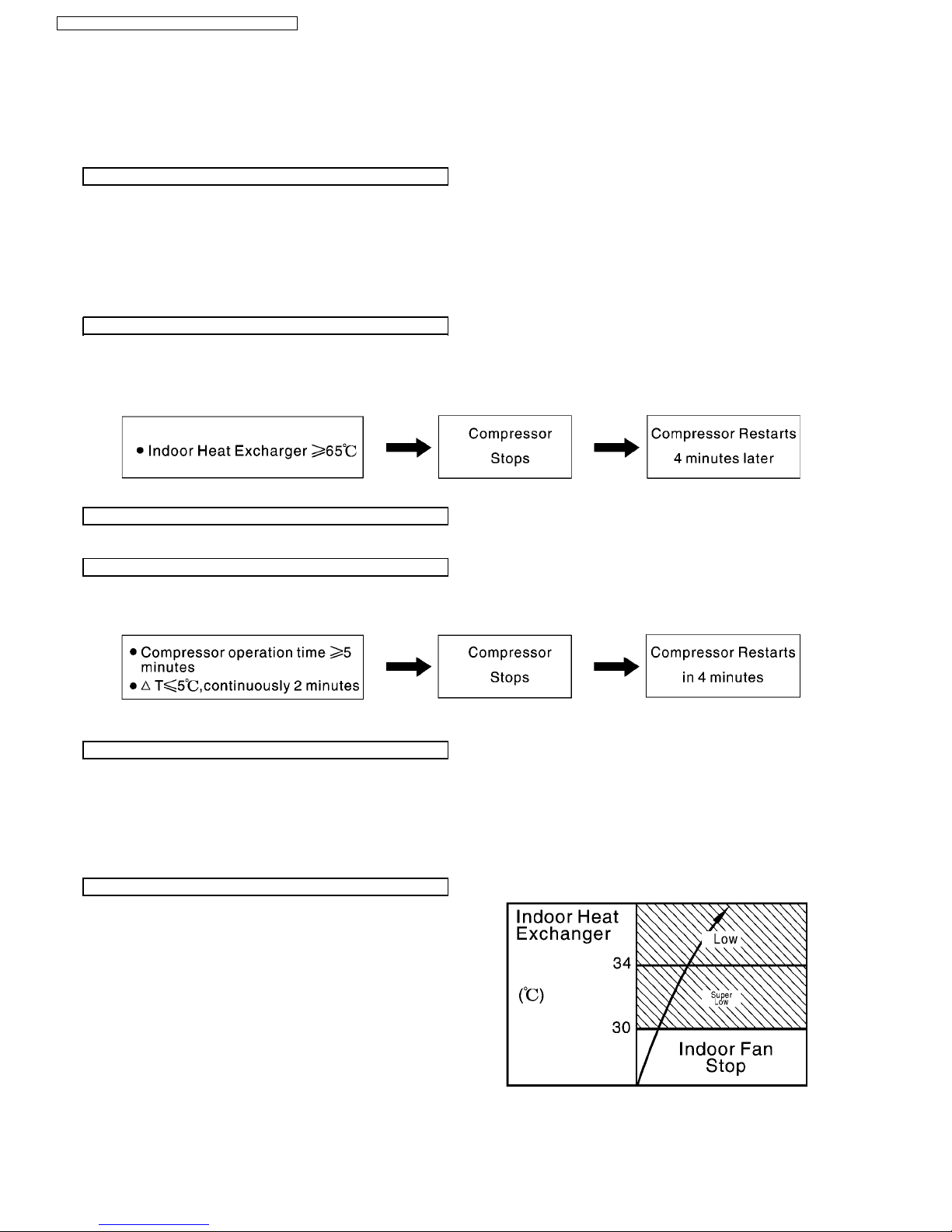

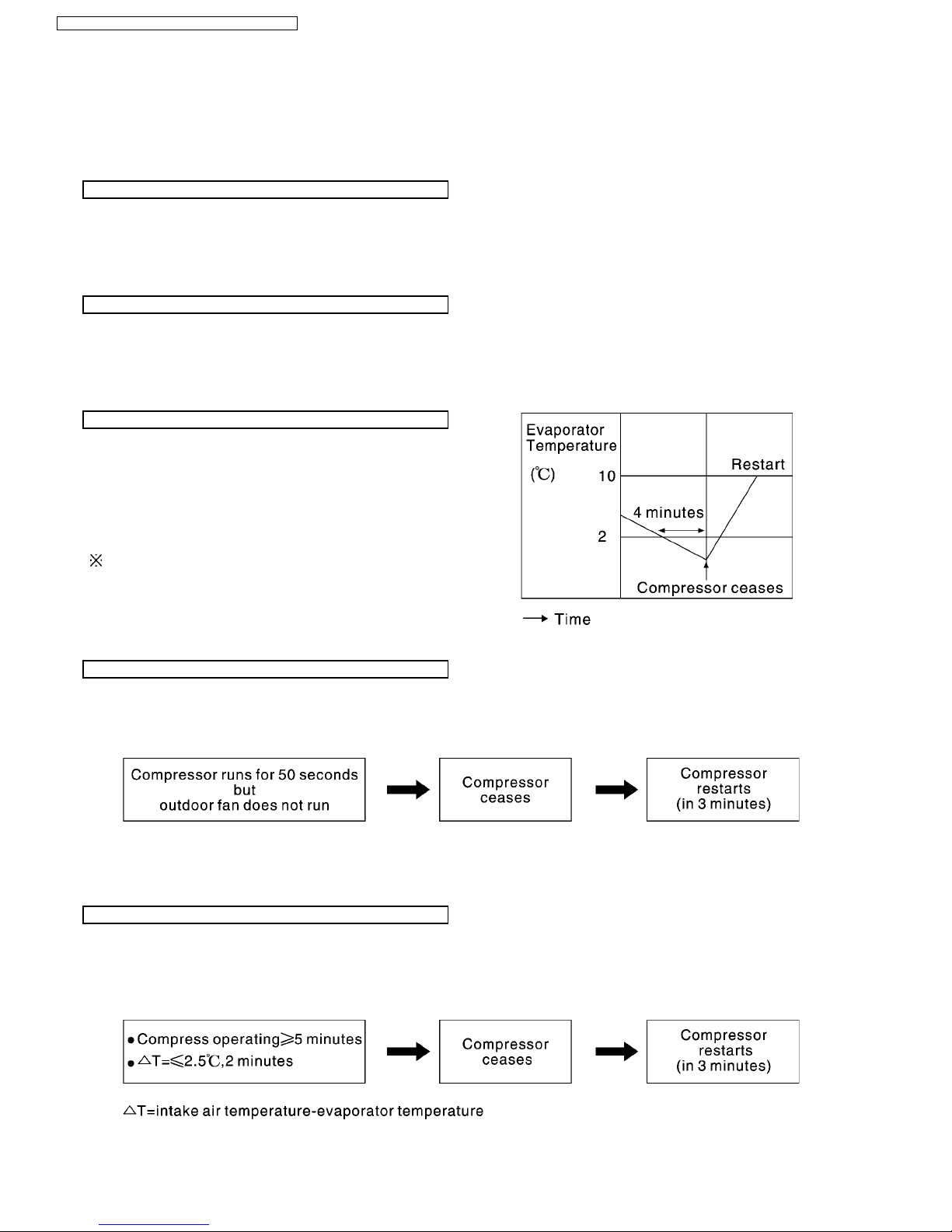

Time Delay Safety Control
Automatic Restarting Control
Anti-freezing Control for the Evaporator
Warm Booting Control
Indoor Fan Speed Controll
Airflow Direction Control
Delayed On-timer Control
For cooling or soft dry mode, the unit
starts 15 minutes before the set time with
the remote controller, but for heating mode
30 minutes before the set time.
3
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

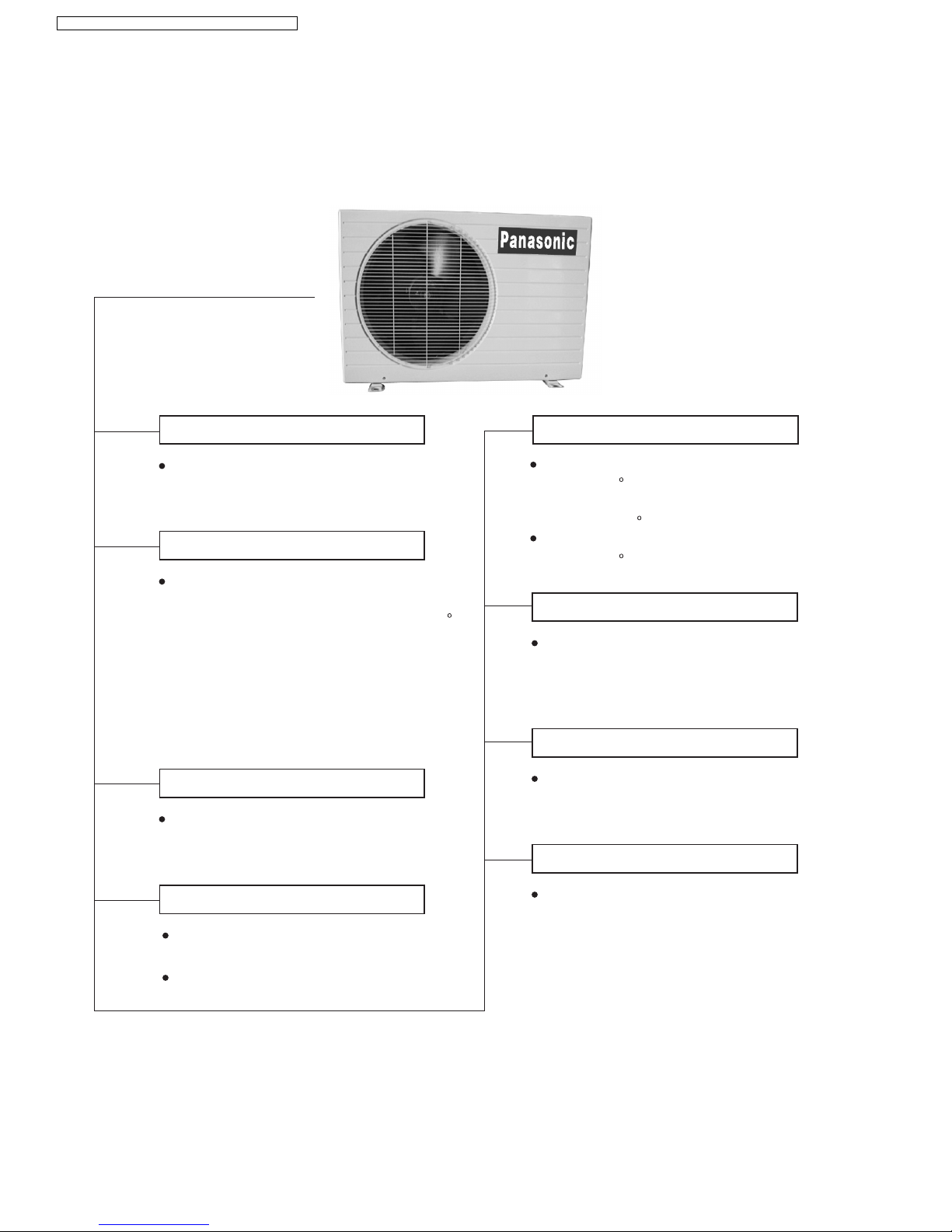

Outdoor Unit
To protect the compressor from reverse
rotation when power off suddenly.
The 2-step Overload Protector is to protect
the compressor when
1/ temperature of compressor reaches 120 C
2/ high temperature or current enters into the
compressor
(Only for CU-SA9CKP5)
Once the compressor is activated,it does not
stop for 60 seconds.It stops immediately with
remote controller ON/OFF button.
Anti-freezing operation for outdoor unit(during
Heating Mode Operation only)
Temperature of the condenser is tested by TRS.
When the temperature of evaporator
reaches 51 C,outdoor fan stops,and will
restart when the temperature of evaporator
declines to 49 C .
When the temperature of evaporator
reaches 65 C,compressor will stop.
If the outdoor fan does not run after the
compressor is activated for 50sec,the
compressor will stop.(only in cooling
and soft dry mode oteration)
If the unit is stopped during Heating
Operation,the 4-way valve will remain in
heating mode operation mode for 5 minutes.
Anti-reverse Protection
Overload Protector
60-seconds Test Operation Control
Deicing Control
Overload Protection Control
Compressor Protection Control
4-way Valve Control
Outdoor Fan Operation Control
Controlled by the indoor unit.
4
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

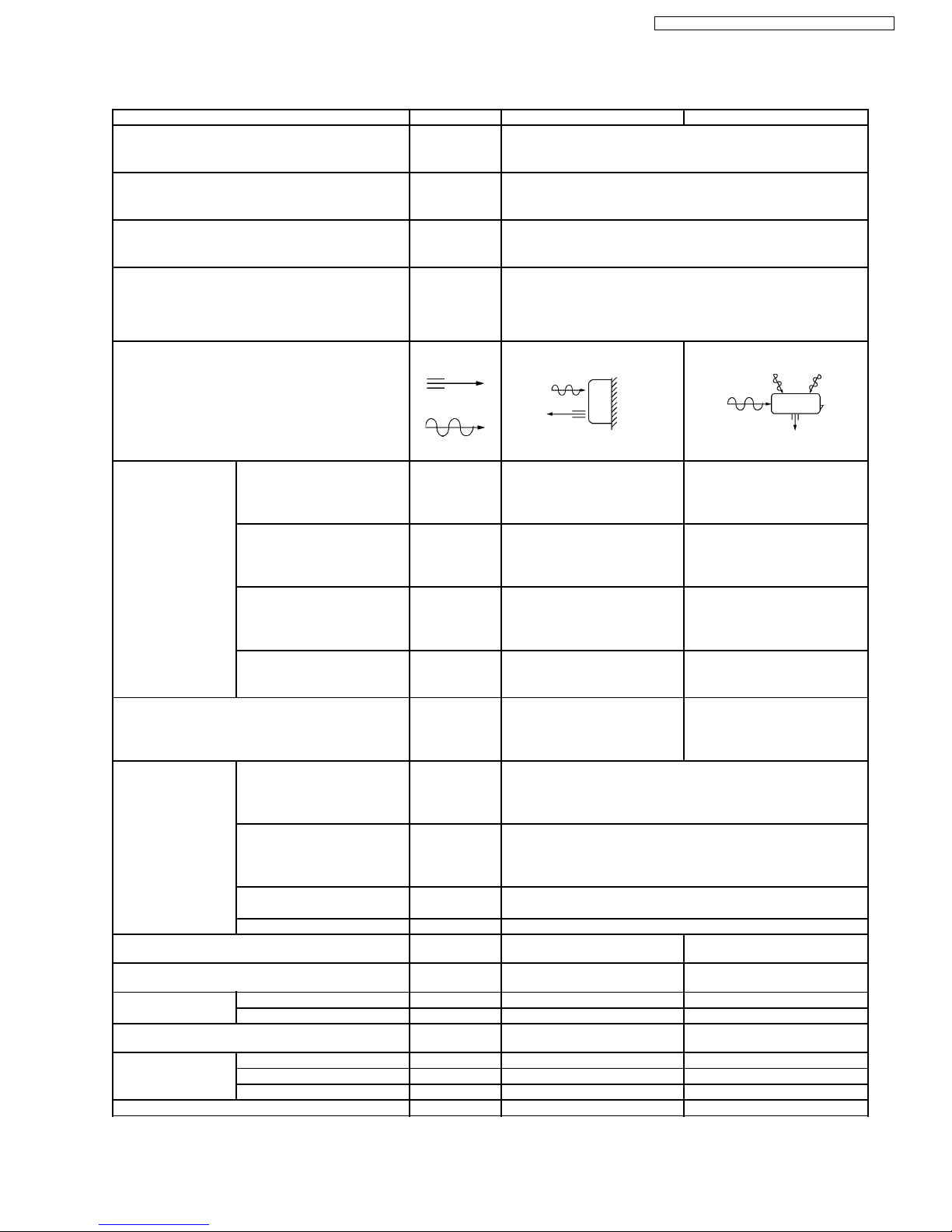

2 Product Specifications
Unit CS-SA9CKP CU-SA9CKP5
Cooling Capacity kW 2.70-2.75
Heating Capacity kW 3.10-3.15
Moisture Removal L/h 1.60
Power Source Phase
V
Cycle
Single
220-230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor air (low) m3/min Cooling: 6.79 —
Heating: 6.86
Indoor air (medium) m3/min Cooling: 7.84 —
Heating: 7.93
Indoor air (high) m3/min Cooling: 8.9 —
Heating: 9.0
Outdoor air m3/min — 22.0
Noise Level dB(A) Cooling: High38, Low29 Cooling: High47
Heating: High38, Low29 Heating: High48
Electrical Data Input W Cooling: 940-985
Heating: 800-830
Running Current ACooling: 4.40-4.34
Heating: 3.75-3.70
EER W/W Cooling: 2.87-2.79
COP Heating: 3.88-3.80
Starting Current A 21
Piping Connection Port (Flare piping) Inch
Inch
G: half union 3/8"
L: half union 1/4"
G: 3-way valve 3/8"
L: 2-way valve 1/4"
Piping Size
(Flare piping)
Inch
Inch
G: gad side 3/8"
L: liquid side 1/4"
G: gas side 3/8"
L: liquid side 1/4"
Drain
Hose
Inner diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length (Number of core-wire) m 1.9
5 core-wire/1.5mm2
—
—
Dimensions Height mm 275 505
Width mm 799 780
Depth mm 210 245
Net Weight kg 9.0 31.0
5
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Unit CS-SA9CKP CU-SA9CKP5
Compressor Type —Rotary(1 cylinder)
Rolling piston type
Motor Type —Induction(2 pole)
Rated Output W — 750
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Induction (4 pole) Induction (6 pole)
Input W — 58.6
Rate Output W 13 20
Fan Speed Low rpm 900 —
Medium rpm 1040 —
High rpm 1180 705
Heat Exchanger Discription Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×15 1×19
FPI 18 19
Dimensions mm 610 × 315 × 25.4 706.2 × 482.6 × 22
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60
(350)
Refrigerant (R-22) g — 840
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Length mm — Cooling: 470, Heating: 1160
Circulation L/min — Cooling: 13.4, Heating: 4.5
Inner dia mm — Cooling:1.5, Heating: 1.2
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Compressor Capacitor µFV — 25µF, 370V
Fan Motor Capacitor µFV — 1.2µF, 400V
•
• •
• Specifications are subject to change without notice for further improvement
•
• •
• The amount of refrigerant (60g) for air purging not included
6
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Unit CS-SA12CKP CU-SA12CKP5
Cooling Capacity kW 3.35-3.40
Heating Capacity kW 4.00-4.05
Moisture Removal L/h 1.80
Power Source Phase
V
Cycle
Single
220 - 230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor air (low) m3/min Cooling: 7.43 —
heating: 7.92
Indoor air (medium) m3/min Cooling: 8.27 —
heating: 8..81
Indoor air (high) m3/min Cooling: 9.1 —
heating: 9.7
Outdoor air m3/min — 22.0
Noise Level dB(A) Cooling: High39, Low32 Cooling: High49
Heating: High39, Low32 Heating: High49
Electrical Data Input W Cooling: 1230-1250
Heating: 1100-1130
Running Current ACooling: 5.75-5.60
Heating: 5.15-5.05
EER W/W Cooling: 2.72-2.72
COP Heating: 3.64-3.58
Starting Current A 26
Piping Connection Port
(Flare piping)
Inch
Inch
G: half union 1/2"
L: half union 1/4"
G: 3-way valve 1/2"
L: 2-way valve 1/4"
Piping Size
(Flare piping)
Inch
Inch
G: gad side 1/2"
L: liquid side 1/4"
G: gas side 1/2"
L: liquid side 1/4"
Drain
Hose
Inner diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length
(Number of core-wire)
m 2.2
5 core-wire/1.5mm2
—
—
Dimensions Height mm 275 540
Width mm 799 780
Depth mm 210 289
Net Weight kg 9.0 38.0
Compressor Type —Rotary(1 cylinder)
Rolling piston type
Motor Type —Induction(2 pole)
Rated Output W — 1,100
7
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Unit CS-SA12CKP CU-SA12CKP5
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Induction (4 pole) Induction (6 pole)
Input W — 58.6
Rate Output W 13 20
Fan Speed Low rpm 980 —
Medium rpm 1090 —
High rpm 1200 750
Heat Exchanger Discription Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×15 1×20
FPI 18 18
Dimensions mm 610 × 315 × 25.4 706.2 × 482.6 × 22
Refrigerant Control Device — Capillary Tube
Refrigeration Oil (c.c) — SUNISO 4GDID or ATMOS M60
(350)
Refrigerant (R-22) g — 940
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Length mm — Cooling: 470, Heating: 1160
Circulation L/min — Cooling: 13.4, Heating: 4.5
Inner dia mm — Cooling: 1.5, Heating: 1.2
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Compressor Capacitor µFV — 30µF, 370V
Fan Motor Capacitor µFV 1.5µF, 400V 1.8µF, 400V
•
• •
• Specifications are subject to change without notice for further improvement
•
• •
• The amount of refrigerant (60g) for air purging not included
8
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

3 Dimensions
9
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

10
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

4 Refrigeration Cycle Diagram
11
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

5 Block Diagram
12
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

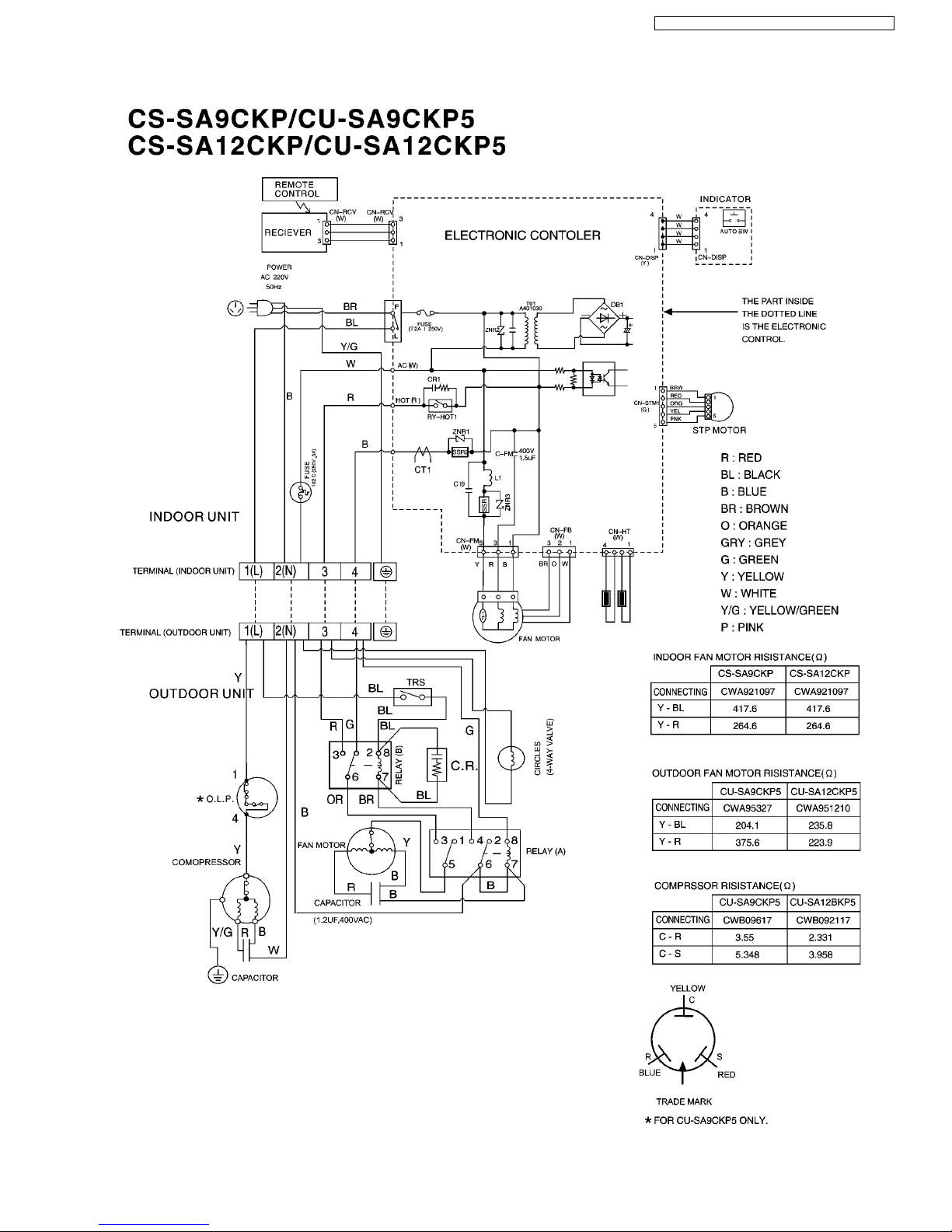

6 Wiring Diagram
13
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Time Delay Safety Control
Automatic Restarting Control
Anti-freezing Control
•
• •
• If temperature of evaporator is lower than 2°C continuously
for 4 minutes, the compressor ill cease to prevent the
evaporator from freezing. Fan speed setting will not be
changed.
•
• •
• When temperature of evaporator reaches 10°C,
compressor will restart.
During Cooling Mode Operation, the Time Delay Safety Control
is available.
Compressor Protection Control
Anti-reversing Control
7 Operation Details
7.1. Cooling Mode Operation
•
• •
• When selecting the Cooling Mode Operation, the unit will operate according to the setting by the Remote Controller and the
operation is as the following.
•
• •
• 3 min. ---- The compressor is ceased for 3 minutes to balance the pressure in the refrigeration cycle.
•
• •
• (Protection of compressor).
•
• •
• 7 min. ---- The unit will automatically operate in 7 minutes even if the room temperature is not reached.
(Prevention of raising the humidity)
•
• •
• If the outdoor fan motor does not run 50 seconds after the compressor starts, the compressor will cease and restart in 3
minutes.(Time Delay Safety Control is effective.)
•
• •
• If this symptom occurs repeatedly 3 times, the compressor will stop.
•
• •
• If the operation mode changed or the unit turned off by remote controller, Compressor Protection Control will be reset.
•
• •
• If the compressor has been continuously running for 5 minutes, and the difference of temperature between intake air and
evaporator is continuously lower than 2.5°C or below for 2 minutes, the compressor is ceased for 3 minutes then restarts. (Time
Delay Protection Control is effective.)
14
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Automatic Fan Speed Mode

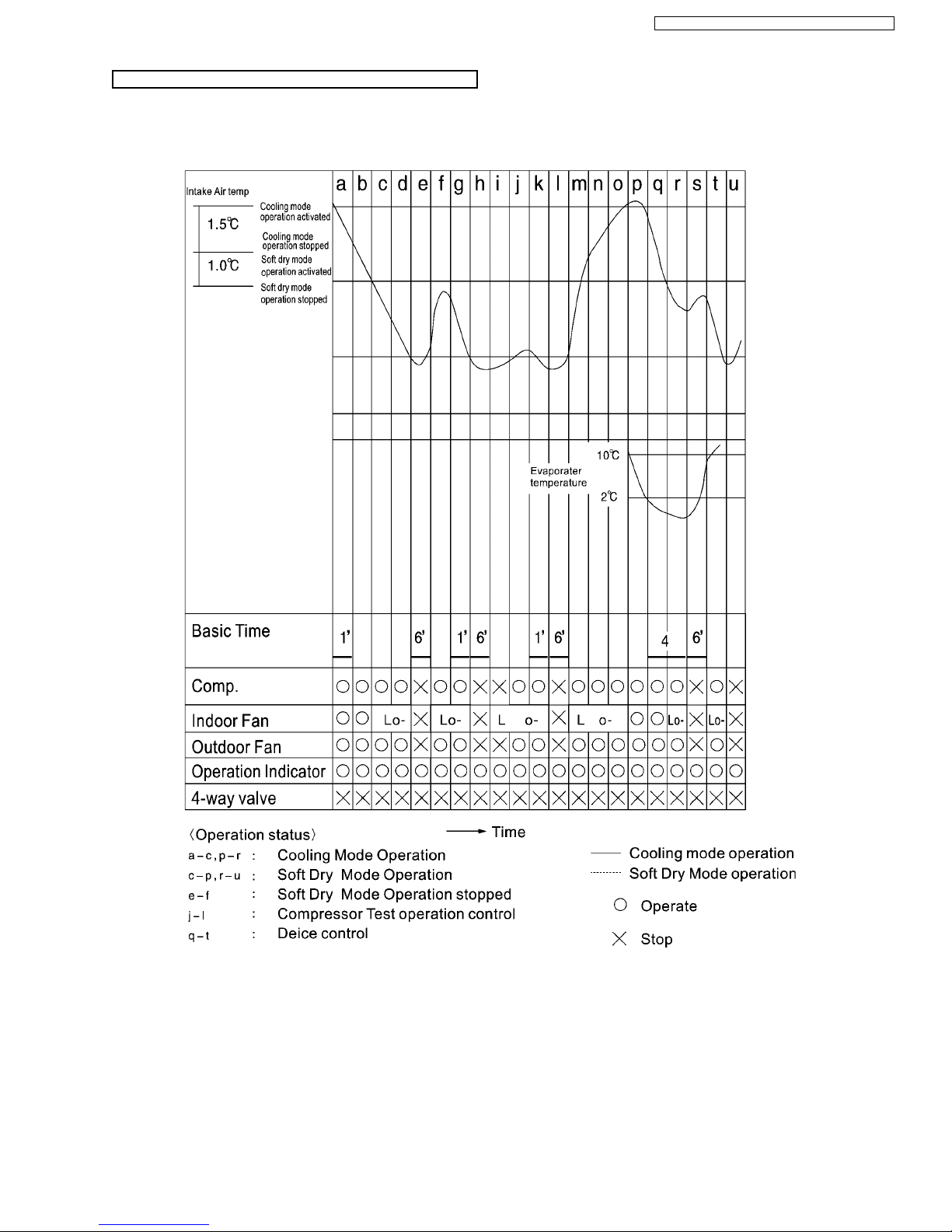

Time Graph for cooling Operation
During Cooling Mode Operation, use remote controller to select Automatic Fan Speed.
•
• •
• Fan speed will be at the point between "high speed" and "medium speed".
•
• •
• Deodorization control.
15
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Time Delay Safety Protection
Anti Freezing Control
Compressor Protection Control
Anti-reverse Control
Automatic Fan Speed
7.2. Soft Dry Mode Operation
•
• •
• When selecting Soft Dry mode operation, the operation will be cooling untill the room temperature reaches the set temp on the
remote control, and then Soft Dry will be actived. (During Soft Dry Mode the fan of indoor unit will operate at super low speed.)
•
• •
• Once soft Dry mode operation is turned off, indoor fan, compressor and outdoor fan will stop for 6 minutes.
•
• •
• During cooling mode operation, if the compressor ceased, it will not restart within 3 minutes.
•
• •
• Same as the denotation in Cooling Operation. (P.14)
(During Soft Dry Mode Operation, compressor will stop for at least 6 min.)
•
• •
• Same as the denotation in Cooling Operation. (P.14)
•
• •
• Same as the denotation in Cooling Operation. (P.14)
During Soft Dry Operation, use remote controller to select Auto Fan Speed mode.
•
• •
• Indoor Fan Speed is at super low.
•
• •
• Deodorization control.
16
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Time Graph for soft dry operation
17
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Time Delay Safety Protection Control
Overload Protection Control
Compressor Protection Control
Anti-Reversing Protection
4-way Valve Control
Warm booting control
•
• •
• When turning on the unit by heating mode operation, indoor
fan will be activated when temperature of indoor heat
exchanger reaches 30°C.
•
• •
• Warm boot operation ends when temperature of indoor
heat exchanger reaches 34 °C.
•
• •
• During warm booting or within 3 minutes after the ending
the Ry-C will not turn off.
7.3. Heating Mode Operation
When selecting heating mode operation, the unit will operate according to the setting by the remote controller.
•
• •
• If the compressor stopped by switching off,turning off by remote controller, or power off, it will not restart within 3 minutes.
•
• •
• When room temperature reaches the set temperature on the remote controller, compressor stops and will not restart within 4
minutes.
•
• •
• 3 minutes after the compressor stopped, indoor fan will stop for 1 minute. Then indoor fan will resume operation with the speed
at "super low".
•
• •
• When temperature of indoor heat exchanger rises to 51°C, outdoor fan will stop when temperature of indoor heat exchanger
falls to 49°C, outdoor fan will restart.
•
• •
• When temperature of indoor heat exchanger rises to 65°C or above, compressor stops, and will restart 4 minutes later.
•
• •
• Same as the denotation in Cooling Operation.(P.14)
•
• •
• If the compressor has been running for 5 minutes, but the difference of temperature between intake air and indoor heat
exchanger is continuously lower than 5°C or below for 2 minutes, compressor will stop and resume operation in 4 minutes.
•
• •
• During heating mode operation, 4-way valve is at "open" mode.
•
• •
• During heating mode operation, if the unit turned off , the 4-way valve will remain at "open" mode for 5 minutes.
18
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Automatic Fan mode operation

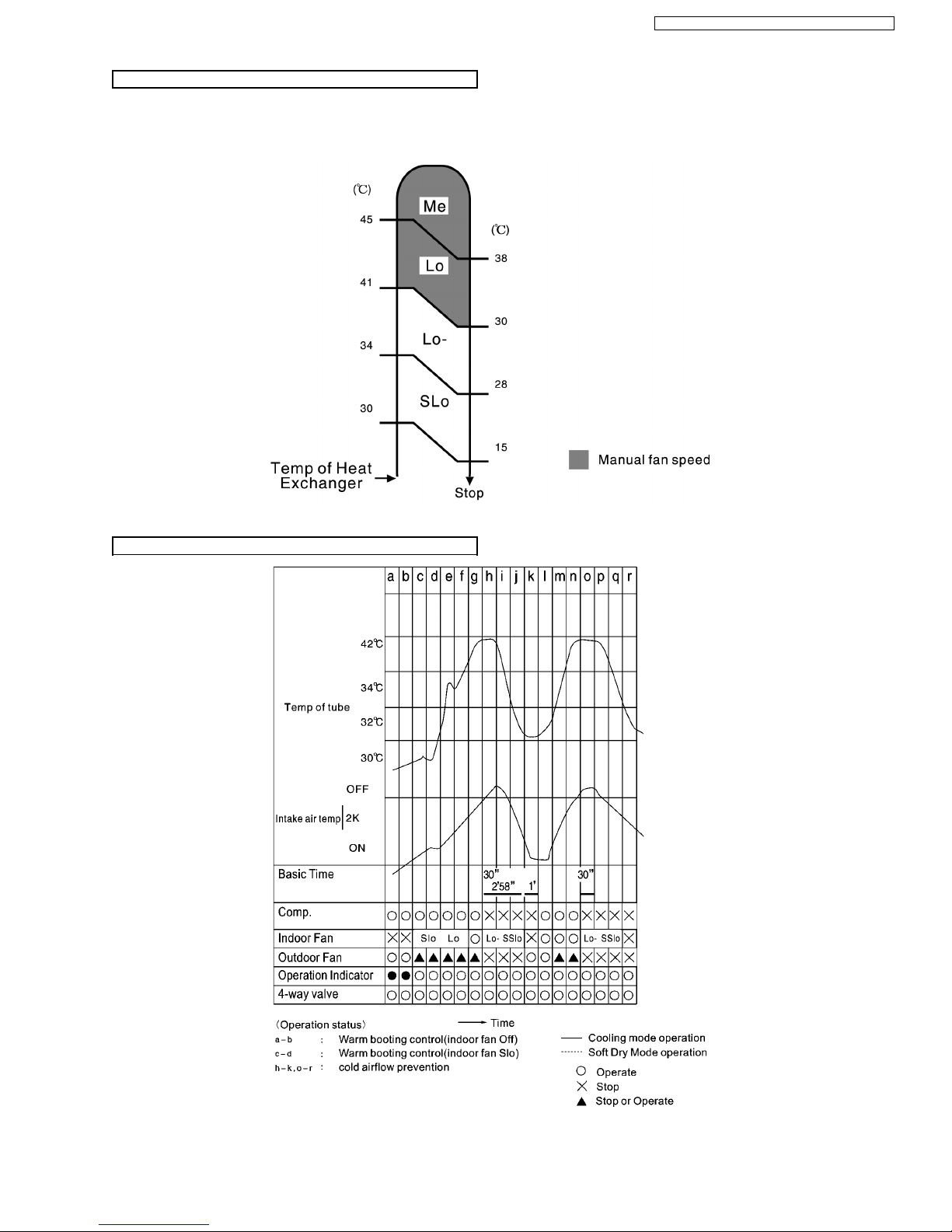

Time graph for heating mode operation
When selecting automatic fan mode by remote controller during heating mode operation, the fan will operate at different speed
under different conditiors according to the temperature of indoor heat exchanger.
19
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5

Deice Control
Deice operation is to protect the outdoor unit from freezing.
•
• •
• Normal Deice Operation
Decing starts 30 minutes after heating mode operation or 60 minutes after the latest decing operation. If temperature of
outdoor piping, tested by TRS, falls to 3°C (TRS OFF)or below for continuously 50 seconds, deicing operation starts.
•
• •
• Overload Deicing Operation
During heating operation, if the accumulative stopping time of outdoor fan reaches 60 minutes, deicing operation will start
1 minute after compressor starts.
•
• •
• Deicing operation ends under conditions below
1. After 12 minutes.
2. Temperature of outdoor unit rises to 4°C.

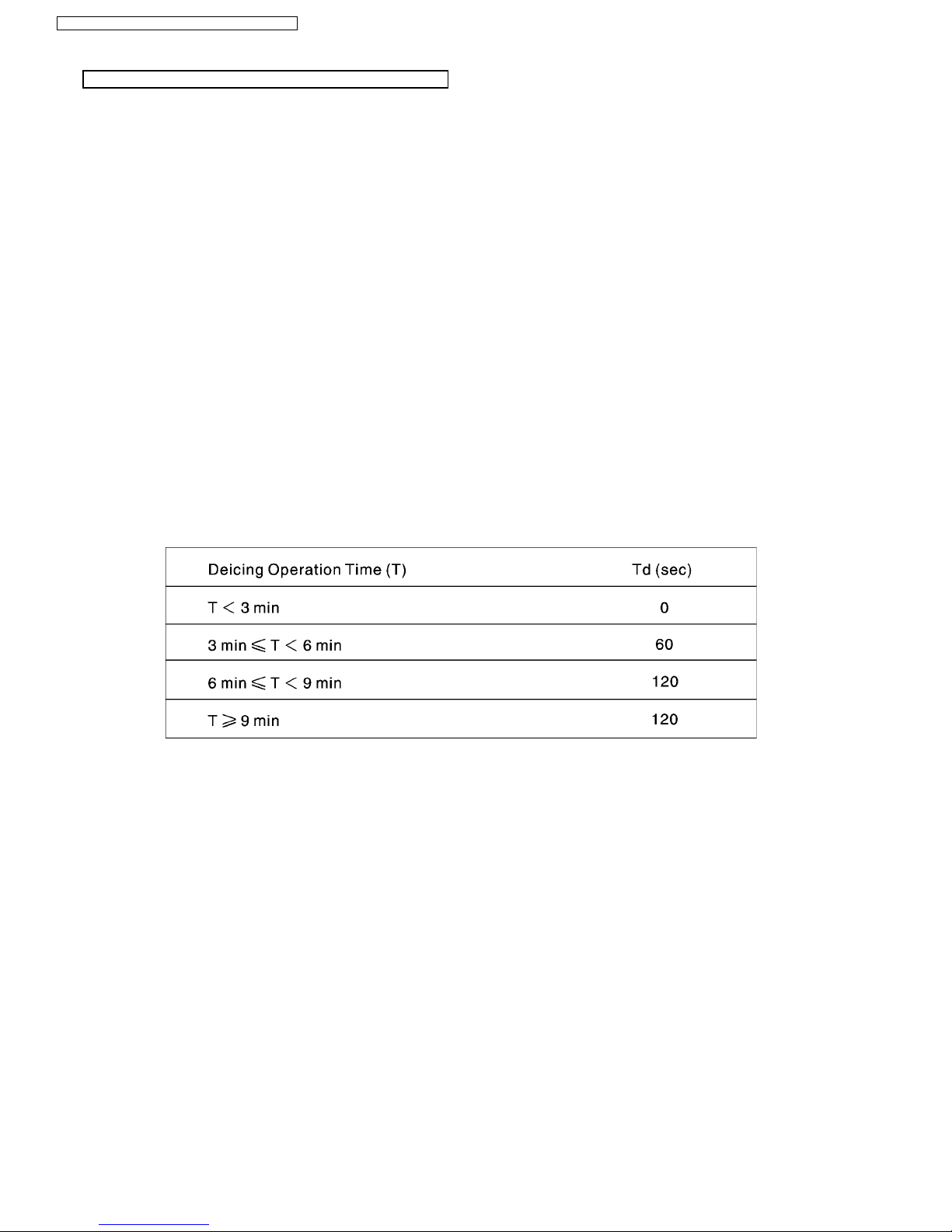

3. Because of time delay (Td), deicing operation will not end immediately.
•
• •
• Once deicing starts, it will not end within 60 seconds.
•
• •
• When deicing operation ends, compressor will stop for 30 seconds, and 4-way valve remains at cooling mode operation for
10 seconds.
20
CS-SA9CKP CU-SA9CKP5 / CS-SA12CKP CU-SA12CKP5
