POWER TIMER +8/10°C nanoe/ODOR CLEANUP

2
Provide maximum comfort,
clean air and optimise energy saving
ECONAVI + AUTO COMFORT The Right Choice for Energy Saving
Equipped with the human activity sensor, the air conditioner ensures to deliver cool or warm (hot) air to you, and keeps the room
consistently comfortable with minimum energy consumption.
Furthermore, the sunlight sensor detects the sunlight intensity and helps control cooling or heating temperatures to provide optimum
comfort.
See “To learn more...” for details.
nanoe For a freshness and cleaner environment
nanoe generates negative ions using the air in the room to give a healthy air.
It also provides moisturizing effect on the skin or hair and reduces the smell in the room and constrains propagations of mold and
bacteria.
Operation conditions
Use this air conditioner under the following temperature range.
DBT : Dry bulb temperature
WBT : Wet bulb temperature
Temperature (°C) Indoor Outdoor
DBT WBT DBT WBT
COOL Max. 32 23 43 26
Min. 16 11 -10 -
HEAT Max. 30 - 24 18
Min. 16 - -30 -
+8/10°C
HEAT
Max. 10 - - -
Min. 16 - -30 -

English
3

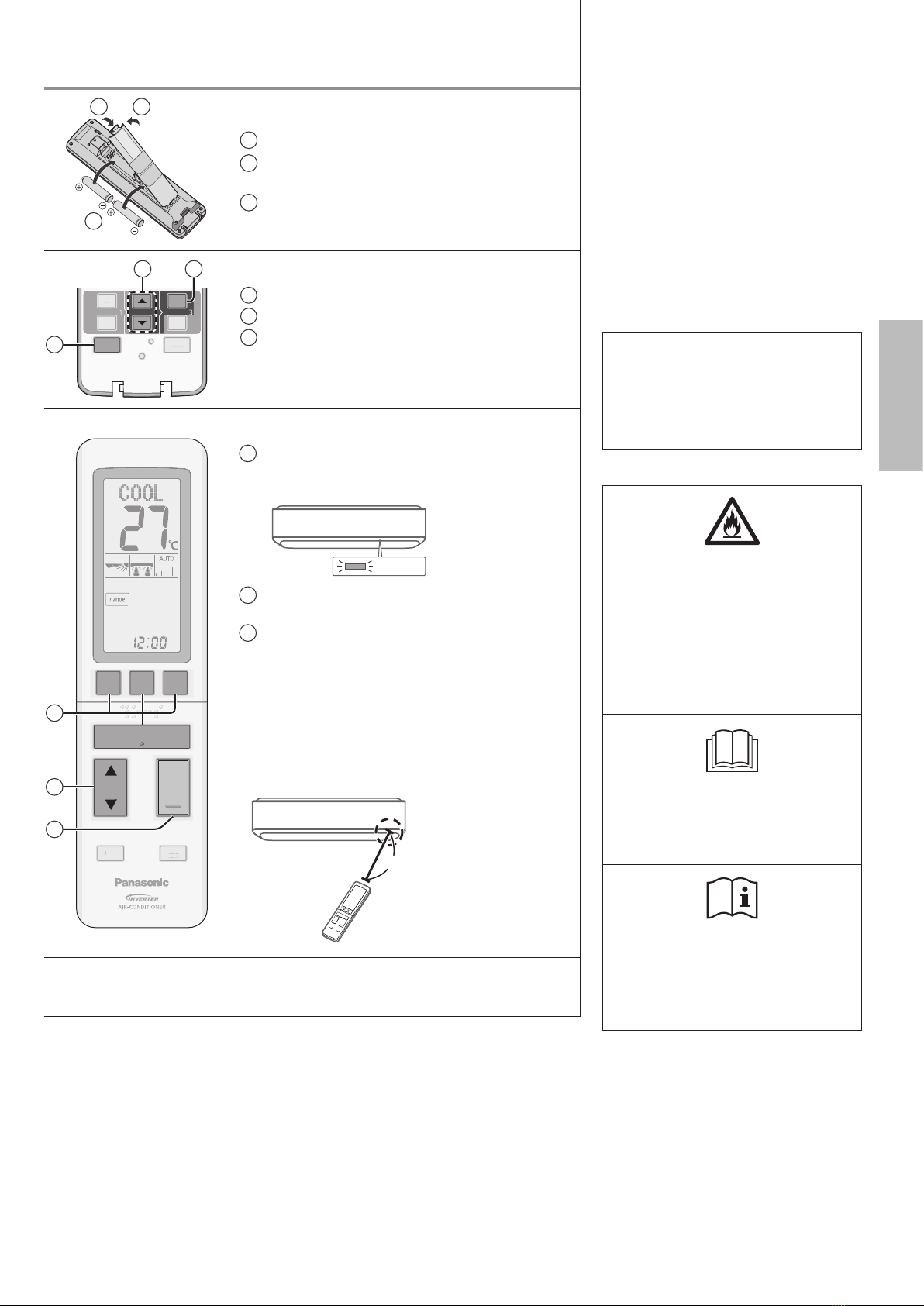

Quick guide
1 3
2
Inserting the batteries
1Open the back cover of remote control
2
Insert AA batteries
(can be used ~ 1 year)
3Close the cover
MENUCLOCK
ON
OFF
SET
CANCEL
ON
RESET
MENU
ON
O
FF
C
AN
C
E
L
R
E
S
ET
1
2 3 Clock setting
1Press CLOCK
2
Set the time
3Confirm
COOL DRY HEAT
INFO +8/10°C
HEAT
TEMP OFF
AUTO
I
NF
O
+8/10°C
HEAT
3
2
1
Basic operation
1Select the desired mode
• Press AUTO, COOL, DRY or HEAT button to
start the operation.
POWER
2Stop the operation
• Press OFF button to stop the operation.
3Select the desired temperature
• Selection range: 16°C ~ 30°C.
• Operating the unit within the recommended
temperature may save energy.
HEAT : 20°C ~ 24°C.
COOL : 26°C ~ 28°C.
DRY : 1°C ~ 2°C lower than room
temperature.
• Use remote control within 7 m from the remote
control receiver of the indoor unit.
7m
The illustrations in this manual are for explanation purposes only and may
differ from the actual unit. They are subject to change without notice for future
improvement.
Table of contents
Safety precautions........................ 4-7
How to use.................................. 8-11
To learn more... ............................ 12
Cleaning instructions ..................... 13
Troubleshooting ............................ 14
Information..................................... 15
Accessories
• Remote control
• AA batteries × 2
• Remote control holder
• Screws for remote control holder × 2
WARNING
This symbol shows that this
equipment uses a flammable
refrigerant. If the refrigerant
is leaked, together with an
external ignition source,
there is a possibility of
ignition.
CAUTION
This symbol shows that the
Operation Instructions should
be read carefully.
CAUTION
This symbol shows that there
is information included in the
Operation Instructions and/or
Installation Instructions.

4

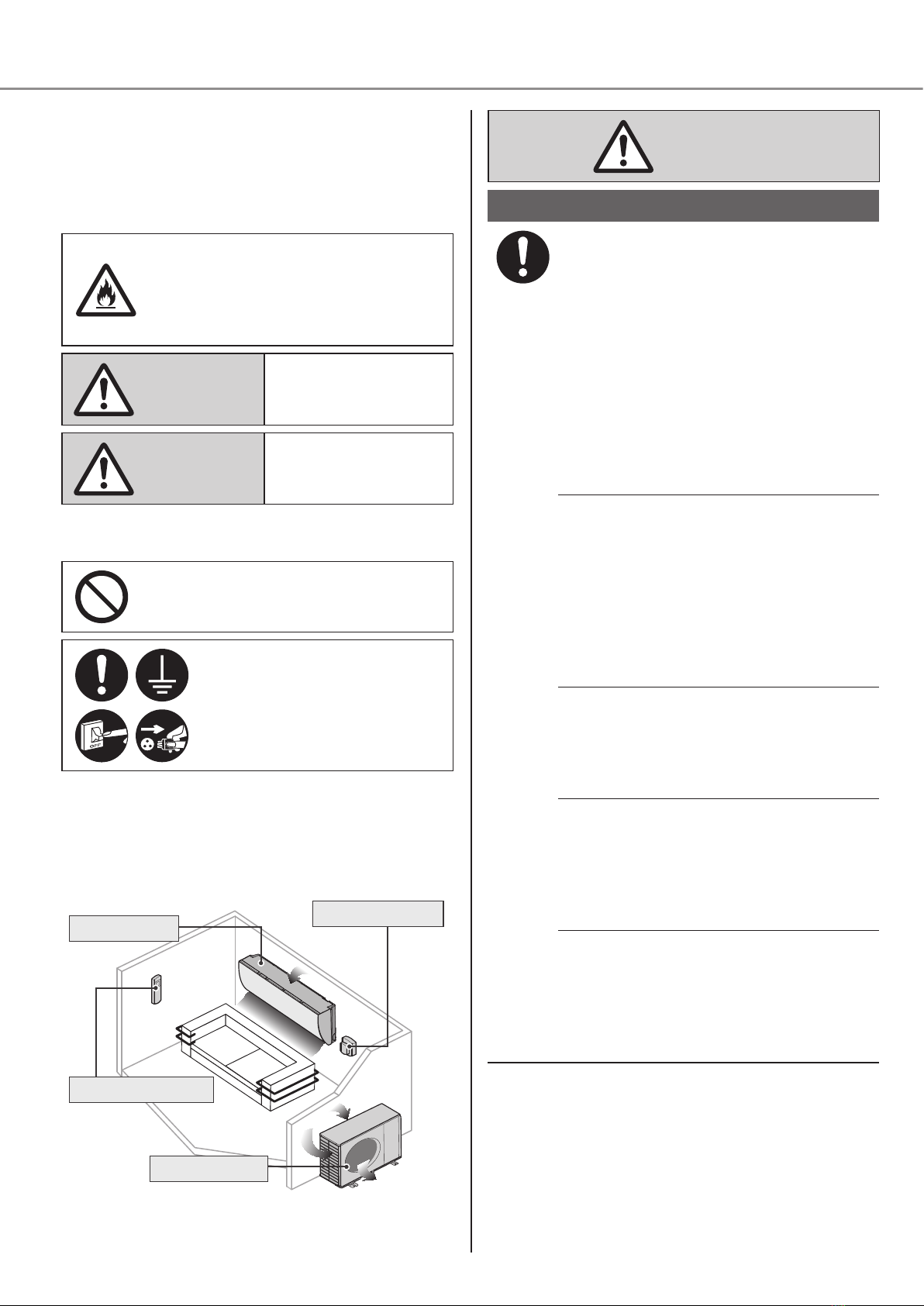

Safety precautions
To prevent personal injury, injury to others
or property damage, please comply with the
following:
Incorrect operation due to failure to follow
instructions below may cause harm or damage,
the seriousness of which is classified as below:
This appliance is filled with R32
(mild flammable refrigerant). If the
refrigerant is leaked and exposed
to an external ignition source, there
is a risk of fire.
WARNING This sign warns of
death or serious
injury.
CAUTION This sign warns of
injury or damage to
property.
The instructions to be followed are classified by
the following symbols:
This symbol denotes an
action that is PROHIBITED.
These symbols denote
actions COMPULSORY.
WARNING
Indoor unit and outdoor unit
This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge
if they have been given supervision
or instruction concerning use of
the appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
The appliance shall be installed and
operated in a room with floor area
larger than 1.50m² and keep away
from ignition sources (such as heat/
sparks/open-flame) or, hazardous
areas (such as gas appliances,
gas cooking, reticulated gas supply
systems, or electric cooling appliance,
etc).
Be aware that refrigerant may not
contain an odour, highly recommended
to ensure suitable flammable
refrigerant gas detectors are present,
operating and able to warn of a leak.
Please consult authorised dealer or
specialist to clean the internal parts,
repair, install, remove and reinstall the
unit. Improper installation and handling
will cause leakage, electric shock or
fire.
Confirm with authorised dealer or
specialist on usage of any specified
refrigerant type.
Using refrigerant type other than the
specified may cause product damage,
burst and injury etc.
Power supply
Indoor unit
Outdoor unit
Remote control
Air inlet
Air inlet
Air inlet
Air inlet
Air outlet
Air outlet
Air outlet
Air outlet

English
5
Do not use means to accelerate
the defrosting process or to clean,
other than those recommended by
manufacturer. Any unfit method or
using incompatible material may cause
product damage, burst and serious
injury.
Do not pierce or burn as the appliance
is pressurized. Do not expose the
appliance to heat, flame, sparks, or
other sources of ignition. Else it may
explode and cause injury or death.
Do not install the unit in a potentially
explosive or flammable atmosphere.
Failure to do so could result in fire.
Do not insert your fingers
or other objects into the air
conditioner indoor or outdoor
unit, rotating parts may
cause injury.
Do not touch the outdoor unit during
lightning, it may cause electric shock.
Do not expose yourself directly to cold
air for a long period to avoid excess
cooling.
Do not sit or step on the
unit, you may fall down
accidentally.
Remote control
Do not allow infants and small children
to play with the remote control to
prevent them from accidentally
swallowing the batteries.
Power supply
Do not use a modified
cord, joint cord,
extension cord or
unspecified cord to
prevent overheating
and fire.
To prevent overheating, fire or electric
shock:
• Do not share the same power outlet
with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply
cord.
• Do not operate or stop the unit by
inserting or pulling out the power
plug.
If the supply cord is damaged, it must
be replaced by the manufacturer,
service agent or similarly qualified
persons in order to avoid a hazard.
It is strongly recommended to be
installed with Earth Leakage Circuit
Breaker (ELCB) or Residual Current
Device (RCD) to prevent electric shock
or fire.
To prevent overheating, fire or electric
shock:
• Insert the power plug properly.
• Dust on the power plug should be
periodically wiped with a dry cloth.
Stop using the product if any
abnormality/failure occurs and
disconnect the power plug or turn off
the power switch and breaker.
(Risk of smoke/fire/electric shock)
Examples of abnormality/failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of the
unit is observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes
abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately
even if it is switched on for operation.
• The fan does not stop even if the
operation is stopped.
Contact your local dealer immediately
for maintenance/repair.
This equipment must be earthed to
prevent electrical shock or fire.
Safety precautions

6
Safety precautions
Prevent electric shock by switching off
the power supply and unplug:
- Before cleaning or servicing,
- When extended non-use, or
- During abnormally strong lightning
activity.
Precaution for using R32 refrigerant
Pay careful attention to the following points
when operating the appliances and dealing
with different refrigerants.
Since the working pressure is higher
than that of refrigerant R22 models,
some of the piping and installation and
service tools are special.
Especially, when replacing a
refrigerant R22 model with a new
refrigerant R32 model, always replace
the conventional piping and flare nuts
with the R32 and R410A piping and
flare nuts on the outdoor unit side.
For R32 and R410A, the same flare
nut on the outdoor unit side and pipe
can be used.
Models that use refrigerant R32 and
R410A have a different charging port
thread diameter to prevent erroneous
charging with refrigerant R22 and for
safety.
Therefore, check beforehand. [The
charging port thread diameter for R32
and R410A is 12.7 mm (1/2 inch).]
Be more careful than R22 so that
foreign matter (oil, water, etc.) does
not enter the piping.
Also, when storing the piping, securely
seal the opening by pinching, taping,
etc. (Handling of R32 is similar to
R410A.)
This appliance shall be stored in a well
ventilated area.
This appliance shall be stored in a
room without continuously operating
open flames and ignition sources.
This appliance shall be stored so as
to prevent mechanical damage from
occurring.
CAUTION
Indoor unit and outdoor unit
Do not wash the indoor unit with water,
benzine, thinner or scouring powder to
avoid damage or corrosion at the unit.
Do not use for preservation of precise
equipment, food, animals, plants,
artwork or other objects. This may
cause quality deterioration, etc.
Do not use any combustible equipment
in front of the airflow outlet to avoid fire
propagation.
Do not expose plants or pet directly to
airflow to avoid injury, etc.
Do not touch the sharp
aluminium fin, sharp parts
may cause injury.
Do not switch ON the indoor unit when
waxing the floor. After waxing, aerate
the room properly before operating the
unit.
Do not install the unit in oily and
smoky areas to prevent damage to the
unit.
Do not dismantle the unit for cleaning
purpose to avoid injury.
Do not step onto an unstable bench
when cleaning the unit to avoid injury.
Do not place a vase or water container
on the unit. Water may enter the unit
and degrade the insulation. This may
cause an electric shock.
Do not open window or door for
long time during operation, it may
lead to inefficient power usage and
uncomfortable temperature changes.
Prevent water leakage by ensuring
drainage pipe is:
- Connected properly,
- Kept clear of gutters and containers,
or
- Not immersed in water
After a long period of use or use with
any combustible equipment, aerate the
room regularly.

English
7
After a long period of use, make
sure the installation rack does not
deteriorate to prevent the unit from
falling down.
Remote control
Do not use rechargeable (Ni-Cd)
batteries. It may damage the remote
control.
To prevent malfunction or damage of
the remote control:
• Remove the batteries if the unit is not
going to be used for a long period of
time.
• New batteries of the same type must
be inserted following the polarity
stated.
Power supply
Do not disconnect the plug by pulling
the cord to prevent electric shock.
Safety precautions

8
POWER TIMER +8/10°C nanoe/ODOR CLEANUP
How to use
To select operation mode
AUTO For your convenience
• During operation mode selection the POWER indicator
blinks.
• Unit selects operation mode every 30 minutes according
to temperature setting, operation mode, outdoor and room
temperature.
COOL
To enjoy cool air
• Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during COOL mode.
DRY
To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.
HEAT
To enjoy warm air
• Unit takes a while to warm up, the POWER indicator blinks
during this period.
• Unit removes ice/frost formed on outdoor heat-exchanger by
following 2 types of operation.
1) Deice with heating operation (HEAT CHARGE Operation).
Unit has a heat absorbing device which accumulates
heat generated by outdoor unit and electric heater while
performing the heating operation to remove ice/frost
formed on outdoor unit for maximum 6 minutes.
During this operation, the discharge temperature and
fan speed may be lowered when outdoor temperature
is low, or the room is not warmed up sufficiently, or set
temperature is high.
2) Deice without heating operation (Reversing/4-way Valve
activating).
Unit stops heating operation to remove large amount
of ice/frost formed on outdoor unit for maximum 12
minutes.
During this operation, the power indicator lights on and
the vertical airflow direction louver is left open.
The heating operation resumes once this operation is
completed.
OFF Stop the operation
Indicator
Human activity sensor
Sunlight sensor and
remote control receiver
(Orange) (Green) (Green)(Green) (Blue)
Auto OFF/ON button
AUTO
O/I
Use when remote control is misplaced or a malfunction occurs. Raise the front panel:
• To use in AUTO mode, press the button once.
• Press the button again to turn off.
COOL DRY HEAT
INFO +8/10°C
HEAT
TEMP OFF
AUTO
Remote control display (the Backlight will be lit
whenever pressing any button)
CLOSE

English
9
INFO
To check HEAT CHARGE level and
error code
To check HEAT CHARGE level.
• Press during HEAT mode to retrieve HEAT CHARGE level of
heat stored in heat absorbing device.
• HEAT CHARGE level: 0 ~ 4 (max.).
• “_ _” will be displayed unless during heating operation.
To check error code.
• Press to retrieve error code when the unit stops and the
timer indicator blinks.
If the signal transmission is failed, “PRESS AGAIN” is
displayed.
+8/10°C
HEAT
To use maintenance
heating
• Maintain indoor temperature at 8/10°C. Fan switches to high
fan speed automatically.
• This operation overwrite the operation mode and could be
cancelled by pressing AUTO, HEAT, COOL or DRY mode.
• Defrost operation at outdoor unit will
result in sudden cold air from indoor unit.
Eliminate cold air with heat mode. TEMP
10°C
8°C
Auto Restart Control
• If power is resumed after a power failure, the operation will
restart automatically after a period of time with previous
operation mode and airflow direction.
• This control is not applicable when TIMER is set.
See "To learn more..." for details.
How to use
To set the timer (daily timer)
Dual setting of ON and OFF timers are available to turn
ON or OFF the unit at different preset time.
MENUCLOCK
ON
OFF
SET
CANCEL
ON
RESET
MENU
CL
O
C
K
R
E
S
ET
21 3
OPEN
1Select ON or OFF timer Example:
OFF at 8:00
• Each time pressed:
OFF
Cancel
2Set the time
3Confirm
SET
TIMER
• Example of application at living room:
Morning: ON TIMER at 07:00 (Wake up)
OFF TIMER
at 08:00 (Out for work)
Evening: ON TIMER at 17:00 (Back home)
OFF TIMER
at 22:00 (Sleep)
• To cancel ON or OFF timer, press
ON
or
OFF
to
select respective or then press
CANCEL
.
• If timer is cancelled manually or due to power failure,
you can restore the timer again by pressing
ON
or
OFF
to select respective or then press
SET
.
• The nearest timer setting will be displayed and will
activate in sequence.
• When ON Timer is set, the unit may start earlier (up
to 50 minutes) before the actual set time in order to
achieve the desired temperature on time.
• Timer operation is based on the clock set in the remote
control and repeats daily once set. For clock setting,
please refer to Quick guide.
Note
AUTO
COMFORT
,
ECONAVI
,
nanoe
,
POWERFUL
,
QUIET
,
SLEEP
• Can be activated in all modes and can be cancelled by
pressing the respective button again.
+8/10°C
HEAT
,
AUTO
COMFORT
,
ECONAVI
,
POWERFUL
,
QUIET
• Cannot be selected at the same time.
PRE
HEATING
• Can be combined with AUTO or HEAT mode only.

10
How to use
AUTO
COMFORT
To create comfort by monitoring the
human presence & activity
• It will be cancelled once the
AIR SWING
or
FAN SPEED
is
selected.
ECONAVI
To optimise energy saving
AIR SWING AIR SWING
To adjust airflow direction
(Remote control display)
AUTO
AUTO
• Keeps the room air circulated.
• In COOL/DRY mode, if AUTO is set, the louvers swings left/
right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver is fixed
at the predetermined position.
The vertical louver swings left/right after the temperature
rises.
• Do not adjust the louver by hand.
FAN SPEED
To select fan speed
(Remote control display)
AUTO
• For AUTO, the indoor fan speed is automatically adjusted
according to the operation mode.
• In HEAT mode, if manual fan speed caused discomfort, set
the fan speed to AUTO or lower the fan speed.
nanoe
To enjoy freshness and cleaner
environment
• This operation moisturizes your skin and hair, reduces odor
and inactivation of allergic particulars such as pollen in the
room.
POWERFUL
To reach temperature quickly
• The temperature setting and the Fan speed automatically
adjusted for higher performance, and will adjust for
adequate operation once the temperature is reached.
• Press the button again or turn OFF the unit to stop this
operation.
POWER TIMER +8/10°C nanoe/ODOR CLEANUP
Indicator
Human activity sensor
Sunlight sensor and
remote control receiver
(Orange) (Green) (Green)(Green) (Blue)
AUTO
COMFORT
PRE
HEATING
ODOR
CLEANUP
ECONAVI
FAN SPEED
QUIETnanoe
MENUCLOCK
POWERFUL
SLEEP
ON
OFF
SET
CANCEL
ON
AIR SWINGAIR SWING
RESET
COOL DRY HEAT
CL
O
C
K
ON
O
FF
C
AN
C
E
L
C
OOL
DRY
HEAT
OPEN
Pressing to reset the setting
of unit operation, as same as
unplugging.
Remote control display (the Backlight will be lit
whenever pressing any button)

English
11
MENU
To change setting according to
living environment
• 5 options are available in MENU.
Pressing MENU button at each time, display shows
options below.
AUTO OFFCENTER BRIGHTER LED
BACK LIGHT CONTRAST 3
1Select preference options.
1. Indoor unit installation location
CENTER LEFT RIGHT
2. Auto OFF operation
AUTO OFF
OFF
AUTO OFF
ON
* Stops operation combined with AUTO COMFORT
function after human sensor not detecting for 3
hours or more.
3. Indoor unit indicator brightness
BRIGHTER
LED DIMMER LED ECONAVI OFF
4. Remote control LCD contrast
CONTRAST
3456712
5. Brightness of the back light of the remote control
BACK LIGHT
BRIGHT
BACK LIGHT
STANDARD
BACK LIGHT
DIM
BACK LIGHT
OFF
2Pressing either buttons to select preference setting.
3Press SET to confirm the setting.
SET
Each options confirmed by the repeating of process from
1through 3above.
QUIET
To enjoy quiet operation
• This operation reduces airflow noise.
ODOR
CLEANUP
To release odor from indoor unit
• This operation release odor from the internal indoor unit.
• Press ODOR CLEANUP for 3 seconds or more. The
operation activates for 20 minutes, and resume to the
presetting operation automatically.
• OFF timer: ODOR CLEANUP continuous display and the
operation stopped after odor removal end.
• SLEEP timer: ODOR CLEANUP immediately stop and OFF
“ODOR CLEANUP” display.
• Get fresh air from outside by opening the windows or door.
PRE
HEATING
To enjoy warm (hot) air from start
heating
• This operation to blow warm (hot) air as soon pressed the
HEAT button.
• When start PRE HEATING operation, the air conditioner
could not blow immediately because it is not warm enough
to blow.
• When it is in PRE HEATING operation, the power lamp will
not light up.
• Before start operation, please make sure that the current
time is correct.
• <Operation schematic: example>
6:005:30 7:00 8:00
6:00 ~ 7:00 The learned time zone by the most frequent
“ON” heating
5:30 ~ 8:00 PRE HEATING standing by time zone
• Display on the remote control.
• Condition of PRE HEATING operation.
The room temperature should be less than 18°C and the
outdoor temperature should be less than 10°C and previous
operation is heating.
• Recommending OFF this function when heating is not
operated for a long time.
SLEEP
To create sleeping comfort
SLEEP 30.5 5 712 9hr Cancel
• This operation provides you with a comfortable environment
while sleeping by gradually decrease and/or increase the
set temperature within 1°C for avoiding the room from
unnecessary cooling and/or heating.
• Can be set together with single timer or twin timer.
• When used together with the daily timer, sleep operation has
a priority.
See "To learn more..." for details.
How to use

12
To learn more...
Operation mode
HEAT : Unit takes a while to warm up. The POWER indicator blinks during this operation.
• Unit may stops warm air supply for deice. The deice indicator ON during this operation.
COOL : Provides efficient comfort cooling to suit your needs.
DRY : Unit operates at low fan speed to give a gentle cooling operation.
AUTO : During operation mode selection the POWER indicator blinks.
• Unit selects operation mode every 30 minutes according to setting temperature and room temperature.
ECONAVI and AUTO COMFORT
ECONAVI AUTO
COMFORT
or Note
AIR SWING
When manual AIR SWING is selected,
the ECONAVI and AUTO COMFORT
operations will be cancelled.
The unit will start to initialise
(for approximately 1 minute)
The human activity sensor and the
sunlight sensor will start to detect.
Human activity sensor operation
Human
Mode
Set
temperature
ECONAVI ; Detecting human presence and activity, the unit controls room temperature to save energy.
Low activity
Low activity
Normal activity
Normal activity
Human
Mode
Set
temperature
High activity
High activity
Absent
Absent
AUTO COMFORT ; Detecting human presence and activity, the unit controls room temperature to keep human comfortable consistently.
HEAT
COOL/DRY
HEAT
COOL/DRY
-1°C
-2°C
+1°C
+0.3°C +1°C
-2°C
-2°C-2°C
+2°C
+1°C
ECONAVI
Sunlight Sensor operation
Set
temperature
HEAT
COOL/DRY
+1~2°C
-1°C -1°C
ECONAVI ; Detecting sunlight intensity, the unit adjust temperature to save energy.
Ambient condition
Mode
ECONAVI is activated, the unit
maintains set temperature until a high
sunlight intensity is detected. The
sunlight sensor detects sunlight intensity
during weather or day/night changes,
and the unit adjusts temperature.
• In a room without window or with thick curtain, the sunlight sensor will judge as cloudy/night.
The human activity sensor will also scan for area of heat source and movement in a room.
Detect Area (TOP VIEW)
• Based on area activeness horizontal airflow direction will adjust either fix at predetermined
position or swing left/right periodically.
• The human activity sensor performance is influenced by indoor unit location, movement
speed, temperature range, etc.
• The human activity sensor may:
- mistakenly detect an object with heat source & movement similar to human, such as pets,
etc.
- mistakenly detect as non-heat source & movement if a human stays motionless for certain
period of time.
• Do not place large objects near the sensor and keep away heating units or humidifier from
the sensor’s detection area. They may cause sensor malfunction.
170º
10m

English
13
To learn more... / Cleaning instructions
To ensure optimal performance of the unit, cleaning has
to be carried out at regular intervals. Dirty unit may cause
malfunction. Please consult authorised dealer.
• Switch off the power supply and unplug before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.
• Do not use benzine, thinner or scouring powder.
• Use only soap ( pH 7) or neutral household detergent.
• Do not use water hotter than 40°C.
Indoor unit
Wipe the unit gently with a soft, dry cloth.
Human activity sensor
Do not hit or violently press or poke it with a sharp object.
This can lead to damage and malfunction.
Outdoor unit
Clear debris that surround the unit.
Clear any blockage from drain pipe.
Front panel
• Raise and pull to remove the front panel.
• Use dry or soft cloth.
Remove the front panel
Raise1
Pull out
2
Close it securely
Arm
1 Insert at both sides
2 Close down
Air Purification Filter
• Do not wash/rinse the filter with water.
• Replace the filter every 2 years.
Part no.: CZ-SA33P
Air Purification Filter
Air filters
Every 2 weeks
• Wash/rinse the filters gently with water to
avoid damage to the filter surface.
• Dry the filters thoroughly under shade, away from fire or
direct sunlight.
Remove air filter
Attach air filter
Rail (Orange)
Ditch
Indoor unit
Cleaning instructions
For seasonal inspection after extended non-use
• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select COOL/HEAT operation.
After 15 minutes of operation, it is normal to have the
following temperature difference between air inlet and air
outlet vents:
COOL: ≥8°C HEAT: ≥14°C
For extended non-use
• Activate HEAT mode for 2~3 hours to remove moisture left
in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.
<How to open the display cover>
Put your fingers on the tabs on the
display cover, then open it downward.
<How to open horizontal louvers>
Pressing ECONAVI button for 5 seconds, and display shows “OPEN
LOUVER”, the louvers will be open.
To close them, press OFF button.
<How to open the front panel>
Pull the open/close part, then open
with hands.
Display cover
Air filters
Air Purification Filter
(inside the air filter)
Front panel

14
Troubleshooting
The following symptoms do not indicate malfunction.
Symptom Cause
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Water flowing sound during operation. • Refrigerant flow inside the unit.
The room has a peculiar odor. • This may be due to damp smell emitted by the wall, carpet, furniture or
clothing.
Indoor fan stops occasionally during automatic fan speed
setting. • This helps to remove the surrounding odours.
Airflow continues even after operation has stopped. • Extraction of remaining heat from the indoor unit (maximum 30
seconds).
Operation is delayed a few minutes after restarting. • The delay is a protection to the unit’s compressor.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
TIMER indicator is always on. • The timer setting repeats daily once set.
During deice operation, louver is closed. • The AIR SWING is set to AUTO.
Indoor fan stops occasionally during heating operation. • To avoid unintended cooling effect.
POWER indicator blinks before the unit is switched on. • This is a preliminary step in preparation for the operation when the ON
timer has been set.
Cracking sound during operation. • Changes of temperature caused the expansion/contraction of the unit.
Splashing sound during operation. • Generating the nanoe on the unit.
Dusts accumulated on the wall. • Due to air circulation or static electricity generated by the air
conditioner. Some types of wall paper may collect dusts easily
(recommended to clean the area around the air conditioner frequently).
The unit still operates even after it is turned off. • After the heating operation is stopped, the outdoor unit may continue
its operation to melt the frost on it. (Max. 15 minutes).
Continuous short beep sound. • Abnormal symptom occurred during test run.
(The timer indicator blinks.)
The beep sound stops in about 3 minutes. Contact your dealer.
Discoloration of some plastic parts. • Discoloration is subject to material types used in plastic parts,
accelerated when exposed to heat, sun light, UV light, or environmental
factor.
Check the following before calling for servicing.
Symptom Check
Operation in HEAT/COOL mode is not working efficiently. • Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. • Check if the unit has been installed at an incline.
• Close the front panel properly.
Remote control does not work.
(Display is dim or transmission signal is weak.) • Insert the batteries correctly. • Replace weak batteries.
Cannot set TIMER. • Set the current date on the remote control.
The unit does not work. • Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from the remote
control. • Make sure the receiver is not obstructed. • Certain fluorescent lights may interfere with signal transmitter. Please
consult authorised dealer.
NON SERVICEABLE CRITERIAS
TURN OFF and UNPLUG POWER SUPPLY, then please consult authorised dealer under the following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote
control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
The unit stops and the TIMER indicator blinks.
Press INFO button to retrieve error
code
INFO +8/10°C
HEAT
+8/10°
C
HEAT
Example of error code retrieve
successfully.
If failed to received signal from indoor unit “PRESS AGAIN”
will be shown for 4 seconds, repeat previous step.
ERROR F99 PRESS
AGAIN
will be Indicated on the Display Turn the unit off and reveal the error code to authorised
dealer.

English
15
Information
Troubleshooting / Information
Information for Users on Collection and Disposal of Old Equipment and Used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical
and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC
and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise arise
from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Pb
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact
your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
This air conditioner incorporates a biocidal product.
Ionized air generated by a device incorporated in the air conditioner deactivates bacteria and viruses in the air, and on surfaces,
and inhibits mould growth on surfaces.
Active substances: hydroxyl radicals generated from ambient air

16
Fournir un confort maximal, nettoyer l’air
et optimiser les économies d’énergie
ECONAVI + AUTO COMFORT Le bon choix pour économiser l’énergie
Équipé du capteur d’activité humaine, le climatiseur garantit la diffusion d’air frais ou chaud et permet à la pièce d’offrir un confort
constant avec une consommation d’énergie minimale.
En outre, le capteur de lumière du soleil détecte l’intensité de la lumière du soleil et aide à contrôler les températures de
refroidissement ou de chauffage pour fournir un confort optimal.
Voir « Pour en savoir plus… » pour les détails.
nanoe Pour garantir la fraîcheur et un environnement plus propre
nanoe génère des ions négatifs à l’aide de l’air présent dans la pièce pour produire un air sain.
Il produit également un effet hydratant sur la peau ou les cheveux, réduit la présence d’odeur dans la pièce et limite la propagation
de la moisissure et des bactéries.
Conditions d’utilisation
Utilisez ce climatiseur en respectant la plage de températures suivante.
DBT : Température sèche
WBT : Température humide
Température (°C) Unité intérieure Unité extérieure
DBT WBT DBT WBT
REFROIDISSEMENT Max. 32 23 43 26
Min. 16 11 -10 -
CHAUFFAGE Max. 30 - 24 18
Min. 16 - -30 -
+8/10°C
DE CHAUFFAGE
Max. 10 - - -
Min. 16 - -30 -
