Panasonic CW-XC184HU User manual

Models: CW-XC184HU
CW-XC244HU
Please read these operating instructions thoroughly
before using your air conditioner and keep for future
reference.
For assistance, please call: 1-800-211-PANA(7262) or
Register your product at :http://www.panasonic.com/register
INSTALLATION AND OPERATING INSTRUCTIONS
Room Air Conditioner
CW382820391D
R

2
Safety Precautions
About the Controls on the Air Conditioner
Features and Installation
Before you call for service...
FOR YOUR RECORDS
Staple your receipt to this page in case you need it later.
Write down the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
READ THIS MANUAL
CAUTION
• Contact the authorized Service technician for repair or
maintenance of this unit.
• The air conditioner is not intended for use by young
children or infirm persons without supervision.
• Young children should be supervised to ensure that they
do not play with the air conditioner.
Safety Precautions
Safety Precautions.............3
About the Controls on
the Air Conditioner
Controls..............................5
Ventilation ..........................6
Air Direction........................6
How to Secure Drain Pipe
....6
Care and Maintenance
Air Filter Cleaning...............7
How to Insert Batteries.......7
Features
Features.............................8
Installation
How to Install the Unit........9
Window Requirements.......9
Installation Kit Contents ...10
Suggested Tool
Requirements...................11
Cabinet Installation...........12
Electrical Data..................14
Electrical Safety ...............14
Before you call for
service...
Normal Operation.............15
Abnormal Operation.........15

WARNING
3
Safety Precautions
Safety Precautions

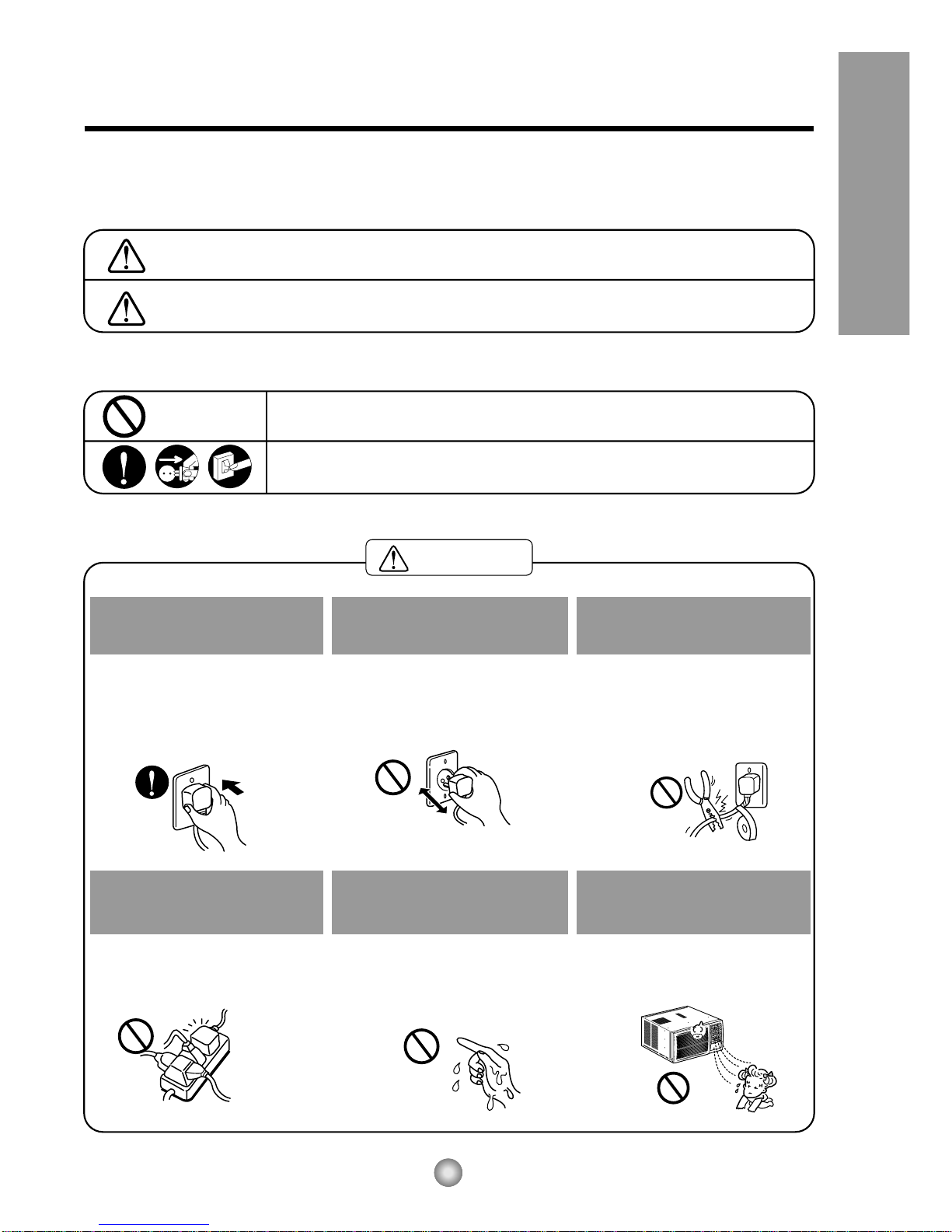

To prevent injury to the user or other people and property damage, the following instructions must be
followed.
■Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified
by the following indications.
■Meanings of symbols used in this manual are as shown below.
Plug in the power plug
properly.
• Otherwise, it will cause electric
shock or fire due to heat
generation.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or fire
due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or fire.
• If the power cord is damaged, it must
be replaced by the manufacturer or
an authorized service center or a
similarly qualified person in order to
avoid a hazard.
Do not modify power cord
length or share the outlet
with other appliances.
• It will cause electric shock or fire
due to heat generation.
Do not operate with wet
hands or in a damp
environment.
• It will cause electric shock.
Do not direct air flow at room
occupants.
• This could damage your health.
WARNING :This symbol indicates the possibility of death or serious injury.
CAUTION :This symbol indicates the possibility of injury or damage to
property only.
Be sure not to do this.
Be sure to follow the instructions.

4

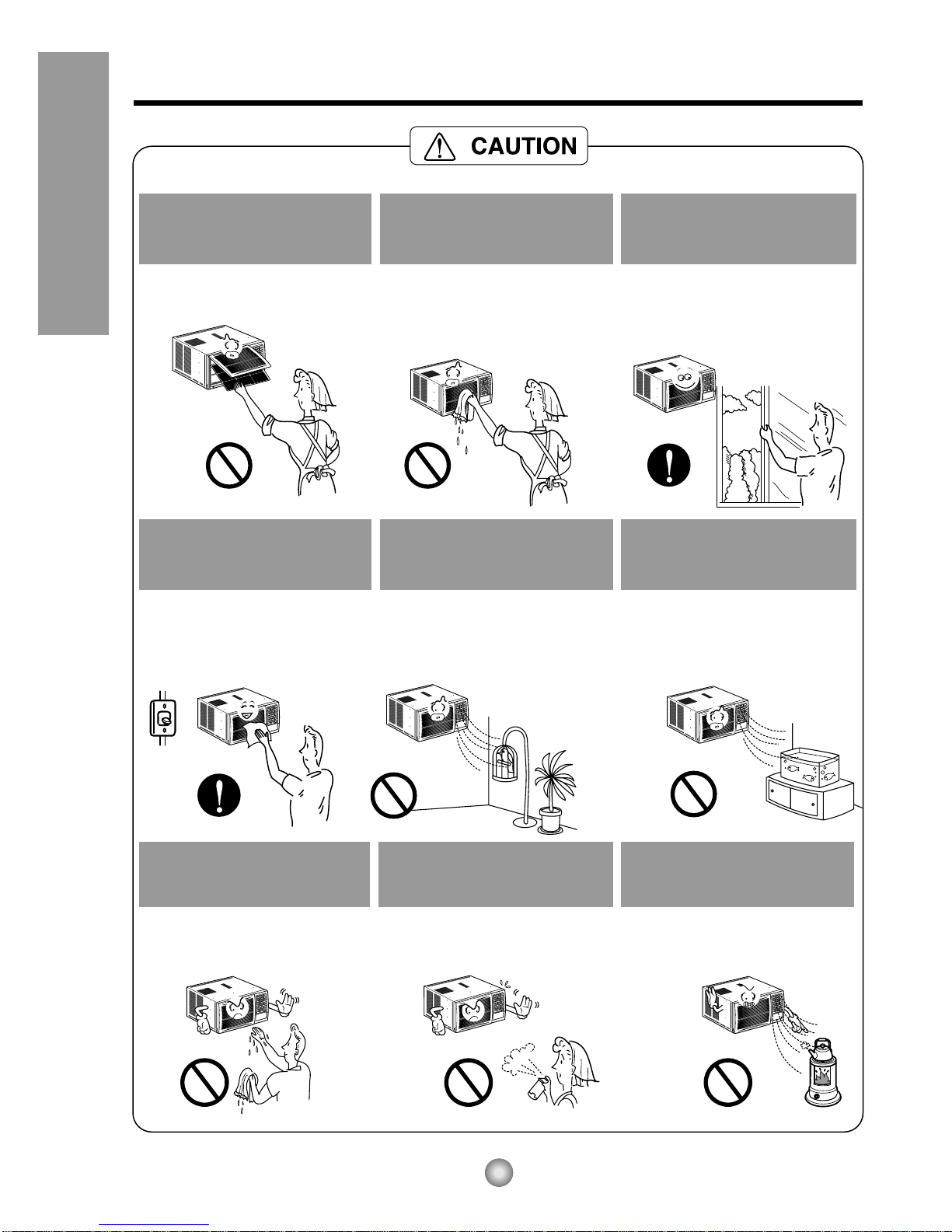

Safety Precautions
When the air filter is to be
removed, do not touch the
metal parts of the unit.
• It may cause an injury.
Do not clean the air
conditioner with water.
•Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Ventilate well when used
together with a stove, etc.
• An oxygen shortage may occur.
Whentheunitistobe
cleaned, switch off, and turn
off the breaker.
•Since the fan rotates at high
speed during operation, it may
causeaninjury.
Do not put a pet or house
plant where it will be exposed
to direct air flow.
• This could injure the pets or
plants.
Do not use for special
purposes.
• Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
Do not operate switches
with wet hands .
•Itmaycauseanelectricshock.
Do not apply an insecticide
or flammable spray.
• It may cause a fire or deformation
of the cabinet.
Do not put a heater, etc.
where it is exposed to direct
air flow.
•
It may cause imperfect
combustion.

5
About the Controls on the Air Conditioner
OPERATION
TEMP
TIMER AIR
SWING
MODE
ECONOMY
FAN SPEED
1
6
2 4
5
3
7
2 6
1
8
4 7
3
About the Controls on the Air Conditioner

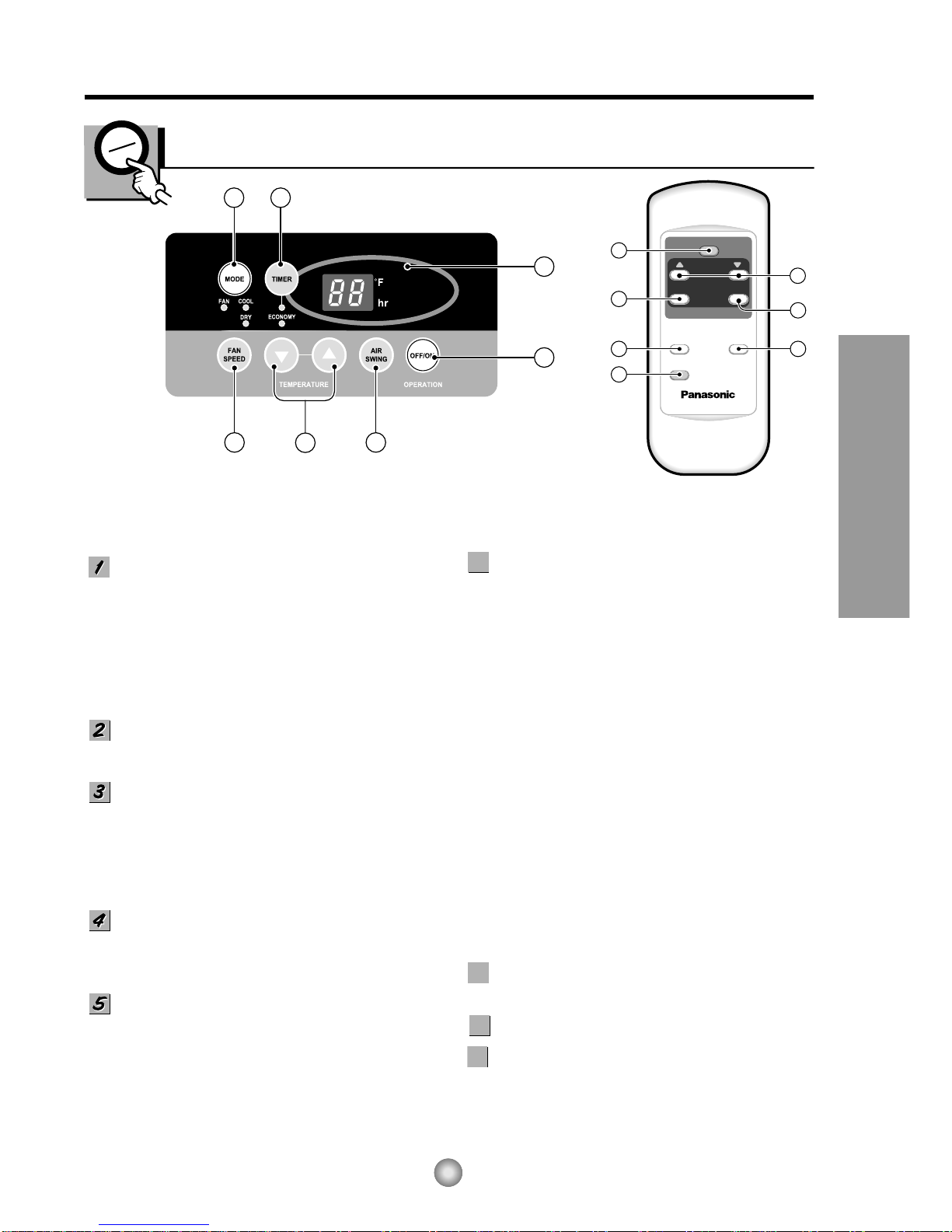

Controls
Models: CW-XC184HU, CW-XC244HU
OPERATION BUTTON
•To turn the air conditioner ON, push the
button. To turn the air conditioner OFF, push
the button again.
•This button takes priority over any other
buttons.
•When you first turn it on, the air conditioner is
on the High cool mode and the temp. at
72°F(22°C)
OPERATION MODE SELECTION BUTTON
Every time you push this button, it will toggle
between COOL, ECONOMY, FAN, DRY.
ROOM TEMPERATURE SETTING BUTTON
This button can automatically control the
temperature of the room. The temperature can
be set within a range of 60°Fto86°Fby1°F.
(16°Cto30°Cby1°C)
Select the lower number for lower temperature
of the room.
FAN SPEED SELECTION BUTTONS
Every time you push this button, it is set as
follows.
{High(F3)→Low(F1)→Med(F2)→High(F3)...}.
ECONOMY
•If you push this button, the fan stops when the
compressor stops cooling. Approximately every
3 minutes the fan will turn on and check the
room air to determine if cooling is needed.
ON/OFF TIMER BUTTON
You can set the time when the unit will turn on or turn
off automatically by pressing the timer button. If the
unit is operating, this button controls the time it will be
turned off. If the unit is in off state, this button controls
the time it will start. Every time you push this button,
the remaining time will be set as follows.
- STOPPING OPERATION
• Every time you push this button, when the air
conditioner is operating, timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours →
6Hours →7Hours →8Hours →9Hours →10Hours →
11Hours →12Hours →0Hour →1Hour →2Hours →...)
•The Setting Temperature will be raised by
2°F(1°C) 30min. later and by 2°F(1°C) after
another 30 min.
- STARTING OPERATION
• Every time you push this button, when the air conditioner
is not operating, timer is set as follows. (1Hour →2Hours
→3Hours →4Hours →5Hours →6Hours →7Hours →
8Hours →9Hours →10Hours →11Hours →12Hours →
0Hour →1Hour →2Hours →...)
AIR SWING BUTTON
This button can automatically control the air
flow direction.
REMOTE CONTROL SIGNAL RECEIVER
DRY
When this unit is in dry mode, the fan rotates in
low speed. The fan stops when the compressor
stops cooling.
Approximately every 3 minutes the fan will turn
on and the unit checks the room air
temperature to set itself.
7
7
6
6
8
8
9
9
Precaution: The Remote Controller will not function properly if strong light strikes the sensor
window of the air conditioner or if there are obstacles between the Remote Control
unit and the air conditioner.

Additional controls and important information.
Ventilation
The ventilation lever must be in the CLOSE position in order to maintain the
best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the
OPEN position.
The damper is opened and room air is drawn out.
Air Direction
The vertical air direction is adjusted by rotating the
horizontal louver forward or backward manually.
The horizontal air direction is adjusted by
rotating the vertical louver right or left by
Remote Controller.
The direction of air can be controlled wherever you want to cool by adjusting the
horizontal louver and the vertical louver.
•VERTICAL AIR-DIRECTION CONTROL •
HORIZONTAL AIR-DIRECTION CONTROL
How to Secure the Drain Pipe
In humid weather, excess water may cause the BASE PAN to overflow. To drain the water, remove the DRAIN
CAP and secure the DRAIN PIPE to the rear hole of the BASE PAN. Press the drain pipe into the hole by pushing
down and away from the fins to avoid injury. (See Fig.1)
Optional(CW3H02502C)
1. Remove the rubber plug and slide the chassis out
from the cabinet. (See Fig.2)
2. Install the drain pan over the corner of the cabinet
where you removed the plug with 4 screws.
(See Fig.3)
3. Connect the drain hose to the outlet located at the
bottom of the drain pan. You can purchase the drain
hose or tubing locally to satisfy your particular
needs. (Drain hose is not supplied). (See Fig.3)
4. Select the most appropriate connection from among
the figures to the right (by considering the hole of the
unit) to fit drain pan to your own unit. (See Fig.3)
5. Slide the chassis back into the cabinet. Reinstall the
cabinet screws. Secure the cabinet to chassis by
using screws. (See Fig.4)
6
About the Controls on the Air Conditioner
VENTCLOSE OPEN
Part A
Part B
Drain pipe
Drain cap
Fig. 4
Fig. 3
Fig. 2
DRAIN HOSE
Inside diameter 17mm (5/8")
Fig. 1
OFF/ON
OPERATION
TEMP/TIMER
COOL
FAN
HIGH
MED
LOW
MODE
FANSPEED
SET
TIMER
SET/
CANCEL
AIRSWING
ECONOMY
hr
F
Wireless
RemoteControl
DRAIN
PAN
CABINET
SCREW
Remove the
rubber plug
OFF/ON
OPERATION
TEP/TI
COOL
FAN
HIGH
MED
LOW
MOE
FANSPEED
SET
TIMER
SET/
CNE
AIR
ECONOMY
F
Wireless
RemoteControl
NOTE: Before using the ventilation feature, and prior to installing the front
grille, pull down part until level with part .

7
About the Controls on the Air Conditioner
AirFilterCleaning
The air filter behind the front grille should be checked and cleaned at least once every 2
weeks or more often if necessary.
TO REMOVE:
1. Open the inlet grille upward by pulling out the bottom of the inlet grille or downward by
pulling out the top of the inlet grille.
2. Using the tab, pull up slightly on the filter to release it and pull it down or up.
3. Clean the filter with warm, soapy water below 40°C (104°F).
4. Rinse and gently shake the water from the filter and let it dry before replacing it.
CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will
clog it and reduce performance.
Care and Maintenance
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
•Do not use
rechargeable batteries.
Such batteries
differ from standard dry
cells in shape,
dimensions, and
performance.
•Remove the batteries
from the remote
controller if the air
conditioner is not going
to be used for an
extended length of time.
How to insert batteries
1. Remove the cover from the back of the
remote
controller.
2. Insert two AAA dry cell batteries.
•Be sure that the (+) and (-) directions
are correct.
•Be sure that both batteries are new.
3. Re-attach the cover.

8
About the Controls on the Air Conditioner
Learning parts name prior to installation will help you understand the installation procedure.
Features
Features

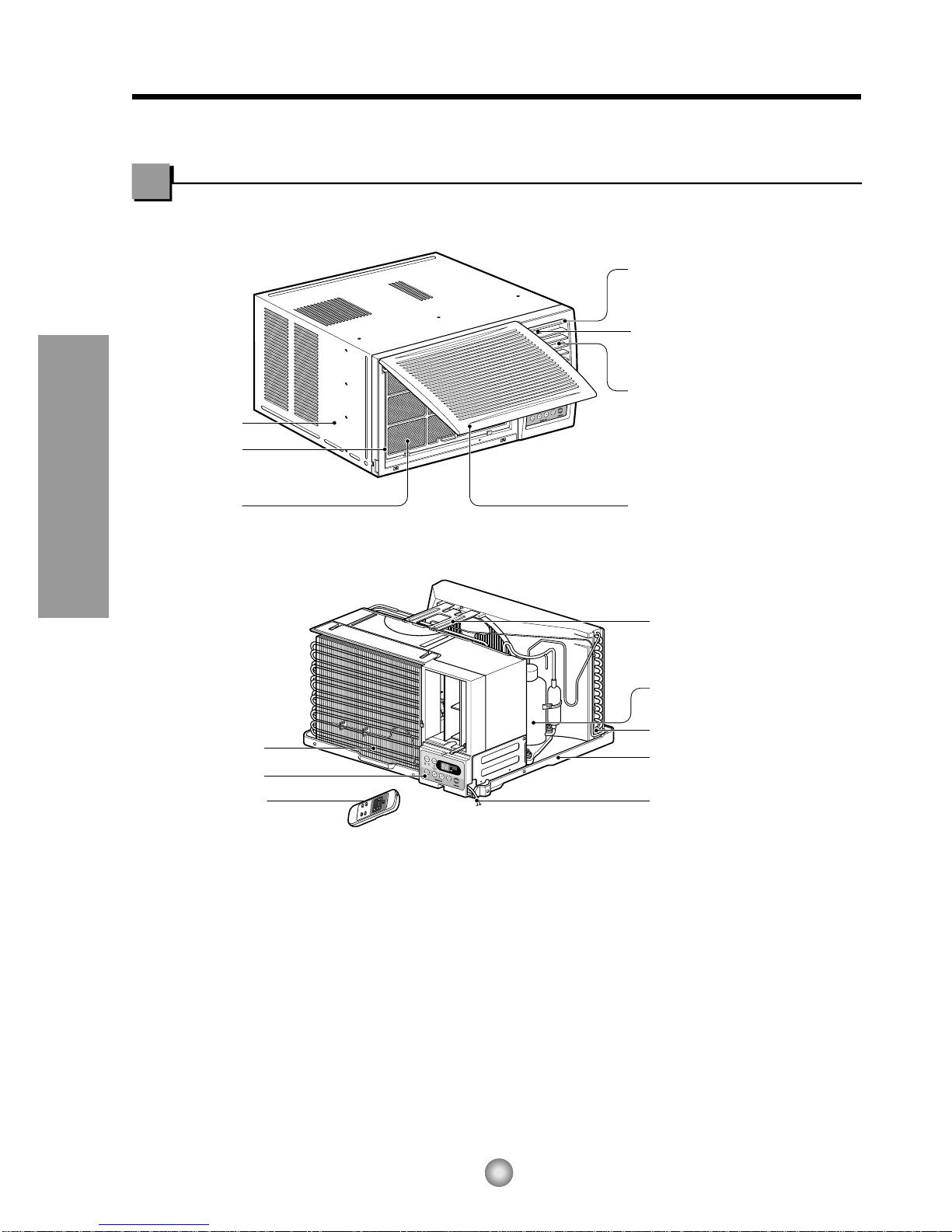

CABINET
FRONT GRILLE
AIR FILTER AIR INTAKE
(INLET GRILLE)
AIR DISCHARGE
HORIZONTAL AIR DEFLECTOR
(VERTICAL LOUVER)
VERTICAL AIR DEFLECTOR
(HORIZONTAL LOUVER)
EVAPORATOR
POWER CORD
BASE PAN
CONDENSER
COMPRESSOR
BRACE
CONTROL BOARD
REMOTE CONTROLLER

9
Features and Installation

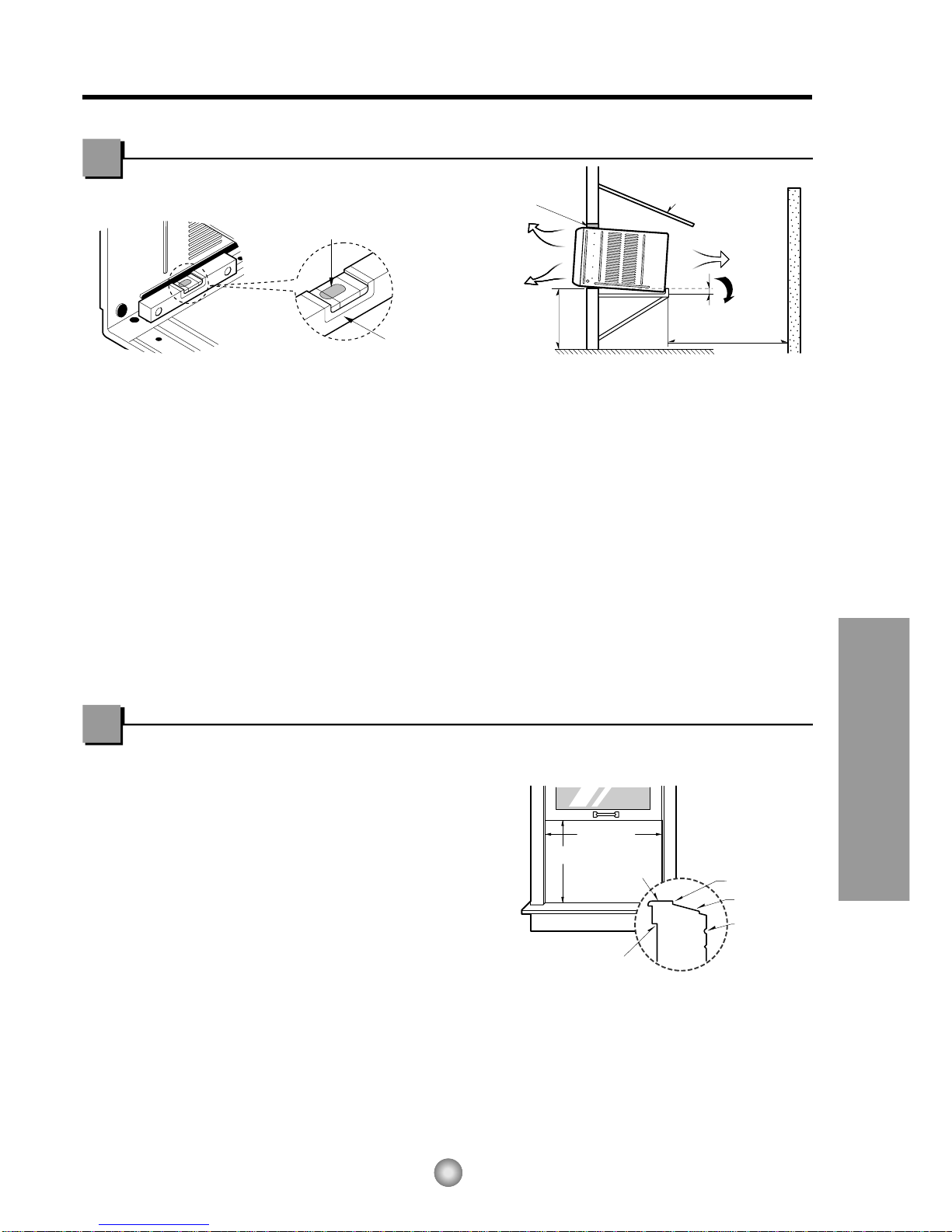

About 1/2"
Over 20"
HEAT
RADIATION
FENCE
AWNING
INSIDE OUTSIDE
FOAM
COOLED
AIR
30-60"
Level
1/4 Bubble
26" to 41"
18" min
OFFSET
SILL
EXTERIOR
INTERIOR WALL
STOOL
Installation
How to Install the Unit
1. To avoid vibration and noise, make sure the unit is installed securely and firmly.
2. Install the unit where the sunlight does not shine directly on the unit.
If the unit receives direct sunlight, build an awning to shade the cabinet.
3. There should be no obstacle, like a fence, within 20”which might restrict heat radiation from the
condenser.
4. To prevent reducing performance, install the unit so that louvers of the cabinet are not blocked.
5. Install the unit a little obliquely outward to avoid leaking the condensed water into the room (about
1/2”or 1/4 bubble with level).
6. Install the unit with its bottom portion 30~60”above the floor level.
7. Stuff the foam between the top of the unit and the wall to prevent air and insects from getting into
the room.
8. The power cord must be connected to an independent circuit. The green wire must be grounded.
9. Connect the drain tube to the base pan hole in the rear side if you need to drain (consult a dealer.)
Plastic hose or equivalent may be connected to the drain tube.
NOTE: All supporting parts should be secured to firm wood, masonry, or metal.
WINDOW REQUIREMENTS
1. This unit is designed for installation in
standard double hung windows with actual
opening widths from 26" to 41".
The top and bottom window sashes must
open sufficiently to allow a clear vertical
opening of 18" from the bottom of the upper
sash to the window stool.
2. The stool offset (height between the stool
and sill) must be less than 1 1/4".
Window Requirements

10
Features and Installation
Installation Kits Contents
■Top retainer bar is in product package.
Foam-PE
(Adhesive-Backed)
Foam-PE
(Adhesive-Backed)
Type C (5) Type D (2)
Type A (14)
Carriage Bolt (2) Lock Nut (4)
Type B (7)
Foam strip
(Plain-Back)
Right frame
curtain
Drain pipe
Window locking
bracket
Left frame
curtain
Sill bracket (2)
Support bracket(2)

11
Features and Installation
Foam-PE
Top retainer bar
Top retainer bar
Foam-PE
Screw
(Type A)
Screw(Type A)
Shipping screws
Lower guide

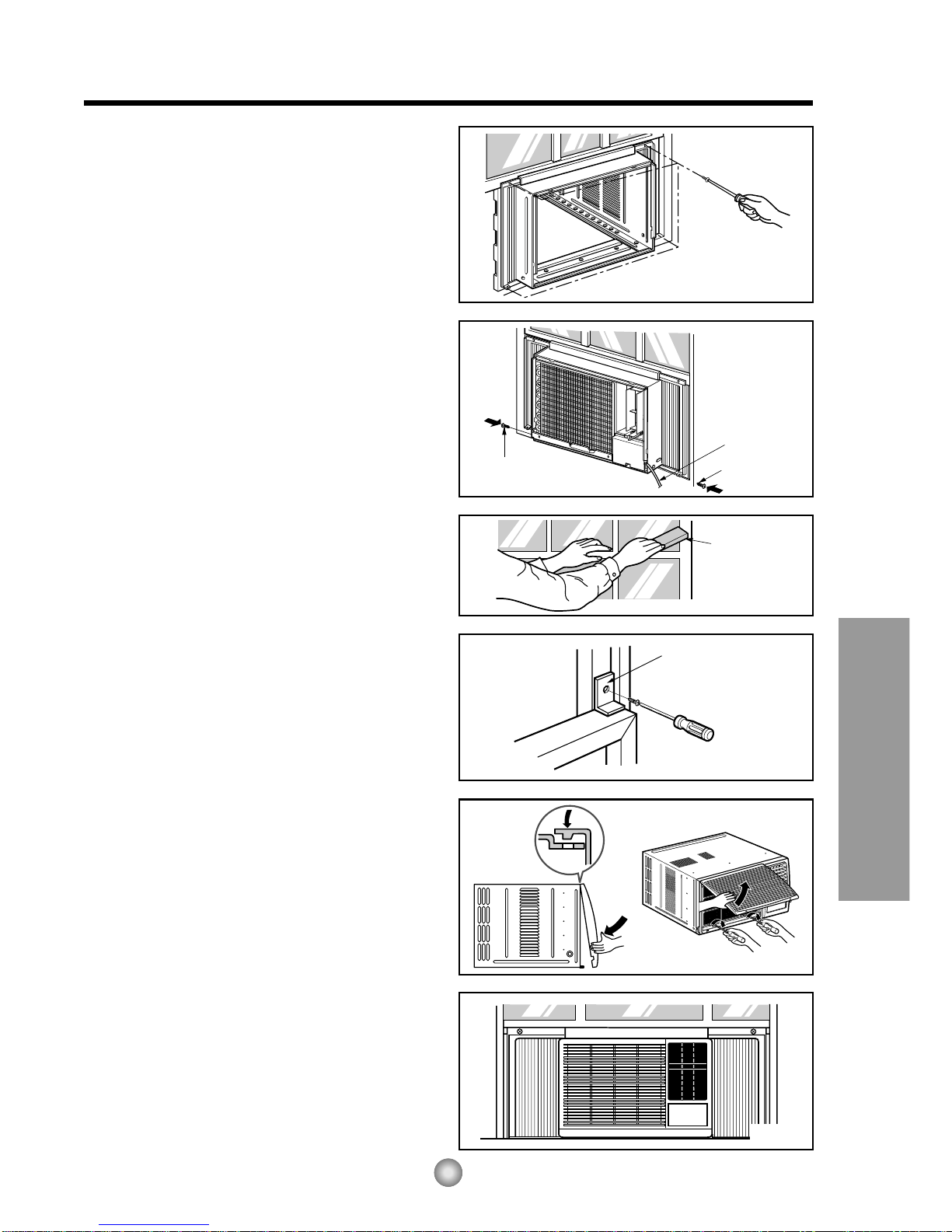

PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet at
both sides and at the back.(See Fig.1)
2. Slide the unit out from the cabinet by gripping the
base pan handle and pulling forward while
bracing the cabinet.(See Fig.2)
3. Cut the window sash seal to the proper length.
Peel off the backing and attach the Foam-PE to the
underside of the window sash.(See Fig.3)
4. Remove the backing from Foam-PE with 3 holes
and attach it to the bottom of the Top retainer
bar.(See Fig.3)
5. Attach the Top retainer bar the top of the cabinet
with 3 screws (Type A).(See Fig.4)
6. Insert the Frame Curtain into the Top retainer bar
and Lower guide.(See Fig.4)
7. Fasten the curtains to the unit with 10 screws
(TypeA)atbothsides.(SeeFig.4)
Suggested Tool Requirements
SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL
Fig. 1
Fig. 2
Fig. 3
Fig. 4

12
Features and Installation
Cabinet Installation
1. Open the window. Mark a line on the center
of the window stool between the side
window stop moldings.
Loosely attach the sill bracket to the support
bracket using the carriage bolt and the lock
nut. (See Fig.5)
2. Attach the sill bracket to the window sill
using the screws (Type B).
Carefully place the cabinet on the window
stool and align the center mark on the
bottom front with the center line marked
window stool.(See Fig.6)
3. Using the M-screw and the lock nut, attach
the support bracket to the cabinet track hole.
Use the first track hole after the sill bracket
on the outer edge of the window sill. Tighten
the carriage bolt and the lock nut. Be sure
the cabinet slants outward. (See Fig.6)
CAUTION: DO NOT DRILL A HOLE IN THE
BOTTOM PAN.
The unit is designed to operate
with approximately 12.7mm(1/2")
of water in bottom pan.
4. Pull the bottom window sash down behind
the Top retainer bar until they meet.(See
Fig.7)
NOTE: 1. Do not pull the window sash down so
tightly that the movement of Frame
curtain is restricted. Attach the
cabinet to the window stool by
driving the screws (Type B) through
the cabinet into window stool. (See
Fig.8)
2. The cabinet should be installed with
a very slight tilt downward toward the
outside.
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Support
Bracket
Lock nut
Sill
Bracket
Carriage
Bolt
(M-Screw)
Window sash Top retainer bar
Cabinet
Foam-PE
Frame curtain
Screw(Type B)
Front Angle
Sash track
Foam-PE
Cabinet
Track hole
Support
Bracket
Carriage bolt
and lock nut
Machine screw(Type D)
and lock nut
Outer edge
of window
sill
Screw(Type B)
Sill bracket

13
Features and Installation
Power Cord
Screw
Screw
Window locking
bracket
Foam-Strip
Screw(Type C)
5. Pull each Frame curtain fully to each window
sash track, and pull the bottom window sash
down behind the Top retainer bar until it
meets.
6. Attach each Frame curtain the window sash
by using screws (Type C.) (See Fig. 9)
7. Slide the unit into the cabinet.(See Fig. 10)
CAUTION: For security purpose, reinstall screws
at cabinet's sides.
8. Cut the Foam-strip to the proper length and
insert between the upper window sash and
the lower window sash.(See Fig. 11)
9. Attach the Window locking bracket with a
screw (Type C.) (See Fig. 12)
10. Attach the front grille to the cabinet by
inserting the tabs on the grille into the tabs
on the front of the cabinet. Push the grille in
until it snaps into place.(See Fig.13)
11. Lift the inlet grille and secure it with two
screws (Type A) through the front grille.(See
Fig. 13)
NOTE: Please refer p.6 for setting ventilation kit.
12. Window installation of room air conditioner is
now completed. See ELECTRICAL DATA for
attaching power cord to electrical outlet.
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 13
Fig. 14

Do not under any
circumstances cut
or remove the
grounding prong
from the plug.
Line Cord Plug Use Wall Receptacle Power Supply
Line Cord Plug Use Wall Receptacle Power Supply
Power supply cord with
3-prong grounding plug
Do not under any
circumstances cut
or remove the
grounding prong
from the plug.
Power supply cord with
3-prong grounding plug
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
Standard 250V, 3-wire grounding
receptacle rated 15A, 250V AC
Use 15 AMP. time
delay fuse or 15 AMP.
circuit breaker.
Use 15 AMP. time
delay fuse or 15 AMP.
circuit breaker.
Use 20 AMP. time
delay fuse or 20 AMP.
circuit breaker.
Do not under any
circumstances cut
or remove the
grounding prong
from the plug.
Power supply cord with
3-prong grounding plug Standard 250V, 3-wire grounding receptacle rated 20A, 250V AC
14
Features and Installation
Electrical Data(For 230/208V model only)
■ELECTRICAL SAFETY
All wiring should be made in accordance with local electrical codes and regulations.
NOTE : Aluminum house wiring may pose special problems. Consult a qualified electrician.
IMPORTANT GROUNDING INSTRUCTIONS
Air conditioner has a three-prong grounding plug
on its power supply cord, which must be plugged
into properly grounded three-prong wall
receptacle for your protection against possible
shock hazard.
230, 208, and 230/208 VOLT UNITS
These units are equipped with a three-prong
grounding plug on the power supply cord, which
must be plugged into a matching properly
grounded three-prong wall receptacle for your
protection against possible shock hazard. If such
an outlet is not present, one must be installed by
a qualified electrician in accordance with the
National Electrical Code and local codes and
ordinances.
NOTE: DO NOT USE AN EXTENSION CORD
ON 230, 208, AND 230/208 VOLT UNITS.

15
Before you call for service...
Before you call for service...
Troubleshooting Tips
Save time and money! Review the chart below first and
you may not need to call for service.
Normal Operation
•You may hear a pinging noise caused by water being picked up and thrown against the condenser
on rainy days or when the humidity is high. This design feature helps remove moisture and improve
efficiency.
•You may hear the relay click when the compressor cycles on and off.
•Water will collect in the base pan during high humidity or on rainy days. The water may overflow
and drip from the outdoor side of the unit.
•The fan may run even when the compressor does not.
Abnormal Operation
Problem Possible Causes What To Do
■The air conditioner is
unplugged.
■The fuse is blown/circuit
breaker is tripped.
■Power failure.
■Airflow is restricted.
■TEMP Control set to a
higher number.
■The air filter is dirty.
■The room may have been
hot.
■Cold air is escaping.
■Cooling coils have iced up.
■Ice blocks the air flow and
stops the air conditioner
from cooling the room.
•Make sure the air conditioner plug is pushed
completely into the outlet.
•Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
•When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
•Make sure there are no curtains, blinds, or furniture
blocking the front of the air conditioner.
•Set the TEMP Control to a lower number.
•Clean the filter at least every 2 weeks.
See the operating instructions section.
•When the air conditioner is first turned on
you need to allow time for the room to cool down.
•Check for open furnace floor registers
and cold air returns.
•Set the air conditioner's vent to the closed position.
•See Air Conditioner Freezing Up below.
•Set the mode control at High Fan or High Cool with
the high temperature.
Air conditioner
does not start
Air conditioner
does not cool as it
should
Air conditioner
freezing up

16
Precauciones Importantes de seguridad
Instrucciones de Funcionamiento
Características e Instalacion
Antes de avisar al Servicio Técnico
PARA SU INFORMACION
Precauciones
Importantes de
Seguridad
Precauciones Importantes
de seguridad....................17
Instrucciones de
Funcionamiento
Controles...........................19
Ventilación.........................20
Como controlar la
direccion del aire...............20
Como installar el Tubo de
desagüe.............................20
Cuidado y Mantenimiento
Limpieza de filtro de aire...21
Cómo poner las Baterías ...21
Características
Características ..................22
Instrucciones de
instalación
Elija el major lugar.............23
Requisitos de ventana.......23
Contenido del juego de
instalación ..........................24
Requisitos de las
herramientas sugeridas .......25
Instalación del gabinete.....26
Datos electricos.................28
Seguridad electrica............28
Antesdeavisaral
Servicio Técnico
Operacíon normal ............29
Operacíon anormal ..........29
Escriba aquí los números de serie y modelo de las
unidades exterior e interior:
Nº de Modelo
Nº Serie
Los números figuran en una etiqueta en el lateral de cada
unidad.
Distribuidor
Fecha de compra
• Aquí encontrará numerosas sugerencias sobre cómo
utilizar y mantener adecuadamente su acondicionador de
aire. Con unos cuantos cuidados preventivos se puede
ahorrar mucho tiempo y dinero a lo largo de la vida útil de
su acondicionador de aire.
• En la tabla de sugerencias para la resolución de
problemas encontrará respuestas a la mayoría de los
problemas más comunes. Si consulta primero la tabla de
Sugerencias para la resolución de problemas,quizáni
siquiera necesite avisar al servicio técnico.
• Consulte con el servicio técnico autorizado sobre la
reparación o el mantenimiento de esta unidad.
• El acondicionador de aire no debe ser utilizado por
niños pequeños o personas inestables sin
supervisión.
• Es preciso vigilar a los niños pequeños para
asegurarse de que no juegan con el acondicionador
de aire.
LEAESTEMANUAL
PRECAUCION

Precauciones Importantes de seguridad
ADVERTENCIA
17
Precauciones Importantes de Seguridad
Para prevenir tanto lesiones al usuario u otras personas como daños materiales, es preciso seguir estas instrucciones.
■El manejo incorrecto debido a la inobservancia de estas instrucciones puede causar lesiones o daños cuya gravedad
está clasificada en las siguientes indicaciones.
ADVERTENCIA Este símbolo indica la posibilidad de lesiones mortales o graves.
PRECAUCION
Este símbolo indica la posibilidad de lesiones o daños
materiales.
■ El significado de los símbolos utilizados en este manual se indica a continuación.
Asegúrese de no hacerlo.
Asegúrese de seguir las instrucciones.
Conecte correctamente el
enchufle
• De otra forma, ello ocasionaría
una descarga eléctrica o
incendio a causa de la
generación de calor.
No opere o pare la unidad
insertando o tirando del
enchufe
• Ello ocasionaría una descarga
eléctricaoincendioacausadela
generación de calor.
No dañe o utilize un cable
eléctrico inadecuado
• Ello ocasionaría una descarga
eléctrica o incendio.
No modifique el largo del cable
eléctrico, y tampoco comparta
el tomacorriente con otros
aparatos
• Ello ocasionaría una descarga
eléctrica o incendio a causa de la
generación de calor.
No lo maneje con las manos
humedas
• Puede ocasionar una descarga
eléctrica.
No exponga durante mucho
tiempo la piel al aire frío
procedente directamente del
acondicionador.
• Esto podría dañar su salud.

18
Precauciones Importantes de seguridad
PRECAUCION
Cuando se vaya a quitar el
filtro de aire no toque las
partes metálicas de la unidad
interior.
• Esto podría causar heridas.
No limpie el acondicionador
de aire con agua.
• El agua podría entrar en la
unidad y degradar el aislamiento.
También podría causar una
sacudida eléctrica.
Ventile bien cuando utilice el
acondicionador junto con
una estufa, etc.
•Enestecasotalvezseproduzca
una falta de oxígeno.
Cuando limpie la unidad,
desconecte la alimentacióny
desconecte tambiénel
disyuntor.
• Puesto que el ventilador gira a
alta velocidad durante la
operación, podría ocasionar
heridas.
NO ponga un animal doméstico
ni una planta donde quede
directamente expuesto al flujo
de aire.
• Esto podría dañar al animal o a
la planta.
No lo utilice para propósitos
especiales.
• No utilice este acondicionador de
aire para conservar dispositivos
de precisión, alimentos y objetos
de arte; no ponga tampoco
animales y plantas cerca de él.
Esto podría deteriorar la calidad,
etc.
No manipule los
interruptores con las manos
mojadas.
• Esto podría causar una sacudida
eléctrica.
No aplique aerosoles con
insecticida o productos
inflamables.
• Esto podría causar un incendio o
deformar la caja.
No ponga una estufa, etc.
donde quede expuesta al
flujodeairedirecto.
•
Esto podría causar una
combustión imperfecta.

OPERATION
TEMP
TIMER AIR
SWING
MODE
ECONOMY
FAN SPEED
1
6
2 4
5
3
7
2 6
1
8
4 7
3
Instruccionnes de Funcionamiento
19
Instrucciones de Funcionamiento
Controles
ENECNDIDO/APAGADO
•Para ENCENDER el sistema presione el botón, y
para APAGARLO presione el botónotravez.
•Este botón tiene prioridad sobre todos los otros
botones.
•Cuando Ud. Io enciende por primera vez, el sistema
estáen el y la temperatura es de 72˚F(22˚C).
FRÍO/VENTILADOR
•Cada vez que presione este botón, las palabras
COOL, ECONOMY, FAN y DRY aparecerán
alternadamente.
AJUSTE DE LA TEMPERATURA
•Este botón puede controlar la temperatura del
cuarto automáticamente. La temperatura se
puede ajustar de grado en grado, desde 60˚F
hasta 86˚Fcada1˚F(16˚Chasta 30˚Ccada
1˚C). Seleccione el número másbajoparala
temperatura más baja en el cuarto.
VELOCIDAD DEL VENTILADOR
•Cada vez que presione este botón, el ajuste es
como sigue. {Alto(F3) →Bajo(F1) →Medio(F2) →
Alto(F3)...}
AHORRADOR DE ENERGÍA
El ventilador se detiene cuando el compressor no
sigue enfriando.
•Aproximadamente cada 3 minutos el ventilador se
encenderá, y necesitaráverificar la temperatura
del cuarto para saber si es necesario más
enfriamiento.
MARCADOR DE ENCENDIDO/APAGADO
- OPERACIÓN DE PARADA:
•Cada vez que presione este botón, cuando el
sistema estéoperando, el marcador de tiempo
se ajustaráde la siguiente manera: (1Hora →
2 Horas →3Horas→4Horas→5Horas→
6 Horas →7Horas→8Horas→9Horas→
10 Horas →11 Horas →12 Horas →0Hora).
•La temperatura de ajuste se elevará2˚F(1˚C),
30 minutos después, y otros 2˚F(1˚C) media
hora después.
- OPERACIÓN DE INICIACIÓN:
•Cada vez que presione este botón, cuando el
sistema estéoperando, el marcador de tiempo
se ajustaráde la siguiente manera: (1Hora →
2Horas→3Horas→4 Horas →5Horas→
6 Horas →7Horas→8Horas→9Horas→
10 Horas →11 Horas →12 Horas →0Hora).
AUTOGIRD
•Este botón puede controlar automáticament la
direccióndelflujodeaire.
RECEPTOR DE SEÑAL
DRY
•Cuando esta unidad se torna al modo seco, el
ventilador gira en velocidad lenta. El ventilador se
detiene cuando el compresor se para de enfriar.
Aproximadamente cada 3 minutos se encenderá
el ventilador y la unidad comprueba la
temperatura del aire de la habitaciónpara
ajustarse a si mismo.
6
6
7
7
8
8
9
9
Precaución: El dispositivo de control remoto no funcionaráadecuadamente si la ventana sensora
del acondicionador de aire es expuesta a luz fuerte, o si hay obstáculos entre el
dispositivo de control remoto y el acondicionador de aire.
Modelos: CW-XC184HU, CW-XC244HU

Instrucciones de Funcionamiento
Parte A
Parte B
VENTCERRADO ABIERTO
OFF/ON
OPERATION
TEMP/TIMER
COOL
FAN
HIGH
MED
LOW
MODE
FANSPEED
SET
TIMER
SET/
CANCEL
AIRSWING
ECONOMY
hr
F
Wireless
RemoteControl
Retire el tapón
de goma
Tapa
del desagüeTubo
Fig. 4
Fig. 3
Fig. 2
Fig. 1
BANDEJA
DE DRENAJE
MANGUERA DE DRENAJE
El diámetro interior 17mm (5/8")
TAPA
TORNILLOS
OFF/ON
OPERATION
TEP/TI
COOL
FAN
HIGH
MED
LOW
MOE
FANSPEED
SET
TIMER
SET/
CNE
AIR
ECONOMY
F
Wireless
RemoteControl
20
Controles adicionales e informacion importante.
Ventilación
La palanca de ventilación debe estar en posición CERRADA para poder mantener las
mejores condiciones de enfriamiento. Cuando se necesite aire fresco en la habitación,
coloque la palanca de ventilación en posición ABIERTA. La Compuerta es abierta y el aire
de la habitación es expulsado.
NOTA: Antes de utilizar la característica de ventilación, haga un kit de
ventilación. Primero, hale hacia abajo la parte hasta que
quede horizontal con la parte .
Como controlar la direccion del aire
La dirección del aire puede ser controlada cuando usted desee enfriar, ajustando la
palanca vertical y la palanca horiziontal.
• CONTROL DE LA DIRECCIÓN VERTICAL
DEL AIRE
La dirección vertical del aire es ajustada
rotando la palanca horizontal hacia adelanto
o hacia atrás.
La dirección horizontal del aire es ajustada
rotando la palanca vertical hacia la derecha o
hacia la izquierda por Director Remoto.
• CONTROL DE LA DIRECCIÓN
HORIZONTAL DEL AIRE
Como Installar el Tubo de Desagüe
En climas húmedos, es posible que la BANDEJA EVAPORADORA se llene de agua.
Para quitar el agua acumulado, es preciso conectar el tubo de desagüe.
Quite la TAPA DEL DESAGÜE y conecte el TUBO a la BANDEJA EVAPORADORA.(Ver Fig.1)
Opcional(CW3H02502C)
1. Retire el tapón de plástico y deslice el chasis fuera del
armario. (Ver Fig.2)
2. Instale la bandeja de drenaje por encima de la esquina
de la tapa de donde retiróel tapón con 4 (o 2)
tornillos. (Ver Fig.3)
3. Conecte la manguera de drenaje a la salida situada en
la parte inferior de la bandeja de drenaje. Puede adquirir
una manguera de drenaje o una tubería apropiada en su
localidad que satisfaga sus necesidades particulares (la
manguera no se suministra). (Ver Fig.3)
4. Seleccione la conexión más apropiada entre las figuras
siguientes (teniendo en cuenta el orificio de la unidad)
para acoplar la bandeja de drenaje en su unidad. (Ver
Fig.3)
5. Deslice el chasis en el interior del armario.
Vuelva a apretar los tornillos del armario. Fije el armario
al chasis con tornillos. (Ver Fig.4)
