Panasonic GS-G90KE User manual

ServiceManual
Room Air Conditioners
CS-G90KE / CU-G90KE
CS-G120KE / CU-G120KE
 1996 Matsushita Air-Conditioning Corp. Sdn. Bhd.
All rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
ORDER NO. MAC9609040C2
Contents
●Features ..........................................................1
●Functions ...................................................2 – 6
●Product Specifications .............................7 – 10
●Dimensions............................................11 – 12
●Refrigeration Cycle Diagram .........................13
●Block Diagram ...............................................14
●Wiring Diagram......................................15 – 16
●Operation Details...................................17 – 48
●Installation Information ..........................49 – 50
●Servicing Information.............................51 – 62
●Technical Data.......................................63 – 64
●Exploded View.........................................65, 67
●Replacement Parts List ...........................66, 68
●Electronic Parts List...............................69 – 70
Untitled-2 6/29/00, 10:40 AM1

– 1 –
CS-G90KE
Features
WARNING
Thisserviceinformationisdesigned forexperienced repair techniciansonly andis notdesigned foruse bythe generalpublic. Itdoes notcontain
warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity
should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with
in this service information by anyone else could result in serious injury or death.
!
• Product
– Powerful Mode for quick cool/heat
– Compressor operating frequency control to maintain
desired room temperature
– Automatic Restart after power failure
– Battery weak indication mark at remote control
– Washable front panel
– Power Monitor Display
• Serviceability
– Self diagnosis
– TestRunatbothCoolingandHeatingratedfrequency
• Quality Improvement
– High power supply voltage protection
– Low power supply voltage protection
– Gas leakage detection
Untitled-1 6/29/00, 10:39 AM1

– 2 –
MAC9609040C2
CS-G90KE

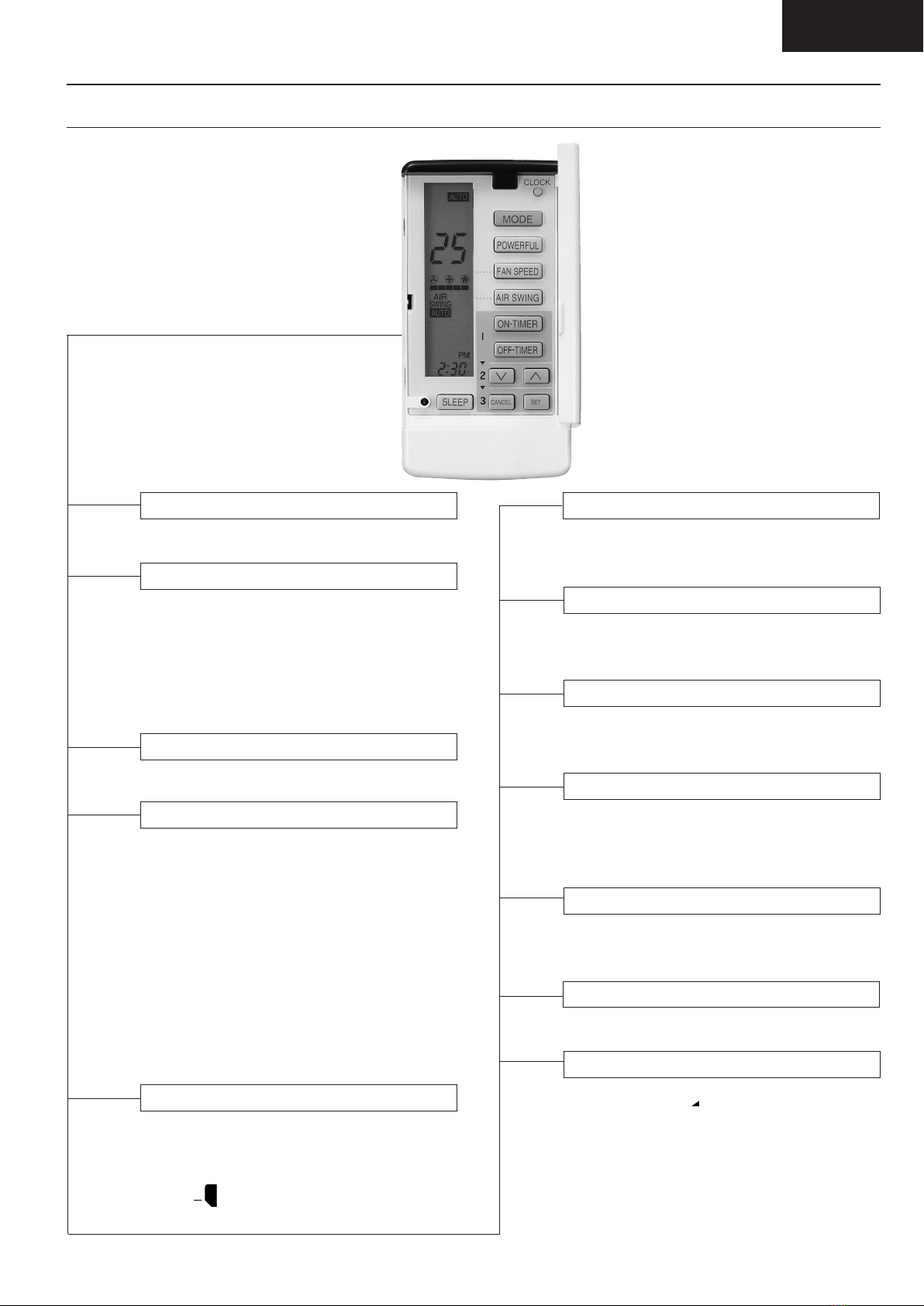

Remote Control
Functions
Operation OFF / ON Room Temperature Setting
TEMP.
• Temperature Setting (16˚C to 30˚C).
Operation Mode Selection
•aAutomatic Operation Mode
•HEAT Heating Operation Mode
•COOL Cooling Operation Mode
•DRY Soft Dry Operation Mode
•FAN Fan Operation Mode
MODE
OFF / ON
L
Powerful Mode Operation
POWERFUL
Indoor Fan Speed Selection
FAN SPEED
•h j k Low
l
•h j k Medium–
ll
•h j k Medium
lll
•h j k Medium+
llll
•h j k High
lllll
•AUTO FAN Automatic Fan Speed
• Automatic Airflow Direction
Control
• Airflow Direction Manual Control
Airflow Direction Control
AIR
SWING
AIR
SWING
a
AIR
SWING
Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Sleep Mode Operation OFF / ON
SLEEP
• 24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER Timer Operation Selection
SET
CANCEL Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
∨
∧
CLOCK
Battery Indication
• Battery mark “
%
” blinks when the batteries
should be replaced.
Untitled-1 6/29/00, 10:39 AM2

– 3 –
CS-G90KE
Functions

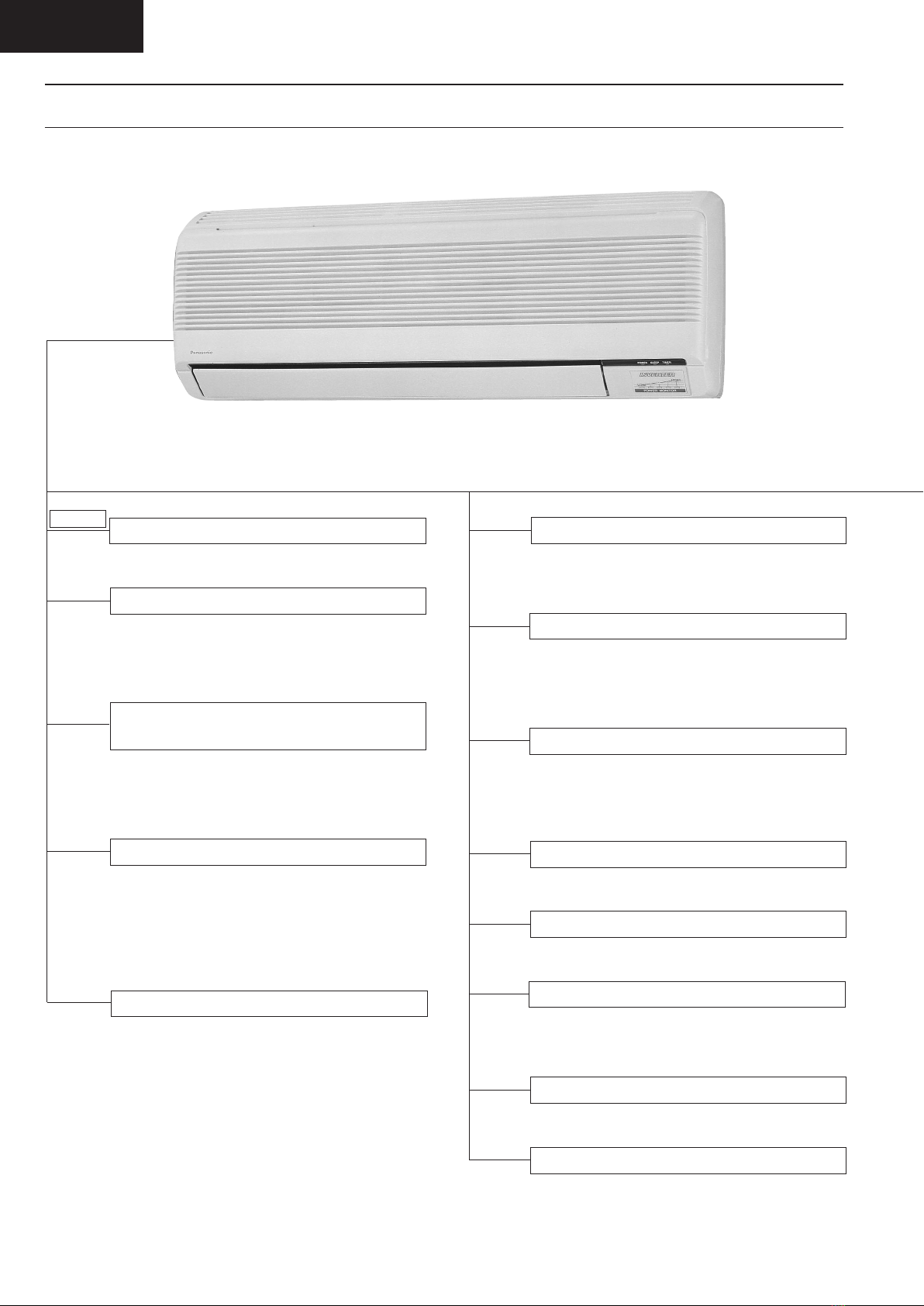

Indoor Unit
Power Switch OFF / ON LL
LL
LPower Monitor Display **
**
*
• Lights up during compressor operation.
Automatic Operation Switch
• Used when the remote control cannot be
used.
Remote Control Signal Receiving
Sound Control OFF/ON **
**
*
• It can be controlled by pressing Automatic
Operation Switch for 10 seconds.
Test Run Operation
• Used when test running or servicing.
• Compressor operation: rated frequency
Cooling: 72Hz (CS-G90KE), 78Hz (CS-G120KE)
Heating: 92Hz (CS-G90KE), 98Hz (CS-G120KE)
Operation Mode
• Automatic, Heating, Cooling, Soft Dry and
Fan Operation.
Automatic Restart Control **
**
*
• Operation is restarted after power failure at
previous setting mode.
POWER L
AUTO
OFF / ON
TEST RUN
OFF / ON
Operation Indication Lamps
•POWER (Red) – Lights up in operation,
blinks in Automatic
Operation judging and
Hot Start operation.
•TIMER (Orange) – Lights up in Timer
Setting.
Blinks in Self Diagnosis
Control.
•SLEEP (Orange) – Lights up in Sleep Mode
Operation.
Sleep Operation Mode **
**
*
Timer Operation **
**
*
Powerful Mode **
**
*
• For quick cooling or heating
Indoor Fan Speed Control **
**
*
Airflow Direction Control **
**
*
FOR ALL OPERATIONS
Untitled-1 6/29/00, 10:39 AM3

MAC9609040C2
CS-G90KE
CS-G90KE
CS-G90KE
Deodorizing Control **
**
*
Sensible Heat Control **
**
*
Anti-Fog Discharge Control **
**
*
Anti-Dew Formation Control **
**
*
Anti-Freezing Control **
**
*
Quiet Operation **
**
*
Anti-Cold Draft Control **
**
*
Hot Start **
**
*
Intake Air Temperature Control **
**
*
High Pressure Control **
**
*

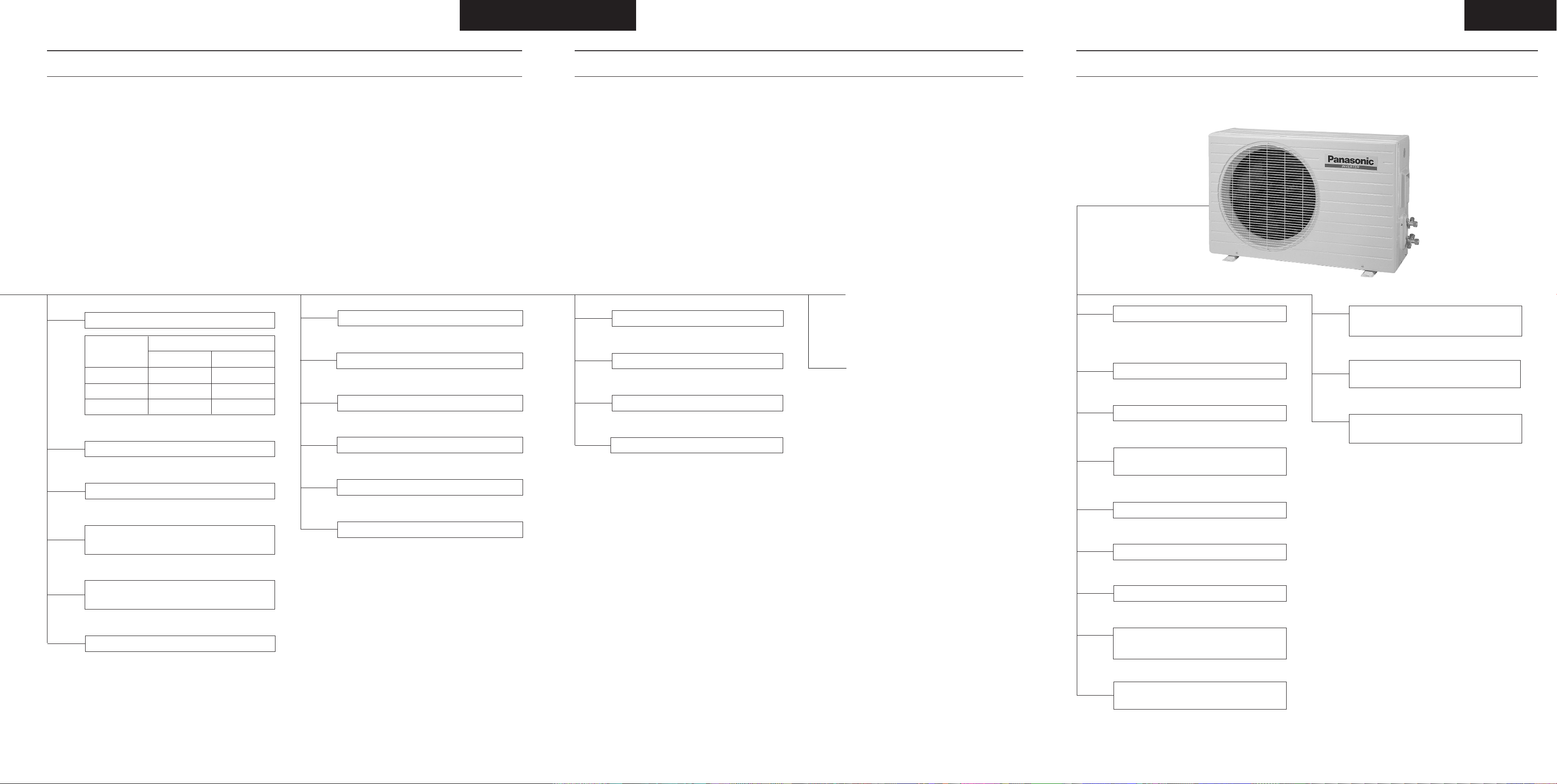

Functions Functions
– 4 – – 5 – – 6 –
Room Temperature Control **
**
*
COOLING/SOFT DRY OPERATION HEATING OPERATION
FAN OPERATION
AUTOMATIC OPERATION
Outdoor Fan Motor
Time Delay Safety Control **
**
*
Forced Operation 30 seconds **
**
*
High Pressure Control **
**
*
(For Cooling/Soft Dry)
DC Peak **
**
*
DC Reset **
**
*
Total Running Current Control **
**
*
Compressor Overheating
Protection **
**
*
Power Transistor Overheating
Protection **
**
*
• 6 poles induction motor, 1 speed.
*Details can be refered to OPERATION
DETAIL in this manual.
Low Frequency Operation
Protection **
**
*
Minimum Frequency Operation
Protection **
**
*
Outdoor Air Temperature
Control **
**
*
• Detect outdoor ambient temperature
and limits compressor operating
frequency
Functions
Outdoor Unit
Operation Mode
Cooling
Soft Dry
Heating
CS-G90KE
25 – 83 Hz
25 – 36 Hz
25 – 118 Hz
CS-G120KE
25 – 94 Hz
25 – 38 Hz
25 – 118 Hz
Compressor Operation Frequency
Temperature Shift **
**
*
Self Diagnosis **
**
*
Low Pressure Control **
**
*
(Gas Leakage Detection)
High Power Supply Voltage
Protection **
**
*
Indoor Power Relay Control **
**
*
Untitled-3 6/29/00, 10:44 AM4

MAC9609040C2
CS-G90KE CS-G90KE CS-G90KE
3.45 (1.06 - 3.85)
11,700 (3,600 - 13,100)
4.80 (0.98 - 6.10)
16,300 (3,300 - 20,800)
2.0
4.2
Single
230
50
Cooling ; 1.24 (0.355 - 1.53)
Heating ; 1.70 (0.34 - 2.10)
Cooling ; 5.5 (max. 6.7)
Heating ; 7.5 (max. 9.1)
Cooling ; 2.8
Heating ; 2.9
9.1
2.6 (0.88 - 2.90)
8,800 (3,000 - 9,900)
3.6 (0.78 - 4.80)
12,200 (2,600 - 16,300)
1.6
3.4
Single
230
50
Cooling ; 0.88 (0.29 - 1.01)
Heating ; 1.11 (0.275 - 1.44)
Cooling ; 4.3 (max. 4.7)
Heating ; 5.0 (max. 6.5)
Cooling ; 3.0
Heating ; 3.2
6.5
Cooling Capacity
Heating Capacity
Moisture Removal
Power Source
Airflow Method
Air Volume
Noise Level
Electrical
Data
Piping Connection Port
(Flare piping)
Pipe Size
(Flare piping)
Drain
Hose
Power Cord Length
Number of core-wire
Dimensions
Net Weight
Compressor
Air Circulation
Product Specifications
Inner diameter
Length
Input
Running Current
COP
Starting Current
Height
Width
Depth
Type
Motor Type
Rated Output
Type
Material
Motor Type
Input
Rated Output
Fan Low
Speed Medium
High (Heating)
Indoor Air (Lo)
Indoor Air (Me)
Indoor Air (Hi)
Outdoor Air
Unit
kW
Btu/h
kW
Btu/h
s/h
Pint/h
Phase
V
Cycle
OUTLET
INTAKE
m3/min (cfm)
m3/min (cfm)
m3/min (cfm)
m3/min (cfm)
dB (A)
kW
A
W/W
A
inch
inch
inch
inch
mm
m
inch (mm)
inch (mm)
inch (mm)
lb (kg)
W
W
W
rpm
rpm
rpm
CS-G90KE
SIDE VIEW
Cooling ; 6.4 (226)
Heating ; 6.4 (226)
Cooling ; 7.2 (254)
Heating ; 7.2 (254)
Cooling ; 8.3 (293)
Heating ; 9.4 (332)
–
Cooling ; High 38, Low 30
Heating ; High 39, Low 30
G ; Half Union 3/8"
L ; Half Union 1/4"
G (gas side) ; 3/8"
L (liquid side) ; 1/4"
12
0.7
2.1 m
3 core wires ×1.0 mm2
11-7/16 (290)
31-15/32 (799)
6-29/32 (175)
18 (8.0)
–
–
–
Cross-flow Fan
AS + Glass Fiber 30%
Transistor (4-poles)
–
20
1,000
1,120
1,300 (1,460)
– 7 – – 9 –
Product Specifications
Description
Tube material
Fin material
Fin Type
Row / Stage
FPI
Size (W ×H ×L)
Length
Flow Rate
Inner Diameter
Material
Style
Heat
Exchanger
Refrigerant Control Device
Refrigeration Oil
Refrigerant (R-22)
Thermostat
Protection Device
Capillary Tube
Air Filter
Capacity Control
Fan Motor Capacitor
Unit
mm
(c.c)
g (oz)
mm
s/min
mm
µF, VAC
(Plate fin configuration, forced draft)
Capillary Tube
CS-G90KE
Evaporator
Copper
Aluminium
Slit Fin
2/12
18
600 ×252 ×25.4
–
–
–
Electronic Control
–
–
–
–
P.P.
Honeycomb
–
– 8 –
Product Specifications
Inner diameter
Length
Input
Running Current
COP
Starting Current
Cooling Capacity
Heating Capacity
Moisture Removal
Power Source
Airflow Method
Air Volume
Noise Level
Electrical
Data
Piping Connection Port
(Flare piping)
Pipe Size
(Flare piping)
Drain
Hose
Power Cord Length
Number of core-wire
Dimensions
Net Weight
Compressor
Air Circulation
Height
Width
Depth
Type
Motor Type
Rated Output
Type
Material
Motor Type
Input
Rated Output
Fan Low
Speed Medium
High (Heating)
Unit
kW
Btu/h
kW
Btu/h
s/h
Pint/h
Phase
V
Cycle
OUTLET
INTAKE
m3/min (cfm)
m3/min (cfm)
m3/min (cfm)
m3/min (cfm)
dB (A)
kW
A
W/W
A
inch
inch
inch
inch
mm
m
inch (mm)
inch (mm)
inch (mm)
lb (kg)
W
W
W
rpm
rpm
rpm
Indoor Air (Lo)
Indoor Air (Me)
Indoor Air (Hi)
Outdoor Air
CS-G120KE
SIDE VIEW
Cooling ; 7.4 (261)
Heating ; 7.6 (268)
Cooling ; 8.1 (286)
Heating ; 8.3 (293)
Cooling ; 9.3 (328)
Heating ; 9.8 (346)
–
Cooling ; High 41, Low 37
Heating ; High 41, Low 37
G ; Half Union 1/2"
L ; Half Union 1/4"
G (gas side) ; 1/2"
L (liquid side) ; 1/4"
12
0.7
2.1 m
3 core wires ×1.5 mm2
11-7/16 (290)
31-15/32 (799)
6-29/32 (175)
18 (8.0)
–
–
–
Cross-flow Fan
AS + Glass Fiber 30%
Transistor (4-poles)
–
20
1,200
1,310
1,500 (1,550)
CU-G90KE
Condenser
Copper
Aluminium
Corrugated Fin
2/19
15
646.2 ×482.6 ×44
Capillary Tube
SUNISO 4GDID or
ATMOS M60 (260)
800 (28.2)
–
Electronic Control
Cooling ; 550, Heating ; 720
Cooling ; 12.5, Heating ; 5.8
Cooling ; 1.5 , Heating ; 1.2
–
1.2 µF, 400 VAC
CU-G90KE
TOP VIEW
–
–
–
23.5 (830)
Cooling ; 46
Heating ; 47
G ; 3-way valve 3/8"
L ; 2-way valve 1/4"
G (gas side) ; 3/8"
L (liquid side) ; 1/4"
–
–
–
–
19-29/32 (505)
30-23/32 (780)
9-21/32 (245)
86 (39)
Rotary (1 cylinder)
rolling piston type
Induction (2-poles)
500
Propeller Fan
AES + Glass Fiber 12%
Induction (6-poles)
34
20
–
–
675
CU-G120KE
TOP VIEW
–
–
–
26.4 (930)
Cooling ; 49
Heating ; 51
G ; 3-way valve 1/2"
L ; 2-way valve 1/4"
G (gas side) ; 1/2"
L (liquid side) ; 1/4"
–
–
–
–
19-29/32 (505)
30-23/32 (780)
9-21/32 (245)
92 (42)
Rotary (1 cylinder)
rolling piston type
Induction (2-poles)
650
Propeller Fan
AES + Glass Fiber 12%
Induction (6-poles)
70
30
–
–
780
• Specifications are subject to change without notice for further improvement.
Untitled-3 6/29/00, 10:44 AM5

– 10 –
MAC9509078C2
CS-G90KE
Heat
Exchanger
Refrigerant Control Device
Refrigeration Oil
Refrigeration (R-22)
Thermostat
Protection Device
Capillary Tube
Air Filter
Capacity Control
Fan Motor Capacitor
Description
Tube material
Fin material
Fin Type
Row / Stage
FPI
Size (W ×H ×L)
µF, VAC
Length
Flow Rate
Inner Diameter
Material
Style
(Plate fin configuration, forced draft)
Capillary Tube
CU-G120KE
Condenser
Copper
Aluminium
Corrugated Fin
2/19
17
646.2 ×482.6 ×44
Capillary Tube
SUNISO 4GDID or
ATMOS M60 (270)
970 (34.2)
–
Electronic Control
Cooling ; 880, Heating ; 535
Cooling ; 6.75, Heating ; 15.0
Cooling ; 1.2, Heating ; 1.6
–
–
1.5 µF, 400 VAC
Unit
mm
(c.c)
g (oz)
mm
s/min
mm
Product Specifications
CS-G120KE
Evaporator
Copper
Aluminium
Slit Fin
2/12
21
600 ×252 ×25.4
–
–
–
Electronic Control
–
–
–
–
P.P.
Honeycomb
–
• Specifications are subject to change without notice for further improvement.
Untitled-4 6/29/00, 10:47 AM10

– 11 –
CS-G90KE
Dimensions
CS-G90KE / CS-G120KE
65
122
18
799
48.5
60
290
<Front View>
175
61
34.5
52
direction
Air intake
Air outlet
direction
Left piping hole Right piping hole
290
115
55 60
2100
(45)(410)
<Back View> Installation plate hooks
Drain ports Gas
side Liquid
side
Remote control transmitter
(40) 710 (40)
276 7
(60) (110)
100 100
Slot (2 places)
Slot (2 places)
Centre notch
Indoor unit external
dimensions line
Installation plate
Left piping hole
Arrow
Arrow Centre Right piping hole
350
7
457
13.5
Relative position between the indoor unit and the installation plate <Front View>
Untitled-4 6/29/00, 10:47 AM11

– 13 –
CS-G90KE
Refrigeration Cycle Diagram
CS-G90KE / CU-G90KE
CS-G120KE / CU-G120KE
COMPRESSOR
4-WAY VALVE
C1
C3 C2
CHECK VALVE
OUTDOOR AIR
TEMP.
SENSOR
SENSOR
TEMP.
INTAKE AIR
EXCHANGER
TEMP.
SENSOR
INDOOR OUTDOOR
COOLING
HEATING
HEAT EXCHANGER
(EVAPORATOR) HEAT EXCHANGER
(CONDENSER)
2-WAY
VALVE
VALVE
3-WAY
C1, C2, C3; CAPILARRY TUBE
COMPRESSOR
TEMP.
SENSOR
TEMP.
SENSOR
HEAT
HEAT
EXCHANGER
Untitled-4 6/29/00, 10:47 AM13

– 14 –
MAC9509078C2
CS-G90KE
FUSE
(3.15A)
C-BOX
THERMAL
FUSE
99°C
102°C
FUSE
THERMAL
TERMINAL
50Hz 230V
PHASE
SINGLE
SUPPLY SWITCH RY-PWR
ELECTRONIC
CONTROLLER
ELECTRONIC
CONTROLLER
INCIDATOR
P.C.B.
RECEIVER
P.C.B.
FAN
MOTOR
STEPPING
MOTOR
3C 3C 5C
WIRELESS
REMOTE CONTROL
TRANSMITTER
11 22 33
FUSE
NOISE FILLTER
RY-PWR
ELECTRIC
RESISTOR
RY-FM
RY-HOT
FM
VALVE
4-WAY FAN
MOTOR
C-FM
CT
+
–+
–
DIODE
CU-G120KE
ONLY
CONTROLLER
ELECTRONIC
COMPRESSOR
INDOOR UNIT OUTDOOR UNIT
POWER
(20A)

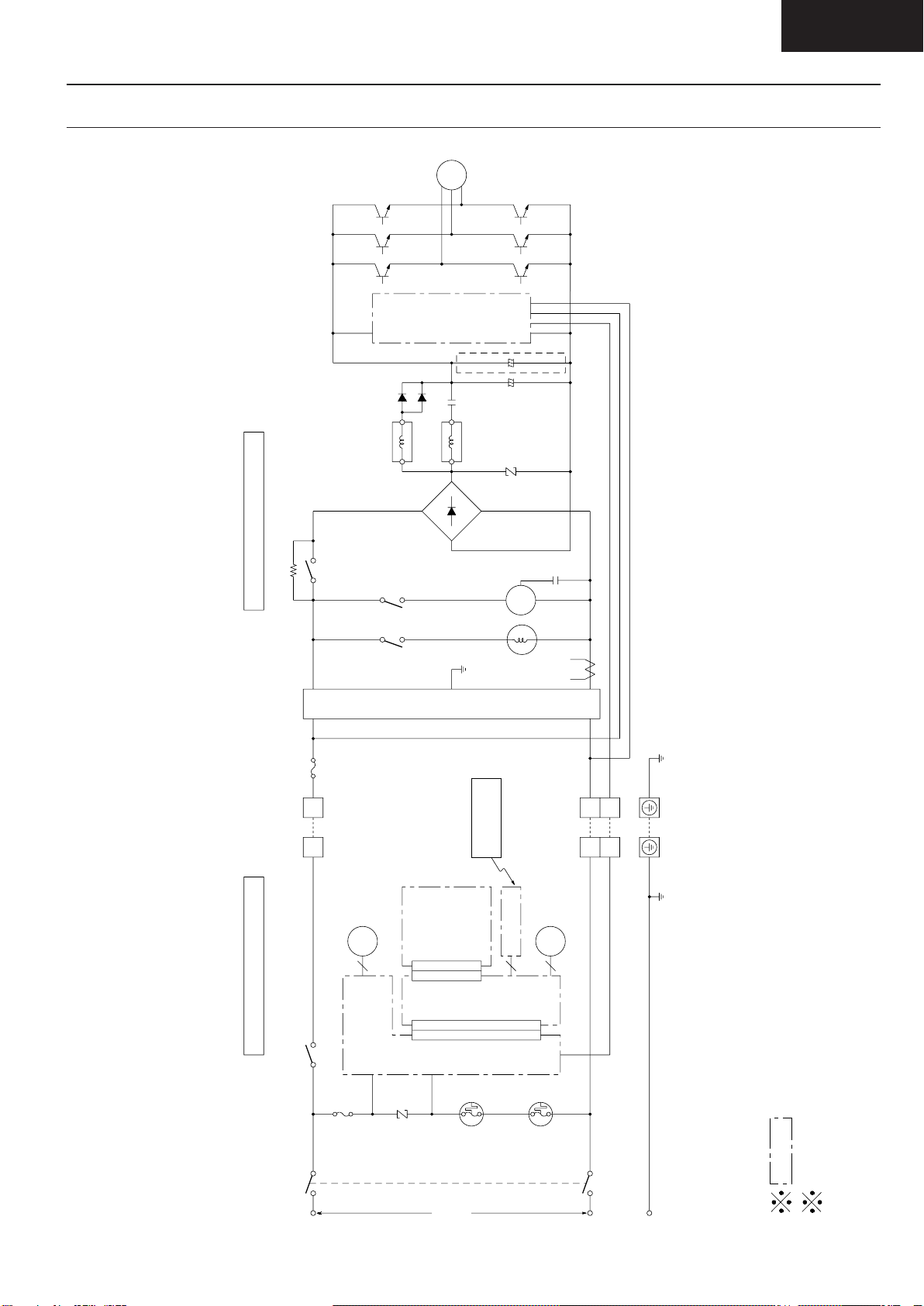

Block Diagram
"C"
Indicates the electronic control unit.
Indicates the number of core wires. (Example:5C=5 core wires).
CS-G90KE / CU-G90KE CS-G120KE / CU-G120KE
Untitled-4 6/29/00, 10:47 AM14

– 15 –
CS-G90KE

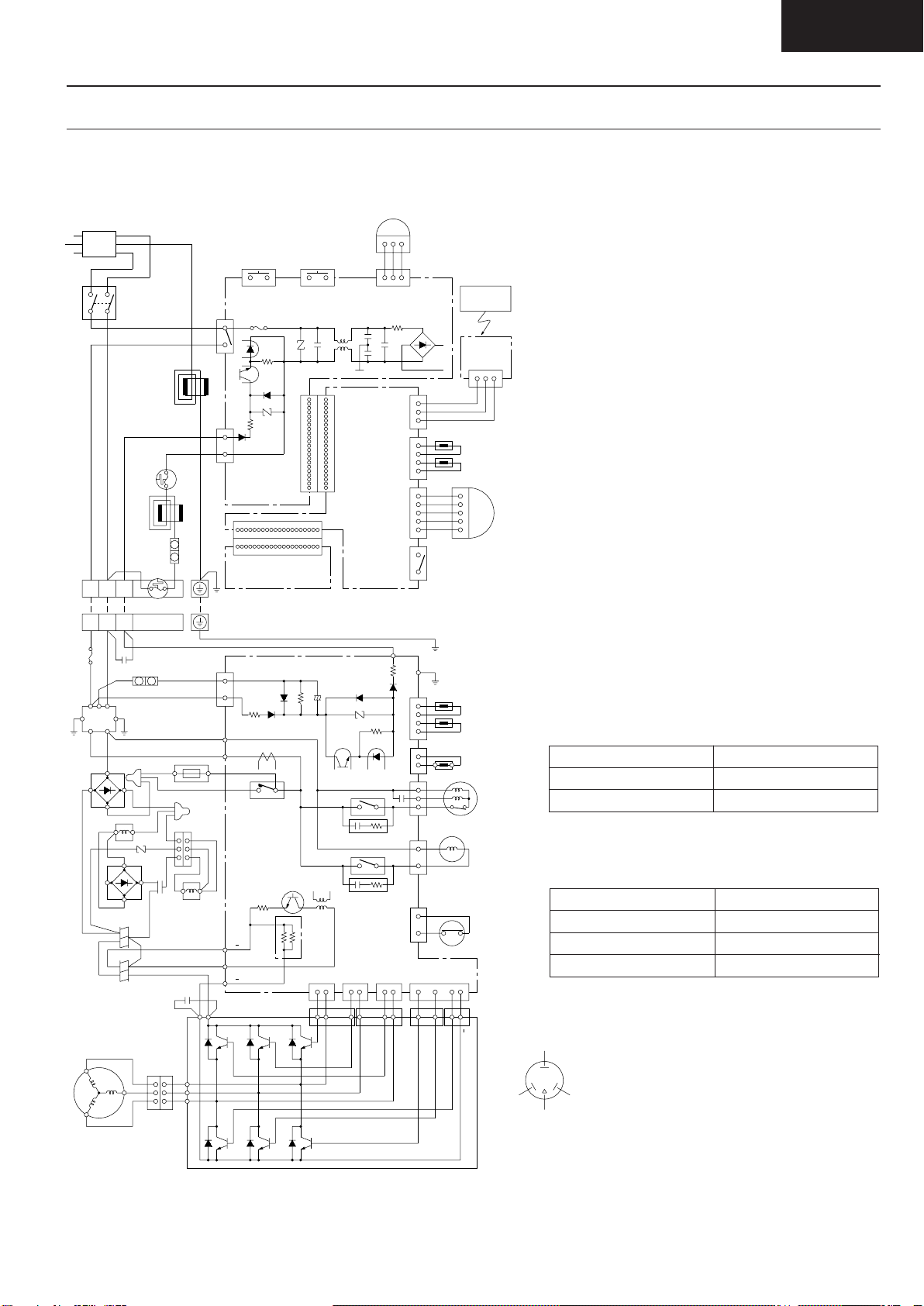

Wiring Diagram
REMARKS:
B : BLUE
BR : BROWN
BL : BLACK
W : WHITE
R : RED
O : ORANGE
P : PINK
Y/G : YELLOW/
GREEN
GR : GRAY
2RV110N5DA02 (Ω)
1.0
1.0
1.0
CS-G90KE / CU-G90KE
Resistance of Outdoor Fan Motor Windings
CONNECTION
BLUE - YELLOW
YELLOW - RED
CWA95341 (Ω)
253
322
Resistance of Compressor Windings
Y/G
BR B
24
31 BR
(TEXT RUN)
SWITCH
POMP DOWN AUTO
SWITCH
123
531
MOTOR
YBR
CN-MTR(G)
P
L
(BR)
AC
(BL)
AC
ELECTRONIC CONTROLLER
FUSE
(3.15A)
CN-AC(W)
3
1
COIL
R
W
COIL
W
Y/G
99°C
FUSE
THERMAL
W
221 221
CN-PWR (BR) CN-PWR (BR)
CONTROLLER
ELECTRONIC
1
2
3
4
3
2
1
1
2
3
4
5
(W)
CN-RCVCN-TH
(W)(W)
CN-STM
132
WIRELESS
REMOTE
CONTROL
ELECTRONIC
CONTROLLER
(RECEIVER)
CN-RCV(W)
W
W
W
SENSOR
(HEAT EXCHANGER TEMP.)
(INTAKE AIR TEMP.)
SENSOR
5
4
3
2
1
(FLAP)
MOTOR
REMOTE
CONTROLLER
SWITCH
120
20 1
CN-DISP(BL)
CN-DISP(BL)
DISPLAY, SELF-DIAGNOSIS
POWER MONITOR DISPLAY
BL
123
W
321
THERMAL
FUSE
102°C
INDOOR UNIT
TERMINAL
OUTDOOR UNIT
TERMINAL
Y/G
Y/G
R
B
BL
FUSE
250V / 20A
BLBL
W
21
43
E2E1
3
1
CN-AC(R) Y/G
FG
DATA
(R)
+
–
ELECTRONIC
CONTROLLER
(Y)
CN-TH
4
3
2
1
1
2
CN-TANK
(Y)
1
3
5
FAN MOTOR
(G)
CN-FM
AC(GR)
AC(W)
CT
3
1
(B)
CN-HOT
COIL
(4-WAY VALVE)
RY-FM
RY-HOT
RY-PWR
W
GR
+– ~
~
DIODE
BL
BL
R
O
CAPACITOR W
DC (BL)
DC+ (R)
2
(W)
CN-TR (TRANSISTOR)
PROTECTER
OVER LOAD
1313131356
(R)
CN-QHU (B) CN-QHV (W) CN-QHW (W) CN-QL
TRANSISTOR
R
B
Y
R
B
Y
COMPRESSOR
1
BR
R
O
Y
P
230V 50Hz
SENSOR
(INTAKE AIR TEMP.)
SENSOR
(HEAT EXCHANGER TEMP.)
SENSOR
(COMP TEMP.)
B
R
Y
BL
BL
TR (W)
BLRPBVYGRWOBR
COMPRESSOR
TERMINAL
TRADE MARK
Y
BR
LP
BY
B
DIODE
~
~
–+
B
W
R
BL
REACTOR BO O
R
O
R
Y
REACTOR
B
B
Y
CAPACITOR
U
V
W
3213213121
BUP EUP
BVP EVP
BWP EWP
BUN
BVN
BWN
E
O
BB
B
5
1
3
2
1
3
2
NOISE
FILTER
RESISTOR
PN
CONNECTION
U-V
U-W
V-W
Untitled-4 6/29/00, 10:47 AM15

– 16 –
MAC9509078C2
CS-G90KE
Wiring Diagram
REMARKS:
B : BLUE
BR : BROWN
BL : BLACK
W : WHITE
R : RED
O : ORANGE
P : PINK
Y/G : YELLOW/
GREEN
GR : GRAY
Resistance of Compressor Windings
CS-G120KE / CU-G120KE
CS-G120KE / CU-G120KE
Resistance of Outdoor Fan Motor Windings
CONNECTION
BLUE - YELLOW
YELLOW - RED
CWA95342 (Ω)
161
227
2PV132N5BA02 (Ω)
1.0
1.0
1.0
CONNECTION
U-V
U-W
V-W
Y/G
BR B
24
31 BR
(TEXT RUN)
SWITCH
POMP DOWN AUTO
SWITCH
123
531
MOTOR
YBR
CN-MTR(G)
P
L
(BR)
AC
(BL)
AC
ELECTRONIC CONTROLLER
FUSE
(3.15A)
CN-AC(W)
3
1
COIL
R
W
COIL
W
Y/G
99°C
FUSE
THERMAL
W
221 221
CN-PWR (BR) CN-PWR (BR)
CONTROLLER
ELECTRONIC
1
2
3
4
3
2
1
1
2
3
4
5
(W)
CN-RCVCN-TH
(W)(W)
CN-STM
132
WIRELESS
REMOTE
CONTROL
ELECTRONIC
CONTROLLER
(RECEIVER)
CN-RCV(W)
W
W
W
SENSOR
(HEAT EXCHANGER TEMP.)
(INTAKE AIR TEMP.)
SENSOR
5
4
3
2
1
(FLAP)
MOTOR
REMOTE
CONTROLLER
SWITCH
120
20 1
CN-DISP(BL)
CN-DISP(BL)
DISPLAY, SELF-DIAGNOSIS
POWER MONITOR DISPLAY
BL
123
W
321
THERMAL
FUSE
102°C
INDOOR UNIT
TERMINAL
OUTDOOR UNIT
TERMINAL
Y/G
Y/G
R
B
BL
FUSE
250V / 20A
BLBL
W
21
43
E2E1
3
1
CN-AC(R) Y/G
FG
DATA
(R)
+
–
ELECTRONIC
CONTROLLER
(Y)
CN-TH
4
3
2
1
1
2
CN-TANK
(Y)
1
3
5
FAN MOTOR
(G)
CN-FM
AC(GR)
AC(W)
CT
3
1
(B)
CN-HOT
COIL
(4-WAY VALVE)
RY-FM
RY-HOT
RY-PWR
W
GR
+– ~
~
DIODE
R
BL BL
R
O
CAPACITOR W
DC (BL)
DC+ (R)
2
(W)
CN-TR (TRANSISTOR)
PROTECTER
OVER LOAD
1313131356
(R)
CN-QHU (B) CN-QHV (W) CN-QHW (W) CN-QL
TRANSISTOR
R
B
Y
R
B
Y
COMPRESSOR
1
BR
R
O
Y
P
230V 50Hz
SENSOR
(INTAKE AIR TEMP.)
SENSOR
(HEAT EXCHANGER TEMP.)
SENSOR
(COMP TEMP.)
B
R
Y
BL
BL
TR (W)
BLRPBVYGRWOBR
COMPRESSOR
TERMINAL
TRADE MARK
Y
BR
LP
BY
B
DIODE
~
~
–+
B
W
R
BL
REACTOR BO O
R
O
R
Y
REACTOR
B
B
Y
CAPACITOR
CAPACITOR
U
V
W
3213213121
BUP EUP
BVP EVP
BWP EWP
BUN
BVN
BWN
E
O
B
B
B
5
1
3
2
1
3
2
NOISE
FILTER
RESISTOR
PN
Untitled-4 6/29/00, 10:47 AM16

– 17 –
MAC9509078C2
CS-G90KE
Once the operation starts, the remote control setting temperature will be shifted internally based on the setting fan
speed and outdoor air temperature. In addition, if Sleep Mode or Powerful Mode are set, the temperature shift will
be carried out.
Setting of Internal Setting Temperature
The internal setting temperature can be decided as follows:
Remote control setting temperature
+
Outdoor temperature shift (refer Table a)
+
Fan speed shift (refer Table b)
+
Any Sleep Mode shift operation?
+
Any Powerful Operation shift? (refer Table c)
+
[Check upper/lower (33°C/16°C) limit for setting temperature]
↓
INTERNAL SETTING TEMPERATURE
Operation Details
A. FUNCTIONS
1. TEMPERATURE SHIFT
Powerful
Cooling
–4.0°C
Dry
–3.0°C
Heating
+6.0°C
Table c
Powerful Mode Shift.
Remote control setting fan speed
Lo
Me–, Me, Me+, Auto fan speed
Hi
Cooling
+2.0°C
+2.0°C
+2.0°C
Dry
+2.5°C
Heating
+1.0°C
+1.0°C
+0.5°C
Table b
Setting Temperature Shift based on fan speed.
Table a
Setting Temperature Shift based on outdoor air temperature.
(i) Cooling, Soft Dry (ii) Heating
38°C≤Outdoor air temperature
30°C≤Outdoor air temperature <38°C
23°C≤Outdoor air temperature <30°C
Outdoor air temperature <23°C
Shift amount
–0.5°C
0.0°C
+0.5°C
+1.0°C
21°C≤Outdoor air temperature
17°C≤Outdoor air temperature <21°C
13°C≤Outdoor air temperature <17°C
9°C≤Outdoor air temperature <13°C
5°C≤Outdoor air temperature <9°C
1°C≤Outdoor air temperature <5°C
–3°C≤Outdoor air temperature <1°C
Outdoor air temperature <–3°C
Shift amount
–1.5°C
–1.5°C
–1.0°C
–1.0°C
0.0°C
+1.0°C
+1.0°C
+1.5°C
Untitled-5 6/29/00, 10:50 AM17

– 18 –
MAC9509078C2
CS-G90KE
2. COOLING OPERATION
A. Room Temperature Control
(i) When the remote control setting temperature is less than 24°C.
Operation Details
Cooling
Intake air temp. –
Internal setting
temp. (°C)
Internal setting temp.
Compressor OFF temp.
Outdoor Air Temperature
Model No.
+1.5
+1.0
+0.5
0
–0.5
–1.0
83 (Fc max) or 72
57
48
33
25
25
Comp OFF
Less than 38°C
Compressor Operation Frequency (Hz)
94 (Fc max) or 78
64
48
33
25
25
Comp OFF
Less than 38°C
83 (Fc max) or 72
68
48
36
33
25
Comp OFF
38°C and above
94 (Fc max) or 78
70
48
38
33
25
Comp OFF
38°C and above
CS-G90KE CS-G120KE
(ii) When the remote control setting temperature is 24°C and above.
Cooling
Intake air temp. –
Internal setting
temp. (°C)
Internal setting temp.
Compressor OFF temp.
Outdoor Air Temperature
Model No.
+1.5
+1.0
+0.5
0
–0.5
–1.0
83 (Fc max) or 72
57
48
33
25
25
Comp OFF
Less than 38°C
Compressor Operation Frequency (Hz)
94 (Fc max) or 78
64
48
33
25
25
Comp OFF
Less than 38°C
83 (Fc max) or 72
57
48
33
25
25
Comp OFF
38°C and above
94 (Fc max) or 78
64
48
33
25
25
Comp OFF
38°C and above
CS-G90KE
• Compressor OFF temperature = Compressor ON temperature.
• The operation frequency can be changed every 30 seconds.
• 30 minutes from the start of the operation, the compressor is operating at Fc max Hz.
• Thecompressorstops when theintakeairtemperature reaches1°Cbelowinternalsetting temperature andcontinuesfor
3 minutes.
• When the compressor stops, it will not begin operation for 3 minutes. (Time Delay Safety Control)
• When the intake air temperature reaches the Compressor ON temperature, the Compressor starts operation.
• When the compressor stops, the outdoor fan motor stops 30 seconds later.
Untitled-5 6/29/00, 10:50 AM18

– 19 –
MAC9509078C2
CS-G90KE
Operation Details
B. Deodorizing Control
• This control is available during automatic fan speed for Cooling and Soft Dry Operation. It is not available
during anti-freezing control.
• When the compressor is in operation, the deodorizing status starts from 1 →2 →3.
• When the compressor stops operation, the deodorizing status starts from 4 →5 →6 →7.
• If the compressor still stops operation after 3 minutes, the deodorizing status will start from 6.
C. Sensible Heat Control
• This control is to improve the feeling in high fan speed during low operation frequency. When the operation
frequency is less than 40Hz (CU-G90KE) or 43HZ (CU-G120KE), the fan speed will reduce. When the
operationfrequencyisabove33Hzcontinuouslyfor5minutes,thefanspeedwillresumetonormalcondition.
Fan Speed
Compressor
ON
Deodorizing Status
Compressor ON OFF
Time (second)
Fan Speed
1
40
OFF
2
50
SLo
3
Auto
4
30
SLo
5
60
OFF
6
30
SLo
7
60
OFF
6, 7, 6, 7,…
………
………
ON
1
40
OFF
ON
OFF
OFF
Untitled-5 6/29/00, 10:50 AM19

– 20 –
MAC9509078C2
CS-G90KE
Operation Details
3. SOFT DRY OPERATION
A. Room Temperature Control
Atthestartofoperation,coolingoperationisrunninguntiltheintakeairtemperatureis0.5°Chigherthaninternal
setting temperature, then the operation will shift to Soft Dry with indoor fan speed SLo.
Soft Dry
Intake air temp. –
Internal setting
temp. (°C)
Internal setting temp.
Compressor OFF temp.
Condition
Model No.
+1.5
+1.0
+0.5
0
–0.5
–1.0
Cooling Operation
33
25
25
Comp OFF
When the
temperature falls
Compressor Operation Frequency (Hz)
Cooling Operation
33
25
25
Comp OFF
When the
temperature falls
CS-G90KE CS-G120KE
• Compressor OFF temperature = Compressor ON temperature.
• The operation frequency changes every 30 seconds.
• 30 minutes from the start of the operation, the compressor is operating at Fc max Hz.
• The Compressor stops when the intake air temperature reaches 1°C below internal setting temperature and continues
for 3 minutes.
• When the Compressor stops, it will not begin operation for 3 minutes. (Time Delay Safety Control)
• WhentheintakeairtemperaturereachestheCompressorONtemperature,theCompressorstartsoperationimmediately.
• When the Compressor stops, the outdoor fan motor stops 30 seconds later.
36
36
33
25
25
Comp OFF
When the
temperature rises
38
38
33
25
25
Comp OFF
When the
temperature rises
Untitled-5 6/29/00, 10:50 AM20

– 21 –
MAC9509078C2
CS-G90KE
Operation Details
• When the compressor is in operation, the deodorizing status starts from 1 →2 →3.
• When the compressor stops operation, the deodorizing status starts from 4 →5 →6 →7.
• If the compressor still stops operation after 3 minutes, the deodorizing status will start from 6.
B. Deodorizing Control
• This control is available during automatic fan speed for Cooling and Soft Dry Operation. It is not available
during anti-freezing control.
C. Sensible Heat Control
• This control is to improve the feeling in high fan speed and low operation frequency. When the operation
frequency is less than 40Hz (CU-G90KE) or 43Hz (CU-G120KE), the fan speed will reduce. When the
operationfrequencyisabove33Hzcontinuouslyfor5minutes,thefanspeedwillresumetonormalcondition.
(During Cooling operation).
Fan Speed
Compressor
ON
Deodorizing Status
Compressor ON OFF
Time (second)
Fan Speed
1
40
OFF
2
50
SLo
3
SLo
4
30
SLo
5
60
OFF
6
30
SLo
7
60
OFF
6, 7, 6, 7,…
………
………
ON
1
40
OFF
ON
OFF
OFF
Untitled-5 6/29/00, 10:50 AM21

– 22 –
MAC9509078C2
CS-G90KE
Operation Details

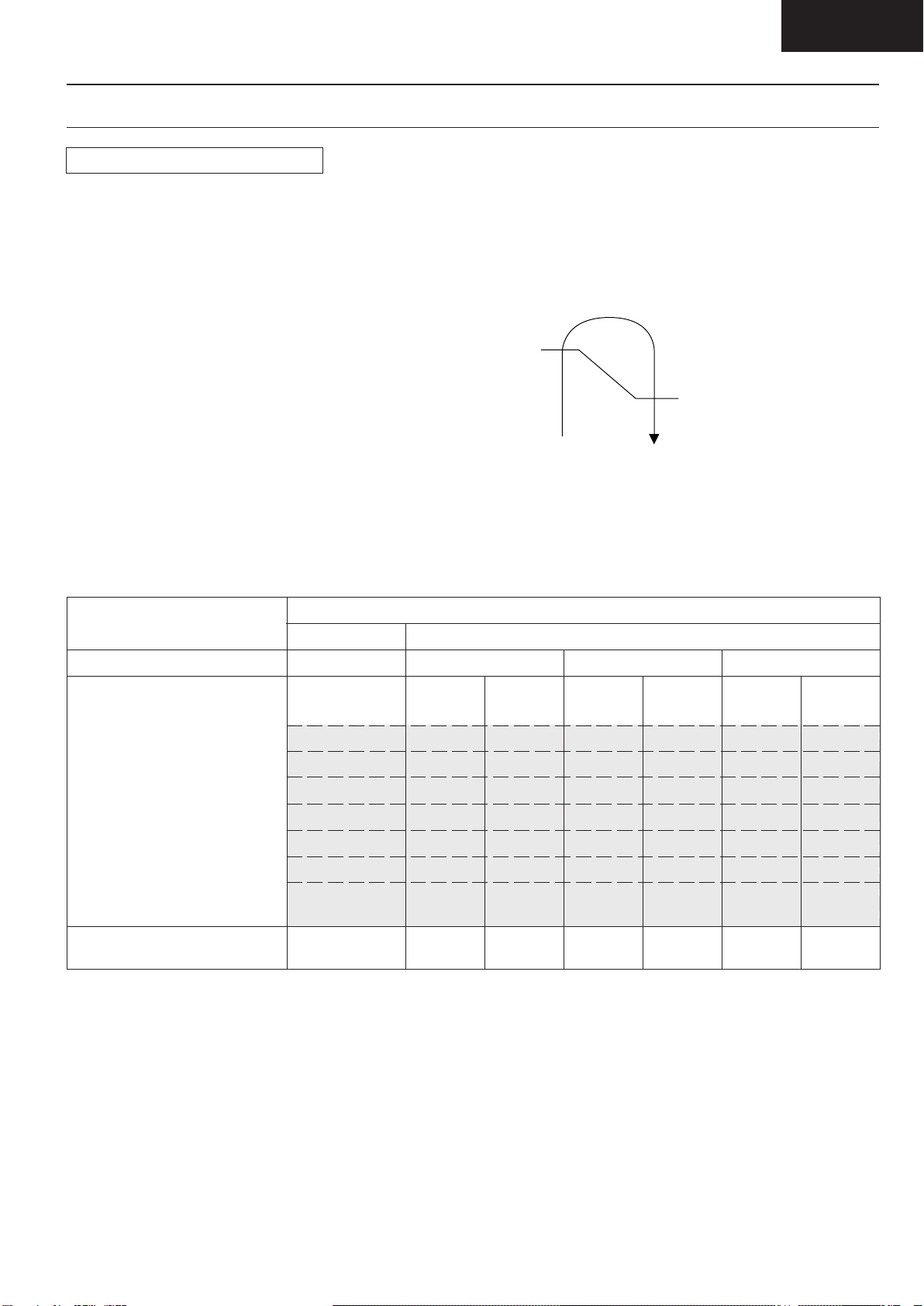

4. HEATING OPERATION
A. Room Temperature Control
• During heating operation, the room temperature control depends on intake air temperature and internal
setting temperature. Basically it can be divided into 2 periods as shown below:
+1.5
+1.0
+0.5
0
–0.5
–1.0
–1.5
(i) When indoor fan speed is Medium or above.
CS-G90KE
Heating Operation
Remote Control Setting Temp.
Intake air temperature –
Internal setting temperature
Compressor OFF
Internal setting temp.
Outdoor air temperature
Compressor Operation Frequency (Hz)
Comp Off
25
33
36
40
55
57
92 (Fh) or
118 (Fhmax)
–1°C and
above
26°C ~ 30°C
Stabilized Period
21°C ~ 25°C
16°C ~ 20°C
Transition Period
16°C ~ 30°C
Comp Off
25
25
36
75
83
95
92 (Fh) or
118 (Fhmax)
Comp Off
25
40
55
57
75
83
92 (Fh) or
118 (Fhmax)
Less than
–1°C
Comp Off
25
33
36
40
55
57
92 (Fh) or
118 (Fhmax)
–1°C and
above
Comp Off
25
40
55
57
75
83
92 (Fh) or
118 (Fhmax)
Less than
–1°C
Comp Off
25
33
36
40
55
57
92 (Fh) or
118 (Fhmax)
–1°C and
above
Comp Off
25
33
36
40
55
57
92 (Fh) or
118 (Fhmax)
Less than
–1°C
Stabilized
period
Transition
period
Intake air temp. – internal setting temp.
–1.5°C
0°C
Untitled-5 6/29/00, 10:50 AM22

– 23 –
MAC9509078C2
CS-G90KE
Operation Details
(ii) When indoor fan speed is lower than Medium
CS-G90KE
+1.5
+1.0
+0.5
0
–0.5
–1.0
–1.5
Heating Operation
Remote Control Setting Temp.
Intake air temperature –
Internal setting temperature
Compressor OFF
Internal setting temp.
Outdoor air temperature
Compressor Operation Frequency (Hz)
Comp Off
25
36
40
55
57
75
92 (Fh) or
118 (Fhmax)
–1°C and
above
26°C ~ 30°C
Stabilized Period
21°C ~ 25°C
16°C ~ 20°C
Transition Period
16°C ~ 30°C
Comp Off
25
25
36
75
83
95
92 (Fh) or
118 (Fhmax)
Comp Off
25
40
55
57
75
83
92 (Fh) or
118 (Fhmax)
Less than
–1°C
Comp Off
25
36
40
55
57
75
92 (Fh) or
118 (Fhmax)
–1°C and
above
Comp Off
25
40
55
57
75
83
92 (Fh) or
118 (Fhmax)
Less than
–1°C
Comp Off
25
36
40
55
57
75
92 (Fh) or
118 (Fhmax)
–1°C and
above
+1.5
+1.0
+0.5
0
–0.5
–1.0
–1.5
Heating Operation
Remote Control Setting Temp.
Intake air temperature –
Internal setting temperature
Compressor OFF
Internal setting temp.
Outdoor air temperature
Compressor Operation Frequency (Hz)
Comp Off
25
33
38
43
55
64
98 (Fh) or
118 (Fhmax)
–1°C and
above
26°C ~ 30°C
Stabilized Period
21°C ~ 25°C
16°C ~ 20°C
Transition Period
16°C ~ 30°C
Comp Off
25
25
38
82
94
102
98 (Fh) or
118 (Fhmax)
Comp Off
25
43
55
64
82
94
98 (Fh) or
118 (Fhmax)
Less than
–1°C
Comp Off
25
33
38
43
55
64
98 (Fh) or
118 (Fhmax)
–1°C and
above
Comp Off
25
43
55
64
82
94
98 (Fh) or
118 (Fhmax)
Less than
–1°C
Comp Off
25
33
38
43
55
64
98 (Fh) or
118 (Fhmax)
–1°C and
above
Comp Off
25
33
38
43
55
64
98 (Fh) or
118 (Fhmax)
Less than
–1°C
CS-G120KE
Comp Off
25
36
40
55
57
75
92 (Fh) or
118 (Fhmax)
Less than
–1°C
Untitled-5 6/29/00, 10:50 AM23

– 24 –
MAC9509078C2
CS-G90KE
Operation Details
• Compressor OFF temperature = compressor ON temperature.
• The operation frequency changes every 30 seconds.
• When the difference of the intake air temperature and Internal setting temperature is –1.5°C or more, compressor will operate at Fh
continuously for 3 minutes and then change over to Fhmax.
• Thecompressorstopswhentheintakeairtemperaturereaches1.5°Caboveinternalsettingtemperatureandcontinuesfor3minutes.
• When the compressor stops, it will not start operation for 3 minutes. (Time Delay Safety Control)
• When the intake air temperature decreases to the compressor ON temperature, the compressor starts immediately.
• When the compressor stops, the outdoor fan motor stops 30 seconds later.
+1.5
+1.0
+0.5
0
–0.5
–1.0
–1.5
Heating Operation
Remote Control Setting Temp.
Intake air temperature –
Internal setting temperature
Compressor OFF
Internal setting temp.
Outdoor air temperature
Compressor Operation Frequency (Hz)
Comp Off
25
38
43
55
64
82
98 (Fh) or
118 (Fhmax)
–1°C and
above
26°C ~ 30°C
Stabilized Period
21°C ~ 25°C
16°C ~ 20°C
Transition Period
16°C ~ 30°C
Comp Off
25
25
38
82
94
102
98 (Fh) or
118 (Fhmax)
Comp Off
25
43
55
64
82
94
98 (Fh) or
118 (Fhmax)
Less than
–1°C
Comp Off
25
38
43
55
64
82
98 (Fh) or
118 (Fhmax)
–1°C and
above
Comp Off
25
43
55
64
82
94
98 (Fh) or
118 (Fhmax)
Less than
–1°C
Comp Off
25
38
43
55
64
82
98 (Fh) or
118 (Fhmax)
–1°C and
above
Comp Off
25
38
43
55
64
82
98 (Fh) or
118 (Fhmax)
Less than
–1°C
CS-G120KE
Untitled-5 6/29/00, 10:50 AM24
