Panasonic CW-XC100VK User manual

1 Functions 2
2 Product Specifications 4
3 Dimensions 5
4 Refrigeration Cycle Diagram 6
5 Block Diagram 6
6 Wiring Diagram 7
7 Air Conditioner Performance Evaluation 7
8 Troubleshooting Guide 8
9 Operation Details 10
10 Operating Instructions 13
© 2002 Matsushita Industrial Corp. Sdn. Bhd.
(11969-T). All rights reserved. Unauthorized copying
and distribution is a violation of law.
CW-XC100VK
CW-XC120VK

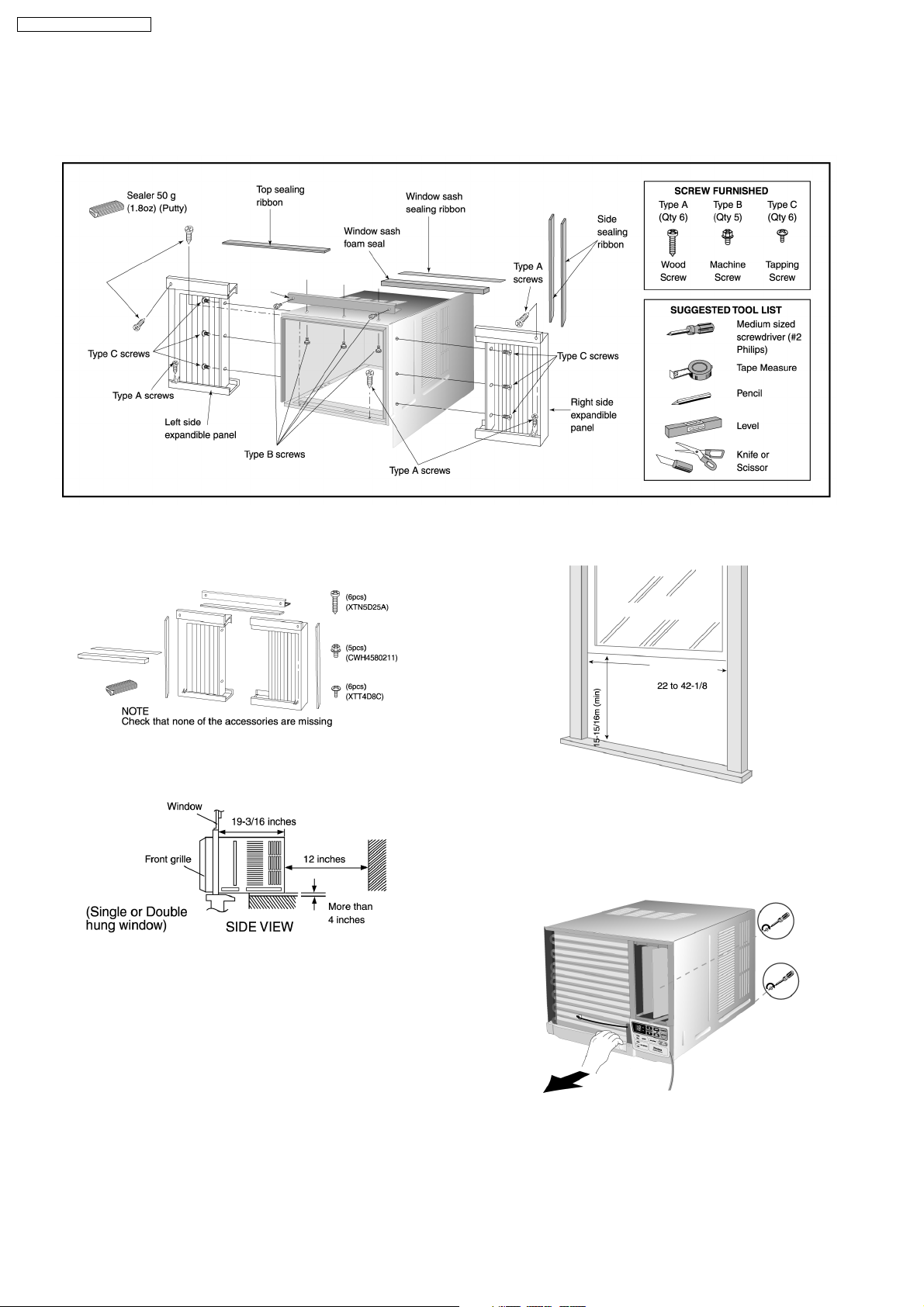

11 Installation Instructions 18
12 Care and Maintenance 22
13 Servicing Information 23
14 Technical Data 25
15 Electronic Circuit / Main 26
16 Electronic Circuit / Indicator Complete 27
17 Electronic Circuit Diagram 28
18 Exploded View 31
19 Replacement Part List 32
Room Air Conditioner
CONTENTS
Page Page
Order No. MAC0208039C1

1 Functions

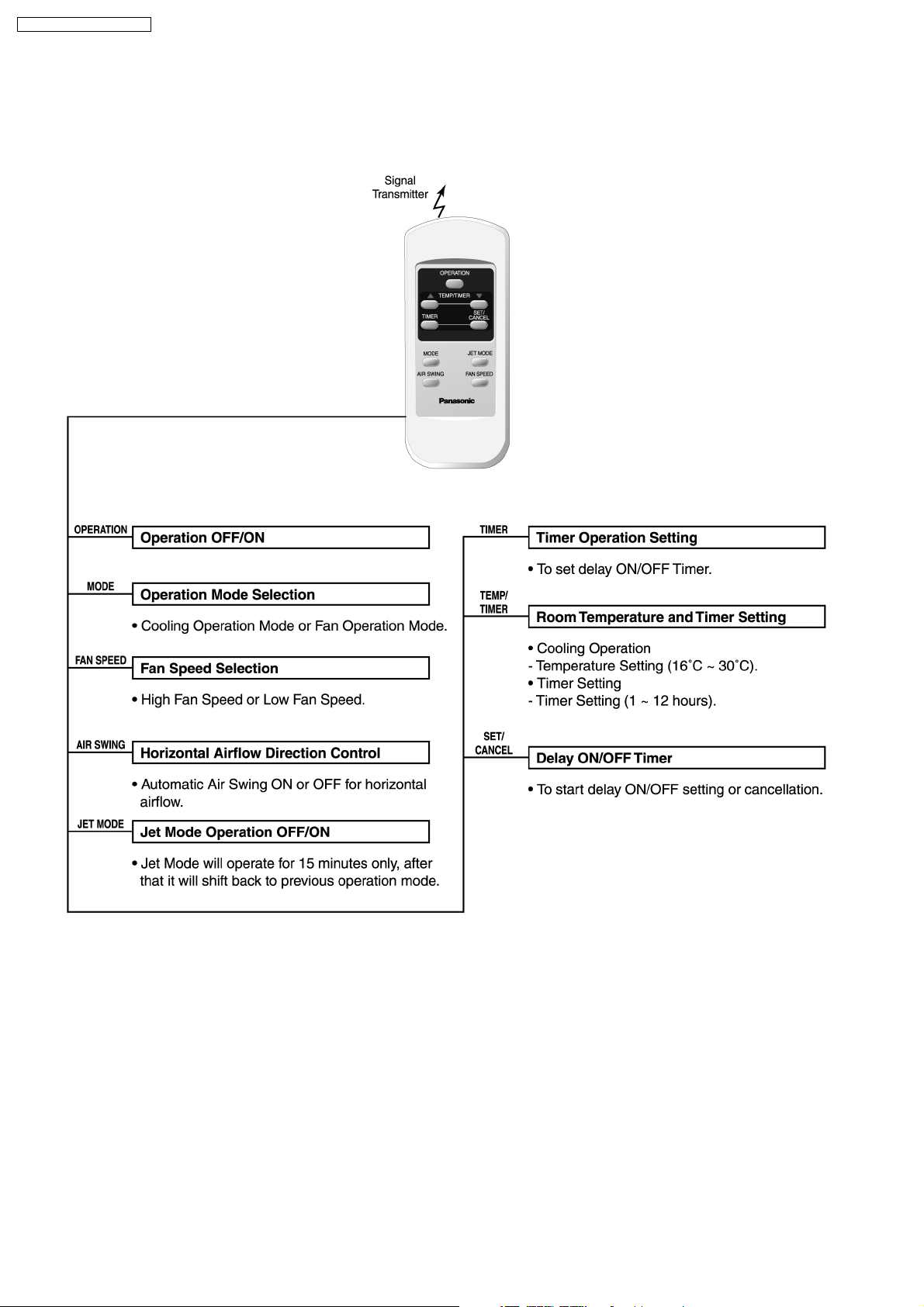

1.1. Remote Control
2
CW-XC100VK / CW-XC120VK

1.2. Main Unit
3
CW-XC100VK / CW-XC120VK

2 Product Specifications
Unit CW-XC100VK CW-XC120VK
Phase ØSingle Single
Voltage V115 115
Frequency hZ 60 60
Cooling Capacity kW
Btu/h
2.93
10,000
3.37
11,500
Running Current A8.7 9.8
Input Power W0.98k 1.12k
EER (w/w)
Btu/h
- -
10.2 10.2
Starting Current A35 48
Compressor Output W0.70K 0.75k
Fan Motor Output W54 54
Noise Level Indoor
(High / Low)
db(A) 50 / 46 51 / 47
Outdoor
(High / Low)
db(A) 57 / 54 58 / 55
Moisture Removal L/h
Pt/h
1.2
2.5
1.4
3.0
Air Circulation Indoor m3/min (ft3/min) 9.1 (320) 9.3 (330)
Outdoor m3/min (ft3/min) 14.7 (520) 14.7 (520)
Dimensions Height mm
inches
375
(14-25/32)
375
(14-25/32)
Width mm
inches
560
(22-1/16)
560
(22-1/16)
Depth mm
inches
606
(23-7/8)
606
(23-7/8)
Net Weight kg
lb
35
77
35
77
Gross Weight kg
lb
39
86
39
86
Refrigerant (R-22) g
oz
450
15.9
550
19.4
• Specifications are subject to change without notice for further improvement.
4
CW-XC100VK / CW-XC120VK

3 Dimensions

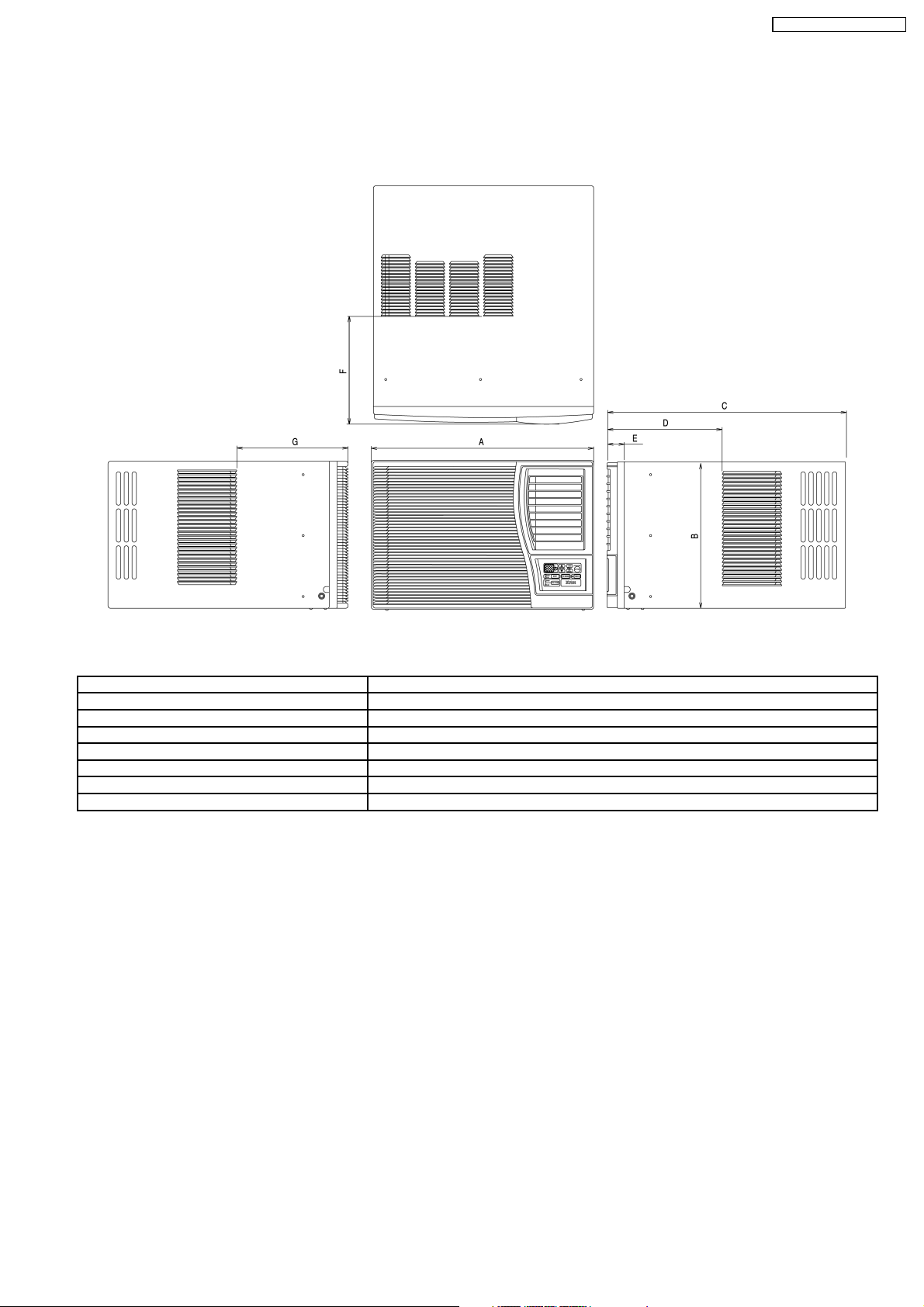

3.1. Top View, Front View and Side View
3.2. Unit
Item Unit: Inch (mm)
A - Width 22-1/16”(560)
B - Height 14-25/32”(375)
C - Depth 23-7/8”(606)
D11-9/16”(294)
E1-13/16”(46)
F11-3/32”(281.6)
G11-3/32”(281.6)
5
CW-XC100VK / CW-XC120VK

4.1. CW-XC100VK
Item Pressure (MPa) Temperature (°C)
Lower Upper Lower Upper
A1.85 2.05 61 76
B1.82 2.02 36 46
C0.59 0.65 914
D0.57 0.63 10 17
Note: Indoor temperature at 27°C (DB), 19°C (WB) and Outdoor at
35°C (DB), 24°C (WB) for Cooling.
4.2. CW-XC120VK
Item Pressure (MPa) Temperature (°C)
Lower Upper Lower Upper
A1.90 2.10 64 80
B1.87 2.07 36 46
C0.57 0.63 713
D0.53 0.59 915
Note: Indoor temperature at 27°C (DB), 19°C (WB) and Outdoor at
35°C (DB), 24°C (WB) for Cooling.

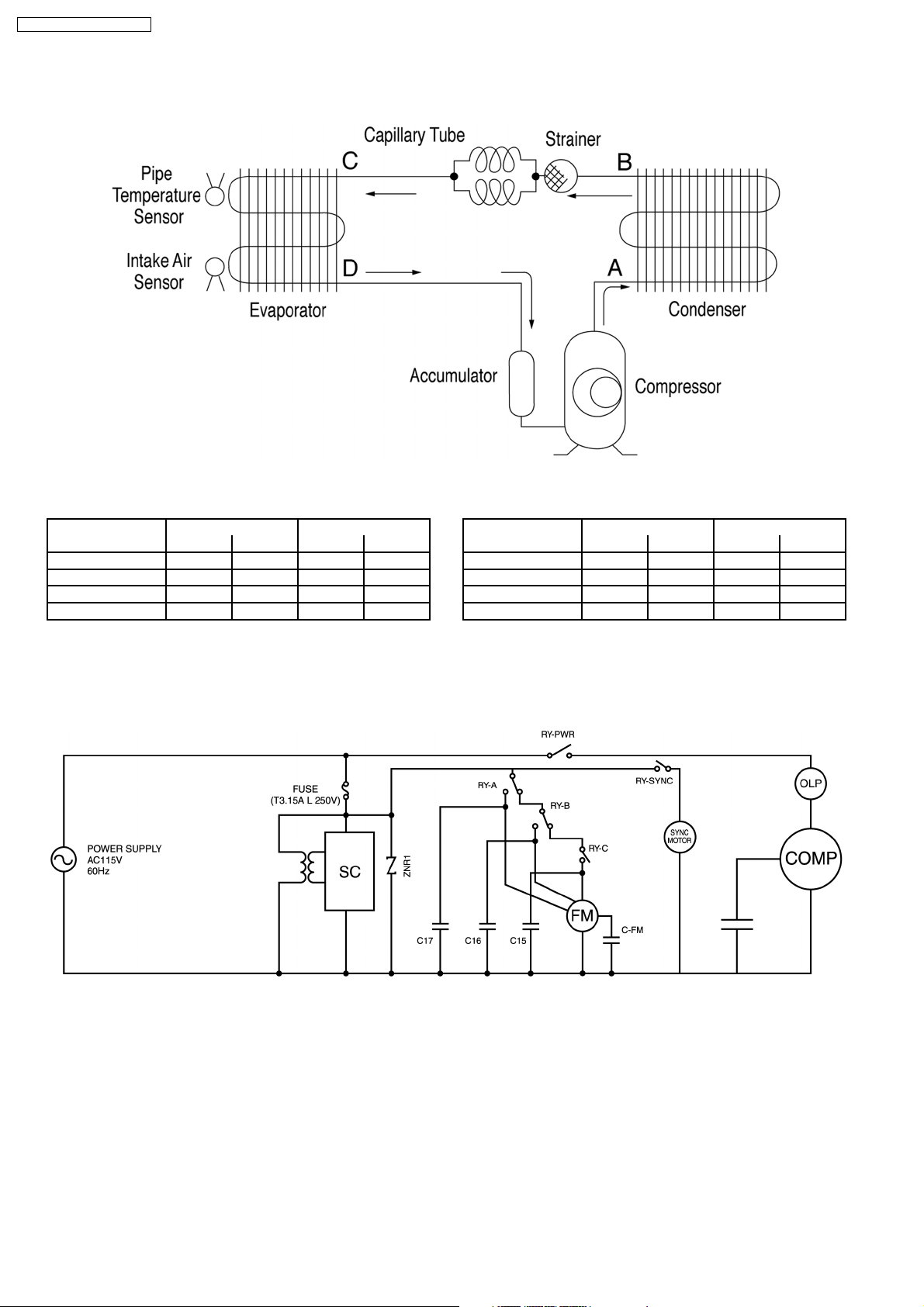

4 Refrigeration Cycle Diagram
5 Block Diagram
6
CW-XC100VK / CW-XC120VK

6 Wiring Diagram
6.1. Resistance of Fan Motor
windings and the rated
Capacitor
Model CW-XC100VK CW-XC120VK
Connection CWA951216 CWA951215
Blue - Yellow 34.6 Ω34.8 Ω
Yellow - Brown 2.3 Ω2.5 Ω
Brown - Orange 13.7 Ω14.8 Ω
Red -Yellow 36.6 Ω37.6 Ω
6.2. Resistance of Compressor
windings and the rated
Capacitor
Model CW-XC100VK CW-XC120VK
Connection CWB09623 CWB09624
C-R 0.690 Ω0.724 Ω
C-S 2.429 Ω2.168 Ω
Capacitor CWA312066 (40µF,
250VAC)
CWA312067 (45µ,
250VAC)
Note: Resistance at 20°C of Ambient Temperature.
7 Air Conditioner Performance Evaluation
Suction & Discharge Air
Temperature Difference
Current Determination Remedy
• 8°C and over (14.4°F) • As specified. • Nothing wrong. • None.
• 8°C and over (14.4°F) • Higher than specified. • Nothing wrong, outdoor
temperature is too high, heat
radiation is not efficient.
• Improve heat radiation.
• Under 8°C (14.4°F) • Higher than specified. • Something is preventing heat
radiation.
• Excessive amount of refrigerant.
• Improve heat radiation.
• Under 8°C (14.4°F) • Lower than specified. • Leakage of refrigerant or
refrigerant system is blocked.
• Locate and repair leak.
• Flush refrigeration cycle.
• Under 8°C (14.4°F) • Higher than specified by
50%.
• Compressor defect. • Replace the compressor.
Note: Room air humidity is relatively higher, the temperature difference will be smaller.
7
CW-XC100VK / CW-XC120VK

8 Troubleshooting Guide
Warning: Disconnect unit from electrical power supply before making any electrical checks.
Trouble Check Result Causes Remedy
Fan Motor and Compressor
won’t run.
• Supply Voltage
• Fuse Box or Circuit
Breaker.
• Power cord or Wiring
Harness.
• Temperature Setting.
• Less than 10% by
Rated.
• Open Contacts.
• Pulled loose or Shorted.
• Higher than room
temperature
• Temporary or
Permanent?
• Customer Restarted
unit immediately without
waiting 3 minutes.
• Consult ELECTRICIAN,
if permanent.
• WAIT FOR 3
MINUTES.
• Repair Open Circuit.
• Repair or Replace it.
• Set it LOWER.
Fan motor won’trun
(Compressor run).
• Objects around Fan.
• RESISTANCE between
Wires.
• Capacitor Fan Motor.
• Locked Fan.
• Shorted / Open circuit.
• OHM Meter doesn’t
Deflect.
• Fan Hitting Cowling.
• Foreign Materials.
• Frozen Bearings.
• Shorted or Burned out.
• Capacitor Defect.
• Adjust Fan position
setting screw.
• Remove Foreign
Materials.
• Replace Fan Motor.
• Replace Fan Motor.
• Replace Capacitor Fan.
Compressor won’t run (Fan
run).
• Temperature setting.
• RESISTANCE between
Terminal and the
Compressor Body.
• RESISTANCE between
Terminals.
• Overload Protector.
• Capacitor Compressor.
• Thermostat.
• Higher than room temp.
• Shorted.
• Shorted.
• Infinity between
Terminals.
• OHM Meter doesn’t
deflect.
• No click heard.
• Winding Coil touched to
the compressor shell.
• Rear Shorted or Burnt
out.
• Rear Shorted or Burnt
out.
• Overload Protector
defect.
• Capacitor defect.
• Thermostat defect.
• Set it lower.
• Replace Compressor.
• Replace Compressor.
• Replace Overload
Protector.
• Replace Capacitor
Compressor.
• Replace Thermostat.
Air Swing won’trun • Air Swing Switch. • OFF position. • Set it ON.
• No contact at position. • Open circuit • Replace Air Swing
Switch.
• Resistance between
wires.
• OHM Meter doesn’t
deflect.
• Shorted or open circuit. • Replace Air Swing
Motor.
8
CW-XC100VK / CW-XC120VK

Trouble Check Result Causes Remedy
Insufficient cooling. • Temperature Setting.
• Ventilation door open.
• Air filter dirty.
• Location of installation.
• Evaporator/Condenser
Coil obstructed.
• Unit capacity for the
room too small.
• Temperature difference
and running current.
• Higher than room
temperature.
• Open.
• Clogged or dirty.
• Sunlight hitting outdoor
side.
• Obstacles.
• Clogged or dirty.
• Not satisfied.
• REFER TO
PERFORMANCE
EVALUATION.
• Reduces capacity.
• Restricted air
circulation.
• Restricted Heat
Exchanger.
• Restricted Heat
Exchanger.
• Restricted air
circulation.
• Leakage of refrigerant
or refrigeration system
is blocked.
• Set it lower.
• Close ventilation door.
• Clean or replace Air
Filter.
• Consider building an
AWNING.
• Remove obstacles or
reinstall unit.
• Clean the coils.
• Replace the unit with
bigger one.
• Locate repair leak.
• Flush refrigeration
cycle.
Noise • Source of Noise • Vibration.
• Intermittent Noise.
• Faulty installation.
• Fan hitting objects.
• Refrigerant tubing
touching each other.
• Fan splashing Drain
Water.
• Reinstall unit or
Reinforce the
installation.
• Adjust Fan position or
remove foreign
materials.
• About 1/2”Clearance
needed.
• Remove drain plug and
mount a drain pan to
remove the water.
• Set the Drain outlet
downward, so that the
Drain water can run off.
Water dripping inside room. • Unit installation.
• Drain Tray-Styrofoam
pieces blocking drain
channel.
• Tilted to inside room.
• Clogged.
• Restricted run off.
• Clogged or blocked.
• Tilt unit to outside
slightly.
• Remove the foreign
materials.
Frozen Evaporator • Temperature setting.
• Air Filter/Evaporator.
• Temperature difference
and running current.
• Set too low for ambient
conditions.
• Clogged or Dirty.
• REFER TO
PERFORMANCE
EVALUATION
• Outdoor temperature
low (Night time).
• Restricted air
circulation.
• Leakage of refrigerant
or refrigeration system
is blocked.
• Set the Main Control
knob to Fan to melt ice
and set the
Temperature Control to
higher temperature.
• Clean Air
filter/Evaporator.
• Locate and repair leak.
• Flush refrigeration
cycle.
9
CW-XC100VK / CW-XC120VK

9 Operation Details

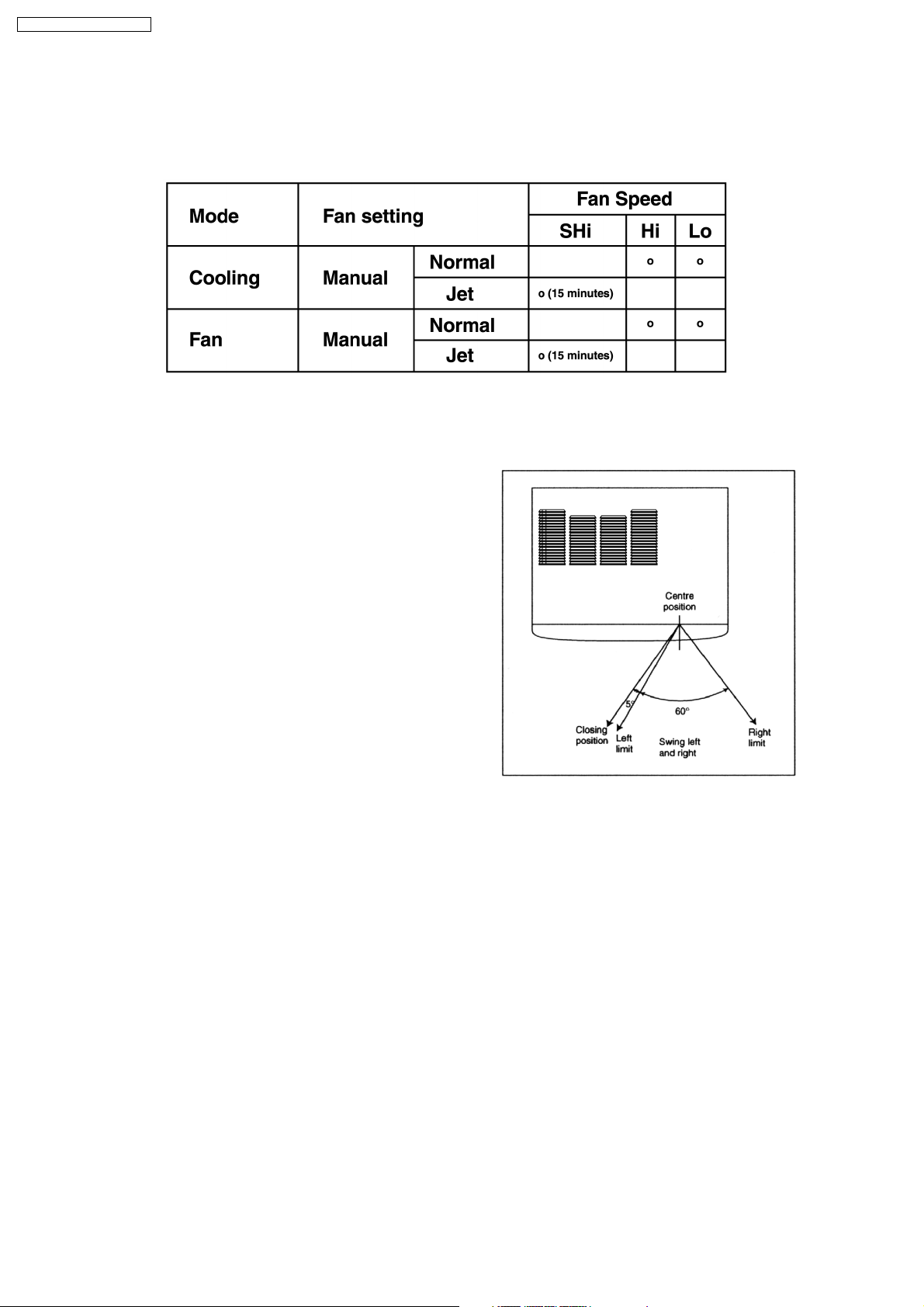

9.1. Fan Mode Operation
• Fan operation only. Fan in operation according to Remote Control or Main Unit (Touch Control Panel) setting.
9.1.1. Manual Setting of Fan Speed
• Basic Fan Speed can be manually adjusted (Lo or Hi) by using the Fan Speed Selection Button/Pad at Remote Control or Main
Unit (Touch Control Panel).
9.2. Cooling Mode Operation
• Cooling in operation according to Remote Control or Main Unit (Touch Control Panel) setting.
9.2.1. Time Delay Safety Control (3 minute)
• When the compressor is stopped by Operation Switch at the Remote Control or Main Unit (Touch Control Panel), it restart after
3 minutes when the Operation Switch at the Remote Control or Main Unit (Touch Control Panel) is turned ON.
• When the setting temperature is reached during cooling operation, the compressor stops and it will not start for 3 minutes.
• Protection of compressor to balance the pressure in the refrigeration cycle for 3 minutes.
9.2.2. 7 minutes Time Saved Control
• The compressor will start automatically if it has stopped for 7 minutes even if the room temperature is between the compressor
ON temperature and OFF temperature.
9.2.3. Starting Current Control
• When the compressor and fan motor are simultaneously started, the fan motor will operate 1.6 seconds later.
9.2.4. Freeze Prevention Control
If the temperature of the indoor heat exchanger falls
continuously below 10°C for 3 minutes or more, the
compressor turns off to protect the heat exchanger from
freezing. The fan speed setting remains the same.
Compressor restarts when the heat exchanger temperature
rises to 12°C (Recovery).
*3 minutes waiting of Time Delay Safety Control is valid for
Cooling Operation.
9.2.5. Compressor Reverse Rotation Protection Control
• If the compressor is operating continuously for 5 minutes or longer and the temperature difference between intake air and heat
exchanger is 2.5°C or less for 2 minutes, compressor will stop and restart automatically (Time Delay Safety Control is valid).
10
CW-XC100VK / CW-XC120VK

9.2.6. Cooling Operation Time Diagram

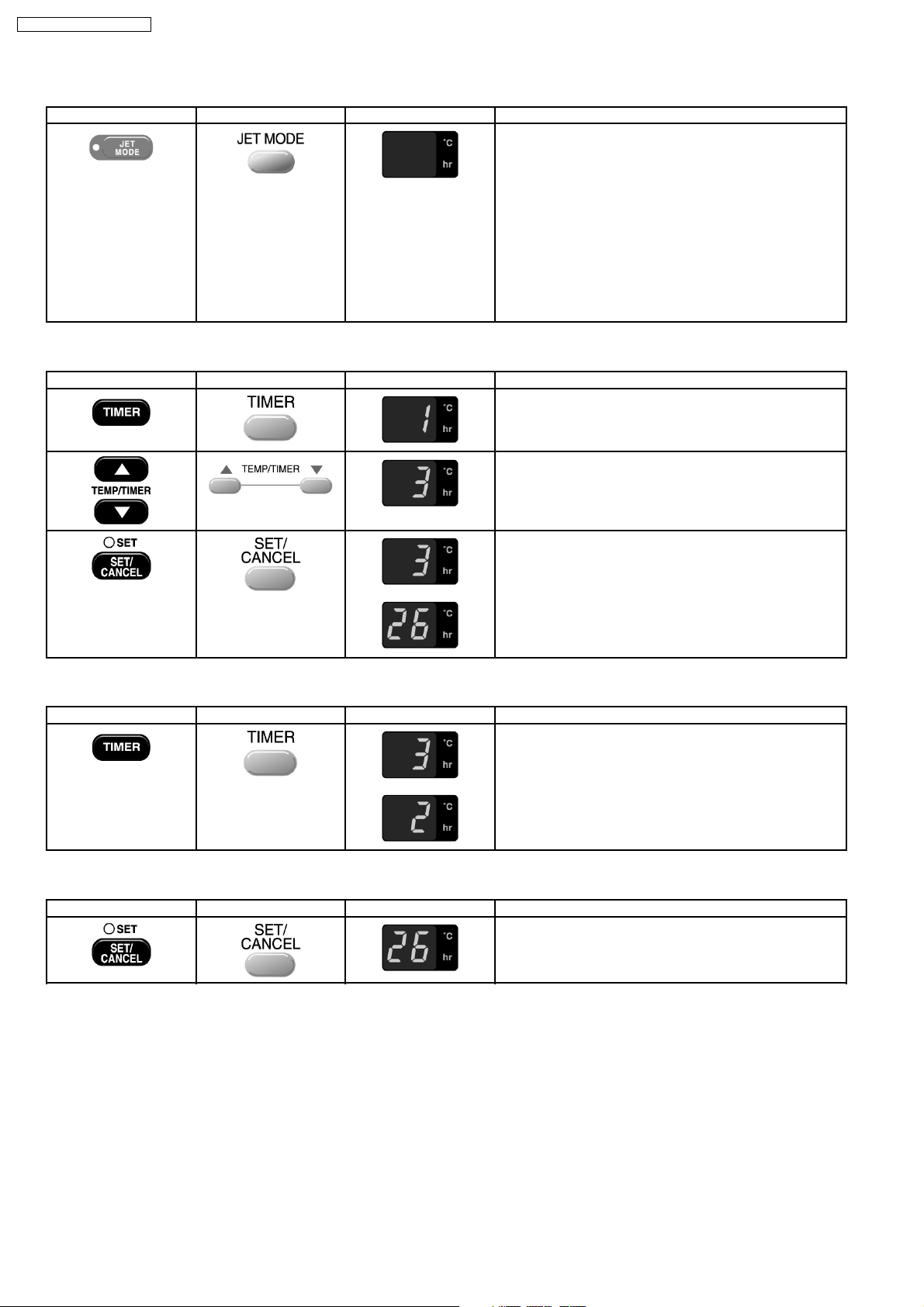

9.3. Jet mode Operation
• Purpose of this operation is to obtain the setting temperature quickly.
• When the Jet mode is set during Cooling Operation, the set temperature will be automatically decreased 3°C against the
present setting temperature (Lowest limit temperature: 16°C).
• This operation automatically will be running under Super High Fan Speed.
• Sound emitted by the unit will be increased during Jet mode operation due to increased of air volume.
• Jet mode will operate for 15 minutes only, after that it will shift back to previous operation mode.
• Jet mode will stop if:-
− Jet mode button/Pad is pressed again.
− Jet mode operation has run for 15 minutes.
− Stopped by ON/OFF switch.
− Timer OFF activates.
9.4. Random Auto Restart Control
• If there is a power failure, operation will be automatically restarted after 3 to 4 minutes when the power is resumed.
It will start with previous operation mode and airflow direction (Time Delay Safety Control is valid) as the operation was not
stopped by Remote Control or Main Unit (Touch Control Panel).
• Restart time is decided randomly with 5 parameters:-
− Intake air temperature.
− Setting temperature.
− Fan speed.
− Air Swing blade position.
− Indoor heat exchanger temperature.
• Auto Restart Control is not available when Timer is set.
• If Jet mode operation is set during power failure, Jet mode operation will not start automatically along with previous operation
mode after power resume.
• This control can be omitted by open the circuit JX1.
11
CW-XC100VK / CW-XC120VK

9.5. Fan Speed Control
• Manual Fan Speed Control
Basic fan speed adjustment (2 setting, from Lo to Hi) can be carried out by using the Fan Speed Selection Button/Pad at the
Remote Control or Main Unit (Touch Control Panel).
9.6. Airflow Direction Control
9.6.1. Horizontal Airflow Direction
When Air Swing Button/Pad is pressed with Remote Control
or Main Unit (Touch Control Panel) in the Auto Airflow, the
airflow direction louver swings side to side within the full swing
range as shown in the “Diagram”.
The louver can be adjusted by pressing the Button/Pad again
at the Remote Control or Main Unit (Touch Control Panel) to
the desired louver position.
When stopped with Remote Control or Main Unit (Touch
Control Panel), the louver vane is reset, and stopped at the
closing position.
“Diagram”
9.6.2. Vertical Airflow Direction
• The upward and downward airflow direction vane can be adjusted manually by hand.
9.7. Remote Control Signal Receiving Sound
• To switch off the beep sound.
Press the “Operation OFF/ON Pad”at the main unit continuously for 10 second or more.
Repeat the above if you want to switch ON the “beep”sound.
*However, if the “Operation OFF/ON Pad”have been pressed, the previous operation mode will be activated. If you do not
require this operation, you may change it by using the Main Unit (Touch Control Panel).
12
CW-XC100VK / CW-XC120VK

10.1. Parts Identification
10.1.1.1. Vertical Airflow Direction Vane
Airflow direction adjustment up-down.
• The vertical airflow direction vane is
controlled by rotating the horizontal
vane forward or backward.
10.1.1.2. Ventilation Lever
The ventilation lever must be in CLOSE
position in order to maintain the best cooling
conditions.
When fresh air is necessary in the room, set
the ventilation lever to the OPEN position.
The damper is opened and room air is drawn
out.
10 Operating Instructions
10.1.1. Main Unit
10.1.1.3. Touch Control Panel
10.1.1.4. Types of Signal Sound
• One long “Beep”and one short “Beep”. (Sound from the main unit.)
13
CW-XC100VK / CW-XC120VK

Ensure that the power plug is
securely inserted.
• A loose plug may cause a fire
or an electric shock.
NOTES
• If the unit is not going to be used for an extended period of
time, remove the power plug. Otherwise, approximately
2.5W of electricity will be used even if the unit has been
turned off using the remote control.
• If operation is stopped, and to be restarted immediately, the
unit will resume operation only after 3 minutes.
10.2.1. How to Insert Batteries
(1) Open the cover.
(2) Insert the two batteries.
(3) Close the cover.
Caution:
Do not use rechargeable (Ni-Cd) batteries because such
batteries difter from the standard dry cell batteries in shape,
* Maximum distance: 10 m
Be sure to observe the following:
• Aim remote control at the
control panel on air
conditioner when operating.
• Do not drop or throw the
remote control.
• Do not place the remote
control in a location that is
exposed to direct sunlight or
next to a heating unit or other
heat sources.
dimension and performance.
10.2.2. About the Batteries
• The batteries can be used for approximately one year.
• Be sure to replace the batteries with two new identical
batteries.
• Remove the batteries if the air conditioner will not be used
for an extended period of time.
10.1.2. Remote Control
10.2. Preparation Before Operating
14
CW-XC100VK / CW-XC120VK

10.3. Air Conditioner Operation
10.3.1. Operating the Unit
Touch Control Panel Remote Control Display
Start operation by pressing OPERATION.
• The operation will turn on and the display panel will light up.
To stop the operation, press the OPERATION again.
• The unit will stop operating and the display panel light will
turn off.
10.3.2. Setting Display Temperature
Touch Control Panel Remote Control Display
Display will
change
according to
the setting.
Press TEMP/TIMER “Upward” or “Downward” to set the
display temperature.
• The temperature can be set between 16°C and 30°C.
Recommended temperature: 26°C~28°C.
NOTES
• The latest temperature setting will be memorized and will
appear on the display the next time it’s turned on.
• The display temperature selection is for display purpose
only and does not indicate actual room setting
temperatures. Your room temperature may not necessarily
match the displayed temperature.
10.3.3. Selecting Operation Mode
Touch Control Panel Remote Control Indicator
Press MODE to select the desired operation.
• The indicator will light up and a “beep”sound will indicate
changing setting.
COOL mode
To set display temperature to your preference of cooling
comfort.
FAN mode
To provide air circulation without cooling the room.
During Fan operation, temperature setting cannot be
selected.
10.3.4. Selecting Fan Speed
Touch Control Panel Remote Control Indicator
Press FAN SPEED to choose the speed level of the fan.
• The indicator will light up and a “beep”sound will indicate
changing setting.
NOTE
The latest fan speed setting will be memorized and the indicator
will light up the next time the unit is turned on.
10.3.5. Adjusting Horizontal Airflow Direction
Touch Control Panel Remote Control Indicator
No indication will appear. Press to select AIR SWING.
• The air circulation will automatically move the horizontal
louvres left and right for better air distribution around the
room.
NOTE
Using your hands to adjust the direction may cause the louvres
to malfunction. If this happens, stop operation immediately and
restart.
15
CW-XC100VK / CW-XC120VK

10.3.6. Jet Mode Operation
Touch Control Panel Remote Control Display
To obtain set temperature quickly:
• Press JET MODE.
• To cancel this operation, press once more.
• After JET MODE is selected, the operation will go on for 15
minutes, after that it will shift back to previous operation
mode.
• When the JET MODE is set during Cooling Operation, the
set temperature will be automatically decreased 3°C
against the present setting temperature (lowest limit 16°C).
NOTE
Sound emitted by the unit will be increased during JET MODE
operation due to increased of air volume.
10.3.7. Setting The Off Timer
Touch Control Panel Remote Control Display
When the air conditioner in operation:
Press the TIMER button.
• The SET/CANCEL indicator light will blink awaiting for
setting.
Press the TEMP/TIMER “Upward”or “Downward”button
until the preferred hour of operation is reached.
Press the SET/CANCEL button to complete the setting. At this
time, the SET/CANCEL indicator light is steady instead of
blinking.
NOTE
The hour reading will change back to the set temperature
reading after 10 seconds (You can also revert to temperature
setting immediately by pressing the TEMP/TIMER “Upward”or
“Downward”buttons again).
10.3.8. Check Timer Setting During Off Timer
Touch Control Panel Remote Control Display
Press the TIMER button to check the remaining programmed
timer setting.
• The figure will be displayed for 10 seconds then will
automatically switch back to temperature setting.
NOTE
The timer figure will change according to the time remaining (if
you set it to turn off 3 hours from now, the timer will show “2”
when you check the timer an hour later).
10.3.9. Cancel Timer Setting During Off Timer
Touch Control Panel Remote Control Display
Press the SET/CANCEL button to cancel the timer setting.
• The SET/CANCEL indicator light will turn off.
However the temperature remains displayed.
16
CW-XC100VK / CW-XC120VK

10.3.10. Setting The On Timer
Touch Control Panel Remote Control Display
Press the TIMER button.
• The TIMER indicator light will blink awaiting for setting.
Press the TEMP/TIMER “Upward”or “Downward”button
until the preferred hour of operation is reached.
Press the SET/CANCEL button to complete the setting. At this
time, the TIMER indicator light is steady instead of blinking.
NOTE
The display will show the remaining hour to the start of the
operation (if you set to turn on 3 hours from now, the timer will
show “2”at an hour later). When set time is reached, the air
conditioner starts the operation under the previous setting
mode and the TIMER indicator will light off. Now, the previous
set mode and the fan speed will light up. Simultaneously, the
display will show the setting temperature.
10.3.11. Check Temperature / Mode / Fan Speed Setting During On Timer
Touch Control Panel Remote Control Display
Press the TIMER button. The TIMER indicator light will blink
and the previous temperature setting will be shown.
Simultaneously, MODE and FAN SPEED indicator will light up.
This indication will last for 5 seconds, and then the display will
show the remaining time. MODE and FAN SPEED indicator
light will turn off. At this time, the TIMER indicator light is steady
instead of blinking.
10.3.12. Change Temperature/Mode/Fan Speed Setting During On Timer
Touch Control Panel Remote Control Display
Press the SET/CANCEL button to cancel the timer setting.
Press the OPERATION. Set the desired mode and the fan
speed.
Then press OPERATION button to stop operation.
Start the TIMER setting again by repeating the step from the
“Setting The On Timer”procedures.
10.3.13. Cancel Timer Setting During On Timer
Touch Control Panel Remote Control Display
Press the SET/CANCEL button to cancel the timer setting. The
SET/CANCEL indicator light will turn off.
To operate the air conditioner before reaching the set timer:
• Press the SET/CANCEL to cancel the timer.
• Press the OPERATION button to turn on the unit.
17
CW-XC100VK / CW-XC120VK

11.2. Accessories
11.3. Select The Best Location
11.4. Window requirements
• Hot sun rays hitting the outside surface of the cabinet will
create considerable heat load. If the outside of the cabinet
is exposed to direct sunlight, consider building an awning to
shade the cabinet while providing ample area for the heated
air to be exhausted from the condenser (both sides) and the
top.
This unit is designed for installation in standard double hung
windows.
NOTE
The unit may also be installed “through the wall“. You should,
however, observe standard carpentry practices and frame the
opening without violating local ordinances.
11.5. Installation procedures
1. Remove the rear cabinet screws and save for later use.
2. Slide the chassis out from the cabinet.
11 Installation Instructions
11.1. Installation Box Contents
18
CW-XC100VK / CW-XC120VK

11.6. How to Assemble the
expandable Panels
NOTE: This procedure applies to left and right of a assembling
expandable panel.
• Attach the top angle to the cabinet using screw type B
(3pcs).
• Insert expandible panels to cabinet sides as shown.
• Secure the first fold of expansion panel to cabinet using
screw typeC (3 each).
11.7. Cabinet Installation
1. Cut the “Sealing Ribbon”to the proper length,and attach it
along the bottom edge of the bottom window sash.
2. To prevent condensation water from dripping inside, the
cabinet should be installed level or very slightly tilted to the
outside.
3. Secure the cabinet using screws.
• Expand the expandable panel fully into the grooves of
the window frame, secure the expandable panel, left
right and top mounting frames to the bottom of the
window sash using 6 screws
• Secure the cabinet using wood screws type A.
• Cut the window sash foam seal to the proper size and
seal and the opening between the top of the inside
window sash and the outside window sash.
Note: If a gap exits between te unit and window sash,
you may use “Sealer“supplied with the installation kit for
a better seal.
11.8. Chassis installation into the
cabinet
1. Slide the chassis into the cabinet.
2. Reinstall the cabinet to chassis by using screws. (from rear
cabinet).
11.9. Installation of the front frille
Depending upon the location of the AC outlet, route the AC
cord to either the left or right side while installing the front grille.
19
CW-XC100VK / CW-XC120VK

1. Place the front grille on the cabinet first.
2. Secure the front grille to the main chassis using screw.
11.10. Insert the e+filter
• Attach the e+filter (part no. CZ-SF6p) to the frame.
• Slot in the e+filter and the frame (part no. CZ-SFW6P) to
the front grille.
• The e+ filter and the frame can be obtained separately from
your nearest servicentre.
11.11. Insert the Air Filter
• Attach the air filter to the intake grille.
11.12. Place front intake Grille over
the front grille
• Slide the front intake grille slightly to the right to reattach the
tabs then push it down to close tight.
11.13. Removal the front intake grille
1. Remove the front intake grille.
Pull up the front intake grille about 0°and slide it slightly to
the left to unhook the tabs.
2. Remove the air filter.
Tilt up and pull out the air filter by the holder.
20
CW-XC100VK / CW-XC120VK
