Panasonic S-36PF1E5A User manual

– Single Split Air Conditioner –
■ R410A Models
Model No.
Indoor Unit
Type Indoor
Unit Type
Rated Capacity
36 45 50 60 71 100 125 140
F1 Low Silhouette
Ducted S-36PF1E5A S-45PF1E5A S-50PF1E5A S-60PF1E5A S-71PF1E5A
S-100PF1E5A S-125PF1E5A S-140PF1E5A
ENGLISH
Read through the Installation Instructions before you proceed with the installation.
In particular, you will need to read under the “IMPORTANT!” section at the top of the page.
FRANÇAIS
Lisez les instructions d’installation avant de commencer l’installation.
En particulier, vous devez lire la section “IMPORTANT!” en haut de la plage.
ESPAÑOL
Lea las Instrucciones de instalación antes de proceder con la instalación del equipo.
En concreto, deberá leer detenidamente la sección “¡IMPORTANTE!” situada al principio de la página.
DEUTSCH
Lesen Sie die Einbauanleitung, bevor Sie mit der Installation beginnen.
Insbesondere die Hinweise im Abschnitt “WICHTIG!” oben auf der Seite müssen unbedingt gelesen werden.
ITALIANO
Leggere le Istruzioni di installazione prima di procedere con l’installazione.
Prestare particolare attenzione alla sezione “IMPORTANTE!” all’inizio della pagina.
NEDERLANDS
Lees de installatie-instructies zorgvuldig door voor u begint met de installatie.
U moet vooral het gedeelte waar “BELANGRIJK!” boven staat heel goed lezen.
PORTUGUÊS
Leia cuidadosamente as instruções de instalação antes de prosseguir com a instalação.
Em particular, é necessário ler as informações na secção “IMPORTANTE!” na parte superior da página.
ΕΛΛΗΝΙΚΆ
Διαβάστε τις Οδηγίες εγκατάστασης πριν συνεχίσετε με την εγκατάσταση.
Συγκεκριμένα, θα χρειαστεί να διαβάσετε την ενότητα «ΣΗΜΑΝΤΙΚΟ!» στο πάνω μέρος της σελίδας.
БЪЛГАРСКИ
Прочетете инструкциите за инсталиране преди да продължите синсталирането.
Вчастност, ще трябва да прочетете раздела „ВАЖНО!“ вгорната част на страницата.
for Refrigerant R410A
INSTALLATION INSTRUCTIONS
F616388
II09F616388EUL.indb1II09F616388EUL.indb1 2013/12/1115:12:202013/12/1115:12:20

2
IMPORTANT!
Please Read Before Starting
This air conditioner must be installed by the sales dealer
or installer.
This information is provided for use only by authorized
persons.
For safe installation and trouble-free operation, you must:
●Carefully read this instruction booklet before beginning.
●Follow each installation or repair step exactly as shown.
●This air conditioner shall be installed in accordance with
National Wiring Regulations.
●Pay close attention to all warning and caution notices
given in this manual.
WARNING
This symbol refers to a hazard or unsafe
practice which can result in severe
personal injury or death.
CAUTION
This symbol refers to a hazard or unsafe
practice which can result in personal injury
or product or property damage.
If Necessary, Get Help
These instructions are all you need for most installation
sites and maintenance conditions. If you require help for a
special problem, contact our sales/service outlet or your
certified dealer for additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for
improper installation or maintenance service, including
failure to follow the instructions in this document.
SPECIAL PRECAUTIONS
WARNING When Wiring
ELECTRICAL SHOCK CAN
CAUSE SEVERE PERSONAL
INJURY OR DEATH. ONLY A
QUALIFIED, EXPERIENCED
ELECTRICIAN SHOULD
ATTEMPT TO WIRE THIS
SYSTEM.
• Do not supply power to the unit until
all wiring and tubing are completed or
reconnected and checked.
• Highly dangerous electrical voltages are
used in this system.
Carefully refer to the wiring diagram and
these instructions when wiring. Improper
connections and inadequate grounding
can cause accidental injury or death.
• Connect all wiring tightly. Loose wiring
may cause overheating at connection
points and a possible fire hazard.
•Provide a power outlet to be used
exclusively for each unit.
•Provide a power outlet exclusively for
each unit, and full disconnection means
having a contact separation in all poles
must be incorporated in the fixed wiring
in accordance with the wiring rules.
•To prevent possible hazards from
insulation failure, the unit must be
grounded.
When Transporting
Be careful when picking up and moving
the indoor and outdoor units. Get a partner
to help, and bend your knees when lifting
to reduce strain on your back. Sharp
edges or thin aluminum fins on the air
conditioner can cut your fingers.
When Installing…
Select an installation location which is
rigid and strong enough to support or hold
the unit, and select a location for easy
maintenance.
…In a Room
Properly insulate any tubing run inside a
room to prevent “sweating” that can cause
dripping and water damage to walls and
floors.
CAUTION Keep the fire alarm and
the air outlet at least
1.5 m away from the unit.
…In Moist or Uneven Locations
Use a raised concrete pad or concrete
blocks to provide a solid, level foundation
for the outdoor unit. This prevents water
damage and abnormal vibration.
…In an Area with High Winds
Securely anchor the outdoor unit down
with bolts and a metal frame. Provide a
suitable air baffle.
…In a Snowy Area (for Heat Pump-type
Systems)
Install the outdoor unit on a raised platform
that is higher than drifting snow. Provide
snow vents.
…At least 2.5 m
Indoor unit of this air conditioner shall be
installed in a height of at least 2.5 m.
…In laundry rooms
Do not install in laundry rooms. Indoor unit
is not drip proof.
II09F616388EUL.indb2II09F616388EUL.indb2 2013/12/1115:12:202013/12/1115:12:20

3
ENGLISH
When Connecting Refrigerant Tubing
WARNING
• When performing piping
work do not mix air except
for specified refrigerant
(R410A) in refrigeration
cycle. It causes capacity
down, and risk of
explosion and injury due
to high tension inside the
refrigerant cycle.
• Refrigerant gas leakage
may cause fire.
• Do not add or replace
refrigerant other than
specified type. It may
cause product damage,
burst and injury, etc.
• Ventilate the room well, in the event
that is refrigerant gas leaks during
the installation. Be careful not to allow
contact of the refrigerant gas with a
flame as this will cause the generation
of poisonous gas.
• Keep all tubing runs as short as
possible.
• Use the flare method for connecting
tubing.
• Apply refrigerant lubricant to the
matching surfaces of the flare and union
tubes before connecting them, then
tighten the nut with a torque wrench for
a leak-free connection.
• Check carefully for leaks before starting
the test run.
• Do not leak refrigerant while piping work
for an installation or re-installation, and
while repairing refrigeration parts.
Handle liquid refrigerant carefully as it
may cause frostbite.
When Servicing
• Turn the power OFF at the main
power box (mains) before opening
the unit to check or repair electrical
parts and wiring.
• Keep your fingers and clothing away
from any moving parts.
• Clean up the site after you finish,
remembering to check that no metal
scraps or bits of wiring have been left
inside the unit being serviced.
WARNING
• This product must not be
modified or disassembled
under any circumstances.
Modified or disassembled
unit may cause fire, electric
shock or injury.
• Do not clean inside the
indoor and outdoor units by
users. Engage authorized
dealer or specialist for
cleaning.
• In case of malfunction
of this appliance, do not
repair by yourself. Contact
the sales dealer or service
dealer for repair.
CAUTION
• Do not touch the air
inlet or the sharp
aluminum fins of the
outdoor unit. You may get
injured.
•
Ventilate any enclosed
areas when installing or
testing the refrigeration
system. Escaped refrigerant
gas, on contact with fire
or heat, can produce
dangerously toxic gas.
• Confirm after installation
that no refrigerant gas is
leaking. If the gas comes
in contact with a burning
stove, gas water heater,
electric room heater or
other heat source, it can
cause the generation of
poisonous gas.
Others
WARNING
• Do not sit or step on
the unit, you may fall
down accidentally.
CAUTION
• Do not touch the air
inlet or the sharp
aluminum fins of the
outdoor unit. You may get
injured.
• Do not stick any object
into the FAN CASE.
You may be injured
and the unit may be
damaged.
NOTICE
The English text is the original instructions. Other
languages are translations of the original instructions.
II09F616388EUL.indb3II09F616388EUL.indb3 2013/12/1115:12:202013/12/1115:12:20

4
IMPORTANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Please Read Before Starting
1. GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1-1. Tools Required for Installation (not supplied)
1-2. Accessories Supplied with Unit
1-3. Type of Copper Tube and Insulation Material
1-4. Additional Materials Required for Installation
2. SELECTING THE INSTALLATION SITE . . . . . . . . . . . . . . 6
2-1. Indoor Unit
3. HOW TO INSTALL THE INDOOR UNIT. . . . . . . . . . . . . . . 7
■Low Silhouette Ducted Type (F1 Type) . . . . . . . . . . . . . . . 7
3-1. Required Minimum Space for Installation and Service
3-2. Suspending the Indoor Unit
3-3. Installing the Drain Pipe
3-4. Checking the Drainage
3-5. Connecting Duct to Air Intake Port Side
4. ELECTRICAL WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4-1. General Precautions on Wiring
4-2. Recommended Wire Length and Wire
Diameter for Power Supply System
4-3. Wiring System Diagrams
5. HOW TO PROCESS TUBING . . . . . . . . . . . . . . . . . . . . . 15
5-1. Connecting the Refrigerant Tubing
5-2. Connecting Tubing Between Indoor and
Outdoor Units
5-3. Insulating the Refrigerant Tubing
5-4. Taping the Tubes
5-5. Finishing the Installation
6. HOW TO INSTALL THE TIMER REMOTE
CONTROLLER OR HIGH-SPEC WIRED REMOTE
CONTROLLER (OPTIONAL PART). . . . . . . . . . . . . . . . . 17
NOTE
Refer to the Operating Instructions attached to the optional
Timer Remote Controller or optional High-spec Wired
Remote Controller.
Page
7. HOW TO INSTALL WIRELESS REMOTE
CONTROLLER RECEIVER (OPTIONAL PART) . . . . . . 17
NOTE
Refer to the Operating Instructions attached to the optional
Wireless Remote Controller Receiver.
8. EXTERNAL STATIC PRESSURE SETTING . . . . . . . . . . 18
8-1. How to Set on PC Board
8-2. Operating the Timer Remote Controller (CZ-RTC2)
9. APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
■Care and Cleaning
■Troubleshooting
■Tips for Energy Saving
IMPORTANT INFORMATION REGARDING THE
REFRIGERANT USED . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Page
CONTENTS
II09F616388EUL.indb4II09F616388EUL.indb4 2013/12/1115:12:202013/12/1115:12:20

5
ENGLISH
1. GENERAL
This booklet briefly outlines where and how to install the
air conditioning system. Please read over the entire set of
instructions for the indoor and outdoor units and make sure all
accessory parts listed are with the system before beginning.
1-1. Tools Required for Installation (not supplied)
1. Flathead screwdriver
2. Phillips head screwdriver
3. Knife or wire stripper
4. Tape measure
5. Carpenter’s level
6. Sabre saw or keyhole saw
7. Hacksaw
8. Core bits
9. Hammer
10. Drill
11. Tube cutter
12. Tube flaring tool
13. Torque wrench
14. Adjustable wrench
15. Reamer (for deburring)
1-2. Accessories Supplied with Unit
Table 1-1 (Low Silhouette Ducted)
Part Name Figure Q’ty Remarks
Washer 8For suspending indoor
unit from ceiling
Flare insulator 2 For gas and liquid tubes
Insulating
tape 2For gas and liquid tubes
flare nuts
Drain
insulator 1 For drain hose joint
Hose band 1 For securing drain hose
Packing 1For drain hose joint
(hard material)
Packing 1For drain hose joint
(soft material)
Drain hose 1
Operating
Instructions 1
Installation
Instructions 1
Short-circuit
connection 1
For high static pressure
(Located on the back of
the electrical component
box lid. )
●Use M10 for suspension bolts.
●Suspension bolts and nuts are field supply.
1-3. Type of Copper Tube and Insulation Material
If you wish to purchase these materials separately from a local
source, you will need:
1. Deoxidized annealed copper tube for refrigerant tubing.
2. Foamed polyethylene insulation for copper tubes as
required to precise length of tubing. Wall thickness of the
insulation should be not less than 8 mm.
3. Use insulated copper wire for field wiring. Wire size varies
with the total length of wiring. Refer to 4. ELECTRICAL
WIRING for details.
CAUTION
Check local electrical codes and regulations before
obtaining wire. Also, check any specified instructions or
limitations.
1-4. Additional Materials Required for Installation
1. Refrigeration (armored) tape
2. Insulated staples or clamps for connecting wire (See your
local codes.)
3. Putty
4. Refrigeration tubing lubricant
5. Clamps or saddles to secure refrigerant tubing
6. Scale for weighing
II09F616388EUL.indb5II09F616388EUL.indb5 2013/12/1115:12:202013/12/1115:12:20

6
2. SELECTING THE INSTALLATION SITE
2-1. Indoor Unit
AVOID:
●areas where leakage of flammable gas may be expected.
●places where large amounts of oil mist exist.
●direct sunlight.
●locations near heat sources which may affect the
performance of the unit.
●locations where external air may enter the room directly.
This may cause “condensation” on the air discharge ports,
causing them to spray or drip water.
●locations where the remote controller will be splashed with
water or affected by dampness or humidity.
●installing the remote controller behind curtains or furniture.
●locations where high-frequency emissions are generated.
DO:
●select an appropriate position from which every corner of the
room can be uniformly cooled.
●select a location where the ceiling is strong enough to
support the weight of the unit.
●select a location where tubing and drain pipe have the
shortest run to the outdoor unit.
●allow room for operation and maintenance as well as
unrestricted air flow around the unit.
●install the unit within the maximum elevation difference
above or below the outdoor unit and within a total tubing
length (L) from the outdoor unit as detailed in the installation
manual packed with the outdoor unit.
●allow room for mounting the remote controller about 1m off
the floor, in an area that is not in direct sunlight or in the flow
of cool air from the indoor unit.
25 cm
25 cm
25 cm
Fig. 2-1
II09F616388EUL.indb6II09F616388EUL.indb6 2013/12/1115:12:212013/12/1115:12:21

7
ENGLISH
3. HOW TO INSTALL THE INDOOR UNIT
■Low Silhouette Ducted Type (F1 Type)

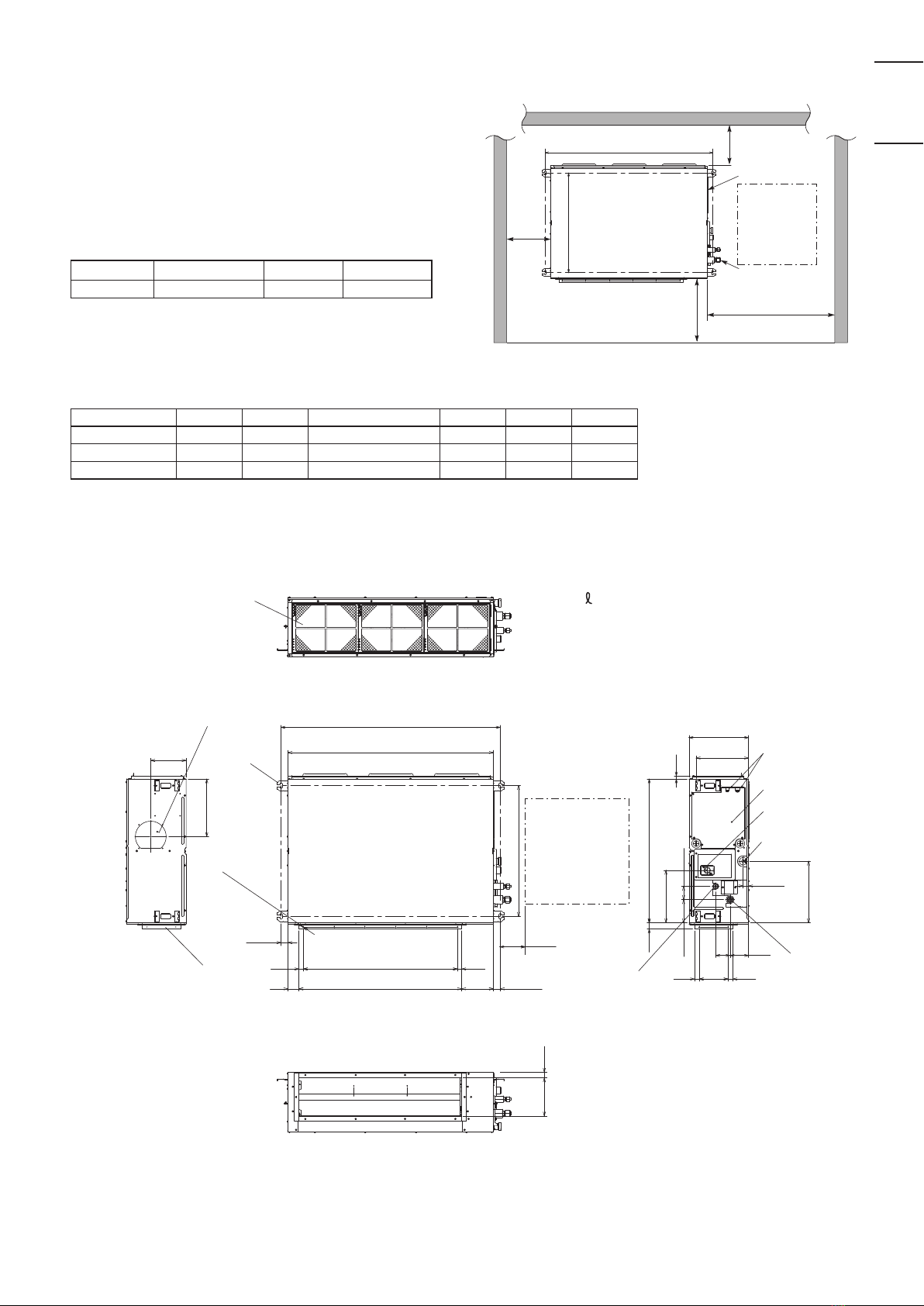

3-1. Required Minimum Space for Installation and
Service
●This air conditioner is usually installed above the ceiling so
that the indoor unit and ducts are not visible. Only the air
intake and air outlet ports are visible from the unit bottom.
●The minimum space for installation and service is shown in
Fig. 3-1 and Table 3-1.
Type 36, 45, 50 60, 71 100, 125, 140
A (Length) 867 1,067 1,467
●It is recommended that space be provided (450 × 450 mm)
for checking and servicing the electrical system.
●The detailed dimensions of the indoor unit is shown in Fig.
3-2 and Table 3-2.
636
33.4
33.4
B
D C D
154
(150)
54
70030
290
255
15
14023 23
113 65
70 90
26.1
300
186 27
256
172
280
g
h
f
i
c
d
b
a
e
j
Fig. 3-1
Table 3-1 Unit: mm
Type A B C D E F
36, 45, 50 867 800 450 (Pitch 150 × 3) 71 592 12
60, 71 1,067 1,000 750 (Pitch 150 × 5) 21 792 16
100, 125, 140 1,467 1,400 1,050 (Pitch 150 × 7) 71 1,192 20
Table 3-2 Unit: mm
Air intake port side
Air outlet duct side
F-ø3 holes
E(Flange O.D.)
A(Suspension bolt pitch)
Unit: mm
Fig. 3-2
a) Refrigerant tubing joint (liquid tube)
b) Refrigerant tubing joint (gas tube)
c) Upper drain port VP25 (O.D. 32 mm)
200 flexible hose supplied
d) Bottom drain port VP25 (O.D. 32 mm)
e) Suspension lug (4 – 12 × 30 mm)
f) Power supply outlet
g) Fresh air intake port (ø150 mm)
h) Flange for flexible air outlet duct
i) Electrical component box
j) Filter
Inspection
access
450 × 450
(Field supply)
A(Suspension bolt pitch)
Min.250
Electrical
component box
Inspection
access
450 × 450
Refrigerant
tubing
Min.650
Indoor unit
Min.400
min.
250
Unit: mm
636
II09F616388EUL.indb7II09F616388EUL.indb7 2013/12/1115:12:212013/12/1115:12:21

8
3-2. Suspending the Indoor Unit
Depending on the ceiling type:
• Insert suspension bolts (Fig. 3-3)
or
• Use existing ceiling supports or construct a suitable
support (Fig. 3-4).
Insert
Hole-in-anchor
Hole-in-plug Concrete
Suspension bolt (M10 or 3/8")
(field supply)
Fig. 3-3
Ceiling support
Ceiling tiles
Fig. 3-4
WARNING
It is important that you use extreme care in supporting
the indoor unit inside the ceiling. Ensure that the ceiling
is strong enough to support the weight of the unit. Before
hanging the unit, test the strength of each attached
suspension bolt.
(1) When placing the unit inside the ceiling, determine the
pitch of the suspension bolts referring to the dimensional
data as shown in Fig. 3-1 and Table 3-2.
Tubing must be laid and connected inside the ceiling when
suspending the unit. If the ceiling is already constructed,
lay the tubing into position for connection to the unit before
placing the unit inside the ceiling.
(2) Screw in the suspension bolts allowing them to protrude
from the ceiling (Fig. 3-3). (Cut the ceiling material, if
necessary.)
(3) Thread the 3 hexagonal nuts and 2 washers (field supply)
onto each of the 4 suspension bolts (Figs. 3-5 and 3-6).
Use 1 nut and 1 washer for the upper part, and 2 nuts and
1 washer for the lower part, so that the unit will not fall off
the suspension lugs.
Nuts and washers
(use for upper and lower)
Suspension lug
Double nuts
Suspension bolt
Notch
Fig. 3-5
Suspension bolt
Double nuts
Hexagonal nut
Fig. 3-6
●This shows an example of installation.
Air outlet duct Bolt anchorSuspension
bolt
Ceiling material
Air-outlet grille Indoor unit
Fig. 3-7
II09F616388EUL.indb8II09F616388EUL.indb8 2013/12/1115:12:222013/12/1115:12:22

9
ENGLISH
3-3. Installing the Drain Pipe
(1) Prepare standard hard PVC pipe (O.D. 32 mm) for the
drain and use the supplied hose band to prevent water
leaks.
The PVC pipe must be purchased separately.
The transparent drain part on the unit allows you to check
drainage. (Fig. 3-8)
CAUTION
●Do not use adhesive tape at the drain connection port on
the indoor unit.
●Insert the drain pipe until it contacts the socket, and then
secure it tightly with the hose band.
●Do not use the supplied drain hose bent at a 90° angle.
(The maximum permissible bend is 45°.)
●Tighten the hose clamps so their locking nuts face
upward. (Fig. 3-8)
Align the hose band with end of the hose, and
tighten so that it does not contact the bead.
Drainage check
section on drain port
(transparent) Drain hose
(supplied)
Hard PVC
socket
VP-25
(not supplied)
Hard PVC pipe
VP-25
(not supplied)
Bead Packing
(supplied)
PVC
adhesive
Fig. 3-8
(2) After connecting the drain pipe securely, wrap the supplied
packing and drain pipe insulator around the pipe, then
secure it with the vinyl clamps. (Fig. 3-9)
Drain insulator (supplied)
Vinyl clamps
(field supply)
Fig. 3-9
NOTE
Make sure the drain pipe has a downward gradient (1/100 or
more) and that there are no water traps.
CAUTION
●Do not install an air bleeder as this may cause water to
spray from the drain pipe outlet. (Fig. 3-10)
Prohibited
Air bleeder
Fig. 3-10
●If it is necessary to increase the height of the drain pipe, the
section directly after the connection port can be raised a
maximum of 500 mm. Do not raise it any higher than
500 mm, as this could result in water leaks. (Fig. 3-11)
300 mm or less
500 mm or less
Good
Fig. 3-11
●Do not install the pipe with an upward gradient from the
connection port. This will cause the drain water to flow
backward and leak when the unit is not operating.
(Fig. 3-12)
Upward gradient
Prohibited
Fig. 3-12
●Do not apply force to the piping on the unit side when
connecting the drain pipe. The pipe should not be allowed to
hang unsupported from its connection to the unit. Fasten the
pipe to a wall, frame, or other support as close to the unit as
possible. (Fig. 3-13)
Support pieces
Fig. 3-13
3-4. Checking the Drainage
After wiring and drain piping are completed, use the following
procedure to check that the water will drain smoothly. For this,
prepare a bucket and wiping cloth to catch and wipe up spilled
water.
(1) Connect power to the power terminal board (R, S
terminals) inside the electrical component box.
(2) Remove the tube cover and slowly pour about 1,200 cc
of water through the opening into the drain pan to check
drainage.
(3) Short-circuit the check pin (CHK) on the indoor control
circuit board and operate the drain pump. Check the water
flow through the transparent drain port and see if there is
any leakage.
CAUTION
Be careful since the fan will start when you short the pin on
the indoor control board.
(4) When the drainage check is complete, open the check pin
(CHK) and remount the insulator and drain cap onto the
drain inspection port.
Water intake Fig. 3-14
II09F616388EUL.indb9II09F616388EUL.indb9 2013/12/1115:12:232013/12/1115:12:23

10
3-5. Connecting Duct to Air Intake Port Side
(1) First pull out a filter in the direction of the electrical
equipment box in the unit. (Fig. 3-15)
The pre-installed filter will not be used any more.
(2) Then remove the seal packing, bracket and filter attached
to the side of the air intake port. (Fig. 3-15)
(3) Install the duct (field supply).
See the figure for the dimension of the installation hole.
Use M5 self-tapping screws for installation. (Fig. 3-16)
NOTE
• Select an air-intake grille with a filter at a local shop.
• To get clean air and to extend the service life of the air
conditioner, an air filter must be installed in the air intake.
For installation and cleaning the air filter, consult your dealer
or service center.
Pull out
Bracket
Packing
Filter
Fig. 3-15
K- ø4.1 hole
For M5 self-tapping
screw
250
150
HGH
50 50
J
Type G HJK
36, 45, 50 600
(Pitch 150 × 4) 25 113 14
60, 71 900
(Pitch 150 × 6) 25 13 18
100, 125, 140 1,350
(Pitch 150 × 9) 01324
Fig. 3-16
II09F616388EUL.indb10II09F616388EUL.indb10 2013/12/1115:12:232013/12/1115:12:23

11
ENGLISH
4. ELECTRICAL WIRING
4-1. General Precautions on Wiring
(1) Before wiring, confirm the rated voltage of the unit as
shown on its nameplate, then carry out the wiring closely
following the wiring diagram.
(2) Circuit breaker must be incorporated in the fixed wiring in
accordance with the wiring regulations. The circuit breaker
must be an approved 10-16 A, having a contact separation
in all poles.
(3) To prevent possible hazards from insulation failure, the unit
must be grounded.
(4) Each wiring connection must be done in accordance with
the wiring system diagram. Wrong wiring may cause the
unit to misoperate or become damaged.
(5) Do not allow wiring to touch the refrigerant tubing,
compressor, or any moving parts of the fan.
(6) Unauthorized changes in the internal wiring can be very
dangerous. The manufacturer will accept no responsibility
for any damage or misoperation that occurs as a result of
such unauthorized changes.
(7) Regulations on wire diameters differ from locality to
locality. For field wiring rules, please refer to your LOCAL
ELECTRICAL CODES before beginning.
You must ensure that installation complies with all relevant
rules and regulations.
(8) To prevent malfunction of the air conditioner caused by
electrical noise, care must be taken when wiring as follows:
●The remote control wiring and the inter-unit control wiring
should be wired apart from the inter-unit power wiring.
●Use shielded wires for inter-unit control wiring between units
and ground the shield on both sides.
(9) If the power supply cord of this appliance is damaged,
it must be replaced by a repair shop designated by the
manufacturer, because special-purpose tools are required.
4-2. Recommended Wire Length and Wire Diameter
for Power Supply System
Indoor unit
Type (B) Power supply Time delay fuse or
circuit capacity
2.5 mm2
F1 Max. 130 m 10-16 A
Control wiring
(C) Inter-unit
(between outdoor
and indoor units)
control wiring
(D) Remote control
wiring (E) Control wiring for group control
0.75 mm2
(AWG #18)
Use shielded wiring*
0.75 mm2
(AWG #18) 0.75 mm2 (AWG #18)
Max. 1,000 m Max. 500 m Max. 200 m (Total)
NOTE
* With ring-type wire terminal.
II09F616388EUL.indb11II09F616388EUL.indb11 2013/12/1115:12:252013/12/1115:12:25

12
4-3. Wiring System Diagrams
NOTE
(1) Refer to Section 4-2. “Recommended Wire Length
and Wire Diameter for Power Supply System” for the
explanation of “B”, “C”, “D” and “E” in the above diagram.
(2) The basic connection diagram of the indoor unit shows the
terminal boards, so the terminal boards in your equipment
may differ from the diagram. (Fig. 4-2)
(3) Refrigerant Circuit (R.C.) address should be set before
turning the power on.
(4) Regarding R.C. address setting, refer to the installation
instructions supplied with the remote controller unit
(Optional). Auto address setting can be executed by
remote controller automatically. Refer to the installation
instructions supplied with the remote controller unit
(optional).
L N U1 U2 R1 R2
6P terminal board
F1 Type
Power
supply Remote control
line
Unit
control
line
Fig. 4-2
Fig. 4-1
L2
L1
U2
U1
L3
N
L1
L2
L3
N
U2
R2
U1
R1
R2
R1
L
N
U2
U1
2
1
D
C
B
L
N
L
N
2
1
B
E
C
L
N
L
N
U2
U1
N
L
Power supply
220/230/240V ~50Hz
Remote
controller
WHT
BLK
Power supply
220/230/240V ~50Hz
Power supply
380/400/415V, 3 N~, 50Hz
Ground
Ground
Ground
* 3-phase model connections
Ground
Ground
Outdoor unit (3-phase)
INV unit
Ground
Indoor unit
(No. 1)
Indoor unit
(No. 2)
Ground
* Single-phase model connections
Power supply
220/230/240V ~50Hz
Outdoor unit (single-phase)
INV unit
II09F616388EUL.indb12II09F616388EUL.indb12 2013/12/1115:12:252013/12/1115:12:25

13
ENGLISH
CAUTION
(1) When linking the outdoor units in a network, disconnect the terminal extended from the short plug from all outdoor units
except any one of the outdoor units.
(When shipping: In shorted condition.)
For a system without link (no wiring connection between outdoor units), do not remove the short plug.
(2) Do not install the inter-unit control wiring in a way that forms a loop. (Fig. 4-3)
Outdoor unit Outdoor unit Outdoor unit
Indoor unit Indoor unit Indoor unit Indoor unit
Prohibited
Prohibited
Indoor unit
Fig. 4-3
(3) Do not install inter-unit control wiring such as star branch wiring. Star branch wiring causes mis-address setting. (Fig. 4-4)
Outdoor unit Indoor unitIndoor unit
Indoor unitIndoor unit
NO
Branch point
Fig. 4-4
(4) If branching the inter-unit control wiring, the number of branch points should be 16 or fewer.
Central Controller
Outdoor unit
Outdoor unit
Indoor unit
Indoor unit
Indoor unit Indoor unit Indoor unit
Indoor unit Indoor unit
Indoor unit Indoor unit
Outdoor unit
: Branch point
More than 2m required
Fig. 4-5
(5) Use shielded wires for inter-unit control wiring (c)
and ground the shield on both sides, otherwise
misoperation from noise may occur. (Fig. 4-6)
Connect wiring as shown in Section “4-3. Wiring System
Diagrams”.
Fig. 4-6
(6) • Connecting cable between indoor unit and outdoor
unit shall be approved polychloroprene sheathed 5 or
3 *1.5 mm2flexible cord. Type designation 60245 IEC 57
(H05RN-F, GP85PCP etc.) or heavier cord.
•
Use the standard power supply cables for Europe (such
as H05RN-F or H07RN-F which conform to CENELEC
(HAR) rating specifications) or use the cables based on
IEC standard. (60245 IEC57, 60245 IEC66)
WARNING
Loose wiring may cause the terminal to overheat or result
in unit malfunction. A fire hazard may also occur. Therefore,
ensure that all wiring is tightly connected.
When connecting each power wire to the terminal, follow the
instructions on “How to connect wiring to the terminal” and
fasten the wire securely with the terminal screw.
Shielded wire
Ground Ground
II09F616388EUL.indb13II09F616388EUL.indb13 2013/12/1115:12:252013/12/1115:12:25

14
Stranded wire
Ring
pressure
terminal Screw and
Special washer
Ring
pressure
terminal
Terminal board
Ring pressure
terminal
Screw
Special
washer
Wire
Wire
Insulating tape
8 mm
Insulating tape
Shield mesh
Shield mesh
Strip 10 mm
Fig. 4-7 Fig. 4-8
Fig. 4-9
Fig. 4-10
Fig. 4-11
Fig. 4-12
How to connect wiring to the terminal
■For stranded wiring
(1) Cut the wire end with cutting pliers,
then strip the insulation to expose
the stranded wiring about 10 mm and
tightly twist the wire ends. (Fig. 4-7)
(2) Using a Phillips head screwdriver,
remove the terminal screw(s) on the
terminal board.
(3) Using a ring connector fastener or
pliers, securely clamp each stripped
wire end with a ring pressure terminal.
(4) Place the ring pressure terminal,
and replace and tighten the removed
terminal screw using a screwdriver.
(Fig. 4-8)
■Examples of shield wires
(1) Remove cable coat not to scratch braided shield. (Fig. 4-9)
(2) Unbraid the braided shield carefully and twist the
unbraided shield wires tightly together. Insulate the shield
wires by covering them with an insulation tube or wrapping
insulating tape around them. (Fig. 4-10)
(3) Remove coat of signal wire. (Fig. 4-11)
(4) Attach ring pressure terminals to the signal wires and the
shield wires insulated in Step (2). (Fig. 4-12)
■Wiring sample
Use this screw when connecting the shield
for the Inter-unit control wiring to ground.
Functional ground screw
Protective ground screw Power Supply
Inter-unit Control
Wiring
Remote Control
Wiring
F1 type
II09F616388EUL.indb14II09F616388EUL.indb14 2013/12/1115:12:252013/12/1115:12:25

15
ENGLISH
5. HOW TO PROCESS TUBING
The liquid tubing side is connected by a flare nut, and the gas
tubing side is connected by brazing.
5-1. Connecting the Refrigerant Tubing
Use of the Flaring Method
Many of conventional split system air conditioners employ the
flaring method to connect refrigerant tubes that run between
indoor and outdoor units. In this method, the copper tubes are
flared at each end and connected with flare nuts.
Flaring Procedure with a Flare Tool
(1) Cut the copper tube to the required length with a tube
cutter. It is recommended to cut approx. 30 – 50 cm longer
than the tubing length you estimate.
(2) Remove burrs at each end of the copper tubing with a
tube reamer or file. This process is important and should
be done carefully to make a good flare. Be sure to keep
any contaminants (moisture, dirt, metal filings, etc.) from
entering the tubing. (Figs. 5-1 and 5-2)
AfterBefore
Deburring
Copper
tubing
Reamer
Fig. 5-1 Fig. 5-2
NOTE
When reaming, hold the tube end downward and be sure that
no copper scraps fall into the tube. (Fig. 5-2)
(3) Remove the flare nut from the unit and be sure to mount it
on the copper tube.
(4) Make a flare at the end of the copper tube with a flare tool.
(Fig. 5-3)
Flare nut
Copper
tubing
Flare tool
Fig. 5-3
NOTE
A good flare should have the following characteristics:
●inside surface is glossy and smooth
●edge is smooth
●tapered sides are of uniform length
Caution Before Connecting Tubes Tightly
(1) Apply a sealing cap or water-proof tape to prevent dust or
water from entering the tubes before they are used.
(2) Be sure to apply refrigerant lubricant (ether oil) to the
inside of the flare nut before making piping connections.
This is effective for reducing gas leaks. (Fig. 5-4)
Apply refrigerant lubricant.
Fig. 5-4
(3) For proper connection, align the union tube and flare tube
straight with each other, then screw on the flare nut lightly
at first to obtain a smooth match. (Fig. 5-5)
Flare nut
Union
Fig. 5-5
●Adjust the shape of the liquid tube using a tube bender at the
installation site and connect it to the liquid tubing side valve
using a flare.
Cautions During Brazing
●Replace air inside the tube with nitrogen gas to prevent
copper oxide film from forming during the brazing
process. (Oxygen, carbon dioxide and Freon are not
acceptable.)
●Do not allow the tubing to get too hot during brazing.
The nitrogen gas inside the tubing may overheat,
causing refrigerant system valves to become damaged.
Therefore allow the tubing to cool when brazing.
●Use a reducing valve for the nitrogen cylinder.
●Do not use agents intended to prevent the formation
of oxide film. These agents adversely affect the
refrigerant and refrigerant oil, and may cause damage or
malfunctions.
5-2. Connecting Tubing Between Indoor and
Outdoor Units
(1) Tightly connect the indoor-side refrigerant tubing extended
from the wall with the outdoor-side tubing.
Indoor Unit Tubing Connection ( 1, 2... n-1)
Indoor unit type 36 45 50 60 71 100 125 140
Gas tubing (mm) ø12.7 ø15.88
Liquid tubing (mm) ø6.35 ø9.52
(2) To fasten the flare nuts, apply specified torque.
●When removing the flare nuts from the tubing connections,
or when tightening them after connecting the tubing, be sure
to use 2 adjustable wrenches or spanners. (Fig. 5-6)
If the flare nuts are over-tightened, the flare may be damaged,
which could result in refrigerant leakage and cause injury or
asphyxiation to room occupants.
Outdoor unit
Torque wrench
Spanner
Indoor unit
Fig. 5-6
II09F616388EUL.indb15II09F616388EUL.indb15 2013/12/1115:12:262013/12/1115:12:26

16
●For the flare nuts at tubing connections, be sure to use the
flare nuts that were supplied with the unit, or else flare nuts
for R410A (type 2). The refrigerant tubing that is used must
be of the correct wall thickness as shown in the table below.
Tube diameter Tightening torque
(approximate) Tube thickness
ø6.35 (1/4") 14 – 18 N · m
{140 – 180 kgf · cm} 0.8 mm
ø9.52 (3/8") 34 – 42 N · m
{340 – 420 kgf · cm} 0.8 mm
ø12.7 (1/2") 49 – 61 N · m
{490 – 610 kgf · cm} 0.8 mm
ø15.88 (5/8") 68 – 82 N · m
{680 – 820 kgf · cm} 1.0 mm
Because the pressure is approximately 1.6 times higher than
conventional refrigerant pressure, the use of ordinary flare
nuts (type 1) or thin-walled tubes may result in tube rupture,
injury, or asphyxiation caused by refrigerant leakage.
●In order to prevent damage to the flare caused by over-
tightening of the flare nuts, use the table above as a guide
when tightening.
●When tightening the flare nut on the liquid tube, use an
adjustable wrench with a nominal handle length of 200 mm.
5-3. Insulating the Refrigerant Tubing
Tubing Insulation
●Thermal insulation must be applied to all units tubing,
including distribution joint (field supply).
* For gas tubing, the insulation material must be heat
resistant to 120°C or above. For other tubing, it must be
heat resistant to 80°C or above.
Insulation material thickness must be 10 mm or greater.
If the conditions inside the ceiling exceed DB 30°C and RH
70%, increase the thickness of the gas tubing insulation
material by 1 step.
Two tubes arranged together
Liquid tubing Gas tubing
Insulation
Fig. 5-7
CAUTION
If the exterior of the outdoor unit valves has been finished
with a square duct covering, make sure you allow sufficient
space to access the valves and to allow the panels to be
attached and removed.
Taping the flare nuts
Wind the white insulating tape around the flare nuts at the gas
tube connections. Then cover up the tubing connections with
the flare insulator, and fill the gap at the union with the supplied
black insulating tape. Finally, fasten the insulator at both ends
with the supplied vinyl clamps. (Fig. 5-8)
Flare insulator (supplied)
Insulating tape (white)
(supplied)
Tube insulator
(not supplied)
Heat resistant
120°C or above
Flare union
Flare nut
Unit side
Fig. 5-8
Insulation material
The material used for insulation must have good insulation
characteristics, be easy to use, be age resistant, and must not
easily absorb moisture.
CAUTION
After a tube has been insulated, never try to bend it into
a narrow curve because it can cause the tube to break or
crack.
Never grasp the drain or refrigerant connecting outlets
when moving the unit.
5-4. Taping the Tubes
(1) At this time, the refrigerant tubes (and electrical wiring
if local codes permit) should be taped together with
armoring tape in 1 bundle. To prevent condensation from
overflowing the drain pan, keep the drain hose separate
from the refrigerant tubing.
(2) Wrap the armoring tape from the bottom of the outdoor
unit to the top of the tubing where it enters the wall. As you
wrap the tubing, overlap half of each previous tape turn.
(3) Clamp the tubing bundle to the wall, using 1 clamp approx.
each meter. (Fig. 5-9)
Insulated tubes Drain hose
Clamp
Fig. 5-9
NOTE
Do not wind the armoring tape too tightly since this will
decrease the heat insulation effect. Also ensure that the
condensation drain hose splits away from the bundle and drips
clear of the unit and the tubing.
II09F616388EUL.indb16II09F616388EUL.indb16 2013/12/1115:12:262013/12/1115:12:26

17
ENGLISH
5-5. Finishing the Installation
After finishing insulating and taping over the tubing, use sealing
putty to seal off the hole in the wall to prevent rain and draft
from entering. (Fig. 5-10)
Apply putty here
Tubing
Fig. 5-10
6. HOW TO INSTALL THE TIMER REMOTE
CONTROLLER OR HIGH-SPEC WIRED
REMOTE CONTROLLER (OPTIONAL
PART)
NOTE
Refer to the Operating Instructions attached to the optional
Timer Remote Controller or optional High-spec Wired Remote
Controller.
7. HOW TO INSTALL WIRELESS REMOTE
CONTROLLER RECEIVER (OPTIONAL
PART)
NOTE
Refer to the Operating Instructions attached to the optional
Wireless Remote Controller Receiver.
II09F616388EUL.indb17II09F616388EUL.indb17 2013/12/1115:12:262013/12/1115:12:26

18
NOTE
(1) Check the following items before performing the setting-check operations or auto airflow volume operations.
1) Check to make sure that the electrical wiring and ducting have been completed. Activate the stand-by mode. In particular, make
sure that the closed damper located in the middle of the duct is open, if installed. Also, make sure that air filters have been
installed inside the air inlet duct.
Check to make sure air is not leaking from the joints.
2)
If multiple air outlets and air inlets are included, adjust the airflow volume ratio of all of them until they meet the design airflow ratio.
3) Make sure the address setting has been completed.
(2) The operation check will be completed in approximately three minutes if the settings have been made correctly. The settings will be
modified if they are out of the range of use (maximum 30 minutes.). If this is not completed within 31 minutes, check whether the air
speed is set to “H” or not.
8. EXTERNAL STATIC PRESSURE SETTING
This section is described in the instruction manual supplied with the timer remote contoller (CZ-RTC2).
Regarding the High-spec Wired Remote Controller (CZ-RTC3), refer to the instruction manual supplied with the model CZ-RTC3.
Choose one of the following methods from “a”, “b”, “c” or “d” as shown in the flow chart (within the dotted lines) and then make the
setting accordingly.
a. No setting modification............................................................: Use-as-is at shipment (there are cases in which the setting may differ
from the shipment setting when reset after once setting the external
static pressure.)
b. Manual setting (set with the PC board)................................... : For high static pressure. Switching method with the short-circuit
connector.
c. Manual setting (set with the wired remote controller) ............. : Low static pressure ~ high static pressure
d.
Auto airflow volume setting (set on the wired remote controller) .... : Air outlet volume is automatically adjusted to the rated airflow volume
with the auto airflow control drive.
Flow of External Static Pressure
Finish the ducting and electrical wiring and prepare it for use. (Note (1))
External static pressure should be set during initial operations after installation (before
the cooling and heating test run).
When operating with group control (connecting multiple indoor units with one wired
remote controller), make the low silhouette ducted type to the main unit.
Start external static pressure setting
a. No setting modification
b. Manual setting
(set with the PC board)
TP3 or TP1 short-circuit
Refer to section “8-1. How to
Set on PC Board”.
c. Manual setting
Item code “b0” : 0~15 setting
(*Note (3)) (* Note (4))
Refer to section “8-2. Operating
the Timer Remote Controller
(CZ-RTC2)”.
d. Auto airflow volume setting
(* Note (4)) Item code “b0” :
-2 setting
Refer to section “8-2. Operating
the Timer Remote Controller
(CZ-RTC2)”.
Operation checks for external static pressure settings (*Note (2))
Refer to section “8-2. Operating the Timer Remote Controller (CZ-RTC2)”.
Check if the setting is within the range of use on the PQ diagram.
If out of range, adjust until it becomes within the range of use.
This can be omitted if deemed unnecessary in the event of the same installation/set-up being available.
Auto airflow volume control
operations (*Note (5))
Refer to section “8-2. Operating
the Timer Remote Controller
(CZ-RTC2)”.
Test operation display will disappear. (*Note (6))
External static pressure setting completed
Timer remote controller available
Lines
15
and
14
settings (high static pressure) on
the PQ diagram required
Set the rated airflow
volume with the exception of lines
15
,
14
and, 8
Line 8(set at
shipment) on the PQ diagram
designed and installed
No
No
No No
Yes
Yes
Yes Yes
II09F616388EUL.indb18II09F616388EUL.indb18 2013/12/1115:12:262013/12/1115:12:26

19
ENGLISH
(3) Refer to Table 8-2 and Fig. 8-2 for details on the relationship between the value of item code “b0” and the external static pressure.
(4) When set in group control (connecting multiple indoor units with one wired remote controller), set each indoor unit to item code “b0”.
When amending the setting after selecting [ b. Manual setting] (due to airflow path changes, etc.), it is necessary to cancel [b.
Manual setting] (disconnect short-circuit connector). When [b. Manual setting] has not been cancelled, [c. Manual setting] and [d.
Auto airflow volume setting] will be activated if selected, but [b Manual setting] takes precedence when the power is switched back
on after power outages, etc.
(5) If this is not completed within 8 minutes, check the drive mode, air speed and air inlet temperature.
(6) When set in group control (connecting multiple indoor units with one wired remote controller), the test run operations display will
disappear once the external static pressure setting check or auto airflow volume control operation check have been completed for
the main unit. Decisions on sub-unit complete are not possible. The test run operation display will disappear after one hour even if
the external static pressure setting check or auto airflow volume control operation check have not been completed.
CAUTION
●Be sure to check that the external static pressure is within the range for use and then make the setting. Failure to observe
this may result in insufficient airflow or water leakages. Refer to Fig. 8-2 for the external static pressure setting range.
●There are cases in which automatic variable dampers and other mounted items may trigger the P12 alarm on systems that
modify the external static pressure when the auto airflow volume control operations or setting check operations are carried
out if high external static pressure is lowered. In this event, lower the dampers, etc., so that the external static pressure
reaches its lowest level, and then carry out the auto airflow volume control operations or setting check operations.
●Be sure to set the [External Static Pressure Setting] once again after amending the airflow path for the duct or air outlet
after setting the external static pressure.
●Set the air inlet temperature within the range for use. The auto airflow volume control will not function if the air inlet
temperature is over 45°C or not in the fan mode.
8-1. How to Set on PC Board
1. Turn off the power breaker to halt the supply of electricity
to the PC board.
2. Open the lid of electrical equipment box and check where
the short-circuit pin on the indoor unit control PC board is
located (Fig. 8-1)
3. Short circuit the applicable short-circuit pin in accordance
with the selected short-circuit pin connected (Fig. 8-2).
150 Pa : TP3 (2P: yellow) short-circuit
140 Pa : TP1 (2P: red) short-circuit
* Use the short-circuit connector (2P: yellow) supplied.
Table 8-1 Selection of connected short-circuit pins
External static pressure at the time of
rated airflow volume
Short-circuit pin
Unusable TP6 (2P: white)
150 Pa TP3 (2P: yellow)
140 Pa TP1 (2P: red)
TP6 TP3 TP1
TP6 TP3 TP1
White Yellow Red

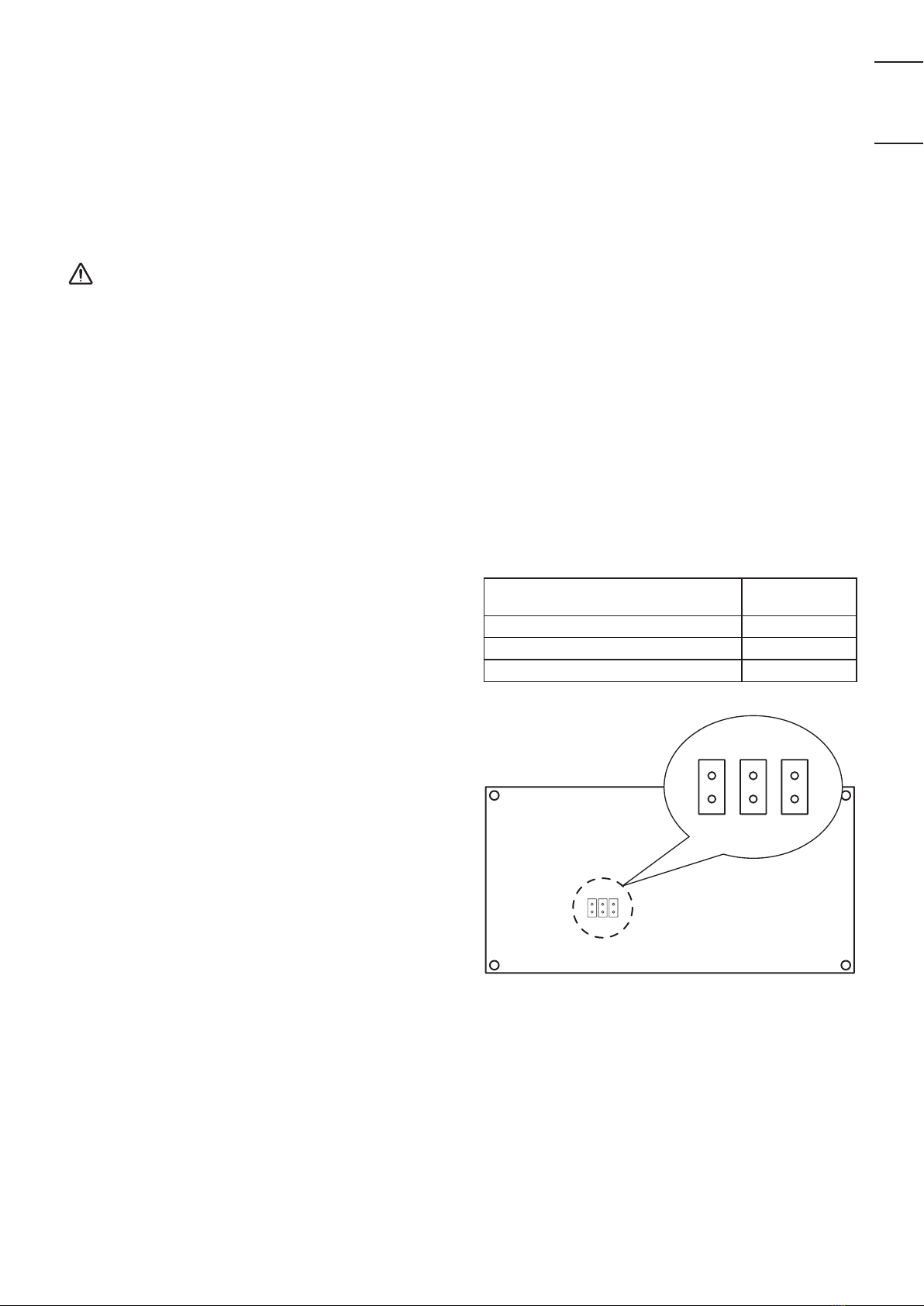

Indoor Unit control PC board
Fig. 8-1
II09F616388EUL.indb19II09F616388EUL.indb19 2013/12/1115:12:262013/12/1115:12:26

20
8-2. Operating the Timer Remote Controller
(CZ-RTC2)
8-2-1. Setting Item Code “ ”
1. Press and hold down the , and buttons
simultaneously for 4 or more seconds.
( , the Unit No., Item Code and Detailed Data will
blink on the remote controller’s LCD display.)
2. The indoor unit numbers in the group control will be
sequentially displayed whenever the Unit Select button is
pressed .
Only the fan motor for the selected indoor unit will operate
during this.
3. Specify the “ ” item code by pressing the
/ buttons for the temperature setting
buttons and confirm the values.
(“ ” set at shipment )
4. Press the / buttons for the time to amend the
values for the set data.
Refer to table 8-2 and Fig. 8-2 and select a value between
“” and “ ”.
Select “ ” if the auto airflow volume setting is
activated.
5. Press the button.
The display will stop blinking and remain illuminated.
6. Press the button. The fan motor will stop operating
and the LCD display will return to the normal stop mode.
8-2-2. Auto Airflow Volume Control Operations and External
Static Pressure Setting-Check Operation
1. Press and hold down the button for 4 or more
seconds. “ ” will be displayed on the remote
controller’s LCD display.
2. Press the button to commence the test run.
[Test Run] will be displayed on the remote controller’s LCD
display.
3. Select the fan mode and set it to “H” by pressing the
button.
CAUTION
Auto airflow volume control operations and external static
pressure setting-check operations will not be performed
unless [H] has been selected for the fan mode.
4. The fan motor will be activated and auto airflow volume
control operations or external static pressure setting-check
operations will commence.
The power of the airflow will change while these operations
are in progress.
The external static pressure setting-check operations and
auto airflow volume control operations will be completed in
about 3 to 30 minutes.
The “ ” display will be extinguished from the remote
controller’s LCD display.
5. Press the button to halt the test run.
Table 8-2 Setting the external static pressure
Indoor unit Item code
36, 45, 50, 60, 71 100, 125, 140
b0
External static pressure of the rated
air flow volume (Pa)
150 150
140 140
130 130
120 120
100 110
70 100
60 70
50 50
30 30
10 10
No auto airflow volume setting
Auto airflow volume setting
6
2
1 5 14
3
* Failure to set this parameter may result in decreased airflow
and condensation.
2
1
5
3
II09F616388EUL.indb20II09F616388EUL.indb20 2013/12/1115:12:262013/12/1115:12:26
