LC2H

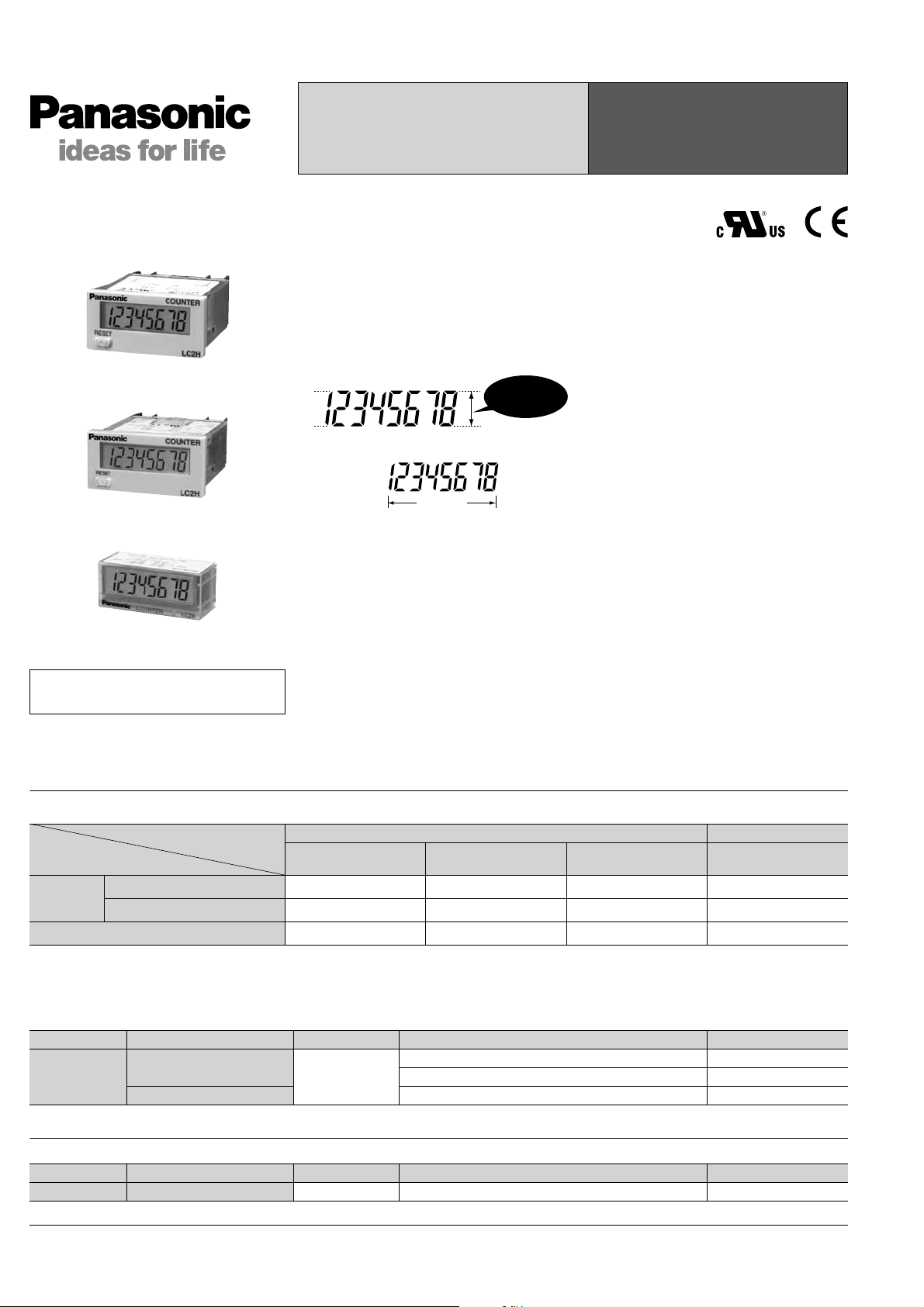

Product types
1. Panel mounting type
1) One-touch installation type
1Standard type
Note) Please ask us about types without front resetting.
2Backlight type
DIN HALF SIZE
LCD COUNTER LC2H
Counters
No. digits Counting speed Front reset Input method Part No.
8 digits 2 kHz/30 Hz switchable Yes
Non-voltage input type LC2H-FE-2KK
Voltage input type (4.5 to 30 V DC) LC2H-FE-DL-2KK
30 Hz Free voltage input type (24 to 240 V AC/DC) LC2H-FE-FV-30
No. digits Counting speed Front reset Input method Part No.
8 digits 2 kHz/30 Hz switchable Yes Voltage input type (4.5 to 30 V DC) LC2H-FE-DL-2KK-B
Panel mounting type
One-touch installation type
Panel mounting type
Installation frame type
PC board mounting type
Features
1. 8.7 mm .343 inch Character Height
(previously 7 mm)
Easy-to-read character height increased
from 7 mm to 8.7 mm .276 inch to .343
inch.
2. Plenty of Digits
3. Counting Speed Switchable
between 2 kHz and 30 Hz
4. Panel Mounting Type Features
2 Installation Methods
Comes with very easy one-touch
installation type and also installation
frame type that uses the bracket on the
timer/counter. Choose a method that
suits the application.
5. Battery Replacement Easy on
Environment
To replace battery simply remove body
for the one-touch installation type, and
remove battery lid for the installation
frame type.
6. Screw Terminals Designed for
Safety
Built in finger protection.
7. Panel Covers Replacable
(Standard color is ash gray.)
Change the panel design by replacing
with a black panel cover.
8. Conforms to IP66 Protective
Construction (Only installation frame
type.) (Front panel surface)
9. Input Methods
1) Non-voltage input method
2) Voltage input method
3) Free voltage input method
10. Backlight Type Added to Series
and Now 2-color Switchable (green/
red)
Easy viewing even in dark places and
switchable between green and red
(Voltage input type).
11. Compliant with UL, c-UL and CE.
RoHS Directive compatibility information
http://www.nais-e.com/
8.7mm
.343inch
8 digits
Product chart
Type
Installation type
Standard type Backlight type
Non-voltage input type Voltage input type
(4.5 to 30 V DC)
Free voltage input type
(24 to 240 V AC/DC)
Voltage input type
(4.5 to 30 V DC)
Panel
mounting
type
One-touch installation type 
Installation frame type 
PC board mounting type ———
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.

LC2H
2) Installation frame type
1Standard type
Note) Please ask us about types without front resetting.
2Backlight type
2. PC board mounting type
Specifications
No. digits Counting speed Front reset Input method Part No.
8 digits 2 kHz/30 Hz switchable Yes
Non-voltage input type LC2H-F-2KK
Voltage input type (4.5 to 30 V DC) LC2H-F-DL-2KK
30 Hz Free voltage input type (24 to 240 V AC/DC) LC2H-F-FV-30
No. digits Counting speed Front reset Input method Part No.
8 digits 2 kHz/30 Hz switchable Yes Voltage input type (4.5 to 30 V DC) LC2H-F-DL-2KK-B
No. digits Counting speed Front reset Input method Part No.
8 digits 2 kHz No Non-voltage input type LC2H-C-2K-N
30 Hz LC2H-C-30-N
1. Panel mounting type
Notes) 1. The value given for battery life is calculated based on continuous operation (count input signal ON/OFF = 1:1), therefore, this value is not guaranteed.
Also, battery life is decreased 30% when operation is continuous with 2 kHz count inputting in 2 kHz mode.
2. Operation is at 25 Hz when using 24 V AC.
3. Only for installation frame type.
Type
Item
Standard type Backlight type Standard type
Non-voltage input Voltage input Free voltage type
No. digits 8 digits
External power supply Not required (built-in battery)
Max. counting speed 2 kHz/30 Hz (Switchable by switch) 30 Hz (Note 2)
Count
input
Min. input signal width
(ON: OFF = 1:1) 0.25 ms/16.7 ms (Switchable by switch) 16.7 ms
Input method (signal)
Non-voltage input using
contacts or open collector
connection
High level: 4.5 to 30 V DC
Low level: 0 to 2 V DC
High level:
24 to 240 V AC/DC
Low level:
0 to 2.4 V AC/DC
Input impedance
When shorted:
Max. 10 kΩ
When open:
Max. 750 kΩ
Approx. 4.7 kΩ—
Residual voltage Max. 0.5 V — —
Reset
input
Min. input signal width 200 ms
Input method (signal)
Non-voltage input using
contacts or open collector
connection
High level: 4.5 to 30 V DC
Low level: 0 to 2 V DC
Non-voltage input using
contacts or open collector
connection
Input impedance
When shorted:
Max. 10 kΩ
When open:
Max. 750 kΩ
Appox. 4.7 kΩ
When shorted:
Max. 10 kΩ
When open:
Max. 750 kΩ
Residual voltage Max 0.5 V — Max. 0.5 V
Display method 7-segment LCD 7-segment LCD
With green/red backlight 7-segment LCD
Breakdown voltage (initial) Between charged and uncharged parts: 1,000 V AC for 1 minute.
Between charged and
uncharged parts: 2,000 V
AC for 1 minute.
Insulation resistance (initial) Min. 100 MΩ(measured at 500 V DC) Measurement location same as for break down voltage.
Backlight power — 24 V DC (±10%) —
Protective construction (Note 3) IEC Standard IP66 (only panel front: when using rubber gasket)
Accessories (Note 3) Rubber gasket, mounting bracket
Battery life 7 years (at 25°C 77°F) Note 1 6 years (at 25°C 77°F)
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.

LC2H
Applicable standard
Safety standard EN61010-1 Pollution Degree 2/Overvoltage Category III
EMC
(EMI)EN61000-6-4
Radiation interference electric field strength
Noise terminal voltage
(EMS)EN61000-6-2
Static discharge immunity
RF electromagnetic field immunity
EFT/B immunity
Conductivity noise immunity
Power frequency magnetic field immunity
EN55011 Group1 ClassA
EN55011 Group1 ClassA
EN61000-4-2 4 kV contact
8 kV air
EN61000-4-3 10 V/m AM modulation (80 MHz to 1 GHz)
10 V/m pulse modulation (895 MHz to 905 MHz)
EN61000-4-4 2 kV (power supply line)
EN61000-4-6 10 V/m AM modulation (0.15 MHz to 80 MHz)
EN61000-4-8 30 A/m (50 Hz)
2. PC board mounting type
3. Common
Type
Item PC board mounting type
Input method Non DC voltage input
No. digits 8 digits
Rated operation voltage 3 V DC
Allowable operation voltage range 2.7 to 3.3 V DC
Current consumption Max. 30 µA (max. 250 µA during reset input)
Max. counting speed 2 kHz 30 Hz
Count
input
Min. input signal width
(ON: OFF = 1:1) 0.25 ms 16.7 ms
Input method Non-voltage input using contacts or open collector connection
Input impedance When shorted: Max. 10 kΩ
When open: Max. 750 kΩ
Residual voltage Max. 0.5 V
Reset
input
Min. input signal width 10 ms
Input method Non-voltage input using contacts or open collector connection
Input impedance When shorted: Max. 10 kΩ
When open: Max. 750 kΩ
Residual power Max. 0.5 V
Break down voltage (initial) Between charged and uncharged parts: 1,000 V AC for 1 minute.
Insulation resistance (initial) Min. 100 MΩ(measured at 500 V DC) Measurement location same as for break down voltage.
Type
Item Panel mounting/PC board mounting types
Vibration resistance Functional 10 to 55 Hz (1 cycle/min.), single amplitude: 0.15 mm .006 inch (10 min. on 3 axes)
Destructive 10 to 55 Hz (1 cycle/min.), single amplitude: 0.375 mm .015 inch (1 hr. on 3 axes)
Shock resistance Functional Min. 98 m/s2(4 times on 3 axes)
Destructive Min. 294 m/s2(5 times on 3 axes)
Operation temperature –10 to +55°C +14 to +131°F (without frost or dew)
Storage temperature –25 to +65°C –13 to +149°F (without frost or dew)
Ambient humidity 35 to 85% RH (non-condensing)
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.

LC2H
Part names
1. Front reset button
This button resets the count value. It
does not work when the lock switch is
ON. Be aware that battery life will
decrease if this switch is used frequently.
2. Lock switch (Refer to chart on
right.)
Disable the front reset button.
Note) Turn ON at the LCD side (reset disabled) and
OFF at the terminal block side (reset enabled).
3. Count speed switch (Refer to chart
on right.)
Use this switch to switch the count speed
between 30 Hz and 2 kHz. (On the non-
voltage and voltage input types, 30 Hz is
on the LCD side and 2 kHz is on the
terminal block side. Fixed at 30 Hz for
free voltage input type.)
Note) You must press the front reset button when you
change the count speed switch setting.
Confirm, however, that the Lock Switch is OFF
(front switches operable).
Notes) 1. ❇Default setting when shipped.
2. Make the switch setting before installing to panel.
Non-voltage input/voltage input Free voltage input
Lock switch
(Unit display 1)
Count speed
switch
(Unit display 2)
Count speed switch
Lock switch
RESET
COUNTER
LC2H
Front reset button
(Terminal block side)
(LCD side)
OFF❇
ON
(Terminal block side)
(LCD side)
2k Hz
30Hz❇
—
(Fixed at 30 Hz)

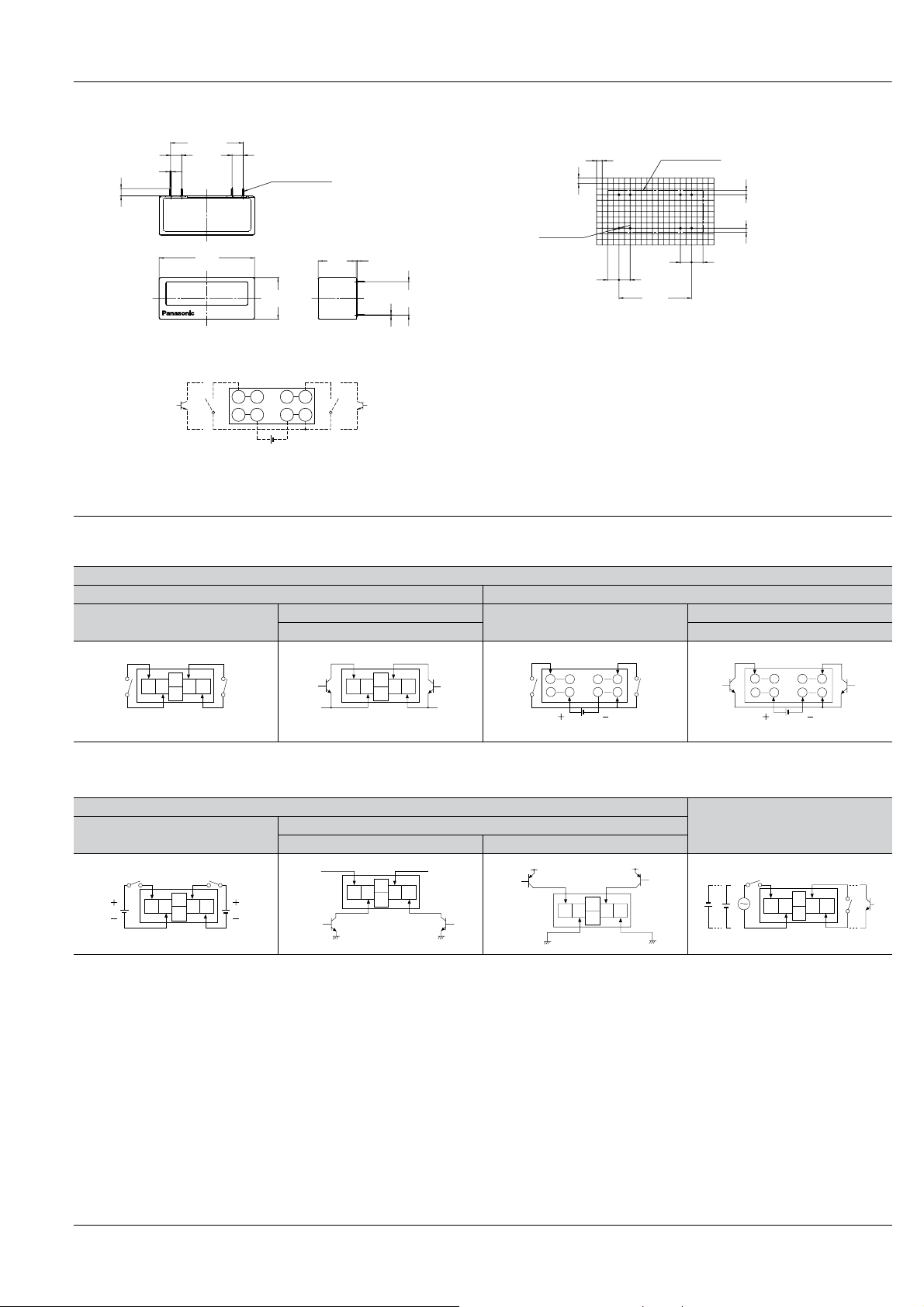

Dimensions
1. Panel mounting type
• External dimensions
1) One-touch installation type
mm inch
General tolerance: ±1.0 ±.039
• Panel installation diagram
Note) When installing to a 4.5 mm .177 inch thick panel, remove the rubber spacer
first.
When installing the one-touch installation type model, make sure
that the installation spring does not pinch the rubber gasket.
To prevent the installation spring
from pinching the rubber gasket:
1. Set the rubber gasket on both
ends of the installation spring
(left and right).
2. Confirm that the installation
spring is not pinching the rubber
gasket, and then insert and fix the
installation spring in place from the
rear of the timer unit.
44.8
1.764
54.4
2.142
5
.197
(44)
(1.732)
10.4
.409
7
.276
22
.866
48
1.890
24
.945
Reset button
COUNTER
LC2H
RESET
Rubber spacer
Panel (1 to 4.5mm
.039 to .177inch
thickness)
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.

LC2H
• Terminal layout and wiring diagrams
1) Standard type
2) Backlight type
Non voltage input type Voltage input type Free voltage input type
Voltage input type
2) Installation frame type • Panel mounting diagram
44.8
1.764
54.4
2.142
5
.197
44
1.732
10.4
.409
7
.276
22
.866
48
1.890
24
.945
Reset button
COUNTER
LC2H
RESET
37
1.457
Mounting screws
(found on mounting frame) Mounting frame
ATH3803 (included)
Rubber gasket
ATH3804 (included)
Panel
(1 to 4.5mm .039 to .177inch thickness)
• Panel cut-out dimensions
The standard panel cut-out is shown below.
Use the mounting frame (ATH3803) and the rubber packing (ATH3804).
(Only installation frame type.)
• For connected installation (sealed installation)
(Only installation frame type.)
Notes) 1. Suitable installation panel thickness is 1 to 4.5 mm .039 to .177 inch.
2. Waterproofing will be lost when installing repeatedly (sealed installation).
45
1.772
+0.5
0
+.020
0
22.2
.874
+0.5
0
+.020
0
60 min.
2.362 min.
22.2
.874
+0.5
0
+.020
0
A=(48×n-2.5)
A=(1.890×n-.098)
A
+1.0
0+.039
0
W-Rare connected internally.
Count input
2143
Reset input
+V
0V
+V
0V
2143
Count input Reset input
21or 43
Count input Reset input
Backlight
+V0V
<When red><When green>
+V0V
+V
0V
+V
0V
Count input Reset input
12
5
634 12
5
634 12
5
634
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.

LC2H
Input method
1. Standard type
Notes) 1. When using contact input, since current flow is small from terminals 1and 3on the panel mounting type and terminals eto tand Sto Fon the PC board
mounting type, please use relays and switches with high contact reliability.
2. When using transistor input, use the following as a guide for which transistors (Tr) to use for inputting. (Collector withstand voltage Q50 V, leakage current < 1 µA)
Notes) 1. 2and 4. (The input and reset circuits are functionally insulated.)
2. When using transistor (Tr) input, use the right as a guide. (Collector withstand voltage Q50 V, leakage current < 1 µA)
3. Be aware that the application of voltage that exceeds the voltage range of the H level to the count input terminal, and the application of voltage to the reset input
terminal, can cause damage to the internal elements.
Non-voltage input type
Panel mounting type PC board mounting type
Contact input Transistor input Contact input Tr ansistor input
NPN transistor NPN transistor
Voltage input type
Free voltage input type
Contact input Transistor input
NPN transistor PNP transistor
2. PC board mounting type
• External dimensions
• Terminal layout and wiring diagrams
General tolerance: ±1.0 ±.039 mm inch
PC board pattern (BOTTOM VIEW)
General tolerance: ±0.1 ±.004
Note: The AXS212811K is recommended as a compatible connection socket.
LC2HCOUNTER
33.02±0.3
1.300±.012
43.4
1.709 17.3
.681
DIP switch ×8
19
.748 15.24±0.3
.600±.012
3.3±0.3
.130±.012
5.08±0.3
.200±.012
0.5±0.3
.020±.012
0.3±0.1
.012±.004
5.08±0.3
.200±.012
0.6±0.1
.024±.004
Q-E, }-w, e-tand S-Fare connected internally.
An external power supply is required.
Reset inputCount input 15 17 26 28
14 12 3 1
15.24
.600
33.02
1.300
1.9
.075
1.9
.075
5.19
.204
2.54
.100
2.54
.100
8-0.8 dia.
8-.031 dia.
5.08
.200
5.08
.200
5.19
.204
Mounting area
Connection sockets
28 pin DIP terminal
12 3 4 Reset
input
Count
input
(Wand Rare connected internally.)
12 34
0V 0V
(Wand Rare connected internally.)
Reset
input
Count
input
Reset
input
Count
input
3V DC
15 17
14 12
26 28
31
Reset
input
Count
input
3V DC
15 17
14 12
26 28
31
Reset
input
Count
input
12 34
12 34 Reset
input
Count
input
+V +V
Reset
input
Count
input 12 34
+V +V
12 34
or or or
Reset input
Count input
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.

LC2H
2. Backlight type
Notes) 1. Do not reverse the polarities when connecting the DC voltage for the backlight.
2. 2and 4. (The input and reset circuits are functionally insulated.)
3. When using transistor (Tr) input, use the right as a guide. (Collector withstand voltage Q50 V, leakage current < 1 µA)
4. Be aware that the application of voltage that exceeds the voltage range of the H level to the count input terminal, and the application of voltage to the reset input
terminal, can cause damage to the internal elements.
Explanation of operation
Voltage input type
Backlight connection
Contact input Transistor input
NPN transistor PNP transistor
Reset
input
Count
input
12 34
5
6
0V 0V
Reset
input
Count
input 12 34
+V +V
5
6
12 34
5
6
Reset
input
Count
input
+V +V
12 34
Green Red
24V DC
24V DC
5
612 34
5
6
1. Counting takes place when the count
input signal is ON.
2. Counting resumes again when the
count value reaches 99999999 (full scale
value) and then returns to “0” with a new
count input.
3. No measurement takes place when a
reset is input.
1) When reset is ON, resetting takes
place and the count becomes “0”.
2) Press the front reset button when you
want to reset manually (only panel
installation type).
Note) Be aware that battery life will decrease if the
count input or reset input are left ON.
Note) ❇Count becomes “1” when the reset input is turned OFF while the count signal is being input.
Reset input
Count value
Count input
01 0 011
❇
99999999
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.

LC2H
Cautions for use
1. Non-voltage input type
For both panel mounting and PC
board mounting types
1) Never apply voltage to the non-voltage
input type. This will damage the internal
elements. Also, since there is a possibility
of erroneous operation, do not connect in
parallel the inputs of a non-voltage input
type and another counter from a single
input signal.
2) Since the current flow is very small
from the count input and reset input
terminals (1and 3on the panel
mounting type and terminals eto tand
Sto Fon the PC board mounting type)
please use relays and switches with high
contact reliability.
3) When inputting with an open collector
of a transistor, use a transistor for small
signals in which ICBO is 1 µA or less and
always input with no voltage.
4) When wiring, try to keep all the input
lines to the count and reset inputs as
short as possible and avoid running them
together with high voltage and power
transmission lines or in a power conduit.
Also, malfunctions might occur if the
floating capacitance of these wires
exceeds 500 pF (10 m 32.808 ft. for
parallel wires of 2 mm2). When using 2
kHz mode, use with a wiring floating
capacitance of 120 pF (3 m 9.843 ft. for
parallel wires of 2 mm2). In particular,
when using shielded wiring, be careful of
the capacitance between wires.
PC board mounting type
1) For external power supply use
manganese dioxide or lithium batteries
(CR type: 3V).
2) Always reset after external power is
applied and confirm that the display
reads “0”.
3) Make the wiring from the battery to the
counter unit as short as absolutely
possible. Also, be careful of polarity.
4) Calculate battery life with the following
formula.
t = A/I
t: battery life [h]
I: LC2H current consumption [mA]
A: battery capacity until minimum
operation voltage is reached [mAh]
5) Hand solder to the lead terminal. Do
not dip solder. With the tip of the
soldering iron at 300°C 572°F perform
soldering within 3 seconds (for 30 to 60
W soldering iron).
2. Voltage input type
1) Be aware that applying more than 30 V
DC to count input terminals 1and 2,
and reset input terminals 3and 4will
cause damage to the internal elements.
2) For external resetting use H level
(application of 4.5 to 30 V DC) between
reset terminals 3and 4of the rear
terminals. In this case, connect + to
terminal 3and – to terminal 4. This is
the valid polarity; therefore, the counter
will not work if reversed.
3) When wiring, try to keep all the input
lines to the count and reset inputs as
short as possible and avoid running them
together with high voltage and power
transmission lines or in a power conduit.
Also, malfunctions might occur if the
floating capacitance of these wires
exceeds 500 pF (10 m 32.808 ft. for
parallel wires of 2 mm2).
3. Free voltage input type
1) Use count input terminals 1and 2for
free voltage input and reset terminals 3
and 4for non-voltage input.
2) Be aware that the application of
voltage that exceeds the voltage range of
the H level to the count input terminal,
and the application of voltage to the reset
input terminal, can cause damage to the
internal elements.
3) Since the current flow is very small
from reset input terminal 3, please use
relays and switches with high contact
reliability.
4) When inputting a reset with an open
collector of a transistor, use a transistor
for small signals in which ICBO is 1 µA or
less and always input with no voltage.
5) To reset externally, short reset input
terminals 3and 4on the rear.
6) Input uses a high impedance circuit;
therefore, erroneous operation may occur
if the influence of induction voltage is
present. If you plan to use wiring for the
input signal that is 10 m or longer (wire
capacitance 120 pF/m at normal
temperature), we recommend the use of
a CR filter or the connection of a bleeder
resistor.
4. How to reset multiple panel
mounting type counters all at once
(input is the same for count)
Non-voltage input type
Notes) 1. Use the following as a guide for choosing
transistors used for input (Tr).
Leakage current < 1 µA
2. Use as small a diode (D) as possible in the
forward voltage so that the voltage between
terminals 3 and 4 during reset input meets
the standard value (0.5 V).
( At IF = 20 µA, forward voltage 0.1 and
higher.)
Voltage input type
Note) Make sure that H (reset ON) level is at least 4.5
V.
5. Backlight luminance
To prevent varying luminance among
backlights when using multiple Backlight
types, please use the same backlight
power supply.
6. Environment for use
1) Ambient conditions
• Overvoltage category II, pollution level 2
• Indoor use
• Acceptable temperature and humidity
range: –10 to +55°C, 35 to 85%RH (with
no condensation at 20°C)
• Under 2000 m elevation
2) Use the main unit in a location that
matches the following conditions.
• There is minimal dust and no corrosive
gas.
• There is no combustible or explosive
gas.
• There is no mechanical vibration or
impacts.
• There is no exposure to direct sunlight.
• Located away from large-volume
electromagnetic switches and power
lines with large electrical currents.
3) Connect a breaker that conforms to
EN60947-1 or EN60947-3 to the voltage
input section.
4) Applied voltage should be protected
with an overcurrent protection device
(example: T 1A, 250 V AC time lag fuse)
that conforms to the EN/IEC standards.
(Free voltage input type)
3or
DTr
4 3 4 3 4
D D
3or
+V +V
R
Tr
4 3 4 3 4 3 4
22
52
Green Red
5
626
24V DC 24V DC
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
