SPECIFICATIONS
FOR Blu-ray DISC DRIVE (Blu-ray read
only & Writable DVD)
RECEIVED
CheckApproval
(Engineer)
Optical Devices Business Unit
Panasonic System Networks CO.,LTD
1080 TAKANO NAGOMII-MACHI
TAMANA-GUN KUMAMOTO .JAPAN
865-0193
TEL [phone]
Do not disclose this document to any third party.
This document, whether wholly or partially, may not be reprinted or reproduced
without the prior written consent of PSN.

Preliminary
Model Number : UJ160ABPSN-B /
History
Parts No. : (PSN) UJ160ABPSN-B
(Customer)
KOK-B3-001-T6 Issue 5
---
Spec Rev. Phase in
/Period Comments
0.1 --- Oct.26,2011 --- --- --- Initial Release
PAGE
242
Box
Rev.
ECN Number Date Drive Rev. FW Rev.
Panasonic System Networks Co.,Ltd Optical Devices Business Unit

Preliminary
Model Number : UJ160ABPSN-B /
Contents
1. Applications
2. Features
3. Write Speed
4. Specifications
5. Appearance
6. Reliability
7. Safety
8. Shock/Vibration
9. Life
10. Interface
11. Power Management
12. Serial ATA Features
13. Spindle Control
14. Dimension
15. Notes
16. Information for Laser
17. Drive Circuit (MD/DA)
18. Attached Sheets
KOK-B3-001-T6 Issue 5
PAGE
243
Panasonic System Networks Co.,Ltd Optical Devices Business Unit

Preliminary
Model Number : UJ160ABPSN-B /
1.Applications
a) This specification describes the general specs and performance of BD Drive UJ240AF.
b) In case major modification to improve performance and in the event that the device does
not perform as specified, the stipulation requires that modification and solution should
be made with mutual discussion, following the stipulations stated in this specification.
c) Some components which are different in appearance and performance may be mixedly
used owing to multiple sourcing and owing to common use with different models caused
by decreased production quantity.
d) Product to be marked which is compatible HHS Class 1 Standard in the USA.
e) In the process of manufacturing of the products including packaging, any materials related
ozone destructive items are not used at all.
f) PSN in this document stands for Panasonic System Networks Co., Ltd.
g) Special clause.
We will endeavor to do our best for maintaining the control of quality, however,
1) We want you to confirm the safety of the product in which PSN product is
incorporated.
If there is a problem with our product, be requested to advice the problem before
shipment to the market.
:Be requested to do the test for confirmation of the product which installs PSN
product, following applicable rules and regulations.
:Be requested to confirm the safety from abnormal usage under the condition
installed.
:Be requested to confirm the safety for reliable test under the condition installed.
2) Be requested to provide necessary information how to use and how to install to the
customers with the expectation that minimize unexpected accident from unexplained
specification in this stipulation.
3) In case, owing to the quality problem from this product, if there is a possibility to
endanger the life of the user or property, please be requested to take double safety
counter-measures by having enough tolerance over the assured specification and
performance stated in this spec. from the point of product liability issue.
4) Transcription and duplication of this document without prior consent is prohibited.
5) Duration of limited warranty is 15 months after date manufactured.
6) Duration of repair is 3 years after the following month of the end of manufacturing.
7）Our trademark "Panasonic" shall not be printed on any products according to our mutual
consultation between customer and Panasonic.
KOK-B3-001-T6 Issue 5
PAGE
244
Panasonic System Networks Co.,Ltd Optical Devices Business Unit

Preliminary
Model Number : UJ160ABPSN-B /
2.Features
1) Builtin Type for PC
2) Read speed
DVD-ROM :Max 8X CAV
CD-ROM :Max 24X CAV
BD-ROM :2.0x CLV(for Video) / Max 6X CAV(for Data)
3) Maximum Write speed
CD-R :Max.24X CAV
CD-RW :4X CLV
High Speed CD-RW :10XCLV
Ultra Speed CD-RW :Max.16X Zone CLV
DVD-R :Max.8X CAV
DVD-R DL :Max.6X Zone CLV
DVD-RW :Max.6X Zone CLV
DVD+R :Max.8X CAV
DVD+R DL :Max.6X Zone CLV
DVD+RW :Max.8X Zone CLV
DVD-RAM :3X-5X PCAV ( 4.7GB)
4) Support Buffer Underrun Free Recording
5) Single +5V Power Supply
6) The media for write check
CD-R :TAIYO YUDEN Co.,Ltd. ,Mitsubishi Kagaku Media Co., Ltd. ,
Hitachi Maxell,Ltd.
CD-RW :Mitsubishi Kagaku Media Co., Ltd.
HS CD-RW :Mitsubishi Kagaku Media Co., Ltd.
DVD-R :TAIYO YUDEN Co.,Ltd.
DVD-R DL :Mitsubishi Kagaku Media Co., Ltd.
DVD-RW :Victor Company of Japan, Ltd. (JVC) , Mitsubishi Kagaku Media Co., Ltd.
DVD+R :Mitsubishi Kagaku Media Co., Ltd.
DVD+R DL :Mitsubishi Kagaku Media Co., Ltd.
DVD+RW :Mitsubishi Kagaku Media Co., Ltd.
DVD-RAM :Panasonic Corporation.
7) Access Speed
DVD-ROM SL 190ms (Typ.) (Random)
CD-ROM 180ms(Typ.) (Random)
BD-ROM SL 300ms(Typ.) (Random)
3.Write Speed
The drive adjusts the write speed to the disc charactaristics.
The optimal write speed to the disc may not be the maximum write speed.
KOK-B3-001-T6 Issue 5
PAGE
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
245

Preliminary
Model Number : UJ160ABPSN-B /
4. Specifications
NO Power Supply
1.Operating Voltage DC 5 V +/- 0.25V
2.Power Consumption Peak 1800 mA (Max.) Except inrush current
(Less than 1ms)
Read (CD) 1100 mA (typ.) CD(TCD-002)
Read (DVD) 950 mA (typ.) DVD(KME-DVD001)
Read（BD）950mA (typ.) BD-ROM（BLX-150)
Write 1350 mA (typ.) CD-R/DVD-R/BD-RE Max. Write
Standby 50 mA (typ.) Slumber mode
3. Ripple 100 mVp-p Max.
Drive
1.Transfer Rate
(1) Read
DVD-ROM MAX 8X CAV (MAX 10800 kB/s)
CD-ROM MAX 24X CAV (MAX 3600 kB/s)
BD-ROM MAX 6X CAV (MAX 27 MB/s )
(2) Write
CD-R 4X (CLV), 8X (CLV), 24X (CAV)
CD-RW 4X (CLV)
HS-RW 10X (CLV)
US-RW 16x(ZCLV)
CD 8cm media 4xCLV
DVD-R 2X(CLV),MAX. 4X (ZCLV), MAX.8X (CAV) DVD-R for General
DVD-R DL 2X(CLV),MAX.4X/6X(ZCLV)
DVD-RW 1X(CLV), 2X(CLV),MAX.4X/6X(ZCLV)
DVD+R 2.4X(CLV),MAX.4X (ZCLV), MAX.8X (CAV)
DVD+R DL 2.4X(CLV),MAX.6X(ZCLV)
DVD+RW 2.4X(CLV), 3.3X(CLV), MAX.4X /8X(ZCLV)
DVD-RAM 2X/3X (ZCLV), 5X (PCAV) 4.7 / 9.4 GB
DVD 8cm media 2X(CLV), 2.4X(CLV)
(3) SATA Interface 150 Mbyte/s
2.Buffer Memory 2MB
3.Error Rate
(1) CD-ROM(with ECC)
less than 10
-12
bit
<Access Time>
(without ECC)
less than 10
-9
bit
using PSN's original test
(2) DVD-ROM
less than 10
-12
bit
program
(3) BD-ROM
less than 10
-12
bit
4.Access Time DVD-ROM 190 ms typ.(Random) DVD(KMEDVD001)
CD-ROM 180 ms typ.(Random) CD(TCD-002)
BD-ROM 300mstyp.(Random) BD-ROM（BLX-150)
5.Start up Time less than 15s Except Multi Session
and Writable Media
6.Stop Time less than 6s
7.Acoustic Noise less than 50 dBA ISO/JIS7779 (ANSI)
8.Bus Encryption Support
9.Regional Code ''None''
10.Inquiry Data "BD-CMB UJ160"
KOK-B3-001-T6 Issue 5
Specification Condition
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
PAGE
Item
246
4-1
4-2

Preliminary
Model Number : UJ160ABPSN-B /
4. Specification (continue)
NO C D: CD-ROM（12cm,8cm）Except abnormal shaped Disc
CD-R,CD-RW
4-3 Applicable disc DVD: DVD-ROM,DVD-R,DVD-R DL
DVD-RAM,DVD-RW
DVD+R, DVD+R DL,DVD+RW
BD: BD-ROM,BD-R,BD-RE
CD: CD-DA,CD-ROM,CD-ROM XA
PhotoCD(muiltiSession)
Video CD,CD-Extra(CD+),CD-text
Hybrid SACD CD Layer only
DVD: DVD-VIDEO, DVD-ROM,
DVD-R(4.7GB),
DVD-RW(Ver.1.1/1.2) , DVD-RAM
DVD+R, DVD+R DL, DVD+RW
DVD-R DL(Format1/4) Format 1/4 Write support
BD: BD-ROM (1.3),
BD-R(2.0),BD-RE (3.0)
128 x 129 x 12.7 mm ( W x D x H ) Upper cover-AL
(except protrusion) Bottom cover-AL
160 g+/- 10g
5. Appearance
NO - Any remarkable scratches, stains, sink mark, haze and burrs
which degrade cosmetic are not allowed.
- We may not accept it as custom components except front bezel.
- No discoloration is allowed.
- No contamination or objection lens or pick-up cover are allowed.
- Marginal one will be judged by limitation samples which mutually
agreed by both parties.
- Front bezel Green LED indicator
6. Reliability
NO Operating guarantee : 5 to 50℃
Non operating : -20 to 60℃
Operating gurarantee : 10 to 80% RH The maximum wet-bulb
Non operating : 5 to 90% RH temperature is 31℃
6-3 MTBF 60,000h (Duty : 20 %)
6-4 MTTR 30min
KOK-B3-001-T6 Issue 5
Specification
Item Specification Condition
Applicable disc format
Slope Horizontal & Vertical ( -5 / +35 )
Condition
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
Specification
PAGE
Soft Eject (with emergency eject hole)
Dimensions, Weight
247
4-6
4-5
4-4
5-1 Appearance
4-7 Eject
Item
6-1 Temperature
Item
6-2 Humidity
Recommended position of temperature mesurment
in the case drive is built in to the PC.
(at the point "*" in the right figure)
Operating guarantee temperature : 55℃
Label
50mm 40mm
Checkpoint
*

Preliminary
Model Number : UJ160ABPSN-B /
7.Safety
NO UL / cUL (UL 60950-1 Rated voltage ：
/ CSA C22.2 No. 60950-1) Rated current ：
TUV (EN 60950-1)
CE Marking (EMC Directive 2004/108/EC)
EN 55022
EN 55024
Note : This model is compliant to HHS and EN60825-1 as Class 1 Laser, so information of laser must
be presented in user instruction or operation manual which is supplied to end user.
Information for laser : Refer to the attached sheet.
8.Shock/Vibration
NO Shock CD-DA
1.Operating :Read 19.6m/s2(2.0 G) (11ms X,Y,Z) : CD-DA CD-ROM/DVD-ROM/BD-ROM
58.8m/s2(6.0 G) (11ms X,Y,Z) : CD-ROM/DVD-ROM/BD-ROM possibility of retry at read
:Write
4.9m/s
2
(0.5 G) ( 11ms X,Y,Z)
2.Non Operating
588m/s
2
(60.0 G) (11ms X,Y,Z)
1960m/s
2
(200 G) ( 2ms X,Y,Z)
Vibration
1.Operation :Read
1.96m/s
2
(0.2 G )( 5 ~ 500Hz )
:Write
0.98m/s
2
(0.1 G )( 5 ~ 500Hz )
2.Non Operating
19.6m/s
2
(2.0 G) (10 ~ 500Hz X,Y,Z 2h )
9.Life
NO Life
1.Laser (at 25℃) 2000 h
2.Spindle Motor 3000 h
current alteration within 30 % from initial
3.Feed Motor 250,000 times
current alteration within 30 % from initial
4.FPC 250,000 times
(Feed Motor)
5.Disc Insertion 10,000 times
6.Eject Button 10,000 times
7.Loading 10,000 times
KOK-B3-001-T6 Issue 5
Condition
Item Specification Condition
Item Specification
Specification Condition
24
Safety
EMC
LASER 21 CFR Subchapter J (Class 1 laser product)
IEC 60825-1/EN 60825-1 (Class 1 laser product)
8
Item
PAGE
9-1
7-1
7-2
7-3
8-1
8-2
Panasonic System Networks Co.,Ltd Optical Devices Business Unit

Preliminary
Model Number : UJ160ABPSN-B /
10. Interface
10-1. Connector
(1) Connector layout
(2) Connector pin assignment
Interface description (signal)
Pin
S1 Gnd
S2 A+ Differential signal pair A
S3 A-
S4 Gnd
S5 B- Differential signal pair B
S6 B+
S7 Gnd
Interface description (power)
Pin
P1 DP Device Present （1KΩpull down）
P2 +5V 5V power
P3 +5V 5V power
P4 MD/DA
P5 Gnd
P6 Gnd *1 : See 23/31 page
DC Characteristics Signal Level
min typ max
Signal Detection Threshold (mV) 50 100 200
Tx Differential Output Voltage (mV) 400 500 600
Rx Differential Input Voltage (mV) 325 400 600
Tx Pair Differential Impedance (ohm) 85 100 115
Rx Pair Differential Impedance (ohm) 85 100 115
KOK-B3-001-T6 Issue 5 Panasonic System Networks Co.,Ltd Optical Devices Business Unit
Signal
24
PAGE
Signal
Parameter
Manufacturing Diagnostic/Device Attention
9
S1
Back side view
S7P1P6

Preliminary
Model Number : UJ160ABPSN-B /
10. Interface (continue)
10-2. SATA command
00h TEST UNIT READY 53h RESERVE TRACK/RZONE
01h REZERO UNIT 54h SEND OPC INFORMATION
03h REQUEST SENSE 55h MODE SELECT(10)
04h FORMAT UNIT 58h REPAIR RZONE
08h READ(6) 5Ah MODE SENSE(10)
0Ah WRITE(6) 5Bh CLOSE TRACK/RZONE/SESSION/BORDER
0Bh SEEK(6) 5Ch READ BUFFER CAPACITY
12h INQUIRY 5Dh SEND CUE SHEET
15h MODE SELECT(6) A1h BLANK
1Ah MODE SENSE(6) A3h SEND KEY
1Bh START/STOP UNIT A4h REPORT KEY
1Eh PREVENT/ALLOW MEDIUM REMOVAL A5h PLAY AUDIO(12)
23h READ FORMAT CAPACITIES A7h SET READ AHEAD
25h READ CAPACITY A8h READ(12)
28h READ(10) AAh WRITE(12)
2Ah WRITE(10) ACh GET PERFORMANCE
2Bh SEEK(10) ADh READ DVD STRUCTURE
2Eh WRITE AND VERIFY(10) AEh WRITE AND VERIFY(12)
2Fh VERIFY(10) AFh VERIFY(12)
35h FLUSH (SYNCHRONIZE) CACHE B6h SET STREAMING
37h READ DEFECT DATA B9h READ CD MSF
3Bh WRITE BUFFER BAh SCAN
3Ch READ BUFFER BBh SET CD SPEED
42h READ SUB-CHANNEL BDh MECHANISM STATUS
43h READ TOC/PMA/ATIP BEh READ CD
44h READ HEADER BFh SEND DVD STRUCTURE
45h PLAY AUDIO(10) E8h READ MICROCODE
46h GET CONFIGURATION EAh WRITE MICROCODE
47h PLAY AUDIO MSF F5h SYNCHRONIZE MICROCODE
4Ah GET EVENT /STATUS NOTIFICATION
4Bh PAUSE/RESUME
4Eh STOP PLAY/SCAN
51h READ DISC INFORMATION
52h READ TRACK/RZONE INFORMATION
E5h CHECK POWER MODE 00h NOP
08h DEVICE RESET A0h PACKET
90h EXECUTE DEVICE DIAGNOSTIC EFh SET FEATURES
A1h IDENTIFY PACKET DEVICE E6h SLEEP
E1h IDLE IMMEDIATE E0h STANDBY IMMEDIATE
KOK-B3-001-T6 Issue 5 Panasonic System Networks Co.,Ltd Optical Devices Business Unit
PAGE
Packet Commands Supported by Drives
10 24
ATA Commands Supported by Drives

Preliminary
Model Number : UJ160ABPSN-B /
11. Power Management

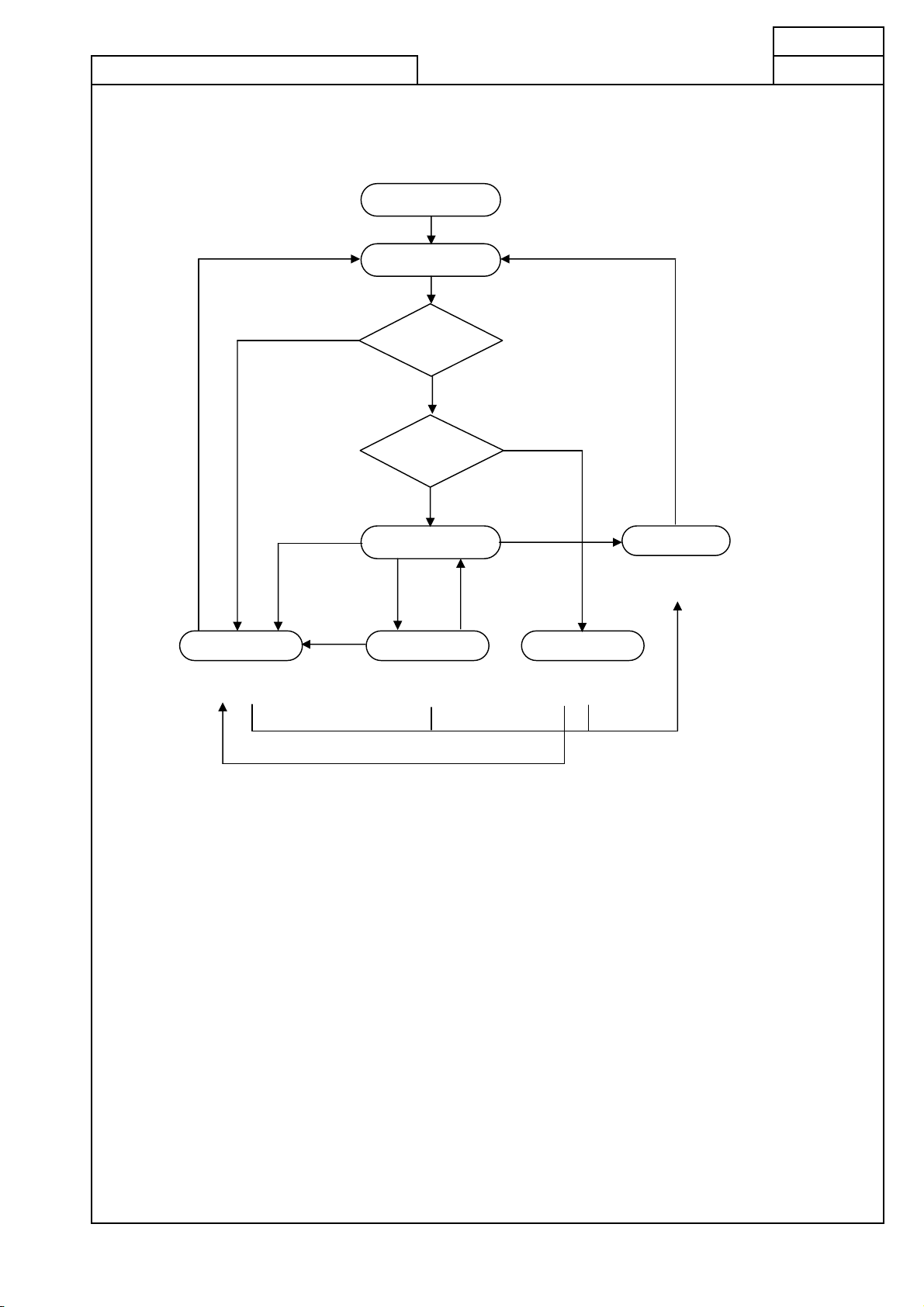

11-1. Status Changes
1: At first host executes reset sequence after power is supplied. If a disc is attached and a tray is
closed, the drive status becomes ACTIVE Mode. And next If host doesn't execute command
for certain time(default 30 sec) a disc stops, and changes STANDBY Mode .In the case of
receiving ATAPI command(Standby Immediate),the drive status changes STANDBY Mode soon.
2: In the case of STANDBY Mode at the status that a disc is attached and a tray is closed,
if the drive receives command from host, the drive status changes ACTIVE Mode soon.
3: In the case of ACTIVE Mode, a disc is stopped and a tray is opened by ATAPI eject command
or pushing eject button at front bezel. And next the drive status change STANDBY Mode again.
KOK-B3-001-T6 Issue 5
PAGE
* Electrical status in a drive is same at STANBY1,2,3
11 24
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
Power ON
Tray Open?
Disk
Inserted?
Tray : close
Disc : inserted Tray : close Disc : no inserted
Tray : open
Disc : NC
4
Open
Close
No
Yes
4
21
5
3Tray : NC
Disc : NC
SLEEP
6
6
7
RESET
ACTIVE
STANDBY
STANDBY
STANDBY

Preliminary
Model Number : UJ160ABPSN-B /
11.Power Management (continue)
11-1.Status Changes (continue)
4: In the case of STANDBY Mode, a disc is stopped and a tray is opened by ATAPI eject command
or pushing eject button at front bezel. And next the drive status change STANDBY Mode again.
5: In the case of STANDBY Mode at the status that a tray is opened, this drive executes reset
sequence by closing a tray. And next If a disc is attached, the drive spin a disc and changes
ACTIVE Mode.
6: In the case of ACTIVE or STANDBY mode, this drive goes into Sleep mode immediately after
receiving of Sleep Command.
The only way to recover from SLEEP mode is with a software reset or hardware reset.
7: The drive status can recover by hard or soft reset(in the case of SSP disable).
And next the drive status becomes the same sequence with reset status.
8: In the case of SSP enable, the drive goes into STANBY mode immediatelly after receiving of
soft reset.
At first a disc is attached and a tray is closed after power is supplied. And next the drive checks
itself. If this check finished perfectly, the drive spin a disc and read TOC.
ACTIVE Mode stands for this status that the drive finish reading TOC.
So laser, spindle motor, and sled motor active.
This mode is a low current consumption mode.
STANDBY Mode stands for this status that only SATA interface active. So laser, spindle
motor, and sled motor doesn't active.
This mode is a low current consumption mode.
SLEEP Mode stands for this status that all system(laser, spindle motor, sled motor, SATA interface)
doesn't active. The drive can recover by hard/soft reset.
KOK-B3-001-T6 Issue 5
PAGE
ACTIVE Mode
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
12 24
STANDBY Mode
SLEEP Mode

Preliminary
Model Number : UJ160ABPSN-B /
12. Serial ATA Features
12-1. Serial ATA Features Specification
NO
HIPM Support
( Host Initiated link Power Management ) Partial Timer : 10ms
DIPM Support
Slumber Timer :
30ms
( Device Initiated link Power Management ) (time after a drive handles
the last command)
AN Support
( Asynchronous Notification )
SSP Support
( Software Setting Preservation )
SSC Support
( Spread Spectrum Clocking )
*Both host controller and optical drive need to support HIPM ,DIPM and AN mode to utilize them.
12-2. Link Power Management State
Serial ATA interface power states are controlled by the device and host controller.
The interface power states are defined as below.
The Phy logic and main PLL are both on and active. The interface is synchronized and
capable of receiving and sending data.
The Phy logic of SATA interface is powered, but is in a reduced power state.
Power dissipation in this mode is less than the PHYRDY mode, but more than the SLUMBER mode.
The exit latency from this state shall be no longer than 10 us.
The Phy logic of SATA interface is powered, but is in a reduced power state.
Power dissipation in this mode is less than the PARTIAL mode.
The exit latency from this state shall be no longer than 10 ms.
KOK-B3-001-T6 Issue 5
PAGE
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
Item Specification
12-5
PHYRDY
12-1
12-2
12-3
12-4
PARTIAL
SLUMBER
13 24

Preliminary
Model Number : UJ160ABPSN-B /
12. Serial ATA Features (continue)
12-3.HIPM( Host Initiated link Power Management )
HIPM is a method which controls Serial ATA interface power states by host controller.
Logical Unit supports this feature. Host shall issue IDENTIFY PACKET DEVICE before
initiate power management transition requests, and check the response data whether
HIPM is supported or not.
12-4. HIPM State Changes
1: A power-on or hard reset always returns the Interface Power State to the PHYRDY state from any state.
2: In the case of required Partial, the drive receive PMREQ_P from host.
3: In the case of required Slumber, the drive receive PMREQ_S from host.
4: If the drive issues PMNAK, the status changes into PHYRDY.
5: If the drive issues PMACK, the status changes into PARTIAL.
6: If the drive issues PMACK, the status changes into SLUMBER.
7: If the drive or host issues COMWAKE(or COMRESET/COMINIT), the status changes into PHYRDY.
KOK-B3-001-T6 Issue 5 Panasonic System Networks Co.,Ltd Optical Devices Business Unit
PAGE
14 24
Power ON
PHYRDY
required
Partial
2
required
Slumber
3
PARTIAL
44
56
7 7
1
SLUMBER

Preliminary
Model Number : UJ160ABPSN-B /
12. Serial ATA Features (continue)
12-5. DIPM ( Device Initiated link Power Management )
DIPM is a method which controls Serial ATA interface power states by the Logical Unit.
The Logical Unit has internal timers, Partial Timer and Slumber Timer , and the timer provide for the
Logical Unit to change Interface Power State without direct HOST request. The disabled/enabled of
DIPM can be switched by using SET FEATURE command.
12-6. DIPM State Changes
1: A power-on or hard reset always returns the Interface Power State to the PHYRDY state from any state.
2: If the drive received command, the drive keep PHYRDY state and resets the Partial/Slumber Timer.
3: If the drive is set DIPM Enable and the Partial timer reaches zero, the drive issues PMREQ_P.
4: If the drive is set DIPM Enable and the Slumber timer reaches zero, the drive issues PMREQ_S.
5: If the drive received PMNAK from Host, the status changes into PHYRDY.
6: If the drive received PMACK from Host, the status changes into PARTIAL.
7: If the drive received PMACK from Host, the status changes into SLUMBER.
8: If the drive or host issues COMWAKE(or COMRESET/COMINIT), the status changes into PHYRDY.
If the drive changes Interface Power State from PARTIAL to SLUMBER, the drive issues COMWAKE
to enter PHYRDY state. And then, the drive requests to change the state into SLUMBER
KOK-B3-001-T6 Issue 5
15 24
PAGE
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
2
required
Partial
3
required
Slumber
4
55
67
8 8
1
Power ON
PHYRDY
PARTIAL SLUMBER

Preliminary
Model Number : UJ160ABPSN-B /
12. Serial ATA Features (continue)
12-7. AN ( Asynchronous Notification )
Asynchronous notification is a mechanism for a device to send a notification to the host that the device
requires attention. A few examples of how this mechanism could be used include indicating media has
been inserted in an device.
12-8. SSP ( Software Setting Preservation )
When a device is enumerated, software configures the device using SET FEATURES and other commands.
These software settings are often preserved across software reset but not necessarily across COMRESET.
In Parallel ATA, only commanded hardware resets may occur, thus legacy mode software only reprograms
settings that are cleared for the particular type of reset it has issued. In Serial ATA, COMRESET is
equivalent to hardware reset and a noncommanded COMRESET may occur if there is an asynchronous
loss of signal. Since COMRESET is equivalent to hardware reset, in the case of an asynchronous loss of
signal some software settings may be lost without legacy mode software knowledge. In order to avoid losing
important software settings without legacy mode driver knowledge, the software settings preservation ensures
that the value of important software settings is maintained across a COMRESET. Software settings
preservation may be enabled or disabled using SET FEATURES with a subcommand code of 06h .
The feature is enabled by default.
The software settings that is preserved across COMRESET are listed below.
SET FEATURES (Set Transfer Mode): PIO, Multiword, and UDMA transfer mode settings established by the
SET FEATURES command with subcommand code of 03h.
12-9. SSC ( Spread Spectrum Clocking )
The technique of modulating the operating frequency of a signal slightly to spread its radiated emissions over
a range of frequencies. This reduction in the maximum emission for a given frequency helps meet radiated
emission requirements.
KOK-B3-001-T6 Issue 5
24
PAGE
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
16

Preliminary
Model Number : UJ160ABPSN-B /
13. Spindle Control
13-1.Normal disc
CD-DA (Data read)
(Audio play)
Mode1/Mode2Form1
(CD-ROM,PhotoCD)
Mode2Form2
(VideoCD)
Mode1/Mode2Form1
Mode2Form2
CD-DA (Data read)
(Audio play)
DVD-ROM Single
Data Read
DVD-ROM Dual Data Read
DVD-Video Data Read
DVD-R(4.7G) Data Read
DVD-R DL Data Read
DVD-RW
(Ver1.1/1.2)
Data Read
DVD+R Data Read
DVD+R DL Data Read
DVD+RWData Read
DVD-RAM Data Read
BD-ROM SL Data Read 2.0X at AV Contents
BD-ROM DL Data Read 2.0X at AV Contents
BD-RE SL Data Read 2.0X at AV Contents
BD-RE DL Data Read 2.0X at AV Contents
BD-RE TL Data Read 2.0X at AV Contents
BD-R SL Data Read 2.0X at AV Contents
BD-R DL Data Read 2.0X at AV Contents
BD-R TL Data Read 2.0X at AV Contents
BD-R QL Data Read 2.0X at AV Contents
KOK-B3-001-T6 Issue 5
Max 2X CLV
Max 2X CLV
17 24
PAGE
CD-R CD-RW
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
- -
Open Session Open Session
Max 20X CAV 8xCLV 8xCLV
Max 12X CAV
Max 24X CAV
Max 6X CAV
Max 6X CAV
Max 6X CAV
Max 6X CAV Max 1.6X CLV
Disc Type Sector Format CD-ROM/CD-R CD-RW
Closed Session Closed Session
Max 24X CAV Max 24xZCLV Max 16xZCLV
Max 20X CAV 8xCLV 8xCLV
Max 12X CAV -
Max 8X CAV
Max 6X CAV
Max 8X CAV
Max 8X CAV
Max 4X CAV
12ｃｍ media
Max 12X CAV
Max 4X CAV
8xCLV
Remark
Max 1.6X CLV
Max 4X CAV
Max 4X CAV
4xCLV 4xCLV
Max 4X CAV
Remark
8cm media
Max 24xZCLV Max 16xZCLV
Max 20X CAV
-
Max 20X CAV 8xCLV
Max 24X CAV
Max 20X CAV
Max 20X CAV
8xCLV
Audio Only Disc
Data Only Disc Max 24X CAV
Max 20X CAV
Max 12X CAV
Mixed disc
8cm CD Data Read Max 12X CAV
Max 12X CAV
(CD-extra) Max 20X CAV 8xCLV
Max 4X CAV
Max 1.6X CLV
Max 2X ZCLV
Max 1.6X CLV
Max 2X CLV
Max 4X CAV
Max 8X CAV
Max 8X CAV
Max 8X CAV
Disc type Condition Spindle control
Max 4X CAV
Max 4X CAV
Max 4X CAV
Max 4X CAV
12cm media
Max 6X CAV
Max 8X CAV
Max 8X CAV
Max 3X-5X PCAV
Max 6X CAV Max 1.6X CLV Max 1.6X CLV
Disc type Condition Spindle control
8cm media
Max 6X CAV

Preliminary
Model Number : UJ160ABPSN-B /
13-2 .Spindle motor control
(1) at playing CD-ROM
at 1.2m/s
proportion to linear velocity (1.2~1.3m/s)
more than 1.3m/s
(2) at playing DVD-ROM
(3) at playing BD-ROM

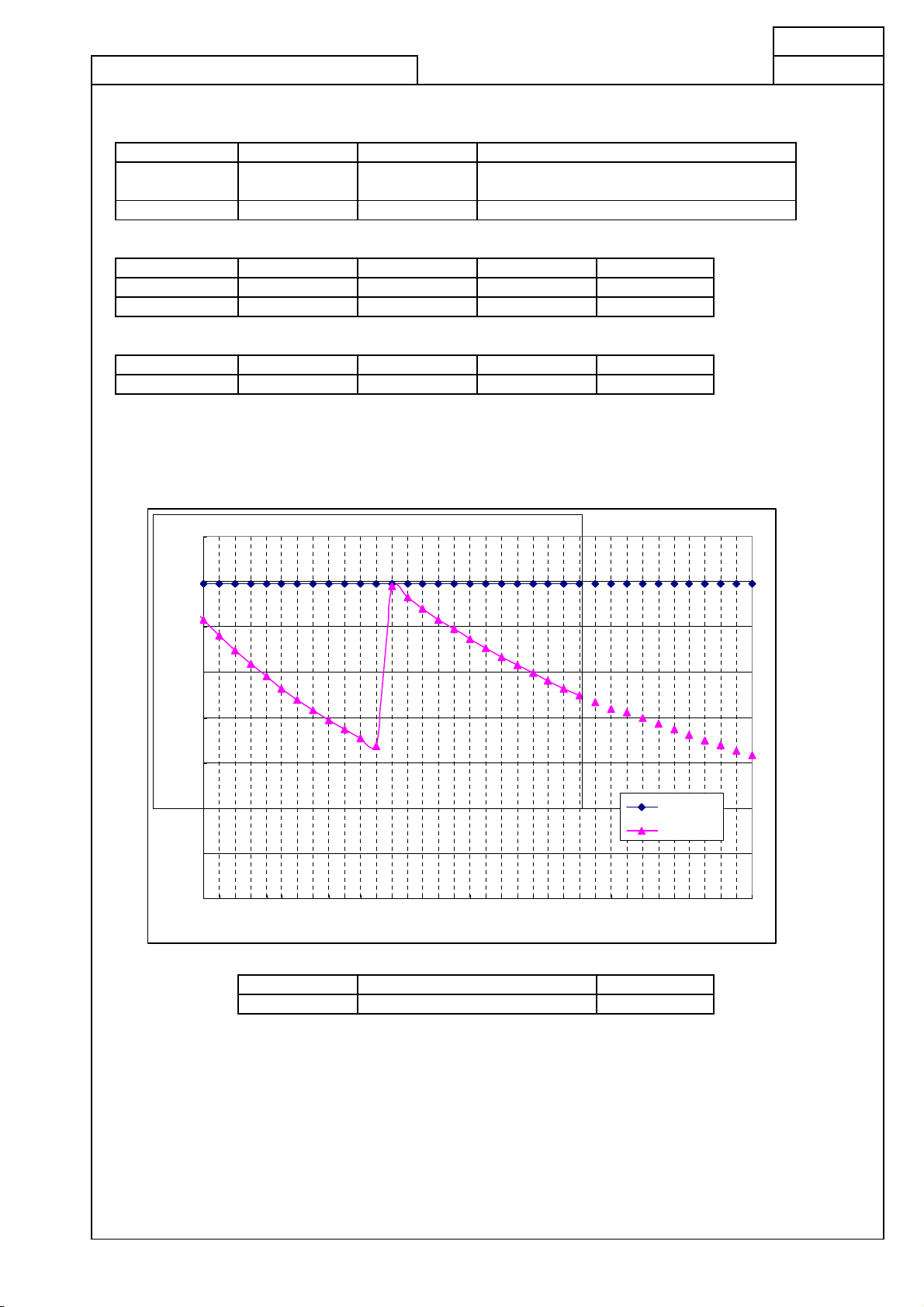

(4) CD-R Write (Max 24xCAV)
CD-RW Write (Max 16xZCLV)
Average Write Speed
CD-R 24x CAV
CD-RW 10x-16x ZCLV
KOK-B3-001-T6 Issue 5
at 8XCAV
4735 rpm
at 6XCAV
5210 rpm
18 24
Linear Velocity at 24XCAV at 12XCAV Remarks
Disc at 2.5XCAV at 4XCAV
1.2m/s <1.3m/s 4979 rpm 2490 rpm
1.3m/s 5394 rpm 2697 rpm
Single layer 1480 rpm 2369 rpm 3551 rpm
at 4XPCAV at 6XCAV
Dual layer 1628 rpm 2605 rpm 3907 rpm
Disc at 1.6XCLV at 2XCLV
SL/DL layer 3133 rpm 3916 rpm 3916 rpm 4860 rpm
18.85x
14.73x
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
PAGE
[rpm]
[mm]
1500
2000
2500
3000
3500
4000
4500
5000
5500
25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
CD-R
CD-RW

Preliminary
Model Number : UJ160ABPSN-B /

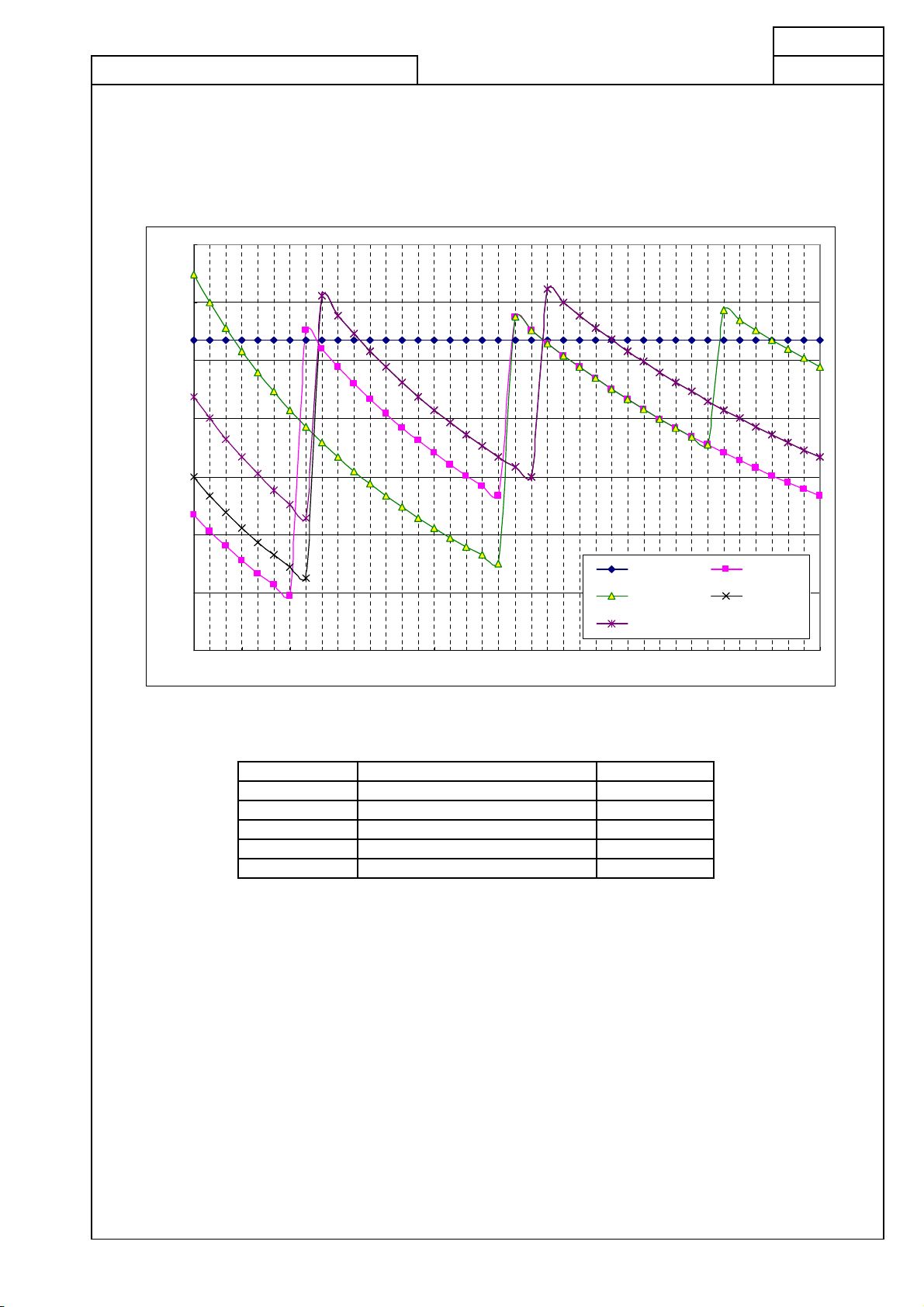

(5) DVD±R Write （MAX.8x CAV ）
DVD-R DL(Max.6x ZoneCLV), DVD+R DL Write （Max.6x Zone CLV ）
DVD-RW(Max.6x ZoneCLV), DVD+RW Write （Max.8x Zone CLV ）
Average Write Speed
DVD-R 8x CAV
DVD+R 8x CAV
DVD-R DL 2x-4x-6x ZCLV
DVD+R DL 2.4x-4x-6x ZCLV
DVD-RW 2x-4x-6x ZCLV
DVD+RW 3.3x-6x-8x ZCLV
KOK-B3-001-T6 Issue 5
24
PAGE
4.78x
4.78x
4.48x
4.61x
Panasonic System Networks Co.,Ltd Optical Devices Business Unit
5.8x
5.8x
19
[mm]
2000
2500
3000
3500
4000
4500
5000
5500
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
±R 8x -RW 6x
+RW 8x -R DL 6x
+R DL 6x
[rpm]

Preliminary
Model Number : UJ160ABPSN-B /

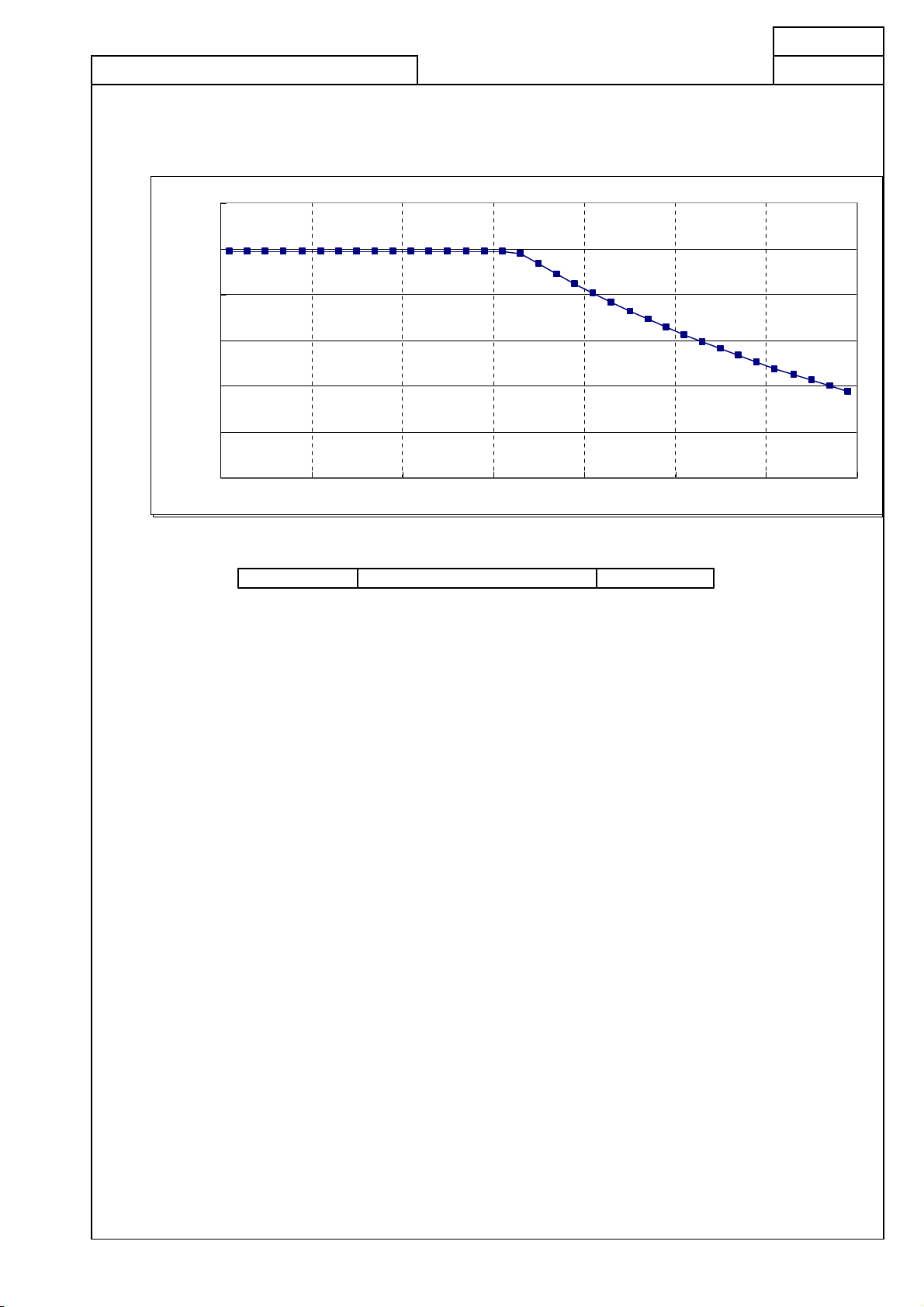

(6) DVD-RAM(Max 3x-5x Partial CAV)
Average Write Speed
DVD-RAM 3x-5x PCAV
KOK-B3-001-T6 Issue 5 Panasonic System Networks Co.,Ltd Optical Devices Business Unit
4.48x
20 24
PAGE
[Zone]
[rpm]
2500
3000
3500
4000
4500
5000
5500
5
10
15
20
25
30
0
2500
3000
3500
4000
4500
5000
5500
5 10 15 20 25 300
