Panasonic CF-Y2 Series User manual

1
Personal Computer
Reference Manual
Model No. CF-Y2/CF-W2 Series
XP
For backup proposes Panasonic recommends that this Reference
Manual be printed.
To magnify the screen
display of this
Reference Manual
To magnify all the icon
display (for example, )
etc.
To magnify the one part
of the screen display

2
Read Me First
zSome of the illustrations in this manual may differ slightly in shape from the actual items
on your computer. This should make the explanations easier to understand
zIf a user has logged on to Windows without the administrator authority, some functions
may not be executable, and some screens may not be displayed as shown in this manual.
If this happens, log-on to Windows with the administrator authority to enable these
functions
zIn this manual, “Microsoft®Windows®XP Professional Service Pack 2 with Advanced
Security Technologies” is indicated as “Windows” or “Windows XP”
zIn this manual, the following software packages are described as follows:
• "WinDVD™ 5 (OEM Version)" as "WinDVD"
• "B's Recorder GOLD7 BASIC" as "B's Recorder"
• "B's CLiP 6" as "B's CLiP"

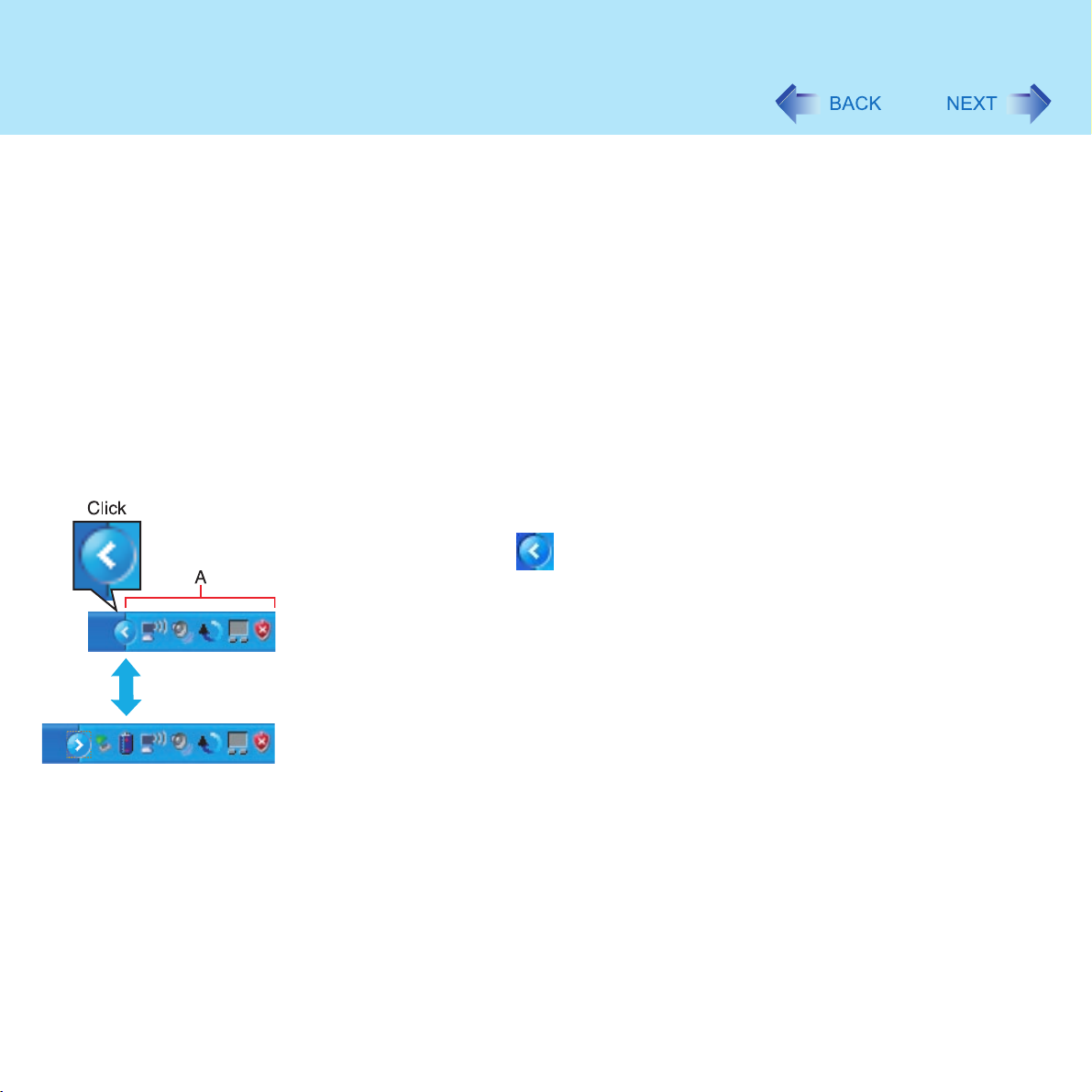

zIf the icon on the notification area (A) being explained in this manual is hidden and not
displayed, click on the icon to display all icons
(The icons on the notification area used in this manual are only examples. The actual
types and order of icons may differ depending on your operating environment; for
example, settings of various functions and connected devices.)
zOptional Products or Accessories
Confirm the latest information on optional products or accessories from various sources

3
Read Me First
Illustrations and Terminology in this Reference Manual
NOTE NOTE provides a useful fact or helpful information.
CAUTION CAUTION indicates a condition that may result in minor
or moderate injury.
Enter This illustration means to press the Enter key.

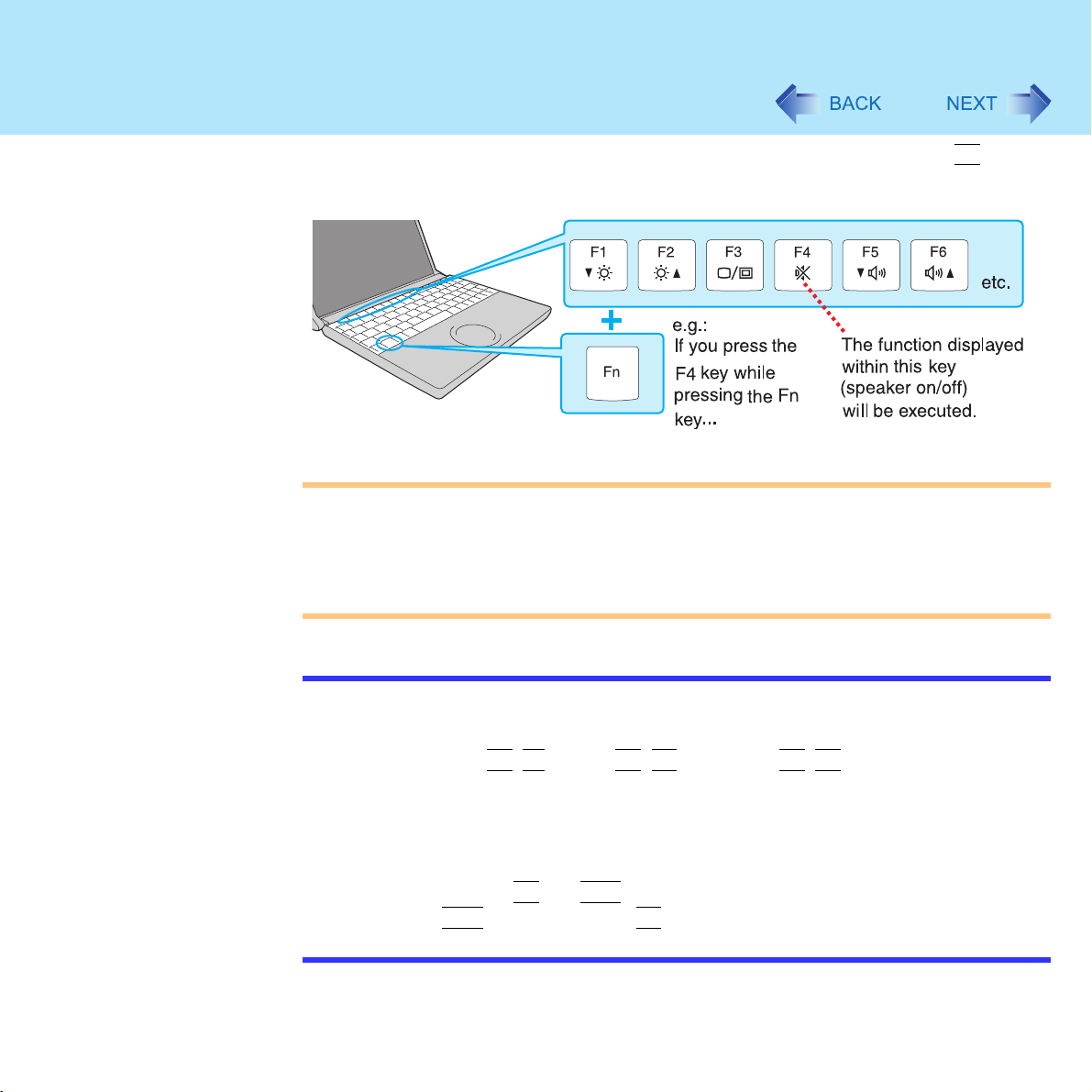

Fn + F5 This illustration means to press and hold the Fn key,
then press the F5 key.
When using with the
Fn and Ctrl functions
interchanged, read with the
Fn key and the Ctrl key
reversed.
[start] - [Run] This illustration means to click [start], then to click [Run].
For some applications, you may need to double-click.
Îor ⇒These symbols indicate related pages.
Î: If this is clicked, it will jump to the page correspond-
ing Reference Manual
⇒: Refer to the Operating Instructions
xxxx*1 If *1 is clicked, it will jump to a related topic.

4
Read Me First
The terminology in ( ) is the one used in [Intel(R) 82852/82855 GM/GME Graphics Controller
Properties].
To display [Intel(R) 82852/82855 GM/GME Graphics Controller Properties]:
<CF-Y2 series>
Click [start] - [Control Panel], from the [See Also] area click [Other Control Panel Options],
and then click [Intel(R) Extreme Graphics 2 M].
<CF-W2 series>
Click [start] - [Control Panel], from the [See Also] area click [Other Control Panel Options],
and then click [Intel(R) Extreme Graphics].
About Display Mode
Internal LCD (Notebook) This computer's display
External Display (Monitor) External display connected to this computer
Simultaneous Display
(Intel(R) Dual Display Clone)
To display the same screen on both the LCD and
external display
Extended Desktop To use both the internal LCD and the external display as
an extended display domain. You can drag a window
between the internal LCD and the external displays

5
How to Use this Reference Manual
In this Reference Manual, you can use the following method to display the desired page, or
search for a page using a text string. (The screen shown is only an example.)

6
How to Use this Reference Manual
If the characters, icons, etc. in the Reference Manual are too small
and too difficult to see, you can magnify them as follows.
1Click to use Zoom In Tools.
2To magnify the display and make it easier to see, position
the cursor and click on the segment you want to expand.
zIf it is magnified too much, click on the same segment while
holding down the Ctrl key to reduce the size.
3When required, click on and drag it to the screen to
display the segment you want to see.
This Reference Manual is displayed using Adobe Reader. Adobe Reader uses the following
methods to magnify and reduce the display size.
zTools for magnifying/reducing the display

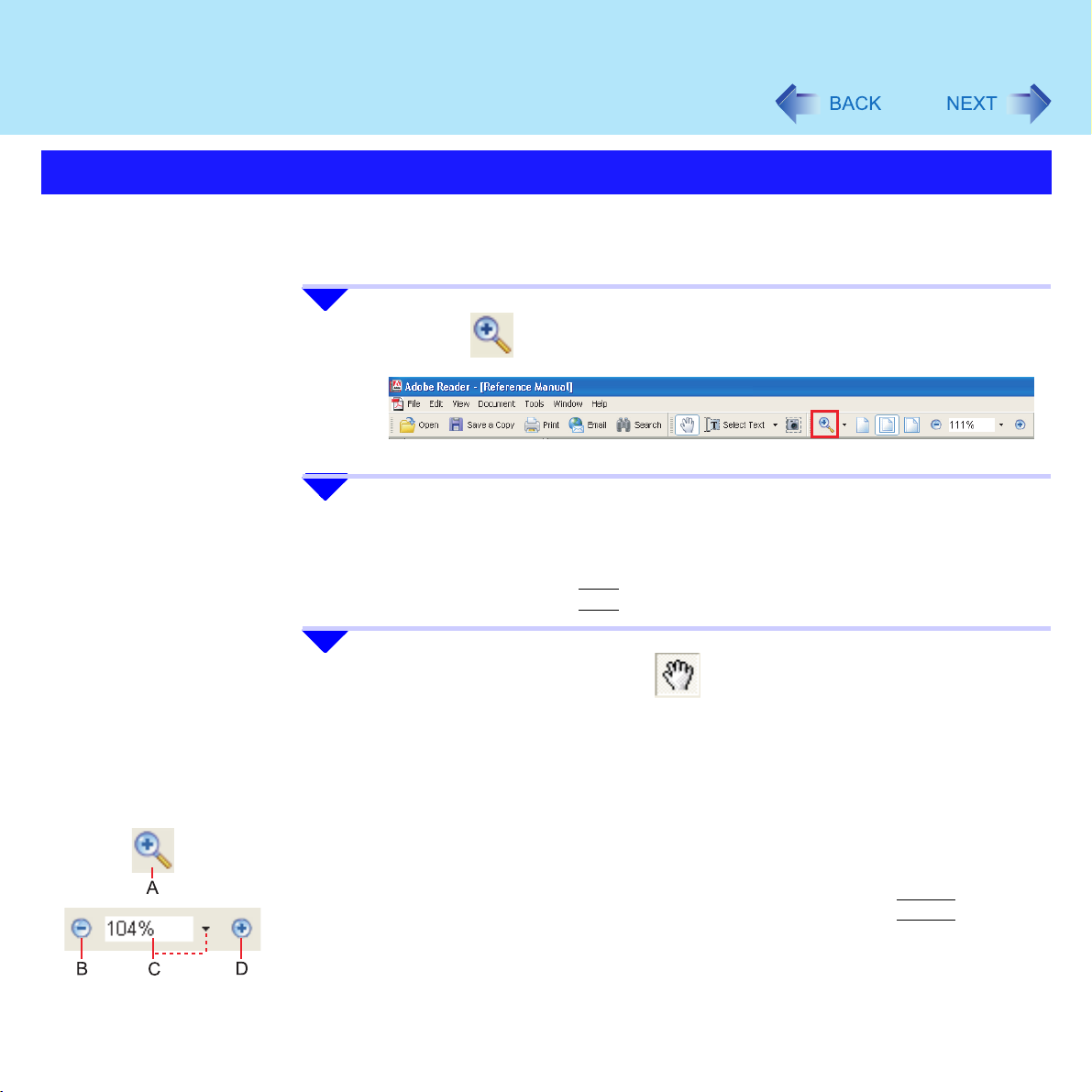

A. Zoom In Tool: Click to enlarge the display in the area around the position that was
clicked. Drag to magnify the display in the area selected.
B. Zoom Out: Display size is reduced each time this button is clicked.
C. Enter the percentage for magnification/reduction, and press the
Enter key to
change the display to the specified size. (You can click on the Tand select from
the values displayed.)
D. Zoom In: Display size is magnified each time this button is clicked.
Magnify this Reference Manual Display

7
How to Use this Reference Manual
zTools for displaying contents at a selected magnification

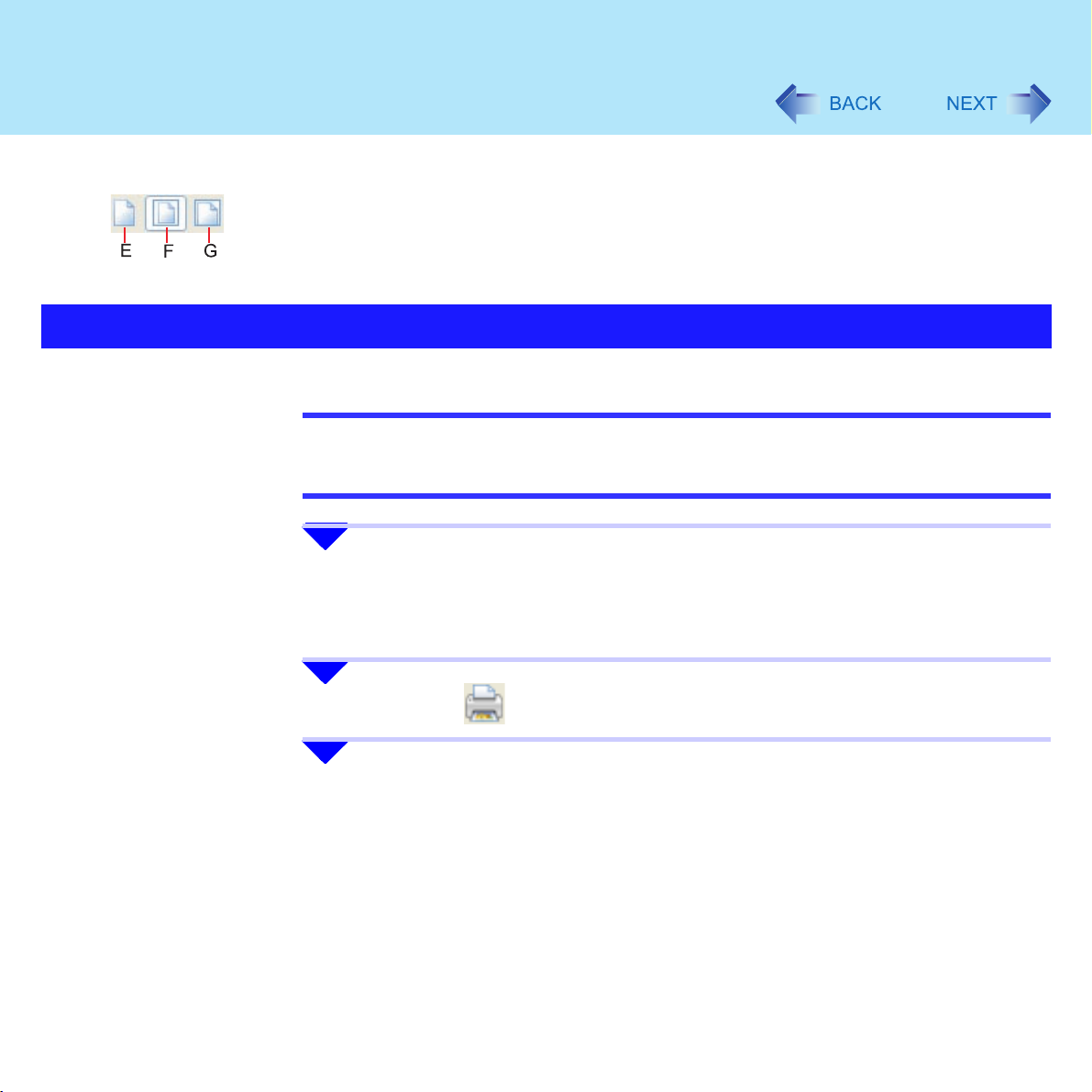

E. Actual Size: Click to display contents at the size used when the Reference
Manual is opened from the [start] menu.
F. Fit Page: Click to display the contents for a single page.
G. Fit Width: Click to magnify or reduce the size of the display to match the width of
the screen.
NOTE
zA printer (sold separately) is required to print out this Reference Manual
zDepending on the printer, the illustrations and screen samples may not be printed
clearly
1Confirm the page to be printed.
zTo print out only the page currently being displayed: Leave that page on the
display
zTo print out a specified page: Confirm the page number
2Click on .
3Set [Printer], [Print Range], and other settings, and click [OK].
zIf the page is printed with a different orientation: Remove the check mark from
[Auto-Rotate and Center]
Print this Reference Manual

8
Using the Touch Pad
Use the touch pad to move the cursor on the screen and perform computer operations.
A. Work Surface (touch pad)
B. Left Button
C. Right Button

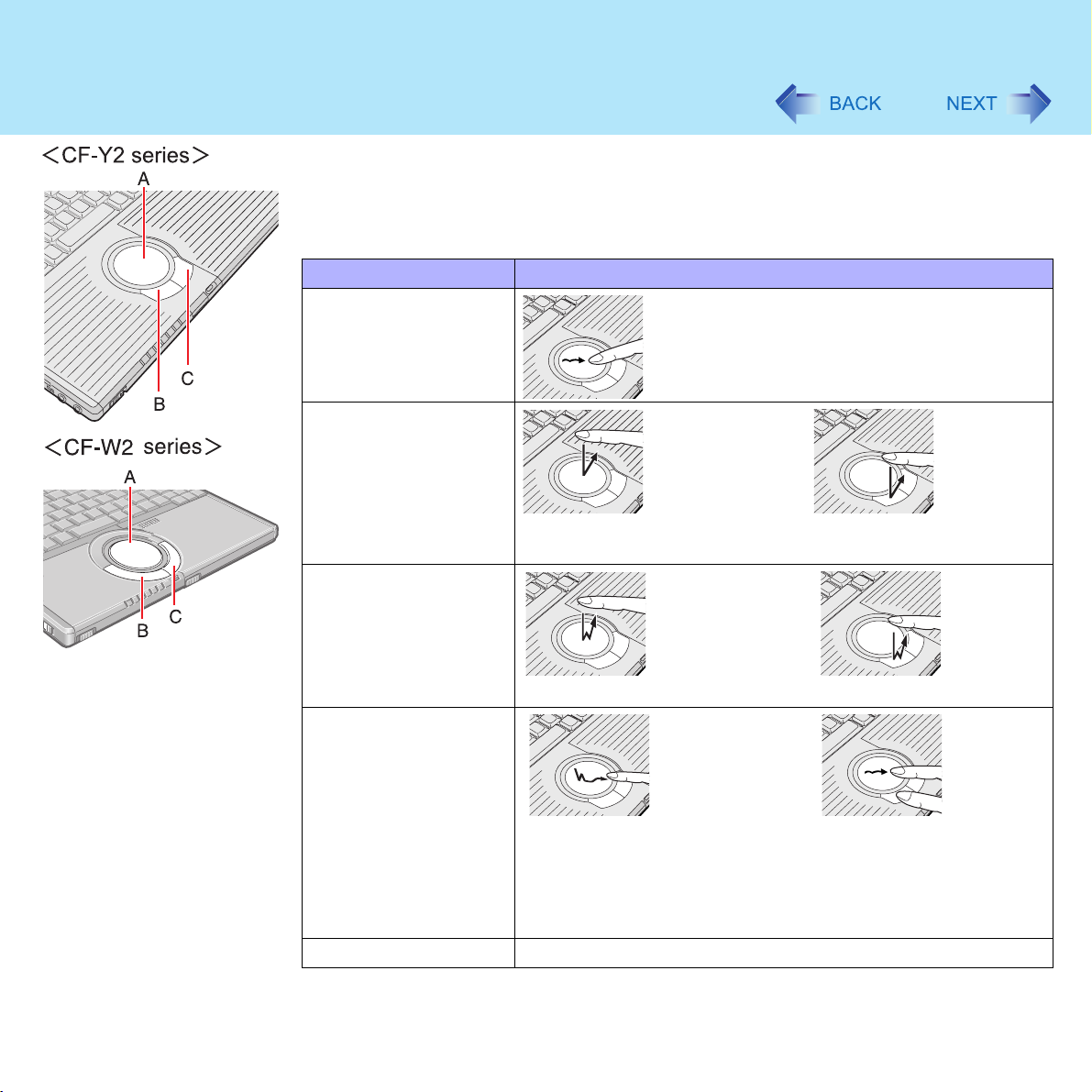

Function Operation (Following illustrations are CF-Y2 series)
Moving the Cursor
Move the tip of your finger lightly over the work
surface.
Tapping/Clicking
tapping or clicking
To right-click: Can only be performed by clicking the right button.
Double-Tapping
/Double-Clicking
double-tapping or double-clicking
Dragging
Two quick taps, but on the second tap leaving your finger down
(applying pressure) and moving it on the work surface.
or
While holding down the button, moving your finger on the work
surface.
Vertical/Horizontal Scroll Trace a circle around the touch pad. (Îpage 9)

9
Using the Touch Pad
NOTE
zYou can change the speed of the double-click or the operations of mouse buttons
using [Mouse Properties] screen
To display [Mouse Properties]:
Click [start] - [Control Panel] - [Printers and Other Hardware] - [Mouse]
zWhen an external mouse is connected and the cursor does not operate properly:
In the [Main] menu of the Setup Utility, set [Touch Pad] to [Disable]. When you want to
use the touch pad again, return the setting to [Enable] (Îpage 151)
zWhen using an external mouse: Îpage 125
When the cursor doesn’t move the way you want it to
zSensitivity when touching the touch pad can be adjusted (Îpage 15)
There are two ways of scrolling with the touch pad: the Touch Pad utility, and the Virtual Scroll
function. You cannot use both functions at the same time.
The Touch Pad utility is enabled at the time of purchase.
zThe Touch Pad utility
• You can scroll continuously by tracing a circle on the touch pad.
• This is designed for ease of use, in keeping with the shape of the touch pad.
zThe Virtual Scrolling Function (Îpage 14)
• You can scroll vertically (or horizontally) by tracing repeatedly in the desired direction.
• This is the same operation as that used on square touch pads installed in other
computers.
Scroll
Vertical scroll It can be used at the time of purchase.
Horizontal scroll A setting is required to use the horizontal scroll. (Îpage 10)

10
Using the Touch Pad
zYou can use separate settings for each account regarding whether to use the Touch Pad
utility or the Virtual Scroll function.
Using the Touch Pad Utility
You can scroll easily by tracing a circle on the touch pad.
NOTE
zIn some cases, such as when using an external mouse or installing a driver for an
external mouse, or when using certain applications, the operations may differ, or the
scroll function may not operate properly.
zOn screens that can only scroll in one direction, either vertical or horizontal, the scroll
function will only work in that direction regardless of the operation of the touch pad.
(For example, on a screen that will only scroll horizontally, even if you execute a
vertical scroll, the screen will scroll horizontally.)
1Make the following settings to use the horizontal scroll.
Once the settings have been made, it is not necessary to make the same settings
the next time.
AClick on the Scroll Icon on the notification area at the bottom right of the
screen, and click [Settings].
If the icon is not displayed, click on [start] - [All programs] - [Panasonic] -
[Touch Pad utility settings].
BAdd a check mark for [Use horizontal scroll function] in the [General settings]
screen, and click [OK].
2Display the scrollable screen.
Vertical scroll The virtual scroll function must be set to enable.
Horizontal scroll

11
Using the Touch Pad
3Place the cursor over the area that you want to scroll, and tap(click).

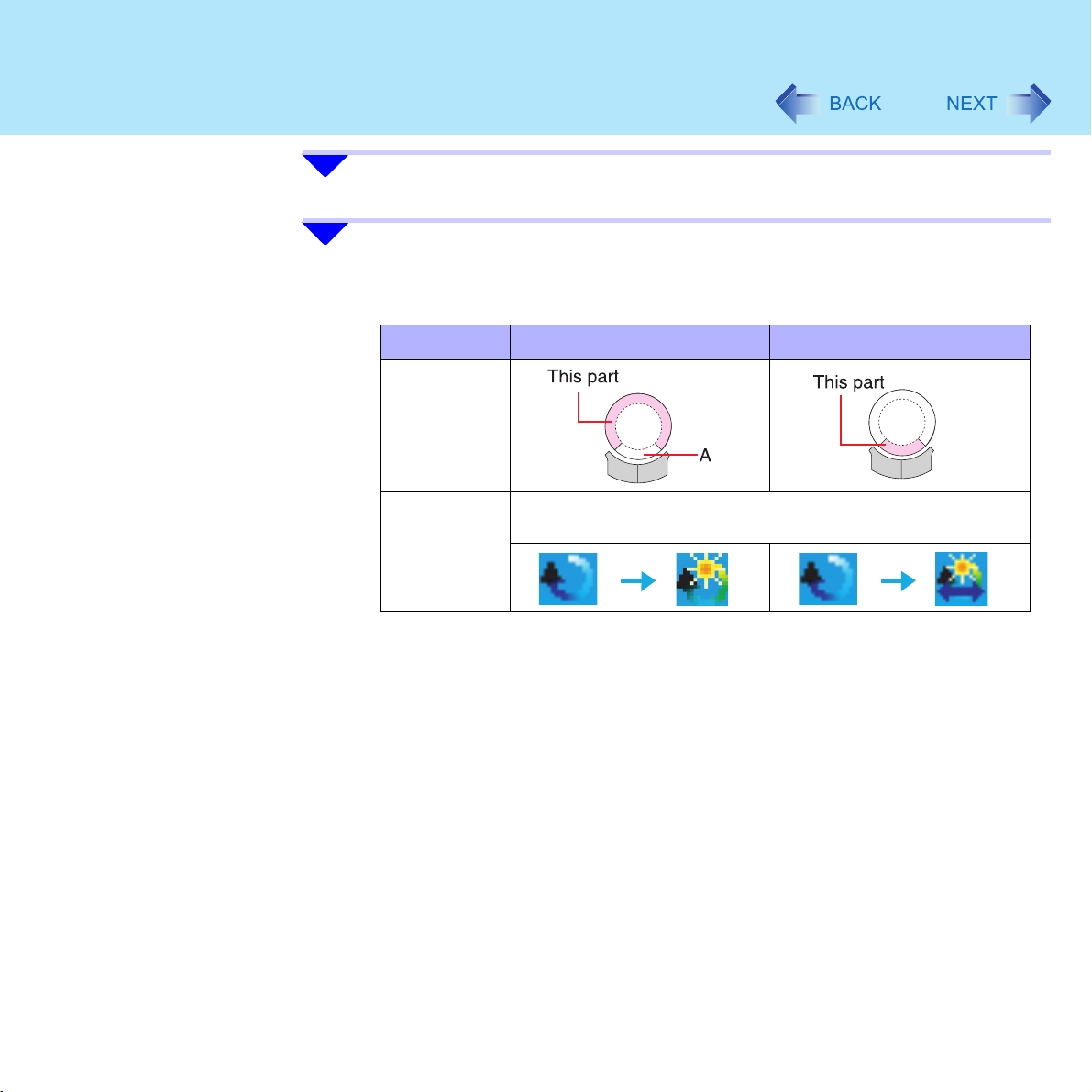

4Lift up your finger, and place it in the area around the touch pad
(See diagram below)
(Following illustrations are CF-Y2 series)
*1 If the horizontal scroll function has not been enabled, the segment shown in the diagram
above (A) is also included in the position where the finger is placed.
*2 If the horizontal scroll function has not been enabled, if the application software is not
compatible with the horizontal scroll on the Touch Pad utility, or if the cursor is not placed
over the area that you want to scroll, then any scrolling will be vertical scrolling.
Vertical scroll*1 Horizontal scroll*2
Position
where finger
is placed
Icon on the
notification
area
When you place your finger on the touch pad, the icon
changes.

12
Using the Touch Pad

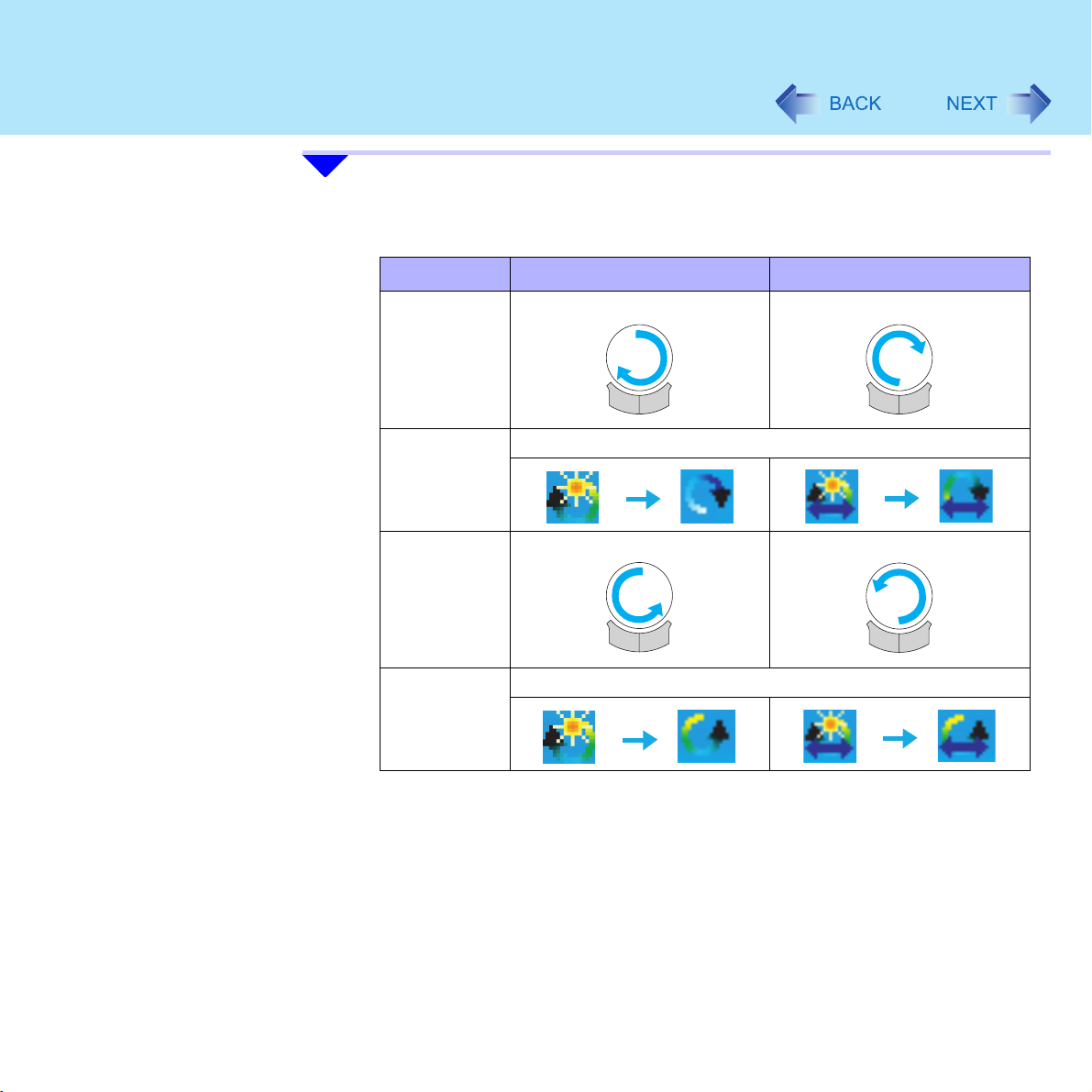

5Trace a circle around the touch pad without lifting your finger from the
pad.
(Following illustrations are CF-Y2 series)
*3 If the horizontal scroll function has not been enabled, if the application software is not
compatible with the horizontal scroll on the Touch Pad utility, or if the cursor is not placed
over the area that you want to scroll, then any scrolling will be vertical scrolling.
zOn screens that cannot be scrolled (e.g., desktop screen), if you scroll, the
computer may try to scroll the screen, causing the cursor to freeze. If this
happens, remove your finger from the touch pad and begin again, this time
starting from the center of the touch pad
Vertical scroll Horizontal scroll*3
Trace clock-
wise
To scroll down To scroll right
Icon on the
notification
area
While scrolling, the icon will rotate clockwise.
Trace
counter-clock-
wise
To scroll up To scroll left
Icon on the
notification
area
While scrolling, the icon will rotate counter-clockwise.

13
Using the Touch Pad
6Once scrolling has begun, continue to trace a circle on the touch pad
without removing your finger from the pad.
zAs long as you are tracing a circle, you can continue scrolling using any position
on the touch pad. It is not necessary to trace a circle around the edge of the pad
zTo scroll in the opposite direction, trace a circle in the opposite direction without
removing your finger from the touch pad
7When you finish scrolling, remove your finger from the touch pad.
NOTE
zYou can change various touch pad settings using the following procedure:
AClick on the icon on the notification area, and then click [Settings].
If the icon is not displayed on the notification area:
Click [start] - [All Programs] - [Panasonic] - [Touch Pad utility settings].
BChangeable settings are:
zGeneral settings
• Use Touch Pad function (On/Off)
• Display icon in task tray (On/Off)
• Animated icon in task tray (On/Off)
• Rotate icon when wheel is operated (On/Off)
• Scroll item under mouse cursor (On/Off)
• Use horizontal scroll function (On/Off)
• Scroll speed setting
zInitial scope
• Set initial scroll scope
CClick [OK].

14
Using the Touch Pad
Using the Virtual Scrolling Function
Set the Virtual Scrolling function using the following procedure. The Touch Pad utility will be
disabled.
1Click on the icon on the notification area, and click [Settings].
If the icon is not displayed on the notification area:
AClick [start] - [All Programs] - [Panasonic] - [Touch Pad utility settings].
2Remove a check mark from [Use Touch Pad function] in [General set-
tings], and then click [OK].
The icon on the notification area will change to the icon.
3Click [start] - [Control Panel] - [Printers and Other Hardware] -
[Mouse] - [Device Settings].
4Click the device name in [Devices] (e.g., Synaptics TouchPad), then
click [Settings].
5Click [Virtual Scrolling], add a check mark for the scroll functions you
want to use, then click [OK].

15
Using the Touch Pad
6Click [OK] at [Mouse Properties].
NOTE
zTo begin using the Touch Pad utility again:
AConduct steps 3to 4in previous page.
BClick [Virtual Scrolling], remove a check mark from [Enable vertical scrolling] and
[Enable horizontal scrolling], then click [OK].
CClick [OK] at [Mouse Properties].
DClick [start] - [All Programs] - [Panasonic] - [Touch Pad utility settings].
EClick [General settings], add a check mark for [Use Touch Pad function], then click
[OK].
zBecause the Touch Pad utility and the Virtual Scrolling function both offer scrolling
functions that use the touch pad, these two features cannot be used simultaneously. If
you try to use them at the same time, a message may be displayed asking you if you
want to enable the Touch Pad utility.
• To use the Touch Pad utility:
Click [Yes]. The Virtual Scrolling function will be disabled
• To use the Virtual Scrolling function:
Click [No].
Adjust [PalmCheck] and [Touch Sensitivity] using the following procedure:
1Click [start] - [Control Panel] - [Printers and Other Hardware] -
[Mouse] - [Device Settings].
2Click the device name in [Devices] (e.g. Synaptics TouchPad), then
click [Settings].
Adjusting the Sensitivity when Touching the Touch Pad

16
Using the Touch Pad
3Double-click [Sensitivity], then click [PalmCheck] or [Touch Sensitiv-
ity].
4After making the adjustment, click [OK].
PalmCheck™
zWhen operating the keyboard, if your hand touches the touch pad unintentionally causing
the cursor to move, adjust the sensitivity using "PalmCheck™"
• By dragging slide bar (A) to the [Maximum] position, you can prevent the cursor from
moving unintentionally
• By dragging slide bar (A) to the [Minimum] position, you can enable the cursor to move
even with a light touch of the palm on the touch pad
Touch Sensitivity
zWhen operating the touch pad, if your finger touches the touch pad, unintentionally
causing the cursor to move; or if the cursor does not move even when you move your
finger above the touch pad, adjust the sensitivity using the "Touch Sensitivity" setting
• When slide bar (B) is dragged to the [Heavy Touch] position, the cursor will only move
with a strong touch on the touch pad
• When slide bar (B) is dragged to the [Light Touch] position, the cursor will move even
with a light touch on the touch pad
NOTE
zClick on [Defaults] to return the settings to their original positions at the time of
purchase

17
Using the Touch Pad
zBy design, the touch pad is to be used with a fingertip only. Do not place any object on the
work surface or press down forcefully with sharp-pointed objects (e.g., nails) or hard
objects that can leave marks (e.g., pencils and ball point pens)
zTry to avoid having any harmful substances, such as oil, come in contact with the touch
pad. The cursor may not work properly in such cases
zWhen the touch pad becomes dirty:
Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied with
detergent diluted with water and then thoroughly wrung.
Do not use benzene or thinner, or rubbing alcohol. Doing so may adversely affect the
surface, e.g., discoloration. In addition, do not use commercially available household
cleaners and cosmetics, as they may contain components harmful to the surface
Handling the Touch Pad

18
Using the Fn Key
If you press a key for a character or symbol contained in a key while pressing the Fn key, the
function for the character or the symbol contained in that key will be executed.
CAUTION
zDo not press the following key combinations repeatedly in (quick) succession. Also, do
not press different key combinations quickly one after another (Execute the following
operation after the operation of pressing combined buttons has been reflected.)
zDo not press the following key combinations while using the touch pad (external
mouse) or other keys
NOTE
zDo not press the following key combinations until you log-on to Windows and the hard
disk drive indicator turns off
Note, that pop-up windows will not be displayed in the Setup Utility, however, the key
combinations the
Fn + F1 key, the Fn + F2 key and the Fn + F3 key are operable in the
Setup Utility.
zThe key combinations (Îpage 19) may not work while some applications are
running.
The pop-up window may not be displayed, depending on the state of the application
you are using (e.g., when [Command Prompt] is set to "Full Screen")
zWhen using with the
Fn and Ctrl functions interchanged (Îpage 151)
• Press the
Ctrl key instead of the Fn key for the desired Fn function
• It is not possible to replace the markings on the keys, or the keys themselves

19
Using the Fn Key
Key Functions Pop-up Window
(Displayed after
logging on to
Windows)
Fn + F1
Fn + F2
LCD brightness control
(
Fn + F1 = down / Fn + F2 = up)
Pressing this key combination adjusts the LCD
brightness control.
You can select a different brightness level setting
for when the AC adapter is connected and for when
it is not connected.
(At the time of purchase, the LCD brightness is set
to be darker when the AC adaptor is not
connected.)

20
Using the Fn Key
Fn + F3 Display change (When the external display is
connected)
By pressing this key combination, you can select
either an external display, internal LCD or
simultaneous. (Îpage 118)
CAUTION
zDo not press another key until the display
destination has been completely switched
zDo not press this key combination in the
following conditions:
• When a video such as a DVD video or an
MPEG file is playing
• When the Extended Desktop is being
utilized
• When a game such as pinball is displayed
NOTE
zSimultaneous display cannot be used until
Windows startup is complete (during Setup
Utility etc.). When the
Fn + F3 key is
pressed, the screen is displayed on the
external display or internal LCD
zThis key combination does not work when
[Command Prompt] is set to "Full Screen"
zWhen switching to a different user with the
Fast User Switching function, this key
operation may not work. In this case, log off
all users and restart the computer
Key Functions Pop-up Window
(Displayed after
logging on to
Windows)
