Panasonic FY-E15PM1 Technical manual

FY-E15PM1 FY-E25PM1 FY-E35PM1
FY-E15PM1L FY-E25PM1L FY-E35PM1L
CONTENTS:
SAFETY PRECAUTIONS ·························· 3
INSTALLATION CAUTIONS ··················· 4 7
OPERATING REQUIREMENTS ··················· 8
FEATURES ·······································9
OPTIONAL ACCESSORIES ······················ 9
PART NAME AND DIMENSIONS············10 13
HOW TO INSTALL······························· 14
TEST RUN ······································· 15
OPERATION····································· 15
USE AND MAINTENANCE INSTRUCTIONS
···16 18
HOW TO MAINTENANCE ···················18 20
WIRING DIAGRAM ··························21 23
TROUBLESHOOTING ··························· 23
SPECIFICATIONS ···················· BACK COVER
Operation Instruction·················· 1 book
(Please be sure to give them to customer)

Please read these instruction carefully before attempting to install, operate or service the
panasonic product. Please carefully read “INSTALLATION CAUTIONS”(P. 4~7) of this
instructions before installation. Failure to comply with instructions could result in personal
inury or property damage. Please explain to users how to operate and maintain the product
after instruction, and this booklet should be presented to users. Please carefully read
“USE AND MAINTENAANCE INSTRUCTIONS”(P. 16~18) of this instructions before operation.
Please be sure to give this instruction to end user.
4~7
16~18

This product is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the product by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the product.
Make sure to shut off the power before cleaning the product.
In order to prevent the damage to using personnel and other personnel and avoid the loss of property, please be
sure to comply with following cautions.
The following marks are used to distinguish the damage from damage degree caused by ignoring the mark or
operating by wrong methods.
The following symbols are used to describe the type of instruction to be observed.
Describe a potential hazard could cause the death or serious injury.
Describe a hazard could cause injury and property loss.
These symbols represent the prohibited item we should not perform.
These symbols represent the compulsory item we should follow with.
These symbols represent the item you should pay attention to.
SAFETY PRECAUTIONS <must be complied>

INSTALLATION CAUTIONS
Don’t use the power besides the alternate
current 220V/50Hz.
Improper practice of installation could cause
an electric shocks or a fire.
Carry out the installation accurately in line
with this instruction.
Fault or electric leakage cause the electric shock.
Ground connection.
The external air intake opening should be
positioned away from the exhaust
openings of combustion gases etc. The
intake of such gases could cause a lack
of oxygen in the room. The external air
intake opening should not be positioned
where discharged air may directly enter
it. A situation like this lead to the room
beiy contaminated and this may pose a
healthy risk.
Please conduct the ground connection in the following
methods.
If employing other methods, it may cause the
insufficient ground connection. Don’t connect the
ground connection with gas pipeline, water pipeline,
lightening rod and phone landline. Wrong ground
connection may cause electric shock.
When you want to pierce the metal duct
through the metal lathe or the wire lath or
the metal plate of the wooden facility, do
not forget to insulate electrically between
the duct and the wall.
Otherwise, it would cause an electrical
shock or electric leakage.
It may cause the fire and electric shock.

It may cause the injury.
Carry out electrical work in accordance
with the laws and regulations prevailing in
the country concerned, technical standard
and explanation for work, and make
absolutely sure that an exclusive circuit
breaker is used. Any insufficient capacity
of power circuit and improper work can
result in shock and fire hazard.
Choose the installation place where is
endurable in quality as well as in weight,
then install the unit accurately with
adequate strength and completeness of
installation in accordance with operation
instruction. Otherwise, it is likely to cause
an electric shock, a fire, a drop of unit,
thus causing the injury on the human body.
Dropping may
cause the injury.
Please don’t insert the fingers and sticks
into the rotation part during the operation.
Please install the main unit in location
where dust and dirt can’t come in.
Large amount of dirt and dust clogged in
filter will cause the lack of oxygen in room.
Heat-insulate the outdoor duct (including
the indoor side, if necessary) to prevent
dewing. If heat insulation is not adequate,
water likely goes indoor and wets the
household properties.
Owing to the different installation position
for special purpose circuit breaker,
sometimes it’s required to install the
anti-creeping circuit breaker.
It may cause the electric leakage if not
installing the anti-creeping circuit breaker.
Please wear the gloves and other
protective tools to avoid the injury.
It must use the specified part during the
installation (include the accessories).
It may cause the unit dropping, fire and
electric shock if not using the specified parts.
Please install the anti-bird net or similar
thing in air duct.
Please remove the abnormities such as bird
net, otherwise it may cause the lack of
oxygen in room.
Install the outdoor duct in a falling gradient
towards the outside so as to prevent water
from coming in.
Otherwise, the building is likely to be
flooded, wetting the household effects.

(1) excessive bending (2) multi-times bending (3) reduction the diameter of connecting duct
Please avoid the following duct installation.
It may cause the unexpected accident.
Please don’t install the unit in location
where indoor temperature is below the
outdoor temperature.
It may cause the electric shock or
abnormal operation.
Provide an exclusive circuit breaker that
can completely contacts on all the poles
by more than 3mm through direct
connections to the power terminals.
Depending upon the environment for
installation, it becomes necessary to install
an earth leakage breaker.
Don’t install in location where may be
exposed to the combustible gas leakage.
In case of gas get together around the unit,
it may cause the fire.
Connect the power cord and the lead wire
with accuracy using the specified wires
and fix them firmly so as not to put the
outer stress of wires on the pin connecting
area. Incomplete connection or fixing is
likely to cause a heat generation or fire.
Please don’t face it to the air outlet
(especially when operating).
The dirt may fly into your eyes.
Don’t twist the unit or
conduct the overload
force to unit in construction.
Dropping may cause the injury.
Install the power cord and the lead wire
with accuracy so the power source cover
may not float. If the installation curves
inappropriately, the pin connection area is
likely to cause a heat generation, a fire and
an electric shock due to dust or powder.
Please take care of it during moving the
unit.
Improper hanging and moving may cause
the dropping, result in injury.
Although the power is shut off, it may get
involved to the rotation part, result in injury.
Please pay attention to the rotation of
impeller caused by backward air in air duct.
Please firmly install the product and
components.
Otherwise, it may cause the injury brought
by falling-off.

Locations with large amounts of cooking fumes.
The unit doesn’t work if the filter or heat exchange core
become clogged with oil which may cause fire.
Locations exposed to high temperature or direct
flame.
Locations with high humidity.
Avoid installing the ERV in locations which reach
temperature of 40 or above. Usage under high
temperature conditions may cause distortion of filter
or heat exchange core or motor burn-out.
Don’t install it in the following locations.
Make sure that inspection opening is provided so that filter and heat exchange element maintenance and
periodic spot checks of unit can be easily carried out.
Don’t install the unit in locations such as machinery or
chemical plants where it will be exposed to noxious
gases containing acids, alkali, organic solvents, paint
fumes, etc., to gases containing corrosive ingredients,
or where dust or oil mist will be produced.
(Gas poison, corrosion and degradation accrued in
unit may cause the fire.)
Do not install in high humidity locations such as bathrooms.
Dew occurred in unit may cause electric shock, short circuit,
other electric accident and produce the dewing water drops.

OPERATING REQUIREMENTS
Outdoor air condition
Temperature range -10 ~40 relative humidity 85% or less.
Indoor air condition
Temperature range -10 ~40 relative humidity 85% or less.
Installation requirements: same as the indoor air conditions.
The product is forbidden to use in locations where ambient temperature may sharply vary, even if it falls
into range of specified usage temperature.
The product should be installed 2.3m above from the ground to avoid any accident.
Energy Recovery Ventilator is an appliance which will suck the fresh outdoor air into room, the refore, in case
insects exists in ambient environment, that may bring the insects into the product from pipe hood.
The insects exists subject to the ambient environment, it's recommended to use the pipe hood with fly net when
using the product in locations where it's easy to attract the insects like near to exhaust air charging opening
near to street light.
As shown in the right figure, it’s supposed that a high temperature absorbing air condition A and a low
temperature absorbing air condition B are plotted on the line figure, then a high temperature air A is
heat-exchange by the unit and Point C represent the trend of saturation curve. In this case, it will cause the
dew or frost inside the unit. To avoid this, you are required to heat a low temperature
air B up to B’ so as to get C’ below the saturation curve before using the unit.
Avoid the entering of insects

FEATURES
1. Energy-saving You can save the electric bill for air conditioner as a result of recovering the loss of
energy caused by ventilation.
2. Facility saving As part of energy can be recovered through greatly reduction of fresh air load, the
similar air conditioning equipment can be properly miniaturization.
3. Humidity function When it's heat in room,reduce the humidity of outdoor fresh air to make it close to that
of indoor.
When it's cool in room, increase the humidity of outdoor fresh air to make it close to that
of indoor.
4. Comfortable ventilation The indoor temperature varies little during ventilation, it also can be used for ventilation
in high enclosed room due to the simultaneously operation of air supplying and
discharging.
5. Isolation effect There's isolation effect in air path and heat exchange core,which will prevent the
outdoor noise from spreading to indoor or prevent the indoor sound from spreading to
outdoor to keep a good environment for office or shop.
OPTIONAL ACCESSORIES
FY-E15PM1
FY-E15PM1L
FY-E25PM1
FY-E25PM1L
FY-E35PM1
FY-E35PM1L
Model
Filter
Filter
Please contact the dealer to purchase.
FY-FPE15M1
FY-FPE25M1
FY-FPE35M1

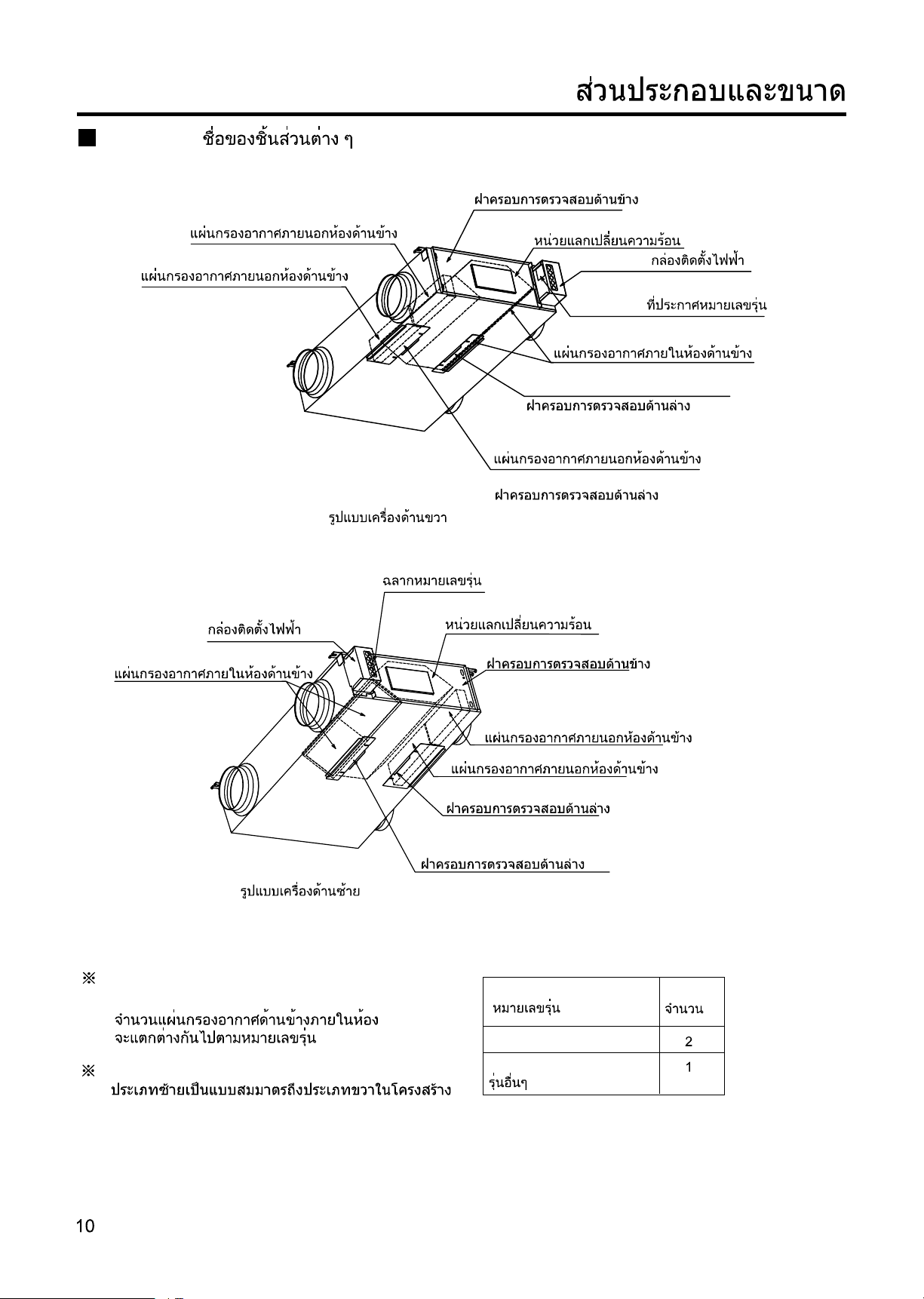

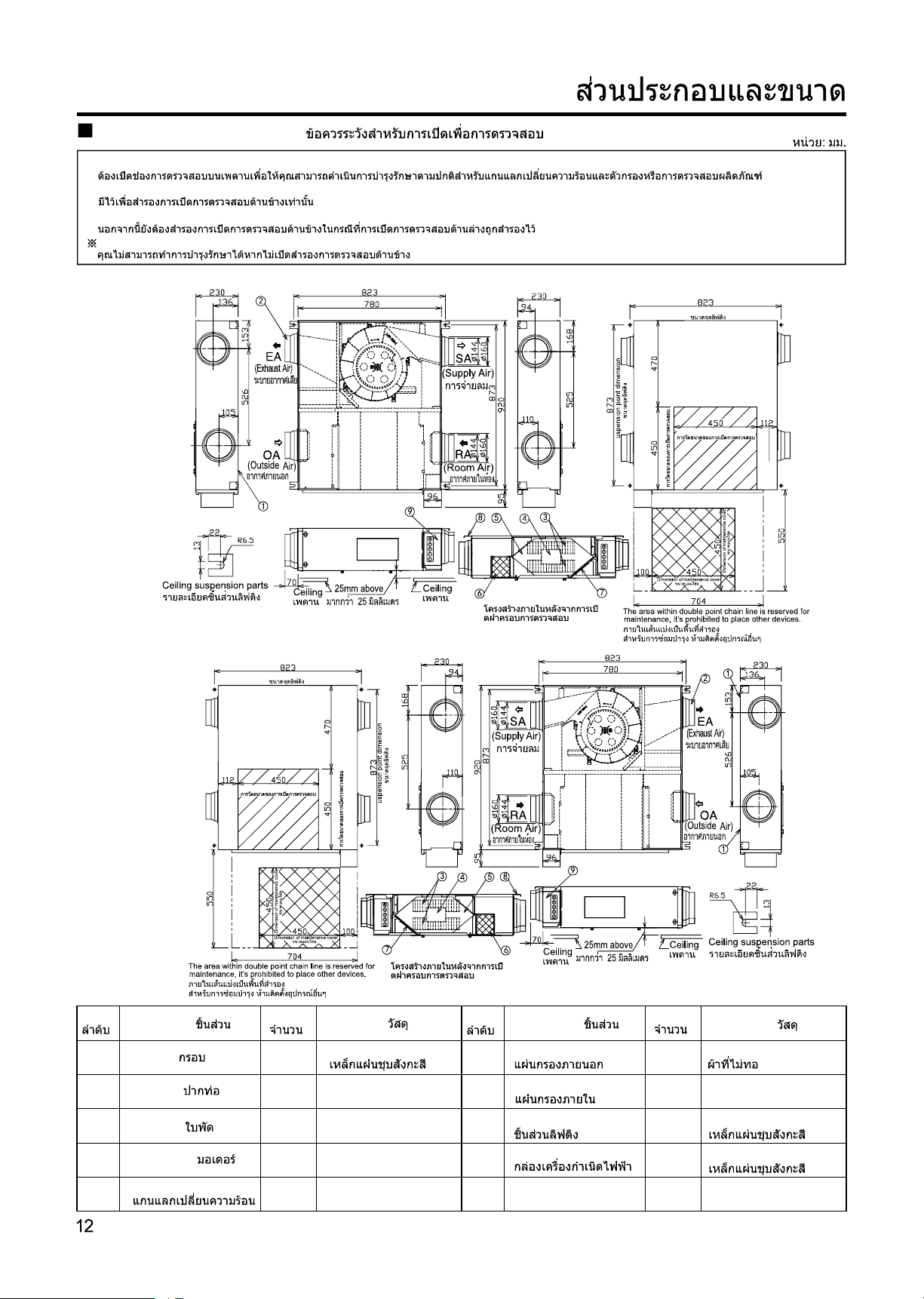

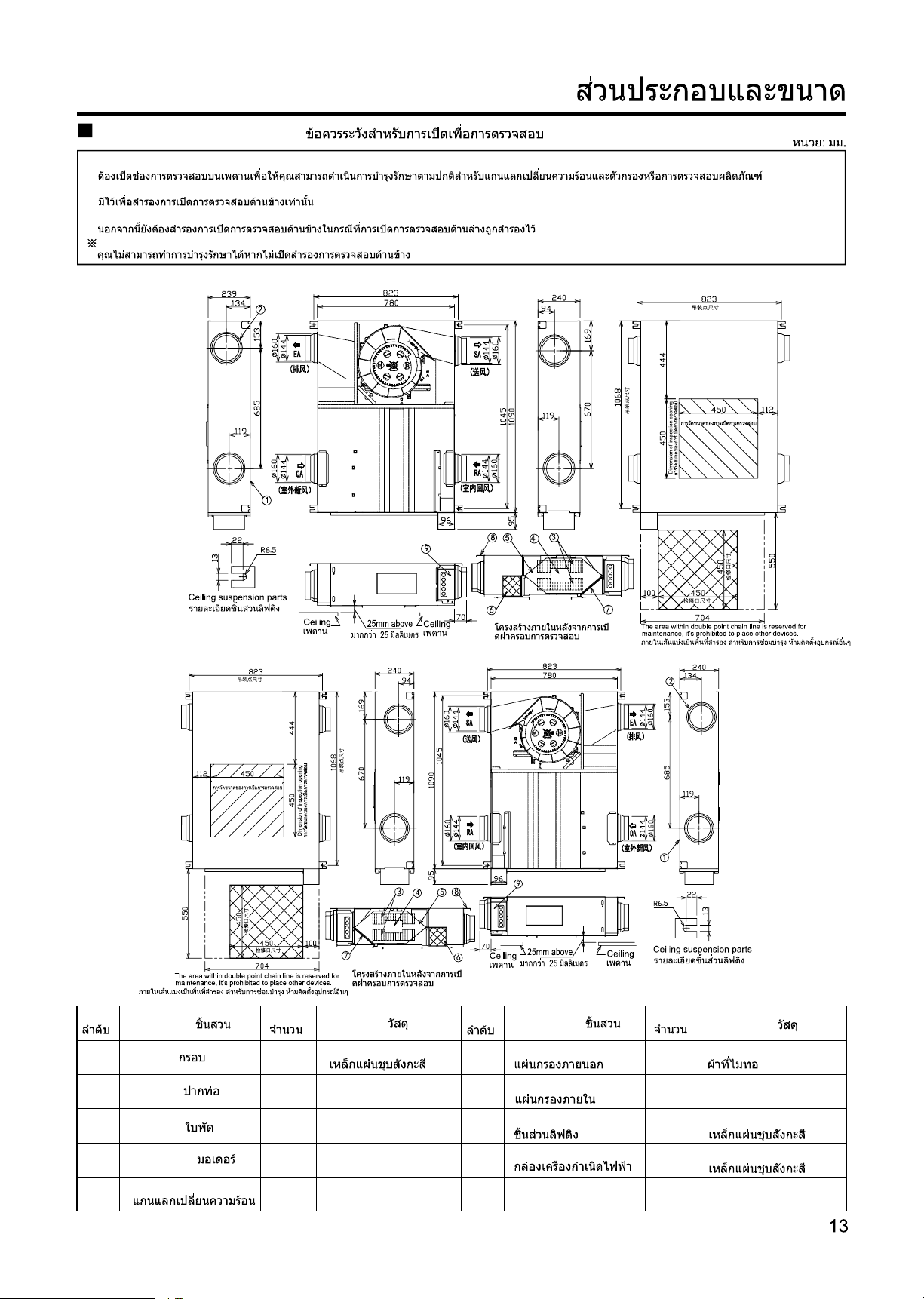

PART NAME AND DIMENSIONS
Part Name
outdoor filter
outdoor filter
indoor filter
model label
switch box
bottom inspection cover
bottom inspection cover
side inspection cover
heat exchange core
FY-E**PM1(right type)
FY-E**PM1( )
model label
switch box
side inspection cover
outdoor filter
outdoor filter
bottom inspection cover
indoor filter
heat exchange core
bottom inspection cover
FY-E**PM1L(left type)
FY-E**PM1L( )
Model Quantity
Other model
FY-E35PM1 FY-E35PM1L
1 The amount of indoor filter is different owing
to model difference.
2 Left type is symmetric to right type in structure.
outdoor filter

PART NAME AND DIMENSIONS
FY-E15PM1
Cautions for inspection opening Unit:mm
1. Inspection opening must be reserved on ceiling so that you can perform the routine maintenance for heat exchange core and filter or checking of products.
2. It's available to only reserve the side inspection opening.
3. It's also required to reserve side inspection opening in case bottom inspection opening is reserved.
You can't conduct the maintenance without reservation of side inspection opening.
Suspension point dimension
S
Dimension of inspection opening
Dimension of inspection opening
Suspension point dimension
S
Dimension of inspection opening
Internal structure after opening
the inspection cover
Dimension of inspection opening
FY-E15PM1L
Internal structure after opening
the inspection cover
Impeller
Frame
Adapter
Heat exchange core
Ceiling suspension part
Part name
No. Quantity Material
Fan motor
Outdoor filter
Indoor filter
Switch box
Galvanized steel sheet
ABS
PP
Special spaper+resin
Nonwoven fabric
Galvanized steel sheet
Galvanized steel sheet
Part name
No. Material
1
2
3
4
5
6
7
8
9
1
4
2
1
1
1
1
4
1
Quantity

PART NAME AND DIMENSIONS
FY-E25PM1
FY-E25PM1L
Suspension point dimension
S
Dimension of inspection opening
Internal structure after opening
the inspection cover
Dimension of inspection opening
Suspension point dimension
S
Dimension of inspection opening
Internal structure after opening
the inspection cover
Dimension of inspection opening
Cautions for inspection opening Unit:mm
1. Inspection opening must be reserved on ceiling so that you can perform the routine maintenance for heat exchange core and filter or checking of products.
2. It's available to only reserve the side inspection opening.
3. It's also required to reserve side inspection opening in case bottom inspection opening is reserved.
You can't conduct the maintenance without reservation of side inspection opening.
Impeller
Frame
Adapter
Heat exchange core
Ceiling suspension part
Part name
No. Quantity Material
Fan motor
Outdoor filter
Indoor filter
Switch box
Galvanized steel sheet
ABS
PP
Special spaper+resin
Nonwoven fabric
Galvanized steel sheet
Galvanized steel sheet
Part name
No. Quantity Material
1
2
3
4
5
6
7
8
9
1
4
2
1
1
1
1
4
1

PART NAME AND DIMENSIONS
FY-E35PM1
FY-E35PM1L
Internal structure after opening
the inspection cover
Dimension of inspection opening
Internal structure after opening
the inspection cover
Dimension of inspection opening
Cautions for inspection opening Unit:mm
1. Inspection opening must be reserved on ceiling so that you can perform the routine maintenance for heat exchange core and filter or checking of products.
2. It's available to only reserve the side inspection opening.
3. It's also required to reserve side inspection opening in case bottom inspection opening is reserved.
You can't conduct the maintenance without reservation of side inspection opening.
Impeller
Frame
Adapter
Heat exchange core
Ceiling suspension part
Part name
No. Quantity Material
Fan motor
Outdoor filter
Indoor filter
Switch box
Galvanized steel sheet
ABS
PP
Special spaper+resin
Nonwoven fabric
Galvanized steel sheet
Galvanized steel sheet
Part name
No. Quantity Material
1
2
3
4
5
6
7
8
9
1
4
2
1
2
2
2
4
1

FY-E**PM1
FY-E**PM1 series
FY-E**PM1L
FY-E**PM1L series
Installation diagram
HOW TO INSTALL
Installation method
Install 4 ceiling suspension bolts (separately buy:M10)
A
B
Please align the ceiling
suspension part of main
unit with ceiling
suspension bolts.
FY-E**PM1 FY-E**PM1L
A
B
Unit:mm
Model A
FY-E15PM1
FY-E15PM1L
B
795
708
FY-E25PM1
FY-E25PM1L 823
873
FY-E35PM1
FY-E35PM1L 823
1045
Please adjust the length of ceiling suspension bolt to ensure the distance
between the downside of unit and ceiling is over 25mm, the distance
between the upside of unit and the mounting face of ceiling suspension
bolts is over 20mm.
above 25mm
above 20mm
Fit the ceiling suspension part to its bolts.
Please correctly install the direction of outside air duct.
Correctly install the direction of unit (ensure the ceiling suspension is upward).
Install the unit horizontally.
Fix the screws and washers (separately buy).
Ceiling suspension part
Nut
Washer
Seal the joint of adapter and duct with adhesive tape or seal tape
separately buy to avoid air leakage.
Please don't touch the fan motor with hand during duct installation.
Incline the two ducts directly exposed to outside toward ground
gradient 1/100~1/50
Insulate the two ducts directly exposed to outside.
(suggested material: glass wool, thickness 25mm)
outside air duct, exhaust air duct
gradient
adhesive tape
insulation material
(Adaptor and aluminum tape is
requested to insulate.)

TEST RUN
OPERATION
Air volume
After completion, please check the wire connection first and then perform the trial operation.
Please check the status of damper and change of air volume when power is on.
Please shut down the breaker when abnormal operation is found, re-check the wire connection again
Please fix the terminal cover after trial operation.
Switch
On/Off
Ventilation/stop
High/low Check if air volume is changed.
Heat exchange
/Normal ventilation
Damper
close/open
Heat exchange (see the damper closed by opening side maintenance opening)
Normal ventilation (see the damper open by opening side maintenance opening)
Please affix the model label on or around the terminal box. Please don't forget to affix it which is placed together
with instruction in plastic bag.
Heat exchange:
Normal ventilation:
You can increase exhaust air volume to discharge indoor air with this mode when indoor air is polluted.
Notice:With the increasing of exhaust air, negative pressure will be produced in room, outdoor air will
be sucked into the room from the gaps of doors and windows, if you don't expect the above
situation happens, please don't use this function.
Please stop the product at the mode heat exchange
Please use mode heat exchange in winter.
In case we use the mode normal ventilation it's heat in
room in winter condensate water will produce on the surface
of product which may not only stain the ceiling but also cause
the short circuit and electrical leakage.
Please use the switch installed on
the wall (separately sold).
It heat-exchanges indoor air with outdoor air to recover the indoor temperature and humidity, and then bring
the outdoor air into the room.

USE AND MAINTENANCE INSTRUCTIONS
Please entrust the dealer or similarly
qualified person to repair the product
excluding filter maintenance.
Otherwise it may cause the fire, electric
shock and injury.
Don’t turn on/off the switch when
combustible gas leaks.
The sparks of switch may cause the gas
explosion.
If the appliance is not used for a long
time, in order to prevent in from
dropping, it should be removed.
Product should be removed after shutting
down the breaker in case it is not used in a
long time.
Don’t insert fingers or sticks into the
product or air inlet, air outlet.
Otherwise, the operation of rotation part will
cause the body injury.
Professional ventilation should be used
when gas or oil stove is used in room.
Do not use it together with open-burning
appliance (heater).
Otherwise, it may cause a short circuit or an
electric shock.
It may cause electric shock .
Please shut off the breaker before
maintenance.
Otherwise, it may cause a fire, an electric
shock or injury. If the product is required to
be repaired, please contact with the dealer.
Do not clean the product with water.
Don’t turn on/off the switch with wet hands.
Do not transform disassemble or repair
the products by yourselves.
Please wear the gloves during filter
maintenance.
Otherwise, it may cause the injury.
It may cause electric
shock and injury.
Don’t place the burning appliance in
location where the unit blows directly.
Otherwise, it may cause the insufficient
burning.

Please stop the product immediately and
contact with dealer or similarly qualified
person to repair it when abnormal operation
is found like noise, vibration or burnt smell.
Otherwise, it may cause an unexpected
accident.
Please entrust the qualified person to
conduct the electric works, and installation
of product and duct.
It may cause the unexpected accident
when improper installation occurs.
Do not place the animal and plant directly
exposed to discharging air opening.
Otherwise, it may cause the bad effect to
animal and plant.
Please firmly fix the ladder when conducting
the maintenance at height.
Otherwise, falling may cause body injuries.
Please do not place the container with
water on product.
It will wet inside of unit when the water leaks,
which may cause the damage of electric
insulation and electric shock.
The appliance is forbidden to operate
without filter.
The dirt and dust attached to the heat
exchange core will lower its performance,
and meanwhile when they go into room,
they will enter into eyes.
Don’t use the unit near the combustible
spray.
It may cause the fire.
It maintenance (disassembling the
inspection cover), please pay attention to
the dropping of dirt and dust and insects.
Don't incline the product during disassembly.
The accumulated water inside the product
may wet the property in room, please
contact with the dealer or authorized person.
It may enter into eyes.
Please fully confirm the usage for special
purposes.
If the product is used for special purposes
such as preservation of food, animals,
plants, precision instruments and artwork,
it may cause the quality declination.
Do not place the obstacles near the air
intake opening or discharging air opening.
Otherwise, it may cause the injury brought.
Don’t clean the filter by the volatile oil or
metallic brush.
It may damage the filter
when the dirt and dust
come into room, it will
enter into eyes.

HOW TO MAINTENANCE
After using the product for a long time, filter will be clogged with dirt and dust which will reduce the air volume and
get the noise louder. Please do the routine cleaning to the filter depending on the dirty degree.
In case service environment is severe (like place with large amount of dust), it may sharply reduce the air volume
and purification efficiency. Please properly increase the frequency of cleaning or replacement to filter. If service
environment continues to get worse, please shift to the lower notch to reduce the air volume or temporarily stop
using the product.
Please shut down the power before removing the maintenance cover.
Please do the cleaning after firmly fix the ladder and wear the gloves.
Please pay attention to the dropping of component like filte r or screws and other articles like dirt, dust and insects.
It must operate with filter. Turn on /off the switch correctly. It’s forbidden to use the normal
ventilation for the dew will be
produced in and indoor air inlet if
operating the mode normal
ventilation when the room is
heated in winter.
If not using the filter, heat exchange
core is clogged with dirt and dust,
performance will be lowered and
even the unit doesn’t work.
If repeatedly turning on or off the
switch not only cause the wrong
operation but affects the relay
inside and damage it.

Filter maintenance - side inspection method
1.Removal of side inspection cover
Remove the screws fixed on side inspection cover with
screwdriver. Take the side inspection cover out toward
the arrow “A” by rotating the butterfly bolt by 90°
2.Maintenance method for indoor filter
(1) Draw out the indoor filter horizontally.
(2) As to FY-E35PM1 and FY-E35PM1L, remove one heat
exchange core before drawing out another indoor filter.
(3) Clean the dirt and dust attached on indoor filter with
vacuum cleaner.
(4) Please refer to the opposite order to assemble the
indoor filter after cleaning.
3.Maintenance method for outdoor filter
(1) Draw out the outdoor filter horizontally.
(2) As to FY-E35PM1 and FY-E35PM1L, remove one heat exchange core before drawing out another outdoor filter.
(3) Clean the dirt and dust attached on outdoor filter with vacuum cleaner. The damage of outdoor filter may degrade
its performance. Please do not wash the outdoor filter with water.
(4) Outdoor filter should be cleaned once a month, its service life is about 2~4 months.
(5) Please fix the outdoor filter with the reverse order following with the cautions below.
Please fix the outdoor filter according to the indication on filter.
Please firmly fix the side inspection cover with screws to avoid the gaps
HOW TO MAINTENANCE
butterfly bolt fixed screws heat exchange core
Amount of filter is different depending on model.

HOW TO MAINTENANCE
1.maintenance method for indoor filter
(1)
Remove the screws fixed on bottom inspection cover with screwdriver.
Take the bottom inspection cover out toward the arrow “A”.
(2) Draw out the indoor filter toward oblique underneath.
(3) As to FY-E35PM1 and FY-E35PM1L, slide the second
indoor filter toward the arrow (as shown in figure 2) to the
specified position and then remove it toward oblique underneath.
(4)
Clean the dirt and dust attached on indoor filter with vacuum cleaner.
Indoor filter can be used in a whole service life.
(5) Please refer to the opposite order to assemble the indoor filter
after cleaning.
2.Mmaintenance method for outdoor filter
(1) Remove the screws fixed on bottom inspection cover with screwdriver. Take the bottom inspection cover out
toward the arrow “B”. (Please note the outdoor filter is integrated with bottom inspection cover.)
(2) Draw out the outdoor filter horizontally
(3) As to FY-E35PM1 and FY-E35PM1L, slide the second outdoor filter horizontally (as shown in figure 3) to the
particular position and then remove it toward oblique underneath.
(4) Clean the dirt and dust attached on outdoor filter with vacuum cleaner. The damage of outdoor filter may degrade
its performance. Please do not wash the outdoor filter with water.
(5) Outdoor filter should be cleaned once a month, its service life is about 12 months.
(6) Please fix the outdoor filter with the reverse order following with the cautions below.
Please fix the outdoor filter according to the indication on filter.
Please firmly fix the side inspection cover with screws to avoid the gaps.
Notice:
1.Filter replacement standard is evaluated based on the internal standard of our company, it could vary depending
on the actual service environment.
2.The air volume and purification efficiency may decline due to different service environment and service time. When
you observed the air intake side of outdoor filter totally gets black during cleaning the filter, please replace it in time.
Filter maintenance - bottom inspection method
(When setting the down maintenance cover,
meanwhile you must reserve the side maintenance cover in advance.)
