Installation Manual
Additional Digital Cordless Handset
Model No. KX-TGA648E
Thank you for purchasing a Panasonic product.
Please read this installation manual before using the unit and
save it for future reference.
This unit is an additional handset compatible with the
following series of Panasonic Digital Cordless Phone:
KX-TG6481
You must register this handset with your base unit before it
can be used. This installation manual describes only the
steps needed to register and begin using the handset. Please
read the base unit’s operating instructions for further details.
Charge the batteries for about 7 hours before initial use.
TGA648E(e).fm Page 1 Thursday, May 7, 2009 9:18 AM

2 Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333
Accessory information
Supplied accessories
*1 Please read the base unit’s operating instructions for replacement
battery information.
*2 The handset cover comes attached to the handset.
Note:
LPlease read the base unit’s operating instructions for additional/
replacement accessories.
LThis equipment is designed for use in the U.K. and Republic of Ireland.
LIn the event of problems, you should contact your equipment supplier
in the first instance.
Sales and support information
Customer Care Centre
LFor customers within the U.K.: 0844 844 3898
LFor customers within the Republic of Ireland: 01289 8333
LVisit our website for product information:
www.panasonic.co.uk
LE-mail: [e-mail]
Accessory item/Part number Quantity
Charger/PNLC1003ZT 1
AC adaptor/PQLV219EX 1
Rechargeable batteries*1/
HHR-55AAAB or N4DHYYY00005
2
Handset cover*2 1
Belt clip/PNKE1011Z1 1
TGA648E(e).fm Page 2 Thursday, May 7, 2009 9:18 AM

3 Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333
Direct Sales at Panasonic U.K.
LOrder accessory and consumable items for your product with ease and
confidence by phoning our Customer Care Centre Monday - Thursday
9:00am - 5:30pm, Friday 9:30am - 5:30pm (Excluding public holidays).
LOr go on line through our Internet Accessory ordering application at
www.panasonic.co.uk
LMost major credit and debit cards accepted.
LAll enquiries transactions and distribution facilities are provided
directly by Panasonic U.K. Ltd.
LIt couldn’t be simpler!
LAlso available through our Internet is direct shopping for a wide range
of finished products, take a browse on our website for further details.
Setting up
Connection/Wall mounting
Note:
LUse only the supplied Panasonic AC adaptor PQLV219E.
LThe AC adaptor must remain connected at all times. (It is normal for
the adaptor to feel warm during use.)
Hooks
(220-240 V AC,
50 Hz)
25 mm
Screws
(Not supplied)
TGA648E(e).fm Page 3 Thursday, May 7, 2009 9:18 AM

4 Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333

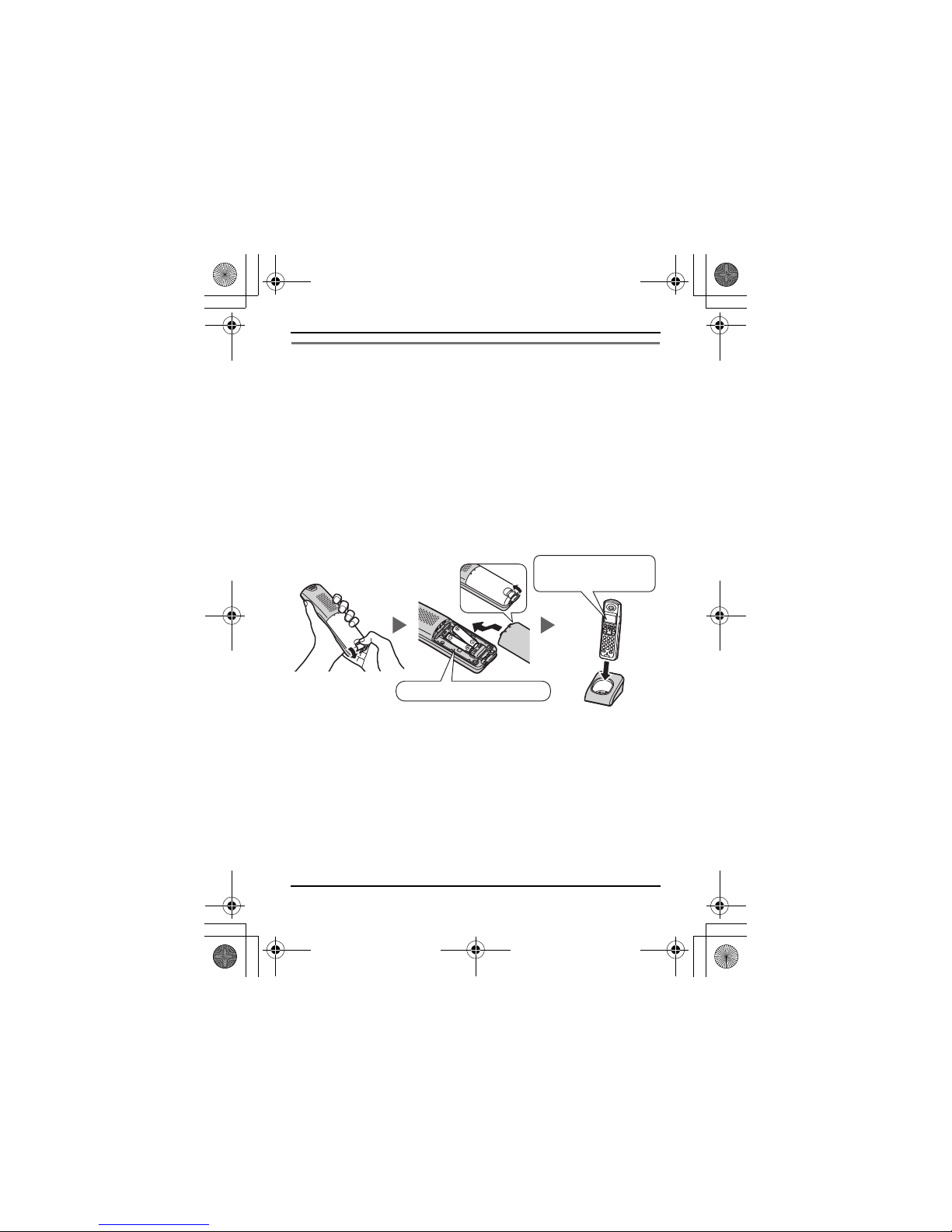

Battery installation/Battery charge
Important:
LUse the supplied rechargeable batteries. For replacement, we
recommend using the Panasonic rechargeable batteries noted in the
base unit’s operating instructions.
LWipe the battery ends (S, T) with a dry cloth.
LAvoid touching the battery ends (S, T) or the unit contacts.
LConfirm correct polarities (S, T).
LUSE ONLY Ni-MH batteries AAA (R03) size.
LDo NOT use Alkaline/Manganese/Ni-Cd batteries.
Charge for about 7 hours.
LWhen the batteries are fully charged, the charge indicator goes off.
Note:
LWhen the language selection is displayed after installing the batteries
for the first time, you can select your desired language.
{V} / {^} : Select your desired language. i M i {ic}
LThe handset display may show “Please wait for 1 minute.”
when the handset is placed on the charger if it is not registered to the
base unit.
LIf the batteries are fully charged, but the operating time seems to be
shorter, clean the battery ends (S, T) and the charge contacts with a
dry cloth and charge again.
Confirm “Charging”
is displayed.
Rechargeable Ni-MH ONLY
TGA648E(e).fm Page 4 Thursday, May 7, 2009 9:18 AM

5 Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333
Registering the handset to the base unit
Ensure that the handset is switched on. If it is not on, press and hold
{ic}for few seconds to turn the handset on.
1Handset:
Lift the handset and press {ic}.
2Base unit:
Press and hold {x} for about 5 seconds, until the registration tone
sounds.
LIf all registered handsets start ringing, press the same button to
stop. Then repeat this step.
3Handset:
Place the handset on the base unit.
LContinue the operation even when the handset display shows
“Please wait for 1 minute.”.
4With the handset still on the base unit, wait until a confirmation tone
sounds and wstops flashing.
Note:
LIf an error tone sounds, or if wis still flashing, register the handset
according to the base unit’s operating instructions.
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection
LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
LUnplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
TGA648E(e).fm Page 5 Thursday, May 7, 2009 9:18 AM

6 Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333
Confirm that smoke has stopped emitting and contact an authorised service
centre.
Installation
LTo prevent the risk of fire or electrical shock, do not expose the product to rain or
any type of moisture.
LDo not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
Operating safeguards
LThe use of excessive sound volume through earphones, headphones, or
headsets may cause hearing loss.
CAUTION
Installation and location
LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet
is installed near the product and is easily accessible.
Battery
LWe recommend using the supplied batteries or additional/replacement batteries
noted in the base unit’s operating instructions for replacement battery
information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
LDo not mix old and new batteries.
LDo not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
LExercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit
may cause the batteries and/or the conductive material to overheat and cause
burns.
LCharge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
LOnly use a compatible base unit (or charger) to charge the batteries. Do not
tamper with the base unit (or charger). Failure to follow these instructions may
cause the batteries to swell or explode.
TGA648E(e).fm Page 6 Thursday, May 7, 2009 9:18 AM

7 Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333
Other information
LOperating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
LUse only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
Routine care
LWipe the outer surface of the product with a soft moist cloth.
LDo not use benzine, thinner, or any abrasive powder.
Splash resistance (handset only)
The handset is designed to be splash-resistant. You can use the handset with wet
hands. (IP 54 Standard)
LDo not immerse in water or leave under running water.
LKeep the handset away from salt water.
LAvoid exposure to prolonged high humidity.
LSince water in headset jack may cause damage, close the headset jack cover
when the optional headset is not in use. When the optional headset is connected,
do not use the handset with wet hands.
LIf the handset is wet, wipe with a soft dry cloth.
LThe base unit/charger is not designed to be splash resistant. Do not place the
handset on the base unit/charger if the handset is wet.
Shock resistance (handset only)
The handset is designed to be shock-resistant, however, it should not be thrown or
stepped on.
Notice for product disposal, transfer, or return
LThis product can store your private/confidential information. To protect your
privacy/confidentiality, we recommend that you erase information such as
phonebook or caller list entries from the memory before you dispose of, transfer,
or return the product.
TGA648E(e).fm Page 7 Thursday, May 7, 2009 9:18 AM

8 Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
These symbols (1, 2, 3) on the products, packaging, and/or accompanying
documents mean that used electrical and electronic products and batteries should
not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points, in accordance with your national
legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save
valuable resources and prevent any potential negative effects on human health and
the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of
sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your
dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
These symbols (1, 2, 3) are only valid in the European Union. If you wish to
discard these items, please contact your local authorities or dealer and ask for the
correct method of disposal.
Note for the battery symbol
This symbol (2) might be used in combination with a chemical symbol (3). In this
case it complies with the requirement set by the Directive for the chemical involved.
123
TGA648E(e).fm Page 8 Thursday, May 7, 2009 9:18 AM

9 Helpline Tel. No.: U.K. 0844 844 3898 R.O.I. 01289 8333
Declaration of Conformity:
LPanasonic Communications Co., Ltd. declares that this equipment is in
compliance with the essential requirements and other relevant
provisions of Radio & Telecommunications Terminal Equipment
(R&TTE) Directive 1999/5/EC.
Declarations of Conformity for the relevant Panasonic products
described in this manual are available for download by visiting:
http://www.doc.panasonic.de
Contact to Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
TGA648E(e).fm Page 9 Thursday, May 7, 2009 9:18 AM

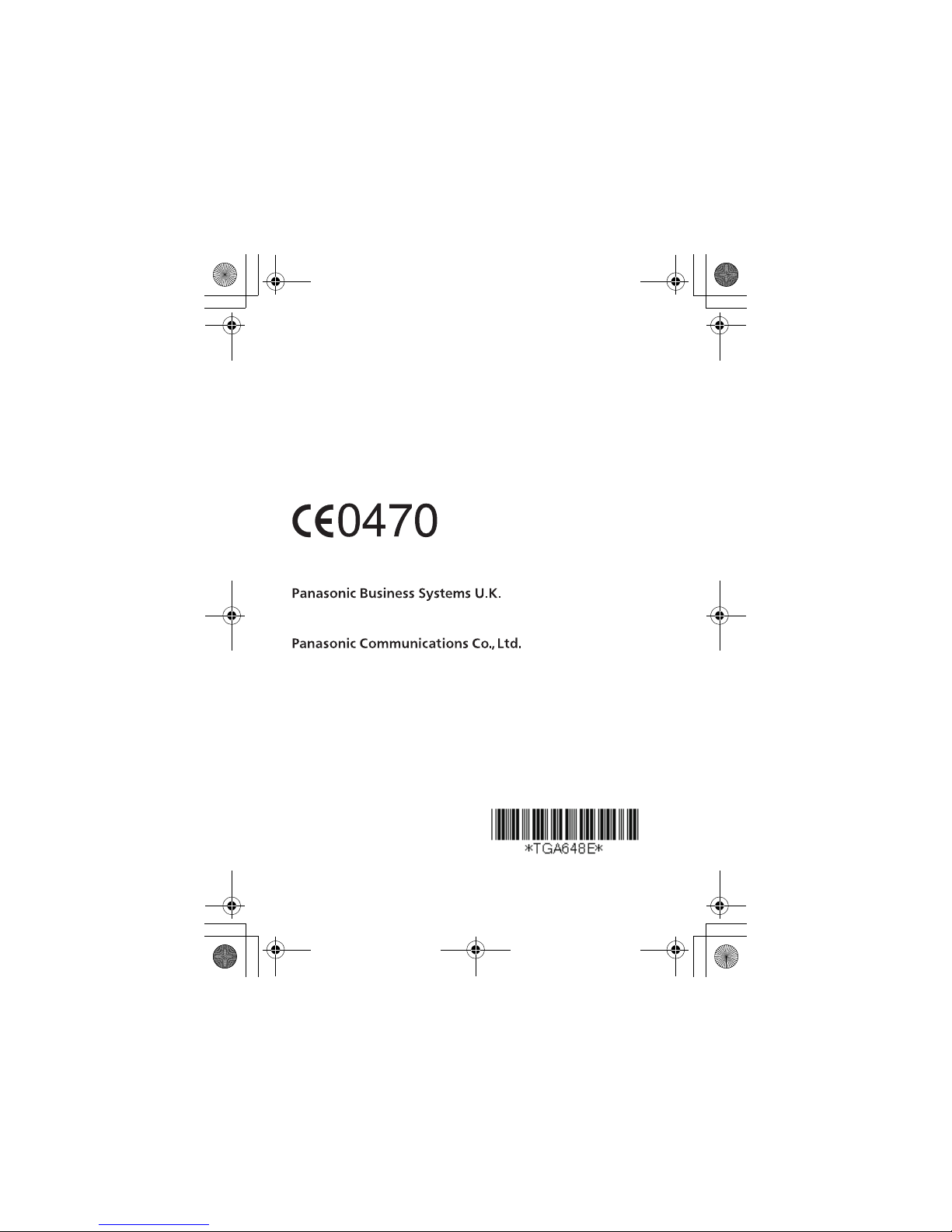

PNQX2008ZA DC0409DK0
Sales Department:
Panasonic House, Willoughby Road, Bracknell, Berkshire, RG12 8FP
1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd.,
and may be reproduced for internal use only. All other reproduction, in
whole or in part, is prohibited without the written consent of Panasonic
Communications Co., Ltd.
© Panasonic Communications Co., Ltd. 2009
TGA648E(e).fm Page 10 Thursday, May 7, 2009 9:18 AM
