Panasonic KX-TGA681EXB User manual

KX-TGA681
Installation Manual
KX-TGA681EXB
KX-TGA681EXS
KX-TGA681EXM
KX-TGA681EXA
KX-TGA785EXB
KX-TGA785EXW
KX-TGA785EXH
KX-TGA785EXR
Additional Digital Cordless Handset
Model No.
Thank you for purchasing a Panasonic product.
This unit is an additional handset compatible with the following series of
Panasonic Digital Cordless Phone:
- KX-TG6811/KX-TG6821 (KX-TGA681)
- KX-TG7851/KX-TG7861 (KX-TGA785)
(The corresponding models are subject to change without notice.)
You must register this handset with your base unit before it can be used.
This installation manual describes only the steps needed to register and
begin using the handset. Please read the base unit’s operating instructions
for further details.
Please read this installation manual before using the unit and save it for
future reference.
Svenska/ Dansk
Français/ Português/ Türkçe
Deutsch/ Suomi/ Italiano
English/ Norsk/ Español

Accessory information
Supplied accessories
Accessory item/Part number Quantity
Charger 1
AC adaptor/PNLV233CE 1
Rechargeable batteries*1 2
Handset cover*2 1
*1 Please read the base unit’s operating instructions for replacement battery
information.
*2 The handset cover comes attached to the handset.
Note:
RPlease read the base unit’s operating instructions for additional/replacement
accessories.
RPlease read "General information" of the base unit’s operating instructions for
information regarding R&TTE Directive.
2
Installation
TGA681EX(en-en)_1130_ver011.pdf 2 2012/11/30 11:52:23

Setting up

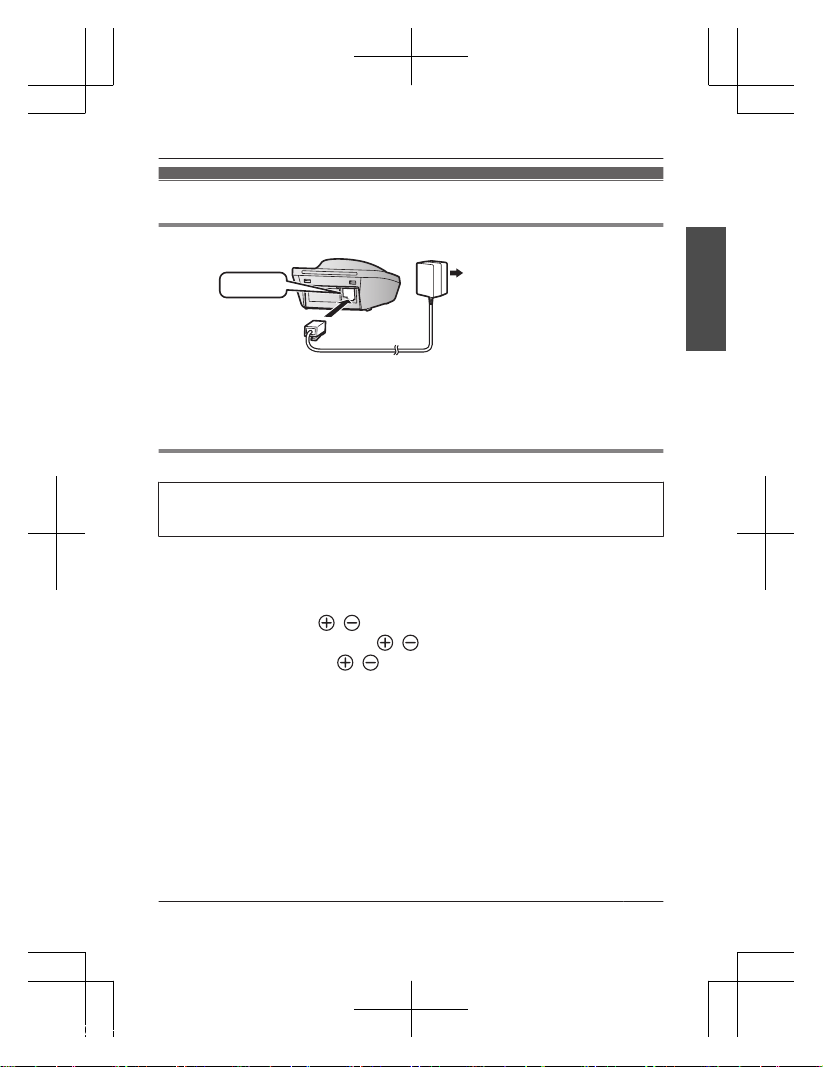

Connections
To power outlet
“Click”
Note:
RUse only the supplied Panasonic AC adaptor PNLV233CE.
RThe AC adaptor must remain connected at all times. (It is normal for the adaptor
to feel warm during use.)

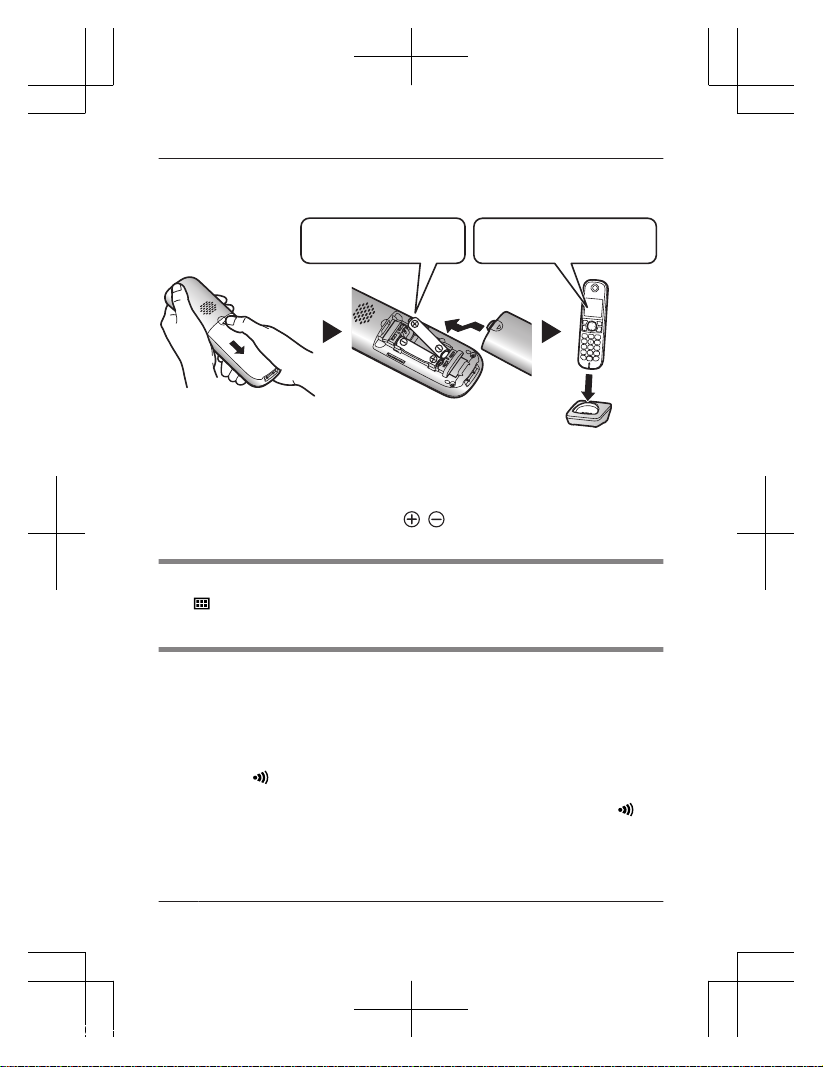

Battery installation/Battery charging
When the language selection is displayed after installing the batteries for the first
time, you can select your desired language.
MbN: Select your desired language. a MOKN a MeN
Important:
RUse the supplied rechargeable batteries. For replacement, we recommend using
the Panasonic rechargeable batteries noted in the base unit’s operating
instructions.
RWipe the battery ends ( , ) with a dry cloth.
RAvoid touching the battery ends ( , ) or the unit contacts.
RConfirm correct polarities ( , ).
RUSE ONLY Ni-MH batteries AAA (R03) size.
RDo NOT use Alkaline/Manganese/Ni-Cd batteries.
3
Installation
TGA681EX(en-en)_1130_ver011.pdf 3 2012/11/30 11:52:23

Charge for about 7 hours.
RWhen the batteries are fully charged, “Fully charged” is displayed.
Rechargeable Ni-MH
ONLY
Confirm “Charging”
is displayed.
Note:
RThe handset display may show “Please wait for 1 minute.” when the
handset is placed on the charger if it is not registered to the base unit.
RIf the batteries are fully charged, but the operating time seems to be shorter,
clean the battery ends ( , ) and the charge contacts with a dry cloth and
charge again.
Display language
1MN(right soft key) #110
2MbN: Select your desired language. a MOKN a MeN
Registering the handset to the base unit
Ensure that the handset is switched on. If it is not on, press and hold MeN for
few seconds to turn the handset on.
1Handset:
Lift the handset and press MeN.
2Base unit:
Press and hold MN for about 5 seconds.
RDepending on the base unit, a registration tone sounds.
RIf all registered handsets start ringing, press MN again to stop, then repeat
this step.
3Handset:
Place the handset on the base unit or charger.
4
Installation
TGA681EX(en-en)_1130_ver011.pdf 4 2012/11/30 11:52:23

RContinue the operation even when the handset display shows “Please
wait for 1 minute.”.
4With the handset still on the base unit or charger, wait until a confirmation tone
sounds and is displayed.
Note:
RIf an error tone sounds, or if is displayed, register the handset according to
the base unit’s operating instructions.
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection
RCompletely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
RRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
RUnplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
Confirm that smoke has stopped emitting and contact an authorised service
centre.
Installation
RTo prevent the risk of fire or electrical shock, do not expose the product to rain
or any type of moisture.
RDo not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
CAUTION
Installation and location
RThe AC adaptor is used as the main disconnect device. Ensure that the AC
outlet is installed near the product and is easily accessible.
5
Installation
TGA681EX(en-en)_1130_ver011.pdf 5 2012/11/30 11:52:23

Battery
RWe recommend using the supplied batteries or additional/replacement batteries
noted in the base unit’s operating instructions for replacement battery
information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
RDo not mix old and new batteries.
RDo not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
RExercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit
may cause the batteries and/or the conductive material to overheat and cause
burns.
RCharge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
ROnly use a compatible base unit (or charger) to charge the batteries. Do not
tamper with the base unit (or charger). Failure to follow these instructions may
cause the batteries to swell or explode.
Important safety instructions
When using your product, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
SAVE THESE INSTRUCTIONS
6
Installation
TGA681EX(en-en)_1130_ver011.pdf 6 2012/11/30 11:52:23

Other information
ROperating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Routine care
RWipe the outer surface of the product with a soft moist cloth.
RDo not use benzine, thinner, or any abrasive powder.
Notice for product disposal, transfer, or return
RThis product can store your private/confidential information. To protect your
privacy/confidentiality, we recommend that you erase information such as
phonebook or caller list entries from the memory before you dispose of, transfer,
or return the product.
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
123
These symbols (A, B, C) on the products, packaging, and/or accompanying
documents mean that used electrical and electronic products and batteries should
not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points, in accordance with your national
legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save
valuable resources and prevent any potential negative effects on human health
and the environment which could otherwise arise from inappropriate waste
handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of
sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
7
Installation
TGA681EX(en-en)_1130_ver011.pdf 7 2012/11/30 11:52:23

For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your
dealer or supplier for further information.
Information on Disposal in other Countries outside the European Union
These symbols (A, B, C) are only valid in the European Union. If you wish to
discard these items, please contact your local authorities or dealer and ask for the
correct method of disposal.
Note for the battery symbol
This symbol (B) might be used in combination with a chemical symbol (C). In this
case it complies with the requirement set by the Directive for the chemical involved.
8
Installation
TGA681EX(en-en)_1130_ver011.pdf 8 2012/11/30 11:52:23
