Installation Instructions
Power Measuring Unit
Model No. MKG1500-DE
English Keep this
document
ピノㄑㄉ㄂ㄔㄆチフノㄘㄊㄓㄆ
ヴㄊㄏㄈㄍㄆノㄑㄉ㄂ㄔㄆチビノㄘㄊㄓㄆ
ヷヒチチチチヷビチチチチヷピチチチチヷワ
⾰
ヱヰヸユン ユンンヰン
ヴユワュ ンユヨリヴヵユンンユヤユリヷユ ヴユヵ
ヱヷ ヴャヮモリワチ
.,(%&
NN
ヱㄐㄘㄆㄓチヮㄆ㄂ㄔㄖㄓㄊㄏㄈチヶㄏㄊㄕ
■Please read Operating instructions and Installation Instructions carefully before using this product, and save this
manual for future use.
■Be sure to read the "For Your Safety" section (p3) prior to installation or handling.
Thank you for purchasing.

2
EnglishDeutschFrançaisItalianoNederlands
Contents
App Download
Disclaimer
For Your Safety
Explanation of Symbols
CAUTIONS When Handling / Things to Know Before Use
Uses for this Product
……………………………………………………………… 3
………………………………………… 6
……………………………………………………… 3
……………………………………………… 3
……… 4
………………………………………………… 4
2
6
5
1
4
3
Names and Functions of Parts
Names and Functions of Parts
2-1
Troubleshooting (Q&A)
Troubleshooting (Q&A)
6-1
Specifications
Specifications
5-1
5-2 External Dimensions
Product Overview
Package Contents
1-1
1-2
1-3
Optional Parts
Preparation
Connection Method
For 3-Phase 4-Wire
For Single-Phase 2-Wire
Wiring Diagram
4-1
4-2 Connecting Power Supply and CT
4-3 Connecting to Home IoT Gateway
4-4 Removing and Exchanging
Installation Method
Before You Start
Installing the Unit
Removing the Unit
……………………………………………… 6
………………………………………………… 6
…………………………… 8
………………………………………… 10
………………………………………… 10
………………………………………… 10
…………………………………………… 12
……………………………………… 12
………………………………… 13
……………………… 14
……………………… 17
……………………………… 17
……………………………………………… 19
……………………………………… 20
…………………………………… 22
……………………………………………………… 23
Installation Method
3-1 ………………………………………… 10

3
EnglishDeutschFrançaisItalianoNederlands
■If this product is used as a measurement device for billing purposes.
■If data is lost or corrupted due to malfunction of this product.
■If losses arise due to use other than as described in the manual.
■If losses arise due to remodelling, including to the construction, performance or specification of the product,
without Panasonic's approval.
■If losses arise due to use in a task requiring a high level of safety.
This device is not to be used in systems directly or indirectly related to medical devices or human life.
■The safety for any system incorporating the equipment is the responsibility of the assembler of the system.
Panasonic will bear no responsibility in the following cases.
Disclaimers
■Installation should be performed by a qualified electrician.
■If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment
may be impaired.
■Read these instructions carefully and look at the equipment to understand the devices before trying to install,
operate, service, maintain it.
For Your Safety
■The following symbols are used to classify and describe the level of hazard, injury, and property damage caused
when the denotation is disregarded and improper use is performed.
■Where this symbol is marked, in order to find out the nature of the potential HAZARD and any actions which
have to be taken to avoid them.
Denotes a potential hazard
that could result in serious
injury or death.
Denotes that a hazard that
could result in minor injuries or
property damage.
CAUTIONWARNING
■The following are used to classify and descrive the type of instructions to be observed.
This symbol is used to alert users to a specific
operating procedure that must not be performed.
This symbol is used to alert users to a specific
operating procedure that must be followed in
order to operate the unit safely.
●When installing or inspecting
the device, switch the mains
power off.
Leaving the power on during installation
or inspection may cause electric shock.
WARNING
●Do not use an IT earthing
system, as this could cause
electric shock or fire.
● Do not disassemble or remodel,
as this could cause electric
shock or fire.
●Do not connect using any
cable other than a CT cable
to the CT connector.
Failure to comply could cause electric
shock, fire or malfunction.
Prohibited Compulsory
Prohibited
●Do not use outside the rated
voltage.
Doing so may cause an accident. Compulsory
●The power cable insulation
should be removed to suit the
strip gauge and inserted firmly.
Insufficient insertion may cause
overheating or fire.
CAUTION
Explanation of symbols

4
EnglishDeutschFrançaisItalianoNederlands
CAUTIONS When Handling / Things to Know Before Use
●Due to the different measurement point and measurement method, power measured using this product may differ from that
given by a power conditioner, power usage readings provided by a power company or measurements taken with another device.
About the Usage Environment
●Measuring in the following situations may fall outside the range of the measurement specifications.
■Where the current is very small
■Where the current is skewed
■Where the power factor is low
■Where a strong magnetic field is present
●Do not use the device in the following situations as this will reduce its lifespan and could cause operating errors.
■Where the ambient temperature is outside the range - 10 to + 50 ℃
■Where the humidity is above 85% RH or there is condensation
■In direct sunlight
■Where there is excessive corrosive gas, dust, salt or soot
■Where there is excessive vibration or impact
■Where there is rain or water droplets
●The radio transmission range will be reduced in the following usage environments due to radio noise.
In such a case, the device may not function.
■If glass wool encased in aluminium is used as insulation in a wall between the devices.
■If the unit is attached to a metal wall.
■If radio waves are blocked by the body of the person using the unit.
■If a domestic appliance such as a microwave or computer or an OA device is within 2 m.
■If a DC device such as a bell or motor is in use close to the unit.
■If a mobile telephone or PHS phone is used close to the unit.
■If a microwave base station is used close to the unit (less than 10 m).
■If there is a strong electric field from a nearby television or radio transmitter or radio mast.
●There are points where the radio wave becomes weak even within the wireless range.
●In this product, the firmware may be updated via Home IoT Gateway to improve the functions.
When updating the firmware , about 1-2 MB of packet data is generated each time via the home internet.
(Packet data charges are paid by the customer)
●Keep the body away from the unit over 20 cm, when using this unit.
Uses for this Product
●This product is for use with the Home IoT Gateway (MKG100913) and cannot be used alone.
●Power calculations are made based on currents measured using the Current Transformers (thereafter omit to CT) and
voltages from a voltmeter connected to the device.
●This product includes a CT cable set for main line (MAIN) measurement.
Extending the CT and 2m Cable for Power Measuring Unit (MKG1510-DE, Optional item) enables voltage measurement of
Photovoltaics (PV) and storage batteries (SB).
Equipment protected throughout by DOUBLE INSULATION or REINFORCED INSULATION
CAUTION, possibility of electric shock
Disposal of Old Equipment Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents means that used
electrical and electronic products must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable
collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential
negative effects on human health and the environment. For more information about collection and
recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Symbol Description
Explanation of Symbols used on Device
●This device is to be used with the N phase earthed. This device is not to be used with an IT earthing system.

5
EnglishDeutschFrançaisItalianoNederlands
Product Overview
1

6
EnglishDeutschFrançaisItalianoNederlands

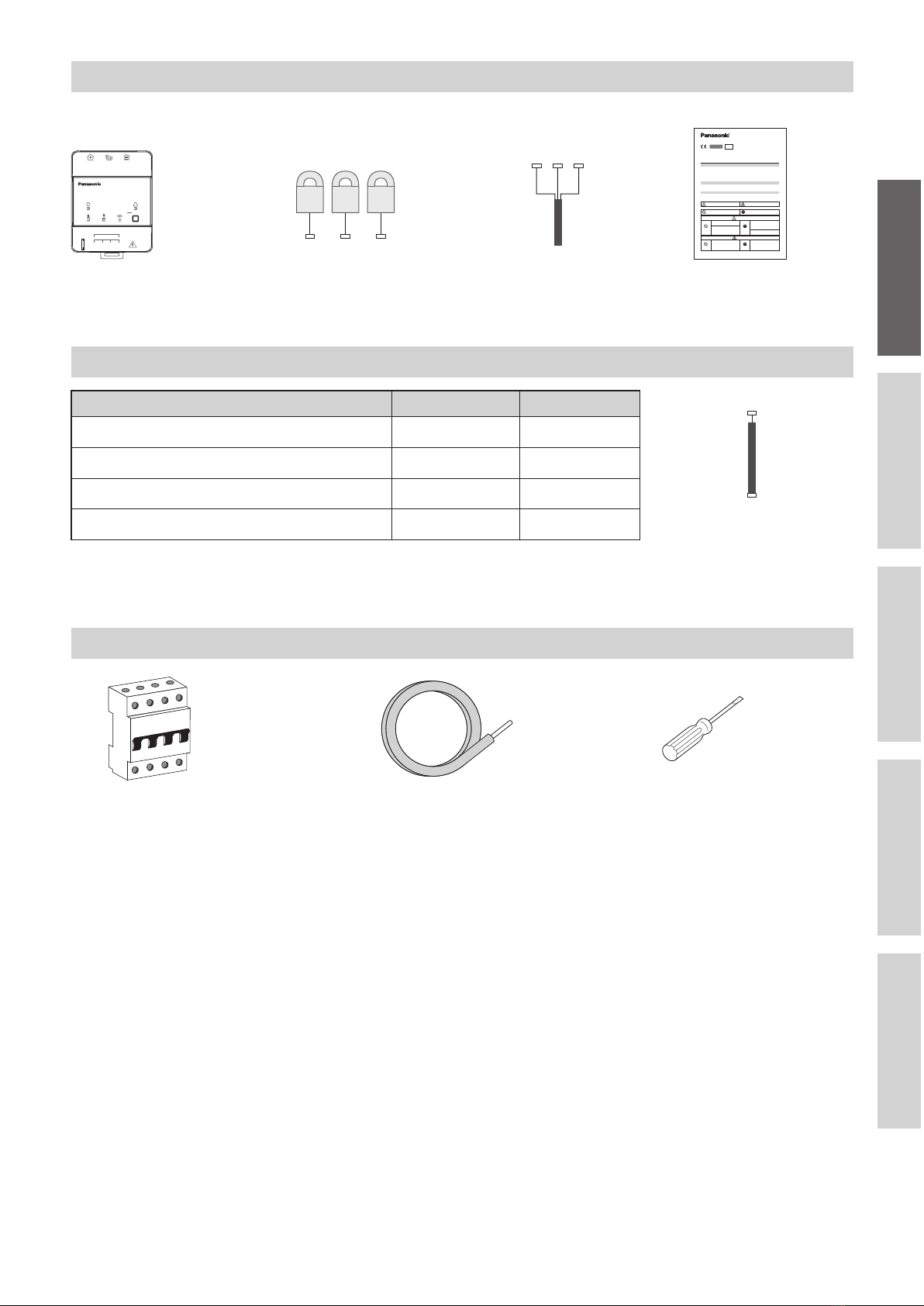

1-1. Package Contents
