Panasonic KW9M Eco-Power Meter User manual

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

Cautions for Your Safety
Read the manual carefully before installing, running and maintenance for proper operation.
Before using, master the knowledge of the equipment, safety information and all of other
notes.
This manual uses two safety flags to indicate different levels of danger.
WARNING
A handling error could cause serious physical injury to an
operator and in the worst case could even be fatal.
●Always take precautions to ensure the overall safety of your system, so that
the whole
system remains safe in the event of failure of this product or other external factor.
●Do not use this product in areas with inflammable gas. It could lead to an explosion.
●Exposing this product to excessive heat or open flames
could cause damage to the
lithium battery or other electronic parts.
●Do not open the secondary side of CT during power on the primary side current.
It might cause electric shock or CT breakdown.
CAUTION A handling error could cause serious physical injury to an operator
or damage to the equipment.
●
To prevent abnormal exothermic heat or smoke generation, use this product at the
values less than the maximum of the characteristics and performance that are assured
in these specifications.
●Do not dismantle or remodel the product. It could lead to abnormal exothermic heat or
smoke generation.
●Do not touch the terminal while turning on electricity. It could lead to an electric shock.
●Use the external devices to function the emergency stop and interlock circuit.
●Connect the wires or connectors securely. The loose connection might cause abnormal
exothermic heat or smoke generation.
●Do not allow foreign matters such as liquid, flammable mat
erials, metals to go into the
inside of the product. It might cause exothermic heat or smoke generation.
●Do not undertake construction (such as connection and disconnection) while the power
supply is on.
●Never remove the terminal block under applying current to load.
It might cause electric shock or CT breakdown.
●Do not use at secondary side circuit of inverter. It might cause exothermic
heat or
damage.
Copyright and trademark
●Panasonic Industrial Devices SUNX Co., Ltd. owns the copyright of this manual.
●We stiffly refuse the reproduction of without permission from this manual.
●Modbus Protocol is a communication protocol that the Modicon Inc. developed for PLC
and Modbus is the registered trademark of Schneider Electric.
●Other company names and t
he product names are the trademarks or registered
trademarks of each company.
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

Introduction
Thank you very much indeed for purchasing
“KW9M Eco-POWER METER”.
In this manual, we explain the usage of “KW9M
Eco-POWER METER” in detail.
Please use it correctly after understanding the content
enough.
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

Table of Contents
Cautions before using ............................................................................................................................... ⅰ
Chapter 1 Communications ........................................................................................................................ 1
1.1 Communication Procedures .................................................................................................................... 1
1.2 Communication timing ............................................................................................................................. 1
1.3 MEWTOCOL Communication .................................................................................................................. 2
1.3.1 Overview of MEWTOCOL-COM (RS485) ...................................................................................... 2
1.3.2 Data Register List ........................................................................................................................... 3
1.3.3 Error Codes .................................................................................................................................. 55
1.3.4 Command ..................................................................................................................................... 56
1.4 MODBUS (RTU) Communication .......................................................................................................... 58
1.4.1 Overview of MODBUS (RTU) ....................................................................................................... 58
1.4.2 Data Register List (MODBUS communication) ............................................................................ 61
1.5 DL/T645-2007 communication ............................................................................................................. 120
1.5.1 Overview of DL/T645-2007 ........................................................................................................ 120
1.5.2 Data list ....................................................................................................................................... 126
Chapter 2 How to install USB driver....................................................................................................... 146
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

1
Chapter 1 Communications
1.1 Communication Procedures
Communication starts with command transmission from the host computer (hereafter Master) and ends
with the response of Eco-POWER METER (hereafter Slave).

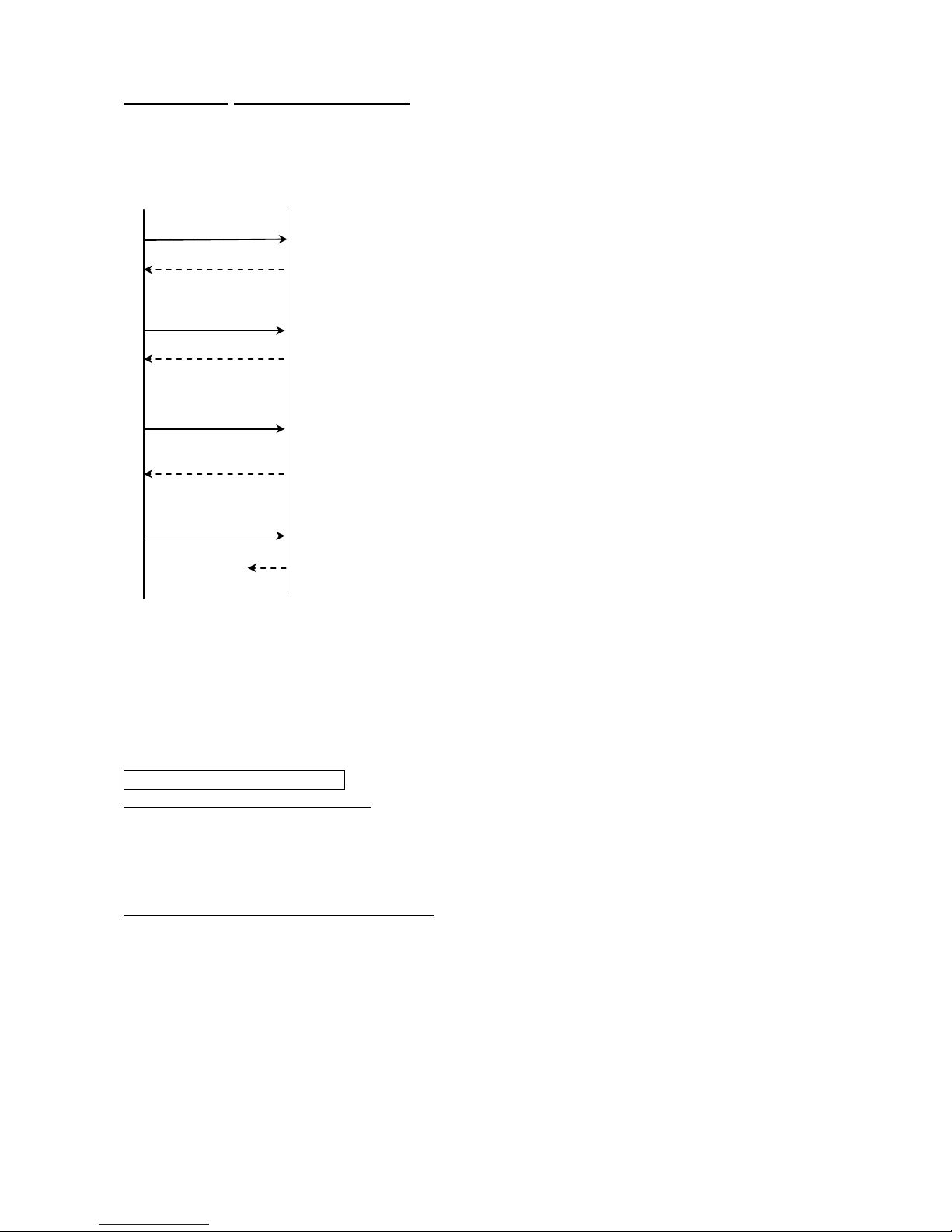

• Response with data
When master sends reading command, slave responds with the
corresponding set value or current status.
• Acknowledgement
When master sends setting command, slave responds by sending
the acknowledgement.
• Negative acknowledgement
When master sends a non-existent command or value out of the setting
range, the slave returns negative acknowledgement.
• No response
Slave will not respond to master in the following cases.
• Global address “FF” (MEWTOCOL) is set.
• Broadcast address “00H” (Modbus protocol) is set.
• Communication error (framing error, parity error)
• CRC-16 discrepancy (Modbus RTU mode)
• CS discrepancy (DL/T645)
1.2 Communication timing
◆The minimum access time from the master is 1 sec. (Minimum time for update the data)
Eco-POWER METER may not response due to noise and so on, be sure to check that it receives the
response from Eco-POWER METER.
◆In order to improve the communication quality, we recommend to send the transmission again.
Communication timing of RS485
◇Eco-POWER METER (Slave) side
When Eco-POWER METER (Slave) starts transmission to RS485 communication line, it is arranged
so as to provide an idle status transmission period of about 1 to 99ms (setting available) before
sending the response to ensure the synchronization on the receiving side. After sending the response,
master can disconnect the transmitter from the communication line within transmission period 20ms.
◇Master side (Cautions of setting a program)
At communication, keep the following conditions.
1) Set the program so that the master can disconnect the transmitter from the communication line
within the transmission period of about 20ms after sending the command in preparation for
reception of the response from Eco-POWER METER (Slave).
2) To avoid collision of transmissions between the master and Eco-POWER METER (Slave), send a
next command after checking that the master received the response.
Master
Slave
Comin,and
Data
Acknowledgement
Comin,and
Negative
acknowledgement
Comin,and
No response
Comin,and
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2
1.3 MEWTOCOL Communication
1.3.1 Overview of MEWTOCOL-COM (RS485)
◆Command and response functions
The computer sends commands (instructions) to Eco-POWER METER, and receives responses in
return. This enables the computer and Eco-POWER METER to converse with each other, so that
various kinds of information can be obtained and provided.
①Commands
Computer Eco-POWER METER
②Responses
◆Command and response formats
Command message
(Host computer)
Header Des-
tination Text Check
code
Termi-
nator
(To next command)
(Eco-POWER METER) Header Source Text
Check
code
Termi-
nator
Normal response message
◇Control codes
Name
Character
ASCII code
Explanation
Header ％ 25H
Indicates the beginning of a message.
Command ＃ 23H
Indicates that the data comprises a command
message.
Normal
response
＄ 24H
Indicates that the data comprises a normal response
message.
Error
response
！ 21H
Indicates that the data comprises a response message
when an error occurs.
Terminator
CR
0DH
Indicates the end of a message.
◇Destination and source AD (H), (L)
Two-digit decimal 01 to 99 (ASCII codes)
Command messages contain a station number for Eco-POWER METER that receives the message.
When FF (ASCII code table) is used, however, the transmission is a global transmission (sent to all
stations at once).
Note) When a global transmission is sent, no response to the command message is returned.
◇Block check code Bcc (H), (L)
Two- digit hexadecimal 00 to FF (ASCII codes)
These are codes (horizontal parity) that are used to detect errors in the transmitted data.
If “**” is entered instead of “Bcc”, however, messages can be transmitted without the Bcc. In this case,
the Bcc is included with the response
◇Error code Err (H), (L)
Two- digit hexadecimal 00 to FF (ASCII codes)
These indicate the content if an error occurs.
◆Bcc (Block Check Code)
-The Bcc is a code that carries out an error check using horizontal parity, to improve the reliability of
the data being sent.
-The Bcc uses an exclusive OR from the header (%) to the final character of the text, and converts the
8- bit data into a 2-character ASCII code.
Example)
％
0 1
＃
R T
0 1
CR
↑ ↑ ↑ ↑ ↑
Header
Station No.1
Command
RT
Command
2-character
Bcc
％
0
1
#
R
T
0 1
25H
30H
31H
23H
52H
54H
Bcc(H)=0(30H)
Bcc(L)=1(31H)
①Takes exclusive OR
②Converts to ASCII format
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

3
1.3.2 Data Register List
Data register
Name
Unit
Kind of data
Range
R/W
DT00002 Over current
(OFF threshold)
0.1% Unsigned 16bit 1 to 1200 R/W
DT00003
Under voltage
(OFF threshold)
0.1% Unsigned 16bit 50 to 1000 R/W
DT00004 Over voltage
(OFF threshold)
0.1% Unsigned 16bit 1000 to 1200 R/W
DT00005 Level output OUT1 － Unsigned 16bit 0: Pulse OFF, 1:Pulse ON R/W
DT00006 Level output OUT2 － Unsigned 16bit 0:Pulse OFF, 1:Pulse ON R/W
DT00007
Active power alarm
(ON threshold) OUT1 0.1kW Unsigned 32bit 0 to 29999999 R/W
DT00008
DT00009
Active power alarm
target phase OUT1
－ Unsigned 16bit
0:All, 1:Phase1, 2:Phase2,
3:Phase3, 5:total
R/W
DT00010 Active power alarm
(ON threshold) OUT2 0.1kW Unsigned 32bit 0 to 29999999 R/W
DT00011
DT00012 Active power alarm
target phase OUT2
－ Unsigned 16bit 0:All, 1:Phase1, 2:Phase2,
3:Phase3, 5:total
R/W
DT00013 Stand-by alarm
(threshold) OUT1
0.1% Unsigned 16bit 1 to 1000 R/W
DT00014
Stand-by alarm
(start time) OUT1
1min Unsigned 16bit 0 to 9999 R/W
DT00015 Stand-by alarm
(phase) OUT1
－ Unsigned 16bit 0:All, 1:Phase1, 2:Phase2,
3:Phase3
R/W
DT00016
Stand-by alarm
(threshold) OUT2
0.1% Unsigned 16bit 1 to 1000 R/W
DT00017 Stand-by alarm
(start time) OUT2
1min Unsigned 16bit 0 to 9999 R/W
DT00018
Stand-by alarm
(phase) OUT2
－ Unsigned 16bit
0:All, 1:Phase1, 2:Phase2,
3:Phase3
R/W
DT00019
Preset OUT1 0.001 Unsigned 32bit 0 to 999999 R/W
DT00020
DT00021
Preset OUT2 0.001 Unsigned 32bit 0 to 999999 R/W
DT00022
DT00023 Integral power output
target phase OUT1
－ Unsigned 16bit 1:Phase1, 2:Phase2, 3:Phase3,
5:total
R/W
DT00024
Integral power output
target phase OUT2 － Unsigned 16bit
1:Phase1, 2:Phase2, 3:Phase3,
5:total R/W
DT00025 Time program 1
(time-zone)
－ Unsigned 16bit 0:OFF, 1:T1, 2:T2, 3:T3, 4:T4 R/W
DT00026
Time program 1
(start-time)
－ Unsigned 16bit
Higher Lower
h:00H to 23H, m:00H to 59H
R/W
DT00027 Time program 2
(time-zone)
－ Unsigned 16bit 0:OFF, 1:T1, 2:T2, 3:T3, 4:T4 R/W
DT00028
Time program 2
(start-time) － Unsigned 16bit
Higher Lower
h:00H to 23H, m:00H to 59H R/W
DT00029 Time program 3
(time-zone)
－ Unsigned 16bit 0:OFF, 1:T1, 2:T2, 3:T3, 4:T4 R/W
DT00030
Time program 3
(start-time) － Unsigned 16bit
Higher Lower
h:00H to 23H, m:00H to 59H R/W
DT00031 Time program 4
(time-zone)
－ Unsigned 16bit 0:OFF, 1:T1, 2:T2, 3:T3, 4:T4 R/W
DT00032
Time program 4
(start-time)
－ Unsigned 16bit
Higher Lower
h:00H to 23H, m:00H to 59H
R/W
DT00033 Time program 5
(time-zone)
－ Unsigned 16bit 0:OFF, 1:T1, 2:T2, 3:T3, 4:T4 R/W
DT00034
Time program 5
(start-time) － Unsigned 16bit
Higher Lower
h:00H to 23H, m:00H to 59H R/W
DT00035 Time program 6
(time-zone)
－ Unsigned 16bit 0:OFF, 1:T1, 2:T2, 3:T3, 4:T4 R/W
DT00036
Time program 6
(start-time) － Unsigned 16bit
Higher Lower
h:00H to 23H, m:00H to 59H R/W
DT00037 Time program 7
(time-zone)
－ Unsigned 16bit 0:OFF, 1:T1, 2:T2, 3:T3, 4:T4 R/W
DT00038
Time program 7
(start-time)
－ Unsigned 16bit
Higher Lower
h:00H to 23H, m:00H to 59H
R/W
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

4
Data register
Name
Unit
Kind of data
Range
R/W
DT00039
Time program 8
(time-zone)
－ Unsigned 16bit 0:OFF, 1:T1, 2:T2, 3:T3, 4:T4 R/W
DT00040 Time program 8
(start-time)
－ Unsigned 16bit Higher Lower
h:00H to 23H, m:00H to 59H
R/W
DT00041
Time program 9
(time-zone)
－ Unsigned 16bit 0:OFF, 1:T1, 2:T2, 3:T3, 4:T4 R/W
DT00042 Time program 9
(start-time)
－ Unsigned 16bit Higher Lower
h:00H to 23H, m:00H to 59H
R/W
DT00043
Time program 10
(time-zone)
－ Unsigned 16bit 0:OFF, 1:T1, 2:T2, 3:T3, 4:T4 R/W
DT00044 Time program 10
(start-time)
－ Unsigned 16bit Higher Lower
h:00H to 23H, m:00H to 59H
R/W
DT00045 Calendar (min. / sec.) － Unsigned 16bit
Higher Lower
m:00H to 59H, s:00H to 59H
R/W
DT00046 Calendar (day / hour) － Unsigned 16bit Higher Lower
d:01H to 31H, h:00H to 23H
R/W
DT00047 Calendar (year / month) － Unsigned 16bit
Higher Lower
y:00H to 99H, m:01H to 12H
R/W
DT00048 Pulse input IN1 －
Unsigned 16bit
1:30Hz, 10:Clock correction R/W
DT00049
Pulse input IN2
－
Unsigned 16bit
1:30Hz, 2:2kHz
R/W
DT00050 RS485 Device number － Unsigned 16bit
Mewtocol: 1 to 99
Modbus: 1 to 247
DL/T645: 0 to 9999
R/W
DT00051 RS485
Transmission speed
－ Unsigned 16bit 0: 1200 1: 2400 2: 4800
3: 9600 4: 19200 5: 38400
R/W
DT00052
RS485
Transmission format
－ Unsigned 16bit 0: 8bit-o 1: 8bit-n 2: 8bit-E R/W
DT00053 RS485 Stop bit － Unsigned 16bit 1, 2 R/W
DT00054
RS485 Response time
1ms
Unsigned 16bit
1 to 99
R/W
DT00055 Phase/Wire － Unsigned 16bit 0: 1P2W 1: 1P3W
2: 3P3W 3: 3P4W
R/W
DT00056 CT type (2nd)
Rated A
(rms)
Unsigned 16bit 1, 5 R/W
DT00057
Primary side current
of CT
1A Unsigned 16bit 1 to 4000 R/W
DT00058 VT ratio 0.01 Unsigned 16bit 100 to 60000 R/W
DT00059
Temperature correction
value
0.1℃ Signed 16bit -100.0 to 100.0 R/W
DT00060 Unit for pulse output
OUT1 － Unsigned 16bit
1:0.0001kWh, 2:0.001kWh,
3:0.01kWh, 4:0.1kWh, 5:1kWh,
6:10kWh, 7:100kWh
100:Stand-by alarm
101:Under voltage alarm
102:Over voltage alarm
103:Power interruption alarm
104:Current alarm
105:Active power alarm
106:Count output 1
107:Count output 2
108:Level output
109:PF alarm
110:current harmonics alarm
111:voltage harmonics alarm
112:current THD alarm
113:voltage THD alarm
114:current unbalancing alarm
115:voltage unbalancing alarm
116:under current alarm
117:reactive power alarm
118:apparent power alarm
119:over frequency alarm
120:under frequency alarm
121:power demand alarm
122:current demand alarm
R/W
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

5
Data register
Name
Unit
Kind of data
Range
R/W
DT00061 Unit for pulse output
OUT2 －Unsigned 16bit
1:0.0001kWh, 2:0.001kWh,
3:0.01kWh, 4:0.1kWh, 5:1kWh,
6:10kWh, 7:100kWh
100:Stand-by alarm
101:Under voltage alarm
102:Over voltage alarm
103:power interruption alarm
104:Current alarm
105:Active power alarm
106:Count output 1
107:Count output 2
108:Level output
109:PF alarm)
110:current harmonics alarm
111:voltage harmonics alarm
112:current THD alarm
113:voltage THD alarm
114:current unbalancing alarm
115:voltage unbalancing alarm
116:under current alarm
117:reactive power alarm
118:apparent power alarm
119:over frequency alarm
120:under frequency alarm
121:power demand alarm
122:current demand alarm
R/W
DT00062
Power interruption
alarm target phase
OUT1
－Unsigned 16bit
0:All, 1:Phase1(line1-2),
2:Phase2(line2-3),
3:Phase3(line3-1)
R/W
DT00063
Power interruption
alarm target phase
OUT2
－Unsigned 16bit
0:All, 1:Phase1(line1-2),
2:Phase2(line2-3),
3:Phase3(line3-1)
R/W
DT00064
Over current
(ON threshold) 0.1% Unsigned 16bit 1 to 1200 R/W
DT00065 Update cycle 100ms Unsigned 16bit 1 to 10 R/W
DT00066
Prescale IN1 0.001 Unsigned 32bit 1 to 100000 R/W
DT00067
DT00068
Prescale IN2 0.001 Unsigned 32bit 1 to 100000 R/W
DT00069
DT00070
Auto-off
1min
Unsigned 16bit
0 to 99 (0: always ON)
R/W
DT00071 Current alarm target
Phase OUT1 －Unsigned 16bit
0:All(except phaseN),
1:Phase1, 2:Phase2,
3:Phase3, 4:phaseN
R/W
DT00072 Current alarm target
phaseOUT2 －Unsigned 16bit
0:All(except phaseN),
1:Phase1, 2:Phase2,
3:Phase3, 4:phaseN
R/W
DT00073 Over voltage alarm
target phaseOUT1 －Unsigned 16bit
0:All, 1:Phase1(line1-2),
2:Phase2(line2-3),
3:Phase3(line3-1)
R/W
DT00074 Over voltage alarm
target phaseOUT2 －Unsigned 16bit
0:All, 1:Phase1(line1-2),
2:Phase2(line2-3),
3:Phase3(line3-1)
R/W
DT00075 Under voltage alarm
target phaseOUT1 －Unsigned 16bit
0:All, 1:Phase1(line1-2),
2:Phase2(line2-3),
3:Phase3(line3-1)
R/W
DT00076
Under voltage alarm
target phase
OUT2
－Unsigned 16bit
0:All, 1:Phase1(line1-2),
2:Phase2(line2-3),
3:Phase3(line3-1)
R/W
DT00077
Integral direction
OUT1
－Unsigned 16bit
0:export
1:import
R/W
DT00078 Integral direction
OUT2
－Unsigned 16bit 0:export
1:import
R/W
DT00079 Clock correction －Unsigned 16bit
hh:0 to 23
min,:0 to 59
R/W
DT00080 Over voltage
(ON threshold)
0.1% Unsigned 16bit 1000 to 1200 R/W
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

6
Data register
Name
Unit
Kind of data
Range
R/W
DT00081
Under voltage
(ON threshold)
0.1% Unsigned 16bit 50 to 1000 R/W
DT00082 Blinking during alarm
output
－Unsigned 16bit 0: no blinking, 1:blinking R/W
DT00083
Conversion rate(-P) T1
0.01
Unsigned 16bit
0 to 9999
R/W
DT00084
Conversion rate(-P) T2
0.01
Unsigned 16bit
0 to 9999
R/W
DT00085
Conversion rate(-P) T3
0.01
Unsigned 16bit
0 to 9999
R/W
DT00086
Conversion rate(-P) T4
0.01
Unsigned 16bit
0 to 9999
R/W
DT00087
Conversion rate (-P)
0.01
Unsigned 16bit
0 to 9999
R/W
DT00088
Rated voltage
1V
Unsigned 16bit
100 to 500
R/W
DT00089
Conversion rate(P) T1
0.01
Unsigned 16bit
0 to 9999
R/W
DT00090
Conversion rate(P) T2
0.01
Unsigned 16bit
0 to 9999
R/W
DT00091
Conversion rate(P) T3
0.01
Unsigned 16bit
0 to 9999
R/W
DT00092
Conversion rate(P) T4
0.01
Unsigned 16bit
0 to 9999
R/W
DT00093
Conversion rate (P)
0.01
Unsigned 16bit
0 to 9999
R/W
DT00094 Password －Unsigned 16bit 0 to 9999 R/W
DT00095 Auto display start 1min Unsigned 16bit 0 to 99 (0: fix display item) R/W
DT00096
Display cycle
1sec
Unsigned 16bit
1 to 99
R/W
DT00097 Luminance －Unsigned 16bit 1 to 5 (dark to light) R/W
DT00098 Protocol －Unsigned 16bit 0: MEWTOCOL 1: MODBUS
2: DL/T645
R/W
DT30000
Active power alarm
(OFF threshold) OUT1 0.1kW Unsigned 32bit 0 to 29999999 R/W
DT30001
DT30002
Active power alarm
(OFF threshold) OUT2
0.1kW Unsigned 32bit 0 to 29999999 R/W
DT30003
DT30004
PF alarm
(ON threshold)OUT1
0.001 Unsigned 16bit 0 to 1000 R/W
DT30005
PF alarm
(OFF threshold)OUT1
0.001 Unsigned 16bit 0 to 1000 R/W
DT30006 PF alarm(phase) OUT1 －Unsigned 16bit 0:All,1:Phase1, 2:Phase2,
3:Phase3
R/W
DT30007
PF alarm
(ON threshold)OUT2
0.001 Unsigned 16bit 0 to 1000 R/W
DT30008
PF alarm
(OFF threshold)OUT2
0.001 Unsigned 16bit 0 to 1000 R/W
DT30009 PF alarm(phase) OUT2 －Unsigned 16bit
0:All,1:Phase1, 2:Phase2,
3:Phase3
R/W
DT30010
Current harmonics
alarm(ON threshold)
OUT1
0.01% Unsigned 16bit 0 to 40000 R/W
DT30011
Current harmonics
alarm(OFF threshold)
OUT1
0.01% Unsigned 16bit 0 to 40000 R/W
DT30012 Current harmonics
alarm(phase) OUT1
－Unsigned 16bit 0:All,1:Phase1, 2:Phase2,
3:Phase3
R/W
DT30013
Current harmonics
alarm(ON threshold)
OUT2
0.01% Unsigned 16bit 0 to 40000 R/W
DT30014
Current harmonics
alarm(OFF threshold)
OUT2
0.01% Unsigned 16bit 0 to 40000 R/W
DT30015
Current harmonics
alarm(phase) OUT2
－Unsigned 16bit
0:All,1:Phase1, 2:Phase2,
3:Phase3
R/W
DT30016
Voltage harmonics
alarm(ON threshold)
OUT1
0.01% Unsigned 16bit 0 to 40000 R/W
DT30017
Voltage harmonics
alarm(OFF threshold)
OUT1
0.01% Unsigned 16bit 0 to 40000 R/W
DT30018 Voltage harmonics
alarm(phase) OUT1 －Unsigned 16bit
0:All,1:Phase1(line1-2),
2:Phase2(line2-3),
3:Phase3(line3-1)
R/W
DT30019
Voltage harmonics
alarm(ON threshold)
OUT2
0.01% Unsigned 16bit 0 to 40000 R/W
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]
