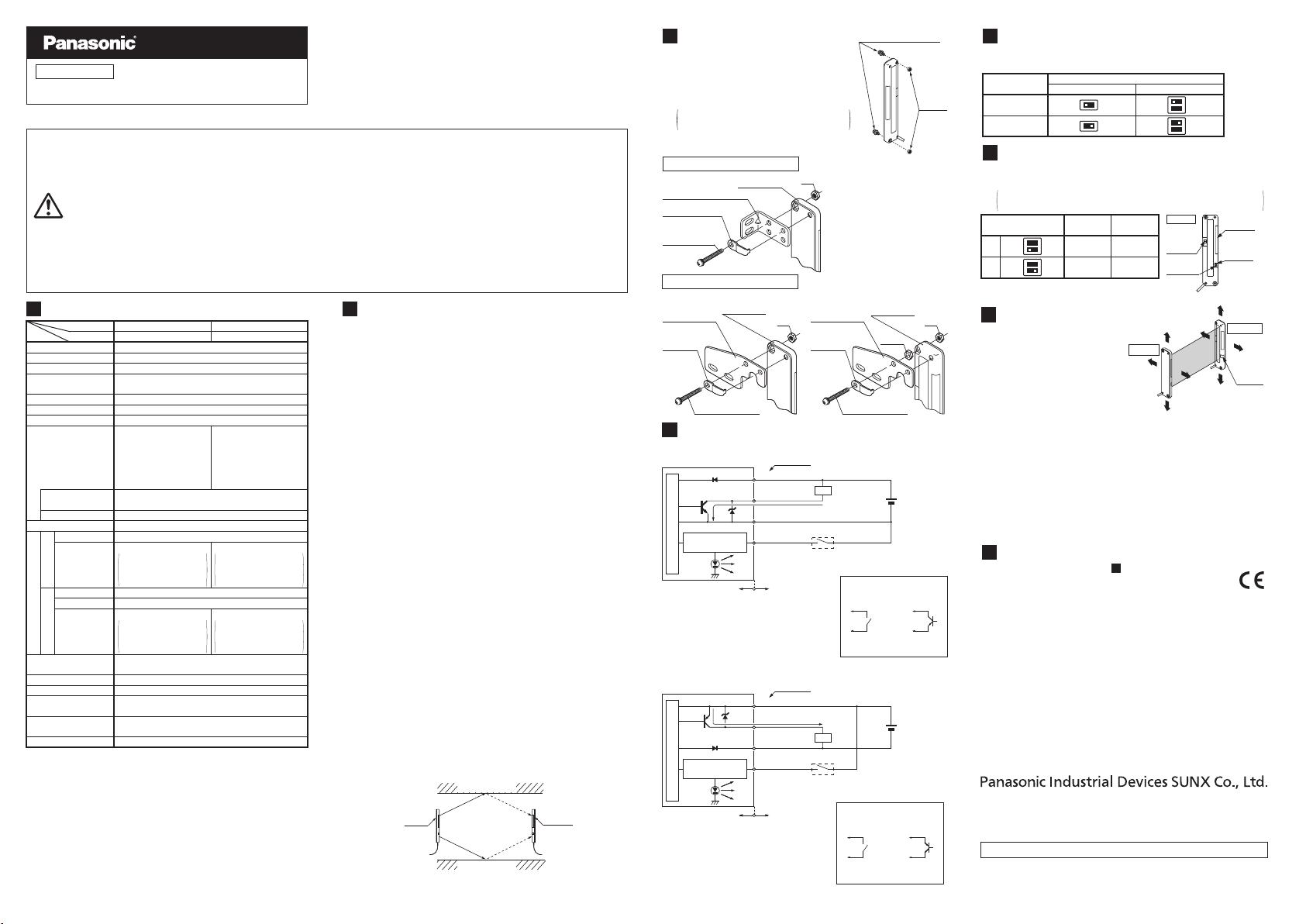

Panasonic NA1-11 User manual

Thank you very much for purchasing Panasonic products. Read this
Instruction Manual carefully and thoroughly for the correct and
optimum use of this product. Kindly keep this manual in a convenient
place for quick reference.
SELECTION OF LARGE INDICATOR OPERATION
5
●Lighting / blinking is selected by the operation mode switch on
the emitter and the receiver.
Operation of large
indicator
Lighting
Blinking
Operation mode switch
Emitter Receiver
LIGHT BLINK
LIGHT BLINK
LIGHT BLINK
LIGHT BLINK
SPECIFICATIONS
1
NA1-11-PN
Model No. (Note 1)
NA1-11
Orange LED
lights up or blinks when the
large indicator input is High,
lighting pattern is selected
by operation mode switch
Orange LED
lights up or blinks when the
large indicator input is High,
lighting pattern is selected
by operation mode switch
PNP open-collector transistor
・ Maximum source current: 100mA
・ Applied voltage: 30V DC or less
(between output and +V)
・Residual voltage:
1V or less (at 100mA source current)
0.4V or less (at 16mA source current)
10mm
100mm
0.17 to 1m
PNP output
Ambient humidity
Large
Orange LED
lights up or blinks when the
large indicator input is Low,
lighting pattern is selected
by operation mode switch
Orange LED (lights up when the output is ON)
Operation
Green LED (lights up when the power is ON)
Power
Large
Orange LED
lights up or blinks when the
large indicator input is Low,
lighting pattern is selected
by operation mode switch
Green LED (lights up when the power is ON)
Indicators
Emitter
Power
Response time In Dark state: 5ms or less, In Light state: 10ms or less
Incorporated
ON or OFF when the beam channel is interrupted,
selectable by operation mode switch
Short-circuit protection
Output operation
NPN open-collector transistor
・ Maximum sink current: 100mA
・ Applied voltage: 30V DC or less
(between output and 0V)
・Residual voltage:
1V or less (at 100mA sink current)
0.4V or less (at 16mA sink current)
Output
11 Nos. each on the emitter and the receiver, respectively
Emitter: 80mA or less, Receiver: 100mA or less
Current consumption
Number of emitting /
receiving elements
Sensing range (Note 2)
Sensing height
φ13.5mm or more opaque object (Note 3)
Sensing object
12 to 24V DC±10% Ripple P-P 10% or less
Supply voltage
Element pitch
NPN outputType
Item
Receiver
Enclosure: Heat-resistant ABS, Lens: Acrylic
Indicator cover: Acrylic
Weight
Material
Emitting element
Ambient temperature
Cable
Emitter: 80g approx., Receiver: 85g approx.
0.3mm24-core (emitter: 3-core) oil-resistant cabtyre cable,
2m long
Infrared LED (Cross-beam scanning system)
35 to 85% RH, Storage: 35 to 85% RH
-10 to +55℃ (No dew condensation or icing allowed)
Storage: -20 to +70℃
Notes: 1)
2)
3)
The model No. with suffix '-C5' is 5m cable length type. (only NPN output
type)
Model No.: NA1-11-C5
The model No. with suffix 'P' shown on the product affixed to the thru-beam
type sensor is the emitter, 'D' shown on the label is the receiver.
Thru-beam type sensor emitter: NA1-11P
Thru-beam type sensor receiver: NA1-11D
The sensing range gives the mounting distance between the emitter and
the receiver. An object can be detected even if it is 0.17m, or less, away.
Although this product can detect slim objects by using the cross-beam
scanning system, the size of the slim object which can be stably detected
differs with the setting distance. When this sensor is used to detect slim
objects, make sure to confirm stable detection using the actual objects.
CAUTIONS
2
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
This product has been developed / produced for industrial use only.
Make sure that the power supply is off while wiring or the
operation of the operation mode switch.
Take care that wrong wiring may damage the sensor.
Verify that the supply voltage variation is within the rating.
If power is supplied from a commercial switching regulator,
ensure that the frame ground (F.G.) terminal of the power supply
is connected to an actual ground.
In case noise generating equipment (switching regulator, inverter
motor, etc.) is used in the vicinity of this product, connect the frame
ground (F.G.) terminal of the equipment to an actual ground.
Do not run the wires together with high-voltage lines or power
lines or put them in the same raceway. This can cause
malfunction due to induction.
Extension up to total 100m is possible, for both emitter and
receiver, with 0.3mm2, or more, cable. However, in order to
reduce noise, make the wiring as short as possible.
Do not use during the initial transient time (0.5 sec.) after the
power supply is switched on.
Avoid dust, dirt, and steam.
Take care that the sensor does not come in contact with water,
oil, grease, organic solvents, such as, thinner etc., or strong acid,
and alkaline.
Since the cable end is not waterproof, do not use the sensor in
the application where water may seep in from the cable end.
Take care that the sensor is not directly exposed to fluorescent
light from a rapid-starter lamp or a high frequency lighting device,
as it may affect the sensing performance.
The emitter and the receiver must face each other with their cable ends on
the same side. If they are set upside down, the sensor will not work correctly.
This sensor is suitable for indoor use only.
Although this product can detect slim objects by using the
cross-beam scanning system, the size of the slim object which
can be stably detected differs with the setting distance. Hence,
when the product is used to detect slim objects, make sure to
confirm stable detection using the actual objects.
In case of this sensor, light from the emitter spreads above and
below the sensor. Hence, take care that if there is a reflective
object above or below the product it will affect the sensing.
Emitter Receiver
Reflective object
Reflective object
Above
Below
●
●
●
●
●
●
If this product is used as a sensing device for personnel protection, serious body injury or death could result.
Never use this product as a sensing device with any press machine, shearing machine, roll grinding machine, forming machine,
vulcanizer, or robot etc. for protection of a hand or a part of the body.
This product does not include a self-checking circuit for safety functions necessary to allow its use as a safety device. Thus, a
system failure or malfunction can result in either an energized or a de-energized output condition.
When this product is used as a sensing device in the following applications and if a problem relating to 'law' or 'product liability'
occurs, Panasonic Industrial Devices SUNX shall not be liable for the failure and for the damage or less.
For sensing devices to be used as safety devices for press machines or for personnel protection, use products which meet laws and
standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in each region or country.
In case of using as a safety device for press machines, use a product approved by the Ministry of Labor in Japan.
1)
2)
3)
Use of this product installed to a machinery or a device as a sensing device to detect a hand or a part of the operator's body
entering a dangerous area and stop the machinery or the device.
Installation of this product to a protection device for preventing to enter a dangerous area and use of this as a sensing device
which detects a hand or a part of the operator's body and open / close the door or window.
Use of this product as a sensing device for personnel protection (including interlock).
WARNING
BEAM ALIGNMENT
7
①
②
③
④
⑤
⑥
Place the emitter and the receiver
face to face along a straight line.
After the cables have been
correctly connected, switch
the power ON.
Move the emitter in the up,
down, left and right directions,
in order to determine the range of the beam received condition
with the help of the operation indicator (orange) on the receiver.
Then, set the emitter at the center of this range.
Similarly, adjust for up, down, left and right angular movement of
the emitter.
Further, perform the angular adjustment for the receiver also.
Interrupt each beam channel with the actual sensing object, and
confirm that the sensor operates correctly. Take care that in
case the beam has not been aligned correctly, it may take time
when Dark state changes to Light state.
Operation
indicator
(Orange)
Emitter
Receiver
Note: LIGHT/BLINK switch is not related to the output
operation selection.
SELECTION OF OUTPUT OPERATION
6
●The output operation mode is selected by the operation mode
switch on the receiver.
The switches must be set with the power supply off. The operation mode
does not change if the switch setting is changed with the power supplied.
Operation
indicator (Orange)
Operation mode switch
D-ON
L-ON
Output
operation
ON in
Dark state
Lights up when
the output is ON.
Lights up when
the output is ON.
OFF in
Dark state
D/ON L/ON
L/OND/ON
Operation
mode
switch
Operation
indicator
(Orange)
Large
indicator
(Orange)
Power
indicator
(Green)
Receiver
I/O CIRCUIT DIAGRAMS4
●NA1-11 / NPN output type
*1
or
Low (0 to 2V): lights up or blinks
High (5 to 30V, or open): turns off
Non-contact voltage or
NPN open-collector
transistor
Notes: 1)
2)
3)
The emitter is not incorporated with the
output (black).
In order to use the large indicators as large
size operation indicators connect input
(pink) and output (black) wires together.
Insulate all unused wires individually to
avoid miscontact.
*1
100mA max.
Large indicator
lighting / blinking circuit
＋
－
12 to 24V DC
±10%
Main circuit
(Blue) 0V
(Pink) Input
(Note 2)
(Black) Output
(Note 1)
Load
(Brown) +V
Color code
Users' circuitInternal circuit
●NA1-11-PN / PNP output type
*1
High (4V or more): lights up or blinks
Low (0 to 0.6V, or open): turns off
Non-contact voltage or
PNP open-collector
transistor
or
Notes: 1)
2)
3)
The emitter is not incorporated with the
output (black).
In order to use the large indicators as large
size operation indicators connect input
(pink) and output (black) wires together.
Insulate all unused wires individually to
avoid miscontact.
100mA max.
*1
Large indicator
lighting / blinking circuit
＋
－
12 to 24V DC
±10%
Main circuit
Load
(Blue) 0V
(Pink) Input
(Note 2)
(Black) Output
(Note 1)
(Brown) +V
Color code
Users' circuitInternal circuit
MOUNTING
3M4 screws with washers
M4 nuts
●
●
Use M4 screws with washers and M4
nuts. The tightening torque should be
0.5N･m or less.
During mounting, do not apply any
bending or twisting force to the sensor.
Please arrange the screws and nuts
separately.
Sensor mounting brackets (MS-NA1-1,
MS-NA2-1) are also available.
MS-NA1-1 assembly drawing
NA1-11(-PN)
Sensor mounting bracket
Nut
Anti-rotation hook
M4 (length
15mm) screw
with washers
MS-NA2-1 assembly drawing
<In case of rear-side mounting>
NA1-11(-PN)
Sensor mounting
bracket
Anti-rot
ation
hook
M4 (length 15mm)
screw with washers
Nut
<In case of front mounting>
NA1-11(-PN)
Sensor mounting
bracket
Anti-rot
ation
hook
Nut
Spacer
M4 (length 18mm)
screw with washers
INSTRUCTION MANUAL
NA1-11, NA1-11-PN
Small / Slim Object Detection
Area Sensor
MJEC-NA111 No.0055-41V
INTENDED PRODUCTS FOR CE MARKING 8
●The models listed under 'SPECIFICATIONS' come
with CE Marking.
As for all other models, please contact our office.
1
●Contact for CE
Panasonic Marketing Europe GmbH Panasonic Testing Center
Winsbergring 15, 22525 Hamburg,Germany
http://panasonic.net/id/pidsx/global
© Panasonic Industrial Devices SUNX Co., Ltd. 2016
PRINTED IN JAPAN
Overseas Sales Division (Head Office)
2431-1 Ushiyama-cho, Kasugai-shi, Aichi, 486-0901, Japan
Phone: [phone] FAX: [phone]
For sales network, please visit our website.
