Panasonic EW-1311 User manual

Operating Instructions
(Household) Oral Irrigator
Model No. EW1311
EW1311_EU.indb 1 2018/11/14 13:02:23

2
English 3
Deutsch 19
Français 37
Italiano 55
Nederlands 73
Español 89
Dansk 107
Português 123
Norsk 141
Svenska 157
Suomi 173
Polski 189
Česky 207
Slovensky 223
Magyar 239
Română 255
Türkçe 271
EW1311_EU.indb 2 2018/11/14 13:02:23

3
English
Operating Instructions
(Household) Oral Irrigator
Model No. EW1311
Thank you for purchasing this Panasonic product.
%HIRUHRSHUDWLQJWKLVXQLWSOHDVHUHDGWKHVHLQVWUXFWLRQVFRPSOHWHO\DQGVDYHWKHPIRUIXWXUHXVH
Safety precautions..................... 6
Intended use9
3DUWVLGHQWL¿FDWLRQ10
Charging10
How to use11
After use13
Cleaning14
)UHTXHQWO\DVNHGTXHVWLRQV15
Troubleshooting15
%DWWHU\OLIH16
Removing the built-in rechargeable
EDWWHU\16
6SHFL¿FDWLRQV17
&KDQJLQJWKHQR]]OH6ROGVHSDUDWHO\ 17
Contents
EW1311_EU.indb 3 2018/11/14 13:02:23

4
English
Warning
•Do not immerse the charger in water or wash it with
water.
Doing so may cause electric shock or re due to a
short circuit.
•Always unplug the power plug from a household outlet
when cleaning the charger.
Failure to do so may cause electric shock or injury.
•The supply cord cannot be replaced. If the cord is
damaged, the charger should be scrapped.
Failure to do so may cause an accident or injury.
•Oral irrigators can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge under supervision.
EW1311_EU.indb 4 2018/11/14 13:02:24

5
English
•Oral irrigators shall be used only with cold or warm
water, or specic solutions as dened in the
manufacturer’s instructions.
•Children shall not play with the appliance.
•Do not use anything other than the supplied charger
for any purpose. Also, do not use any other product
with the supplied charger. (See page 10.)
Doing so may cause burn or re due to a short circuit.
•The following symbol indicates that a specic
detachable power supply unit is required for
connecting the electrical appliance to the supply
mains. The type reference of power supply unit is
marked near the symbol.
EW1311_EU.indb 5 2018/11/14 13:02:24

6
English
Safetyprecautions
To reduce the risk of injury, loss of life, electric shock,
re, and damage to property, always observe the
following safety precautions.
Explanationofsymbols
The following symbols are used to classify and describe
the level of hazard, injury, and property damage caused
when the denotation is disregarded and improper use is
performed.
DANGER
Denotes a potential
hazard that will result in
serious injury or death.
WARNING
Denotes a potential
hazard that could result
in serious injury or death.
CAUTION Denotes a hazard that
could result in minor
injury or property
damage.
The following symbols are used to classify and
describe the type of instructions to be observed.
This symbol is used to alert users to a specic
operating procedure that must not be performed.
This symbol is used to alert users to a specic
operating procedure that must be followed in
order to operate the unit safely.
WARNING
►Preventing accidents
Do not store within the reach of children or
infants.Donotletthemuseit.
- Doing so may cause an accident or injury due to
accidental ingestion of removable parts.
►Powersupply
Do not connect or disconnect the power plug
toahouseholdoutletwithawethand.
- Doing so may cause electric shock or injury.
Do not place the charger over or near water
lledsinkorbathtub.
Do not use when the cord or the power plug is
damagedorwhenthettingintothe
householdoutletisloose.
Donotdamage,modify,forcefullybend,pull,
twist,orbundlethecordorthepowerplug.
Also,donotplaceanythingheavyonorpinch
thecordorthepowerplug.
- Doing so may cause electric shock or re due to
a short circuit.
Donotuseinawayexceedingtheratingof
thehouseholdoutletorthewiring.
- Exceeding the rating by connecting too many
power plugs to one household outlet may cause
re due to overheating.
EW1311_EU.indb 6 2018/11/14 13:02:24

7
English
WARNING
Alwaysensuretheapplianceisoperatedon
an electric power source matched to the rated
voltageindicatedonthecharger.
Fullyinsertthepowerplug.
- Failure to do so may cause re or electric shock.
►Incaseofanabnormalityormalfunction
Immediatelystopusingandremovethepower
plugifthereisanabnormalityormalfunction.
- Failure to do so may cause re, electric shock,
or injury.
<Abnormalityormalfunctioncases>
•The main unit or charger is deformed or
abnormallyhot.
•Themainunitorchargersmellsofburning.
•There is abnormal sound during use or
chargingofthemainunitorcharger.
- Immediately request inspection or repair at an
authorized service centre.
►This product
This product has a built-in rechargeable
battery.Donotthrowintoameorheat.
- Doing so may cause uid leak, overheating, or
explosion.
Donotmodifyorrepair.
-
Doing so may cause re, electric shock, or injury.
Contact an authorized service centre for repair
(battery change, etc.).
Never disassemble except when disposing of
theproduct.
-
Doing so may cause re, electric shock, or injury.
►Cleaning
Regularlycleanthepowerplugtopreventdust
fromaccumulating(onceeveryhalfayear).
- Failure to do so may cause re due to insulation
failure caused by humidity.
Disconnect the power plug and wipe with a dry cloth.
CAUTION
►Preventing damage to teeth and gums
People who are unable to operate should not
usethisappliance.
People with weak oral senses should not use
thisappliance.
- Doing so may cause injury or damage to teeth
and gums.
Peoplewhomayhaveperiodontaldisease,
have teeth being treated, or concerned about
symptomswithintheirmouthshouldconsult
adentistbeforeuse.
- Failure to do so may cause injury or damage to
teeth and gums.
EW1311_EU.indb 7 2018/11/14 13:02:24

8
English
CAUTION
►This product
Neveruseforapurposeotherthanoralcleaning.
- Doing so may cause an accident or injury when
the stream of water is pointed toward the eyes,
nose, ears, or throat.
Donotllthetankwithwaterwarmerthan40°C.
- Doing so may cause burns.
Donotsharenozzlewithyourfamilyorother
people.
- Doing so may cause infection or inammation.
Do not place a metallic object such as a coin
oraclipontopofthecharger.
-
Doing so may cause burns due to excessive heat.
►Note the following precautions
Do not allow metal objects or trash to adhere
tothepowerplug.
- Doing so may cause electric shock or re due to
a short circuit.
Donotdroporsubjecttoshock.
- Doing so may cause injury.
Do not wrap the cord around the charger
whenstoring.
- Doing so may cause the wire in the cord to
break with the load, and may cause re due to a
short circuit.
Disconnect the power plug from the household
outletwhennotusingforextendedperiodoftime.
- Failure to do so may cause electric shock or re
due to electrical leakage resulting from
insulation deterioration.
Disconnectthepowerplugbyholdingontoit
insteadofthecord.
- Failure to do so may cause electric shock or re
due to a short circuit.
Afteruse,alwayscareforandcleanthe
appliance.(Seepage14.)
- Failure to do so may cause damage to your
health due to propagation of mold and bacteria.
EW1311_EU.indb 8 2018/11/14 13:02:24

9
English
Handlingoftheremovedbatterywhendisposing
DANGER
•Therechargeablebatteryisexclusivelyfor
usewiththisappliance.Donotusethe
batterywithotherproducts.
•Donotchargethebatteryafterithasbeen
removedfromtheproduct.
•Donotthrowintoreorapplyheat.
•Donotsolder,disassemble,ormodifythe
battery.
•Do not let the positive and negative terminals
ofthebatterygetincontactwitheachother
throughmetallicobjects.
•Donotcarryorstorethebatterytogether
withmetallicjewellerysuchasnecklaces
andhairpins.
•Neverpeeloffthetube.
- Doing so may cause uid leak, overheating, or
explosion.
Thebatterycontainsalkalineuid.Ifitcomes
incontactwiththeeyes,donotrubtheeyes,
andthoroughlyrinsewithcleanwater,such
astapwater.
- Failure to do so may cause loss of vision.
Consult a physician immediately.
WARNING
Afterremovingtherechargeablebattery,do
notkeepitwithinreachofchildrenandinfants.
- The battery will harm the body if accidentally
swallowed.
If this happens, consult a physician immediately.
Thebatterycontainsalkalineuid.Ifitcomes
in contact with the skin or clothes, rinse off
withcleanwater,suchastapwater.
- Failure to do so may cause skin injury.
Intended use
• Do not put salt, mouthwash or other chemicals into
the water tank. Doing so may cause malfunction.
• Do not dry the main unit with a dryer or a fan heater.
Doing so may cause malfunction or deformation of the
parts.
• Do not wipe with thinners, benzine, alcohol etc. Doing
so may cause malfunction, cracking or discoloration of
the parts.
• Store the appliance in a place with low humidity after
use. Leaving the appliance in a bathroom may cause
malfunction.
EW1311_EU.indb 9 2018/11/14 13:02:24

10
English
Partsidentication

 















 

Front Back
AMain unit
1Nozzle release button
2Power switch
3Mode switch
4Mode indicator
5Charging indicator
6Ventilation hole
7Suction hose
8Filter
9Water tank
Water tank cap
B
Charger(RE8-47/RE8-53)
(The shape of the power
plug differs depending
onthearea.)
Charging section
Cord
Power plug
>Nozzle stands
?
Screw holes for wall
mounting
The charger can be
mounted on a wall
using two wood screws.
CNozzle(x4)
@Nozzle
A Identication ring
BNozzle handle
Accessories
D2 screws
Note
There may be moisture inside the main unit (water
tank and suction hose) left from the distilled water
used for product testing.
Charging
►On the bathroom countertop or a shelf
1.Place the cord in the right, left or
centre cord guide, depending on
where the charger will be placed.
2.Place the charger on a secure, level
surface.
3.Plug in the power plug.
1
1Insert main unit so it stands
uprightinthechargingsection.
The charging indicator will light up.
•Be sure to place the main unit
upright. If the main unit is tilted or not
in direct contact with the charger, the
main unit may not charge properly.
•Charging is completed in about 15
hours.
•The lamp does not go off even
when charging ends.
• The main unit will provide an operation
time of approximately 15 minutes of
use when the battery is fully charged.
(The operating duration will become
shorter as the batteries get older.)
EW1311_EU.indb 10 2018/11/14 13:02:24

11
English
2
2Disconnect the power plug after charging
iscompleted.
(for safety and to reduce energy usage)
•The battery performance will not be affected even
if it is charged for more than 15 hours.
Notes
• When using the appliance for the rst time or if it has
not been used for more than half a year, the
charging indicator may not light up for several
minutes after charging starts or the operating time
may become shorter. In such cases, charge the
battery for 23 hours or more.
• Recommended ambient temperature for charging is
0 °C – 35 °C. Battery performance may decrease
outside of the recommended temperature.

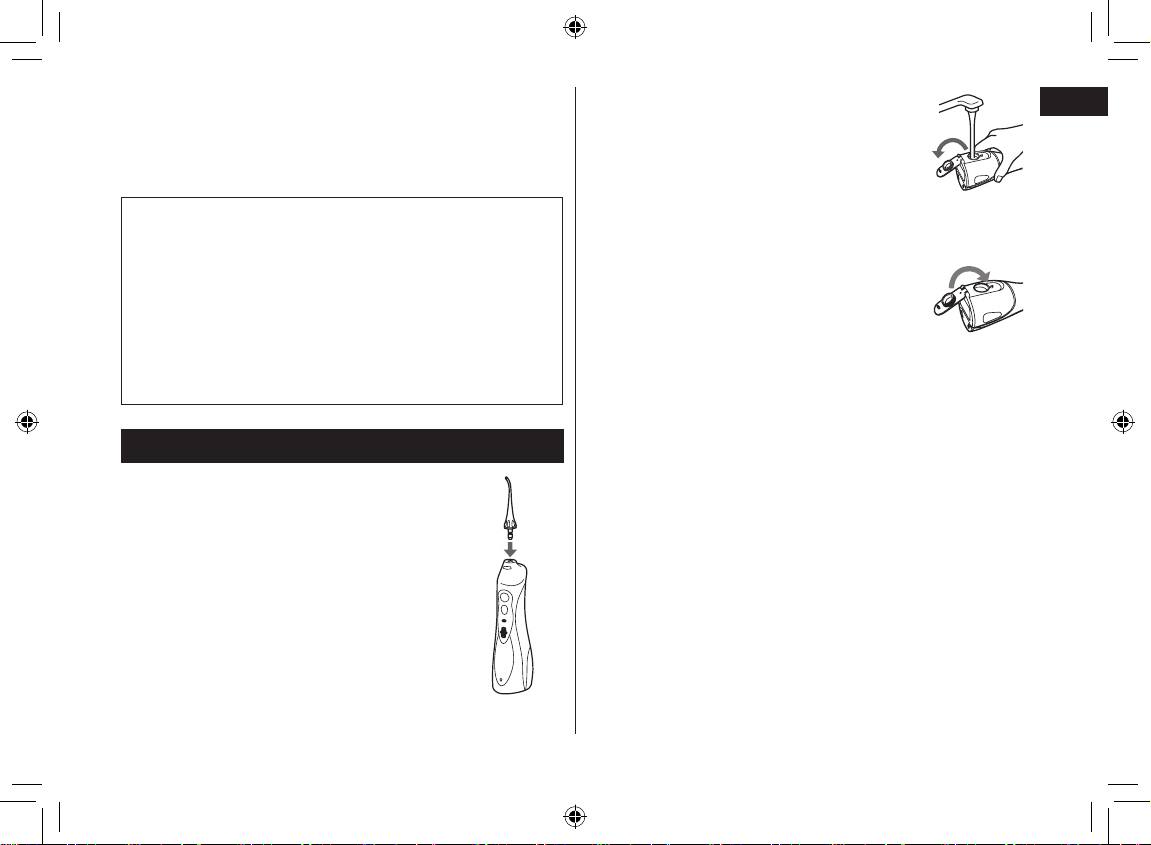

How to use
1
1Attachthenozzlermlyonto
themainunit.
2
2Open the water tank cap, hold
the main unit so it is level, and
llthetankwithwater.
•Always use new tap water or
lukewarm water.
•If the water feels cold, use lukewarm
water with a temperature of 40 °C or
less.
3
3Close the water tank cap,
makingsureitlocksinplace.
4
4Press the mode switch and select the
desiredwaterjetmode.
•The mode indicator will glow the previously
selected mode. If the appliance is not used for
more than 30 days, or after the appliance has
been fully charged from its fully discharged state,
the mode is initialized to AIR IN (SOFT). (When
the battery is drained, the mode will be reset but
this is not a fault.)
•If you want to use a different mode, press the
mode switch until it changes to the desired setting.
Pressing the mode switch will change the mode
from AIR IN (SOFT) to AIR IN (REGULAR) to JET.
EW1311_EU.indb 11 2018/11/14 13:02:24

12
English
Mode Description
JET mode
•
This mode is for removing food
particles trapped between the teeth.
AIRIN(REGULAR)mode
• This mode is for periodontal pocket
cleaning and gum care.
AIRIN(SOFT)mode
• This mode is for gently massaging
the gums.
Notes
• When you use the appliance for the rst time,
press the power switch to turn the appliance on
and test each of the water jet modes with the
tank lled with water.
• The appliance may not operate in an ambient
temperature approximately 5 °C or lower.
• Do not hold the tip of the nozzle rmly against
the teeth or gums.
• Since plaque adhering to the surface of teeth
cannot be removed only with water ow,
brushing is always necessary. It is
recommended to clean inside your mouth with
water ow after brushing your teeth.
• Do not operate the main unit when empty other
than when pouring out any remaining water
after use. Operating the main unit without water
may result in a malfunction.
5
5
Placethenozzleinyour
mouthandcloseyour
mouthgentlybefore
pressingthepowerswitch.
•To use, place your face over a
washbasin, and with the main
unit upright and the nozzle at
the top, raise your elbow.
•Pressing the mode switch during use will change
the mode.
•A fully lled water tank provides approximately
35 seconds of use.
•If the nozzle is inclined too much, water will come
out of the ventilation hole instead of the nozzle.
(The ventilation hole in the rear of the main unit
allows for easier water suction of the hose.)
Turn the nozzle handle to adjust
thedirectionofthewaterow.
6
6After use, press the power switch to turn
offthemainunit.
•Stop operation with the nozzle still in the mouth to
prevent water from splashing.
EW1311_EU.indb 12 2018/11/14 13:02:24

13
English
►Cleaning the space between the teeth
In the JET mode
• Direct the water ow onto the
zone between the teeth.
• Direct from the front and rear
sides of the teeth.
►Periodontal pocket cleaning
IntheAIRIN(REGULAR)mode
• Aim the water ow at the space
between the teeth and gum.
• Slowly shift the water ow along
the gum.
•
Clean the front and back of the
teeth and behind the molars as well.
• Clean the areas of concern in the
gum in the AIR IN (SOFT) mode.
*
Do not clean the periodontal
pocket in JET mode, since the
strength of water ow is too strong.
►Gum care
IntheAIRIN(REGULAR)mode
• Stimulate the gum.
• Gently stimulate the areas of
concern in the gum in the AIR IN
(SOFT) mode.
After use
1.Open the water tank cap and
discard the water.
• Be sure to discard the water
in the water tank every time.
2.Turn on the power switch and
drain out the water.
• Operate until no more water
appears and then turn off the
power switch.
3.Stand the main unit in the
charger.
4.While pressing the nozzle
release button, remove the
nozzle from the main unit and
place it on the nozzle stand.
EW1311_EU.indb 13 2018/11/14 13:02:24

14
English
Cleaning
1.Pull out the water tank downwards.
2.Clean with water.
• Remove the identication ring and clean with water.
• Do not wash with hot water exceeding 50 °C.
•
If using a detergent, use one suitable for dishwashing.
Rinse well with water to ensure no detergent remains
after cleaning.
• Wipe away moisture with a towel and leave to dry in
a well-ventilated area.
Scrubthelteratthetipofthe
suctionhoselightlywithasoft
brush.
3.Wipe away the water with a towel etc. and dry.
4.Align and slide the water tank along the
groove and install it securely.
Use a cloth to wipe away the stains on
the charger.
• Never use thinners, benzine, or alcohol
since it may cause malfunction or
cracking/discoloration of the parts.
• Do not clean the charger with water.
•
About once every six months wipe the
prongs of the power plug with a dry cloth.
EW1311_EU.indb 14 2018/11/14 13:02:25

15
English
Frequentlyaskedquestions
Question Answer
Will the battery be
exhausted after a long
period of disuse?
When the appliance is not used for 6 months or more, the battery will weaken (leak
battery uid, etc.). Fully charge the battery once every 6 months.
Can the battery be
charged before every use?
Yes, but it is recommended that you charge the battery when it is empty. The life of
the battery will vary depending upon usage and storage conditions.
Troubleshooting
Problem Possible cause Action
The appliance does not
operate.
You have just purchased the product
or it has not been used for more than
6 months. Charge the unit for at least 23 hours.
(See page 11.)
The appliance can be used
only for several minutes,
even if it is charged.
The charging time is short.
The main unit is not standing upright
on the charger. (See page 10.)
Stand the main unit upright so that its base
contacts the charging section of the charger.
Battery life is over (approx. 3 years).
The battery has reached the end of its life.
(See page 16.)
Water pressure is low.
The nozzle is clogged. Replace the nozzle.
Mouth of the nozzle is squashed.
Filter is clogged. Clean lter. (See page 14.)
Water does not come out.
The main unit is tilted too much while
in use.
Use with the main unit in a vertical state.
(See page 12.)
If the problems still cannot be solved, contact the store where you purchased the unit or a service centre
authorized by Panasonic for repair.
EW1311_EU.indb 15 2018/11/14 13:02:25

16
English
Batterylife
The battery life is about 3 years when charged about
once a week (when used by one person).
If the operating time is signicantly shorter even after a
full charge, the battery has reached the end of its life.
(The operating life of the battery may differ depending
on usage or storage conditions)
Have the battery replaced by an authorized service
centre.
Removing the built-in rechargeable
battery
Removethebuilt-inrechargeablebatterybefore
disposingtheappliance.
Please make sure that the battery is disposed of at an
ofcially designated location if there is one.
This gure must only be used when disposing the
appliance, and must not be used to repair it. If you
dismantle the appliance yourself, it will no longer be
waterproof, which may cause it to malfunction.
• Remove the appliance from the charger when
removing the battery.
• Press the power switch to turn on the power and then
keep the power on until the battery is completely
discharged.
• Perform steps 1to 6and lift the battery, and then
remove it.
• Take care not to short circuit the positive and negative
terminals of the removed battery, and insulate the
terminals by applying tape to them.






Forenvironmentalprotectionandrecyclingofmaterials
This appliance contains a Nickel-Metal Hydride battery.
Please make sure that the battery is disposed of at an
ofcially assigned location, if there is one in your country.
EW1311_EU.indb 16 2018/11/14 13:02:25

17
English
6SHFL¿FDWLRQV
Power source See the name plate on the product
(Automatic voltage conversion)
Charging time Approx. 15 hours
Power
consumption Approx. 1 W
Pump frequency Approx. 1400 pulses/minute*
Water pressure
JET:
Approx. 590 kPa (approx. 6.0 kgf/cm²)
AIR IN (REGULAR):
Approx. 390 kPa (approx. 4.0 kgf/cm²)
AIR IN (SOFT):
Approx. 200 kPa (approx. 2.0 kgf/cm²)
Operating time Approx. 15 minutes*
(at 20 °C when fully charged)
Tank volume
Approx. 130 mL (approx. 35 seconds*)
Dimensions
Main unit: 197 (H) x 59 (W) x 75 (D) mm
(Not including nozzle)
Charger: 40 (H) x 93 (W) x 98 (D) mm
Mass
Main unit: Approx. 305 g(Including
nozzle)
Charger: Approx. 180 g
Airborne
Acoustical Noise
65 (dB (A) re 1 pW)
* When using AIR IN (REGULAR) mode
This product is intended for household use only.
&KDQJLQJWKHQR]]OH6ROGVHSDUDWHO\
• If the tip of nozzle gets deformed, please replace with
a new nozzle.
• The nozzle is a consumable. The nozzle should be
replaced with a new one every 6 months or so due to
hygiene reasons, even if its shape is unchanged.
• 2SWLRQDOQR]]OHVZLWKLGHQWL¿FDWLRQULQJWRDOORZ
several persons to share the main unit.
New nozzle (tip) Deformed (worn) nozzle
(tip)
Part number Replacement Nozzle for EW1311
EW0950 Nozzle
EW1311_EU.indb 17 2018/11/14 13:02:25
68

18
English
Disposal of Old Equipment and Batteries
OnlyforEuropeanUnionandcountrieswith
recyclingsystems
These symbols on the products, packaging,
and/or accompanying documents mean that
used electrical and electronic products and
batteries must not be mixed with general
household waste.
For proper treatment, recovery and recycling
of old products and batteries, please take
them to applicable collection points in
accordance with your national legislation.
By disposing of them correctly, you will help
to save valuable resources and prevent any
potential negative effects on human health
and the environment.
For more information about collection and
recycling, please contact your local authority.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
Noteforthebatterysymbol(bottomsymbol)
This symbol might be used in combination with
a chemical symbol. In this case it complies with
the requirement set by the Directive for the
chemical involved.
EW1311_EU.indb 18 2018/11/14 13:02:25

19
Deutsch
Betriebsanleitung
(Haushalts-) Munddusche
Modellnr. EW1311
Vielen Dank, dass Sie sich für den Kauf dieses Panasonic-Produkts entschieden haben.
Bevor Sie dieses Gerät in Betrieb nehmen, lesen Sie sich bitte diese Anleitung vollständig durch und bewahren Sie
VLHIUHLQVSlWHUHV1DFKVFKODJHQDXI
Sicherheitshinweise ...................... 22
Beabsichtigter Gebrauch 26
Bezeichnung der Bauteile 26
$XÀDGHQ 27
Wie das Gerät zu verwenden ist 28
Nach dem Gebrauch30
Reinigung31
+lX¿JJHVWHOOWH)UDJHQ 32
Fehlersuche32
Akkulebensdauer33
Entnehmen des integrierten Akkus 33
6SH]L¿NDWLRQHQ 34
Auswechseln der Düse
VHSDUDWHUKlOWOLFK34
Inhalt
EW1311_EU.indb 19 2018/11/14 13:02:25

20
Deutsch
Warnung
• Benutzen Sie nie Wasser zur Reinigung der Ladestation.
Ansonsten kann es durch einen Kurzschluss zu einem
elektrischen Schlag oder Brand kommen.
• Immer den Netzstecker aus der Wandsteckdose ziehen,
wenn Sie die Ladestation reinigen.
Ansonsten kann es zu einem elektrischen Schlag oder
Verletzungen kommen.
• Das Netzkabel kann nicht ausgetauscht werden. Wenn das
Netzkabel beschädigt ist, sollte die Ladestation entsorgt werden.
Ansonsten kann es zu einem Unfall oder Verletzungen kommen.
• Mundduschen können von Kindern ab 8 Jahren verwendet
werden. Unter Aufsicht können Sie ebenfalls von Personen
mit reduzierten physischen, sensorischen oder mentalen
Fähigkeiten verwendet werden oder von Personen, denen
entsprechende Kenntnisse und Erfahrungen fehlen.
EW1311_EU.indb 20 2018/11/14 13:02:25
