Panasonic PT-LB51NTE User manual

Wireless Function Edition
(PT-LB51NTE)
(PT-LB51NTU)
※The projectors illustrated as examples are PT-LB51NTE.
Macintosh
TQBH0188-4 (E/U)

2
Contents
Selecting the connection method ………………… 15
Software Licensing Agreement …………………… 3
Notes on Using Wireless Connection …………… 4
What you can do with Wireless Manager mobile edition 4.5 …6
Check your computer ……………………………… 7
Useful Functions …………………………………… 21 Shutter function …………………………………………………… 21
Setting options ……………………………………… 22
Setting option window …………………………………………… 22
Transmission……………………………………………………… 22
Key setting………………………………………………………… 23
Other ……………………………………………………………… 24
Version information ……………………………………………… 24
Network setting of the projector ………………… 25
Displaying the Wireless Menu ………………………………… 25
Changing the network number ………………………………… 26
[User] settings …………………………………………………… 26
IP address settings ……………………………………………… 26
Wireless settings ………………………………………………… 27
Default settings of [USER1]-[USER3] ………………………… 28
Changing the projector name…………………………………… 29
Password setting ………………………………………………… 29
Live mode cut-in…………………………………………………… 30
Verifying settings ………………………………………………… 31
Returning to the Initial Settings ………………………………… 31
Software Installation ………………………………… 8
System requirements ……………………………………………… 8
Contents on Provided CD-ROM …………………………………… 9
Wireless Manager ME 4.5 ………………………………………… 9
Connect………………………………………………… 10
Easy Wireless Set Up …………………………………………… 10
Detailed settings ………………………………………………… 10
Connection error messages …………………………………… 13
Connecting through the access point ………………………… 14
Other operations for connection ………………… 16

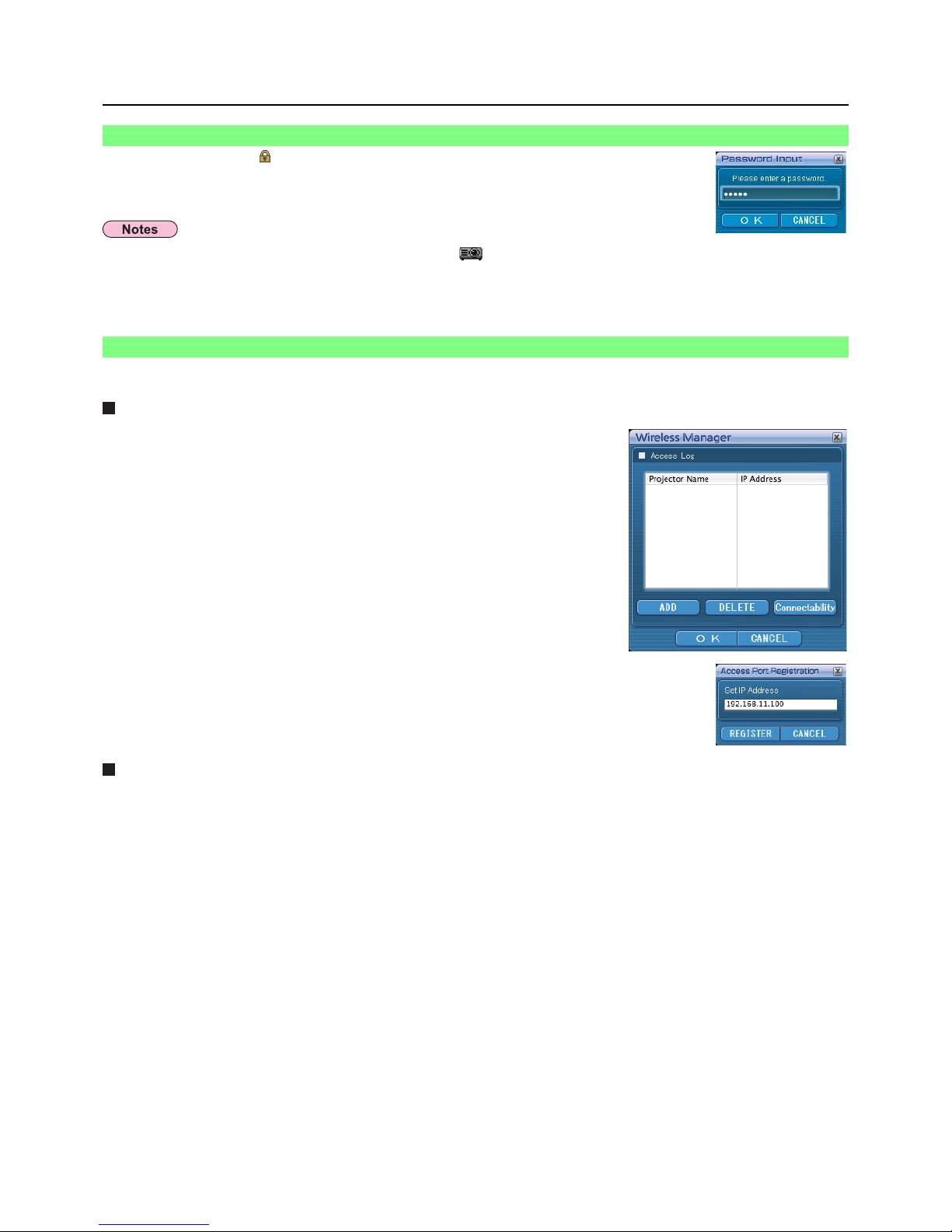

Operations when password entry is required for connection …16
Adding and deleting connections ……………………………… 16
Searching by projector’s ID …………………………………… 17

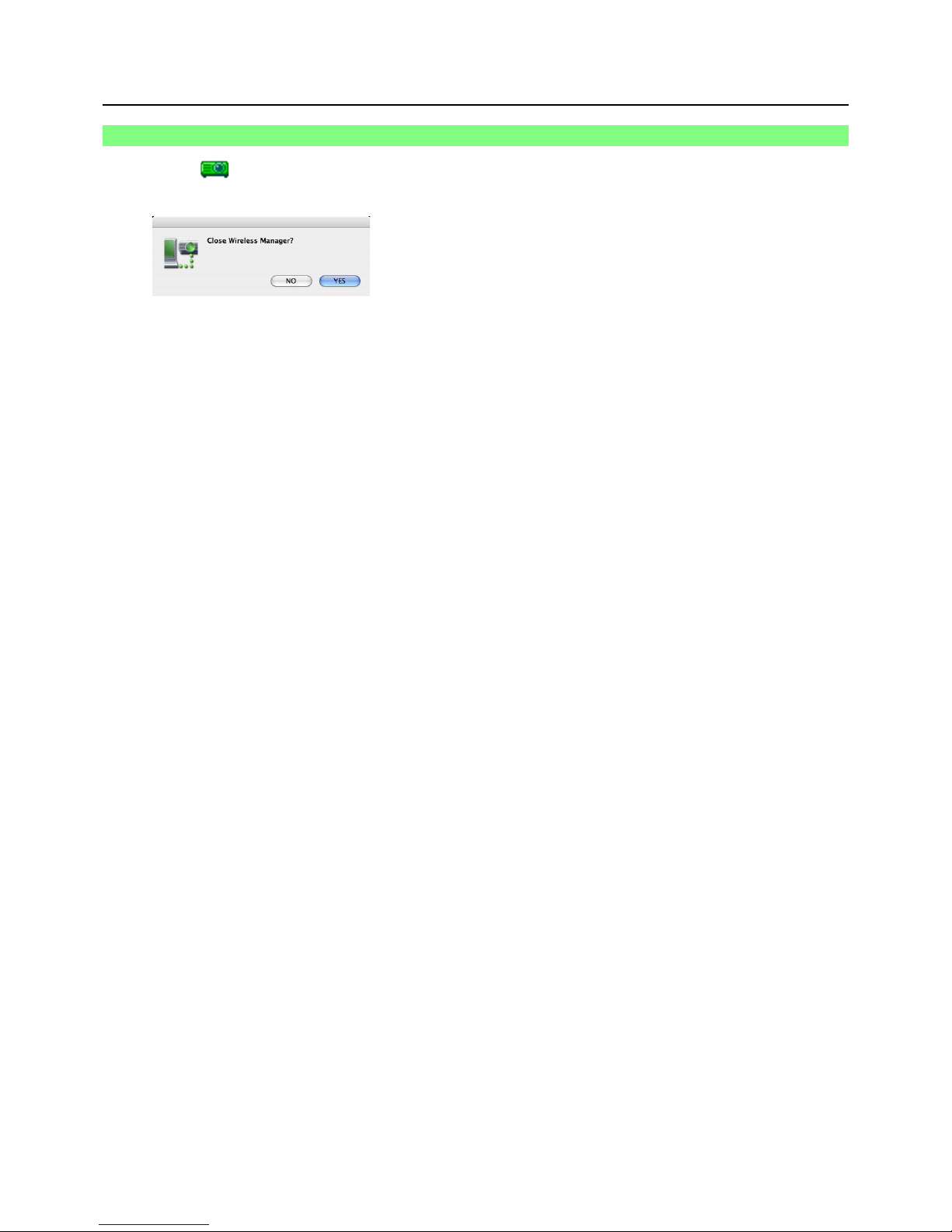

Canceling the connection ……………………………………… 18
Various projection methods ……………………… 19
Menu description ………………………………………………… 19
Live mode…………………………………………………………… 20
Using WebBrowser ………………………………… 32
Before using the WebBrowser control ………………………… 32
Accessing from the WebBrowser ……………………………… 33
Monitor information window …………………………………… 34
Projector control window………………………………………… 35
Detailed settings window ……………………………………… 36
Software Uninstall …………………………………… 38 Wireless Manager ME 4.5………………………………………… 38
Glossary ……………………………………………… 39 Frequently Asked Questions ……………………… 41

3
Please note the following.
• Panasonic cannot be held liable for any direct or indirect damages resulting from the use or malfunction of this projector.
• Panasonic cannot be held liable for damages arising from data corruption or loss as a result of using this projector.
Use of this Software is governed by the terms defined in this Software Licensing Agreement.
Article 1 License
Licensee is granted the right to use this software, including the information recorded or described on the CD-ROM and in the
instruction manual and any other media provided to the Licensee (collectively “Software”), but all applicable rights to copyright
or intellectual property in the Software are not transferable to the Licensee.
Article 2 Use by a Third Party
Licensee may not transfer or allow any third party, to use or copy the Software, whether free of charge or not.
Article 3 Restrictions on Copying the Software
Licensee may make a single copy of the Software in whole or in part solely for backup purposes.
However this excludes those copied using this software.
Article 4 Computer
Licensee may install and use the Software on more than one computer owned or managed by Licensee. However, such use
is restricted to only applications involving the projector.
Article 5 Reverse Engineering, Decompiling or Disassembly
Licensee may not reverse engineer, decompile or disassemble the Software. Matsushita shall not be bound by warranty for
any defects in the Software caused by Licensee’s reverse engineering, decompiling or disassembly of the Software.
Furthermore, Matsushita or its distributors or dealers will not be responsible for any damage to the Licensee caused by
Licensee’s reverse engineering, decompiling or disassembly of the Software.
Article 6 After-sales Service
If a problem should occur with the Software while Licensee is using the Software, Licensee should notify Matsushita of the
problem by telephone or letter. Matsushita shall undertake to notify Licensee of whether the problem is a known error in the
program (“bug”), or whether the way in which the Software is to be used should be modified.
Furthermore, the Software is subject to revision without prior notice.
Article 7 Indemnification
Matsushita’s liability with respect to this Software is limited to the conditions defined in Article 6 herein.
Matsushita or any of its distributors or dealers shall not be liable for any damage suffered by Licensee, either directly or
through claims from a third party, arising from or in connection with Licensee’s use of the Software.
Furthermore, Matsushita makes absolutely no warranty for the use of this Software for any purpose other than for applications
associated with the projector with which this Software is bundled.
Article 8 Export Control
Licensee agrees not to export or re-export the Software to any county other than the country of purchase of the projector in
any form without the appropriate export licenses under the regulations of the country where Licensee resides or of any other
country as may be required by such export or re-export.
Wireless Manager uses the following software:
Portion of this software are based in part on the work of the Independent JPEG Group
Software Licensing Agreement

4
Wireless connection function of the projector uses radio waves in the 2.4 GHz band.
A radio station license is not required, but be sure to read and fully understand the following items before use.
Do not use near other wireless equipment.
The following equipment may use radio waves in the same band as the projector.
When the projector is used near these devices, radio wave interference may make communication impossible, or the
communication speed may become slower.
• Microwave ovens, etc.
• Industrial, chemical and medical equipment, etc.
• In-plant radio stations for identifying moving objects such as those used in factory manufacturing lines, etc.
• Designated low-power radio stations
If at all possible, avoid the use of cellular phones, TV sets or radios near the projector.
Cellular phones, TV sets, radios and similar devices use different radio bands from the projector, so there is no effect on
wireless communication or the transmission and reception of these devices. However, radio waves from the projector may produce
audio or video noise.
Wireless communication radio waves cannot penetrate steel reinforcements, metal, concrete,
etc.
Communication is possible through walls and floors made from materials such as wood and glass (except glass containing
wire mesh), but not through walls and floors made from steel reinforcements, metal, concrete, etc.
Avoid using the projector in locations prone to static electricity.
If the projector is used in a location prone to static electricity, such as on a carpet, the wireless LAN connection may be lost.
If this happens, eliminate the source of static electricity or electromagnetic noise and reconnect to the wireless LAN.
In rare cases static electricity or electromagnetic noise may make it impossible to establish a connection to the LAN.
If this happens, press the power button on the remote control or on the projector to power off the projector temporarily.
After the cooling fan stops operating (after the power monitor on the projector changes from orange to red), power on the
projector and reconnect to the LAN.
Using the projector outside the country
It is forbidden to take the projector outside the country or region where you purchased it, so use it only in the said country or
region. Also, note that depending on countries or regions there are restrictions on the channels and frequencies at which you
can use the wireless LAN.
Notes on Using Wireless Connection

5
Notes on Using Wireless Connection (cont.)
Channels that can be used
The channels (frequency range) that can be used differ according to the country or region. Refer to the table below.
Country or region Standard Channels used Frequency band
(Center frequency)
Japan ARIB STD-T66
1 - 13 2,412 MHz -
2,472 MHz
China SRRC
England, Germany, France, Spain,
Italy, Belgium, Austria, Sweden, Norway,
Denmark, Switzerland, Holland, Finland,
Portugal, Greece, Thailand, South Korea
ETSI 300.328
Singapore IDA
Australia,
New Zealand C-Tick
Malaysia SIRIM
United States FCC part 15
1 - 11 2,412 MHz -
2,462 MHz
Taiwan DGT

6
What you can do with Wireless Manager mobile edition 4.5
Network Transmission

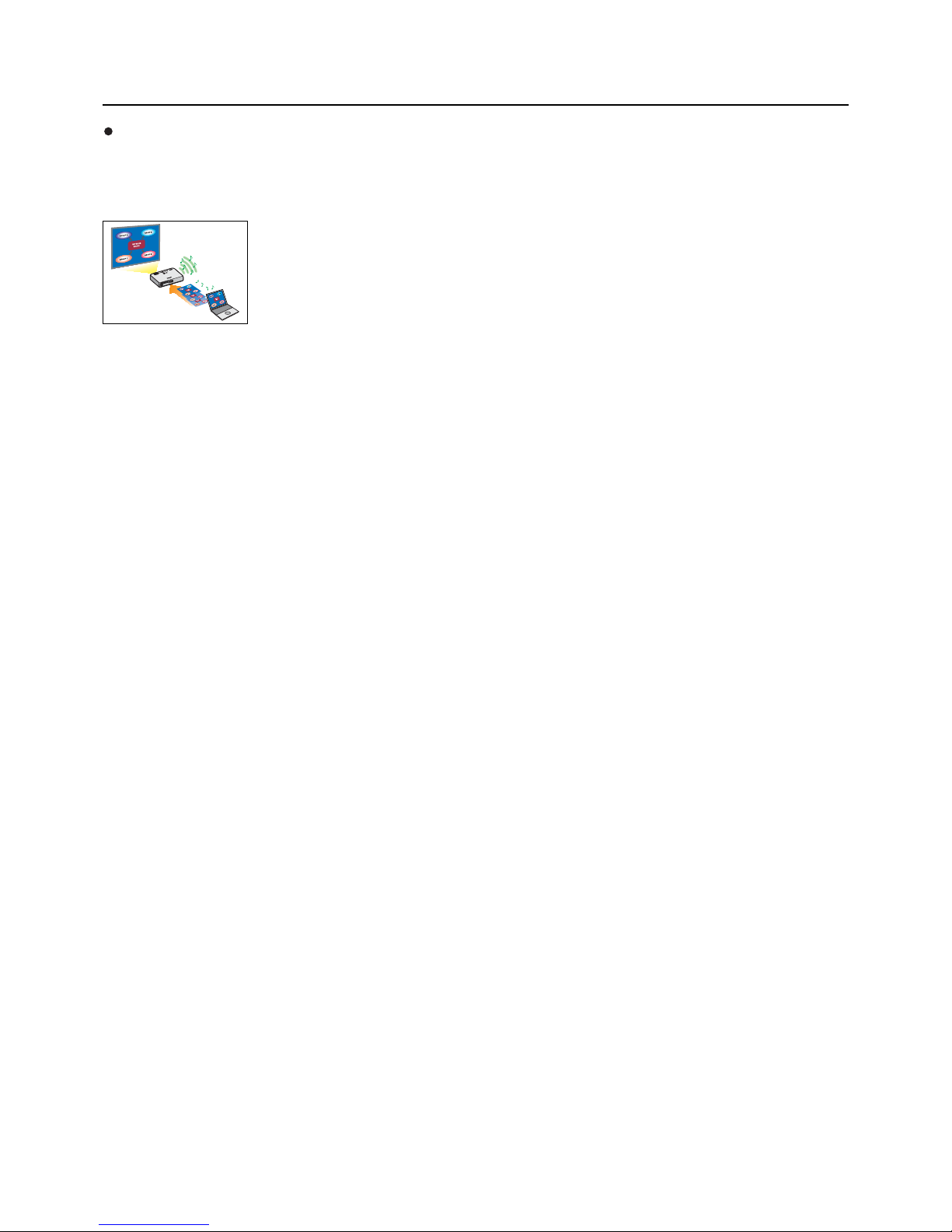

You can connect the projector to a computer via the wireless LAN and send moving and still images.
Refer to page 10 for details on how to connect.
<Live mode> (See page 20)
Used for normal presentations.
<WebBrowser control> (See page 32)
The following operations are possible when using WebBrowser control.
• Setting and adjusting the projector
• Displaying the projector status
<One-click Connection> (See page 24)
You can connect to the projector by double-clicking or using drag-and-drop.
<Live mode cut-in function> (See page 30)
During the live mode, a different computer can interrupt and project images in the live mode.

7
Check your computer
• First, check your computer to see whether or not it has a built-in wireless LAN※function. ※LAN : “Glossary” (See page 39)
• Before connecting the projector to the computer, be sure to check the following settings.
• Operation is not guaranteed for all wireless LAN cards and built-in wireless LAN adapters.
Check 1 Wireless LAN settings
• Is your wireless LAN switched on?
Check 2 Logon user’s settings
• Have you logged in as the [Admin (administrator)]?
Check 3 Computer’s settings
•
When security (firewall) software and utilities for network cards are installed, these may prevent connection of the projector.
Necessary environment for computers to be connected

8
Software Installation
The computer must meet the following requirements in order to use the supplied software.
OS: Mac OS X v10.4
Mac OS X v10.5※
CPU: 800 MHz PowerPC G4 or faster, or 1.8 GHz Intel Core processor or faster
RAM: 256 MB or more (512 MB or more recommended)
Empty hard disk capacity:
60 MB or more
Hardware conditions:
CD or DVD drive (for software installation and viewing the user’s manual)
An 802.11 b/g built-in wireless LAN adapter must be installed and running properly.
However, some 802.11 b/g wireless LAN may not allow a 802.11 g connection to projectors.
WebBrowser: Safari 2.0 or later
System requirements
Operation is not guaranteed for all computers that meet the above
conditions.
※Only for MacBook and MacBook Pro computers with built-in Intel Core 2 Duo processor.
For the latest information, please see our Web site.
http://panasonic.co.jp/pavc/global/projector/

9
Set the provided CD-ROM into the CD/DVD-ROM drive.
Contents on Provided CD-ROM
• Quit all running programs. Otherwise, installation may not be possible.
• [Admin (administrator)] authority is required for installation.
This software is used to send screen images from a computer to the projector via a wireless LAN.
Set the provided CD-ROM into the CD/DVD-ROM drive of a computer.
1
Wireless Manager ME 4.5
Software Installation (cont.)
Double-click [WMmac4.5.dmg] in the CD/DVD-ROM drive.
[WMmac] appears on the desktop.
2
Double-click [Wireless Manager.pkg].
Installation begins.
Follow the instructions on the screen and install the software.
3
• When a window for inputting a [Name] and [Password] appears, input the [Admin (administrator)]’s name and password.
• Install Wireless Manager ME 4.5 in the [Applications] folder (./Applications).
The user’s manual (Index.pdf) is on the CD/DVD-ROM disc.
Double-click it to view it.

10
Connect
1Click the install target or [ ] in the Dock.
Detailed settings
Select the projector to connect from the computer.
• For details on how to connect, refer to page 15.
• Only the built-in adapter appears on the <Network Adapter Selection> window.
• You cannot connect this model to a computer via the wired LAN.
The following models are compatible with the wired LAN communication that can be used with this Software.
PT-F100NT, PT-FW100NT

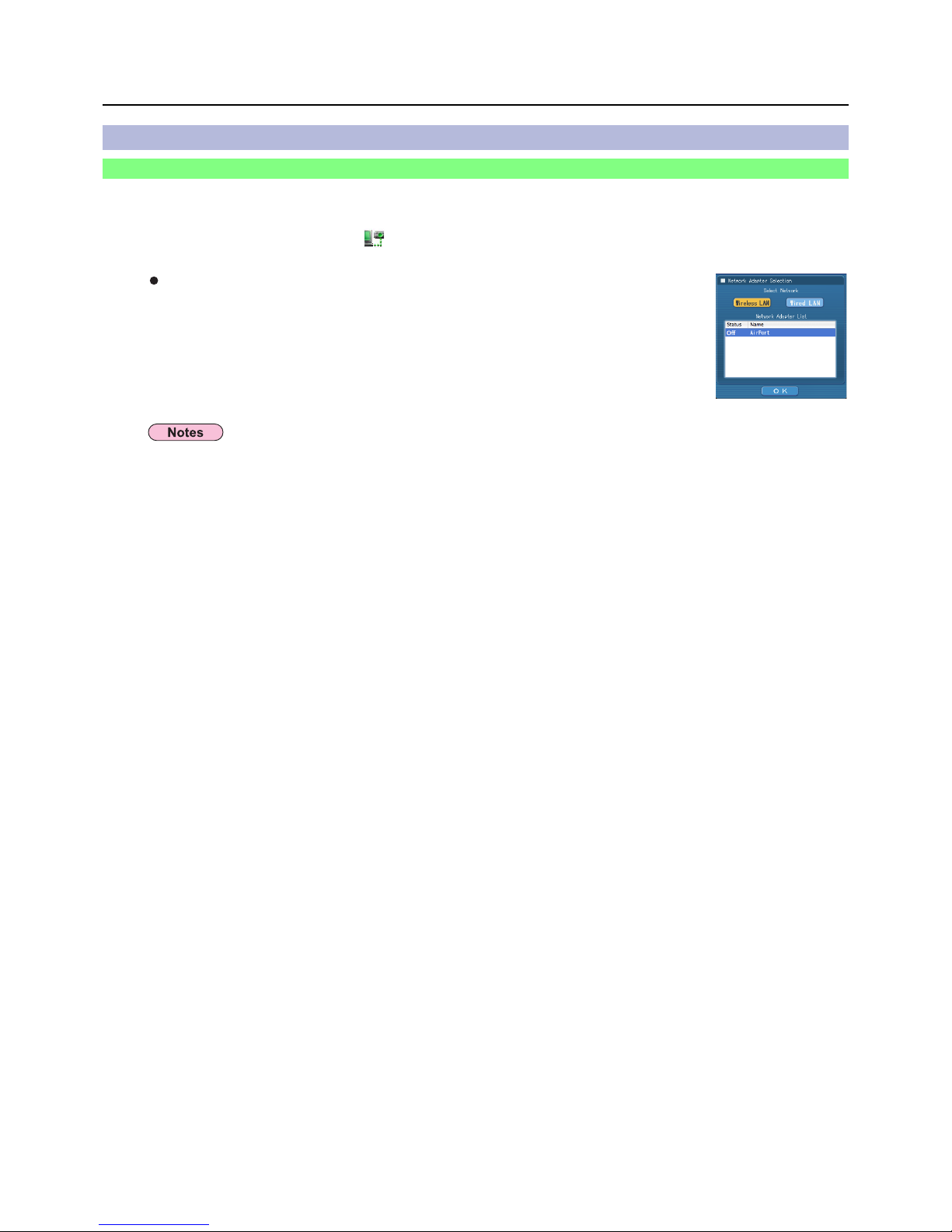

When the <Network Adapter Selection> window appears
ヂSelect the adapter from the list and click [OK].
If the confirmation dialog box appears, click [Yes].
ッSet the icon and user name, and click [OK].
Easy Wireless Set Up

11

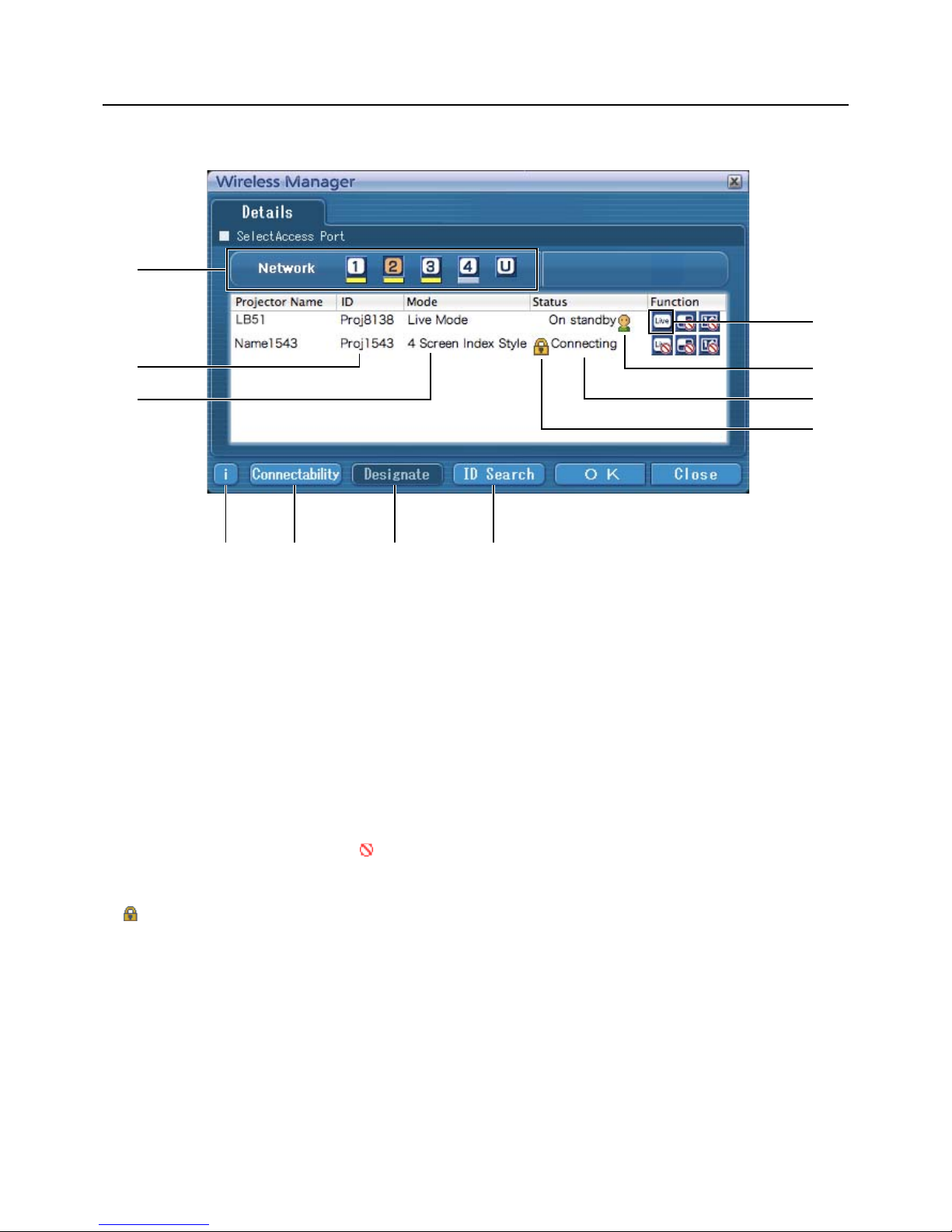

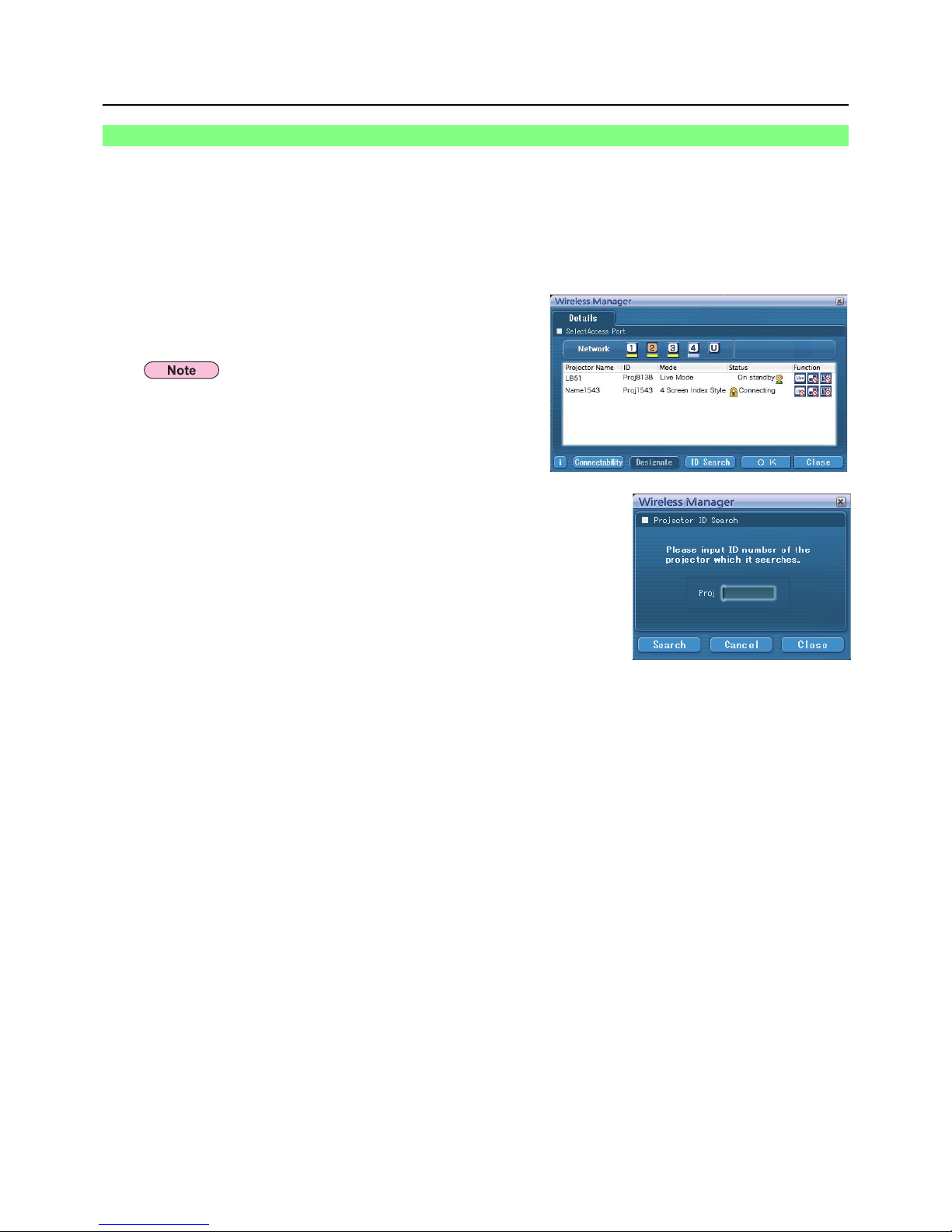

The projectors that can be connected are displayed on the <Select Access Port> window.
ヂNetwork
When you specify the network number (See page 26) set
on the projector from one of [1], [2], [3], [4], and
[U (USER)]※1, projectors that are presently switched on in
the selected network number are displayed in [Projector
Name]. The initial value for both the computer and the
projector is [1]※2.
※1-2 (See page 12)
ッID (See page 17)
Display projector’s ID.
ツMode (See page 20)
Display projector’s mode or style.
ヅAvailable mode and functions
Unavailable modes/functions among [Live mode], [Multi live
mode], and [One shot] are displayed with [ ] overlaid on
them.
テThe number of people connected to this projector
デThe status of this projector
ト[] appears when password entry is needed for
connection. (See page 16)
ドConnection message (See page 13)
Blinks when connection is not possible.
Click to display information on resolving the issue.
ナConnectability
When you click [Connectability], the projector name
and ID are displayed at top left of the projector screen.
If the projector name and ID are displayed correctly,
the message “Projector is available.” will appear on the
computer screen.
ニDesignate (See page 16)
Designate projectors to be connected when ヂis set to [U].
ヌID Search (See page 17)
When you click [ID Search], a search for the projector of
the specified ID is carried out from among the projectors
that are presently switched on, from all network numbers
other than [U].
Connect (cont.)
ド ナ ニ ヌ
ヅ
テ
デ
ト
ヂ
ッ
ツ

12
2In [Network], select the same network number as is displayed in the [NETWORK]
menu of the projector to connect.
Projectors powered on in the chosen network group are listed.
3Select the desired projectors, and click [OK].
[ ] appears in the menu bar and a connection is established with the projector.
(“Menu description” ĺSee page 19)
• Easy Wireless Set Up cannot be made between the projector and the computer. (See page 41)
• Automatic connection setting (See page 24)
※1
• In the following situation, connections other than [U] are not possible.
- When not installed in the [Applications] folder
• Depending on the computer and wireless LAN card used, Easy Wireless Set Up may not be possible. If this is the case,
the [Network] setting of <Select Access Port> window will be switched to [U] automatically. For details of the connection
procedure, first close Wireless Manager ME 4.5, and then refer to page 14.
※2
• The initial network number for both the projector and Wireless Manager ME 4.5 is [1]. These numbers must match for the
connection. To check the network number, refer to the network menu of the projector.
• When importance is placed on security, select the network number [2] - [4], because WEP (wireless communication
encryption) is set on these network numbers.
• Important image data is protected because AES※encryption processing takes place in advance for all network numbers,
even if [ENCRYPTION] is set to [NONE].
• Other network adapters may not be usable under Easy Wireless Set Up connections.
• Connections to other networks connected through the wireless LAN card are broken under Easy Wireless Set Up
connections.
※“Glossary” (See page 40)
Connect (cont.)

13
Connect (cont.)
Connection error messages
If a wireless LAN connection cannot be established, click the [ ] button in the bottom left of the <Select Access Port> window
to display information on resolving the issue as shown below.

14
You can make the setting for infrastructure mode※(connection through the access point※); however, confirm to your system
administrator on network settings before changing any settings.
※“Glossary” (See pages 39 - 40)
ヂProjector settings
1Turn on the projector and press the [NETWORK] button on the remote control.
2Select [USER 1]- [USER 3] from [NETWORK] at the wireless menu and press the
[ENTER] button.
3
Set the details of network and select [OK].
As for network setting items, see pages 26 - 28.
Confirm to your system administrator on network settings before changing any settings.
ッComputer settings
4Turn on the computer.
5Make the network setting according to your system administrator.
6
Connect to your access point.
If the projector is not displayed, click [Designate] followed by [ADD], then enter the IP address set in the projector using
the <Access Port Registration> window, and click [REGISTER]. (See page 16)
7Start Wireless Manager ME 4.5, click [Wireless LAN] on the <Network Adapter
Selection> window and select the network adapter connected to the access port.
A confirmation message appears asking whether to switch the projector to the network or not. Select [No].
8Select the desired projector on the <Select Access Port> window and click [OK].
[ ] appears in the menu bar and a connection is established with the projector.
(“Menu description” ĺSee page 19)
Connect (cont.)
The projector’s MAC address※can be checked with [STATUS] in the wireless menu of the projector unit.
(“Verifying settings”ĺsee page 31) ※“Glossary” (See page 39)
Connecting through the access point
When the user does not have the [Admin (administrator)] authority, the [Admin (administrator)]’s name and password are
required to make network settings.
If you are unable to connect to the wireless LAN through the access point even after performing the steps in “ヂProjector
settings,” contact the manufacturer of the access point.

15
Selecting the connection method
You cannot connect this model to a computer via the wired LAN.
The following models are compatible with the wired LAN communication that can be used with this Software.
PT-F100NT, PT-FW100NT
When the <Network Adapter Selection> window appears, select [Wireless LAN] and the connection
destination, then click [OK]. The wireless adapter is used for the connection.

16
Other operations for connection
※“Glossary” (See page 39)
The newly registered connection is added to the connection list in the window shown in step 1.
Click [ADD] and enter the IP address※(including its periods) of the
connection to be added, and then click [REGISTER].
2
Click [Designate] at the <Select Access Port> window.
The window shown to the right appears.
1
When [Network] is set to [U] and the desired projector is not displayed at the <Select Access Port> window, connections can be
added and deleted by the following operations.
Adding a connection
When a projector with the [ ] mark is selected, the window shown to the right appears. Enter the
password and click [OK]. (See page 29)
Deleting a connection
Select the connection to be deleted at the window shown in step 1 and click [DELETE].
• Clicking [CANCEL] on the password input window displays [ ] in the menu bar (see page 19), without establishing a
connection.
• When an incorrect password is entered, an error message appears.
Click [OK] to return to the password entry window and enter the correct password again.
Operations when password entry is required for connection
Adding and deleting connections

17
Other operations for connection (cont.)
Even if there are two or more projectors with the same name, an ID ([Proj] + 4-digit number) is assigned to each projector to
enable the projectors to be identified.
When you click [ID Search], a search for the projector of the specified ID is carried out from among the projectors that are
presently switched on, from all network numbers other than [U].
It is necessary to know ID in advance. When input selection is switched to [NETWORK] on a projector, the ID appears on the
upper right of the projection screen for approximately 5 seconds. If you write down the ID displayed in the [ID] column of the
[Details] screen on the <Select Access Port> window in advance, you can search a projector by the ID from next time.
Click [Select Access Port] in the menu.
The <Select Access Port> window appears.
1
Enter four figures of desired projector’s ID, and click [Search].
Start Searching.
3
When the projector of the applicable ID is found, the computer will be connected to
that projector, and the status display of the menu bar will turn green.
If appropriate ID is not found, an error message appears.
4
Click [ID Search].
<Projector ID Search> window appears.
2
Searching by projector’s ID
For procedures for displaying menus, see page 19.

18
Click [ ] in the menu bar, followed by [Quit Wireless Manager].
The following window appears.
1
Click [Yes].
The computer returns to the original network settings when the connection is ended.
However, note that some time may be needed to return to the original network settings.
Click [No] to return to the menu bar.
2
Other operations for connection (cont.)
Canceling the connection

19
Operations are performed from the menu.
• Clicking [ ] in the menu bar displays the menu.
Menu description
Various projection methods
Status
Menu
Status indication
Status : Indicate the connecting status.
(Green, lit): Transmission possible
(Blue, lit): Own computer currently transmitting (When in live mode)
(Yellow, lit): Other user currently transmitting
(Red, lit): Communication impossible
(Black, lit): When the projector has not been selected
Menu
20 page
21 page
33 page
11 page
22 page
24 page
18 page

20
Various projection methods (cont.)
Check the status indication in the menu bar to make sure that transmission is
possible (check that the green lamp is lit).
1
Click [Live Mode] from the menu.
The current computer screen is transmitted to the selected projector. In the live mode the projector is occupied by a
single computer, so operations from other computers are not possible.
Picture quality and other options can be set on the <Option> window by clicking [OPTION...] from the menu.
2
Connect a computer to a projector, and display the computer screen over the entire projection screen.
Live mode
• For presentations in live mode, the [PAGE Ÿź] buttons on the remote control will function in the same way as the computer’s
Page Up and Page Down keys. This means that if you run a computer application that supports the Page Up and Page Down
keys, the presentation screen can be changed using the remote control.
• If the connection error occurs during projection, the message [Stop “Live mode”] will appear, then restart projection from menu.
• Set the [LIVE MODE CUT IN] of the unit to [ON] in advance to enable a different computer to interrupt and project images in
live mode. (See page 30)
Notes on sharing projectors with Windows PCs
After selecting a projector, the live mode screen cannot be projected in the below index style.
In this case, use the [MULTI-LIVE] button on the remote control to cancel the index style.
Quitting live mode
Click [Live Mode] in the menu again.
