Panasonic AK-HRP1015G User manual

DVQP2526ZAW0321AM0 -PS
ENGLISH
For details of operating Remote Operation Panel AK-HRP1015G, please
visit the Panasonic website (https://pro-av.panasonic.net/manual/en/index.
html), and refer to the Operating Instructions (HTML or PDF).
Read this document when using the AK-HRP1015G Remote Operation Panel in
conjunction with AW-HR140 or AW-HE130 Series HD Integrated Cameras.
Operating Guide
Remote Operation Panel
Model No. AK-HRP1015G

Connecting the Unit to AW-HR140/AW-HE130
Series Cameras 3
Connection examples 3
Connections 5
Compatible Functions List 6
ROP Menu (when AW-HR140/AW-HE130 is
connected) 9
ROP menu list 9
01 SCENE 14
02 SHUTTER SPEED 15
03 FILTER 16
04 PEDESTAL 17
05 CHROMA 18
06 GAIN 19
07 WHITE BALANCE 20
08 GAMMA 21
09 KNEE 22
10 WHITE CLIP 23
11 DETAIL 24
12 MATRIX 25
13 COLOR CORRECTION 26
14 DNR 29
15 DIGTAL HAZE CLEAR 30
16 HOUSING 31
17 BRIGHTNESS 32
18 LENS CONTROL 33
19 IRIS RELATIVE 34
20 SYSTEM CAM 35
21 CAMERA MENU CONTROL 36
22 ROP SETTING 37
23 CONNECT SETTING 38
24 ROP IP SETTING 39
25 CAMERA IP SETTING 39
26 SWITCHER LINK 39
27 AW CONTROLLER LINK 39
- 2 -
Table of Contents

Connecting the Unit to AW-HR140/AW-HE130 Series
Cameras

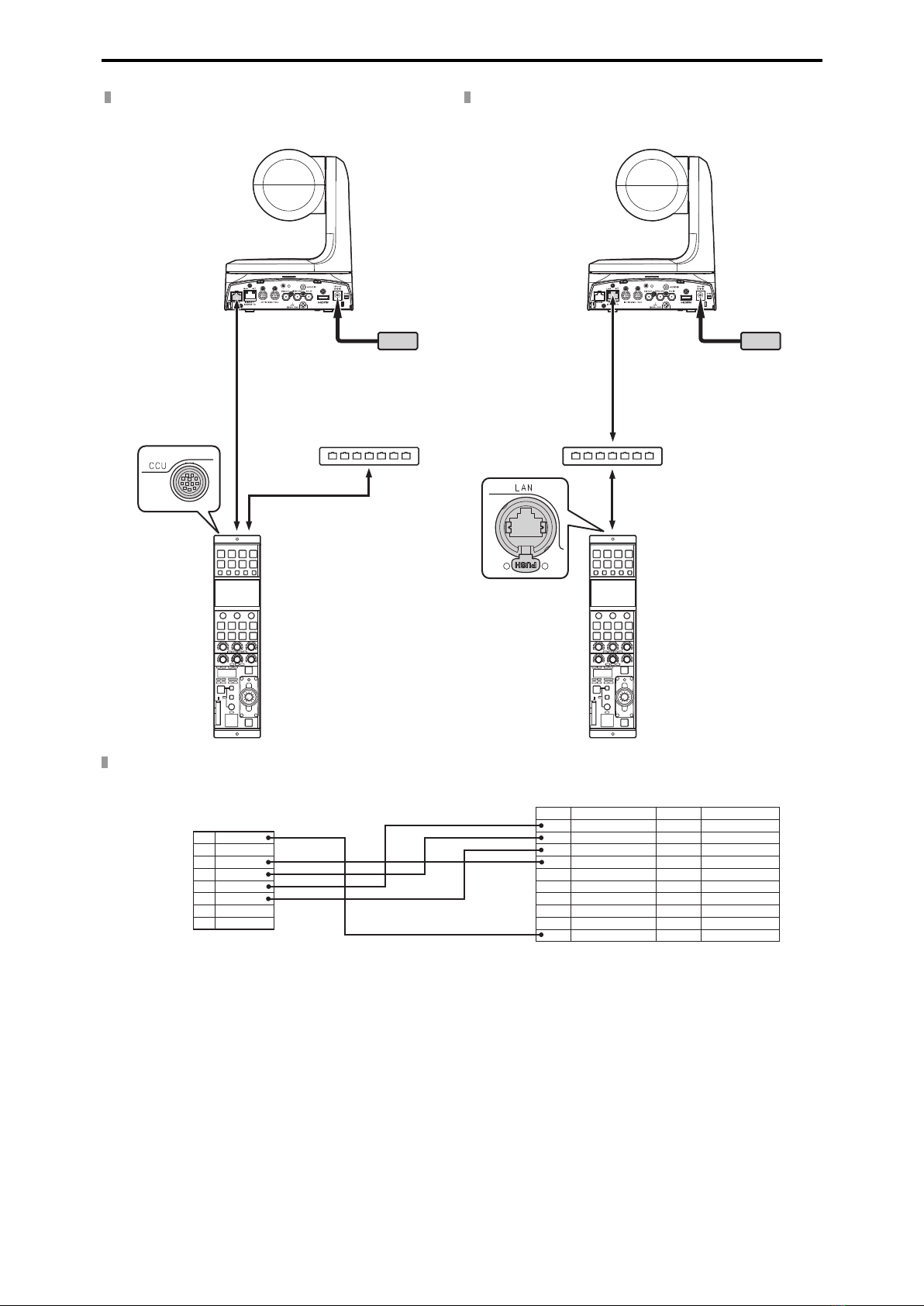

Connection examples
Serial connection with AW-HR140
External DC
power supply
HD Integrated Camera
AW-HR140
<RS-422> connector
* Prepare a cable that is in accordance
with the following serial connection
cable specifications.
PoE compatible
switching hub or injector
IP connection with AW-HR140
LAN cable (straight cable)
HD Integrated Camera
AW-HR140
LAN cable (straight cable)
Switching hub with
PoE support
<LINK/ACT> connector
External DC
power supply
- 3 -
Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

Serial connection with AW-HE130
External DC
power supply
HD Integrated Camera
AW-HE130
<RS-422> connector
* Prepare a cable that is in accordance
with the following serial connection
cable specifications.
PoE compatible
switching hub or injector
IP connection with AW-HE130
HD Integrated Camera
AW-HE130
LAN cable (straight cable)
Switching hub with
PoE support
LAN cable (straight cable)
<LINK/ACT> connector
External DC
power supply
Serial connection cable specifications
ヒヤモヮチチュモヵユドラナ⾺⾺⾼⾼Pin No. Function Polarity Flow of signal
ビヤヰヮチチュモヵユドロナピヤヰヮチチヤヰワヵドラナフヤヰヮチチヤヰワヵドロナヤモヮēチンヰヱヤモヮēチンヰヱンヰヱチēチヤモヮンヰヱチēチヤモヮブヤヰヮチチワㄐハチモプヤヰヮチチワㄐハチャヘヤヰヮチチワㄐハチヤベヤヰヮチチワㄐハチュペ
ヒビチヷ
ヒパヨワュヒヨンュヵモロロヺンヹュノヵヹュノヵヹュヌンヹュヌチ⾼チ⾼ビピフブプヘベラㄊㄓㄐㄔㄆホチランヒパモノヒパヱノヒパブドヘピナAW-HR140/AW-HE130
<RS-422> connector side (RJ45)
AK-HRP1015G
[CCU] connector side
- 4 -
Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

Connections
Set the connection setting to [Serial(AW2)] or [LAN(AW2)] in the [CONNECT SETTING] menu.
ヒチバチヒヘ
ヤヰワワユヤヵチヴユヵヵリワヨヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤモヮビヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤモヮブヤモヮピヤモヮプヤモヮヒヤモヮフヴㄆㄓㄊ㄂ㄍドモヸビナロモワドモヸビナワヰワワヰワワヰワワヰワ
NOTE
To connect with the AW-HR140/AW-HE130, upgrade the system version of the unit to 2.00-00-0.00 or later.
When connecting, observe the following points.
Serial connection
Use a dedicated cable to connect the [CCU] connector of this unit to the <RS-422> connector of the AW-HR140/AW-
HE130.
Use a PoE power supply for the power supply.
LAN connection
Connect the [LAN] connector on this unit to the <LINK/ACT> connector on the AW-HR140/AW-HE130 using a LAN
cable (sold separately).
Configure the camera IP address and port number settings of the connection destinations in [CAMERA IP SETTING] as
well.
This unit can be powered using PoE. Use a switching hub with PoE support.
Use a straight cable (category 5e or higher; up to 100 m (328.0 ft) in length) for the LAN cable (STP).
For details on switching hubs and PoE injectors that have been verified to support PoE, consult with your dealer.
- 5 -
Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

Compatible Functions List
When the unit is used in conjunction with an AW-HR140 Series or AW-HE130 Series HD Integrated Camera, there will be functions that are
limited or disabled for some of the unit’s buttons, dials, and other controls. Be sure to refer to the following table.
Front panel 1
Front panel 2
Front panel 3
Front panel 4
Front panel 5
Front panel 6
Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 1
[PANEL LOCK] button ✓
[AUTO] button ✓If auto setup has been assigned, this will not
operate.
[BARS] button ✓Only the ON/OFF for the color bar signal
output will function.
[TALLY/CALL] lamp/button ×
[REF. RECALL] button ×
[FILES] button ✓This is always lit.
[SETUP] button ✓
[AUTO IRIS] button ✓
Front panel 2
Function buttons ✓
LCD panel ✓
Menu operation dials ✓
- 6 -
Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 3
[GAIN] button ✓When this button is pressed, the gain menu
appears on the LCD panel. The button is lit
during menu display.
[SHT] button ✓When this button is pressed, the shutter
menu appears on the LCD panel. The button
is lit during menu display.
[COLOR] button ✓The menus will switch with each press of the
button. The button is lit during menu display.
[CHROMA] > [MATRIX] > [COLOR
CORRECTION] > Menu off (status screen)
[FILTER] button ✓When this button is pressed, the filter menu
appears on the LCD panel. The button is lit
during menu display.
[GAMMA] button ✓When this button is pressed, the gamma
menu appears on the LCD panel. The button
is lit during menu display.
[FLARE] button ×
[KNEE] button ✓The menus will switch with each press of the
button. The button is lit during menu display.
[KNEE] > [WHITE CLIP] > Menu off (status
screen)
[DTL] button ✓The menus will switch with each press of the
button. The button is lit during menu display.
[DETAIL] > [DNR] > Menu off (status screen)
Front panel 4
[GAIN], [TEMP], [GAMMA], [SKIN]
adjustment block
✓When [GAIN] is lit, [GAIN R] and [GAIN B] are
adjusted using the red (R) and blue (B)
adjustment dials respectively.
When [TEMP] is lit, [COLOR TEMP] is
adjusted using the green (G) adjustment
dial.
When [GAMMA] is lit, the master gamma is
adjusted using the green (G) adjustment
dial.
[SKIN] adjustment is disabled.
[PED], [FLARE], [B.GAM] adjustment block ✓When [PED] is lit, [PED R], [M.PED] and
[PED B] are adjusted using the red (R),
green (G), and blue (B) adjustment dials,
respectively.
[FLARE] and [B.GAM] adjustment is
disabled.
- 7 -
Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 5
[ALM] indicator ✓
[OPT] indicator ×
[EXT] indicator ×
[D.EXT] indicator ✓
Adjustment value display ✓A value is also not displayed when
[SHUTTER] is [SYNC]. The display will be bar
display.
When the shutter speed value is “10000”,
“9999” is displayed.
[ND] indicator ✓
[CC] indicator ✓This lights but does not function.
[IRIS] indicator ✓The iris value is not displayed.
[GAIN] indicator ✓
[PED] indicator ✓
[SHT] indicator ✓
[SYNC] indicator ✓
[DISP] button ✓
[UP (FREE)] button ✓
[DOWN (CHARA)] button ✓
[LOCK] indicator ✓
[SEL] dial ✓
Front panel 6
Memory card slot ✓
Memory card access indicator ✓
Camera number/tally display ✓
[IRIS RELATIVE] button ✓
Torque adjustment screw ✓
IRIS lever ✓
Master pedestal dial ✓
[PREVIEW] button ×
- 8 -
Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

ROP Menu (when AW-HR140/AW-HE130 is connected)
ROP menu list
When an AW-HR140/AW-HE130 HD Integrated Camera is connected, the ROP menu will be as follows.
For details on menu operations, refer to the following sections in the Operating Instructions.
“Displaying menus”
“Basic menu operations”
01 SCENE
SCENE1(push) “SCENE1(push)” (see page 14)
SCENE2(push) “SCENE2(push)” (see page 14)
SCENE3(push) “SCENE3(push)” (see page 14)
SCENE4(push) “SCENE4(push)” (see page 14)
02 SHUTTER SPEED
MODE “MODE” (see page 15)
SPEED “SPEED” (see page 15)
03 FILTER ND “ND” (see page 16)
04 PEDESTAL
M.PED “M.PED” (see page 17)
PED R “PED R” (see page 17)
PED B “PED B” (see page 17)
05 CHROMA LEVEL(%) “LEVEL(%)” (see page 18)
06 GAIN
SUPER GAIN “SUPER GAIN” (see page 19)
GAIN “GAIN” (see page 19)
AGC MAX GAIN “AGC MAX GAIN” (see page 19)
07 WHITE BALANCE
MODE “MODE” (see page 20)
COLOR TEMP “COLOR TEMP” (see page 20)
GAIN R “GAIN R” (see page 20)
GAIN B “GAIN B” (see page 20)
ATW SPEED “ATW SPEED” (see page 20)
ATW WIDTH “ATW WIDTH” (see page 20)
08 GAMMA
TYPE “TYPE” (see page 21)
GAMMA “GAMMA” (see page 21)
DRS “DRS” (see page 21)
09 KNEE
KNEE MODE “KNEE MODE” (see page 22)
KNEE POINT “KNEE POINT” (see page 22)
KNEE SLOPE “KNEE SLOPE” (see page 22)
10 WHITE CLIP
WHITE CLIP “WHITE CLIP” (see page 23)
WHITE CLP LV(%) “WHITE CLP LV(%)” (see page 23)
11 DETAIL
M.DTL “M.DTL” (see page 24)
V DTL LEVEL “V DTL LEVEL” (see page 24)
DTL BAND “DTL BAND” (see page 24)
NOISE SUPPRESS “NOISE SUPPRESS” (see page 24)
FLSHTN NIS SUP. “FLSHTN NIS SUP.” (see page 24)
SW “SW” (see page 24)
- 9 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

12 MATRIX
TYPE “TYPE” (see page 25)
R-G “R-G” (see page 25)
R-B “R-B” (see page 25)
G-R “G-R” (see page 25)
G-B “G-B” (see page 25)
B-R “B-R” (see page 25)
B-G “B-G” (see page 25)
13 COLOR CORRECTION
TYPE “TYPE” (see page 27)
COLOR CORRECT “COLOR CORRECT” (see page 27)
SAT “SAT” (see page 27)
PHASE “PHASE” (see page 27)
SAT B_Mg “SAT B_Mg” (see page 27)
PHASE B_Mg “PHASE B_Mg” (see page 27)
SAT Mg “SAT Mg” (see page 27)
PHASE Mg “PHASE Mg” (see page 27)
SAT Mg_R “SAT Mg_R” (see page 27)
PHASE Mg_R “PHASE Mg_R” (see page 27)
SAT Mg_R_R “SAT Mg_R_R” (see page 27)
PHASE Mg_R_R “PHASE Mg_R_R” (see page 27)
SAT R “SAT R” (see page 28)
PHASE R “PHASE R” (see page 28)
SAT R_R_Yl “SAT R_R_Yl” (see page 28)
PHASE R_R_Yl “PHASE R_R_Yl” (see page 28)
SAT R_Yl “SAT R_Yl” (see page 28)
PHASE R_Yl “PHASE R_Yl” (see page 28)
SAT R_Yl_Yl “SAT R_Yl_Yl” (see page 28)
PHASE R_Yl_Yl “PHASE R_Yl_Yl” (see page 28)
SAT Yl “SAT Yl” (see page 28)
PHASE Yl “PHASE Yl” (see page 28)
SAT Yl_G “SAT Yl_G” (see page 28)
PHASE Yl_G “PHASE Yl_G” (see page 28)
SAT G “SAT G” (see page 28)
PHASE G “PHASE G” (see page 28)
SAT G_Cy “SAT G_Cy” (see page 28)
PHASE G_Cy “PHASE G_Cy” (see page 28)
SAT Cy “SAT Cy” (see page 28)
PHASE Cy “PHASE Cy” (see page 28)
SAT Cy_B “SAT Cy_B” (see page 28)
PHASE Cy_B “PHASE Cy_B” (see page 28)
SAT B “SAT B” (see page 28)
PHASE B “PHASE B” (see page 28)
14 DNR DNR “DNR” (see page 29)
15 DIGTAL HAZE CLEAR
LEVEL “LEVEL” (see page 30)
SW “SW” (see page 30)
- 10 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

16 HOUSING
FAN “FAN” (see page 31)
HEATER “HEATER” (see page 31)
DFRSTR “DFRSTR” (see page 31)
WIPER “WIPER” (see page 31)
WASHER(push) “WASHER(push)” (see page 31)
17 BRIGHTNESS
PICTURE LEVEL “PICTURE LEVEL” (see page 32)
FRAME MIX “FRAME MIX” (see page 32)
DAY/NIGHT “DAY/NIGHT” (see page 32)
18 LENS CONTROL
FOCUS MODE “FOCUS MODE” (see page 33)
FOCUS SPEED “FOCUS SPEED” (see page 33)
FOCUS “FOCUS” (see page 33)
ZOOM WIDE “ZOOM WIDE” (see page 33)
ZOOM SPEED “ZOOM SPEED” (see page 33)
ZOOM TELE “ZOOM TELE” (see page 33)
DIGITAL ZOOM SW “DIGITAL ZOOM SW” (see page 33)
DIGITAL ZOOM MAX “DIGITAL ZOOM MAX” (see page 33)
DIGITAL ZOOM D.EXT “DIGITAL ZOOM D.EXT” (see page 33)
19 IRIS RELATIVE
SENSE Refer to the following section in the Operating Instructions.
“29 IRIS RELATIVE”
COARSE
RELATIVE
20 SYSTEM CAM
FORMAT “FORMAT” (see page 35)
FREQUENCY “FREQUENCY” (see page 35)
3G SDI OUT “3G SDI OUT” (see page 35)
I.S. “I.S.” (see page 35)
OSD MIX SDI OUT “OSD MIX SDI OUT” (see page 35)
OSD MIX IP “OSD MIX IP” (see page 35)
OSD STATUS “OSD STATUS” (see page 35)
AUDIO “AUDIO” (see page 35)
GENLOCK PHASE “GENLOCK PHASE” (see page 35)
HEAD PW(push) “HEAD PW(push)” (see page 35)
21 CAMERA MENU CONTROL
MENU ON/OFF “MENU ON/OFF” (see page 36)
CURSOR/PARAMETER “CURSOR/PARAMETER” (see page 36)
EXECUTE “EXECUTE” (see page 36)
- 11 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

22 ROP SETTING
IRIS LEV MOD Refer to the following section in the Operating Instructions.
“37 ROP SETTING”
M.PED CONTROL
LOCK SELECT
AUTO BUTTON
G/M PED VOL
FREE+LOCK
CAMERA SELECT
DTL BUTTON
SKIN VOL
LCD BRIGHT
PANEL BRIGHT
BUZZER
PERIOD
CYCLE
STD POSITION M.PED
STD POSITION VAR
STD POSITION ND
STD POSITION CC
IRIS PRIORITY
ROP DATA SAVE
ROP DATA LOAD
INITIAL with NW
INITIAL
UPGRADE
IRIS CALIBRATION TOP
IRIS CALIBRATION BOTTOM
SYSTEM VERSION
SOFT VERSION
FPGA VERSION
23 CONNECT SETTING
CONNECT MODE(push) CAM1 “CONNECT MODE(push) CAM1” (see page 38)
CONNECT MODE(push) CAM2
to CAM99 “CONNECT MODE(push) CAM2 to CAM99” (see page 38)
- 12 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

24 ROP IP SETTING
ROP IP ADDRESS 1 Refer to the following section in the Operating Instructions.
“39 ROP IP SETTING”
ROP IP ADDRESS 2
ROP IP ADDRESS 3
ROP IP ADDRESS 4
PORT
UPLOAD
ROP SUBNET MASK 1
ROP SUBNET MASK 2
ROP SUBNET MASK 3
ROP SUBNET MASK 4
UPLOAD
ROP DEFAULT GATEWAY 1
ROP DEFAULT GATEWAY 2
ROP DEFAULT GATEWAY 3
ROP DEFAULT GATEWAY 4
UPLOAD
MAC ADDRESS
25 CAMERA IP SETTING
CAM1 to CAM99 IP ADDRESS Refer to the following section in the Operating Instructions.
“40 CAMERA IP SETTING”
CAM1 to CAM99 PORT
CAM1 to CAM99 UPLOAD
26 SWITCHER LINK
SWITCHER IP ADDRESS Refer to the following section in the “Linking the Unit to the AV-
HS6000”.
“47 SWITCHER LINK”
SWITCHER UDP PORT
INFO UPLOAD
SWITCHER LINK
TALLY RECEIVE
PREVIEW
TALLY ACTION MATERIAL
TALLY ACTION CAM No.
27 AW CONTROLLER LINK
RECEIVE PORT Refer to the following section in the Operating Instructions.
“47 AW CONTROLLER LINK”
INFO UPLOAD
AW CONT LINK
- 13 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

01 SCENE
ヒチバチヒ
ヴヤユワユヰョョヰョョヰョョヰョョヴヤユワユヒ
ドㄑㄖㄔㄉナ
ヴヤユワユビ
ドㄑㄖㄔㄉナ
ヴヤユワユピ
ドㄑㄖㄔㄉナ
ヴヤユワユフ
ドㄑㄖㄔㄉナ
Item Setting details
SCENE1(push) Switches the scene file.
Switches to the scene set to ON.
SCENE2(push)
SCENE3(push)
SCENE4(push)
- 14 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

02 SHUTTER SPEED
ヒチバチヒ
ヴラヶヵヵユンチヴヱユユュヴヱユユュヰョョヮヰュユ
ヒパパ
Item Setting details
MODE Selects the operation mode of the shutter.
SPEED Sets the shutter speed. The setting can be changed when [MODE] is [STEP].
The shutter speed of [SYNC] is not displayed.
- 15 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

03 FILTER
ヒチバチヒ
ョリロヵユンワュヒ
Item Setting details
ND Sets the ND filter position.
- 16 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

04 PEDESTAL
ヒチバチヒ
ヱユュユヴヵモロンャ
パパパ
ヱユュヮハヱユュ
Item Setting details
M.PED Adjusts the black level of the master pedestal.
PED R Sets the correction level of red to the master pedestal.
PED B Sets the correction level of blue to the master pedestal.
- 17 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

05 CHROMA
ヒチバチヒ
ヤランヰヮモロユヷユロドテナ
パ
Item Setting details
LEVEL(%) Sets the color intensity of images.
- 18 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

06 GAIN
[SUPER GAIN] is a function for only the AW-HR140.
ヒチバチヒ
ヨモリワヴヶヱユンヨモリワヨモリワモヨヤヮモヹチヨモリワヰョョパヒベ
Item Setting details
SUPER GAIN Enables/disables the super gain (increased sensitivity) function.
GAIN Adjusts the gain of images.
AGC MAX GAIN When [AUTO] is selected as the [GAIN] setting, the maximum gain-up amount can be set.
- 19 -
ROP Menu (when AW-HR140/AW-HE130 is connected)

07 WHITE BALANCE
[ATW SPEED] and [ATW WIDTH] are functions for only the AW-HR140.
ヒチバチビ
ヸラリヵユチャモロモワヤユンャ
パパ
ヨモリワ
ピビパパレ モヸャチモヮヰュユヤヰロヰンヵユヮヱ
ビチバチビ
ヸラリヵユチャモロモワヤユヴヱユユュヸリュヵラモヵヸワヰンヮモロ
ブ
Item Setting details
MODE Sets the white balance mode.
COLOR TEMP Sets color temperature settings.
GAIN R Adjusts the R gain.
GAIN B Adjusts the B gain.
ATW SPEED Sets the control speed of the ATW function.
ATW WIDTH Sets the color temperature range to track with the ATW function.
- 20 -
ROP Menu (when AW-HR140/AW-HE130 is connected)
