Panasonic SA-PT465EE User manual

O
OO
OGENERAL
Power supply: AC 230-240 V, 50 Hz
Power consumption: This unit 125 W
Power consumption in standby mode:
approx. 0.4 W
Dimensions (W×H×D): 430 mm×63 mm×327 mm
Mass: This unit 3.4 kg
Operating temperature range: 0°Cto+40°C
Operating humidity range: 35 % to 80 % RH
(no condensation)
O
OO
OAMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
Front Ch:
125 W per channel (3 Ω), 1 kHz, 10% THD
Surround Ch:
125 W per channel (3 Ω), 1 kHz, 10% THD
Center Ch:
125 W per channel (3 Ω), 1 kHz, 10% THD
Subwoofer Ch:
© 2008 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
SA-PT465EE
Colour
(S).......................Silver Type
(K).......................Black Type
125 W per channel (3 Ω), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power:
750 W
DIN Output Power: Dolby Digital Mode
Front Ch:
75 W per channel (3 Ω), 1 kHz, 1% THD
Surround Ch:
75 W per channel (3 Ω), 1 kHz, 1% THD
Center Ch:
75 W per channel (3 Ω), 1 kHz, 1% THD
Subwoofer Ch:
75 W per channel (3 Ω), 100 Hz, 1 % THD
Total DIN Dolby Digital mode power:
450 W
O
OO
OFM TUNER, TERMINALS SECTION
Preset Memory: FM 30 stations
Frequency Modulation (FM)
Frequency range:
87.50-108.00 MHz (50-kHz step)
DVD Home Theater Sound System
Notes: This model is based on SA-PT460EB/EG-K,EG-S. Please refer to the original service manual (Order
no. MD0801001CE).
Specifications
ORDER NO. MD0802003AE

Antenna terminals: 75 Ω(unbalanced)
Digital audio input
Optical digital input: Optical terminal
Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz
Phone jack
Terminal: Stereo, 3.5 mm jack
USB Port
USB standard: USB 2.0 full speed
Media file format support: MP3 (*.mp3)
WMA (*.wma)
JPEG (*.jpg) (*.jpeg)
MPEG4 (*.asf)
USB device file system: FAT12, FAT16, FAT32
USB Port power: Max. 500 mA
Mic jack
Sensitivity: 0.7mv(1.2Ω)
Terminal: Mono, 6.3 mm(2 systems)
O
OO
ODISC SECTION
Discs played [8 cm or 12 cm]:
(1) DVD (DVD-Video, DivX*5, 6)
(2) DVD-RAM (DVD-VR, MP3*2, 5, JPEG*4, 5, MPEG4*5, 7, DivX*5, 6
)
(3) DVD-R (DVD-Video, DVD-VR, MP3*2, 5, JPEG*4, 5 , MPEG4*5,
7, DivX*5, 6)
(4) DVD-R DL (DVD-Video, DVD-VR)
(5) DVD-RW (DVD-Video, DVD-VR, MP3*2, 5, JPEG*4, 5,
MPEG4*5, 7, DivX*5, 6)
(6) +R/+RW (Video)
(7) +R DL (Video)
(8) CD, CD-R/RW [CD-DA, Video CD, SVCD*1,MP3
*2, 5,WMA *3,
5, JPEG*4, 5, MPEG4*5, 7, DivX*5, 6]
*1 Conforming to IEC62107
*2 MPEG-1 Layer 3, MPEG-2 Layer 3
*3 Windows Media Audio Ver.9.0 L3
ONot compatible with Multiple Bit Rate (MBR)
*4 Exif Ver 2.1 JPEG Baseline files
OPicture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4).
Extremely long and narrow pictures may not be displayed.
*5 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture
and video contents and 400 groups.
*6 Plays all versions of DivX® video (including DivX®6) with
standard playback of DivX® media files. Certified to the DivX
Home Theater Profile.
*7 MPEG4 data recorded with the Panasonic SD multi cameras
or DVD video recorders.
OConforming to SD VIDEO specifications (ASF standard)/
MPEG4 (Simple Profile) video system/G.726 audio system.
Pick up
Wavelength (DVD/CD): 655/785 nm
Laser power (DVD/CD): CLASS 1/CLASS 1M
Audio output (Disc)
Number of channels: 5.1ch(FL,FR,C,SL,SR,
SW)
O
OO
OVIDEO SECTION
Video system: PAL625/50, PAL525/60, NTSC
Composite video output
Output level: 1Vp-p(75Ω)
Component Video Output: (NTSC: 480p/480i, PAL: 576p/576i)
O
OO
OY output level: 1 Vp-p (75 Ω)
O
OO
OPBoutput level: 0.7 Vp-p (75 Ω)
O
OO
OPRoutput level: 0.7 Vp-p (75 Ω)
O
OO
OTerminal: Pin jack (Y: green, PB: blue,
PR: red) (1 system)
HDMI AV output
Terminal: 19pin type A connector
HDAVI Control:
This unit supports “HDAVI Control 3” function.
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Solder:
This model uses lead free solder (PbF).
Mechanism:
This model uses DLS6 mechanism.

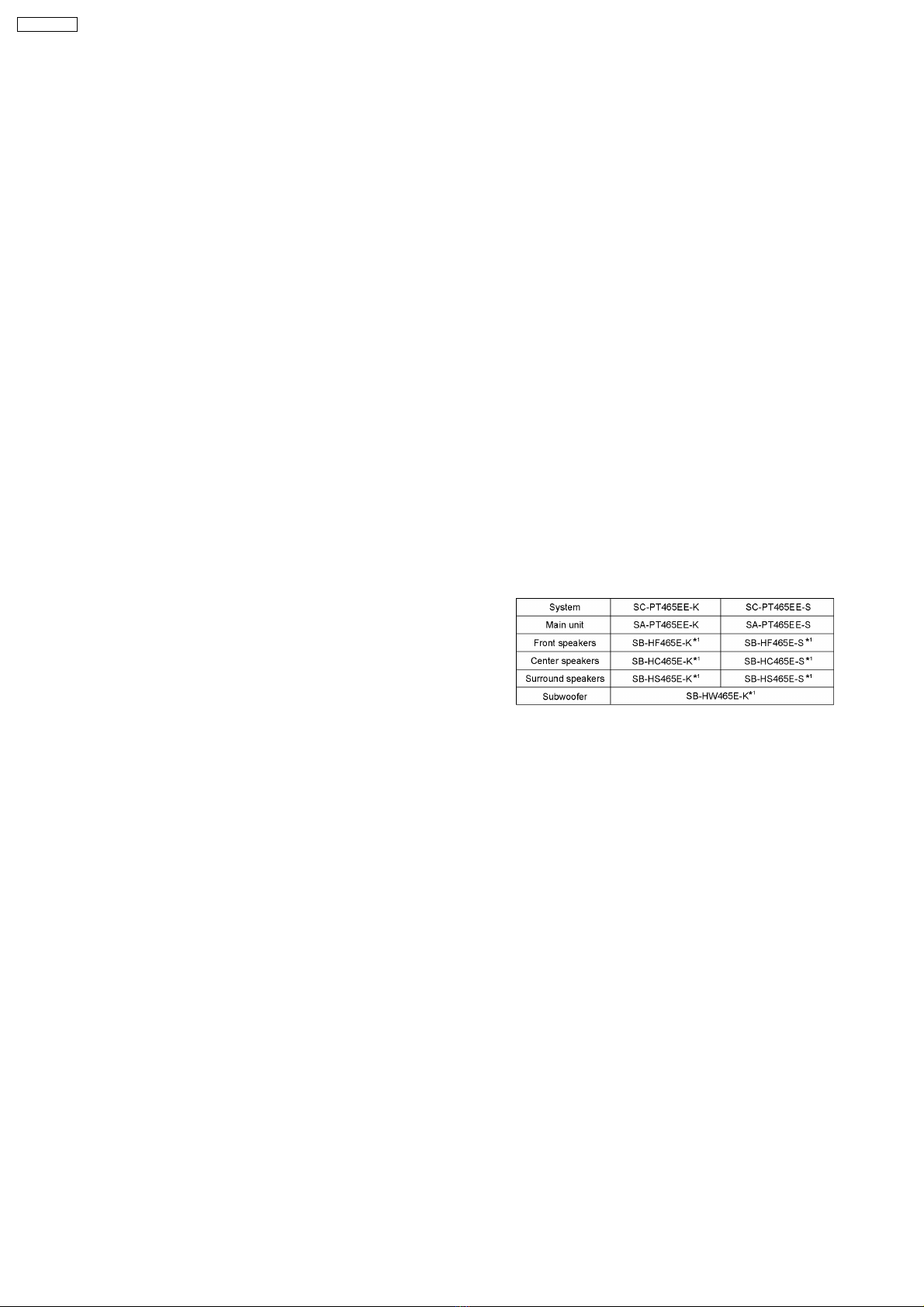

Refer to their respective original service manuals for *1.
2
SA-PT465EE

3
SA-PT465EE

1 Notes: 6
2 Safety Precautions 7
2.1. GENERAL GUIDELINES 7
2.2. Before Repair and Adjustment 7
2.3. Protection Circuitry 7
2.4. Safety Parts Information 8

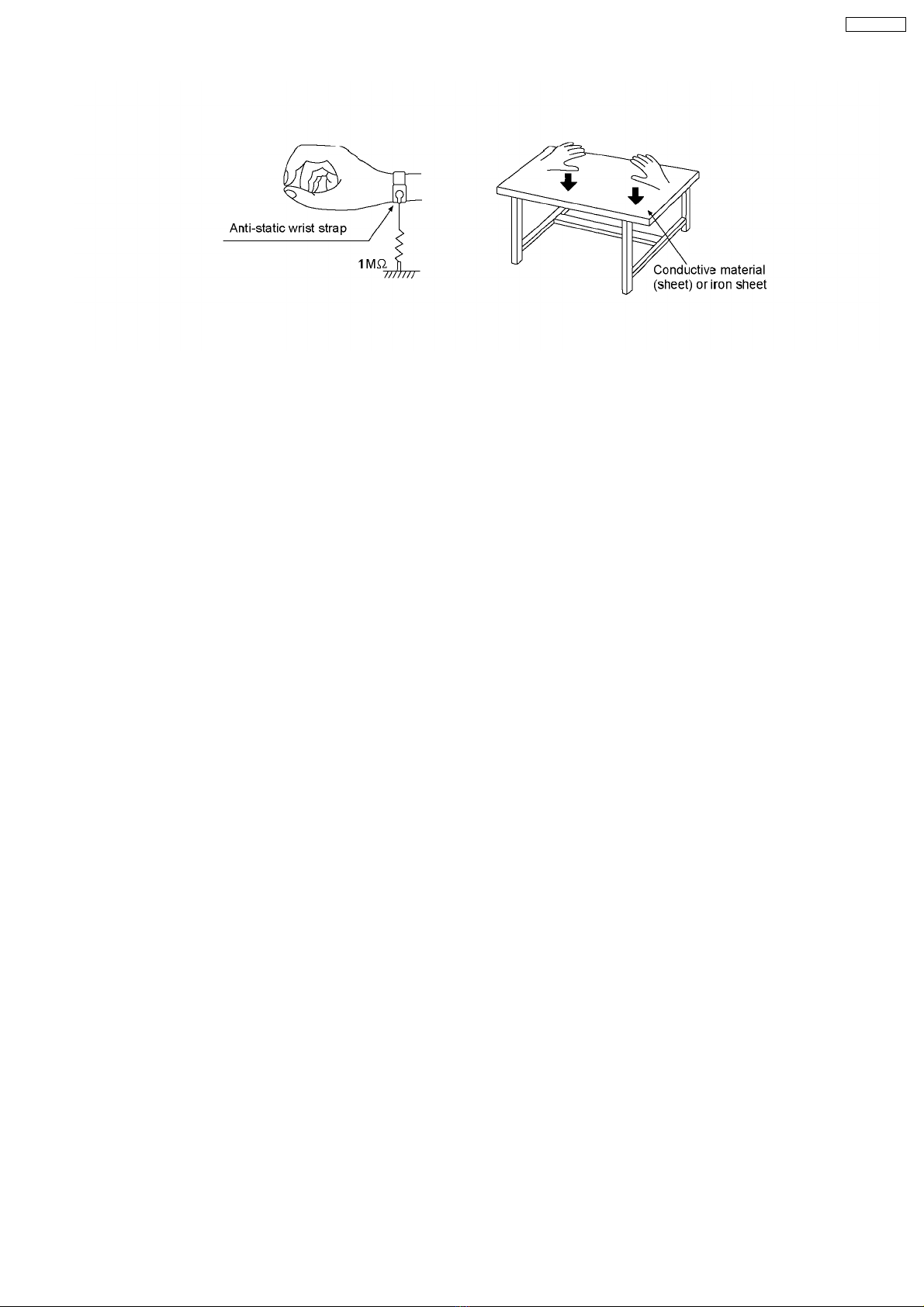

3 Prevention of Electrostatic Discharge (ESD) to
Electrostatically Sensitive (ES) Devices 9

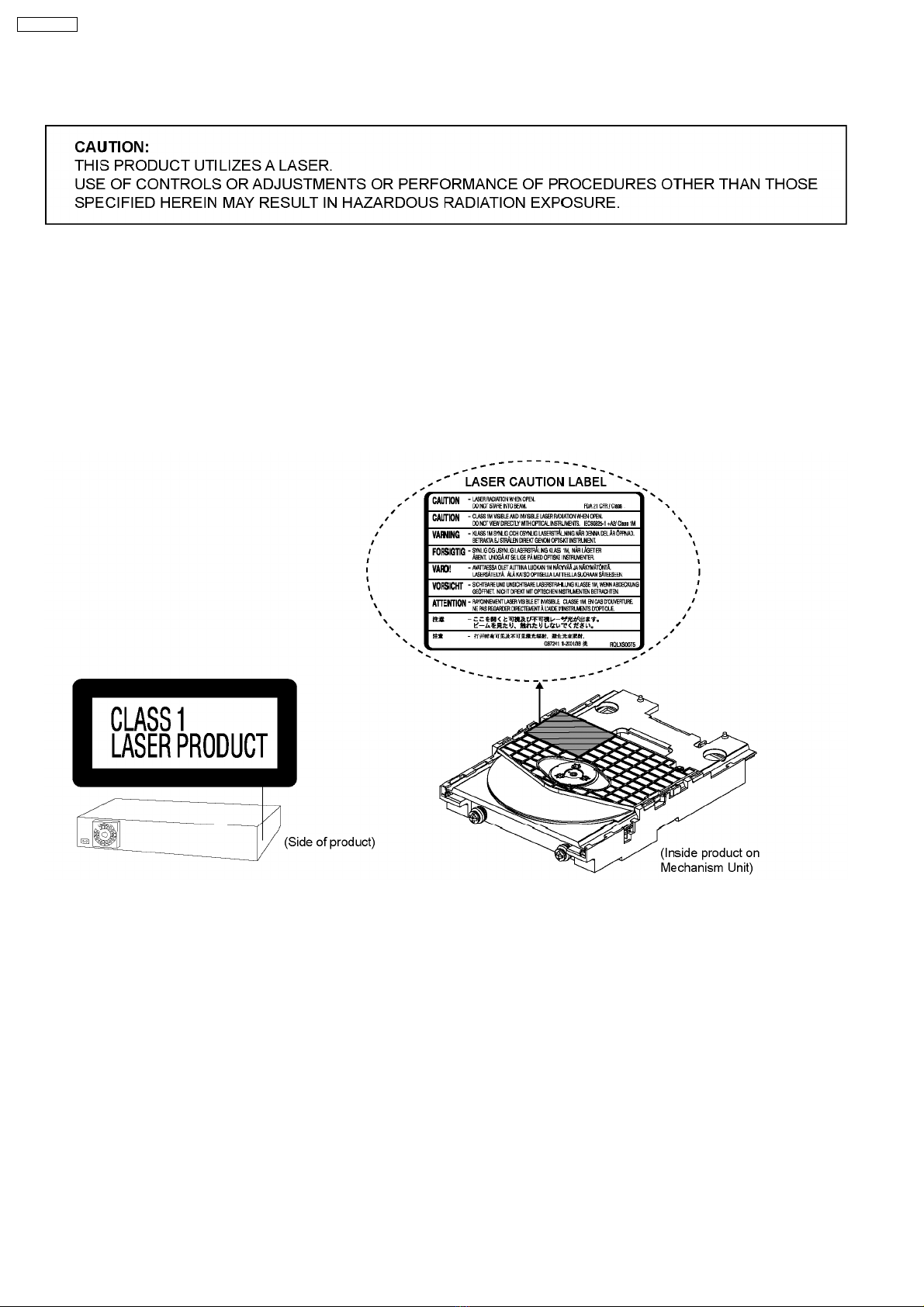

4 Precaution of Laser Diode 10
5 About Lead Free Solder (PbF) 11
5.1. Service caution based on legal restrictions 11

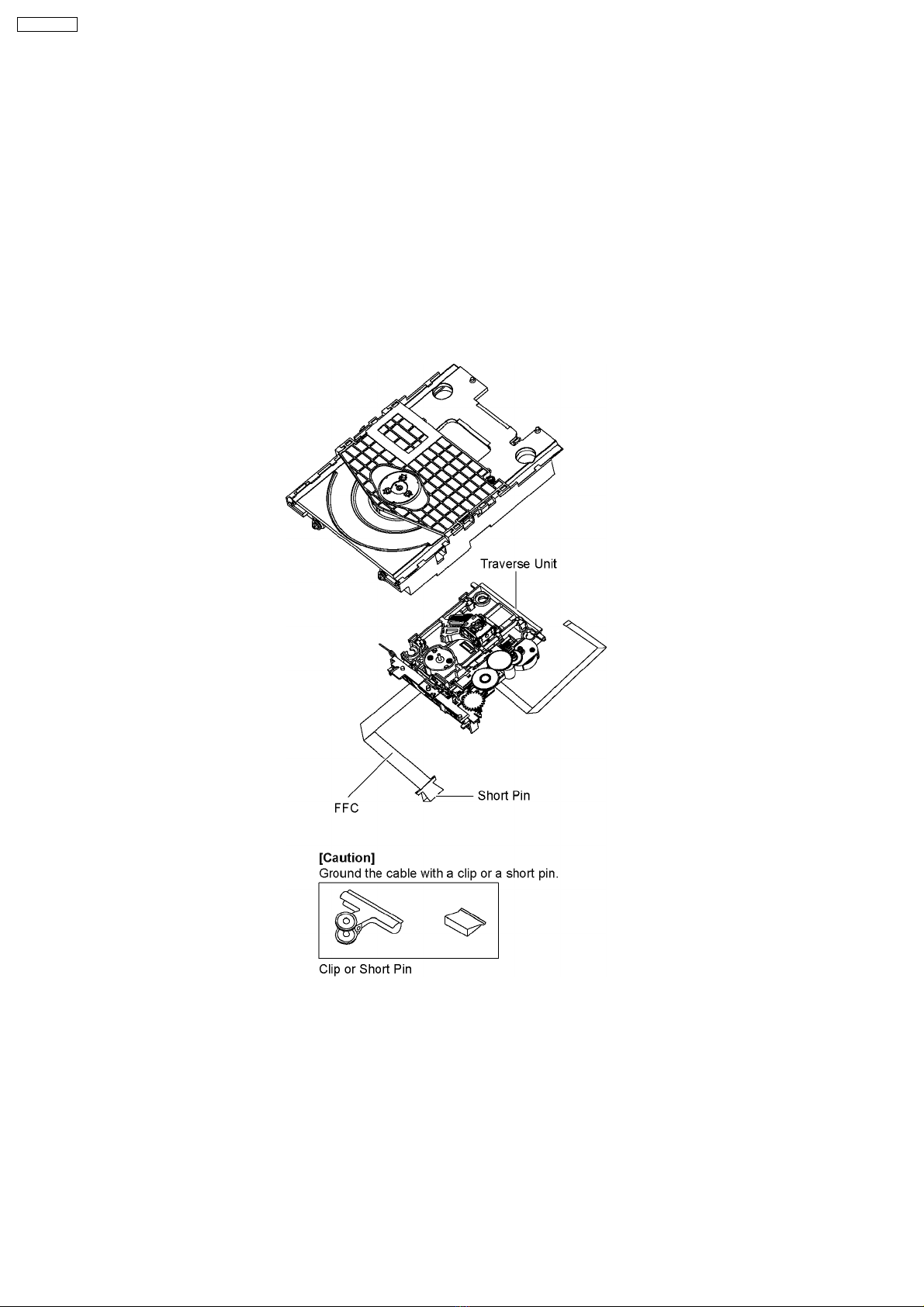

6 Handling Precautions for Traverse Unit 12
6.1. Cautions to Be Taken in Handling the Optical Pickup Unit
12
6.2. Grounding for electrostatic breakdown prevention 12

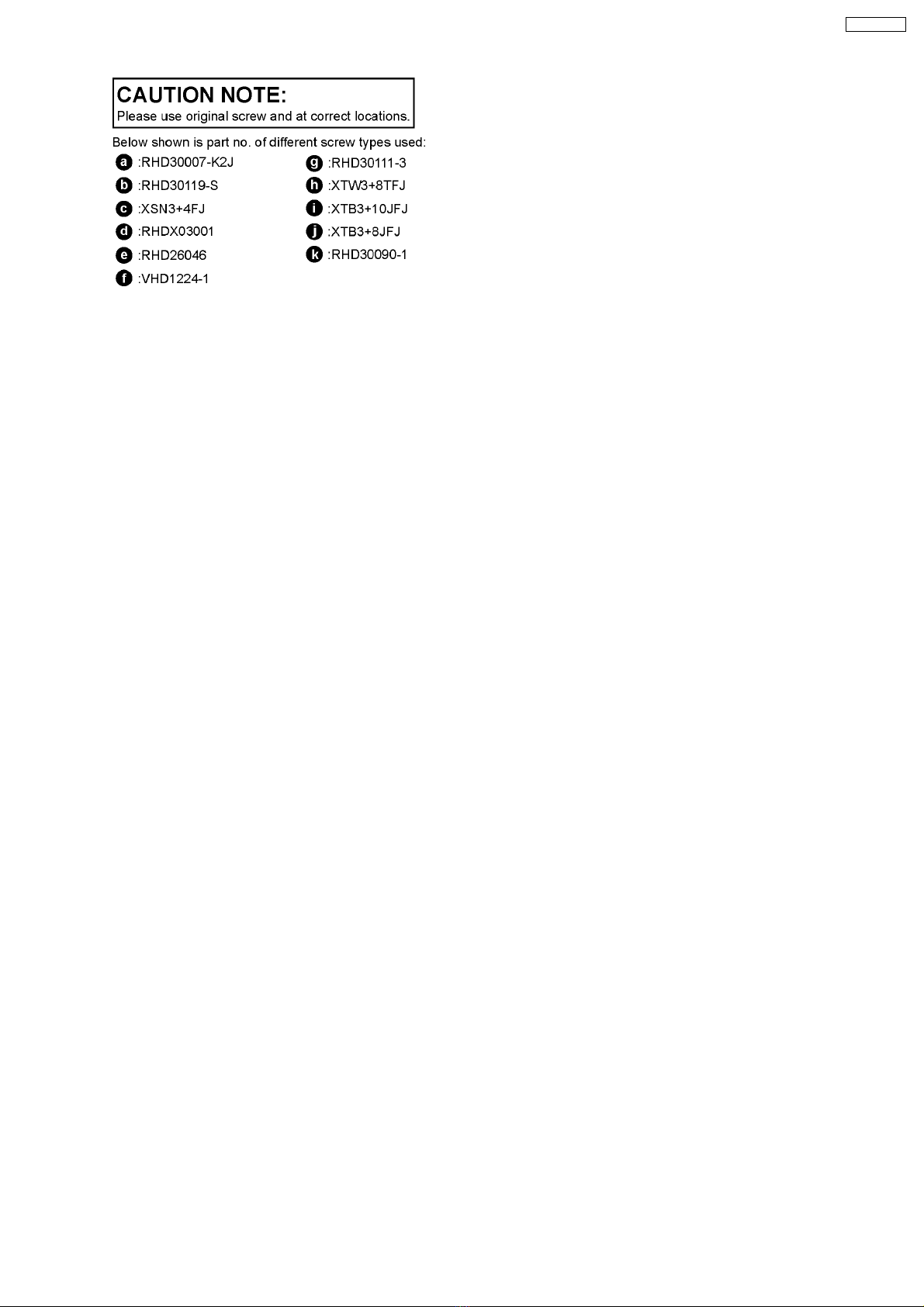

7 Assembling and Disassembling 14
7.1. Disassembly Flow Chart 16

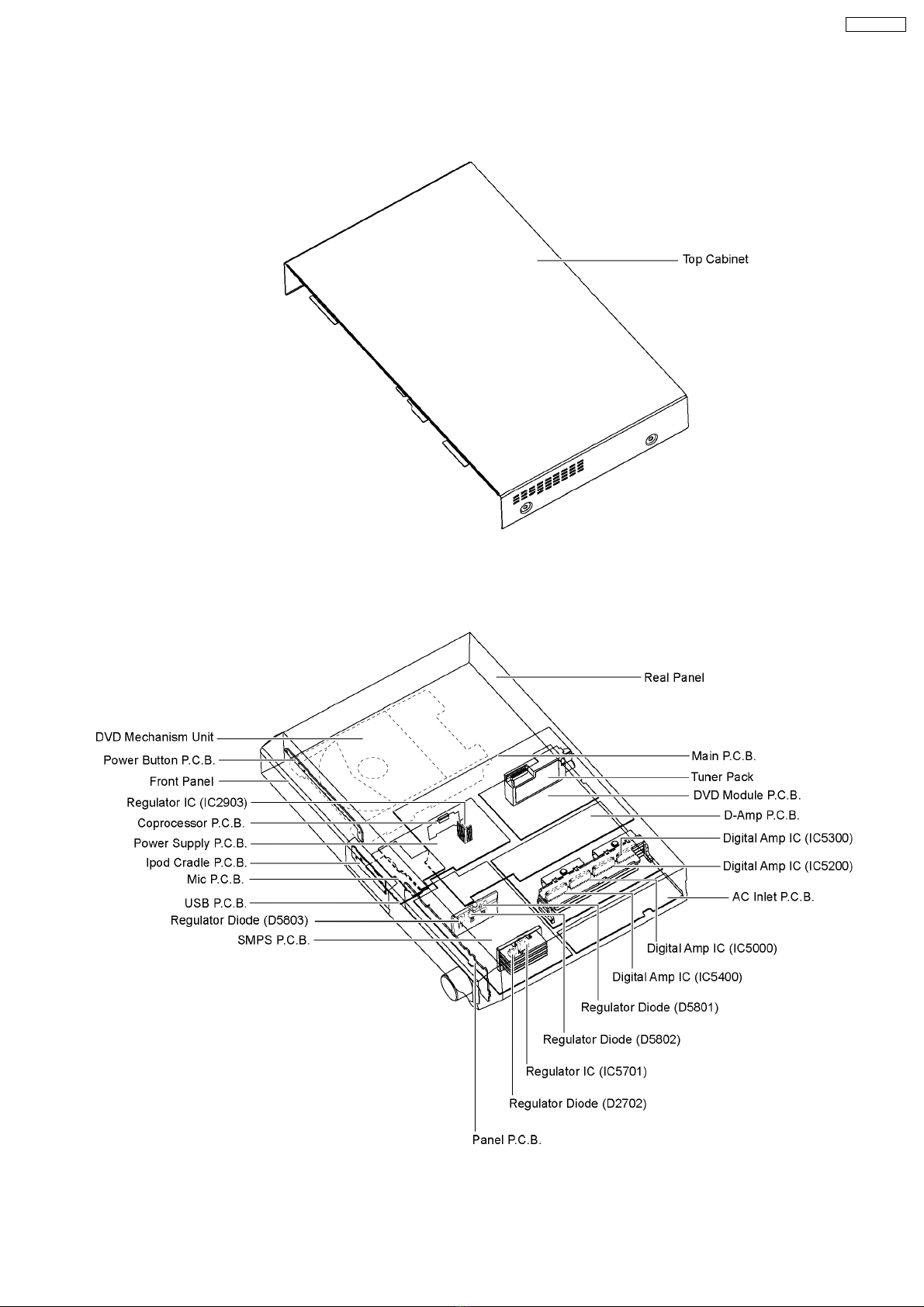

7.2. Main Components and P.C.B. Locations 17
7.3. Disassembly of Top Cabinet 18
7.4. Disassembly of Rear Panel 18
7.5. Disassembly of DVD Mechanism Unit 18
7.6. Disassembly of Front Panel 19
7.7. Disassembly of Panel P.C.B. 19
7.8. Disassembly of Power Button P.C.B. 20
7.9. Disassembly of USB P.C.B. 20
7.10. Disassembly of Mic P.C.B. 21
7.11. Disassembly of DVD Lid 21
7.12. Disassembly of Ipod Cradle P.C.B. 21
7.13. Disassembly of AC Inlet P.C.B. 22
7.14. Disassembly of Main P.C.B. 23
7.15. Disassembly of D-Amp P.C.B. 24
7.16. Replacement of Digital Amp IC (IC5000) 25
7.17. Replacement of Digital Amp IC (IC5200) 26
7.18. Replacement of Digital Amp IC (IC5300) 27
7.19. Replacement of Digital Amp IC (IC5400) 29
7.20. Disassembly of SMPS P.C.B. 30
7.21. Replacement of Switch Regulator IC (IC5701) 30
7.22. Replacement of Switch Regulator Diode (D5702) 31
7.23. Replacement of Regulator Diode (D5801) 33
7.24. Replacement of Regulator Diode (D5802) 33
7.25. Replacement of Regulator Diode (D5803) 34
7.26. Disassembly of Power Supply P.C.B. 35
7.27. Replacement of Regulator IC (IC2903) 36
7.28. Disassembly of DVD Module P.C.B. 37
7.29. Disassembly of Coprocessor P.C.B. 38
8 Service Fixture and Tools 39
9 Service Position 40
9.1. Checking & Repairing Main P.C.B. 40
9.2. Checking & Repairing D-Amp P.C.B. 40
9.3. Checking & Repairing SMPS P.C.B. 42
9.4. Checking & Repairing Power Supply P.C.B. 42
9.5. Checking & Repairing DVD Module P.C.B. 43
10 Voltage and Waveform Chart 46
10.1. DVD Module P.C.B. 46
10.2. D-Amp P.C.B. 48
10.3. Main P.C.B. 49
10.4. Panel P.C.B. 50
10.5. Power Supply P.C.B. 50
10.6. Mic P.C.B. 51
10.7. SMPS P.C.B. 51
10.8. Waveform Chart 52
11 Illustration of IC’s, Transistors and Diodes 55
12 Wiring Connection Diagram 57
13 Block Diagram 59
13.1. System Control 59
13.2. DVD (Servo) 60
13.3. DVD (Audio) 61
13.4. DVD (HDMI) 62
13.5. VIDEO 63
13.6. Audio 64
13.7. Digital Audio Amp 65
13.8. Power 66
14 Schematic Diagram Notes 67
15 Schematic Diagram 69
15.1. DVD Module Circuit 69
15.2. Main Circuit 74
15.3. Panel Circuit 78
15.4. Power Button, USB Circuit 79
15.5. D-Amp Circuit 80
15.6. Power Supply Circuit 82
15.7. SMPS Circuit 84
15.8. AC Inlet, Ipod Cradle 86
15.9. Coprocessor Circuit 87
15.10. Mic Circuit 88
16 Printed Circuit Board 89
16.1. DVD Module P.C.B. 89
16.2. Main P.C.B. 90
16.3. Panel, Power Button, USB, Power Supply & AC Inlet
P.C.B. 91
16.4. D-Amp P.C.B. 92
CONTENTS
Page Page
4
SA-PT465EE

16.5. SMPS P.C.B. 93
16.6. Ipod Cradle, Mic & Coprocessor P.C.B. 94
17 Exploded Views 95
17.1. Cabinet Parts Location 95
17.2. Packaging 96
18 Replacement Parts List 97
18.1. Component Parts List 98
19 Schematic Diagram for printing with letter size 113
5
SA-PT465EE

1 Notes:
—This service manual contains technical information which will allow service personnel’s to understand and service this
model.
—If the circuit is changed or modified, this information will be followed by supplement service manual to be filled with the
original service manual.
1) The base for this model is SA-PT460EB/EG-K,EG-S. You can refer to the original service manual (Order no. MD0801001CE).
As such this service manual does not contain the following information as below:-
• • •
• Operation Procedures
• • •
• Self-diagnosis & Special Mode Setting
• • •
• Assembling & Disassembling of DVD Mechanism Unit
• • •
• Measurements & Adjustments
2) Contents include for this service manual:-
• • •
• Safety Precautions
• • •
• Prevention of Electrostatic Discharge (ESD)
• • •
• Precaution of Laser Diode
• • •
• About Lead Free Solder (PbF)
• • •
• Handling Precautions for Traverse Unit
• • •
• Assembling & Disassembling
• • •
• Service Position
• • •
• Voltage & Waveform Chart
• • •
• Illustration of IC’s, Transistors and Diodes
• • •
• Wiring Connection Diagram
• • •
• Block Diagram
• • •
• Schematic Diagram Notes
• • •
• Schematic Diagram
• • •
• Printed Circuit Board
• • •
• Cabinet Exploded Views
• • •
• Replacement Parts List
6
SA-PT465EE

2 Safety Precautions
2.1. GENERAL GUIDELINES
1.When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2.After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3.After servicing, carry out the following leakage current checks to prevent the customer from being exposed to shock hazards.
2.1.1. LEAKAGE CURRENT COLD CHECK
1.Unplug the AC cord and connect a jumper between the two prongs on the plug.
2.Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on
the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the
chassis, the reading should be between 1MΩand 5.2MΩ.
When the exposed metal does not have a return path to the chassis, the reading must be

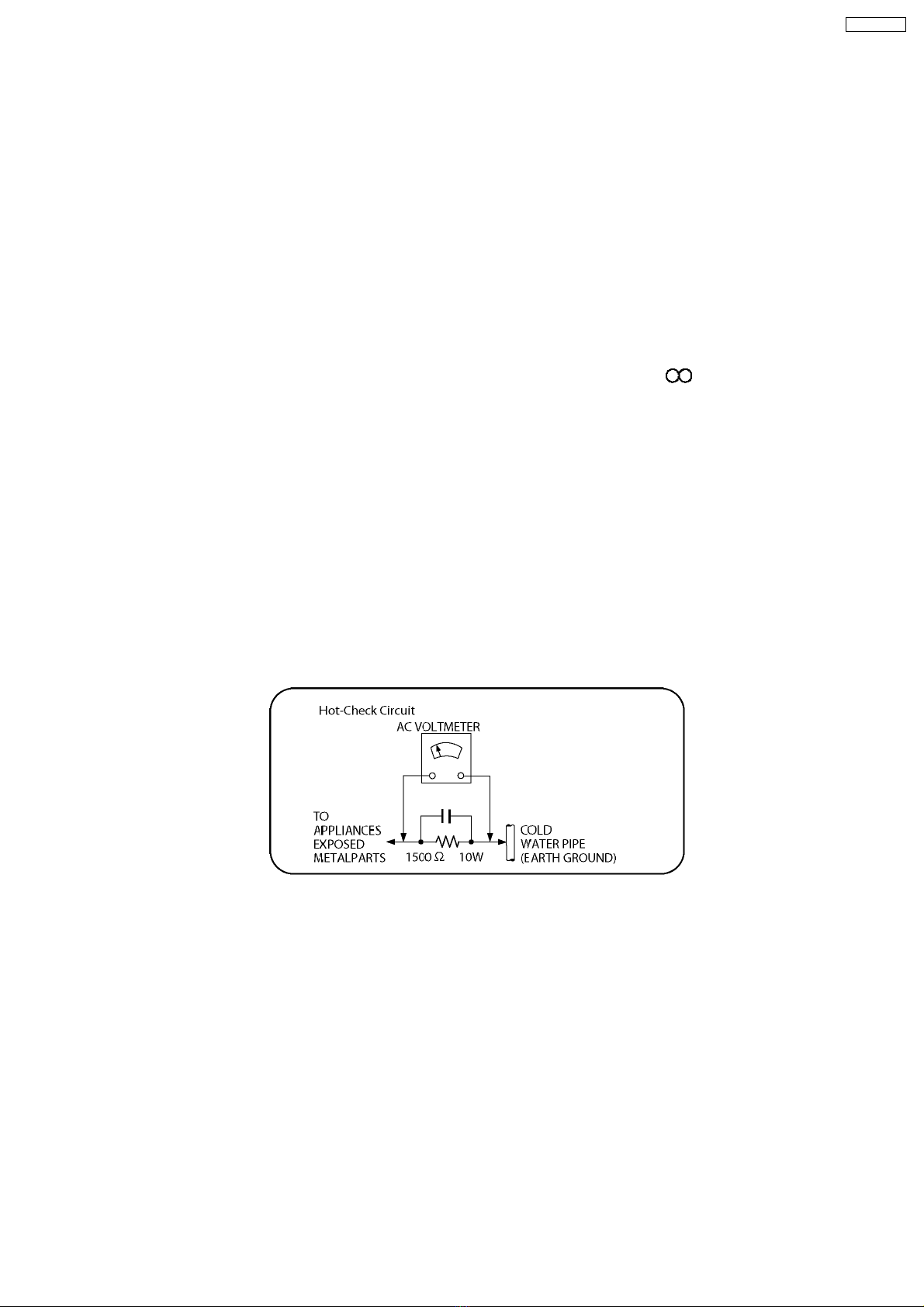

2.1.2. LEAKAGE CURRENT HOT CHECK
1.Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2.Connect a 1.5kΩ, 10 watts resistor, in parallel with a 0.15µF capacitors, between each exposed metallic part on the set and a
good earth ground such as a water pipe, as shown in Figure 1.
3.Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.
4.Check each exposed metallic part, and measure the voltage at each point.
5.Reverse the AC plug in the AC outlet and repeat each of the above measurements.
6.The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may
be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the limits
specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to
the customer.
2.2. Before Repair and Adjustment
Disconnect AC power to discharge unit AC Capacitors as such C5700, C5701, C5703, C5704, C5705, C5706, C5707 through a
10 Ω, 10 W resistor to ground.
Caution:
DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices.
After repairs are completed, restore power gradually using a variac, to avoid overcurrent.
Current consumption at AC 230 V, 50 Hz in NO SIGNAL mode volume minimal should be ~ 600 mA. (E/EG)
2.3. Protection Circuitry
The protection circuitry may have operated if either of the following conditions are noticed:
• • •
• No sound is heard when the power is turned on.
• • •
• Sound stops during a performance.
The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are
“shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.
7
SA-PT465EE

If this occurs, follow the procedure outlines below:
1.Turn off the power.
2.Determine the cause of the problem and correct it.
3.Turn on the power once again after one minute.
Note:
When the protection circuitry functions, the unit will not operate unless the power is first turned off and then on again.
2.4. Safety Parts Information
Safety Parts List:
There are special components used in this equipment which are important for safety.
These parts are marked by in the Schematic Diagrams & Replacement Parts List. It is essential that these critical parts
should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the original design
without permission of manufacturer.
Table 1
Ref. No. Part No. Part Name & Description Remarks
12 REXX0640-J BLACK WIRE (AC TO SMPS) [M]
13 REXX0641-J RED WIRE (AC TO SMPS) [M]
23 RGRX0067H-A1 REAR PANEL [M] -K
23 RGRX0067HA1A REAR PANEL [M] -S
66 RKMX0141-K TOP CABINET [M] K
66 RKMX0141-S TOP CABINET [M] S
PCB3 REPX0622B SMPS P.C.B. [M] (RTL)
PCB4 REPX0622B AC INLET P.C.B. [M] (RTL)
DZ5701 ERZV10V511CS ZNR [M]
TH5701 D4CAC8R00002 THERMISTOR [M]
TH5860 D4CC11040013 THERMISTOR [M]
L5701 ELF15N035AN LINE FILTER [M]
L5702 G0B932H00001 LINE FILTER [M]
L5703 ELF22V020A LINE FILTER [M]
T2900 G4D1A0000117 SWITCHING TRANSFORMER [M]
T5701 ETS42BN1A6AD SWITCHING TRANSFORMER [M]
T5751 ETS19AB256AG SWITCHING TRANSFORMER [M]
PC5701 B3PBA0000402 PHOTO COUPLER [M]
PC5702 B3PBA0000402 PHOTO COUPLER [M]
PC5720 B3PBA0000402 PHOTO COUPLER [M]
PC5799 B3PBA0000402 PHOTO COUPLER [M]
F1 K5D502BNA005 FUSE [M]
FP2901 K5G401A00008 FUSE PROTECTOR [M]
P5701 K2AA2B000017 AC INLET [M]
A2 K2CQ2CA00007 AC CORD [M]
C5700 F1BAF1020020 1000pF [M]
C5703 F0C2H1040001 0.1uF 500V [M]
C5704 F1BAF1020020 1000pF [M]
C5705 F1BAF1020020 1000pF [M]
C5706 F1BAF1020020 1000pF [M]
C5707 F1BAF1020020 1000pF [M]
8
SA-PT465EE

3 Prevention of Electrostatic Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1.Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2.After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3.Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4.Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can
generate electrical charge sufficient to damage ES devices.
5.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6.Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable
conductive material).
7.Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution:
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8.Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).
9
SA-PT465EE

4 Precaution of Laser Diode
CAUTION :
This product utilizes a laser diode with the unit turned "on", invisible laser radiation is emitted from the pickup lens.
Wavelength: 655 nm (DVD)/785 nm (CD)
Maximum output radiation power from pickup: 100 µW/VDE
Laser radiation from the pickup unit is safety level, but be sure the followings:
1.Do not disassemble the pickup unit, since radiation from exposed laser diode is dangerous.
2.Do not adjust the variable resistor on the pickup unit. It was already adjusted.
3.Do not look at the focus lens using optical instruments.
4.Recommend not to look at pickup lens for a long time.
10
SA-PT465EE

5 About Lead Free Solder (PbF)
5.1. Service caution based on legal restrictions
5.1.1. General description about Lead Free Solder (PbF)
The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this
equipment in considering the globally environmental conservation.
The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin
(Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30 degrees C (86°F) more than that
of the normal solder.
Definition of PCB Lead Free Solder being used
The letter of “PbF” is printed either foil side or components side on the PCB using the lead free solder.
(See right figure)
Service caution for repair work using Lead Free Solder (PbF)
• • •
• The lead free solder has to be used when repairing the equipment for which the lead free solder is used.
(Definition: The letter of “PbF” is printed on the PCB using the lead free solder.)
• • •
• To put lead free solder, it should be well molten and mixed with the original lead free solder.
• • •
• Remove the remaining lead free solder on the PCB cleanly for soldering of the new IC.
• • •
• Since the melting point of the lead free solder is higher than that of the normal lead solder, it takes the longer time to melt
the lead free solder.
• • •
• Use the soldering iron (more than 70W) equipped with the temperature control after setting the temperature at 350±30
degrees C (662±86°F).
Recommended Lead Free Solder (Service Parts Route.)
• • •
• The following 3 types of lead free solder are available through the service parts route.
RFKZ03D01K-----------(0.3mm 100g Reel)
RFKZ06D01K-----------(0.6mm 100g Reel)
RFKZ10D01K-----------(1.0mm 100g Reel)
Note
* Ingredient: tin (Sn), 96.5%, silver (Ag) 3.0%, Copper (Cu) 0.5%, Cobalt (Co) / Germanium (Ge) 0.1 to 0.3%
11
SA-PT465EE

6 Handling Precautions for Traverse Unit
The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be
taken avoid caution to electrostatic breakdown when servicing and handling the laser diode in the traverse unit.
6.1. Cautions to Be Taken in Handling the Optical Pickup Unit
The laser diode in the optical pickup unit may be damaged due to electrostatic discharge generating from clothes or human body.
Special care must be taken avoid caution to electrostatic discharge damage when servicing the laser diode.
1.Do not give a considerable shock to the optical pickup unit as it has an extremely high-precise structure.
2.To prevent the laser diode from the electrostatic discharge damage, the flexible cable of the optical pickup unit removed should
be short-circuited with a short pin or a clip.
3.The flexible cable may be cut off if an excessive force is applied to it. Use caution when handling the flexible cable.
4.The antistatic FPC is connected to the new optical pickup unit. After replacing the optical pickup unit and connecting the flexible
cable, cut off the antistatic FPC.
6.2. Grounding for electrostatic breakdown prevention
Some devices such as the DVD player use the optical pickup (laser diode) and the optical pickup will be damaged by static
electricity in the working environment. Proceed servicing works under the working environment where grounding works is
completed.
6.2.1. Worktable grounding
1.Put a conductive material (sheet) or iron sheet on the area where the optical pickup is placed, and ground the sheet.
6.2.2. Human body grounding
1.Use the anti-static wrist strap to discharge the static electricity form your body.
12
SA-PT465EE

13
SA-PT465EE

Be careful when disassembling and servicing.
Some chassis components may have sharp edges.
Special Note:
7 Assembling and Disassembling
“ATTENTION SERVICER”
1.This section describes the disassembly procedures for all the major printed circuit boards and main components.
2.Before the disassembly process was carried out, do take special note that all safety precautions are to be carried out.
(Ensure that no AC power supply is connected during disassembling.)
3.For assembly after operation checks or replacement, reverse the respective procedures.
Special reassembly procedures are described only when required.
4.Do take note of the locators on each printed circuit board during reassembling procedures.
5.The Switch Regulator IC may have high temperature after prolonged use.
6.Use caution when removing the top cabinet and avoid touching heat sinks located in the unit.
7.Select items from the following index when checks or replacement are required.
• • •
• Disassembly of Top Cabinet
• • •
• Disassembly of Rear Panel
• • •
• Disassembly of DVD Mechanism Unit
• • •
• Disassembly of Front Panel
• • •
• Disassembly of Panel P.C.B.
• • •
• Disassembly of Power Button P.C.B.
• • •
• Disassembly of USB P.C.B.
• • •
• Disassembly of Mic P.C.B.
• • •
• Disassembly of DVD Lid
• • •
• Disassembly of Ipod Cradle P.C.B.
• • •
• Disassembly of AC-Inlet P.C.B.
• • •
• Disassembly of Main P.C.B.
• • •
• Disassembly of D-Amp P.C.B.
• • •
• Replacement of Digital Amp IC (IC5000)
• • •
• Replacement of Digital Amp IC (IC5200)
• • •
• Replacement of Digital Amp IC (IC5300)
• • •
• Replacement of Digital Amp IC (IC5400)
• • •
• Disassembly of SMPS P.C.B.
• • •
• Replacement of Switch Regulator IC (IC5701)
• • •
• Replacement of Switch Regulator Diode (D5702)
• • •
• Replacement of Regulator Diode (D5801)
• • •
• Replacement of Regulator Diode (D5802)
• • •
• Replacement of Regulator Diode (D5803)
• • •
• Replacement of Power Supply P.C.B.
• • •
• Replacement of Regulator IC (IC2903)
• • •
• Disassembly of DVD Module P.C.B.
• • •
• Disassembly of Coprocessor P.C.B.
14
SA-PT465EE

15
SA-PT465EE

7.1. Disassembly Flow Chart
7.3. Top Cabinet
7.13. AC Inlet P.C.B.
7.6. Front Panel
7.12. Ipod Cradle PCB
7.9. USB P.C.B.
7.8. Power Button P.C.B.
7.7. Panel P.C.B.
7.11. DVD Lid
7.10. Mic P.C.B.
7.4. Rear Panel
7.5. DVD Mechanism
Unit
7.14. Main P.C.B.
7.29. Coprocessor P.C.B.
7.26. Power Supply P.C.B.
7.15. D-Amp P.C.B.
7.20. SMPS P.C.B.
7.21 Switch Regulator IC
(IC5701)
7.22. Switch Regulator
Diode (D5702)
7.23. Regulator Diode
(D5801)
7.24. Regulator Diode
(D5802)
7.28. DVD Module P.C.B.
7.27. Regulator IC
(IC2903)
7.25. Regulator Diode
(D5803)
7.16. Digital Amp IC
(IC5000)
7.17. Digital Amp IC
(IC5200)
7.18. Digital Amp IC
(IC5300)
7.19. Digital Amp IC
(IC5400)
16
SA-PT465EE

7.2. Main Components and P.C.B. Locations
17
SA-PT465EE

7.3. Disassembly of Top Cabinet
Step 1 Remove 4 screws at the sides of the top cabinet.
Step 2 Remove 3 screws at the rear of the top cabinet.
Step 3 Lift up the back part of the top cabinet and remove it in
the direction of arrows.
7.4. Disassembly of Rear Panel
• • •
• Follow (Step 1) to (Step 3) of Item 7.3.
Step 1 Remove 7 screws at the rear panel.
Step 2 Remove 1 screw at the rear panel.
Step 3 Release the tab of each side of the rear panel in the
direction of arrow.
Step 4 Remove the wire clamper to detach the fan unit
connector (CN5501) on D-Amp P.C.B.
Step 5 Remove the rear panel.
7.5. Disassembly of DVD
Mechanism Unit
• • •
• Follow (Step 1) to (Step 3) of Item 7.3.
Step 1 Remove 2 screws from DVD mechanism unit.
Step 2 Detach 7P FFC cable at the connector (FP8251) on
DVD Module P.C.B.
Step 3 Detach 26P FFC cable at the connector (FP8531) on
DVD Module P.C.B.
Step 4 Remove the DVD mechanism unit.
18
SA-PT465EE

7.6. Disassembly of Front Panel
• • •
• Follow (Step 1) to (Step 3) of Item 7.3.
Step 1 Detach 17P FFC cable at the connector (CN2007) on
Main P.C.B.
Step 2 Detach 4P FFC cable at the connector (CN2013) on
Main P.C.B.
Step 3 Release the hook at each side of the front panel in the
direction of arrow.
Step 4 Release the tabs at the bottom of the front panel.
Caution: Do not exert strong force when releasing the tabs.
Step 5 Detach the front panel slightly forward in the direction of
arrows.
Step 6 Detach 14P cable at the connector (CN6003) on Power
Supply P.C.B.
Step 7 Detach 5P USB cable at the connector (CN6401) on
USB P.C.B.
Step 8 Detach 12P Mic cable at the connector (CN7000) on
Mic P.C.B.
Step 9 Remove the front panel.
Caution: Do not attempt to exert strong force when
detaching the front panel.
7.7. Disassembly of Panel P.C.B.
• • •
• Follow (Step 1) to (Step 3) of Item 7.3.
• • •
• Follow (Step 1) to (Step 8) of Item 7.6.
Step 1 Remove the volume knob.
19
SA-PT465EE

• • •
• Disassembly of FL shield plate unit.
Step 2 Remove 3 screws from the FL shield plate unit.
Step 3 Remove the FL shield plate unit.
Caution Note: Keep the FL shield plate unit in safe place.
Avoid denting it. Place it back during assembling.
Step 4 Remove the earth spring.
Step 5 Remove 1 screw on Panel P.C.B.
Step 6 Release the catch.
Step 7 Remove Panel P.C.B.
Caution Note: Keep the earth spring in safe place. Avoid
denting it. Place it back during assembling.
7.8. Disassembly of Power Button
P.C.B.
• • •
• Follow (Step 1) to (Step 3) of Item 7.3.
• • •
• Follow (Step 1) to (Step 8) of Item 7.6.
• • •
• Disassembly of Panel Angle.
Step 1 Remove 2 screws from the panel angle.
Step 2 Remove the panel angle.
Step 3 Remove Power Button P.C.B.
Caution Note: Keep the panel angle in safe place. Avoid
denting it. Place it back during assembling.
7.9. Disassembly of USB P.C.B.
• • •
• Follow (Step 1) to (Step 3) of Item 7.3.
• • •
• Follow (Step 1) to (Step 9) of Item 7.6.
• • •
• Disassembly of USB Bracket.
Step 1 Remove 1 screw from the USB bracket.
Step 2 Remove the USB bracket.
Step 3 Remove the USB P.C.B.
20
SA-PT465EE
