Panasonic WX-LZ110 User manual

Infrared Wireless
Powered Speaker Kit
Ideal for classrooms,
lecture rooms,
and conference rooms!
All-in-one portable speaker instantly creates
an environment where everyone can concentrate
Plug and Play
Benefits
Infrared Wireless Powered Speaker
WX-LP100
Infrared Wireless Microphone
(Pendant Type) WX-LT310
Infrared Wireless Microphone
(Hand Held Type) WX-LT100
The Panasonic WX-LP100 Infrared Wireless Powered Speaker incorporates 2ch infrared receiver, infrared sensor,
amplifier and speaker in its compact unit. With high quality sound and versatile multimedia capability,
the WX-LP100 changes teaching, learning and presenting environment all at once. It is an advanced educational
and business tool made possible by Panasonic’s world renowned audio technology.
Plug in the WX-LP100 to power
Infrared Wireless Powered
Speaker Kit with versatile
multimedia capability.
2 microphones and 2 multimedia
inputs can be used at a time.
With an external input terminal,
the microphone can transmit
an audio signal from any
multimedia source to the
WX-LP100. (The microphone cannot be
used when connected to an external input.)
Easy to carry
With compact, lightweight and rugged
design, the WX-LP100 can be placed
wherever you like.
School • Improves classroom management
• Increases students’ interest and zeal
• Helps students achieve better results
• Reduces stress on small voice students
and on whom trying to hear them
Business • High privacy by infrared wireless technology
to prevent interception
• Increases concentration and reduces voice fatigue
• Providing both hands free is so convenient
• No need for costly mounting or installation
Easy to use
The power ON/OFF and 4 volume
controls including 2 microphones and
2 multimedia inputs can easily be made
on the front panel.
Plus, the pendant type microphone
WX-LT310 is equipped with volume
control buttons for own/other
microphone and any multimedia source.
Laptop
Laptop CD Player MP3 Player
MP3 Player
CD
Player

Key Features (WX-LP100)
• Integrated dual channel infrared wireless receiver
• 2 audio multimedia inputs
• Remote control of wireless microphones and multimedia sources
• Wide horizontal dispersion for even coverage
• Compact, lightweight and rugged design for flexible placement
• Interference/interception-free made possible by infrared
wireless technology
• Front panel controls for easy access
• Adjustable output for recording
• Adjustable output for assistive listening devices

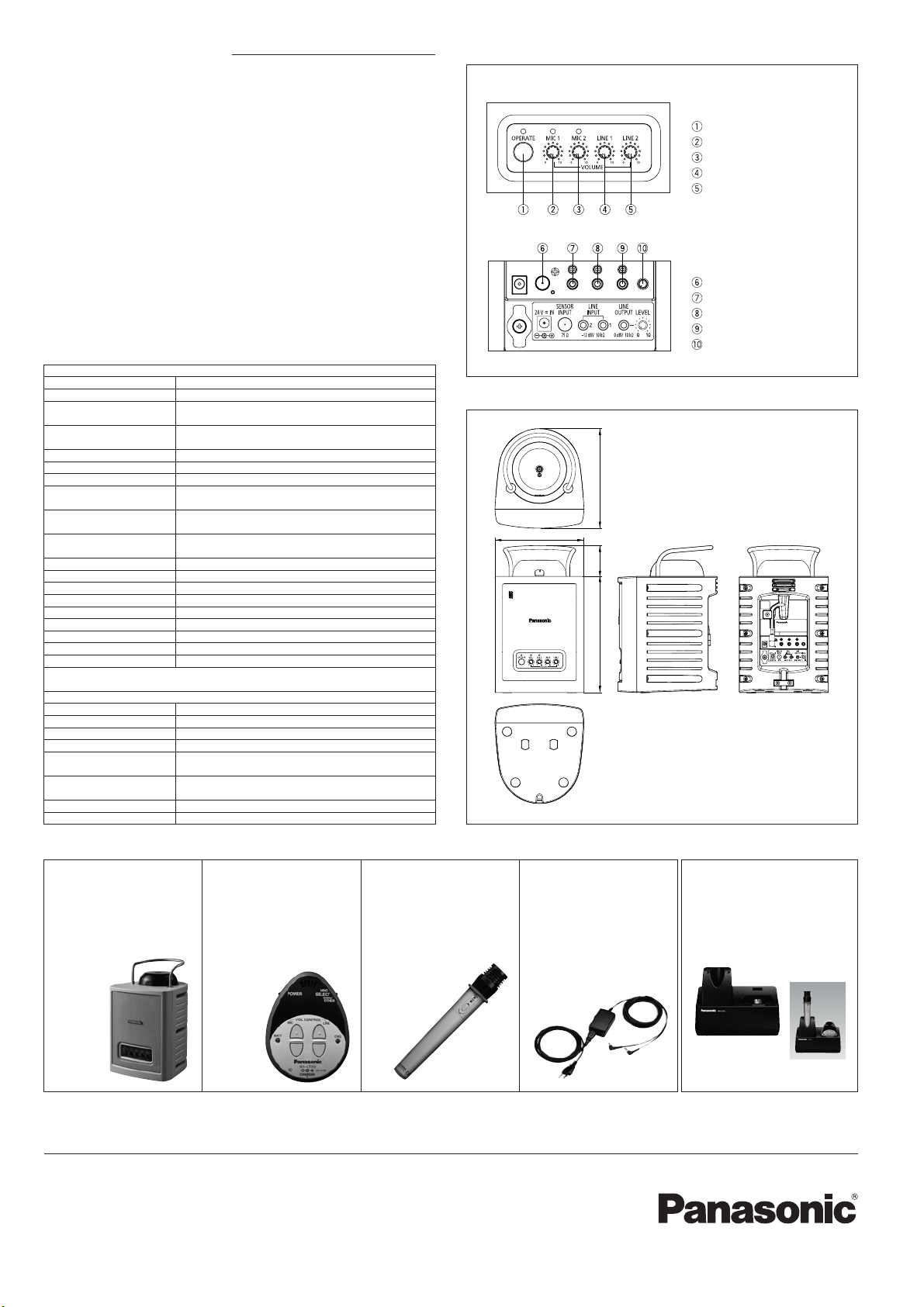

Part Names and Functions (WX-LP100)
DISTRIBUTED BY:
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
http://panasonic.net/pss/irw/
Printed in Japan (1N-790)
Appearance (WX-LP100)
Rear Panel
Front Panel
Specifications (WX-LP100)
Infrared Wireless Powered Speaker Kit Optional Accessory
Infrared Wireless
Powered Speaker
WX-LP100
All-in one portable speaker
incorporating 2ch receiver,
sensor, amplifier and speaker.
Hands-free pendant-style.
Equipped with volume
control buttons. Ideal for
teachers’ or presenters’ use.
* Shipped with
strap attached.
* Comes with two
WX-LT100 adaptors.
Photo shows adaptor
attached on left side.
Microphones;
option
Light weight, simple and
basic design.
Ideal for students’
or audiences’ use.
Direct connection.
Allows simultaneous charging
of two microphones.
Can also serve as power cord
for the charger stand.
Can charge batteries in approx.
seven hours. Two microphones
can be charged at the same time.
Infrared Wireless Microphone
(Pendant Type)
WX-LT310
Infrared Wireless Microphone
(Hand Held Type)
WX-LT100
Battery Charger
WX-LZ110
Charger Stand
WX-LZ10
Amplifier/Receiver Unit
Power Source 24 V DC (Using the attached AC adaptor unit)
Power Consumption 450 mA
Infrared Sensor Input 75 ΩF type connector (with Sensor WX-LS100)
Output power for Sensor: 22 V DC, 100 mA Max.
Receiving Channel Ch1: 2.3 MHz, Ch2: 2.8 MHz
(Sub Carrier Frequencies)
Receiving System TRF (Tuned Radio Frequency)
Squelch Level 24 dBµV (including Sensor)
To ne Squelch Frequency 32.768 kHz
Line Input 1, 2
- 12 dBV, unbalanced, ø3.5 mini jack
(L and R mixing for stereo input)
Line Output 0 dBV, unbalanced, ø3.5 mini jack
(Monaural audio output for L and R)
Volume Control* changeable microphone volume by the 2 dB step
(+6 dB ~
- 16 dB) (Reset by power OFF/ON)
Speaker Type 12 cm Full Range Bass Reflex
Rated Output 6.3 W (4 Ω), Max: 10 W (4 Ω)
SPL 93 dB SPL, 1 m, 1 W
Distortion Less than 1 %
Frequency Response 100 Hz ~ 15 kHz (Line input ~ Speaker output)
Operating Temperature +5 °C ~ +35 °C
Dimensions 187 (W) x 309 mm (H) x 209 mm (D)
Weight approx. 3.7 kg
Finish AV medium gray ABS resin (similar to Munsell N7)
* Volume controllable Microphone: WX-LT310
Infrared Sensor (attached)
Power Source 22 V DC (supplied from Amplifier/Receiver unit)
Power Consumption 20 mA
Infrared Ray Wavelength 850 nm
Sensor Output 75 ΩF type connector
Receiving Channel Ch1: 2.3 MHz, Ch2: 2.8 MHz
(Sub Carrier Frequencies)
Dimensions Max. ø113.5 mm x 34.5 mm (H)
(excluding a projection for F type connector)
Weight approx. 0.2 kg
Finish Black color / Infrared ray transmission acrylic resin
187
20965244
Unit: mm
Sensor Input
Line Input 2
Line Input 1
Line Output
Line Output Volume Control
OPERATE
MIC 1 Volume Control
MIC 2 Volume Control
LINE 1 Volume Control
LINE 2 Volume Control
