Panasonic KX-TA1232 User manual

Advanced Hybrid System
KX-TA1232
Installation Manual/
Features Guide/
Programming Guide/
Programming Tables Addendum
for KX-T77 and KX-T73 Series
This Installation Manual/Features Guide/Programming Guide/Programming Tables Addendum
provides the additional information for the KX-T77 and KX-T73 Series Telephones and the
Panasonic Advanced Hybrid System, KX-TA1232.

2
Table of Contents
Installation Manual
System Components Table .................................................................................3
Features Guide
Buttons on Proprietary Telephones ..................................................................3
Call Log, Incoming .............................................................................................4
Caller ID ..............................................................................................................4
Caller ID Call Waiting .......................................................................................4
DSS Console ........................................................................................................4
Handset/Headset Selection .................................................................................4
Hands-free Answerback .....................................................................................4
Hands-free Operation ........................................................................................4
Room Monitor .....................................................................................................4
Station Programming .........................................................................................4
System Programming with a Proprietary Telephone ......................................4
Programming Guide
Using the Overlay ...............................................................................................5
Viewing the display .............................................................................................7
[002] System Speed Dialing Name Set ..............................................................8
[990] System Additional Information ...............................................................9
Programming Tables
[002] System Speed Dial Name Set .................................................................10
[990] System Additional Information .............................................................15
Table of Contents

3
System Components
The following Panasonic Proprietary Telephones (PTs) and a DSS console are available for KX-TA1232.
System Components Table (Additional)
Features
Additional Information for Features
The additional information for Features
Model Description
Telephone KX-T7735 Proprietary Telephone with 16-character/3-line and backlit display
and Message/Ringer Lamp
KX-T7730 Proprietary Telephone with 16-character/1-line and backlit display
and Message/Ringer Lamp
KX-T7720 Proprietary Telephone with Message/Ringer Lamp
KX-T7750 Proprietary Telephone with Message/Ringer Lamp and MONITOR
button
KX-T7335 Proprietary Telephone with 16-character/1-line and backlit display
KX-T7320 Proprietary Telephone
KX-T7350 Proprietary Telephone with MONITOR button
Optional
Equipment
KX-T7740 DSS Console
Features Additional Information
Buttons on Proprietary
Telephon e
As for Buttons on the KX-T7735, KX-T7730, KX-T7720, KX-T7750, KX-
T7335, KX-T7320 and KX-T7350, please refer to the User Manual
Addendum for KX-T77 and KX-T73 Series.
Installation Manual & Features Guide

4
The following features are available with PTs depending on the type of the KX-T77 or KX-T73
series.
Note
*1The KX-T7740 is available for the KX-TA1232. For details about DSS Console, please refer to the
Features Guide.
*2The MONITOR button on the KX-T7750 or KX-T7350 can be used for hands-free dialing operation, etc.,
but cannot be used for a hands-free conversation.
As for other features, please refer to the Features Guide.
Features T7735
T7335
T7730 T7720
T7320
T7750
T7350
T7740
Call Log, Incoming
Caller ID/
Caller ID Call Waiting
DSS Console
*
1
Handset/Headset Selection
(for T7720) (for T7750)
Hands-free Answerback
Hands-free Operation
*2
Room Monitor
Station Programming
The following programming items are available.
Call Waiting Tone Type
Assignment
Flexible Button Assignment
Intercom Alert Assignment
Preferred Line Assignment
— Incoming/Outgoing
Station Programming Data
Default Set
Self-Extension Number
Confirmation
System Programming with a
Proprietary Telephone
Features Guide

5
System Programming
A display PT (KX-T7735, KX-T7730 or KX-T7335) is required for system programming.
Using the Overlay
A programming overlay is packed with the telephone at the factory.
This overlay should be used at all times during programming. The features of the telephone
keys change during programming as follows. (The original features are in parentheses.)
During Normal Operation During Programming
(PAUSE) PAUSE
(AUTO ANSWER/MUTE) SELECT
(AUTO DIAL/STORE) STORE
(FLASH/RECALL) FLASH
(INTERCOM) SECRET (T7735 or T7730)
(T7335)
(CONF or ) , – (T7735 or T7730)
(FWD/DND or ) (T7735 or T7730)
(MESSAGE) – , (T7335)
(TRANSFER) CLEAR
(REDIAL or ) PREV (PREVIOUS)
(HOLD) END
(SP-PHONE or ) NEXT
(PROGRAM) PROGRAM
Programming Guide

6
Location of Controls with Overlay (Additional)
The picture below shows the features of the buttons of the KX-T7735 or KX-T7335 during programming.
Note
The KX-T7730 has the same overlay as the KX-T7735.
PROGRAM
SECRET ,
FLASH
CLEAR END NEXT
SELECT STORE PREV
PAUSE
HOLD
ADVANCED HYBRID SYSTEM
WXYZTUVPQRS
MNOJKL
GHI
DEFABC
ABC
GHI
PQRS TUV WXYZ
OPER
JKL MNO
DEF
KX-T7330
REDIAL SP-PHONE
123
456
78
0
9
FLASH
INTERCOM
TRANSFERPAUSE
121110
876
432
9
5
1
MESSAGE
AUTO/STORE
AUTO ANS/MUTE
VOLUME-
PROGRAM
SELECT
PROGRAM FLASH
PREV
OPER
END NEXT
PAUSE CLEAR
STORE
,
<KX-T7735>
<KX-T7335>
Programming Guide

7

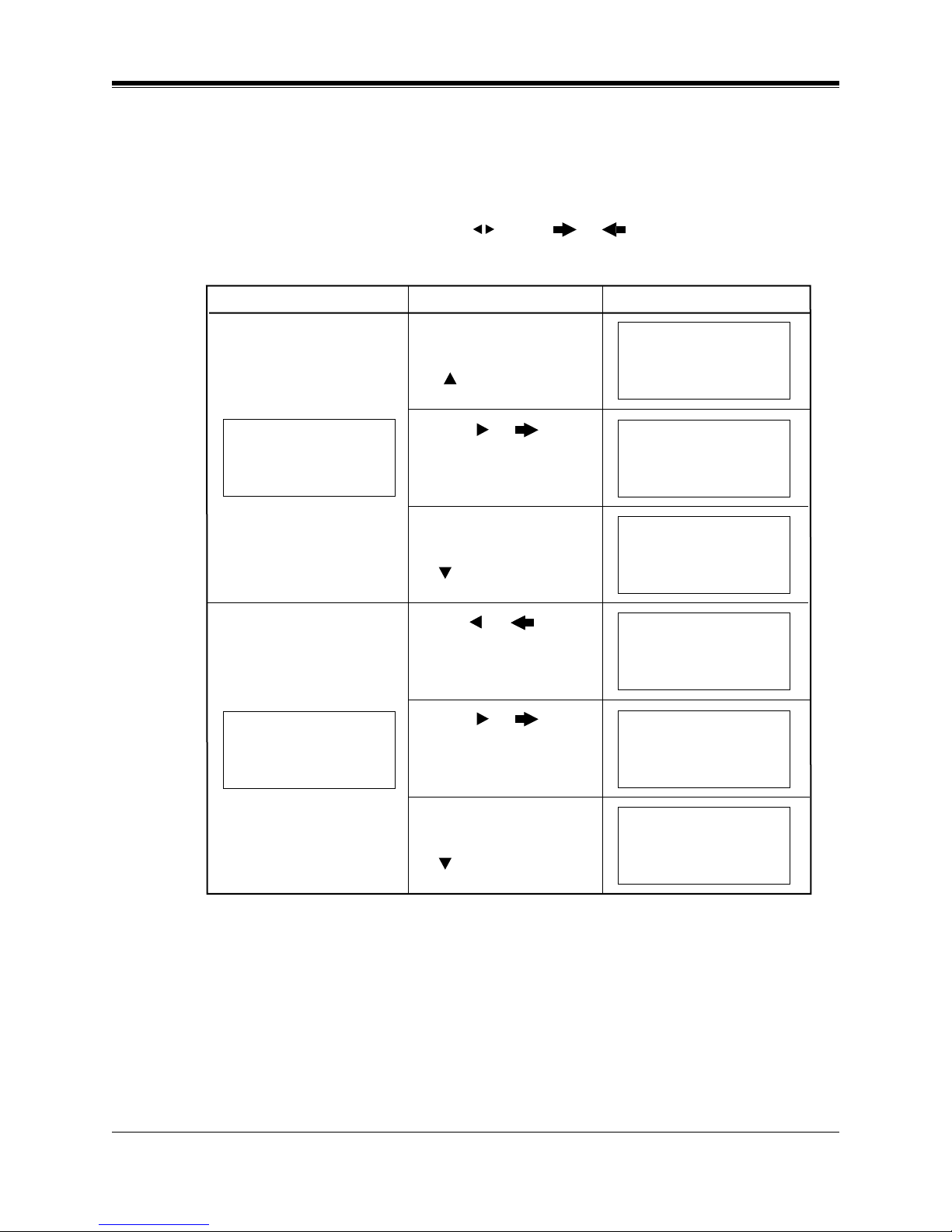

Viewing the Display
The display gives you helpful information, such as the next step, previous entries, etc.
The KX-T7735 utilizes two information lines for programming.
The KX-T7730 utilizes one information line for programming.
The display capacity is 16 digits. If your entry is longer than 16 digits, the user can scroll the
display by pressing the Navigator Key ( ), or the or button.
<Display Example>
Button for Operation
/
(Navigator Key
or
CONF button)
NEXT (SP-PHONE)
or
(Navigator Key)
PREV (REDIAL)
or
(Navigator Key)
Display Move to:
001 SYS SPD DIAL
000:912345678901
001 SYS SPD DIAL
499:912345678901
001 SYS SPD DIAL
000:123456789012
001 SYS SPD DIAL
001:Not Stored
151 BREAK TIME
201 TRAN RECALL
200 HOLD RECALL
Time:60 sec
200 HOLD RECALL
NEXT (SP-PHONE)
or
(Navigator Key)
/
(Navigator Key
or
FWD/DND button)
/
(Navigator Key
or
FWD/DND button)
Programming Guide

8
[002] System Speed Dialing Name Set (Additional)
Description
Assigns names to the system speed dialing numbers assigned in program [001] System
Speed Dialing Number Set. Display telephones can show the stored number during System
Speed Dialing.
Selection
• Speed dial number: 000 through 499
• Name: 10 characters (max.)
Default
All speed dial numbers — Not stored
Programming
1. Enter 002.
Display: 002 SYS SPD NAME
2. Press NEXT.
Display: SPD Code?
3. Enter a speed dial number.
To enter speed dial number 000, you can also press NEXT.
Display example: 000:Not Stored
4. Enter a name.
For entering characters, please refer to “1.4 Entering Characters” in the Programming Guide
To delete the current entry, press CLEAR.
To change the current entry, press CLEAR and enter the new name.
5. Press STORE.
6. To program another speed dial number, press NEXT or PREV, or SELECT and the
desired speed dial number.
7. Repeat steps 4 through 6.
8. Press END.
Conditions
• Speed dial numbers are programmed in program [001] System Speed Dialing Number Set.
• Each name has a maximum of 10 characters.
•
To go to another speed dial number in steps 3 through 6, press SELECT and start with step 3.
Feature Reference — in the Features Guide
System Speed Dialing
Programming Guide

9
[990] System Additional Information (Additional)
Explanation for Area 10
Bit Description Selection Default Feature Guide
References
1-9 Unused
10 Enables the Message/Ringer Lamp
flashing when an extension is in use or
idle, and one of the following occurs:
– An intercom call is incoming to the
extension and Call Waiting Tone 1 is
assigned.
– A doorphone call from any doorphone is
incoming to the extension.
– An outside (CO) call with Caller ID
information is incoming to the
extension.
– A doorphone call from any doorphone
and a doorbell/door chime is selected.
This programming is available for the
KX-T77 series only.
enable: Message/Ringer Lamp–Flashing
disable: Message/Ringer Lamp–Off
0: enable
1: disable
1 • Call Waiting
• Caller ID Call
Waiting
• Doorbell/Door
Chime
• Doorphone
Call
11-16 Unused
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
Display Example
Bit Number
< Area 10 >
1111111111111111
Programming Guide

10
Programming Tables
[002] System Speed Dial Name Set
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
Default
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
All: Not stored
SPD no. SPD no. SPD no.
Name
(max. 16 characters) Name (max. 16 characters)
Name
(max. 16 characters)
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
Default
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
All: Not stored
SPD no.
Name (max. 10 characters)
SPD no.
Name (max. 10 characters)
SPD no.
Name (max. 10 characters)
Programming Tables

11
[002] System Speed Dial Name Set (contd.)
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
Default
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
All: Not stored
SPD no.
Name (max. 10 characters)
SPD no.
Name (max. 10 characters)
SPD no.
Name (max. 10 characters)
Programming Tables

12
[002] System Speed Dial Name Set (contd.)
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
Default
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
All: Not stored
SPD no.
Name (max. 10 characters)
SPD no.
Name (max. 10 characters)
SPD no.
Name (max. 10 characters)
Programming Tables

13
[002] System Speed Dial Name Set (contd.)
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
Default
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
All: Not stored
SPD no.
Name (max. 10 characters)
SPD no.
Name (max. 10 characters)
SPD no.
Name (max. 10 characters)
Programming Tables

14
[002] System Speed Dial Name Set (contd.)
490
491
492
493
494
495
496
497
498
499
Default
480
481
482
483
484
485
486
487
488
489
All: Not stored
SPD no.
Name (max. 10 characters)
SPD no.
Name (max. 10 characters)
Programming Tables

15
[990] System Additional Information
10 1-9 :
10 10 :
:
0(enable) / 1 (disable)
Unused
Unused
Area 10
Bit
Default
Selection
1111111
1
111111111
5432987616 15 14 13 12 11 10
10 11-16
[990] System Additional Information
Area Bit
< Selection >
Programming Tables

© 2002 Kyushu Matsushita Electric Co., Ltd. All Rights Reserved.
Printed in the United Kingdom PSQX2794ZA KK1002HK0
