Panasonic KX-TH102M User manual

This unit is compatible with Caller ID. To use this feature, you must
subscribe to the appropriate service offered by your service provider.
Please read these Operating Instructions before using the unit and save
for future reference.
For assistance, visit our website:
http://www.panasonic.com/phonehelp for customers in the U.S.A. or
Puerto Rico.
Charge the handset battery for 4 hours before initial use.
Home Communication System
Monitoring Package
Model No. KX-TH102-M
Operating Instructions

Table of Contents
2For assistance, please visit http://www.panasonic.com/phonehelp
Introduction
Feature highlights. . . . . . . . . . . . . . . . . . 3
Accessory information . . . . . . . . . . . . . . 5
Expanding your phone system . . . . . . . . 7
Important safety instructions . . . . . . . . 10
For best performance . . . . . . . . . . . . . . 12
Preparation
Setting up the base unit . . . . . . . . . . . . 15
Setting up the cordless camera . . . . . . 18
Setting up the handset . . . . . . . . . . . . . 19
Battery charge . . . . . . . . . . . . . . . . . . . 19
Battery replacement . . . . . . . . . . . . . . . 20
Controls . . . . . . . . . . . . . . . . . . . . . . . . 21
Displays . . . . . . . . . . . . . . . . . . . . . . . . 25
Symbols used in these operating
instructions . . . . . . . . . . . . . . . . . . . . . . 27
Setting the unit before use . . . . . . . . . . 28
CMaking/Answering Calls
Making calls . . . . . . . . . . . . . . . . . . . . . 30
Answering calls . . . . . . . . . . . . . . . . . . 32
Useful features during a call. . . . . . . . . 32
Using the other line during a call . . . . . 34
dPhonebook
Handset phonebook . . . . . . . . . . . . . . . 35
Base unit phonebook . . . . . . . . . . . . . . 38
GCaller ID Service
Using Caller ID service. . . . . . . . . . . . . 40
Caller list. . . . . . . . . . . . . . . . . . . . . . . . 41
uVideo Phone
Video phone feature . . . . . . . . . . . . . . . 44
Video phone settings . . . . . . . . . . . . . . 47
Intercom
Intercom feature . . . . . . . . . . . . . . . . . . 48
Transferring a call. . . . . . . . . . . . . . . . . 49
Conference calls. . . . . . . . . . . . . . . . . . 50
Call share . . . . . . . . . . . . . . . . . . . . . . . 52
FMonitoring
Monitoring feature . . . . . . . . . . . . . . . . 53
Audio monitor . . . . . . . . . . . . . . . . . . . . 53
Video monitor using the handset . . . . . 54
Video monitor using your computer . . . 57
Useful settings while monitoring. . . . . . 60
vHandset Camera
Taking a picture . . . . . . . . . . . . . . . . . . 67
Picture gallery. . . . . . . . . . . . . . . . . . . . 67
Programmable Settings
Ringer settings . . . . . . . . . . . . . . . . . . . 69
Display settings . . . . . . . . . . . . . . . . . . 72
Other settings . . . . . . . . . . . . . . . . . . . . 73
Registering a unit . . . . . . . . . . . . . . . . . 77
iAnswering System
Answering system feature . . . . . . . . . . 79
Setting up the answering system . . . . . 79
Listening to messages using the base
unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Listening to messages using the
handset. . . . . . . . . . . . . . . . . . . . . . . . . 81
Voice memo . . . . . . . . . . . . . . . . . . . . . 82
Remote operation . . . . . . . . . . . . . . . . . 83
Answering system settings . . . . . . . . . . 84
Using a Cellular Phone with
this Unit
Configuring a cellular phone . . . . . . . . . 86
Making/answering calls using a cellular
line . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Useful features during a cellular call. . . 89
Cellular settings . . . . . . . . . . . . . . . . . . 90
Transferring a cellular call. . . . . . . . . . . 92
Conference calls . . . . . . . . . . . . . . . . . . 93
Useful Information
Connecting to your network . . . . . . . . . 95
Wall mounting. . . . . . . . . . . . . . . . . . . . 97
Headset (Optional) . . . . . . . . . . . . . . . 102
Error messages . . . . . . . . . . . . . . . . . 103
Troubleshooting . . . . . . . . . . . . . . . . . 105
FCC and other information . . . . . . . . . 114
Specifications . . . . . . . . . . . . . . . . . . . 117
Warranty . . . . . . . . . . . . . . . . . . . . . . . 119
Customer services . . . . . . . . . . . . . . . 121
Direct command chart/programming
index . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Index
Index. . . . . . . . . . . . . . . . . . . . . . . . . . 126

Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 3
Feature highlights
Thank you for purchasing a Panasonic Home Communication System
Monitoring Package.
Important:
LKX-TH102-M includes a cordless video camera handset (KX-THA12), a cordless
camera (KX-THA13), and a base unit.
LIn these operating instructions, the included “cordless video camera handset” is referred
to as the “handset”.
Telephone and monitoring features
N2 line telephone
While one line is in use, you can make or answer a call using the other line.
NVideo phone
The handset allows you and the person you are talking to to see each other in real time
during an outside call, if you have ITU-T H.324 compatible video phone (page 44).
NAudio monitor (between handset and base unit)
You can listen to the audio in the room where the handset or base unit is located (page
53).
NVideo monitor (between the cordless camera and handset or your computer)
You can monitor the room where the cordless camera is located when:
– you access the cordless camera using the handset or your computer (page 54, 57).
– the cordless camera pages the handset or notifies your computer with a pop-up
message when it detects motion and/or sound (page 55, 58).
– the cordless camera user pages the handset or notifies your computer with a pop-up
message using the call button (page 56, 60).
NHandset camera
You can use the handset camera to take pictures (page 67). These pictures can be used
for the phonebook, as wallpaper, and as privacy images for the handset.
NCustomize ring
You can connect an audio device to the handset using the included audio cable and
record songs to be used as the handset ringer tone (page 70).

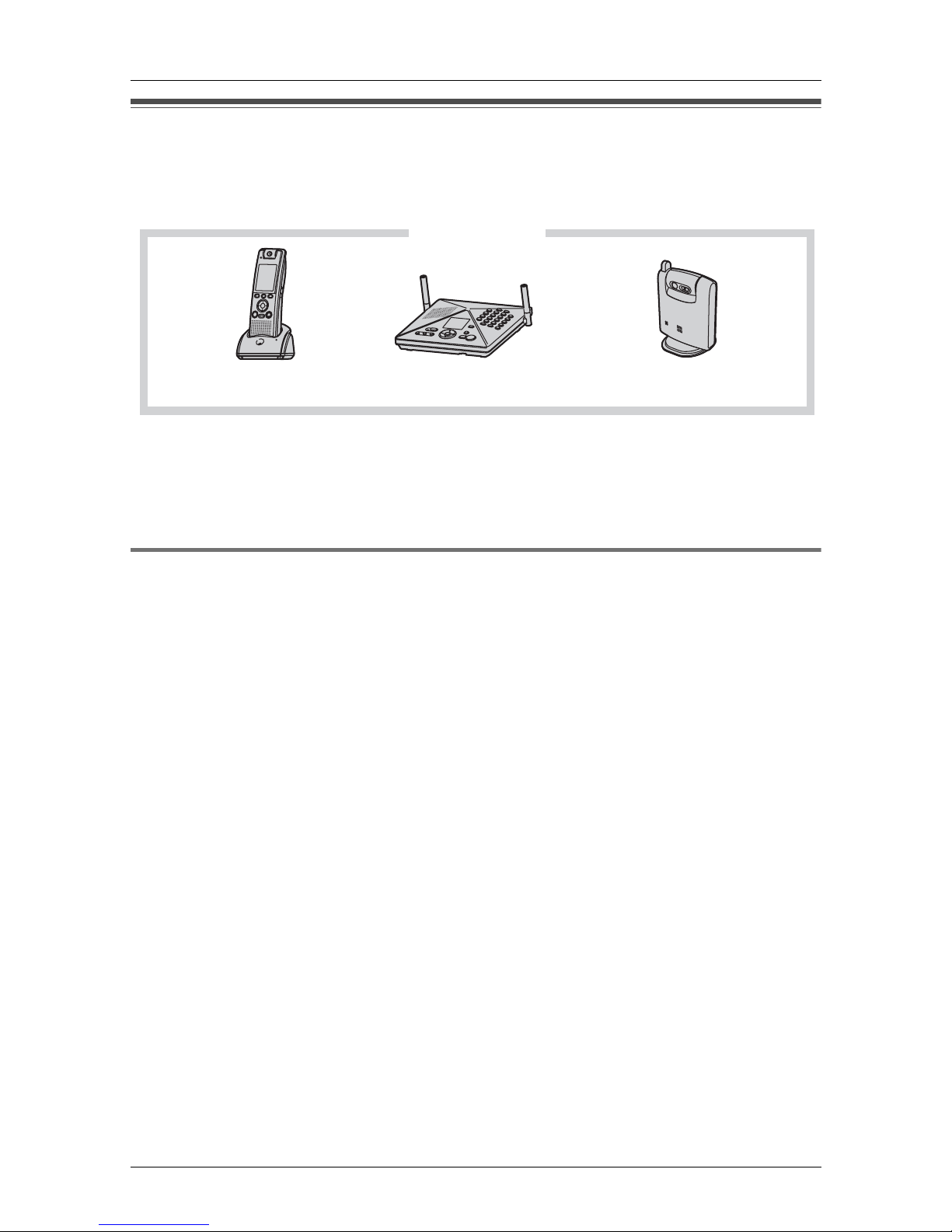

KX-TH102-M
Cordless video
camera handset
Cordless cameraBase unit

Introduction
4For assistance, please visit http://www.panasonic.com/phonehelp
NChanging the device name
You can customize the name for the cordless camera, handset, and base unit (page 61,
73).
NCellular connection
This feature allows you to make or answer cellular calls using the handset or base unit,
if your cellular phone is Bluetooth®wireless technology compatible to the home
communication system (page 86). For more information for this feature, please visit our
website (page 7).
MULTI TALK V software
The included CD-ROM contains the MULTI TALK V Utility suite. The suite consists of the
following utilities.
NMULTI TALK V USB Utility
Allows you to use your computer to:
– Add, edit, erase, and copy phonebook entries
– Send images and melodies stored in your computer to your phone
– Change phone settings
– Play, erase, and save answering system messages
– Connect to the Internet or to another computer using a MULTI TALK V phone
NMULTI TALK V Camera Utility
Allows you to use your computer to register a cordless camera (KX-THA13) in order to
view cordless camera images with a web browser.
NMULTI TALK V Printing Utility
Allows you to use your computer to register a cordless video camera station (KX-
THA16, sold separately) in order to print images from the KX-THA16 to your computer’s
printer.
To install the MULTI TALK V software in
your computer, refer to the “Installation
Guide for MULTI TALK V Software” for
installation details.
When using the MULTI TALK V features
with your computer, refer to the help
section of the MULTI TALK V USB Utility.
For the operations of the Camera Utility
and Printing Utility, refer to their individual
help sections indicated by the following
“Help” icon.
Installation Guide for
MULTI TALK V Software
Model no. KX-TH102-C
KX-TH102-M
The MULTITALK V software utilitiesare provided for use with the KX-TH102 base unit and
the following models:
LCordless handset: KX-THA11
LCordless video camera handset: KX-THA12
LCordless camera: KX-THA13
LUSB adaptor: KX-THA14
LCordless video camera station: KX-THA16
LCordless video camera handset withTV output: KX-THA17
In this guide, the above mentioned models are generically referred to as “MULTI TALK V
devices”.
For assistance, visit our websit e:
http://www.panasonic.com/phonehelp for customers in the U.S.A. or Puerto
Rico.
Este software se puedeusar en español. Una vez que instale el software, haga clic con
el botón derecho en los iconos de la herramienta MULTI TALK V de la bandeja del
sistema y seleccione “Español”. Para obtener información sobre cómo utilizar el
software, consulte el archivode Ayuda oprimiendo la tecla F1 mientras usa cualquiera
de las herramientas.
“Help” icon

Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 5
Accessory information

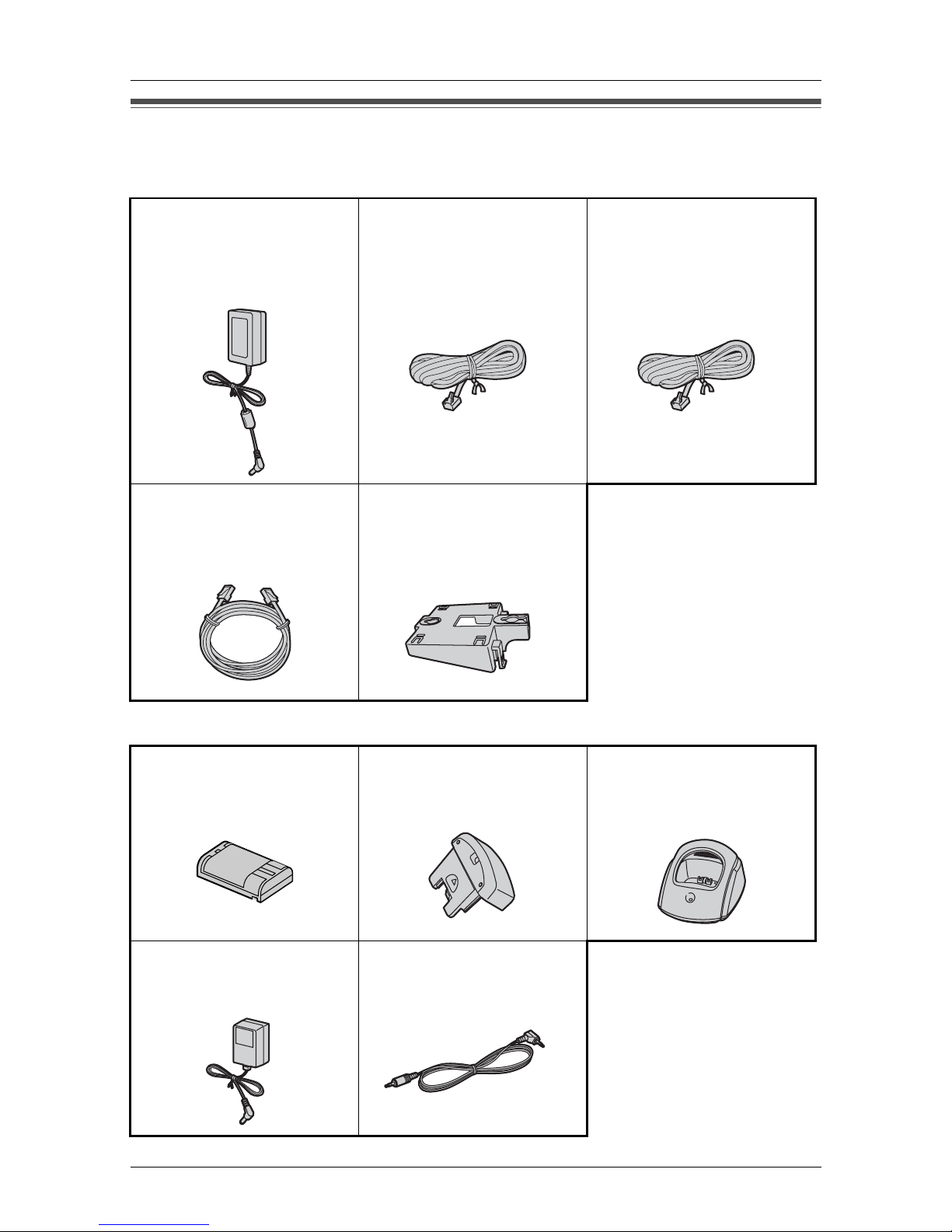

Base unit
Handset
AAC adaptor for base unit
PQLV205
(Order No. PQWETH102M)
A4-wire telephone line
cord with green plugs
(Order No. PQJA10088Z)
A2-wire telephone line
cord with transparent
plugs
(Order No. PQJA10075Z)
ALAN cable
(Order No. PQJA10169Z)
AWall mounting adaptor
for base unit
(Order No. PQKL10070Z1)
ABattery
(Order No. HHR-P104)
AHandset cover
(Order No. PQKK10593Z1)
ACharger
(Order No. PQLV30039ZS)
AAC adaptor for charger
(Order No. PQLV203Z)
AAudio cable
(Order No. PQJA10172Z)

Introduction
6For assistance, please visit http://www.panasonic.com/phonehelp
Cordless camera
MULTI TALK V utility
*1 Allows you to install the MULTI TALK V software on a compatible computer. Refer to the
included “Installation Guide for MULTI TALK V Software” for details.
Other additional/replacement accessories
Note:
LYou can expand your phone system by registering additional compatible Panasonic
units (page 7).
Sales and support information
LTo order these accessories, call 1-800-332-5368.
LTTY users (hearing or speech impaired users) can call 1-866-605-1277.
AAC adaptor for cordless
camera
PQLV203
(Order No.
PQWE1THA13M)
AWall mounting adaptor
for cordless camera
(Order No. PQLP10267Z)
ACall button for cordless
camera
(Order No. PQLP10270Z)
AUSB cable
(Order No. PQJA10166Z)
ACD-ROM*1
(Order No. PQJKTH102Z)
Accessory item Order number
Rechargeable nickel metal hydride
(Ni-MH) battery
HHR-P104
Corded headset KX-TCA86, KX-TCA88HA
T-adaptor KX-J66
2-line splitter KX-J42

Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 7
Expanding your phone system

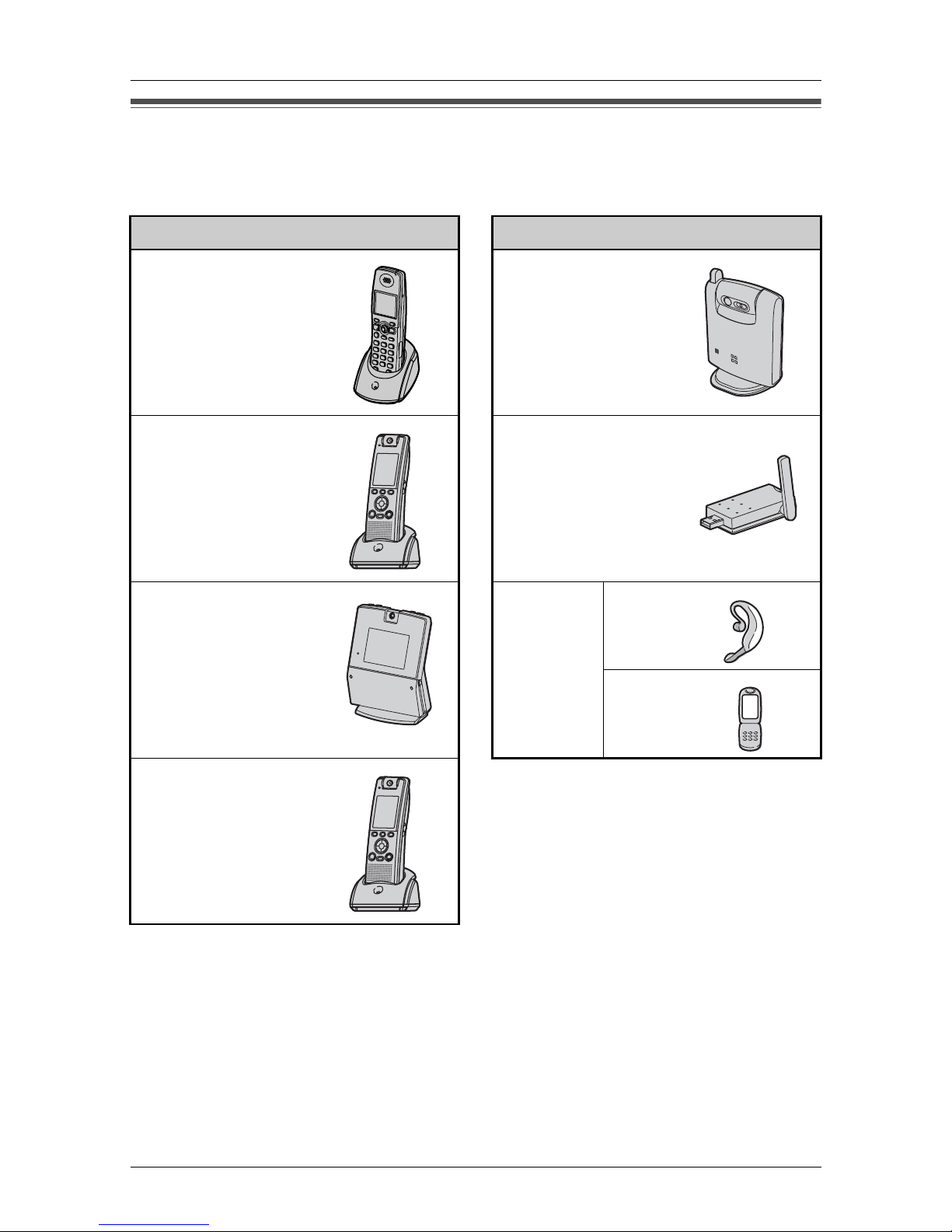

You can expand the phone system by registering the following units to a single base unit:
max. 18
Note:
LHeadset and cellular phone must have Bluetooth capability and must be compatible to
the home communication system. For more details and the list of compatible cellular
phones, please visit: www.panasonic.com/MultiTalkV
Handsets: max. 8 Other devices: max. 10
Cordless handset
KX-THA11
(Monochrome display
type)
Cordless camera
KX-THA13: max. 2
(For monitoring)
Cordless video camera
handset
KX-THA12
(Color display type)
USB adaptor
KX-THA14
(For data link)
Cordless video camera
station
KX-THA16
(Large color display
type)
Other
Bluetooth
compatible
devices
(Optional)
Headset
Cellular
phone:
max. 5
Cordless video camera
handset with A/V
output
KX-THA17
(Color display type with
audio/video output
jack)

Introduction
8For assistance, please visit http://www.panasonic.com/phonehelp
Various features using the optional units
Video phone
Video monitor
Cellular connection (Bluetooth compatible)
This feature allows you and the
person you are talking to to see
each other in real time for an
outside call using the handsets.
If you have additional units (A,
B), you can also make a video
call during an intercom call.
AKX-THA12/KX-THA17
BKX-THA16
This feature allows you to
monitor the room where the
cordless camera (A) is located
from the units (B,C).
You can also monitor the room
between the units (B,C).
AKX-THA13
BKX-THA12/KX-THA17
CKX-THA16
This feature allows you to make
or answer cellular calls using
your unit (A,B,C, and the base
unit), if you have Bluetooth
compatible cellular phones.
AKX-THA11
BKX-THA12/KX-THA17
CKX-THA16
Your home
AB
CA B
Your cellular phone
BAC

Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 9
Data link feature
Video phone using TV
This feature allows you to access
the Internet or another computer
by connecting the units (A,B,
C, and the base unit) with the
USB cable or a USB adaptor (D)
to your computer.
AKX-THA11
BKX-THA12/KX-THA17
CKX-THA16
DKX-THA14
This feature allows you to use
your TV to see the other person
during a video call.
AKX-THA17
A CB D
Your home
A
TV

Introduction
10 For assistance, please visit http://www.panasonic.com/phonehelp
Important safety
instructions
When using the product, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, or
personal injury.
1. Read and understand all instructions.
2. Follow all warnings and instructions
marked on the product.
3. Unplug the product from power outlets
before cleaning. Do not use liquid or
aerosol cleaners. Use a moist cloth for
cleaning.
4. Do not use the product near water, for
example near a bathtub, wash bowl,
kitchen sink, etc.
5. Place the product securely on a stable
surface. Serious damage and/or injury
may result if the product falls.
6. Do not cover slots and openings on the
product. They are provided for
ventilation and protection against
overheating. Never place the product
near radiators, or in a place where
proper ventilation is not provided.
7. Use only the power source marked on
the product. If you are not sure of the
type of power supplied to your home,
consult your dealer or local power
company.
8. Do not place objects on the power
cord. Install the product where no one
can step or trip on the cord.
9. Do not overload power outlets and
extension cords. This can result in the
risk of fire or electric shock.
10. Never push any objects through slots
in the product. This may result in the
risk of fire or electric shock. Never spill
any liquid on the product.
11. To reduce the risk of electric shock, do
not disassemble the product. Take the
product to an authorized service center
when service is required. Opening or
removing covers may expose you to
dangerous voltages or other risks.
Incorrect reassembly can cause
electric shock when the product is
subsequently used.
12. Unplug the product from power outlets
and refer servicing to an authorized
service center when the following
conditions occur:
A. When the power cord is damaged
or frayed.
B. If liquid has been spilled into the
product.
C. If the product has been exposed to
rain or water.
D. If the product does not work
normally by following the operating
instructions. Adjust only controls
covered by the operating
instructions. Improper adjustment
may require extensive work by an
authorized service center.
E. If the product has been dropped or
physically damaged.
F. If the product exhibits a distinct
change in performance.
13. During thunderstorms, avoid using
telephones except cordless types.
There may be a remote risk of an
electric shock from lightning.
14. Do not use the product to report a gas
leak, when in the vicinity of the leak.
SAVE THESE
INSTRUCTIONS
CAUTION:
Installation
LNever install telephone wiring during a
lightning storm.
LNever install telephone jacks in wet
locations unless the jack is specifically
designed for wet locations.
LNever touch uninsulated telephone
wires or terminals unless the telephone
line has been disconnected at the
network interface.
LUse caution when installing or modifying
telephone lines.

Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 11
LDo not touch the plug with wet hands.
LThe AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the product and is
easily accessible.
Battery
To reduce the risk of fire or injury to
persons, read and follow these
instructions.
LUse only the battery(ies) specified.
LDo not dispose of the battery(ies) in a
fire. They may explode. Check with local
waste management codes for special
disposal instructions.
LDo not open or mutilate the battery(ies).
Released electrolyte is corrosive and
may cause burns or injury to the eyes or
skin. The electrolyte may be toxic if
swallowed.
LExercise care when handling the
battery(ies). Do not allow conductive
materials such as rings, bracelets or
keys to touch the battery(ies), otherwise
a short circuit may cause the battery(ies)
and/or the conductive material to
overheat and cause burns.
LCharge the battery(ies) provided, or
identified for use with the product only, in
accordance with the instructions and
limitations specified in this manual.
WARNING:
LTo prevent the risk of fire or electrical
shock, do not expose the product to rain
or any type of moisture.
LUnplug the product from power outlets if
it emits smoke, an abnormal smell, or
makes an unusual noise. These
conditions can cause fire or electric
shock. Confirm that smoke has stopped
and contact the Panasonic Call Center
at 1-800-211-PANA (1-800-211-7262).
Medical
LConsult the manufacturer of any
personal medical devices, such as
pacemakers or hearing aids, to
determine if they are adequately
shielded from external RF (radio
frequency) energy. (The product
operates in the frequency range of 2.402
GHz to 2.48 GHz, and the power output
is 125 mW (max.).) Do not use the
product in health care facilities if any
regulations posted in the area instruct
you not to do so. Hospitals or health care
facilities may be using equipment that
could be sensitive to external RF (radio
frequency) energy.

Introduction
12 For assistance, please visit http://www.panasonic.com/phonehelp
For best performance
Base unit location/noise
The base unit and other compatible
Panasonic units use radio waves to
communicate with each other.
For maximum distance and noise-free
operation, we recommend the following:
LPlacing the base unit in a HIGH and
CENTRAL location with no obstructions
such as walls.
LRaising the antennas vertically.
LPlacing the product away from electrical
appliances.
LIf you use the handset near other
electrical appliances (microwave,
wireless LAN appliance, etc.), noise may
be heard. Move away from those
appliances and closer to the base unit.
LIf you use the handset near another
cordless phone’s base unit, noise may
be heard. Move away from the other
cordless phone’s base unit and closer to
your base unit.
Environment
LKeep the product away from electrical
noise generating devices, such as
fluorescent lamps and motors.
LThe product should be kept free from
excessive smoke, dust, high
temperature, and vibration.
LThe product should not be exposed to
direct sunlight.
LDo not place heavy objects on top of the
product.
LWhen you leave the product unused for
a long period of time, unplug the product
from the power outlet.
LThe product should be kept away from
heat sources such as heaters, kitchen
stoves, etc. It should not be placed in
rooms where the temperature is less
than 5 °C (41 °F) or greater than 40 °C
(104 °F). Damp basements should also
be avoided.
LThe maximum calling distance may be
shortened when the product is used in
the following places: Near obstacles
such as hills, tunnels, underground, near
metal objects such as wire fences, etc.
LOperating near 2.4 GHz electrical
appliances may cause interference.
Move away from the electrical
appliances.
Routine care
LWipe the outer surface of the product
with a soft moist cloth. Do not use
benzine, thinner, or any abrasive
powder.
Conditions for using the
handset camera/cordless
camera
LThe handset camera/cordless camera is
intended for indoor use only. Prolonged
exposure to direct sunlight or halogen
light may damage CMOS sensor.
LUse the handset camera/cordless
camera in a bright place such as under
daylight or a well-lit room.
LDo not use the handset camera/cordless
camera in the following places:
– near incandescent lamps.
– near any electrical appliance that
emits a strong radio signal.
– where the subject of the picture is
against a light source or in front of a
mirror.
LIn darker environments other than
daylight or in a well-lit room, the
smoothness of motion decreases in
order to keep the appropriate brightness
and sharpness of images. In such
environments, the smoothness of
motion may not increase/decrease
much even if you change the display
sharpness settings (page 45, 60).

Introduction
For assistance, please visit http://www.panasonic.com/phonehelp 13
LWhen using the handset camera/
cordless camera, please take into
consideration the rights of others with
regard to privacy.
For the cordless camera only:
LDo not use the cordless camera in the
following places:
– in places where temperature varies
greatly, such as near an air
conditioner or heater.
– anyplace exposed to oil or steam such
as a kitchen.
– where an object such as glass can
cause temperature change due to
reflection.
LWhen you move the cordless camera
from a cold place to a warm place, wait a
little while to let the cordless camera
adapt to the change in environment
before use. In this case, condensation
such as the formation of dew may occur,
resulting in error or malfunction.
Operating conditions for the
cordless camera
To use the sensor detection feature of the
cordless camera, you need to change the
detection mode (page 62).
Audio detection
The cordless camera features a sensor
that detects human voices such as a baby
cry. Sounds other than human voices may
be difficult to detect. To use this feature,
confirm that the cordless camera is located
in a place where it can easily detect
voices. Once the sensor has detected
sound, the cordless camera pages the
handset or notifies your computer with a
pop-up message.

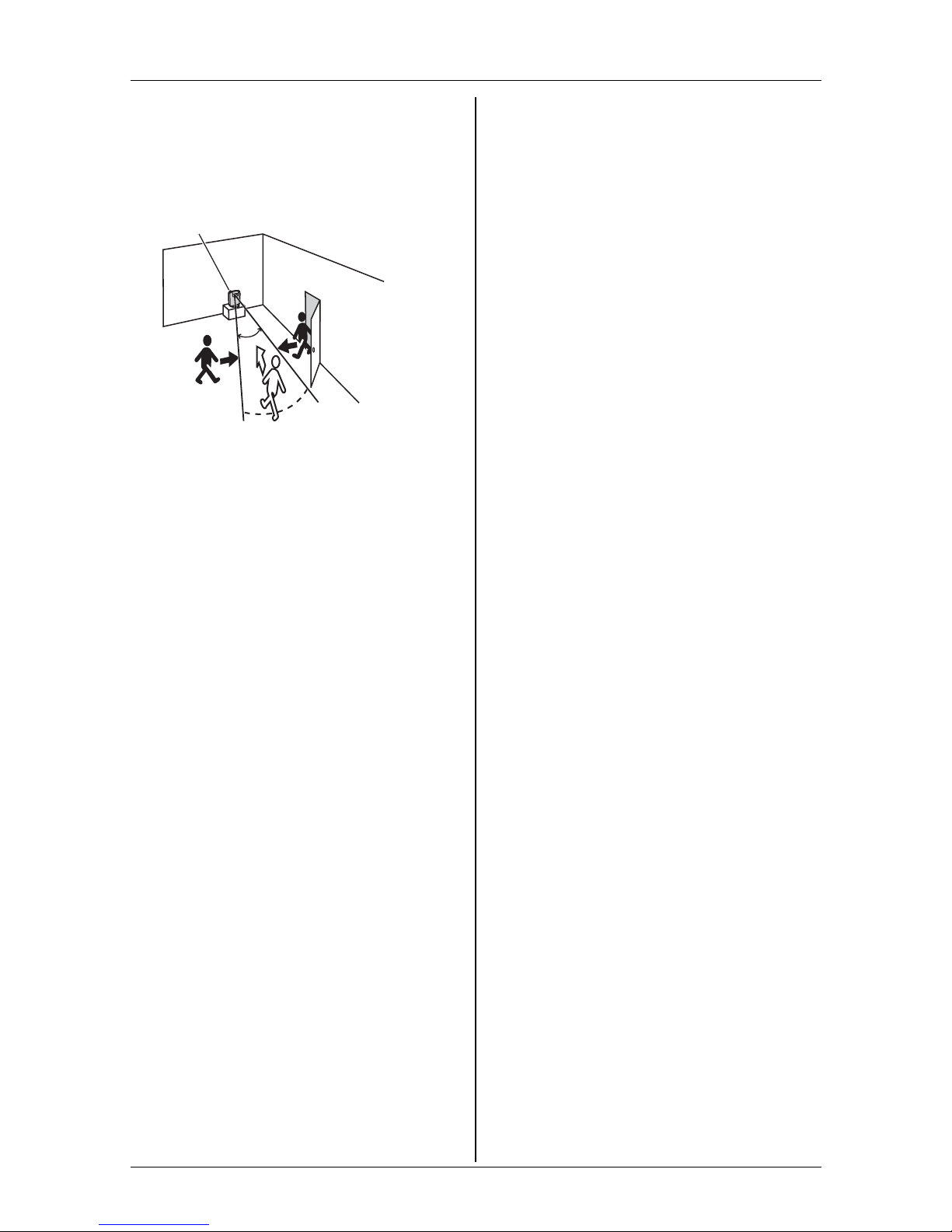

Motion detection
The cordless camera features a sensor
that detects motion by sensing
temperature variations in the room where it
is placed in. When an object (a person,
animal, etc.) enters the range of the
sensor, the sensor can detect the
temperature variation caused by the
object. Once the sensor has detected
motion, the cordless camera pages the
handset or notifies your computer with a
pop-up message.
NVertical detection range
AVertical angle: Approx. 20°
BPhotograph angle: Approx. 35°
CDistance: Approx. 5 m (16.4 feet)
NHorizontal detection range
DHorizontal angle: Approx. 30°
EPhotograph angle: Approx. 46°
FDistance: Approx. 5 m (16.4 feet)
AB
C
D
E
F

Introduction
14 For assistance, please visit http://www.panasonic.com/phonehelp
NMotion detection range
Motion across the cordless camera’s
detection range (A) can be easily
detected, but motion toward the cordless
camera (B) is difficult to detect.
Note:
LLocate the cordless camera where the
objects often pass across the detection
range.
LDo not install the cordless camera in a
place where the temperature is high.
The cordless camera detects objects by
the difference in temperature between
the moving objects (such as human) and
their surroundings. If the cordless
camera is located where the
temperature between them is slight, the
sensor is not responsive to motion even
within the detecting range.
LThe cordless camera may respond to
temperature changes caused by air
movement due to opening/closing doors
or from outside breezes.
Cordless camera
A
A
B

Preparation
For assistance, please visit http://www.panasonic.com/phonehelp 15
Setting up the base unit
Overview
1Connect the AC adaptor.
2Connect the telephone line cord.
Refer to one of the following methods depending on your situation.
LTo connect to a 2-line telephone jack: page 16
LTo connect to 2 single-line telephone jacks: page 16
LTo connect to a single-line telephone jack: page 16
For DSL service subscribers:
LTo connect to a 2-line telephone jack: page 17
LTo connect to 2 single-line telephone jacks: page 17
3To connect to your LAN, see page 95.

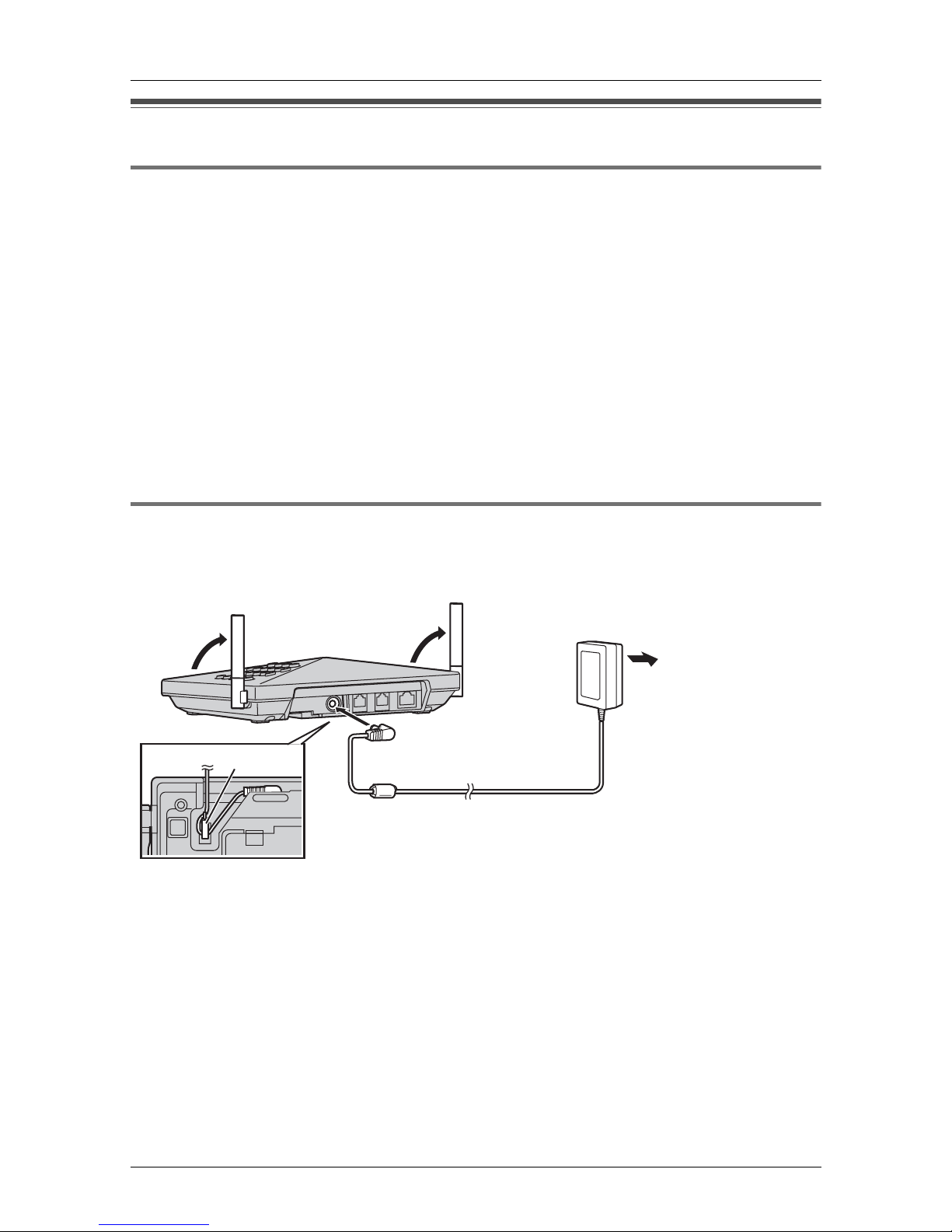

Connecting the AC adaptor
Connect the AC adaptor, then raise the antennas.
LUse only the included Panasonic AC adaptor PQLV205.
Note:
LThe AC adaptor must remain connected at all times. (It is normal for the adaptor to feel
warm during use.)
LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet.
Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the
adaptor may cause it to become disconnected.
LThe unit will not work during a power failure. We recommend connecting a standard
telephone to the same telephone line or to the same telephone jack using a Panasonic
T-adaptor (page 6).
(120 V AC, 60 Hz)
Hook
LINE1/2
LINE2
LAN

Preparation
16 For assistance, please visit http://www.panasonic.com/phonehelp
Connecting the telephone line cord
Connect the telephone line cord until it clicks into the telephone jack.
To connect to a 2-line telephone jack
To connect to 2 single-line telephone jacks
To connect to a single-line telephone jack
Note:
LMake sure you connect the telephone line cord into LINE1/2 telephone jack.
LINE1/2
LINE2 LAN
To 2-line telephone
jack (RJ14C)
4-wire telephone line cord with green plugs
LINE1/2
LINE2 LAN
Line 1
Line 2
To single-line telephone jacks (RJ11C)
2-wire telephone line cord
with transparent plugs
4-wire telephone line cord
with green plugs
2-wire telephone line cord with transparent plugs
To single-line
telephone jack (RJ11C)
LINE1/2
LINE2 LAN

Preparation
For assistance, please visit http://www.panasonic.com/phonehelp 17
If you subscribe to a DSL service
Please attach a noise filter (contact your DSL provider) to the telephone line between the
base unit and the telephone line jack in the event of the following:
– Noise is heard during conversations.
– Caller ID features (page 40) do not function properly.

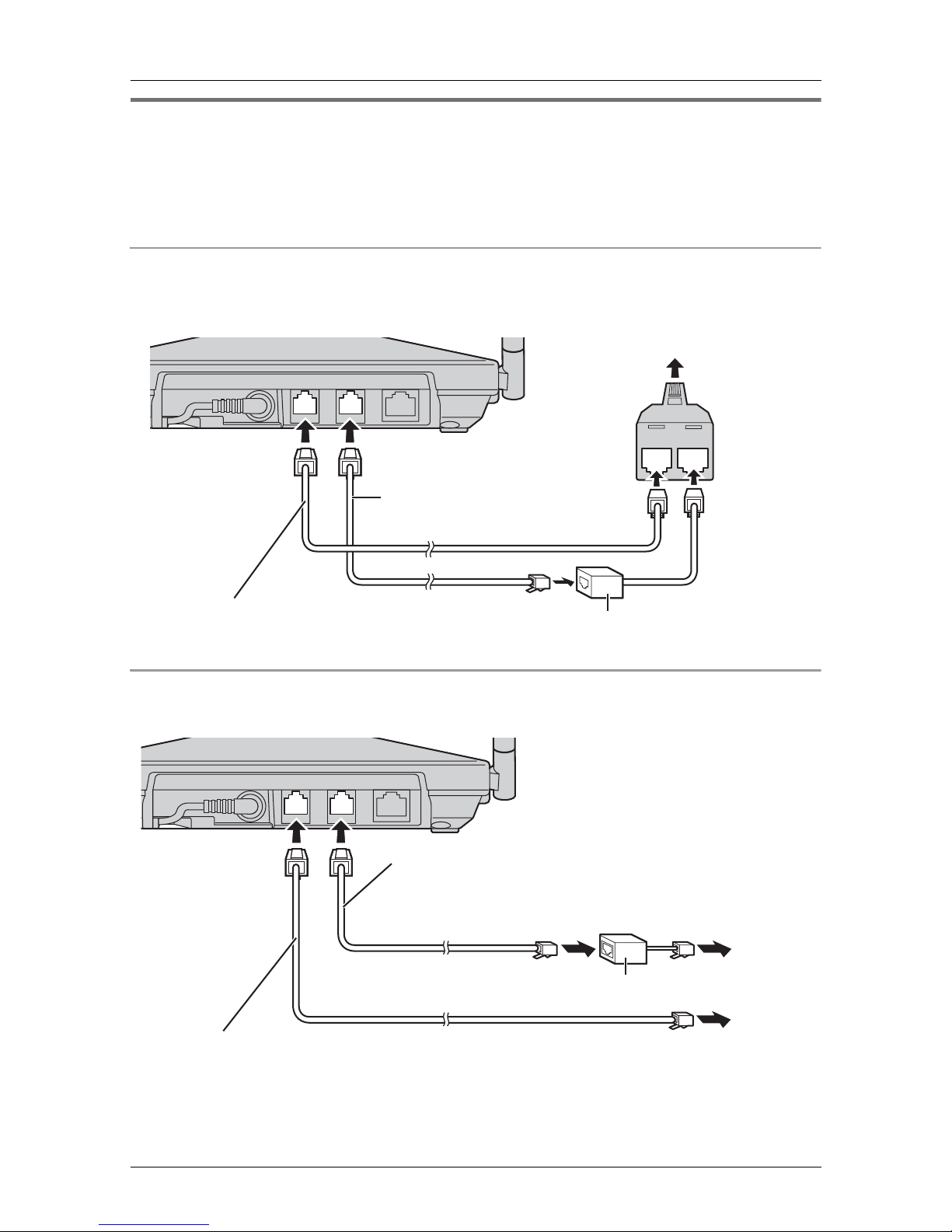

To connect to a 2-line telephone jack
For this connection, please purchase a Panasonic 2-line splitter (page 6).
Example: DSL line is line 2
To connect to 2 single-line telephone jacks
Example: DSL line is line 2
LINE1/2 LINE2 LAN
LINE 2LINE 1
2-line
splitter
2-wire telephone line cord
with transparent plugs
4-wire telephone line cord
with green plugs
To 2-line telephone jack (RJ14C)
Noise filter
LINE1/2 LINE2 LAN
Line 1
Line 2
To single-line telephone
jacks (RJ11C)
Noise filter
2-wire telephone line cord with transparent plugs
4-wire telephone line cord
with green plugs

Preparation
18 For assistance, please visit http://www.panasonic.com/phonehelp

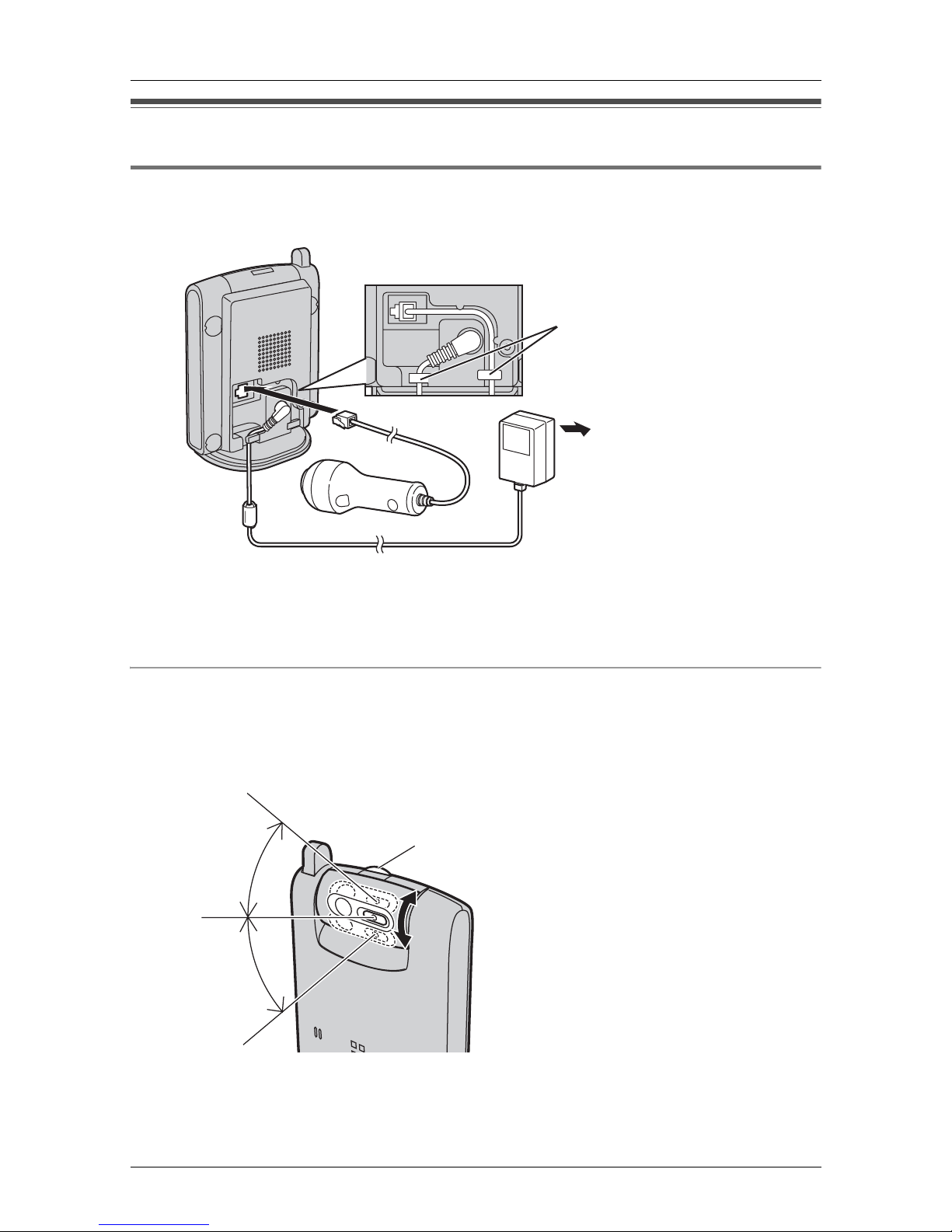

Setting up the cordless camera
Connecting the AC adaptor and the call button
LUse only the included Panasonic AC adaptor PQLV203.
Note:
LWhen the AC adaptor is connected, the indicator lights yellow-green.
LFor information of the cordless camera location, see page 12.
Adjusting the cordless camera lens angle
Aim the camera lens by pushing the tab (A) and rotating the lens forward or backward.
LUsing the handset or your computer, confirm that the area you want to monitor from the
cordless camera is displayed (page 54, 58).
Note:
LDo not touch the camera lens and sensor (page 23).
(120 V AC, 60 Hz)
Hooks
Approx. 40°
Approx. 40°
A

Preparation
For assistance, please visit http://www.panasonic.com/phonehelp 19

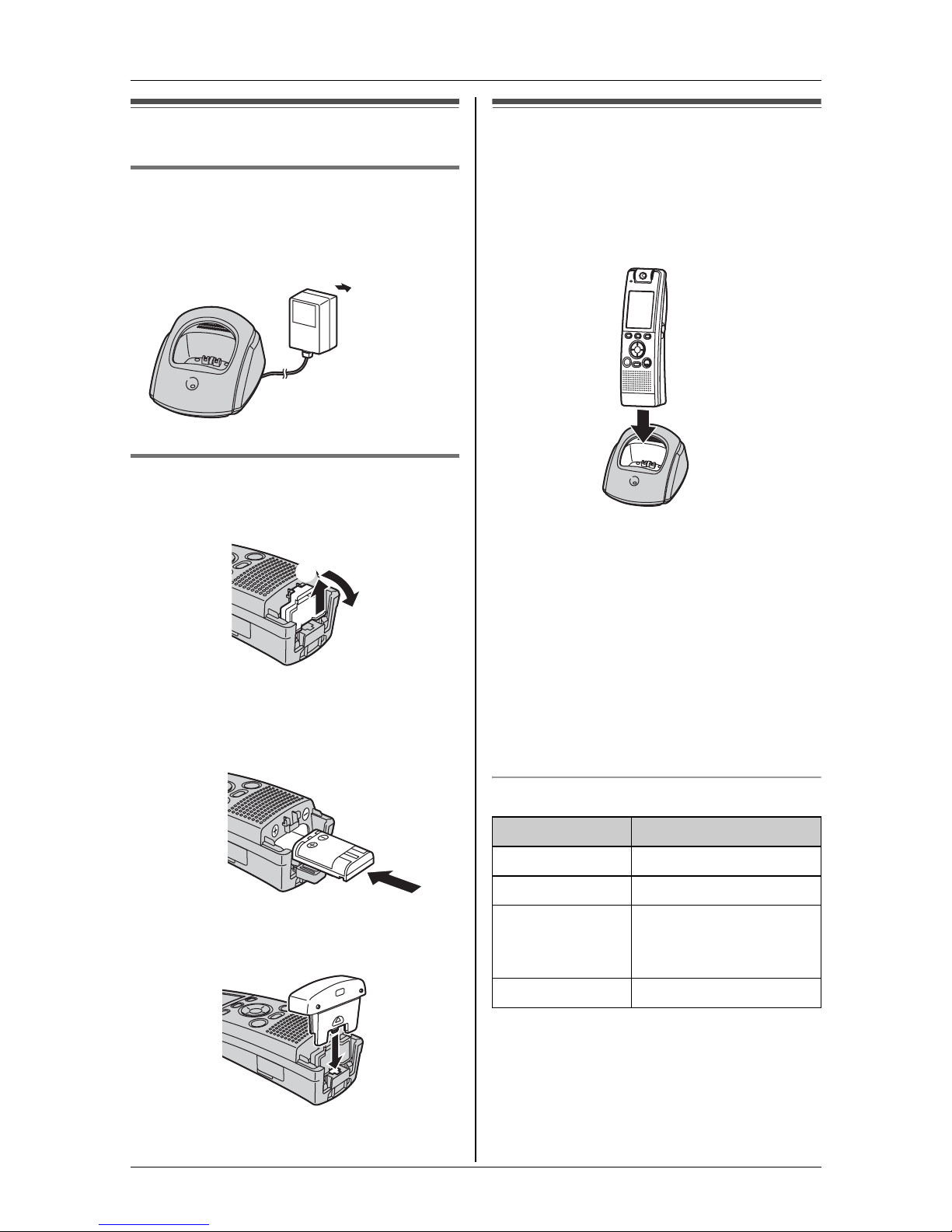

Setting up the handset
Connecting the AC adaptor
LUse only the included Panasonic AC
adaptor PQLV203.
Battery installation
1Open the inside cover.
2Insert the battery as shown. Insert the
Sand Tend of the battery first. Close
the inside cover.
3Close the handset cover in the direction
of the arrow.
Battery charge
Place the handset on the charger for 4
hours before initial use.
While charging, the CHARGE indicator on
the charger lights.
Note:
LIf you want to use the handset
immediately, charge the battery for at
least 15 minutes.
LTo ensure that the battery charges
properly, clean the charge contacts of
the handset and charger with a soft, dry
cloth once a month. Clean more often if
the unit is subject to grease, dust, or
high humidity.
Battery strength
Note:
LWhen the battery needs to be charged,
the handset beeps intermittently while it
is in use.
(120 V AC,
60 Hz)
B
A
Battery icon Battery strength
1Fully charged or high
2Medium
3Low
Flashing: needs to be
recharged.
4Discharged

Preparation
20 For assistance, please visit http://www.panasonic.com/phonehelp
Panasonic battery performance
Note:
LBattery operating time may be
shortened over time depending on
usage conditions and ambient
temperature.
LBattery power is consumed whenever
the handset is off the charger, even
when the handset is not in use. The
longer you leave the handset off the
charger, the shorter you can actually talk
using the handset.
LOnce the battery is fully charged, you do
not have to charge it again until
“Recharge battery” is displayed or
3flashes. This will maximize the
battery life.
Battery replacement
Important:
LUse only the rechargeable Panasonic
battery noted on page 6.
1Press the notch of the handset cover
firmly (A), and slide it in the direction of
the arrow (B).
2Open the inside cover (page 19).
3Remove the old battery, then insert the
new battery. Close the inside cover.
4Close the handset cover (page 19).
Attention:
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY (1-800-
822-8837) for information on how to
recycle this battery.
Operation Operating time
While in use
(talking)
Voice call: Up to 3.5
hours
Video call: Up to 1.5
hours
While not in use
(standby)
Up to 4 days
While using the
clarity booster
feature (page 33)
Up to 2.5 hours
B
A
