Panasonic DH-6SM1PW User manual

English
Model No. DH-6SM1
TABLE OF CONTENTS
BEFORE USING ELECTRIC WATER HEATER EN2
SAFETY PRECAUTIONS ………………………… EN2
PARTS IDENTIFICATION ………………………… EN4
ACCESSORIES …………………………………… EN4
HOW TO USE ELECTRIC WATER HEATER EN5
HOW TO USE ……………………………………… EN5
MAINTENANCE …………………………………… EN5
TROUBLESHOOTING……………………………… EN6
SPECIFICATIONS ………………………………… EN6
HOW TO INSTALL ELECTRIC WATER HEATER EN7
BEFORE INSTALLATION ………………………… EN7
HOW TO INSTALL ………………………………… EN8
TEST OPERATION ………………………………… EN11
Operating and Installation Instructions
Electric Water Heater (Household Use)
Thank you for purchasing this Panasonic product.
• Please read these instructions carefully in order to use this
product correctly and safely.
• Before using this product, please give your special
attention to the SAFETY PRECAUTIONS.
• Please keep this Operating and Installation Instructions for
future use.
Min Max
ELB
DH-6SM1
ELB Test
ELB Reset
Push Up
FILTER
CLEANING
FILTER
CLEANING
DH-6SM1_PH.indb 1DH-6SM1_PH.indb 1 1/27/2021 12:54:59 PM1/27/2021 12:54:59 PM

EN2
In order to prevent accidents or injuries to the user, other people and damage to property, please follow the
instructions below.
ڦThe following indications indicate the degree of damage caused by incorrect operation.
WARNING
Indicates serious
injury or death.
CAUTION
Indicates risk of
injury or property
damage.
ڦThe symbols are classified and explained as follows.
This symbol indicates prohibition.
This symbol indicates requirement that
must be followed.
SAFETY PRECAUTIONS
Make sure to follow these instruc tions
WARNING
ƪIf the ELB Reset Lever cannot be reset even if you push it up or if it soon slides down during
operation, do not use the appliance and contact the authorized dealer immediately to avoid a hazard
to users such as damage to property, serious injury or death. Never fix the ELB Reset Lever forcibly
with tape and such.
ƪDo not insert finger or other objects into the appliance to avoid physical and electric shock hazards.
ƪDo not replace any other parts of the appliance with spare parts other than genuine parts.
• Parts for other models will not fit to this model and may cause hazardous condition to user.
ƪDo not spray water to the appliance nor put wet towels on it to avoid from coming into contact with
any live parts and such, in order to prevent smoke emission, ignition, fire and electric shock hazards.
ƪDo not disassemble, repair or modify the appliance. It may cause fire, electric shock or injury.
• Please contact your Service Centre for repairing.
ƪThis appliance is not to be used for a potable water supply.
ƪThe appliance must be earthed. Improper grounding could cause electric shock.
ƪStop using the appliance when any abnormality / failure occurs and switch off the Miniature Circuit
Breaker (MCB). (Risk of smoke / fire / electric shock / scalding)
Example of abnormality or failure:
• The ELB Reset Lever cannot be reset. Please refer to "TEST OPERATION" at page EN11.
• Burnt odor or smoke is detected during operation.
• The Front Plate or Back Plate is deformed or abnormally hot.
• The Outlet Water temperature become extremely hot.
→Contact an authorized dealer immediately for maintenance / repair.
ƪThis appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
ƪMake sure the voltage indicated on the label of the appliance is the same as your local supply.
ƪPay attention to water temperature when reducing the volume of water. The water temperature will
become very hot if the water flow rate is too low.
ƪWhen the appliance is used by someone such as child, old person, sick person and physically
handicapped person, the person responsible for their safety is kindly requested to pay attention and
check the water temperature by using hand from time to time.
BEFORE USING ELECTRIC WATER HEATER
DH-6SM1_PH.indb 2DH-6SM1_PH.indb 2 1/27/2021 12:55:00 PM1/27/2021 12:55:00 PM

EN3
English
WARNING
ƪSwitch off the Miniature Circuit Breaker (MCB) before any service to avoid electric shock hazards.
ƪIn time of lightning / thunder, switch off the Miniature Circuit Breaker (MCB) in advance to protect the
appliance against possible damage.
ƪInspect the built-in ELB (once a month) to avoid a hazard to users such as damage to property,
serious injury or death. Please refer to "TEST OPERATION" at page EN11.
ƪInspect the Miniature Circuit Breaker (MCB) once a month to ensure no faulty on the household
earthing system that will lead to electric shock hazard.
ƪThe manufacturer is not liable for damage caused by incorrect installation or failure to follow the
instruction indicated in the Operating and Installation Instructions.
CAUTION
ƪNever use benzene, thinner, bleaching agent and such for cleaning purpose to avoid smoke
emission, ignition, fire and electric shock hazards.
ƪAvoid using dirty water as it may affect heater performance and other components.
ƪDo not block the Water Outlet with hand, towel or bend the shower hose (not provided).The water
flow rate will drop and water temperature may become very hot.
ƪIn order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not
be supplied through an external switching device, such as a timer, or connected to a circuit that is
regularly switched on and off by the utility.
ƪDo not switch on if there is possibility the water in the appliance is frozen.
ƪNever fix the appliance forcibly with tape or adhesives. Strictly follow all the instructions given for
installation. (See page EN7-EN11 "HOW TO INSTALL ELECTRIC WATER HEATER".)
ƪPlease make sure the O Ring is not removed and shall be free from foreign particle to avoid water
leaking.
ƪPress the ON/OFF DP (Double Pole) Switch before and after each usage.
ƪAlways turn on the Cold Water Faucet first and then adjust the Hot Water Faucet to get the desired
water temperature. So as to avoid the danger of scalding when operating this appliance.
ƪThis product is intended for household use only.
ƪPlease read the instructions before proceeding to maintenance. (See page EN5-EN6
"MAINTENANCE".)
ƪThe appliance is intended to be permanently connected to the water mains and not connected by a
hose-set.
ƪBefore installation, make sure the water flow pressure is under the allowable rated pressure as stated
on Specifications table. (See page EN6 "SPECIFICATIONS".)
DH-6SM1_PH.indb 3DH-6SM1_PH.indb 3 1/27/2021 12:55:01 PM1/27/2021 12:55:01 PM

EN4
PARTS IDENTIFICATION
Min Max
ELB
ELB Test
ELB Reset
Push Up
FILTER
CLEANING
FILTER
CLEANING
FILTER
CLEANING
Earth
Parts not included
Flexible Cord
(Not included)
ON/OFF DP (Double Pole) Switch
Miniature Circuit Breaker (MCB)
Filter Body Assembly
ELB Test Button
ELB Reset Lever
Water Inlet
Main Water Valve
Parts not included
Cold Water Faucet
Hot Water Faucet
Faucet
Temperature Control Knob
ELB Lamp
Front Plate
Filter Knob
O Ring
Filter Unit
Water Outlet
Note:
• It is recommended to make the cold water and hot water mixing piping as illustrated.
ACCESSORIES
Description Items
(Ø6 × 25) mm (M4.1 × 25) mm
Installation Packing Wall Plug (4 pcs) Screw (4 pcs)
Note:
• When removing the appliance from package, some water may be found inside. This is normal as the appliance is
tested during the manufacturing process.
DH-6SM1_PH.indb 4DH-6SM1_PH.indb 4 1/27/2021 12:55:01 PM1/27/2021 12:55:01 PM

EN5
English
Note:
• The water temperature lowers as the volume of water is increased by opening the Faucet and water temperature rises
as the volume of water is decreased by closing the Faucet.
• In case of continuous usage at high temperature setting, water temperature will increase and may cause the control
device to activate temporarily resulting in water temperature to drop.
• If you use water at more than one point, the water pressure will drop and the water flow may become weak or the
water temperature may rise. However, this is not a sign of any trouble. Adjust the Hot Water Faucet to a proper level.
• Do not switch on if there is possibility the water in the heater is frozen.

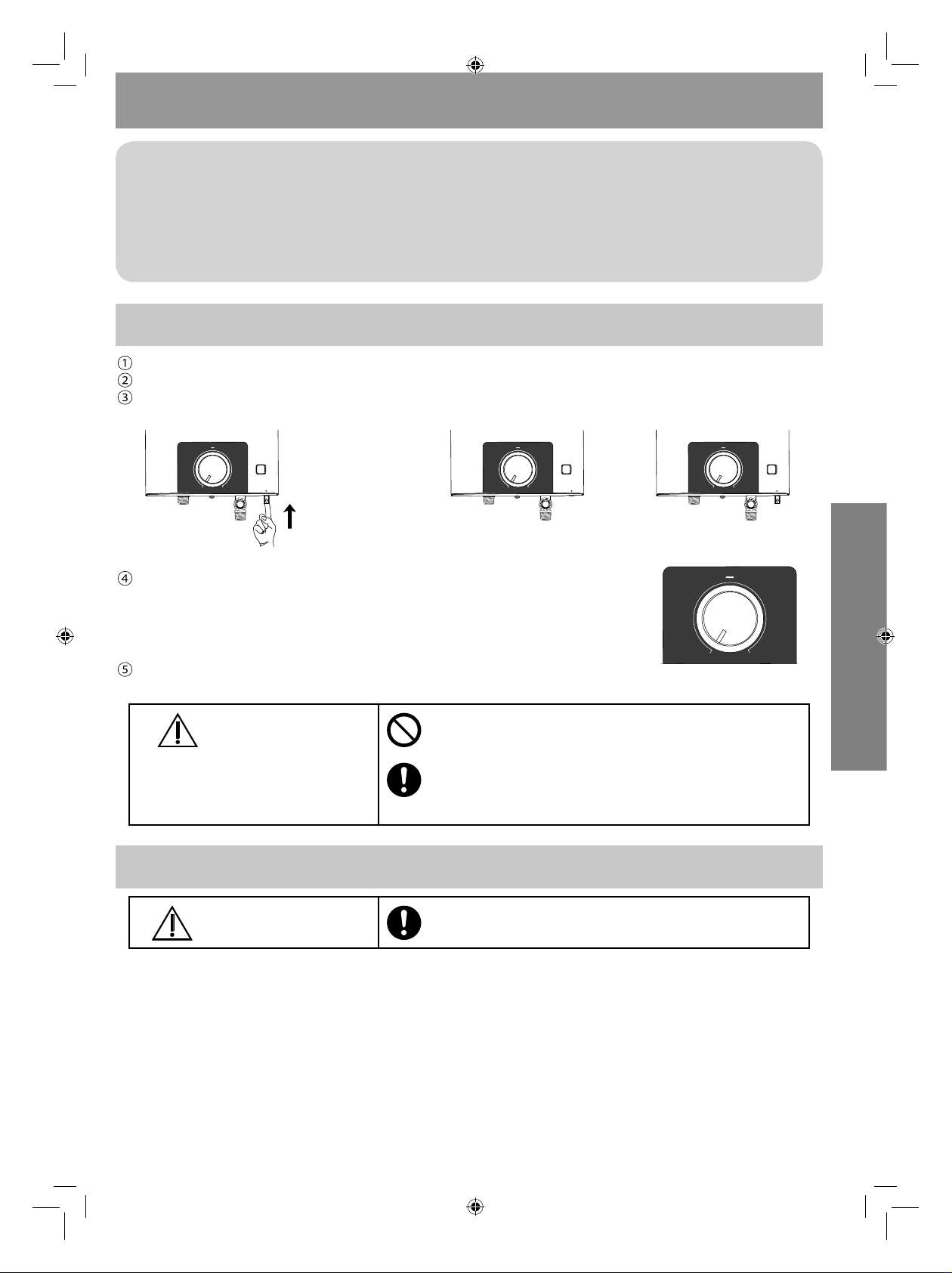

HOW TO USE
Turn on the Main Water Valve.
Switch on the Miniature Circuit Breaker (MCB) and the ON/OFF DP (Double Pole) Switch.
Push the ELB Reset Lever up if it is down.
Min Max
ELB
ELB Test
ELB Reset
Push Up
Min Max
ELB
ELB Test
ELB Reset
Push Up
Min Max
ELB
ELB Test
ELB Reset
Push Up
FILTER
CLEANING
FILTER
CLEANING
FILTER
CLEANING
FILTER
CLEANING
FILTER
CLEANING
FILTER
CLEANING
FILTER
CLEANING
Push ELB: On condition ELB: Off condition
Set the Temperature Control Knob to the desired position.
(a) When the Temperature Control Knob is set to "Min", temperature level
is low.
(b) When the Temperature Control Knob is set to "Max", temperature level
is high.
Turn on the Hot Water Faucet. The ELB Lamp will light up once the
appliance operates.
Min Max
ELB
CAUTION
Avoid using dirty water as it may affect heater
performance and other components.
Always turn on the Cold Water Faucet first and then
adjust the Hot Water Faucet to get the desired water
temperature. So as to avoid the danger of scalding when
operating this appliance.
MAINTENANCE
WARNING
Switch off the Miniature Circuit Breaker (MCB) before any
service to avoid electric shock hazards.
1. Inspection on the built-in ELB.
Inspect the built-in ELB (once a month) to avoid a hazard to users such as damage to property, serious injury or
death.
• Make sure the appliance is in on condition.
• Press the ELB Test Button. If the ELB is in normal condition, ELB Reset Lever will slide down.
• Push up the ELB Reset Lever to reset the ELB.
HOW TO USE ELECTRIC WATER HEATER
DH-6SM1_PH.indb 5DH-6SM1_PH.indb 5 1/27/2021 12:55:02 PM1/27/2021 12:55:02 PM

EN6
2. Main body cleaning.
Be sure to switch off the Miniature Circuit Breaker (MCB) beforehand.
• Clean it with moist cloth.
• Never use benzene, thinner, detergent, bleach and such for cleaning purpose.
• Do not spray water to the appliance, nor put wet towels on it.
• Make sure to use suitable cloth to clean the Main body surface to avoid scratch.
Note:
• Do not place any material on the appliance.
3. Filter Unit cleaning. (Filter Unit is fixed to Filter Knob)
• Clean the Filter Unit with water every week.
• Clean the Filter Unit when you feel that hot water is not drawn
normally. O Ring
Filter Unit
CAUTION
Please make sure the O Ring
is not removed and shall be
free from foreign particle to
avoid water leaking.
TROUBLESHOOTING
1. Check the following points before asking for repair.
Symptom Points to be checked
Water is not drawn normally. • Check whether any leakage of the water connections.
• Check the Filter Unit. Clean the Filter Unit if it is clog by stain and dirt.
No hot water comes out from the
Water Outlet.
(no electrical supply to the
appliance)
• Check whether the water and electrical connections comply with the Specifications
as indicated.
• Make sure to switch on the ON/OFF DP (Double Pole) Switch.
• Make sure to switch on the Miniature Circuit Breaker (MCB).
• Make sure the ELB Reset Lever is not slide down.
Push up the ELB Reset Lever to reset the ELB (refer to "TEST OPERATION" at
page EN11).
No water flows out from the
appliance at all.
• Make sure the Main Water Valve is opened.
• Check whether the water supply is there.
• Check whether inlet water supply connected to the Filter Body Assembly.
2. If abnormalities as mentioned below are found during use, do not use the appliance and contact an authorized
dealer immediately.
• Water leakage.
• Water temperature cannot be controlled.
• ELB Lamp does not light up.
3. Special skill is required for repairing. Never try to repair the appliance by yourself.
SPECIFICATIONS
Power Supply 230 V a.c. 60 Hz
Power Consumption 6000 W
Temperature Control 32 °C (minimum)
50 °C (approx.)
Min. Water Pressure 0.02 MPa / 0.2 kgf/cm2 / 2.9 psi
Max. Water Pressure 0.6 MPa / 6.12 kgf/cm2 / 87.0 psi
Dimension (Approx.)
H × W × D 195 mm x 233 mm × 112 mm
Weight (Approx.) 2.0 kg
DH-6SM1_PH.indb 6DH-6SM1_PH.indb 6 1/27/2021 12:55:03 PM1/27/2021 12:55:03 PM

EN7
English

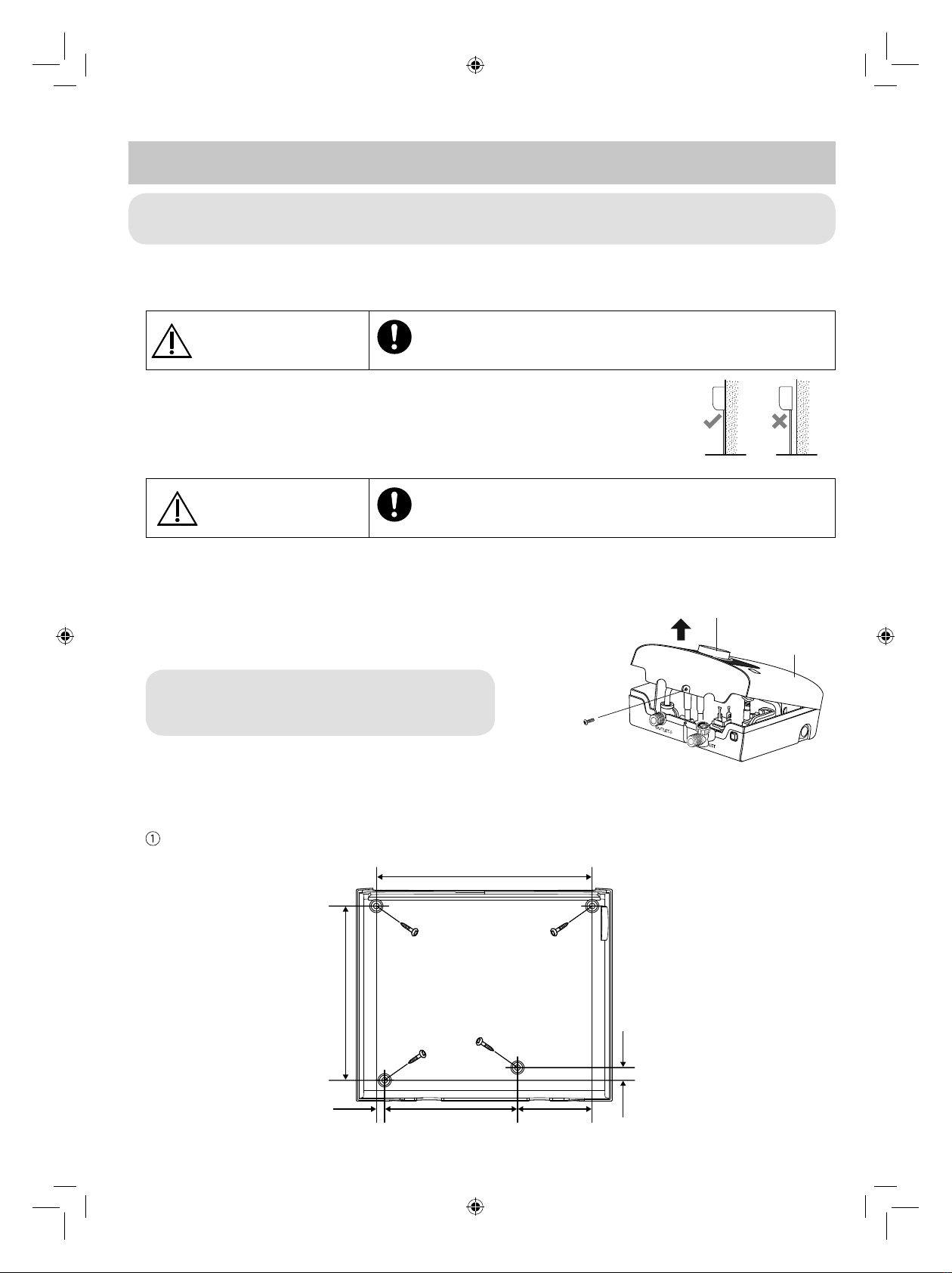

HOW TO INSTALL ELECTRIC WATER HEATER
WARNING
For Installer
ƪDo not install, remove or reinstall the appliance by yourself.
• Improper installation will cause leakage, electric shock, fire or injury. Installation and wiring must be done
by competent personnel.
ƪDo not share the inlet and outlet pipe of the appliance with other outlets. The pressure may drop due
to water being drawn off at other point. The water temperature may become very hot.
ƪThe appliance must be earthed. Improper grounding could cause electric shock.
ƪThis appliance should be installed and serviced by competent personnel and only genuine spare
parts should be used. If not, it may cause fire or result in improper operation.
ƪDuring installation process make sure electrical and water supplies are turned off.
ƪUse the appliance under the allowable rated voltage conditions. If not, it may cause an electric shock
or fire.
ƪProper size of Flexible Cord and electric wiring must be installed to avoid smoke emission and fire
hazards.
ƪThe appliance must be permanently connected to the electric supply through the ON/OFF DP
(double pole) Switch having a contact separation of at least 3 mm in all poles incorporated in the
fixed wiring. This switch must be clearly identifiable but out of reach of a person using a fixed bath
or shower.
ƪUse the attached accessories parts for installation.
CAUTION
ƪThis appliance must be installed indoor only.
ƪFlexible Cord must enter the appliance through designated point only (do not make additional holes).
ƪEnsure this appliance is not installed at the place where water existence will lead to smoke
emission, ignition, fire, electric shock and damage to property.
BEFORE INSTALLATION
• Installation must be done by competent personnel.
• All plumbing works must be completed.
• Use appropriate pipes for the inlet and outlet connections which can withstand high temperature and pressure.
• Make sure the water flow pressure under the allowable rated pressure conditions.
Min. water pressure 0.02 MPa / 0.2 kgf/cm2 / 2.9 psi
Max. water pressure 0.6 MPa / 6.12 kgf/cm2 / 87.0 psi
• Measure the water pressure as illustrated. Water should flow
out of the Hose 2.0 m above the Main Water Valve.
2.0 m
DH-6SM1_PH.indb 7DH-6SM1_PH.indb 7 1/27/2021 12:55:04 PM1/27/2021 12:55:04 PM

EN8
HOW TO INSTALL
Note:
• During installation process, make sure electrical and water supplies are turned off.
1. Where to install the appliance.
• Install the appliance in indoor with frost-free weather proof locations only.
WARNING
Be sure to install the appliance on the wall as illustrated in
Figure 1 (vertical position with the inlet pipe and outlet pipe
pointing downward).
• Do not install the appliance away from the wall surface as shown in Figure 2.
• Select a suitable location with easy access of electrical and water supplies.
• Avoid installations which expose the appliance to any of the following conditions:
- Installation in frost.
- Voltage input exceeding the specified voltage.
CAUTION
Ensure this appliance is not installed at the place where water
existence will lead to smoke emission, ignition, fire, electric
shock and damage to property.
2. How to remove the Front Plate.
• Make sure the Temperature Control Knob at "Min" position.
• Remove the Screw at the bottom of the appliance.
• Lift up the Temperature Control Knob to make it free. Make sure
the Temperature Control Knob is not detached from the Front Plate.
• Remove the Front Plate first at the bottom and then unhook the top part.
Note:
• Temperature Control Knob is attached to Front Plate
(No need to pull out).
3. How to fix the appliance.
Please fix the appliance based on the dimension below:
182.50 mm
157.50 mm
Screw
13.50 mm
7.50 mm 120.00 mm 55.00 mm
Screw
Screw
Screw
Figure 1 Figure 2
LET
OUTLET
Temperature Control Knob
Front Plate
Screw
DH-6SM1_PH.indb 8DH-6SM1_PH.indb 8 1/27/2021 12:55:04 PM1/27/2021 12:55:04 PM

EN9
English
Note:
• For same level holes, use suitable tool to ensure the hole levelness.
Make 4 holes for Wall Hook at the wall by means of
a drill. Drive the Wall Plug into each hole.
25 mm
Ø6 mm
Wall Plug
Insert the Flexible Cord to the appliance through Figure 3 as shown below:
• Cutting the Fitting Rubber which is attached to the Back Plate, and pass the Flexible Cord through it.
Flexible Cord
Fitting Rubber
Figure 3
CAUTION
Flexible Cord must enter the appliance through designated
point only (do not make additional holes).
Mount the appliance on the wall with 4 Screws.
Drive each Screw into the two upper Wall Plugs through the
screw holes on the Back Plate.
After tighten up the two upper Screws, tighten up the remaining
two Screws.
Ensure the set fixed tightly on the wall by shaking it left and right.
Note:
• The Back Plate must be mounted with 4 Screws. Wall
Back Plate
Wall Plug
Back Plate
Wall Plug
Wall
4. Electric wiring.
• Make sure rated electrical supply is supplied to this appliance.
WARNING
ƪProper size of Flexible Cord and electric wiring must be
installed to avoid smoke emission and fire hazards.
ƪThe appliance must be permanently connected to the
electric supply through the ON/OFF DP (double pole) Switch
having a contact separation of at least 3 mm in all poles
incorporated in the fixed wiring. This switch must be clearly
identifiable but out of reach of a person using a fixed bath or
shower.
Lead the Flexible Cord connected to ELB terminal
inside the appliance:
Flexible Cord 4.0 mm2, double-coated cable.
FILTER
CLEANING
Earth
ON/OFF DP
(double pole) Switch
Flexible Cord Miniature Circuit
Breaker (MCB)
DH-6SM1_PH.indb 9DH-6SM1_PH.indb 9 1/27/2021 12:55:05 PM1/27/2021 12:55:05 PM

EN10

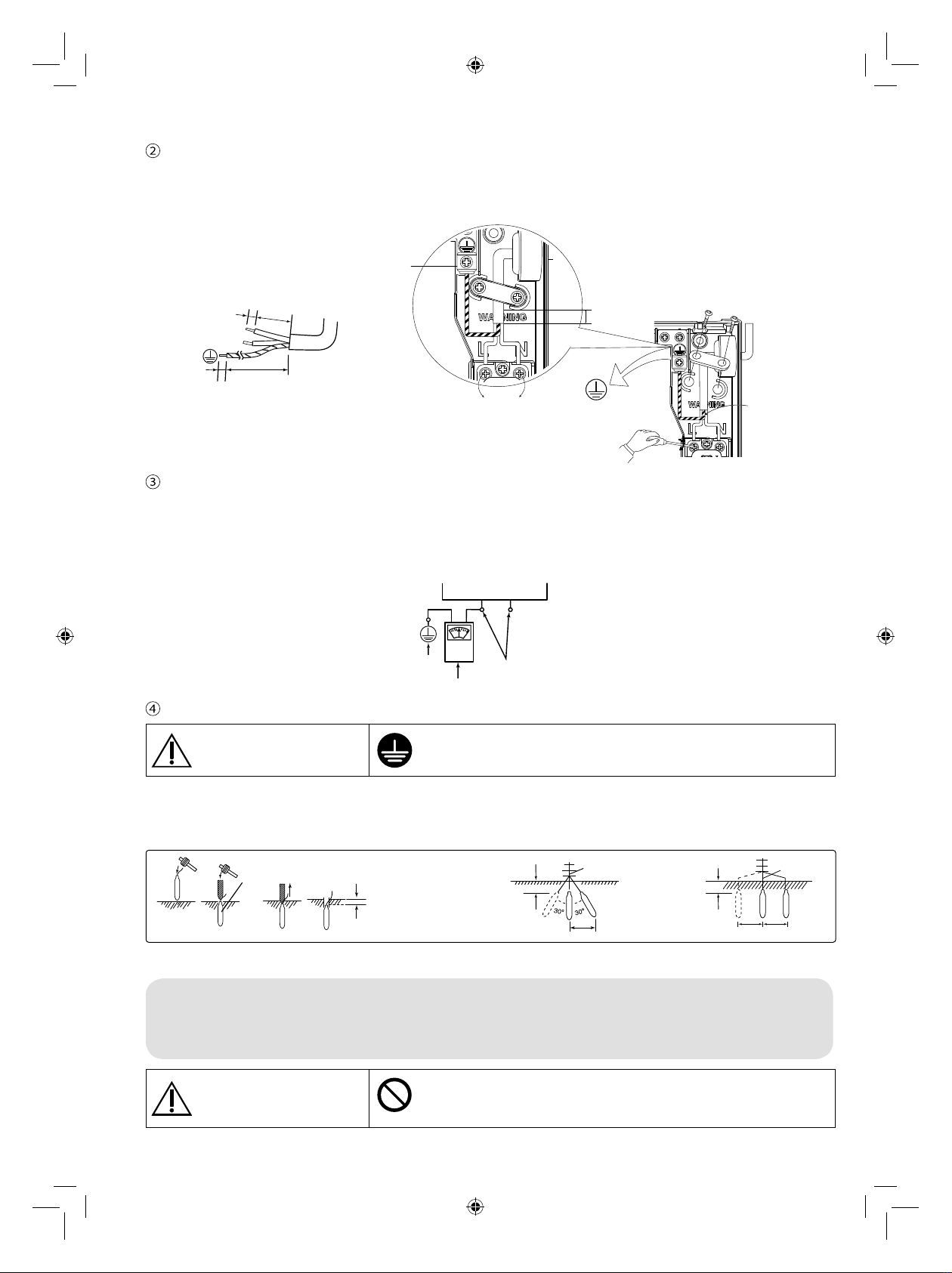

Unscrew the cord holder and fix the cable. Strip the cable (coating).
Loosen the screw and fasten the live wire (L) and neutral wire (N) to the ELB (L,N); insert the earth wire
under the Earth Plate to the Ground Point with 1 N.m (10 kgf.cm) torque. Fix back the cord holder to its
position to clamp the cable.
5 mm
LN
ELB Terminal Ground Point 1 N.m
40 mm
13 mm
50 mm
13 mm
L
N
Connect wires in correct polarity (L,N).
• Connecting wires in wrong polarity (L,N) causes an abnormal condition which may lead to electric leaking, burning,
and such.
• Before wiring, please check polarity (L,N) with voltage range of a tester or voltmeter by connecting one terminal of
the tester to earth while the other to one of the Power Supply terminal.
• When the needle of the tester deflects greatly, the polarity of the Power Supply terminal is "L".
Main Power Board
Power-Supply
Terminals
Tester
Earth
Earth Rod.
WARNING
The appliance must be earthed. Improper grounding could
cause electric shock.
• Earth Rod handling procedure. Select adapter place to bury the optional Earth Rod (DQ-6H) for at least 70 cm
below ground surface.
• Ensure that the ground resistance is less than 100 . If it is not, drive the Rod deeper into ground surface or use 2
or 3 Rods.
Ground
Surface
Burying tool
Earth Rod
70 cm at least 70 cm at least
(Bevel Style) (Parallel Style)
70 cm at least
About 2 m About 2 m
Connection
Connection
1 m
5. Piping installation procedure.
Note:
• Make sure no water leaks from pipe connection.
• When glue is used for external piping connection, must wait for the glue to dry before proceeded to test run with
water.
WARNING
Do not share the inlet pipe of the appliance with other outlets.
The pressure may drop due to water being drawn off at other
point. The water temperature may become very hot.
Earth Plate
DH-6SM1_PH.indb 10DH-6SM1_PH.indb 10 1/27/2021 12:55:07 PM1/27/2021 12:55:07 PM

EN11
English
FILTER
CLEANING
Filter Body
Assembly
ELB Reset
Lever
Main Water
Valve
Water Inlet
FILTER
CLEANING
Main Body
Thread
End Water
Outlet
Use Flexible Pipe
Minimum length
150 mm
Tee Joint
Main Water
Valve
Parts not
included
(1)
Rubber
Packing
(2)
(1) Tee joint must be installed between the
Main Water Valve and Flexible Pipe.
(2) Place Rubber Packing between Filter
Body Assembly and Flexible Pipe.
Do not use Piping Tape. Tighten it by
spanner firmly.
Remark:
It is desirable to make the piping as short
and linear as possible because the longer
the distance from the appliance to the
Faucet, greater influence may be caused
on the hot water temperature due to
increase in resistance and change in water
temperature.
6. How to fix the Front Plate.
Make sure the Temperature Control Knob on
Front Plate and "D-Cut" at "Min" position.
Close the Front Plate of the appliance
according to the sequence as illustrated
(Close from top to bottom).
Press the Temperature Control Knob.
Fix the Screw at the bottom of the appliance.
Note:
• Do not push the ELB Test Button when fixing
the Front Plate.
LET
OUTLET
ELB
ELBTest
ELBReset
PushUp
Min
Max
ELB
ELBTest
ELBReset
PushUp
Max
Min
FILTER
CLEANING
ELB
ELBTest
ELBReset
PushUp
Max
Min
FILTER
CLEANING
Min Max
ELB
ELB Test
ELB Reset
Push Up
FILTER
CLEANING
FILTER
CLEANING
Front Plate
OFF position
FILTER
CLEANING
"D-Cut" Position
Back Plate
Front Plate
Back
Plate
Screw
Front Plate
Press
TEST OPERATION
WARNING
ƪInspect the built-in ELB (once a month) to avoid a hazard to
users such as damage to property, serious injury or death.
ƪIf the ELB Reset Lever cannot be reset even if you push it
up or if it soon slides down during operation, do not use the
appliance and contact an authorized dealer immediately to
avoid a hazard to users such as damage to property, serious
injury or death. Never fix the ELB Reset Lever forcibly with
tape and such.
1. • Turn on the Main Water Valve.
• Check if water leaks from the Pipe Line.
2. • Before switch on electricity check the wiring.
• Switch on the Miniature Circuit Breaker (MCB) and the ON/OFF DP (Double Pole) Switch.
• ELB Lamp (red) will light up. (Push up the ELB Reset Lever if it is down)
• Push the ELB Test Button.
- It is normal if the ELB Lamp goes off (the ELB Reset Lever falls) and
push the ELB Reset Lever up.
3. • Open the Hot Water Faucet and set the temperature by turning the Temperature
Control Knob.
• Set the Temperature Control Knob between "Min" to "Max".
4. • Regulate the Hot Water Faucet so that the hot water temperature becomes optimum.
• Too hot : Further open the Cold Water Faucet.
: Check for clogging of the piping.
• Too cold : Reduce the volume of water from the Cold Water Faucet or further open the Hot Water Faucet.
Min Max
ELB
ELB Test
ELB Reset
Push Up
FILTER
CLEANING
FILTER
CLEANING
Push
DH-6SM1_PH.indb 11DH-6SM1_PH.indb 11 1/27/2021 12:55:08 PM1/27/2021 12:55:08 PM

DH940A6SM1P1
F0820Y10121
Printed in Malaysia © Panasonic Manufacturing Malaysia Berhad 2020
Panasonic Manufacturing Malaysia Berhad (196501000304)
No. 3, Jalan Sesiku 15/2, Section 15, Shah Alam Industrial Site,
40200 Shah Alam, Selangor Darul Ehsan, Malaysia.
https://www.panasonic.com
DH-6SM1_PH.indb 12DH-6SM1_PH.indb 12 1/27/2021 12:55:14 PM1/27/2021 12:55:14 PM
