INTRODUCTION
This HDBaseT receiver can extend HDMI over a single Cat 6/6A cable. This product
oers Bi-directional IR, RS-232 and Bi-directional PoC making any professional Cat
6/6A A/V set-up more ecient and easy to use. Uncompressed video and power can be
transmitted up to 230ft/70m. This design of HDBaseT™ technology allows for full usage
of HDMI and controls over Cat 6/6A cable. CMHDBTWRX also supports audio extraction/
audio de-embedding from the HDMI signal for systems with external speaker systems.
This unit can be paired with any Panduit HDBase-T transmitter product.
FEATURES
• HDMI 1.4b, HDCP 2.2 and EDID 1.4
• Video resolutions up to 4K2K@30Hz (backwards compatible)
• Audio up to 7.1 channels of High Denition audio pass through (LPCM, Dolby
TrueHD, and DTS-HD Master Audio).
• 10bits HDR (High Dynamic Range) pass through
• Supports HDMI High Bit Rate (HBR) audio pass through
• Extract audio supports LPCM 2CH
• POC (Power Over Cable) functionality is supported, either TX or RX is powered by
a 24V@1A power supply. Power consumption is less than 10W.
See the Description 1
• Transfer Bidirectional RS-232 control signal together with the HDMI signal.
See the Description 2
• Transmission distance: Over category cable; Panduit Category 6/6A cable
and connectors*
70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;
40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit;
3D1080P@60Hz@36bit; 4K x 2K@30Hz@24bit.
*Category 6A cable minimizes alien crosstalk. It is recommended
Package Contents
• HDBaseT Extender Receiver - 1PC
• 24V1A DC Power Supply - 1PC
• Mounting Brackets - 2PCS
• 3.5mm Audio Cable - 1PC
• 3pin Screw Terminal Plug - 1PCS

4USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com
TECHNICAL SPECIFICATIONS
Technical
HDMI Compliance HDMI 1.4b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 297MHz [10.2Gbps]
Video Resolutions up to,4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
HDMI Audio Formats (Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby
TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Extract Audio Formats LPCM 2CH
ESD Protection Human body model - +/- 8kV (air-gap discharge) & +/-4kV
(contact discharge)
Connections
Inputs 1xDC Power In
1x HDBaseT In [RJ45]
1x RS232 [Screw Terminal]
Outputs 1x HDMI Type A [19-pin female]
1x Audio OUTPUT [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 65mm [W] x 115mm [D] x 17mm [H]
Weight 200g
Power Supply Input: AC100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certied)
Power Consumption 6W (Max)
Operation Temperature 32 - 104 °F / 0 - 40 °C
Storage Temperature -4 - 140°F / -20 - 60°C
Relative Humidity 20 - 90% RH (no condensation)

5
USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com
OPERATION CONTROLS AND FUNCTIONS

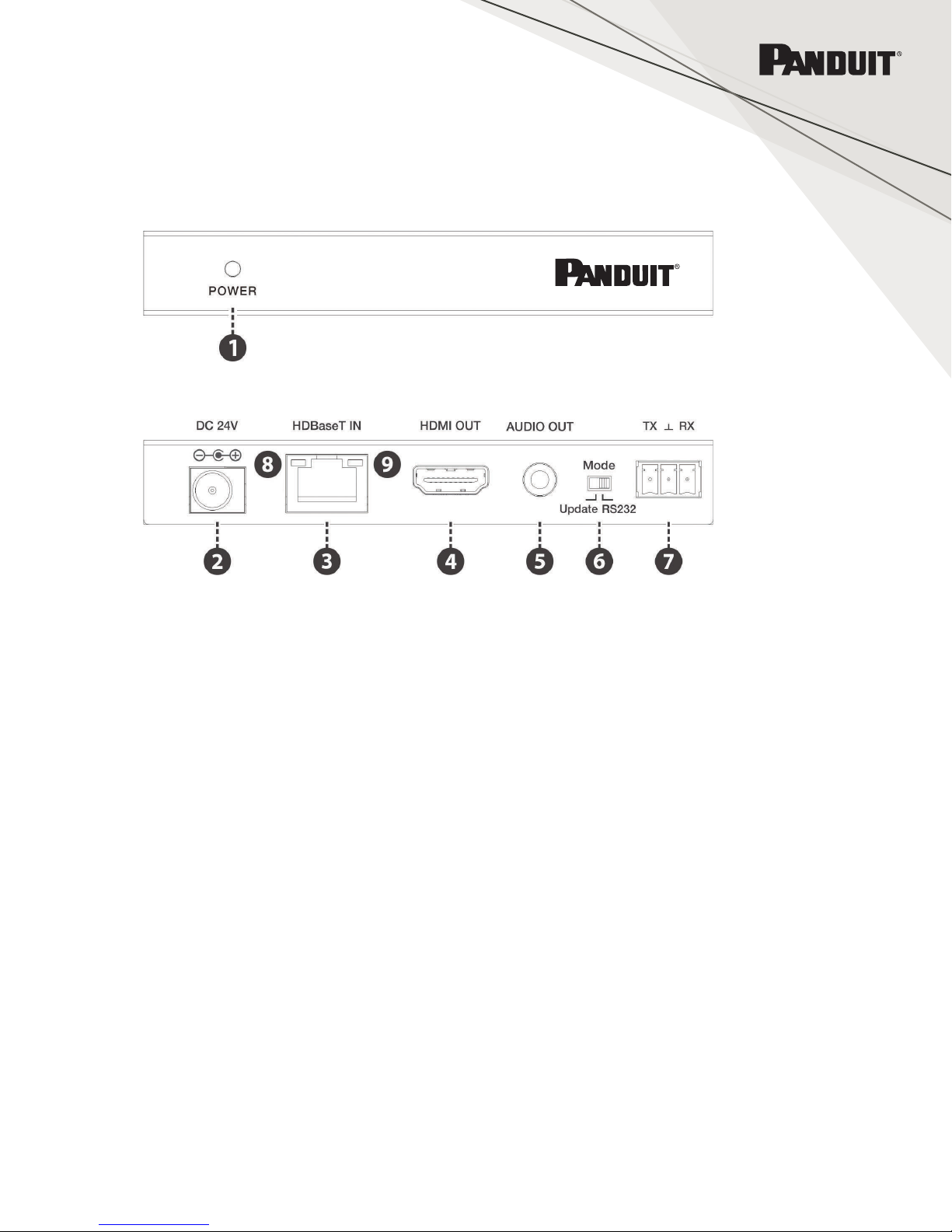

5.1 Transmitter Front and Rear Panel
1. Power LED: System power indicator.
2. DC 24V: Connect 24V/1A adapter to AC wall outlet for power supply.
3. HDBaseT In: HDBaseT signal input port. Connect HDBaseT transmitter with a
category cable.
4. HDMI Out: HDMI output port.
5. Audio Out: Analog audio output from HDMI signal.
6. Mode: The Update Mode and the RS-232 mode selector.
Update Mode: When the dial switch is set to update, port 7 is used to update or control
the device.
RS-232 Mode: When the dial switch is set to RS232, port 7 is used for RS232 pass-thru
communication.
7. RS-232: RS232 communication port that passes through from transmitter to receiver and
receiver to transmitter.
8. Connection Signal Indicator Lamp
•On (Solid): The Transmitter and Receiver are communicating.
•Flashing: The Transmitter and Receiver are not communicating properly.
• O: The Transmitter and Receiver are not connected by a category cable.
9. Data Signal Indicator Lamp
• On (Solid): The HDMI signal is carrying HDCP.
• Flashing: The HDMI signal is not carrying HDCP.
• O: No HDMI signal.

USER MANUAL – HDBaseT Transmitter – CMHDBTBTX www.panduit.com
6
PREPARING RS232 CABLE
What you will need:
• A two-conductor cable with ground terminated with DB9 connectors or not
• Wire strippers
• Screwdriver (at head)
• 3.5mm captive screw connector with 3 positions (included with plate)
• Heat gun and heat shrink (optional)
• Multimeter (optional)See the Description 1
Depending on your setup, you will need an RS232 cable with terminal block on one end to connect to
the unit and either another terminal block or DB9 on the other side. The focus of this section will be
on terminating the terminal block side with the proper pinout because that is what is connected to the
unit. The other end of the cable is dependent on what the unit is connecting too, but all the information
in this section will help to get the proper pinout in any case. As a tip, if connecting to a computer
without a serial port, a USB to serial port converter can be used to communicate with RS232.

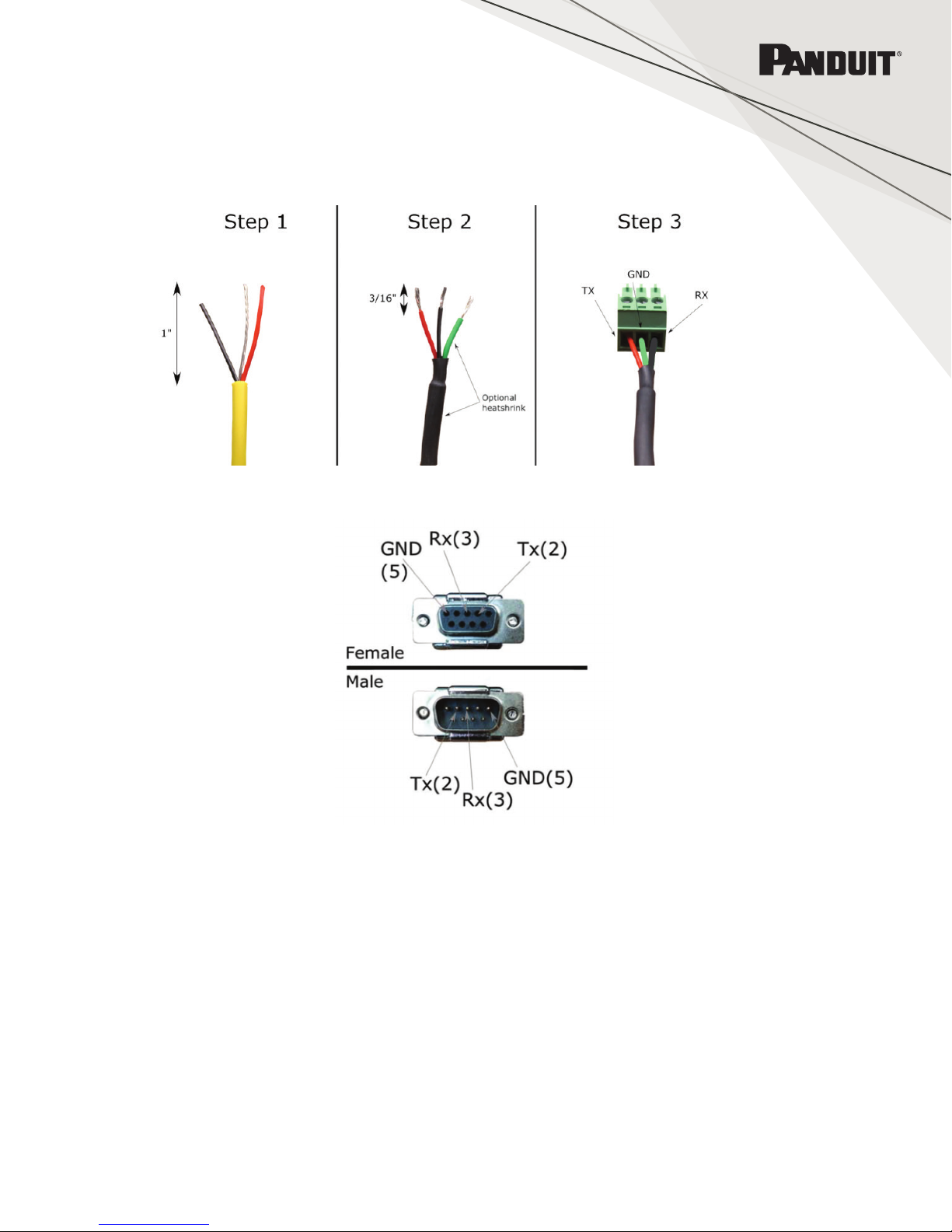

If the cable is terminated on both sides, start by cutting o the end that will be used for connecting
to the unit. Then, strip the outer jacket of the cable back by about 1 inch like what is shown in Step 1
below. Once the outer jacket is removed, you can optionally add heat shrink around the conductors
and over the exposed drain wire like in the picture of step 2. Next, strip the ends of the conductors
back about 3/16” in order to make good contact inside of the captive screw connector. The nal step
is to attach the captive screw connec-tor to the end of the cable matching the conductors on the other
side of the cable to what is shown in step 3, use the connectors shown in the following gure as a
reference if using DB9 male or female. Test the conduc-tors with a multimeter to conrm termination.

7
USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com
PREPARING RS232 CABLE
Note:
When using the device for pass-through, keep in mind that the side (either Tx or RX) that is connected
to the device that the commands are getting sent to will require that the Tx and Rx pins get swapped
around (serial null modem wiring). This means pin 2 of the DB9 connector will connect to the Rx pin of
the HDBaseT device and pin 3 of the DB9 connector will connect to the Tx pin of the HDBaseT device.

8
APPLICATION EXAMPLES

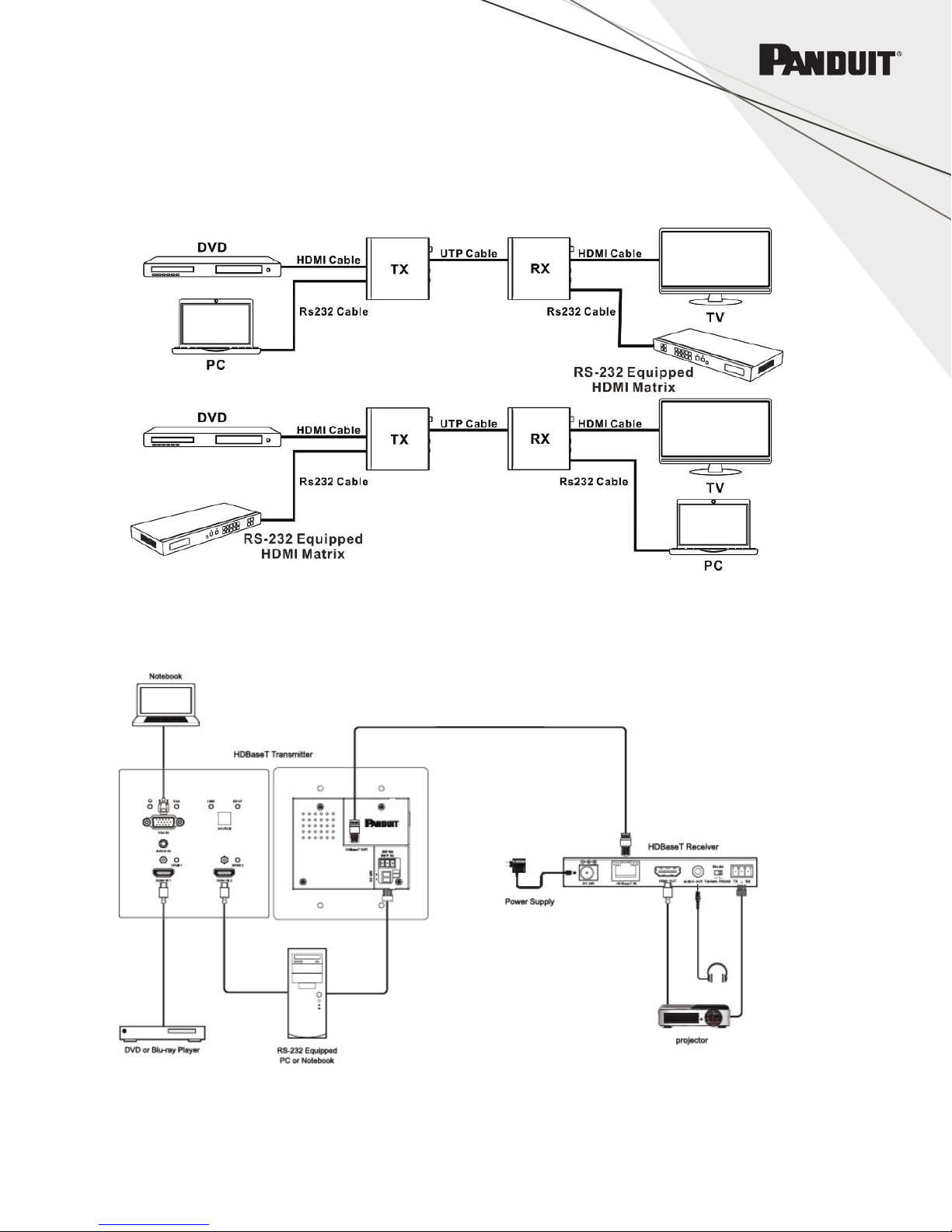

Description 1
POC (Power Over Cable) Application Example
USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com
8
HDBaseT CONNECTIVITY INSTRUCTIONS
1. Make sure that power is o on all products, including display and source device.
2. Make connections to units with HDMI cords.
3. Make connections to units with LAN cable.
4. Plug in the IR sensors (if applicable).
5. Attach the power cord to either Transmitter or Receiver (only one connection needed).
a. Wall plate kits must have power applied to Receiver.
6. Power up display and source.

9
USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com
Description 2
Bidirectional RS232 Control Application Example
Page 12
CONNECTION DIAGRAM

18900 Panduit Dr, Tinley Park, IL 60487
[phone]
www.panduit.com
©2018 Panduit Corp. ALL RIGHTS RESERVED. CPAG10--SA-ENG 4/2018
WARRANTY
Please refer to Panduit.com for the latest warranty information on products
SAFETY INFORMATION
To reduce the risk of electric shock, do not expose this product to rain or moisture.
Do not modify the wall plug. Doing so will void the warranty and safety features.
If the wall plug does not t into your local power socket, hire an electrician to replace
your obsolete socket.
This equipment should be installed near the socket outlet and the device should be
easily accessible in the case it requires disconnection.
!
