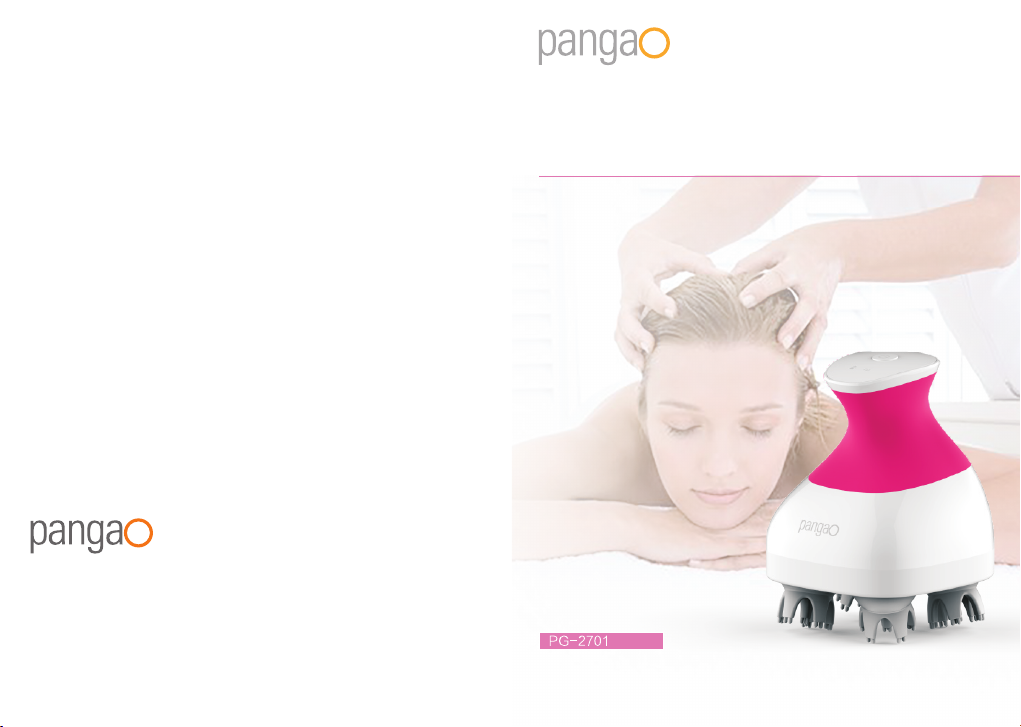

pangao PG-2701 User manual

SCALP MASSAGER
OPERATION MANUAL
OPERATION MANUAL
Shenzhen Pango Electronic Co., Ltd.
Tel:[phone]
Fax:[phone]
Main Site: No.25 1st Industry Zone, Fenghuang Road, Xikeng
Village, Henggang Town, Longgang District, Shenzhen,
Guangdong China
Website: www.pan-go.com
Very appreciated as you purchased our Pangao product!
Please carefully read such operation manual before use, and make good custodies for
further review!
Relax and enjoy
Smart Scalp Massage The Relief

Product introduction
Pangao scalp massager applies to 3D massage technology, simulates
head SPA massage method, acts on physical head, thus promote head
blood circulation, relax brain, relieve tense, pleasantly enjoy head
massage at home. Along with hair dressing, easily help cleaning scalp
dirt and keeping refreshing and health of scalp.
Features
Waterproof design, applicable for dry or wet use;
Four-wheel rotary massage design, adjustable under positive or
inverse mode;
Environmental-friendly silicon gel massage head, with design of
28 contact heads, more comfortable in use;
Massage head can be removed and cleaned up;
Applicable for massages on several parts;
Power supply from lithium cell, safety and reliability, more convenient
use;
USB fast charge;
Auto timing of 15min;
Technical parameter and specs
1. Product specs
Name: Scalp massager
Model: PG-2701
Charging power supply: 5V DC 1A(USB)
Rated power: 5W
Lithium cell: 3.7V DC 1450mAh
Charge time: 2-3hrs
Timing: 15min
Product size: 101x101x133mm
Weight: about 400g
Relative humidity less than 80%;
Atmospheric pressure: 86kPa to 106kPa;
:
Product component
1. Host
2. Charge base
3. USB lead
4. Operation manual
5. Certificate of conformity
Product illustration
3. Transportation and storage conditions
Ambient temperature scope: -20 to +55
Relative humidity: less than 93%;
Atmospheric pressure: 50kPa to 106kPa.
℃ ℃
Switch pushbutton
2. Normal operation conditions:
Ambient temperature: +5 to +40℃;℃
HOST
charge
contact point
massage head
Switch pushbutton
CONTROL PANEL
Mode indication lamp
Charge
indication lamp

Model1: , indication lamp flashes
for once
Low-speed clockwise operation
Elastic contact point
Charge port
CHARGE BASE
Operation descriptions
1. Preparation before use
Please check if built-in lithium cell is sufficient for power supply, need
charge if indication lamp flashes at work. Insert USB lead into mobile
power supply or computer USB port (ensuring 5VDC), then insert mini
USB plug into charge port of charger base, thus host charge indication
lamp flashes, it is always-on after it is full. Make next step if built-in
lithium cell is not enough.
2. Push down key for startup, host starts to run, access to low-
rate positive operation mode, default lasts for 15min, it automatically
stops after 15min.
3. Click key, select three modes, indication lamp flashes,
respectively indicate as follows:
Model2: , indication lamp flashes
for twice
High-speed clockwise operation
Model3:
operation, indication lamp continuously flashes for thrice
High-speed clockwise and counterclockwise alternate
4. Turn off power
If operator stops operation, he only needs to hold down key for 1-2s for
turn-off.
Use of charge cell
1. During use of head massager, if indication lamp lights up or massage
force faints, it means that built-in lithium cell is not enough, thus use USB
lead for charge. Indication lamp (green) flashes as it charges. After
charging into full, charge indication lamp (green) is always-on, charge
lasts for 2-3hrs.
2. As it charges, he keeps full contact between host charge contact point
and elastic contact point of charge base, shown in diagram below.
Note:
Keeps Full Contact
Between Host Charge
Contact Point And
Elastic Contact Point Of
Charge Base!
3. It can be used for 90min after charged.
4. Under normal use, this charged cell life lasts for over 500times of
charge or discharge, about three years as life of use (if use two times
per day).

5. Charged cell reduces its life if no use lasts for long time, it is advised
to charge at least once a month.
Safety considerations
1. Please carefully read and understand full operation manual before
operation and use.
2. Please first clean up massage head before use.
3. Those are out of consciousness of expression (such as children) are not
allowed to use.
4. Those are allergic to skin are not allowed to use.
5. Those who are pregnant, heart disease, abnormal blood pressure,
malignant tumor, acute patients or those are under medical treatment
are not allowed to use
6. Those who feel discomfort or their skin became abnormal during use
must be ordered to stop use and consult with doctor.
7. It is allowed to use during car driving.
8. It is not allowed to use at flammable, explosive, high temperature and
humid places and where electromagnetic radiation exists.
9. Those whose heads are inflammable or coagulation and other
discomfortable symptom or those even was head surgery are not
allowed to use.
10. It is not allowed to privately disassemble, and prevent from any failure
because of any collision or water entry.
11. As continuous use for too long time may cause overheated product or
reduce life of use. If product is overheated, please stop use. Use it only
after temperature reduction.
Clearance, maintenance and custody
1. Clearance and maintenance
(1) Dip little clear water and wipe out dirt by dry soft cloth or dry towel
as host or charger base becomes dirty.
(2) As massage head becomes dirty, directly disassemble it and clean up
by water.
(3) Must not clean it up through steel wire mesh, iron brush or sharp
appliances and some volatile or corrosive solvent.
2. Custodies
(1) Please place it beyond where child reaches
(2) Keep it where to be beyond direct exposure to sunlight, high
temperature and high humidity
(3) Keep custodies at dry and free air place.
(4) Private disassembly, repair or modification is not allowed since it
causes incident or failure.
General failure and solutions
Symptom Checkup items Solutions
No startup Is power charge cell
is sufficient?
If not, please charge it
by USB lead.
Can not charge
or none indication
for charge.
Have USB lead been
linked therein?
Check if USB lead plug is
inserted in place.
Is charged power
supply sufficient?
Check if charge power
supply (mobile power
supply, computer USB
port) outputs normally.
Does charge contact
point fully contact
with elastic contact
point at charger base?
Again place host into
charger base, surely keep
host charge contact point
fully contact with elastic
point at charge base.
Shasha voice
sends during
operation
It is normal voice as
it runs /
if some issues still can not be handled, please contact with us for
further operation instruction or make repair.
Note:
C04
