Panini My Vision X
Operator Manual

CONTENTS
1Preface
2General
1.1 Audience
1.2 Safety Precautions
1.3 If the Machine is Damaged
2. Learning about the Panini My Vision X
2.1 Packaging List
2.2 External Parts Description
2.3 Internal Parts Description
3. Operating your Panini My Vision X
3.1 Document Support Installation
3.2 Extension Plate Installation
3.3 Power Cables Connection
3.4 USB 2 Cable Connection
3.5 HP C6602A Ink-Jet Cartridge Installation
3.6 HP 51604A rev.B Ink-Jet Cartridge Installation
3.7 Pocket Length Adjustment

4. Getting started
4.1 Status Lights
4.2 How to Prepare and Load Checks
4.3 Clearing Jams
5. Maintenance
5.1 Cleaning the Transport
5.2 Cleaning the Contact Image Sensors
5.3 Cleaning the HP C6602A Ink-Jet cartridge
5.4 Cleaning the HP 51604A rev.B Ink-Jet Cartridge
5.5 Cleaning Photocells Detector
5.6 Replacing the Feeder and Separator Rollers
5.7 Cleaning the Reading Transport Belt
5.8 Install the External Covers
6. Specifications
6.1 Technical specifications of the Panini My Vision X
6.2 Technical specifications of the PC
1My Vision X SD Addendum
2My Vision X AGP Addendum
Change/Revision History
Date Section/Chapter Revision/Change Description Page/Section
Affected
11/2007 No changes to this document which is a
manufacturer’s document

Fifth Edition: July 2006 Panini Part No. HA-00093-04
© 2006 PANINI SpA Via Po, 39 10124 Torino Italy Internet: www.panini.com
PANINI NORTH AMERICA (Subsidiary) 577 Congress Park Drive Dayton, OH 45459 (USA)
This manual and the software described in it are protected under the Panini S.p.A Copyright. All rights
reserved. Reproduction of this material in any form without the express written consent of Panini SpA or
its subsidiaries is prohibited. PANINI SpA PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF
ANY KIND, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PANINI SpA MAY MAKE
IMPROVEMENTS AND OR CHANGES IN THE PRODUCT(S) AND OR THE PROGRAM(S) DESCRIBED
IN THIS MANUAL AT ANY TIME AND WITHOUT NOTICE. This manual could contain technical
inaccuracies or typographical errors. Changes are periodically made to the information herein; these
changes will be incorporated in new editions of this publication.

Trademark Acknowledgement
PANINI logo, My Vision X, Vision API, ICR Vision and MICR Plus are trademarks or registered
trademarks of Panini SpA.
The Panini My Vision X is also UL 950 compliant:
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
© 2006 PANINI S.p.A., ALL RIGHTS RESERVED
OPERATORMANUAL Page 5 Preface

Proper Disposal of WEEE
FOR COUNTRIES IN THE EUROPEAN UNION (EU)
The European Commission of the European Union has determined that electrical and electronic equipment on
the market today contain parts and components that may be properly reused or recycled to reduce quantities
of materials ultimately disposed in landfills and other disposal arenas. To address this determination, waste
electrical and electronic equipment (WEEE) should not be collected or disposed with unsorted waste from
private households or businesses. Rather, it must be collected separately. Offenders will be subjected to the
penalties and measures laid down by the law To that end, Panini products are appropriately marked with the
European Union WEEE Directive’s crossed-out dustbin symbol to indicate:
•the requirement for separate collection of electrical and electronic equipment put on the market
after August 13, 2005.
•Panini guarantees the activation of the treatment, collection, recycling and disposal
procedures in
accordance with the directive 2003/108/CE (and subsequent amendments).
To dispose of our devices correctly:
•Contact the Local Authorities, who will give you the practical information you need and the
instructions for handling the waste correctly, for example: location and times of the waste collection
centres,etc.
•When you purchase a new device of ours, give a used device similar to the one purchased to our
distributor for disposal.
FOR OTHER COUNTRIES (NOT IN THE EU)
The treatment, collection, recycling and disposal of electric and electronic devices will be carried out in
accordance with the laws in force in the country in question.
OPERATORMANUAL Page 6 Preface

O. Preface
Here is an overview of the manual layout:
Chapter 1: “General” introduces you to all the general information regarding the manual or the
Panini My Vision X.
Chapter 2: “Learning about Panini My Vision X” introduces you to all the major components of your
machine.
Chapter 3: “Operating your Panini My Vision X” describes simple installation procedures.
Chapter 4: “Getting started” explains how to operate the My Vision X.
Chapter 5: “Maintenance” describes how to solve problems that you may encounter using this machine.
Chapter 6: “Specifications” lists the main functions of the My Vision X and the features of the PC.
OPERATORMANUAL Page 7 Preface

1. General
Congratulations on your selection of the Panini My Vision X! The Panini My Vision X is a new
generation of check scanners. With a small footprint, sleek design and quiet operation, the Panini My
Vision X fits perfectly in a small area such as a teller window, or on the back counter of bank
branches.
The Panini My Vision X incorporates the latest, state-of-the-art technology and the latest standards for
check processing in the market place.
A unique, patent-pending 3-mode feeder can be found in the Panini My Vision X, allowing for single item
feeding, up to 30 items batch feeding with single hand insertion (in this case it is always possible to insert
documents with one hand only) or up to 100 items batch insertion by manually moving the pressure plate.
Options with limited feeder capacity are also available to cover specific customer needs. MICR reading
technology available with the Panini My Vision X is comparable to the larger and faster reader sorter,
thanks to the Panini MICR PlusTM technology.Taking advantage of the most up to date technology, the
Panini My Vision X connects to computers viaUSB2.0 interface, allowing for fast data transfer at no
additional cost. A rear Ink-Jet endorser can also be found on the Panini My Vision X.The Panini Vision
API is standard on the My Vision X, guaranteeing easy and reliable software integration. Finally, the
Panini My Vision X has been designed specifically to allow for entire track accessibility, including scanner
area, for easy intervention and for maintenance purposes.
OPERATORMANUAL Page 8 General

1.1 Audience
This manual is written primarily for personnel who process checks or other documents.
1.2 Safety Precautions
Before you begin operating or servicing your My Vision X as instructed in this manual, please make sure

you read and understand these important safety instructions.
 Dress safely. Do not wear loose clothing, long hair or jewelry that can become entangled in moving
parts.
 Do not allow anything to rest on the power cord. Do not locate the My Vision X where people may
walk on the cord.
 Always unplug the My Vision X before cleaning.
 Do not attempt to service or repair the My Vision X, except as instructed elsewhere in this manual.
 Attempting to service or repair the external power supply of the My Vision X may expose you to
dangerous voltage points or other risks.
 Refer all servicing to qualified service personnel.
OPERATORMANUAL Page 9 General
1.3 If the Machine is Damaged
Unplug the My Vision X from the wall outlet and refer servicing to qualified personnel under the following
conditions:
 If the power cord is damaged or frayed.
 If liquid has been spilled into the product.

 If the equipment has been exposed to rain or water.
 If the equipment does not operate normally when the operating instructions are followed.
 If the equipment has been dropped or damaged.
 If the equipment exhibits a distinct change in performance, indicating a need for service.
Adjust only those controls and replace only those items that are covered by the instructions in this
manual.
If you attempt to make adjustments not covered in this manual, you may damage the equipment and void
the warranty.
Unauthorized adjustments or repairs may result in the need for extensive work by a qualified technician to
return the equipment to its proper working condition.
2. Learning About the Panini My Vision X
The Panini My Vision X is a compact, easy-to-use and quiet scanner.The Panini My Vision X
automatically scans the front and/or rear of checks while simultaneously capturingthe Magnetic Ink
Character Recognition (MICR) code line. An optional Ink-Jet endorser prints alphanumericcharacters on
the rear of items. Any of the Windows standard fonts can be used for printing endorsements.The Panini
My Vision X is connected to a PC via a USB2.0 interface.
2.1 Packaging List

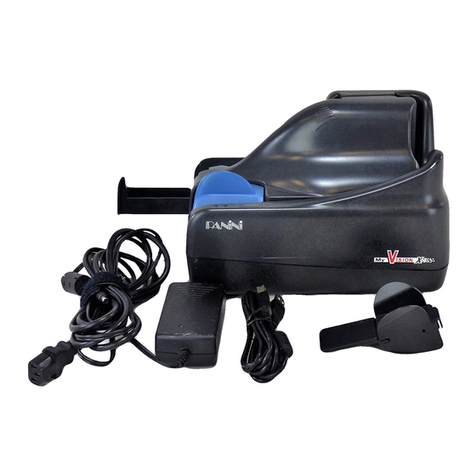

The Panini My Vision X package includes: 1 2 3 4
 – Operator Manual (1)
 – Accessories box (2)*
 – Panini My Vision X scanner unit (3)
 – Power cable (4)

(*) The accessories box contains:
 Feeder Extension
 Extension plate
• Ink-Jet Cartridge HP C6602A
(Panini P/N: CA-00138-00)
 Ink-Jet Plastic Lever (adapter for HP 51604A cartridge)
 USB 2 Cable
 Power Supply
 #1 Feeder Ring, #1 Front Separator Ring, #1 Rear Separator Ring
Removing the Panini My Vision X from the Packaging
1 Remove the Accessories box, the operator manual and the power cable out of the packaging.
2 Holding the packaging down with one hand, lift the My Vision X together with the packing materials
Plastic handle making use of the plastic
handle (Fig.3). C

B
Fig.3
A
Attention: • Don’t use the plastic handle to carry the My Vision X from one place to another. Use it only
to extract the device from its packaging.
• During unpackaging, do not remove or pull the Mylar blades A, B and C (see Fig.4).

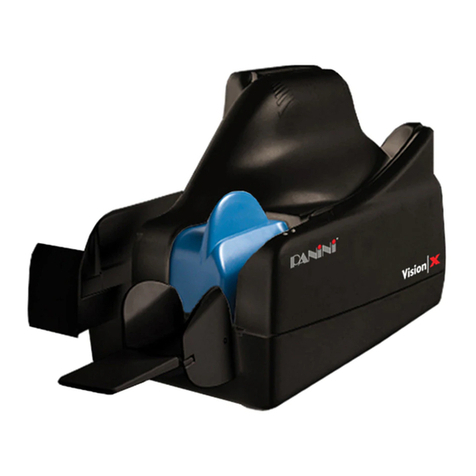

2.2 External Parts Description

This section describes the major components of the Panini My Vision X.The component names introduced
here and shown in the figures are used throughout this manual.
Pocket Extension
Document Pressure Plate
Extension Plate
Feeder Extension
Bottom Cover

2.3 Internal Parts Description
1 Document Pressure Plate 18 17 16 15 14 13
2 LED and interlock board
3 Feeder Roller
4 Feeder Sensor
5 Separator Roller
6 Rear Separator Roller
7 Pre-magnetization Head
8 Synchronization Sensor
9 MICR Reading Head
10 “U” Track Wall
11 Transport Rollers
12 Ink-Jet Cartridge Cradle
13 Front Image Camera
14 Rear Image Camera
15 Pocket sensor
16 Transport Belt
17 Interlock Board
18 Feeder Motor
OPERATOR MANUAL Page 14 Learning about the Panini My Vision
X

3. Operating your Panini My Vision X
3.1 Document Support Installation
Insert the Feeder Extension in the slot uncovered by pushing back the Document Pressure Plate.
Installation is correct if the Feeder Extension is at the same level of the entrance of the scanner platform.

Document Pressure Plate
Feeder Extension
Slot
Fig.7
3.2 Extension Plate Installation
The feeder extension is designed to support all documents anticipated to be processed by the My Vision
X. Markets or applications that process a large number of long documents (longer than 8 inches) may find
it necessary to apply the optional extension plate for better document support, reducing the risk of image
skewing, MICR rejects, etc. Assembly is made by sliding the extension plate, face side up, along the
bottom side of the feeder extension into the support notches until the plate snaps into place (Fig.8). The
lock tabs should securely fit into the round holes and the short and long tabs should be fully inserted into
the support notches (Fig.9).

3.3 Power Cable Connection
Before connecting the scanner to your PC, make sure to locate the unit on a flat surface near the PC,
away from direct light and from electromagnetic equipment.
1 Plug the power cord connector in the Power Supply socket (Fig.10).
2 Plug the Power Supply cable in the My Vision X power connector (Fig.11).

Warning: • The electromagnetic emission from a CRT monitor can produce interference and affect the
MICR reading; therefore place the My Vision X as far as possible from the CRT.
• Only use the power supply provided in the Panini My Vision X packaging. Using other power
supplies could damage the unit.
3. The My Vision X should be plugged into a dedicated electrical power outlet. The power supply will be
100-240 VAC (no power selection required), and the frequency 50/60 Hz. If you are not sure of the type
of power available, consult your Service Representative or local power company.
Note: There is no LED power indication upon connecting the My Vision X. LED status indicators only
illuminate when the application connects to the My Vision X unit. See section 4.1.
OPERATORMANUAL Page 17 Operating your Panini My Vision X
3.4 USB 2 Cable Connection
Connect the USB 2 cable to the USB 2.0 port located on the rear side of the scanner, then connect the
other end of the cable to an available USB 2.0 port on the PC.

USB 2 cable
3.5 HP C6602A Ink-Jet Cartridge Installation
Remove the inner cover (see section 5.1 for details).Take a new Ink-Jet cartridge out from its package. Do not
touch the ink with your fingers or clothing: it will stain.Angle the front side of the cartridge downwards and
face the two pins with the two holes in the cradle.Gently push down the rear side of the cartridge until it
snaps in the plastic retainer.
